LG IPS Diagnostic Monitor for Mammography
Find a Dealer
pc lazyloaded mobile lazyloaded

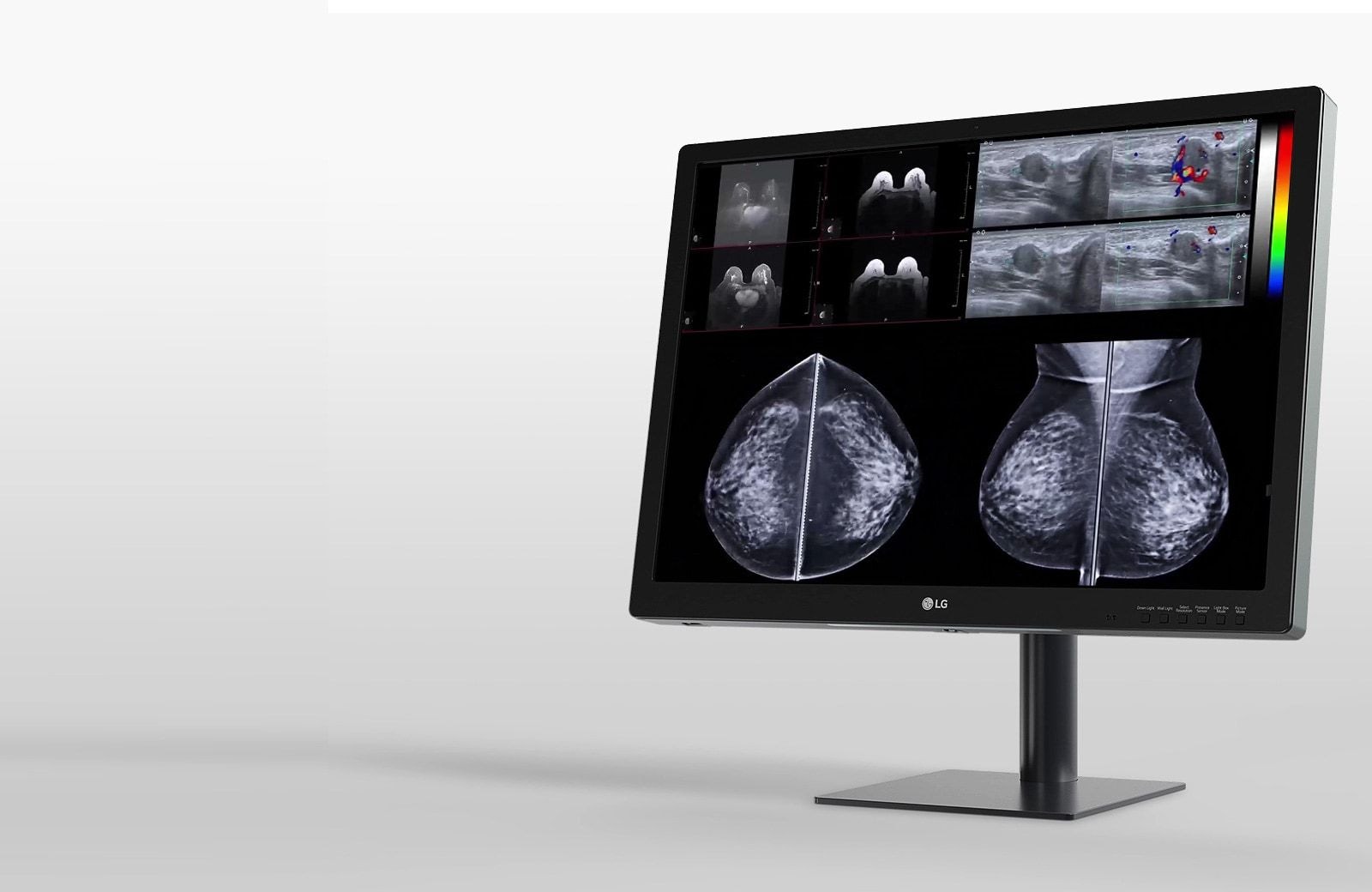

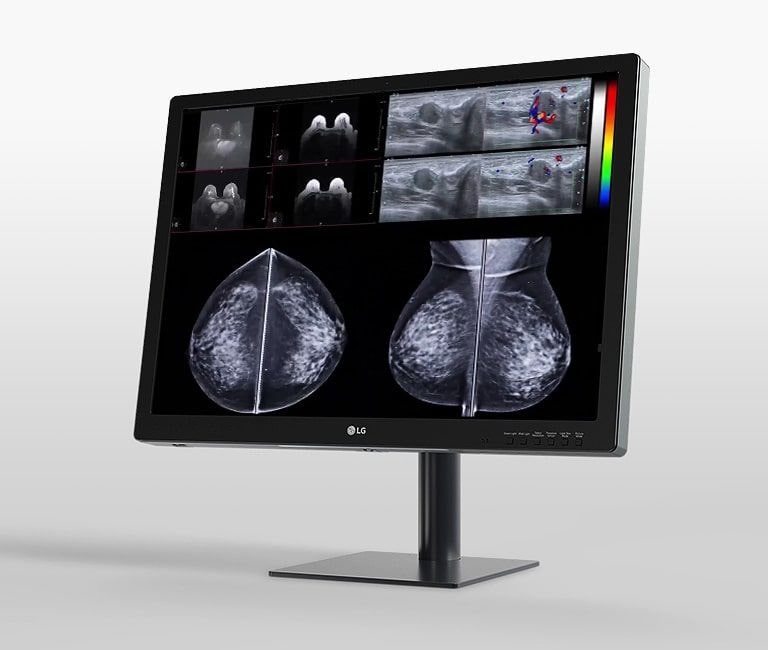

31-inch 12MP IPS Display

Designed for
Mammography

The 12MP display creates a clear image that allows details to be visible.

  • Accuracy

    31-inch 12MP IPS Display
    Self-calibration with Front Sensor

  • Efficiency

    Focus View
    Picture by Picture & Dual Controller

  • Convenience

    6 Hot Key
    Ergonomic Design

Accurate Imaging

pc lazyloaded mobile lazyloaded

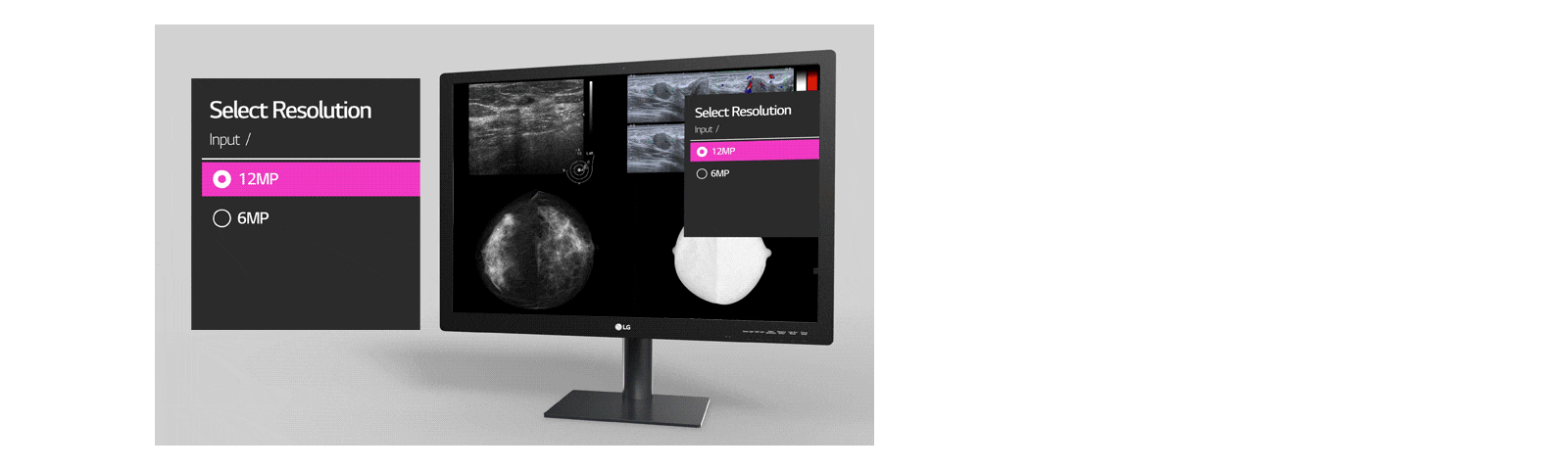

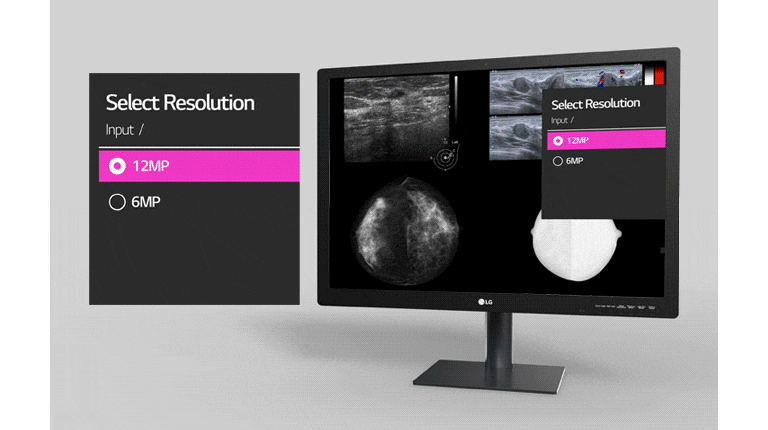

Multi-resolution Mode

Multi-resolution Mode for Compatibility

Diagnostic monitors often need to be connected to various modalities, sometimes with differing resolutions. The 31HN73D-B has a multi-resolution mode you can adjust to optimize to the connected device.
*Image for illustration purposes only.
pc lazyloaded mobile lazyloaded

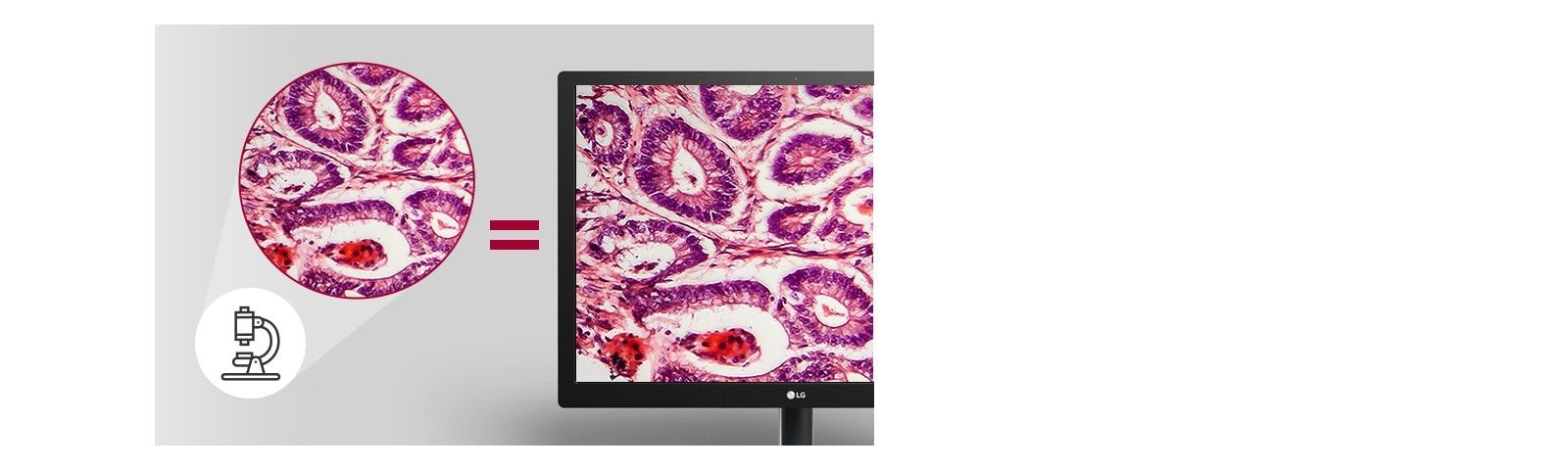

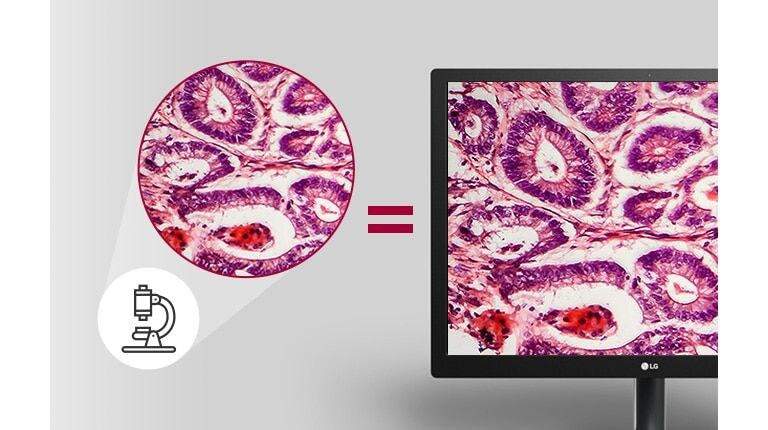

Pathology Mode

Realistic Color Reproduction

In Pathology Mode, the 31HN713D-B Diagnostic Monitor reproduces virtually the same level of detail and color as seen directly under a microscope.
*Image for illustration purposes only.
pc lazyloaded mobile lazyloaded

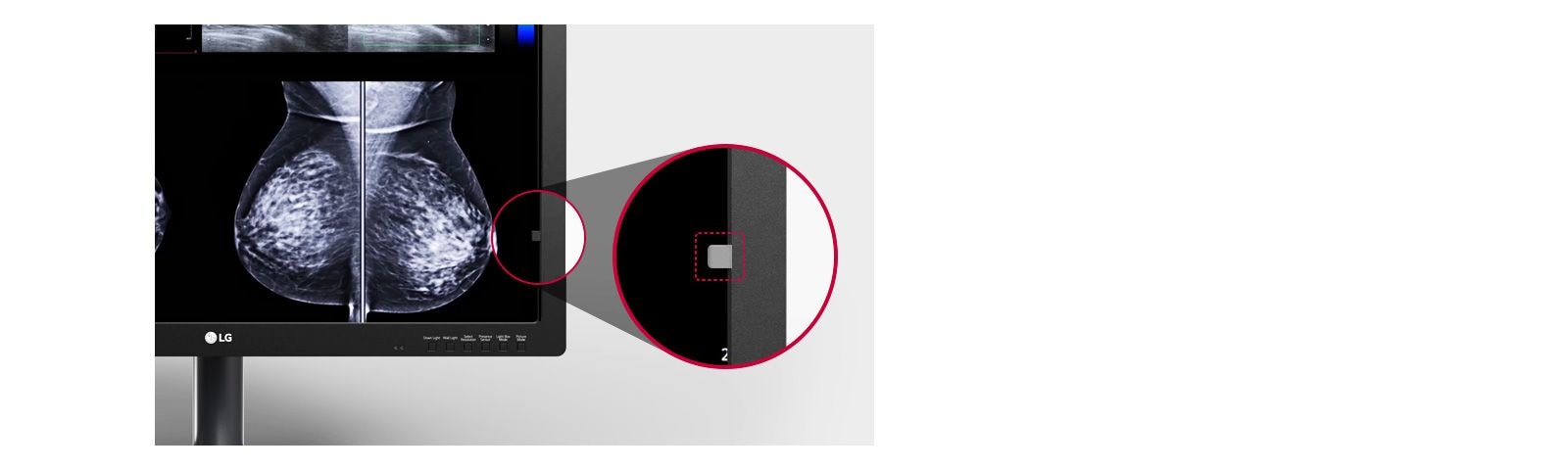

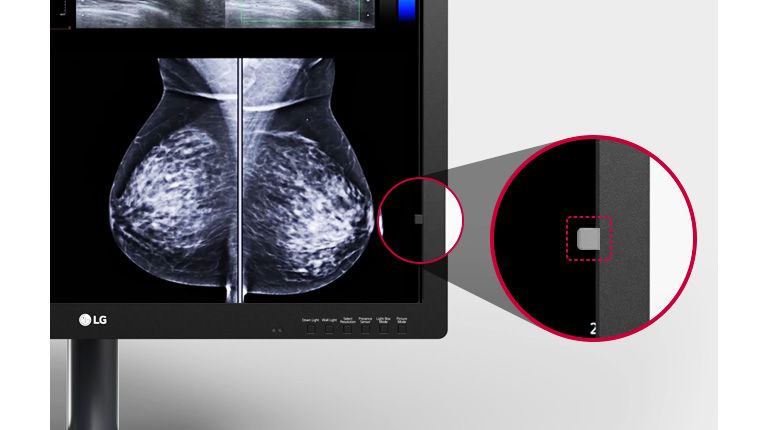

Self-calibration

Consistency in Medical Images

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. Get quality and consistency of medical images that are displayed by maintaining accurate values.
*Image for illustration purposes only.
pc lazyloaded lazyload mobile

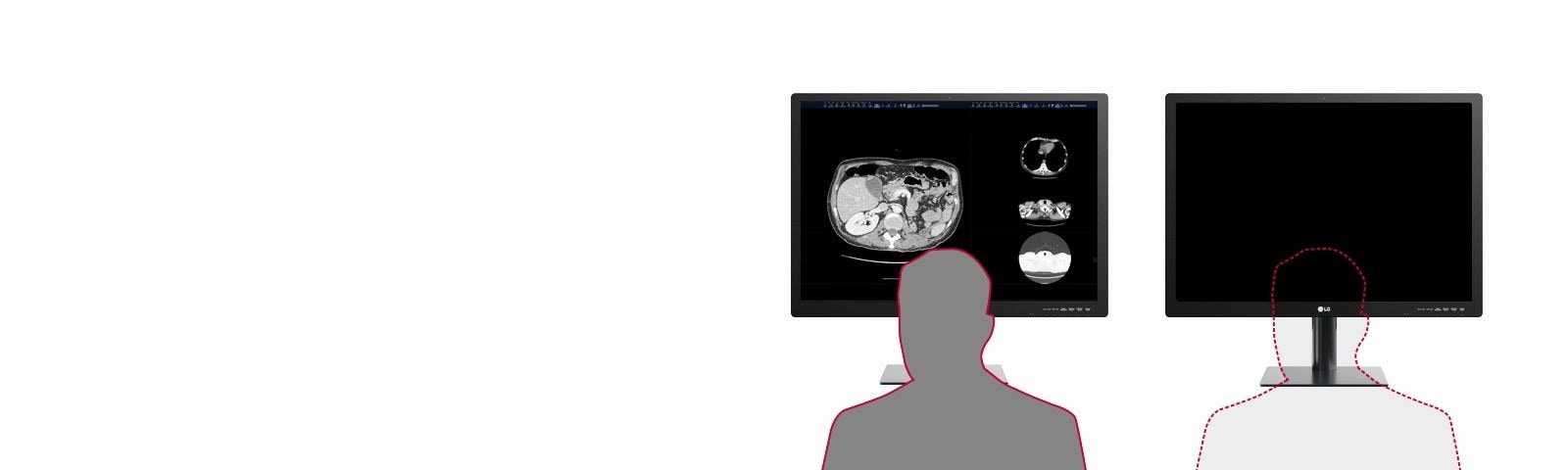

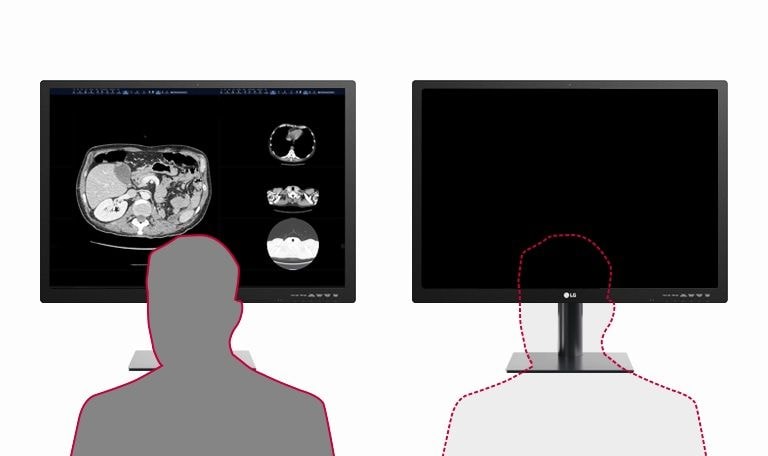

Presence Sensor

The Presence Sensor on the 31HN713D-B diagnostic monitor automatically turns off the display when no motion is detected. Be more secure against exposing patient information and other sensitive data with this feature.
*Image for illustration purposes only.
pc lazyloaded lazyload mobile

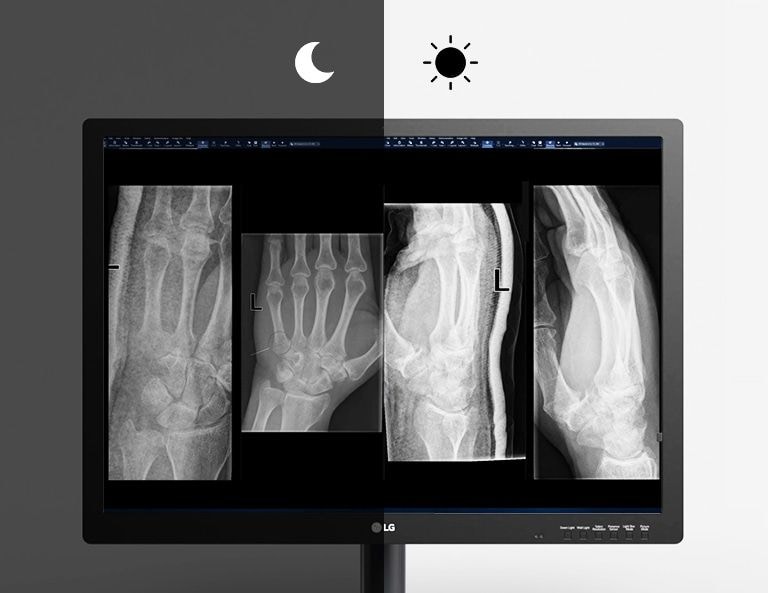

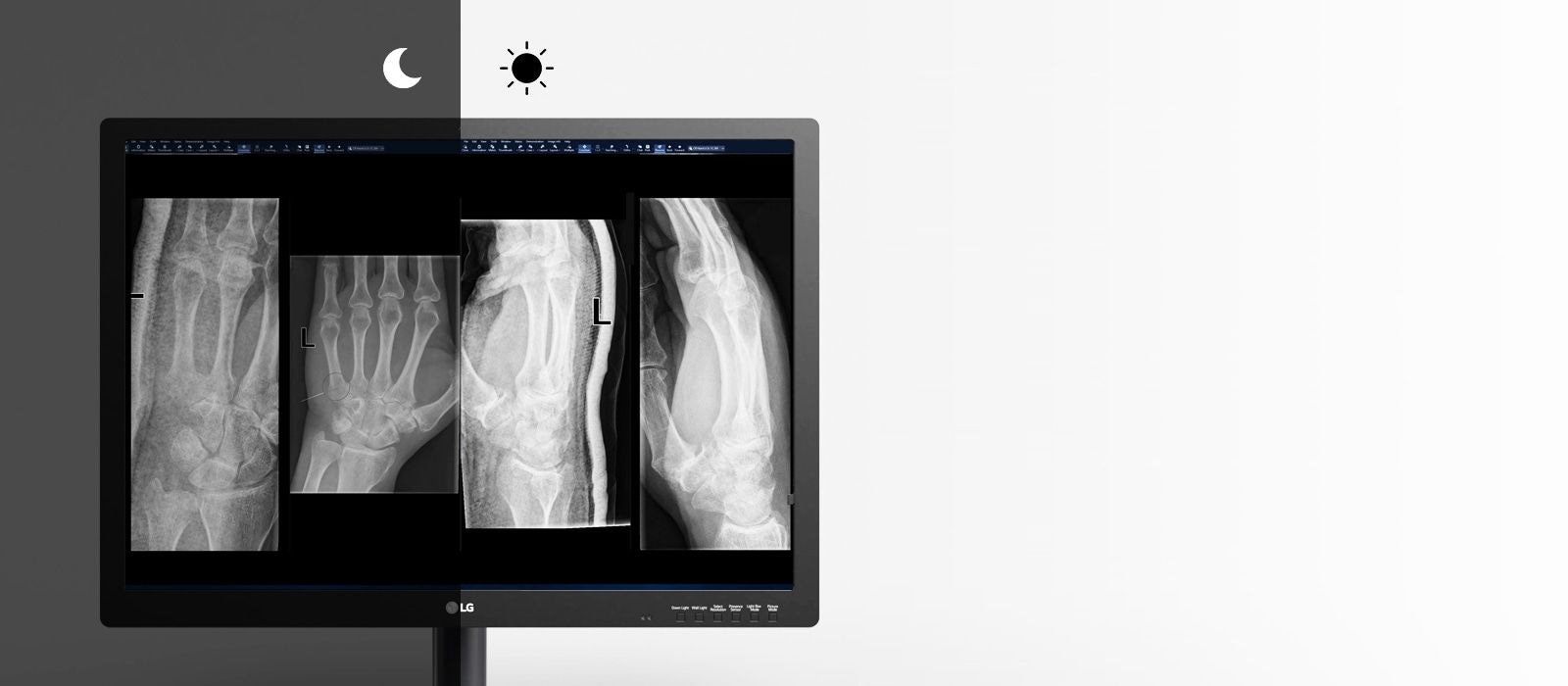

Auto Luminance Sensor

Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.
*Image for illustration purposes only.
pc lazyloaded lazyload mobile

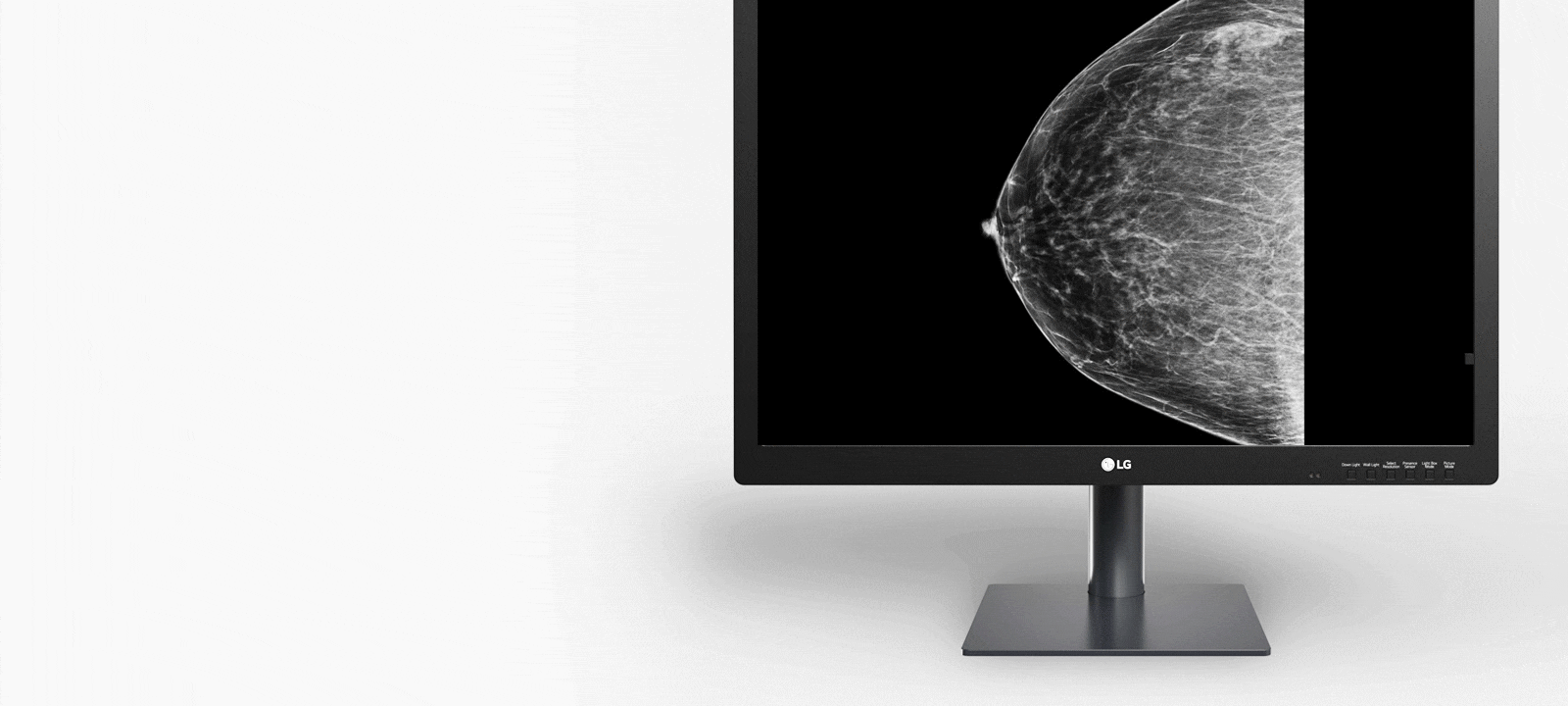

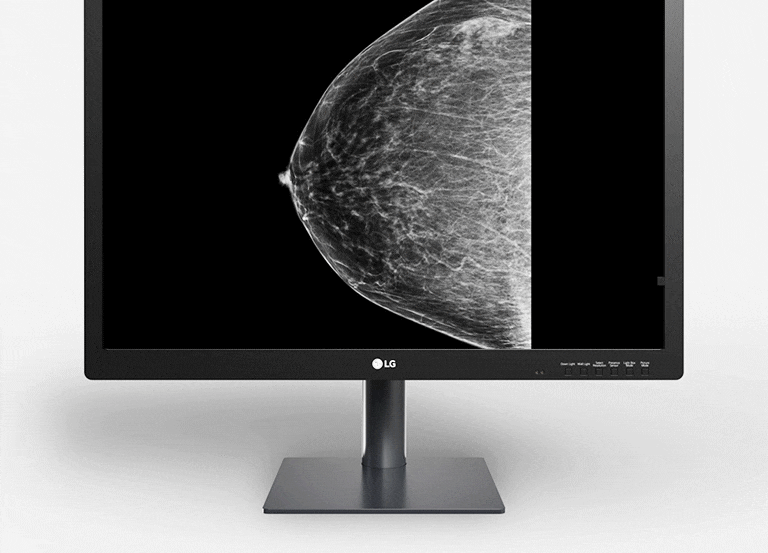

Focus View

Fully Focus on the Important part

LG 31HN713D-B includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image to help achieve a more accurate and efficient diagnosis.
*Image for illustration purposes only.

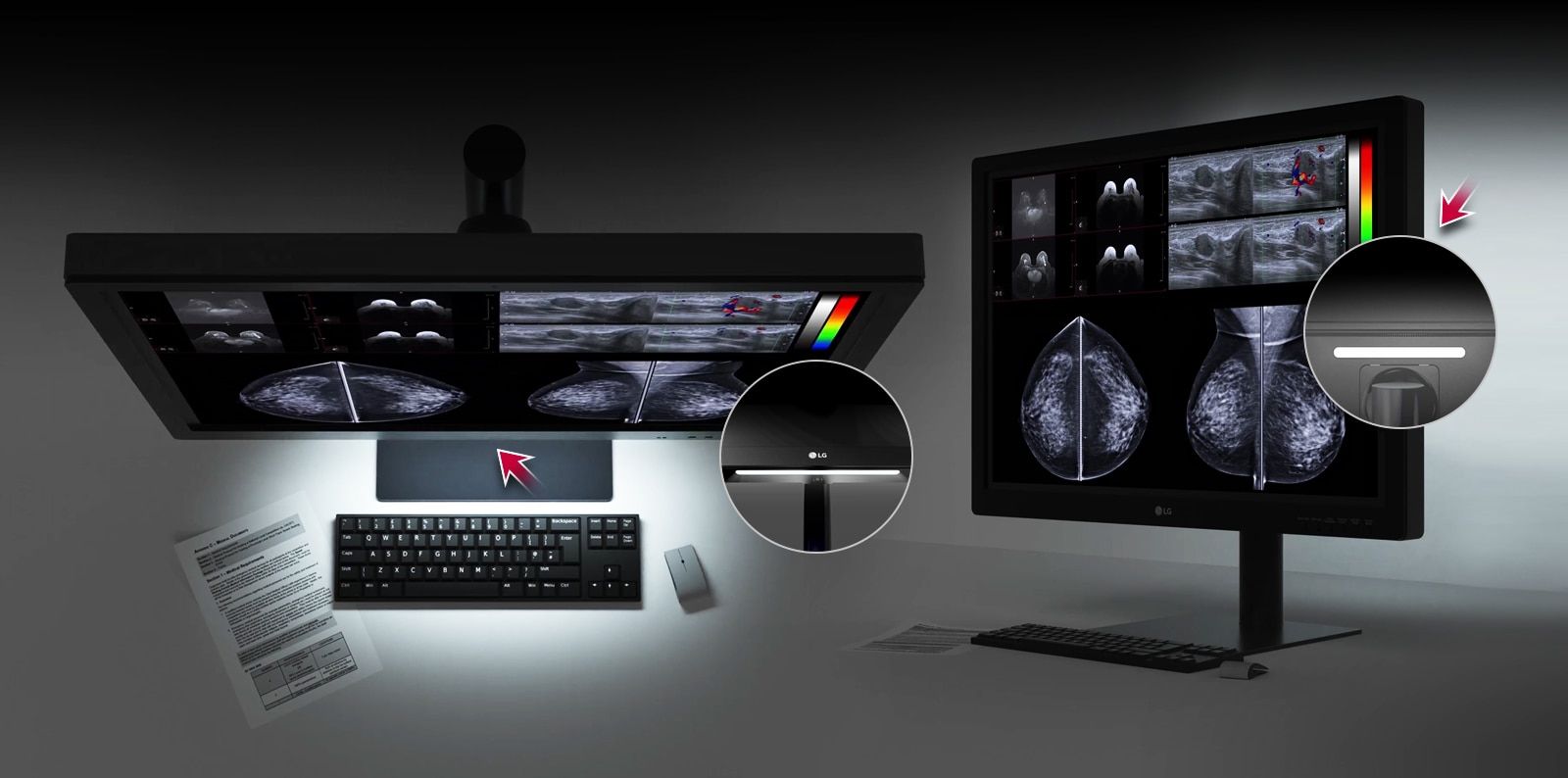

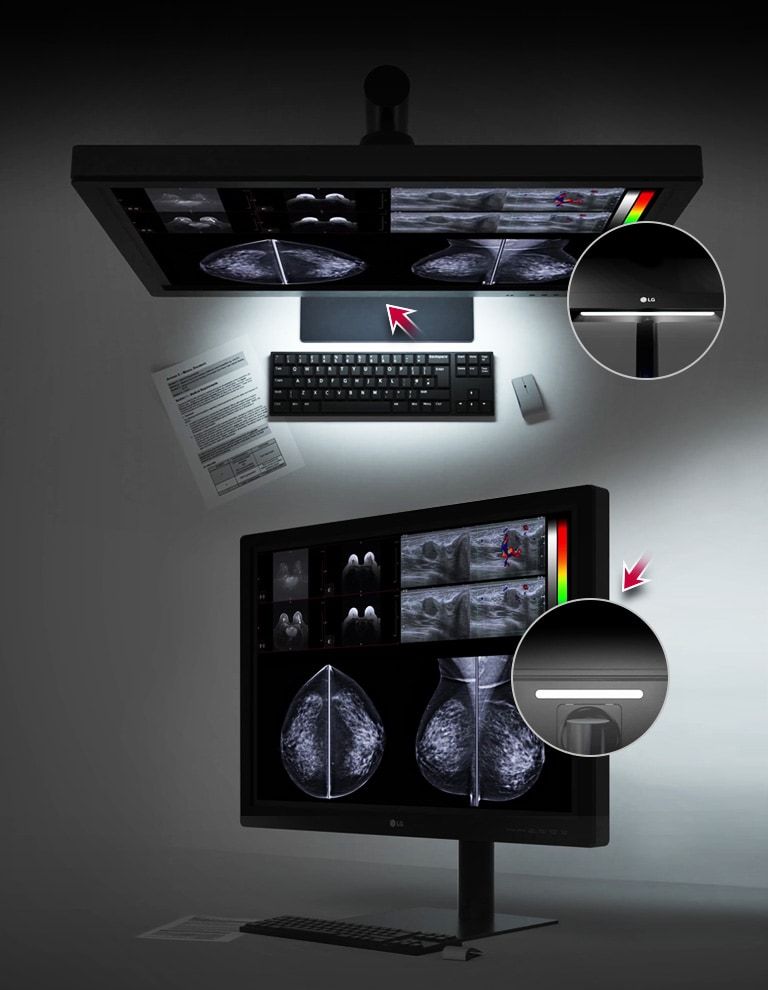

Down Lighting & Wall Lighting

Optimal Reading Condition

Down and Wall Lighting Modes help reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
pc lazyloaded lazyload mobile

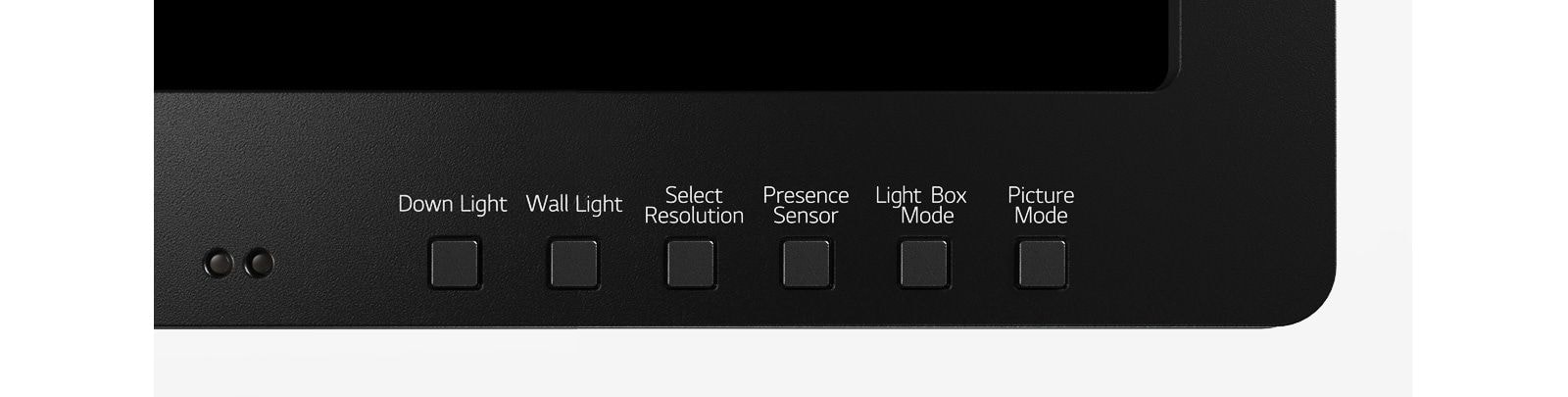

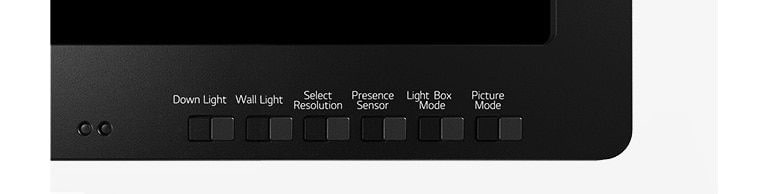

6 Hot Keys

Intuitive Control

The 31HN713D-B's 6 Hot Keys make changing between screen modes easy. The 6 Hot Keys are quick and easy to operate while working, allowing you to change mode, screen resolution, and lighting settings without disrupting your workflow.
pc lazyloaded lazyload mobile

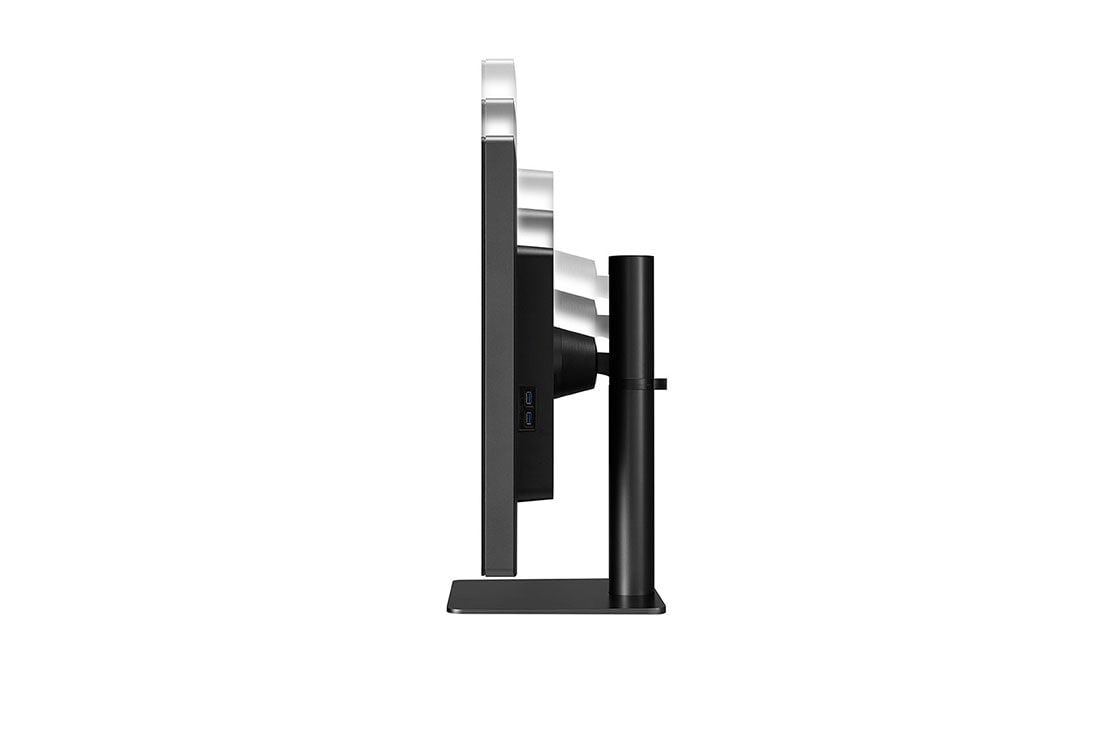

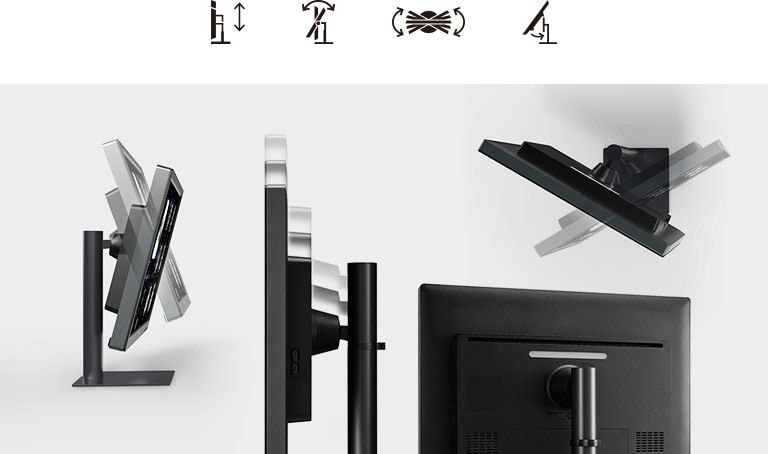

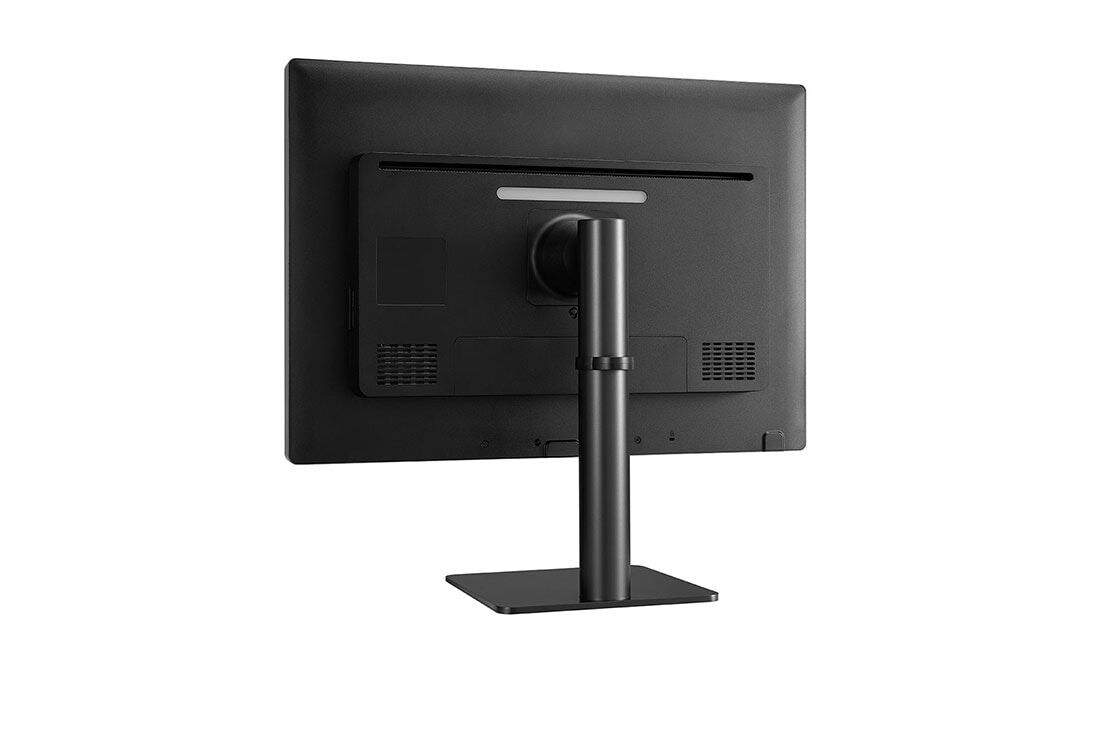

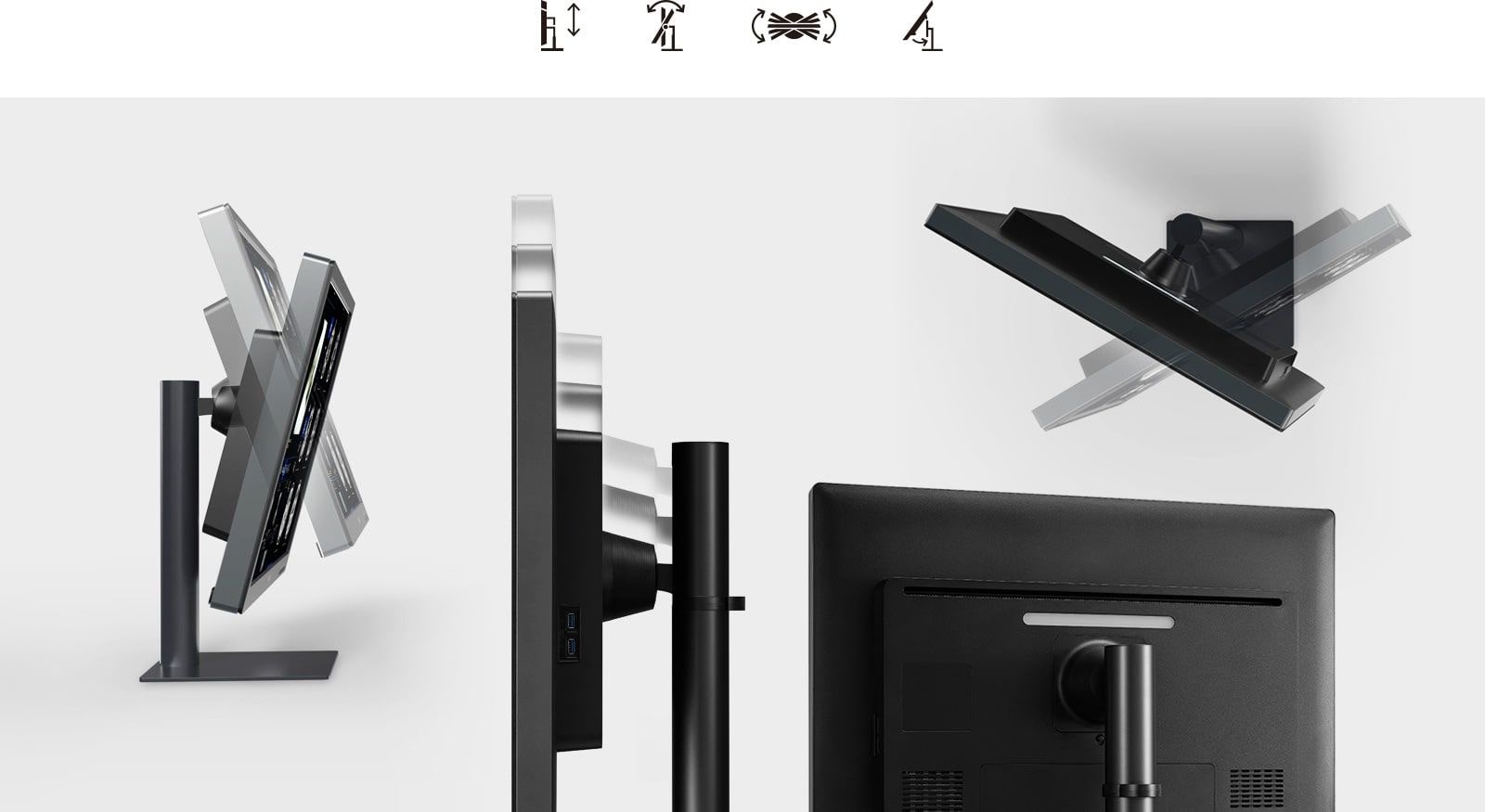

Easy to Install and Ergonomic Design

The One-Click Stand and ultra-lightweight body make installing the 31HN713D-B simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.
pc lazyloaded lazyload mobile
Close
DISPLAY
  • Resolution
    12MP (4200 x 2800)
    Inch (Aspect Ratio)
    31-inch (3:2) Color
PANEL
  • Panel Type
    IPS
    Surface Treatment
    Anti-glare, 3H
  • Color Gamut (Typ.)
    sRGB over 97% (Coverage)
    Viewing Angle (CR≥10)
    178° (Right/Left)/178° (Up/Down)
  • Brightness (Typ.)
    1080cd/m²
    Contrast Ratio (Typ.)
    1500:1
  • Pixel Pitch
    0.1554mm x 0.1554mm
    Response Time
    GTG* 14ms (Off-setting), GTG 5ms (Faster-setting)
  • *
    GTG: Gray to gray response time.
    **
    Specifications may vary by region and all features, standards, and other products specifications are subject to change without notice or obligation.
FEATURE
  • DICOM Compliant
    Yes
    HW Calibration
    Yes (PerfectLum) with Internal Front Sensor
  • Brightness stabilization
    Yes
    Brightness Uniformity Correction
    Yes
  • Display Mode
    Multi-resolution Mode (12/6MP), Pathology Mode, Focus View Mode
VIDEO SIGNALS
  • Input Terminals
    DisplayPort x 2
CONNECTIVITY
  • USB
    1 upstream, 3 downstream
POWER
  • AC Input
    100-240 Vac, 50/60 Hz
    Power Consumption (Max.)
    180W
  • Power Consumption (DC Off)
    Less than 0.3W
CERTIFICATIONS & STANDARDS
  • Certifications & Standards
    EC (IEC 60601-1/IEC 60601-1-2), EN (EN 60601-1/EN 60601-1-2), IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035), IEC (IEC 60950-1/IEC 55032, 55024), cUL (ANSI/AAMI ES 60601-1, EN (EN 60950-1/EN55032, 55024), CSA CAN/CSA-C22.2 NO. 60601-1), FCC (FCC part 15 Class A), FDA (510 (k) (Class II)), RoHS, REACH, WEEE
USER CONVENIENCE
  • PBP
    Yes (2PBP)
    Reader Mode/Flicker Safe
    Yes (Text Mode)/Yes
  • Lighting
    Yes (Down/Wall)
    Presence Sensor
    Yes
  • Auto Luminance Sensor
    Yes
PHYSICAL SPECIFICATIONS
  • Weight (With Stand)
    14.0kg (30.9 Ib)
    Borderless Design
    Normal
  • Adjustable Stand
    Swivel: ±15°, Tilt: -5-15°, Height Range: 110mm

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
