32HQ713D-B component-copyModelName

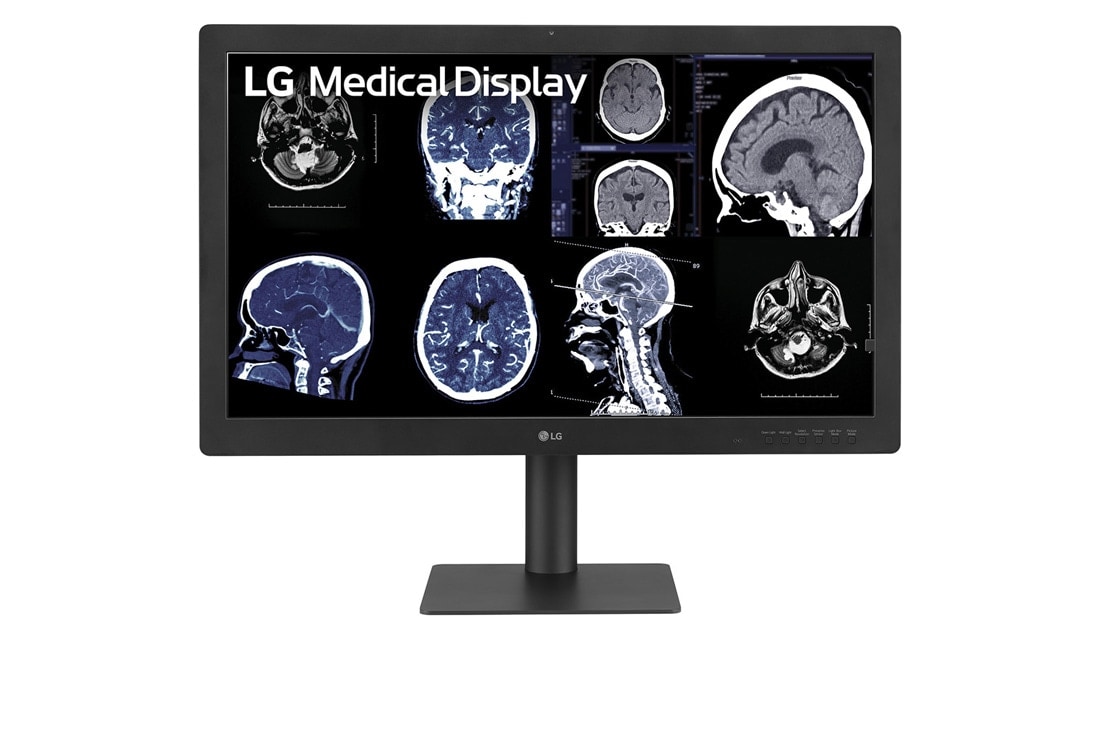

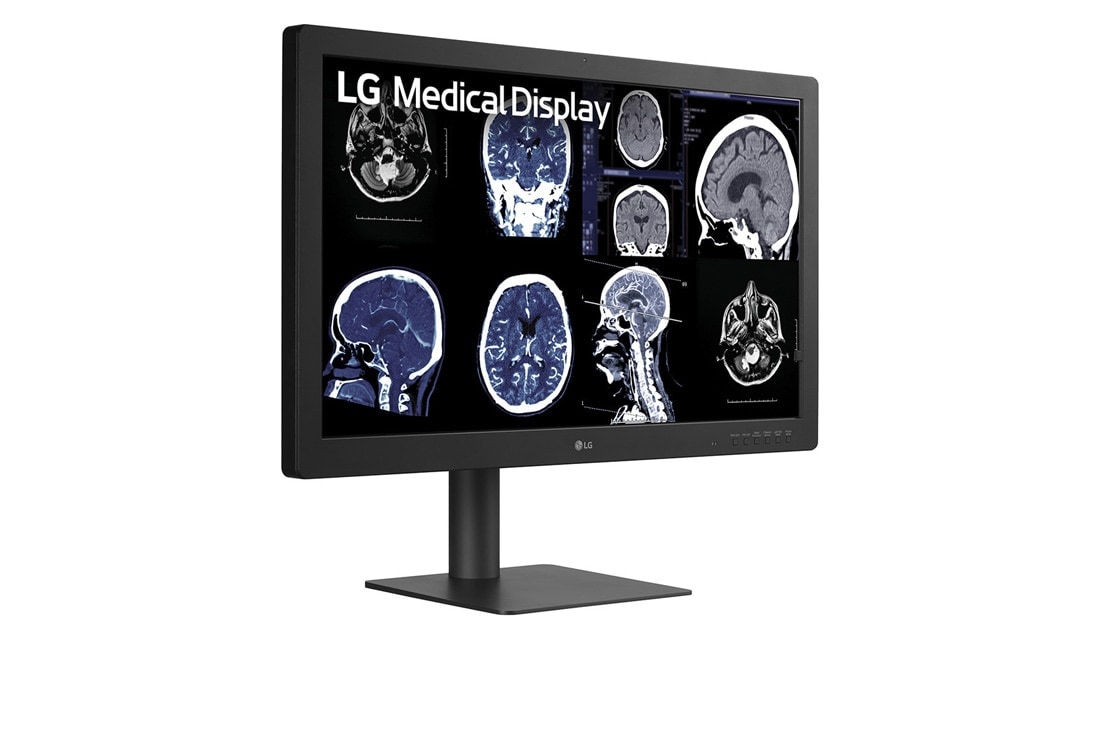

2023 LG IPS Diagnostic Monitor, 31.5 inch, 8MP

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32HQ713D-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (32HQ713D-B)
    AED
    AED
    LG Members Price
Total

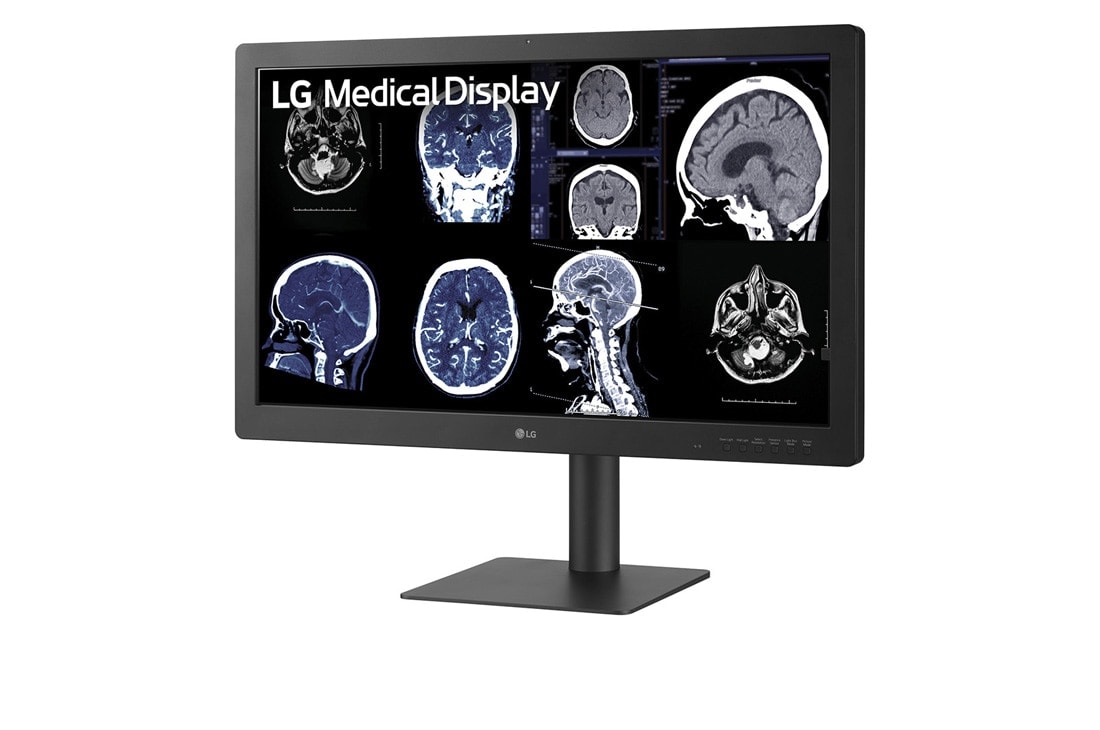

2023 LG IPS Diagnostic Monitor, 31.5 inch, 8MP

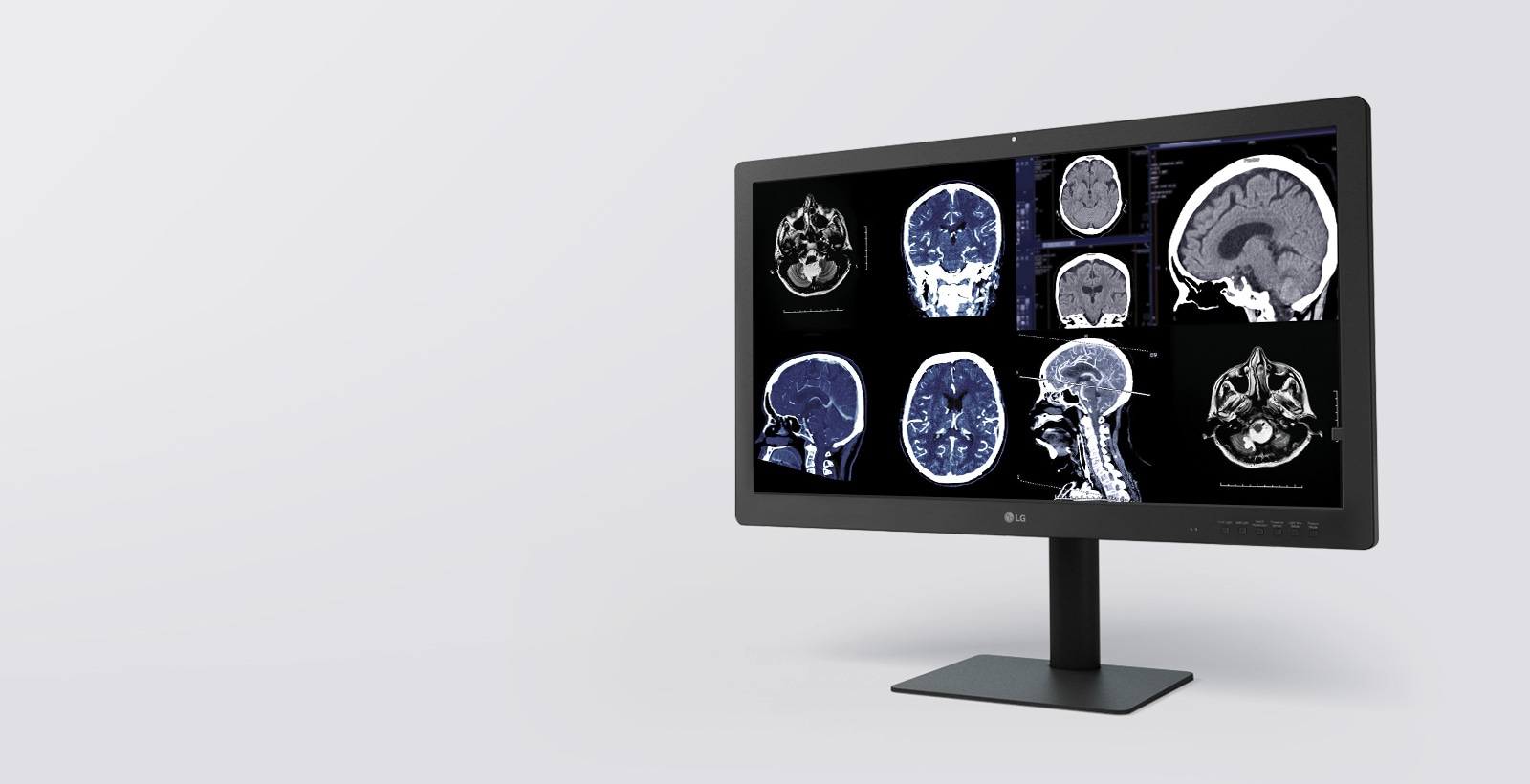

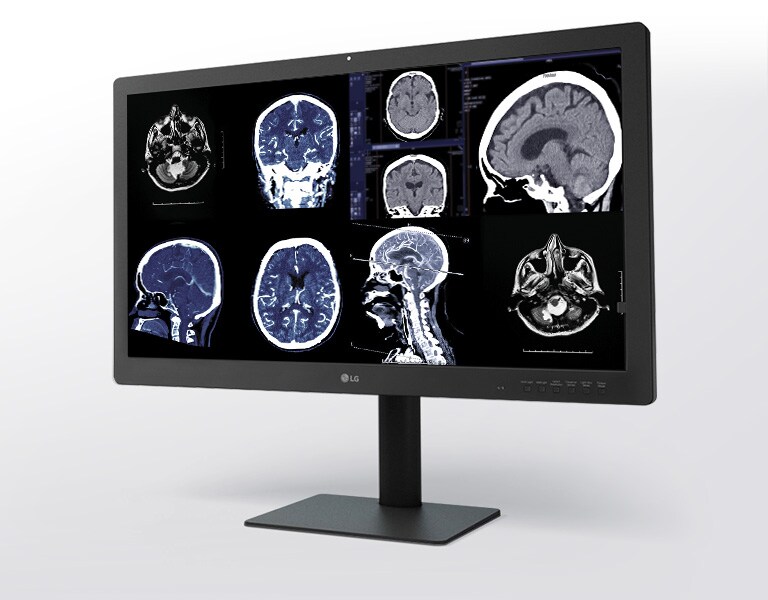

Designed for Sharp Expression Designed for Sharp Expression
31.5-inch 8MP IPS Black Display

Designed for Sharp Expression

Watch the Full Movie

Clear Imaging 31.5-inch 8MP IPS Black Display
Self-calibration with Front Sensor

Efficiency 6 Hot Keys
Presence Sensor

Comfort Ergonomic Stand
Down Light / Wall Light

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Clear Imaging

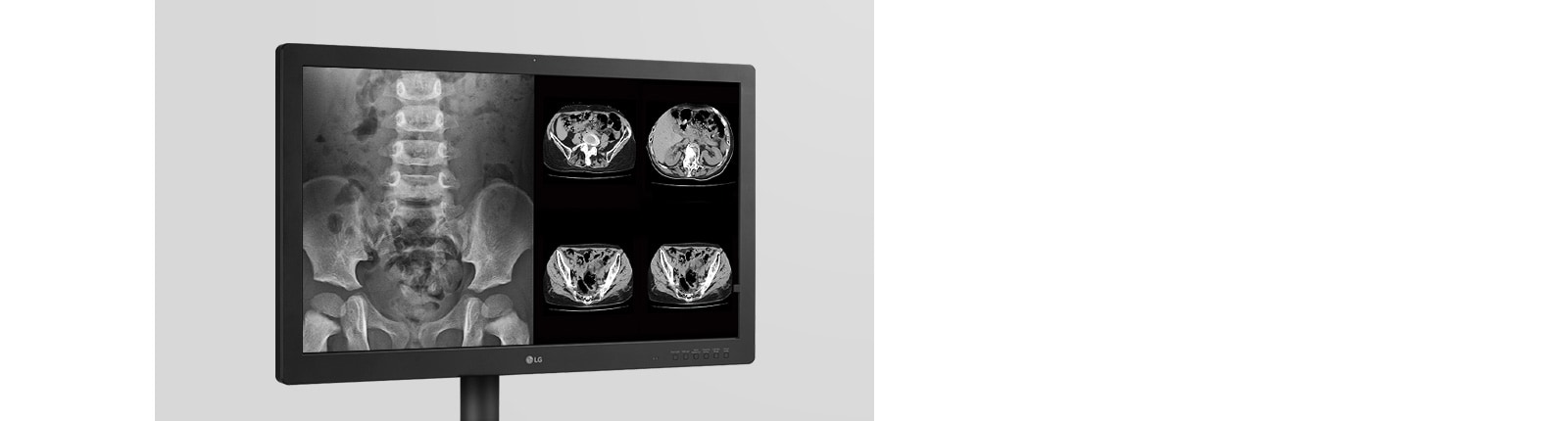

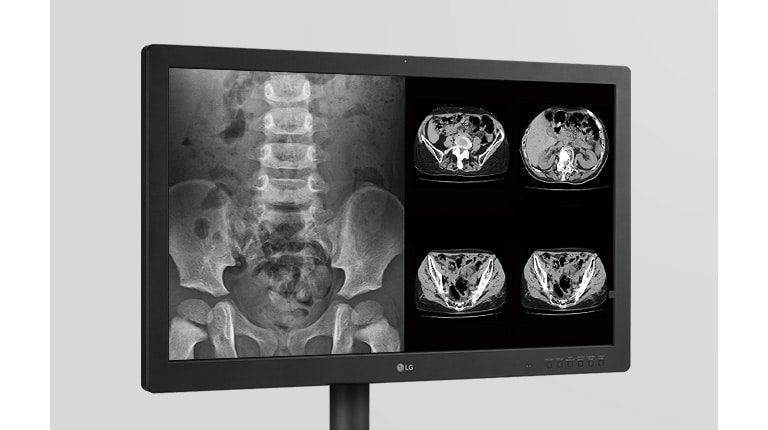

Reliable Imaging for Critical Assessment Reliable Imaging for Critical Assessment
IPS Black Panel

Reliable Imaging for Critical Assessment

IPS Black panel of 32HQ713D delivers deep black levels leading to sharp expression. With a significantly high contrast ratio of 2000:1, 32HQ713D helps to come up with clear image definition with detailed low gray expression.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

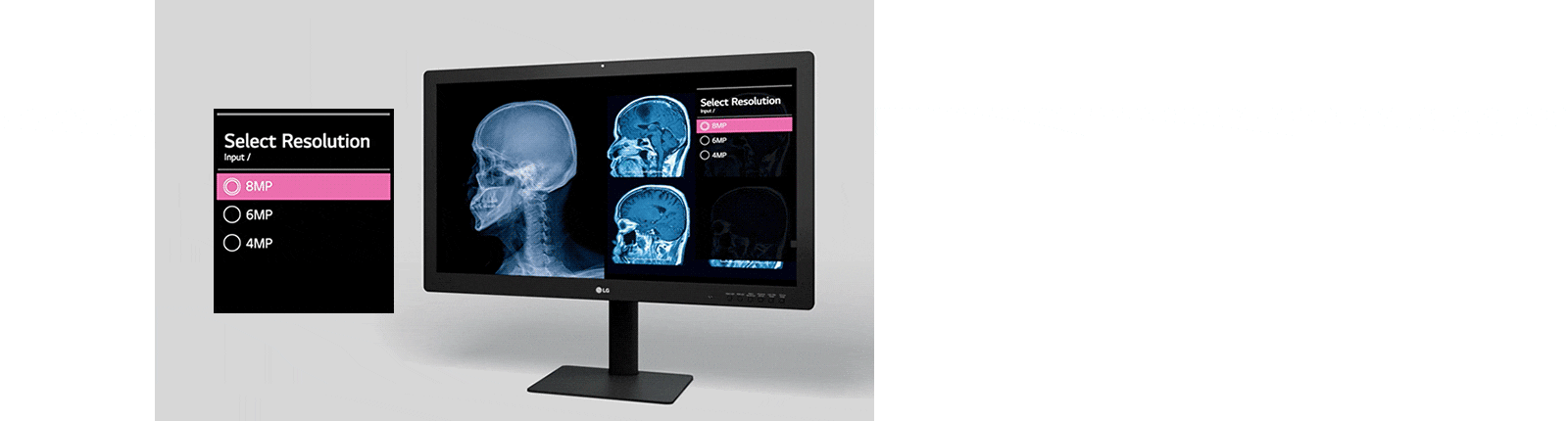

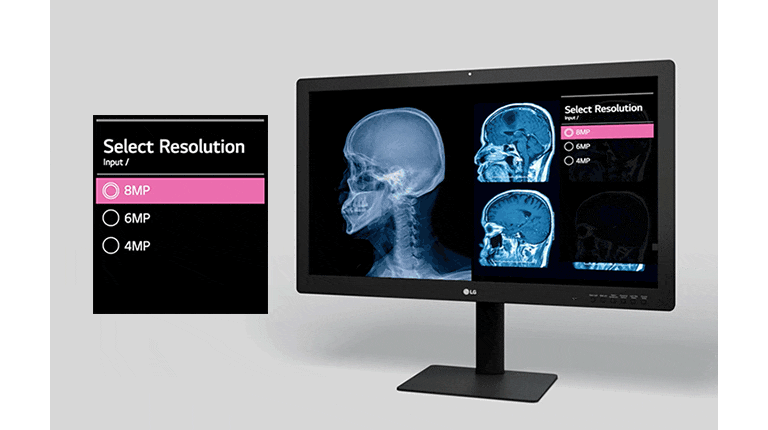

Set the Resolution Mode to Fit Your Needs Set the Resolution Mode to Fit Your Needs
Multi-resolution Mode (8/6/4MP)

Set the Resolution Mode to Fit Your Needs

Thanks to Multi-resolution Mode (8/6/4MP), you can adjust the resolution of monitor to better fit your needs.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

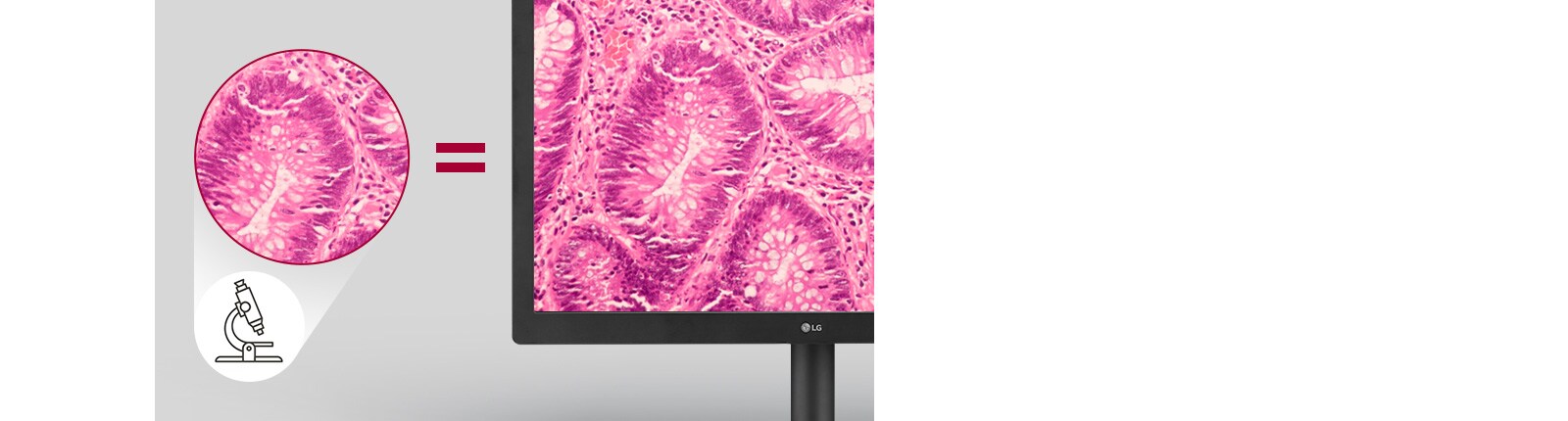

Just Like Looking at a Microscope Just Like Looking at a Microscope

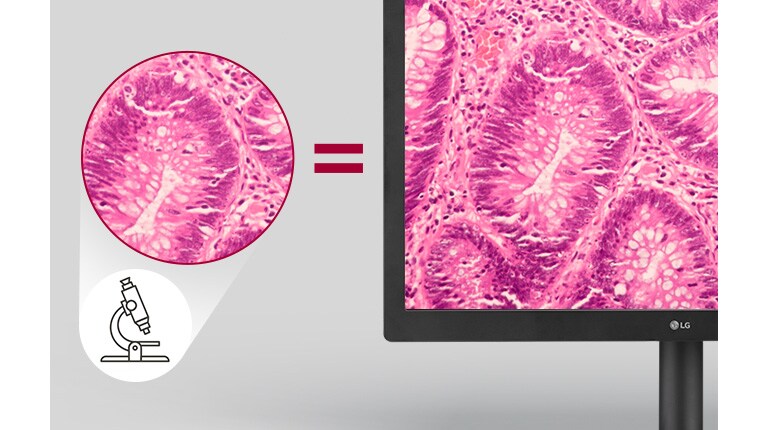

Pathology Mode

Just Like Looking at a Microscope

With Pathology Mode, the 32HQ713D provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

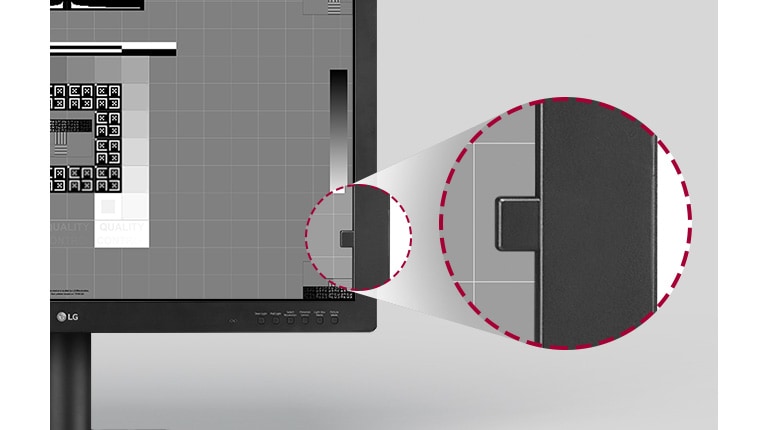

Consistency in Medical Images Consistency in Medical Images

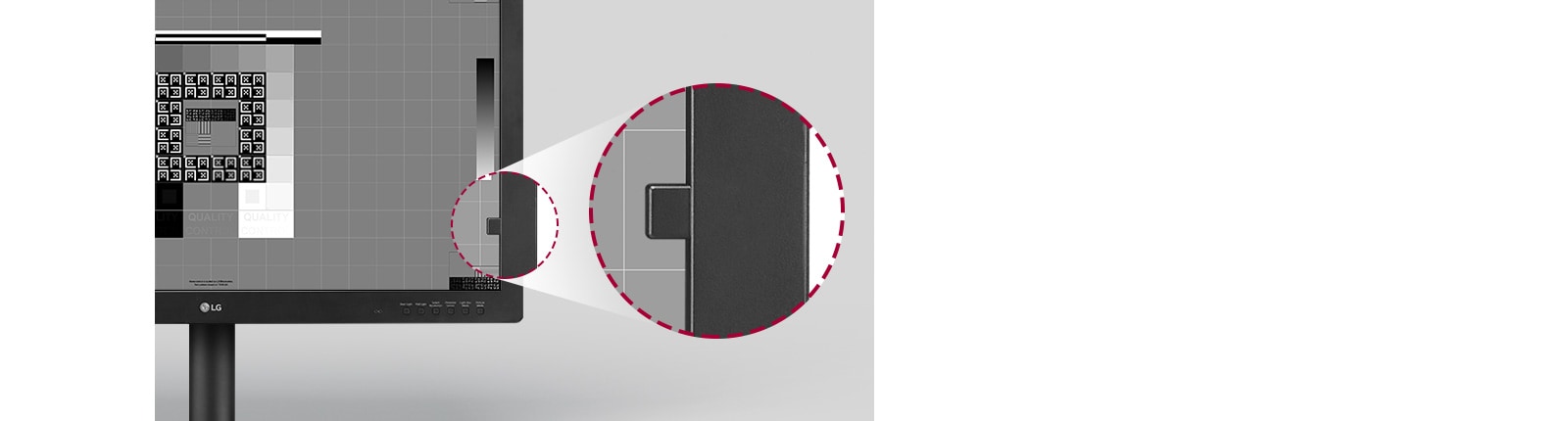

Internal Front Calibration Sensor

Consistency in Medical Images

The front-sensor allows automatic, self-calibration without the need for additional measuring equipment. The front sensor helps image quality to remain stable.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

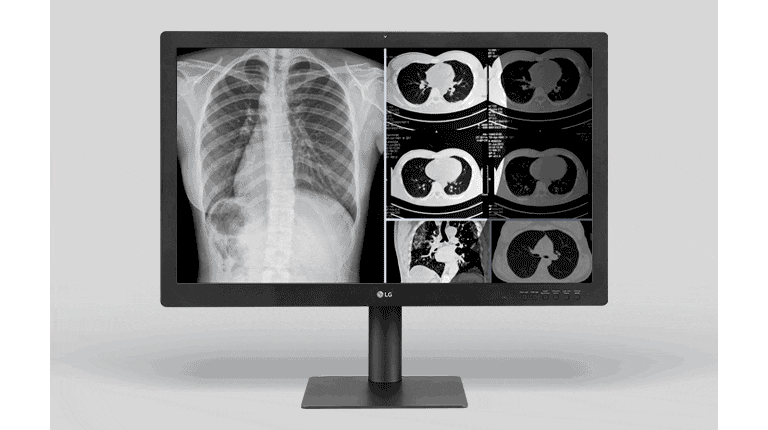

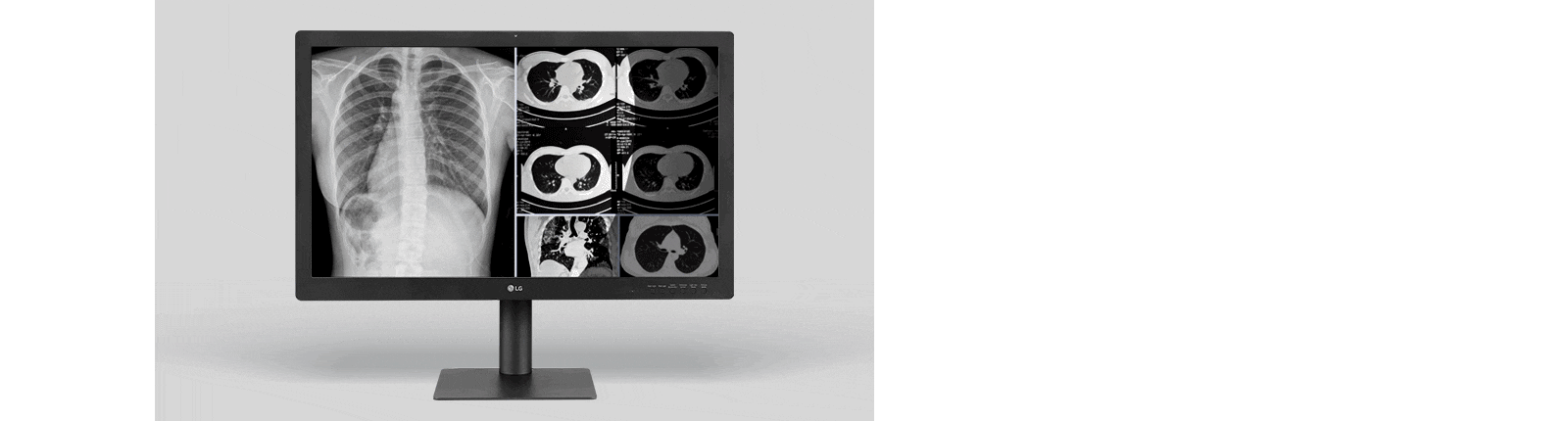

Fully Focus on the Region of Interest Fully Focus on the Region of Interest
Focus View

Fully Focus on the Region of Interest

LG 32HQ713D features the Focus View Mode which enables a detailed review of specific parts of the medical image. Users can easily select and zoom in on areas of interest while dimming the surrounding screen for enhanced focus.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and Efficient
Workflow

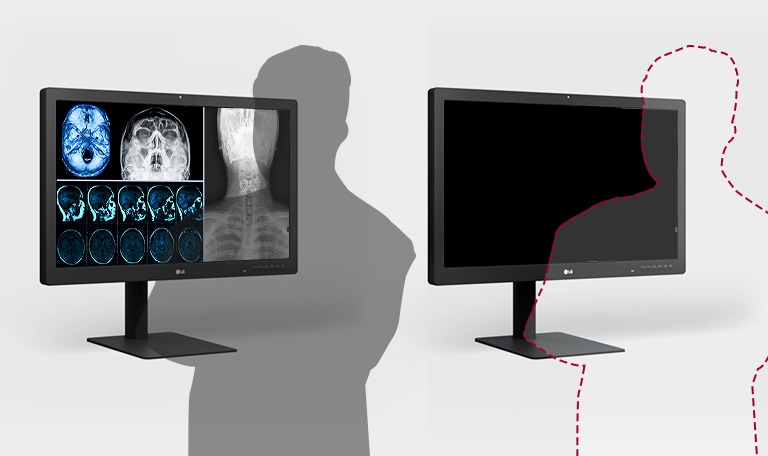

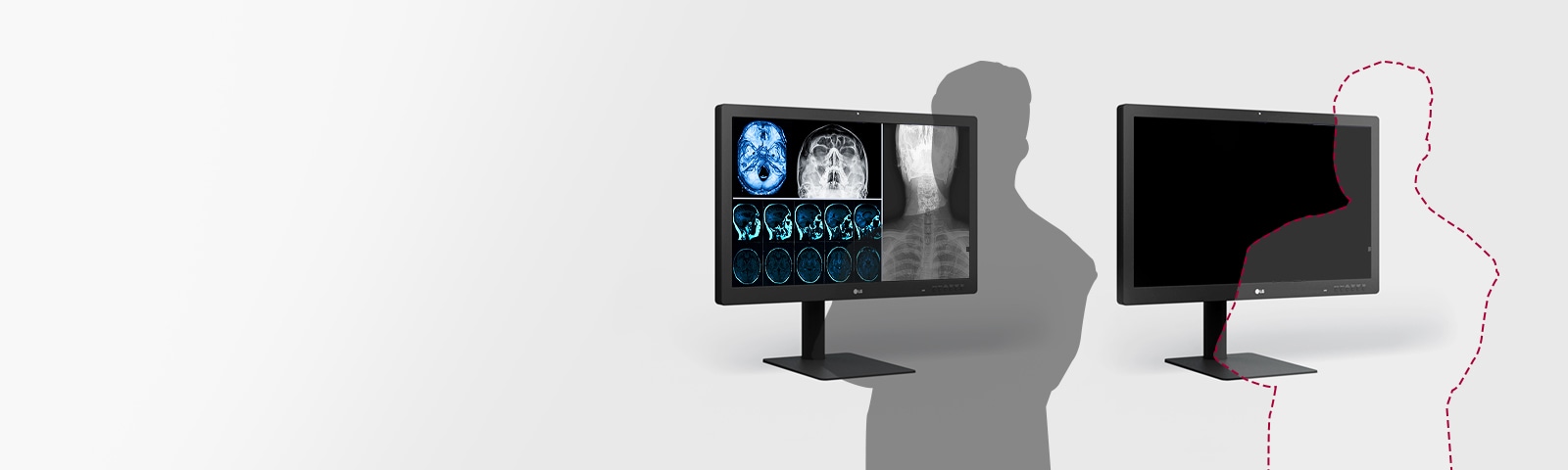

Convenient Power Management Convenient Power Management
Presence Sensor

Convenient Power Management

Presence Sensor automatically turns off the display when no motion is detected. It not only eliminates the hassle of manually turning the display on and off, but also contributes to convenient power management.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

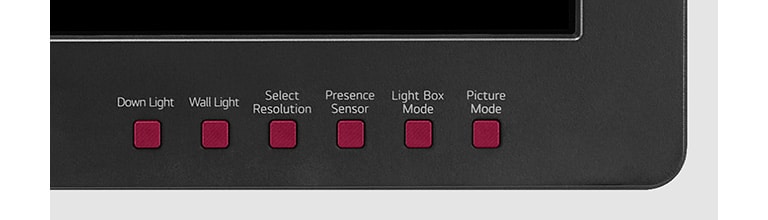

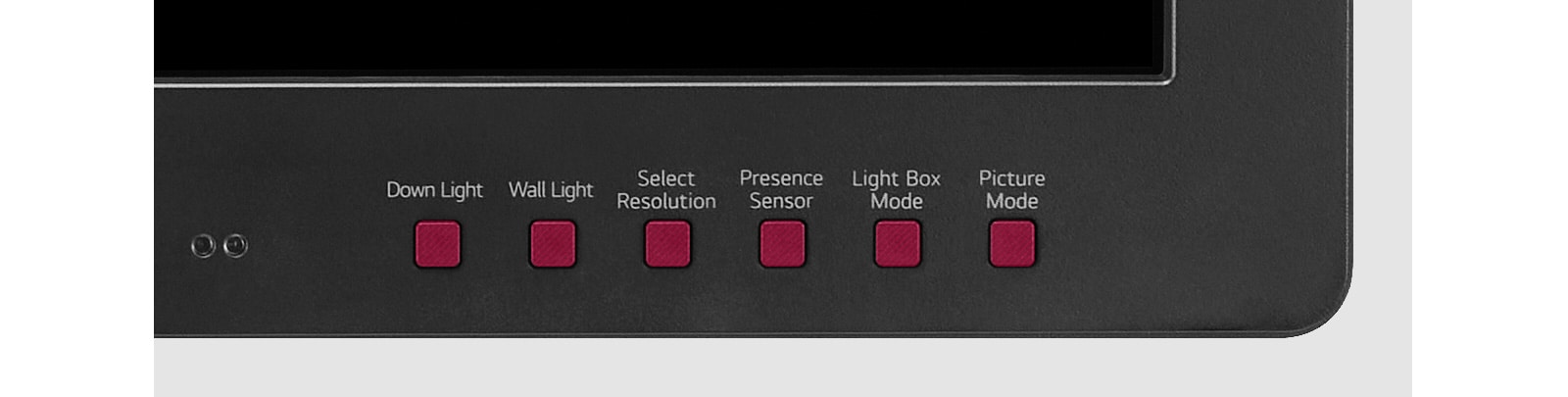

6 Hot Keys

Intuitive Control

The 32HQ713D's 6 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 6 Hot Keys provide easy and fast ways to operate while working, allowing you to change mode, screen resolution, and lighting settings.
Lightweight Meets Mighty Durability Lightweight Meets Mighty Durability
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Ergonomic and Comfortable
Workspace

Ensuring Screen Brightness Ensuring Screen Brightness

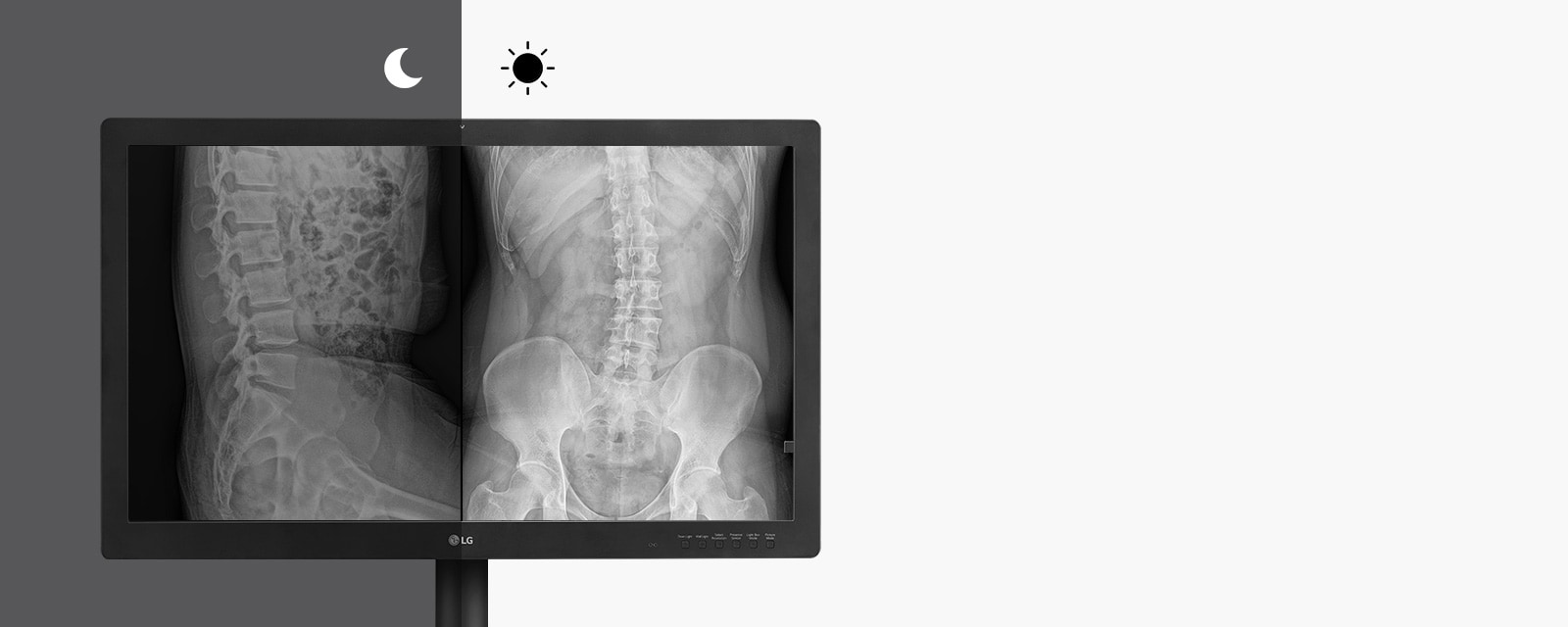

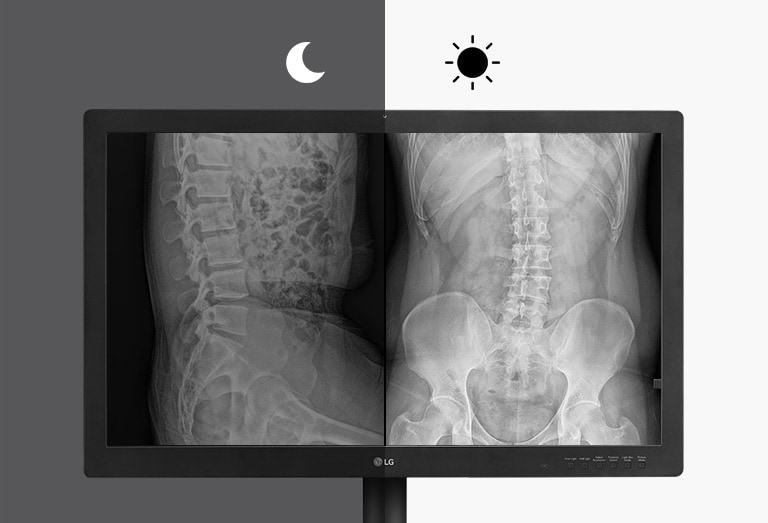

Auto Luminance Sensor

Ensuring Screen Brightness

LG 32HQ713D features an Auto Luminance Sensor which sets screen brightness properly for the ambient lighting.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

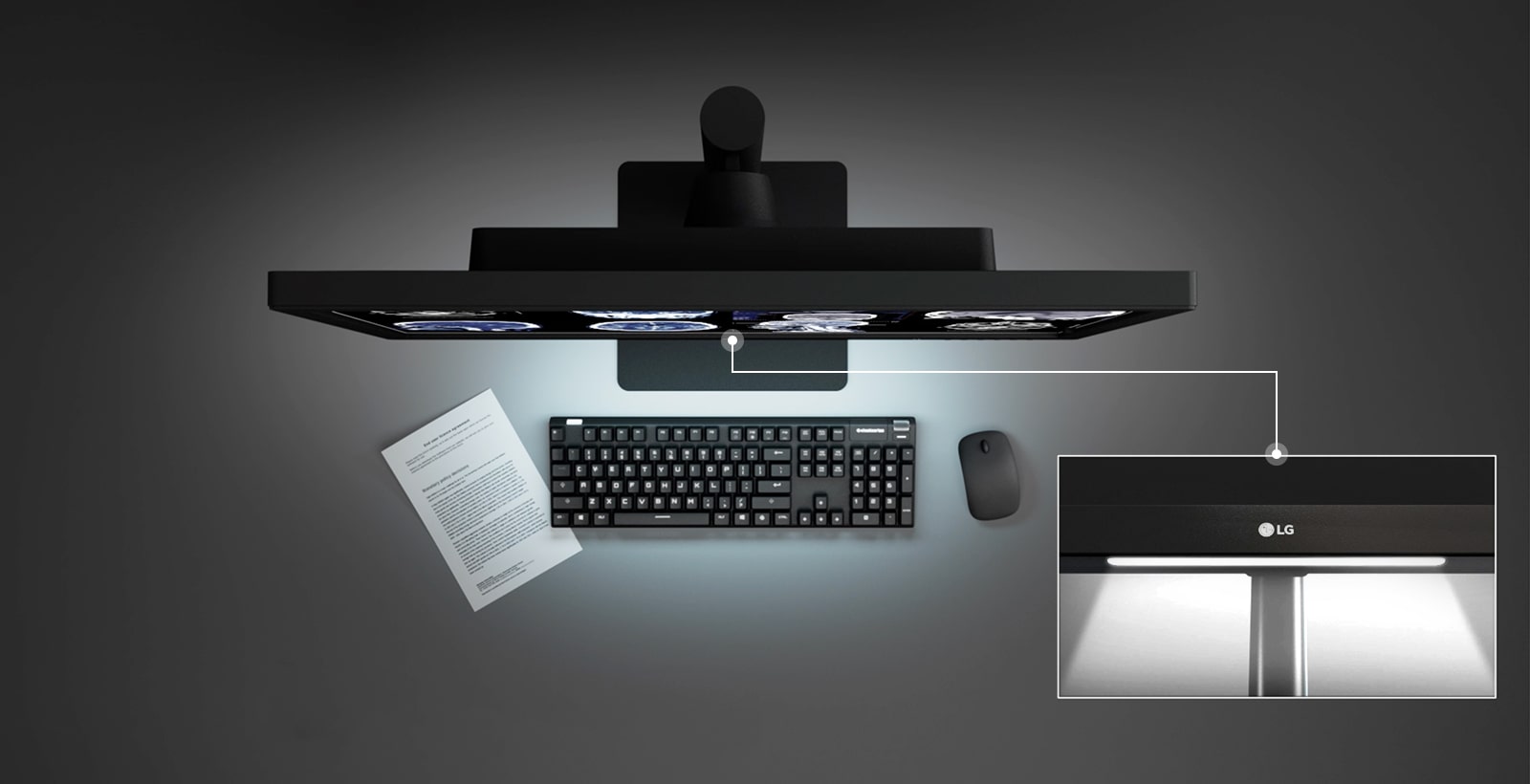

Down Light / Wall Light

Ideal Diagnostic Workspace

Down Light / Wall Light Mode enhances readability of documents below monitor even in low-light environments.
Ideal Diagnostic Workspace Ideal Diagnostic Workspace
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

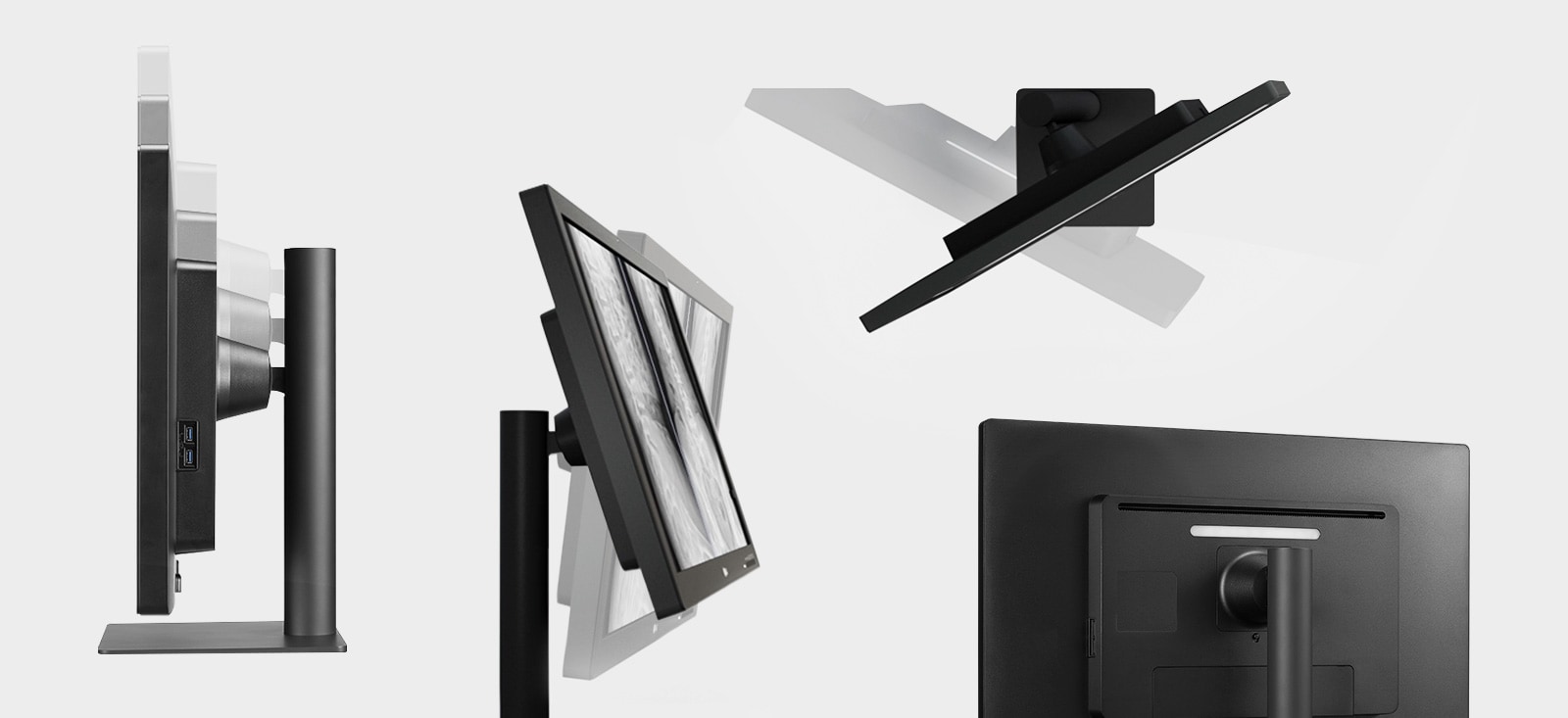

Ergonomic Design

Easy and Comfortable

The 32HQ713D is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.

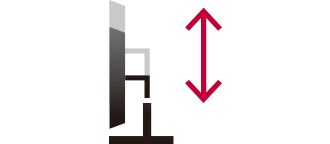

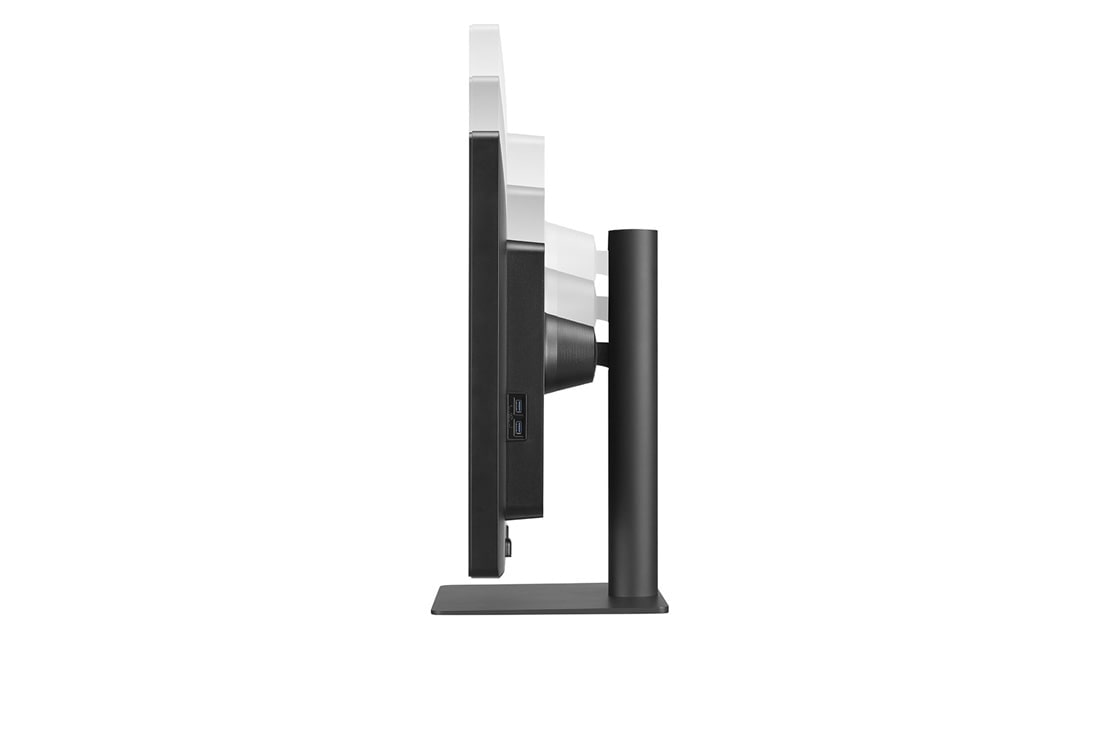

Height adjustable stand within the range of 0m to 110mm Height 0 ~ 110mm

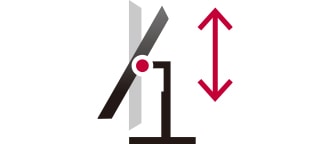

Tilt adjustable stand within the range of -5 degrees to 15 degrees Tilt -5 ~ 15°

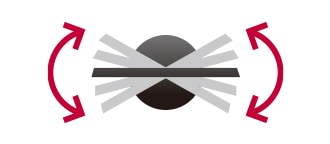

Swivel adjustable Swivel ±15°

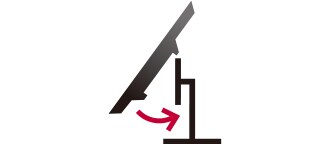

Quick and easy installation with the One-Click Stand One-Click Stand Installation

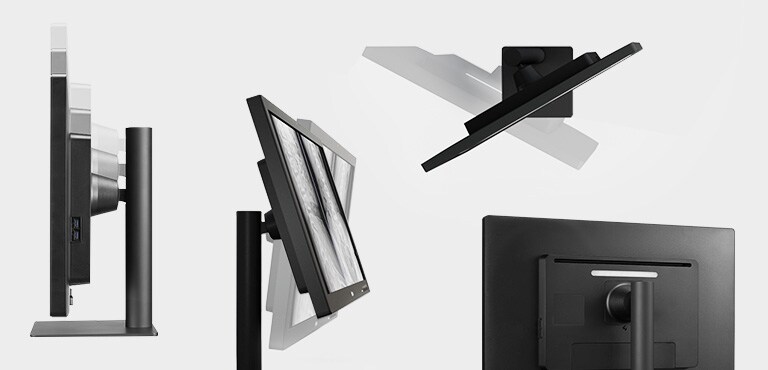

Ergonomic design with features of height, tilt, and swivel adjustment. Ergonomic design with features of height, tilt, and swivel adjustment.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Close
DISPLAY
  • Aspect Ratio
    16:9
    Backlight Dimming Technology
    Global Dimming
  • Backlight Technology
    LED
    Brightness (Typ.)
    1,000 cd/m²
  • Brightness (Stabilization)
    500 cd/m²
    Color Bit
    10bit (8bit+A-FRC)
  • Color Gamut (Typ.)
    sRGB(CIE 1931)100%
    Contrast Ratio (Typ.)
    2000:1
  • Pixel Pitch(H x V)
    0.18159mm x 0.18159mm
    Resolution
    3840x2160
  • Response Time (GTG)
    14ms (GtG, Not Support OD)
    Size (Diagonal, Inch)
    31.5
  • Size (H x V)
    730.7 x 425.2mm
    Surface Treatment
    Anti-Glare treatment of the front polarizer(Haze25%, 3H)
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°
    (Up/Down)
FEATURE
  • Hot Key
    Yes(6keys)
    Brightness stabilization
    Yes
  • Auto Luminance sensor
    Yes
    Presence sensor
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K
    Flicker safe
    Yes
  • PBP
    Yes(2PBP)
    Multi-resolution Mode
    YES(8/6/4)
  • Pathology Mode
    Yes
    Reader Mode
    Yes
  • Focus View
    Yes
    Light Box Mode
    Yes
  • Smart Energy Saving
    Yes
    Lighting
    Yes
  • Super Resolution+
    Yes
SW APPLICATION
  • Dual Controller
    Yes
    Qubyx
    Yes

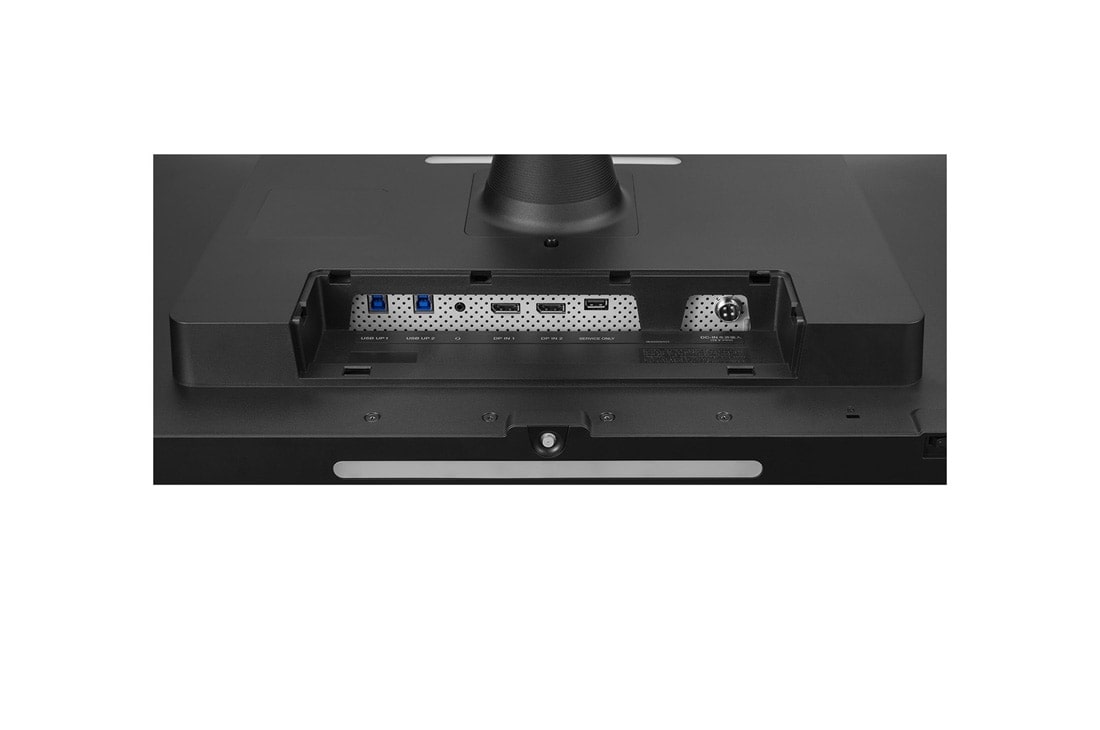

CONNECTIVITY
  • DisplayPort
    YES(2ea)
    Headphone out
    Yes
  • USB Downstream Port
    YES(2ea/ver3.0)
    USB Upstream Port
    Yes(2ea/ver3.0)
POWER
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 6.32A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    120W
  • Type
    External Power(Adapter)
MECHANICAL
  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Swivel
  • Height Range
    110mm
    Machanical Power Switch
    Yes
  • OneClick Stand
    Yes
    Swivel
    Yes(±15°)
  • Tilt
    Yes(-5°~15˚)
    Wall Mount Size
    100 x 100 mm
DIMENSIONS/WEIGHT
  • Dimension in Shipping (W x H x D)
    1027x340x603mm
    Dimension with Stand (W x H x D)
    758.5x646.2x280.0mm
  • Dimension without Stand (W x H x D)
    758.5x465.3x79.1mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    96 / 192 / 258
  • Weight in Shipping
    20.kg
    Weight with Stand
    13.0kg
  • Weight without Stand
    9.7kg
STANDARD
  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 / IEC 55032, 55024)
    Yes
    EN (EN 60950-1 / EN 55032, 55024)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    ISO13485
    Yes
  • GMP
    Yes
    KGMP
    Yes
  • WEEE
    Yes
    MFDS
    Yes
ACCESSORY
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • Display Port
    Yes
    Power Cord
    Yes
  • USB3.0 Upstream Cable
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
