New LG 55'' 4K (3840x2160) IPS Surgical Monitor, 2024

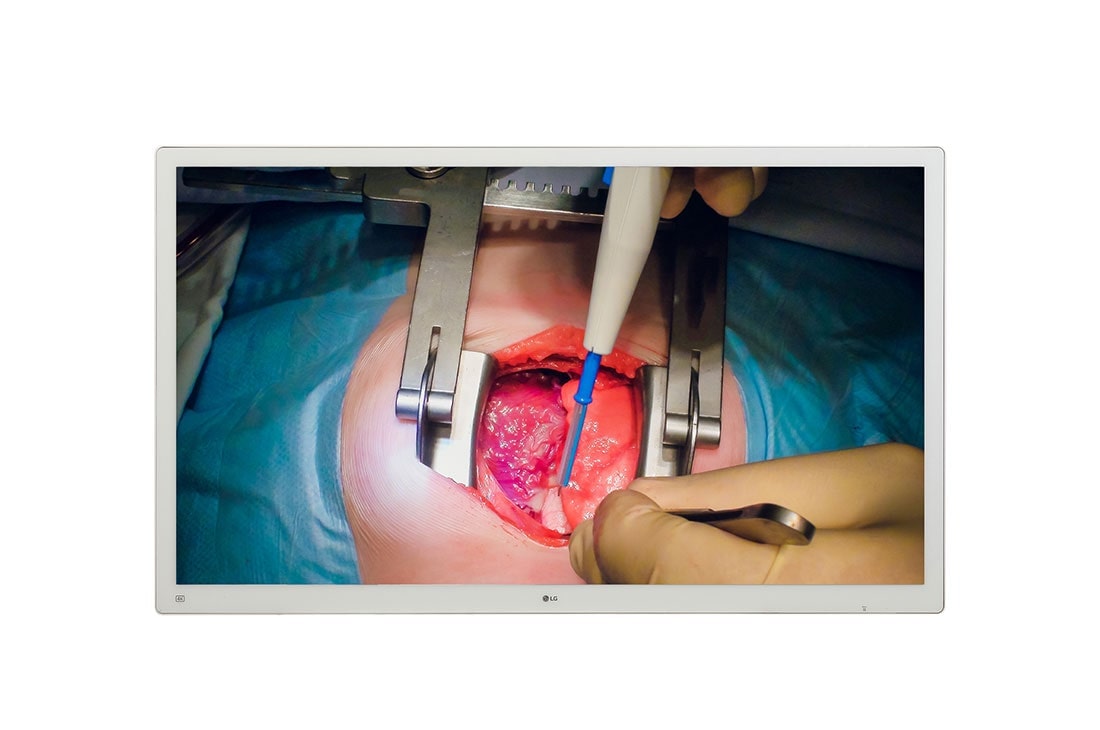

4K Surgical Display

4K Large Display for Surgery

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level. LG’s 55-inch 4K IPS Surgical Monitor 55MH5K will take your image quality and convenience to the next level.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.
55-inch 4K IPS

IPS Display with
Wide Viewing Angle

Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle. Experience vivid images on LG’s 55-inch 4K Display Surgical Monitor, equipped with an IPS panel that offers a wide 178° viewing angle.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.
This 4K surgical monitor features HDR10, properly displaying HDR images clearly. This 4K surgical monitor features HDR10, properly displaying HDR images clearly.

HDR10

This 4K surgical monitor features HDR10, properly displaying HDR images clearly.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.
PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen. 55MH5K supports up to 4PBP, PIP and extended ports, allowing you to view multiple signals simultaneously on a single screen.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

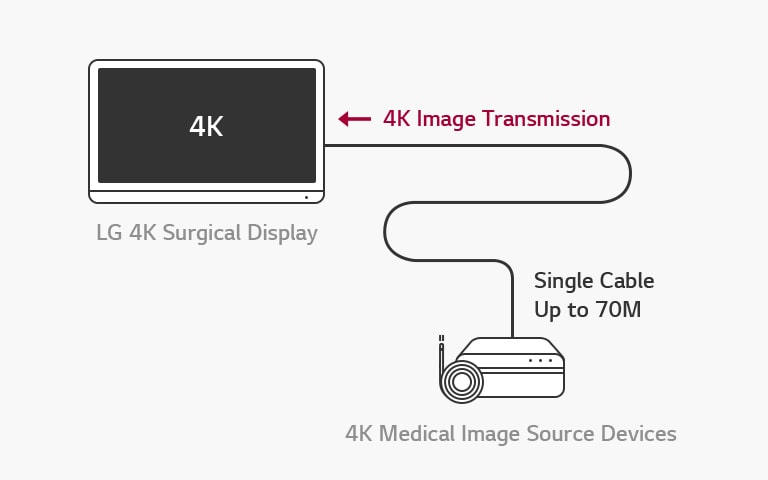

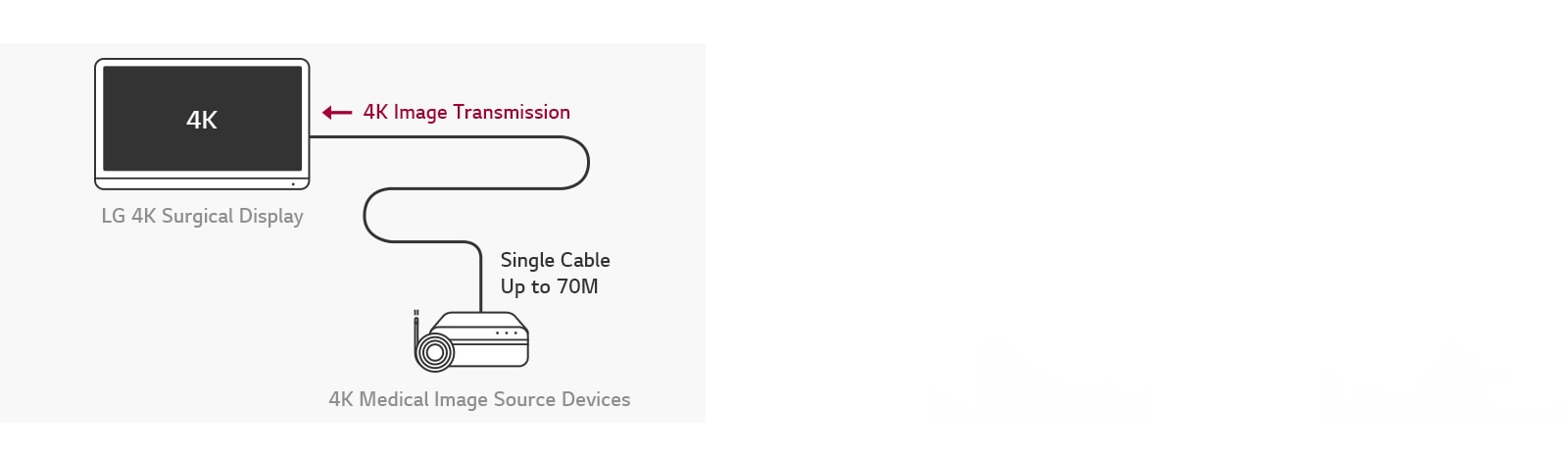

The 55MH5K supports12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable. The 55MH5K supports12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.

12G-SDI Support

The 55MH5K features a 55-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.
* 12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable.
* 12G-SDI is sold separately.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

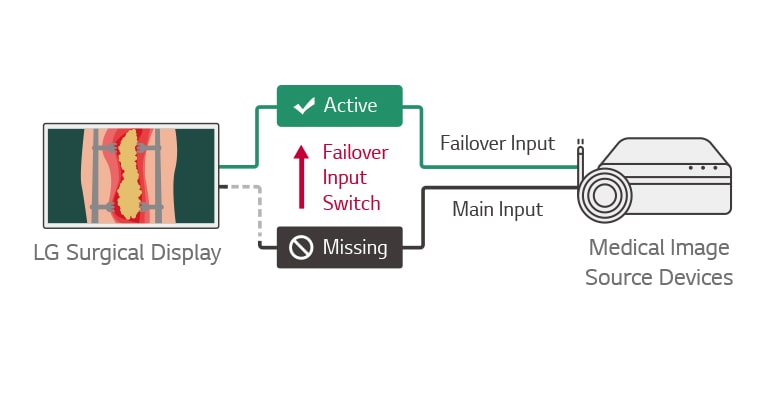

When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back. When the main source is missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

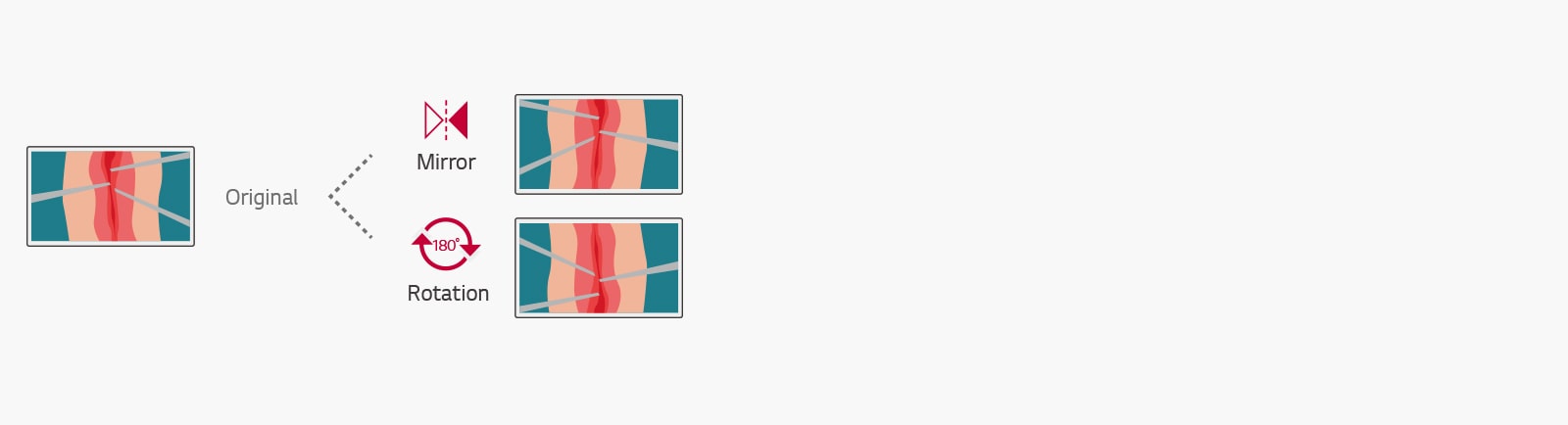

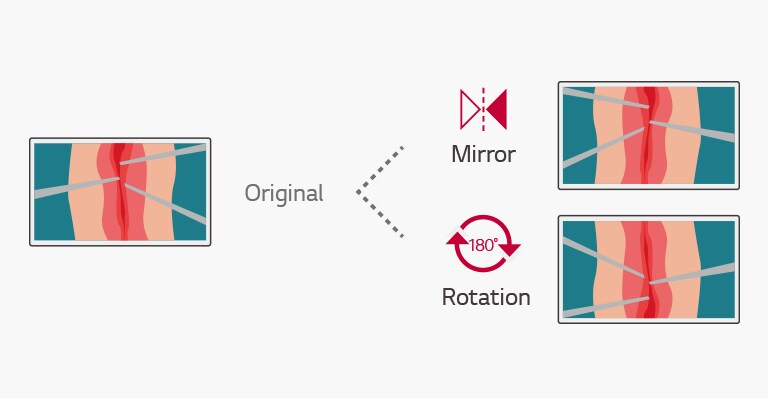

Conveniently flip and rotate the monitor to adjust to your needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image. Conveniently flip and rotate the monitor to adjust to your needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.

Mirror & Rotation Modes

Conveniently flip and rotate the monitor to adjust to your surgery needs. Mirror & Rotation Modes allow you to select a convenient 180° rotated/mirror image.
* All images are shown for illustrative purposes only and may vary from the actual product/usage.

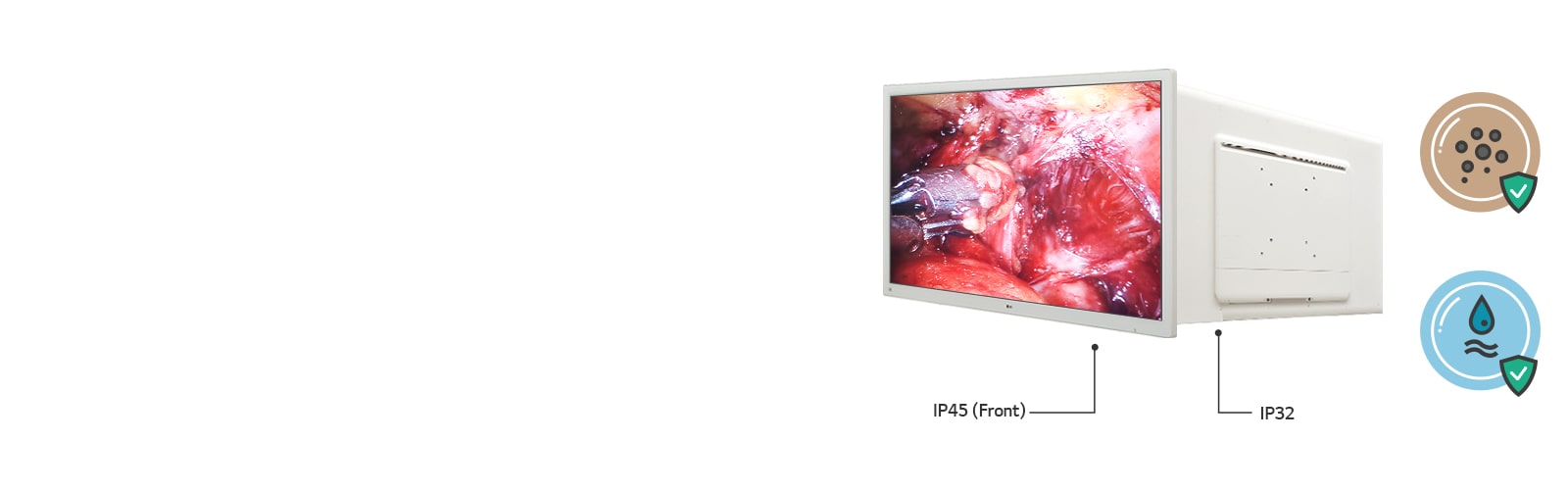

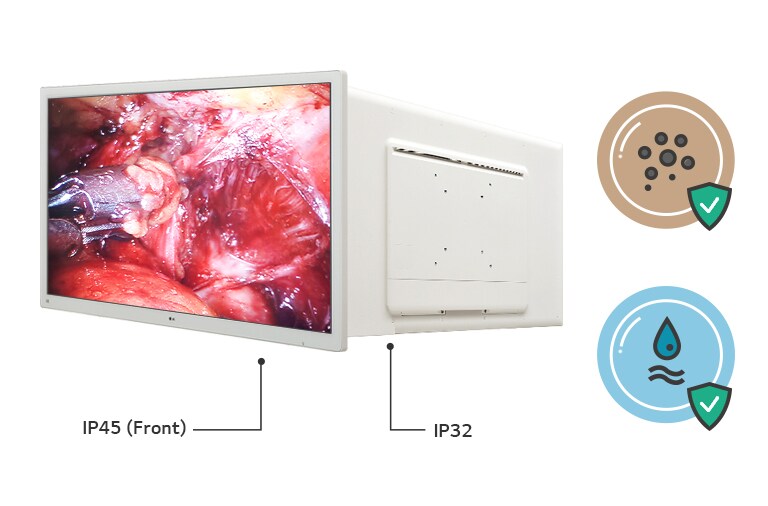

With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water. With ratings of IP 45 on the front and IP 32 on the body except for front, this surgical monitor is protected against contact with solid objects and water.

Protected Against Solid Objects & Water Jets

With ratings of IP 45* on the front and IP 32* on the body except for front, this surgical monitor is protected against contact with solid objects and water.
* IP 45: According to the Ingress Protection (IP) Rating System, an IP45 means protection against solid foreign objects Level 4 (Protection against solid objects larger than 1.0mm (such as a wire)), and protection against liquids Level 5 (Protection against low-pressure jets of water from any angle. Limited ingress permitted with no harmful effects). This product has been tested under controlled laboratory conditions and received an IP45 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* IP 32: According to the Ingress Protection (IP) Rating System, an IP32 means protection against solid foreign objects Level 3 (Protection against solid objects larger than 2.5mm (such as a screwdriver or cables)), and protection against liquids Level 2 (Protection against vertically falling droplets when enclosure is tilted up to 15° off vertical). This product has been tested under controlled laboratory conditions and received an IP32 rating. Dry before using. Do not charge while wet. Level of protection against solids and liquids may change over time or with exposure to excessive amounts of solids and liquids.

* All images are shown for illustrative purposes only and may vary from the actual product/usage.
Close
DISPLAY
  • Aspect Ratio
    16:9
    Backlight Dimming Technology
    Global Dimming
  • Backlight Technology
    LED
    Backlight Type
    Edge
  • Brightness (Min.)
    540cd
    Brightness (Typ.)
    680cd
  • Brightness(Stabilization)
    400cd (Dicom_350cd)
    Color Bit
    10bit
  • Color Depth (Number of Colors)
    1.07B
    Color Gamut (Typ.)
    DCI-P3 86% (CIE1976)
  • Contrast Ratio (Min.)
    800:1
    Contrast Ratio (Typ.)
    1100:1
  • Contrast Ratio with DFC
    Mega
    Panel Type
    IPS
  • Peak Brightness (Min.)
    540cd (Peak)
    Peak Brightness (Typ.)
    680cd (Peak)
  • Pixel Pitch
    0.315mm x 0.315mm
    Resolution
    3840x2160
  • Response Time
    5ms (GtG at Faster)
    Size (Inch)
    55
  • Size (cm)
    138.8
    Surface Treatment
    With Direct bonding Glass (3.1t, AR, AF)
  • Viewing Angle (CR≥10)
    178º(R/L), 178º(U/D)
    Color temperature
    6500K / 7500K / 9300K, Manual(5000K~10000K)
FEATURE
  • DICOM Compliant
    YES
    Factory Calibration
    YES(Delta E<5, Gamma 1.8~2.6/DICOM curve)
  • Failover Input Switch
    YES
    Hot Key
    YES(2keys)
  • Brightness stabilization
    YES
    Rotation & Mirror Mode
    YES
  • Uniformity
    YES
    User Preset
    YES
  • Black Stabilizer
    YES
    HDR 10
    YES
  • HDR Effect
    YES
    HW Calibration
    YES
  • OSD Language
    17 Language
    PBP
    YES (2PBP/3PBP/4PBP)
  • PIP
    YES
    Picture Mode
    (SDR)Custom, Vivid, HDR Effect, Mono, REC709, REC2020, DICOM, Calibration 1, Calibration 2, (HDR)Custom, Vivid, Standard
  • Smart Energy Saving
    YES
    Super Resolution+
    YES
SW Application
  • LG Calibration Studio (True Color Pro)
    YES
CONNECTIVITY
  • 12G-SDI
    YES (12G INx4 / OUTx4, SFP INx1)
    RS-232
    YES
  • Equipotential Pin
    YES
    DP (HDCP Version)
    2.2
  • DP (Max. Resolution at Hz)
    3840x2160 at 60Hz
    DP (w/o VRR)
    56~61Hz
  • DP Version
    1.2
    DVI (Max Resolution at Hz)
    1920x1080 at 60Hz
  • DVI (V Frequency)
    56~61Hz
    DVI-D
    YES(1In / 1Out)
  • DisplayPort
    YES(In 1ea / Out 1ea)
    HDMI
    YES(1ea)
  • HDMI (HDCP Version)
    2.2
    HDMI (Max. Resolution at Hz)
    3840x2160 at 60Hz
  • HDMI (w/o VRR)
    56~61Hz
    HDMI Version
    2.0
  • USB Downstream Port
    YES(1ea/ver3.0)
    USB Upstream Port
    YES(1ea/ver3.0)

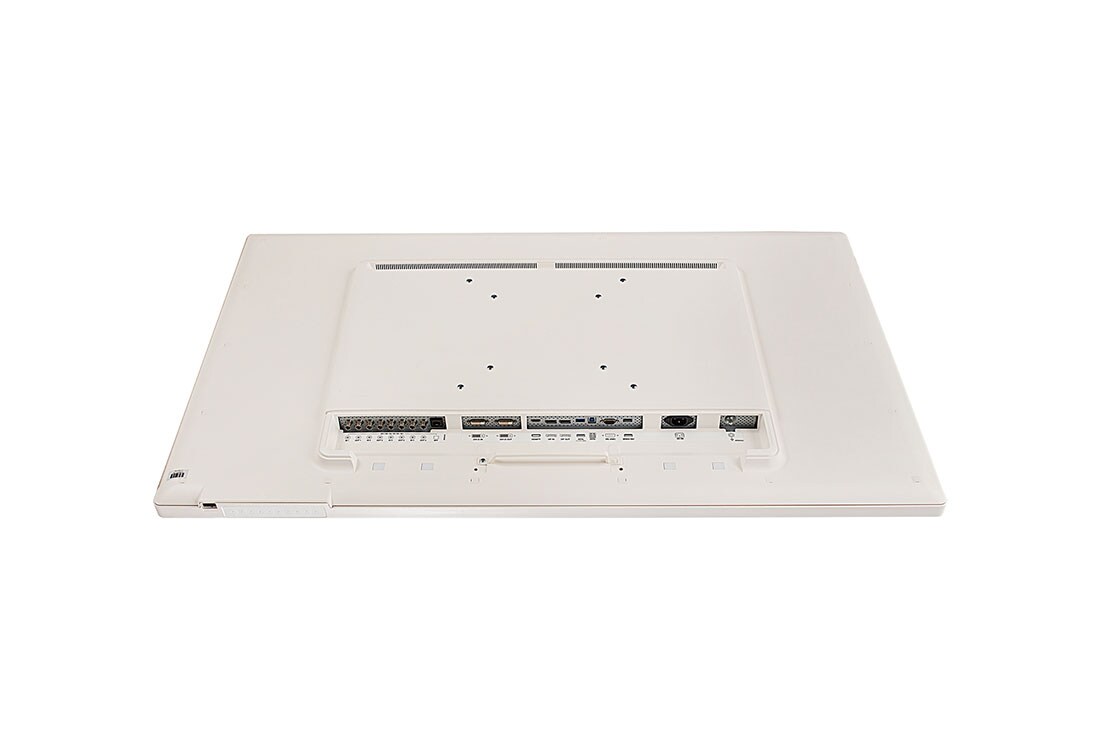

  • [Location]
    Bottom
POWER
  • AC Input
    100 - 240 V (50/60 Hz, 2.5~1.25A)
    DC Output
    Built-in Power (PSU output_20.5V,9A)
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    180W
  • Type
    Built-in Power
MECHANICAL
  • Borderless Design
    Normal
    Color (Back Cover)
    White
  • Color (Middle Cabinet)
    White
    Down Height
    No Stand
  • Height Range
    No Stand
    Machanical Power Switch
    YES

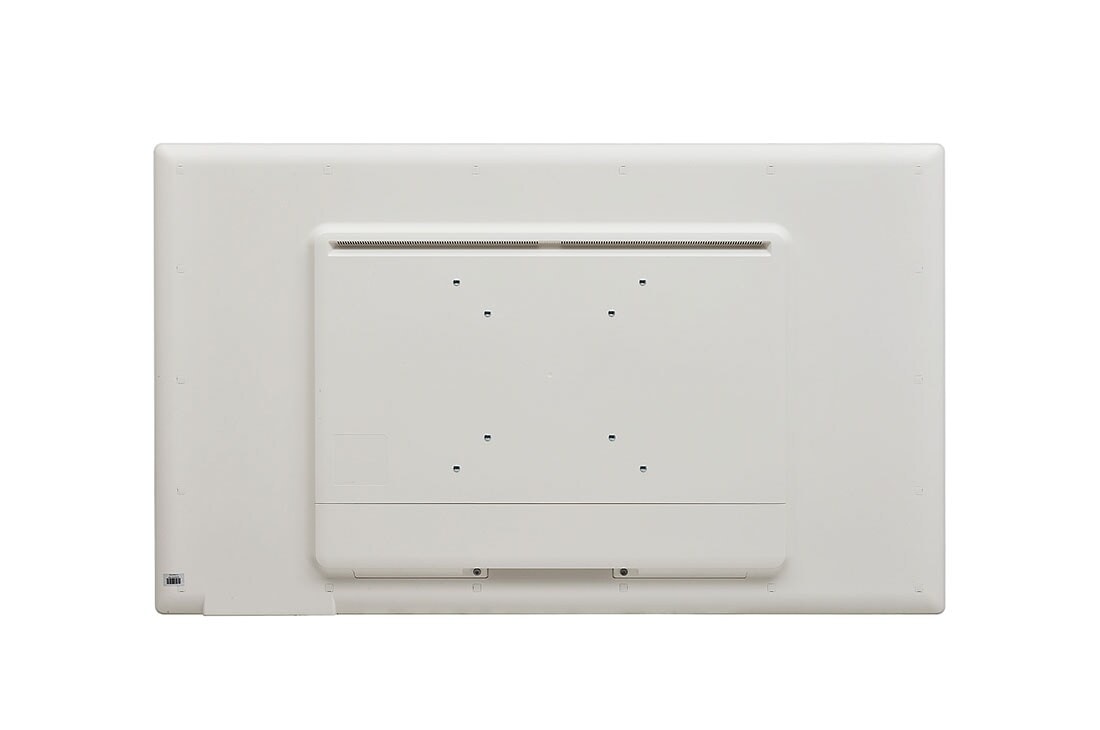

  • Wall Mountable
    200 x 200 mm & 300 x 300 mm
Dimensions/Weight
  • Dimension in Shipping (W x H x D)
    1490 x 880 x 172 mm
    Dimension without Stand (W x H x D)
    1283.4 x 768.5 x 68.3 mm
  • Pallet Stuffing (20ft/40ft/40ft HC)
    84EA / 180EA / 180EA
    Weight in Shipping
    42.3kg
  • Weight without Stand
    34.8kg
Standard
  • EN (EN 60601-1 / EN 60601-1-2)
    YES
    EN (EN 60950-1 / EN 55032, 55024)
    YES
  • FCC (FCC part 15 Class A)
    YES
    FDA
    Registration (Class I)
  • GMP
    YES
    IEC (IEC 60601-1 / IEC 60601-1-2)
    YES
  • IEC (IEC 60950-1 / IEC 55032, 55024)
    YES
    IP(Front/Except for front)
    IP45/IP32
  • ISO13485
    YES
    KGMP
    YES
  • MFDS
    YES
    Vandal-proof
    IK06
  • WEEE
    YES
    cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    YES
  • CB
    YES
    CE
    YES
  • Others (Standard)
    CE-MDR (Class I)
    ROHS, REACH
    YES
  • UL (cUL)
    YES
ACCESSORY
  • Calibration Report (Paper)
    YES
    Display Port
    YES
  • Display Port (Color/Length)
    Black / 1.8m
    HDMI
    YES
  • HDMI (Color/Length)
    Black / 1.8m
    Power Cord
    YES
  • Power Cord (Color/Length)
    White / 2.8m

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
