17HQ701G-BP component-copyModelName
LG 17x17 Digital X-ray Detector with a-Si TFT

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HQ701G-BP)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HQ701G-BP)
    AED
    AED
    LG Members Price
Total

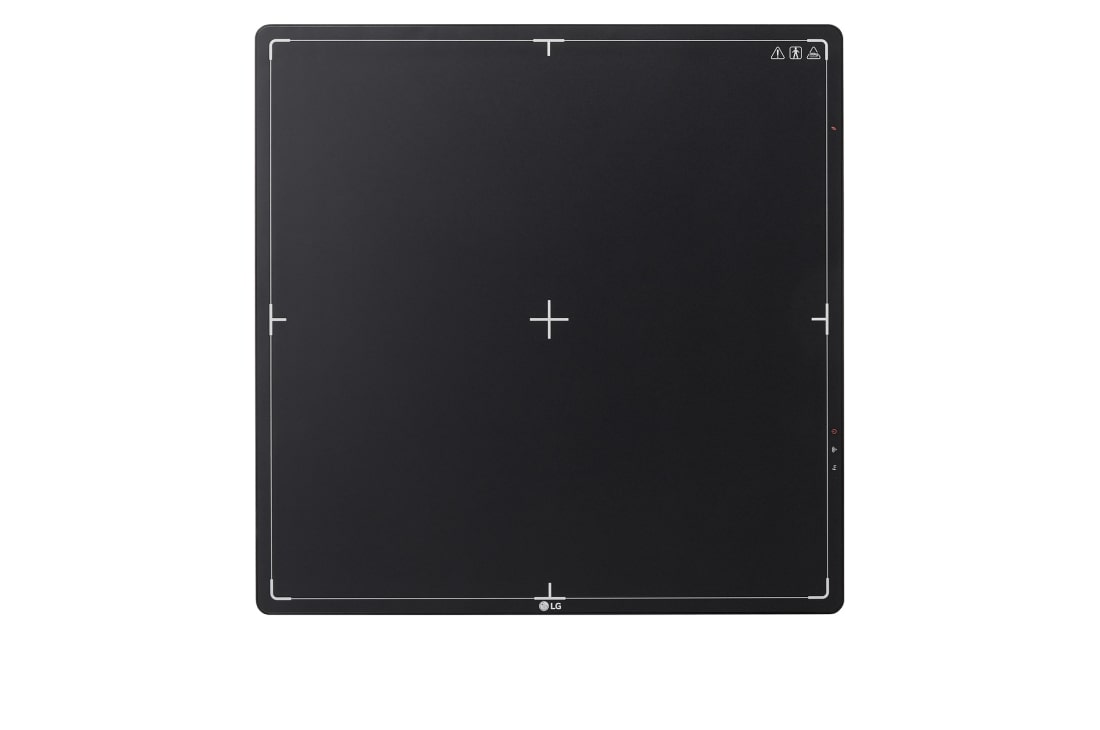

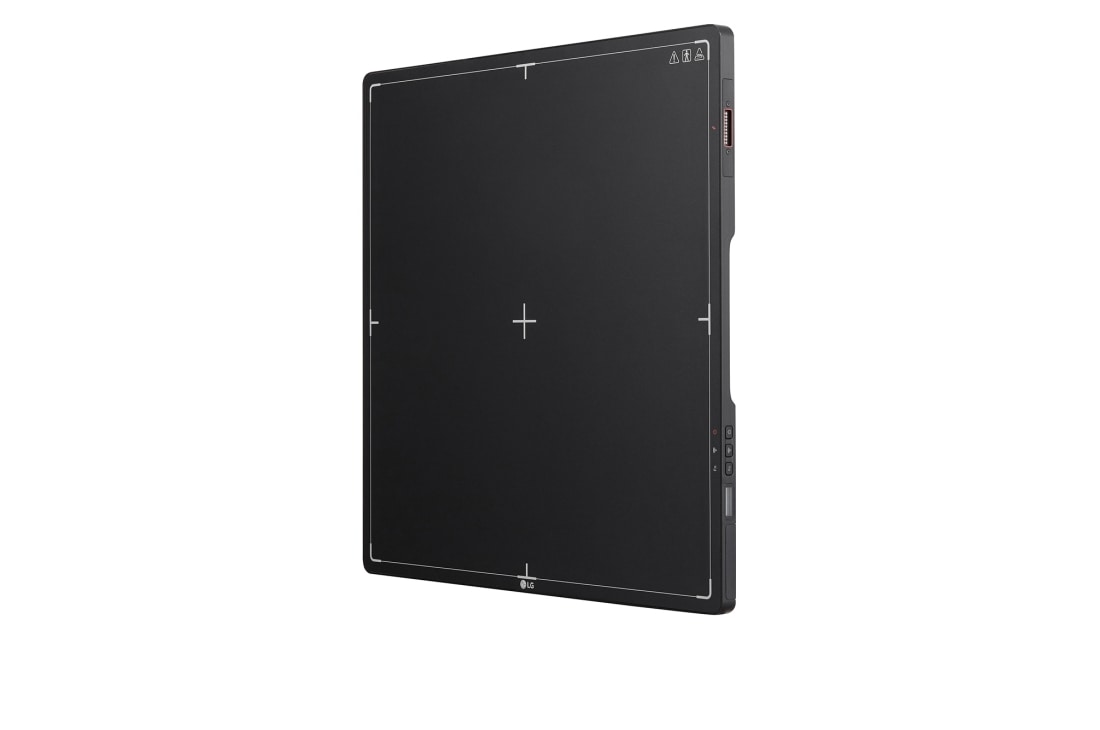

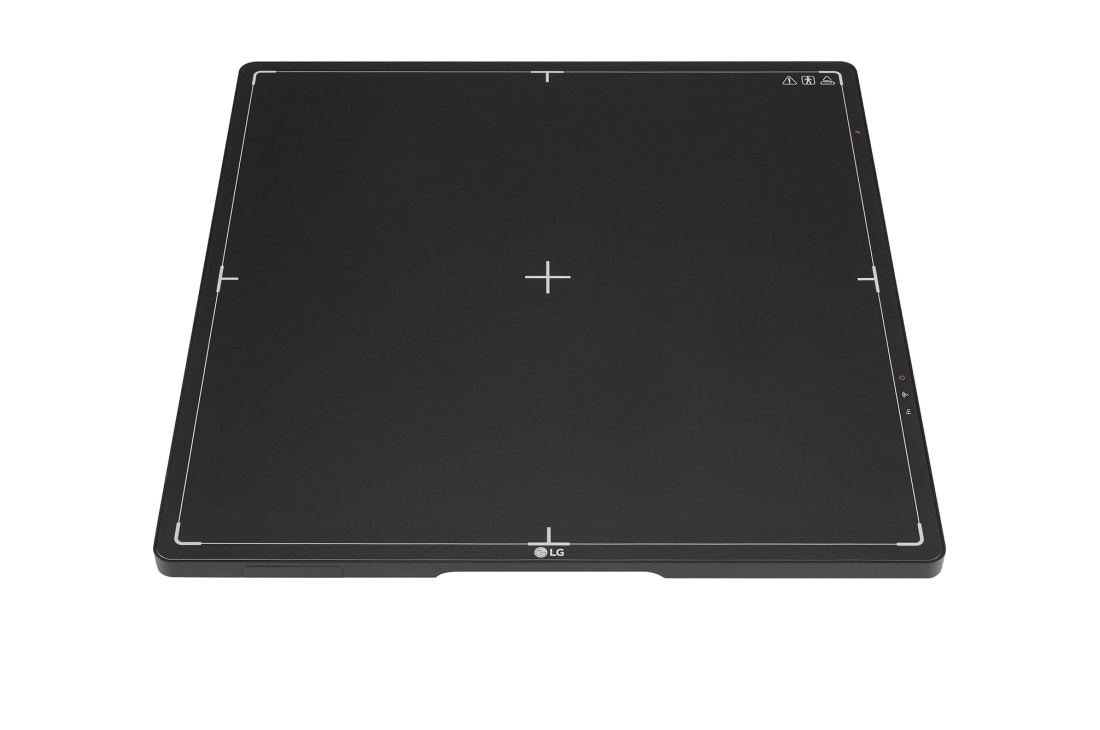

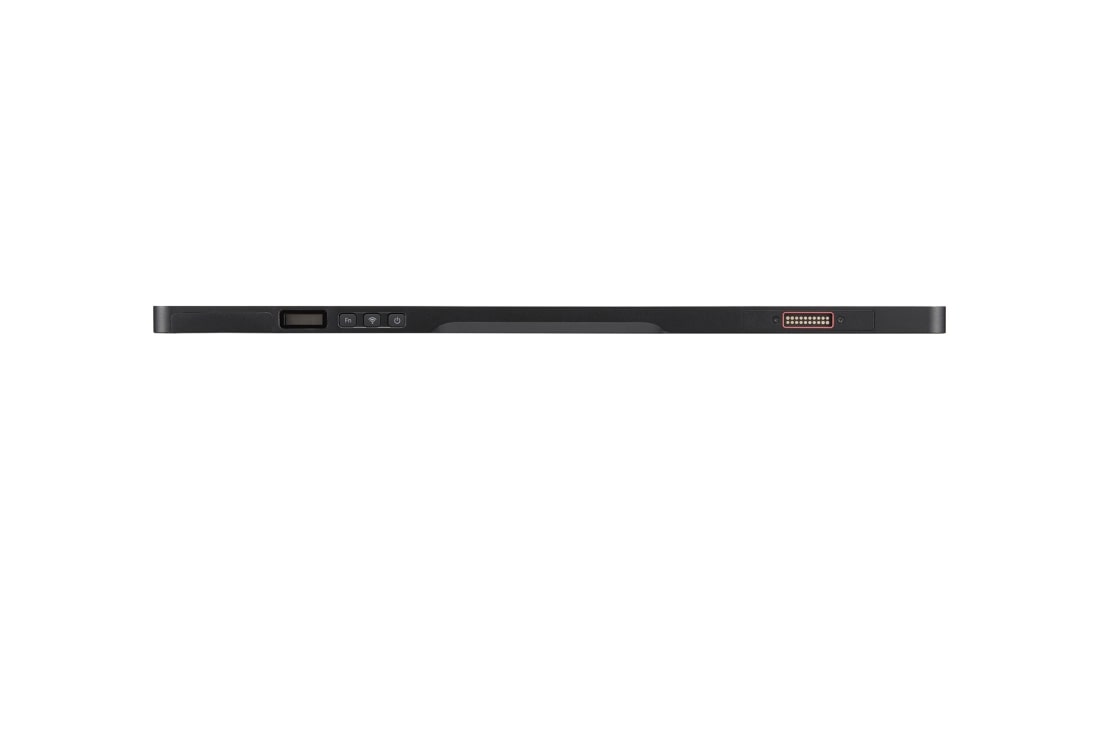

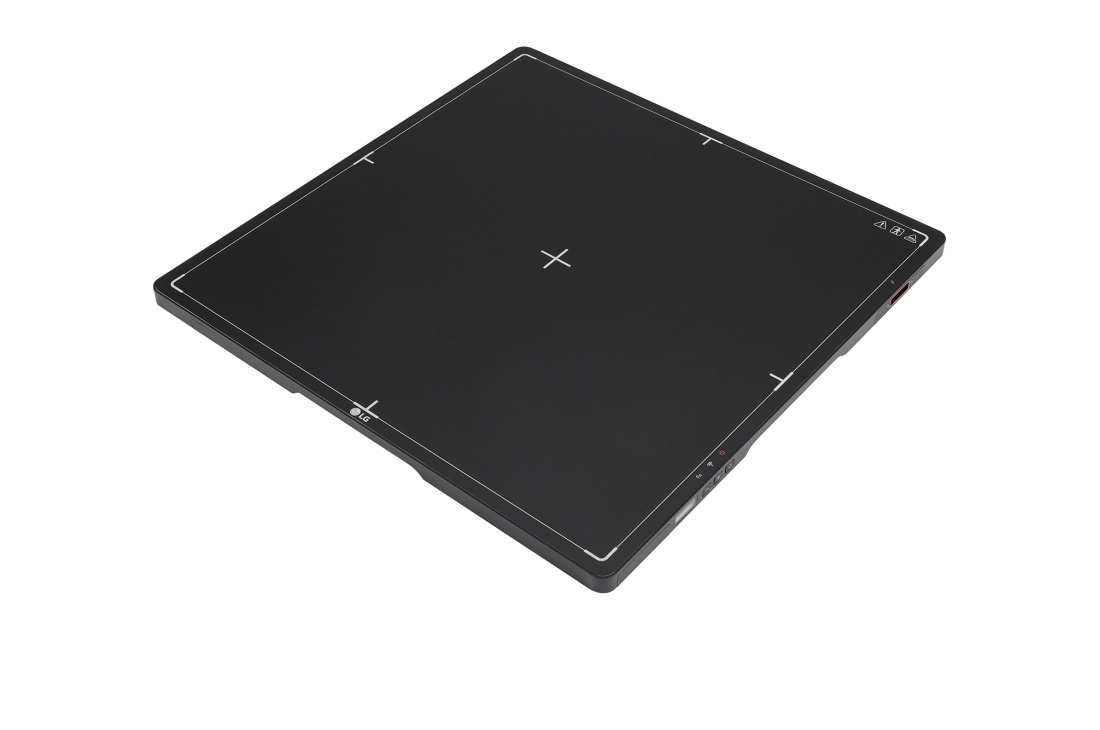

LG 17x17 Digital X-ray Detector with a-Si TFT

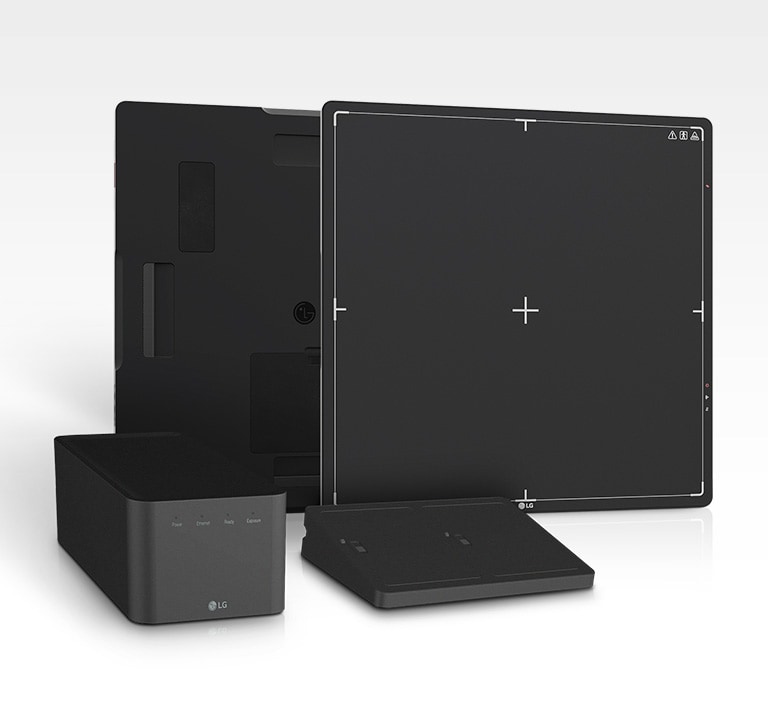

LG Digital X-ray Detector with a-Si TFT. LG Digital X-ray Detector with a-Si TFT.

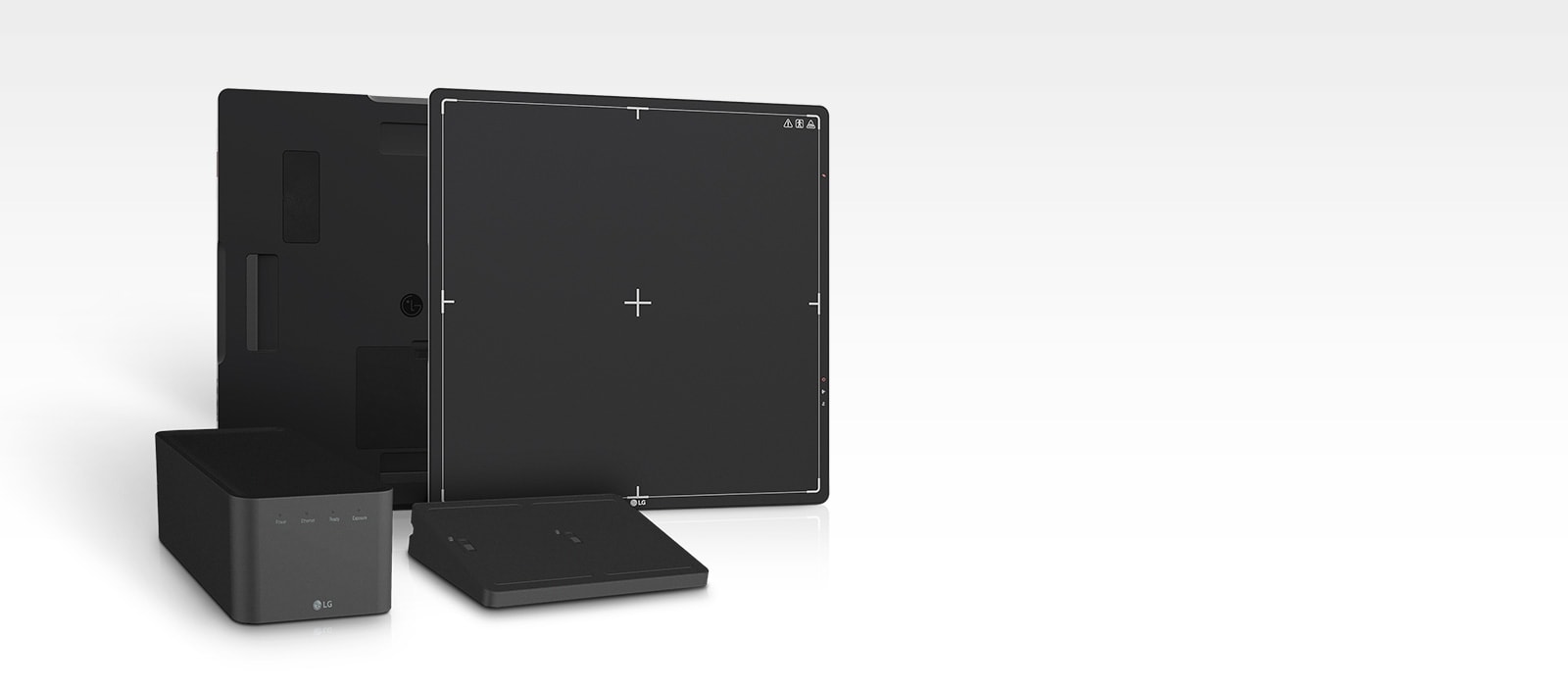

LG Digital X-ray Detector with a-Si TFT

Watch the Full Movie
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Amorphous Silicon TFT

Get Clear Images

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

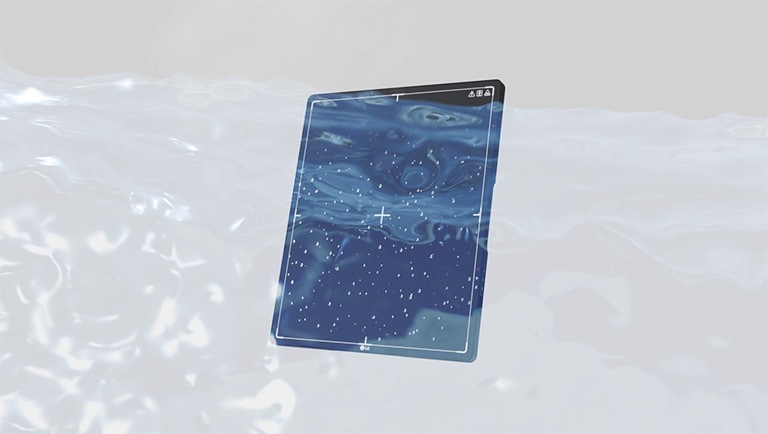

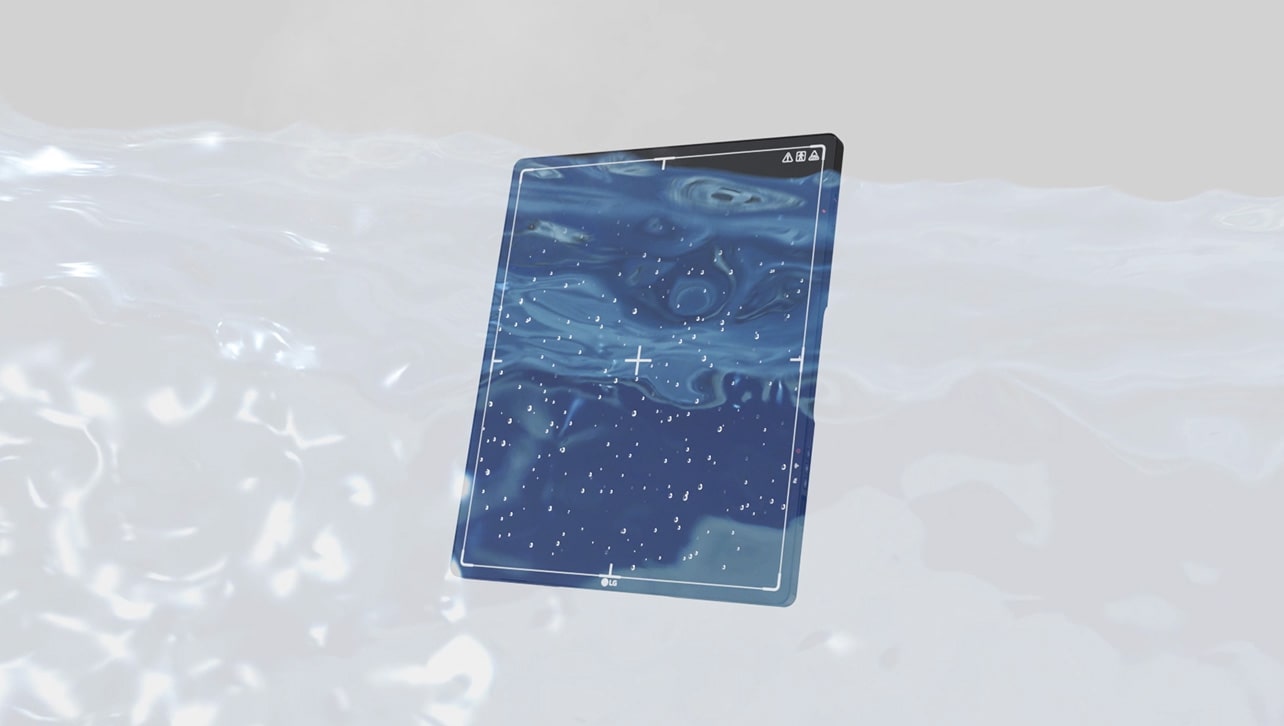

Durable Design

Durable Design. Durable Design.

IP68*

400kg** Max. Uniform Load

200kg** Max. Point Load

1.5m*** Max. Drop Height

*IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Efficient Portability

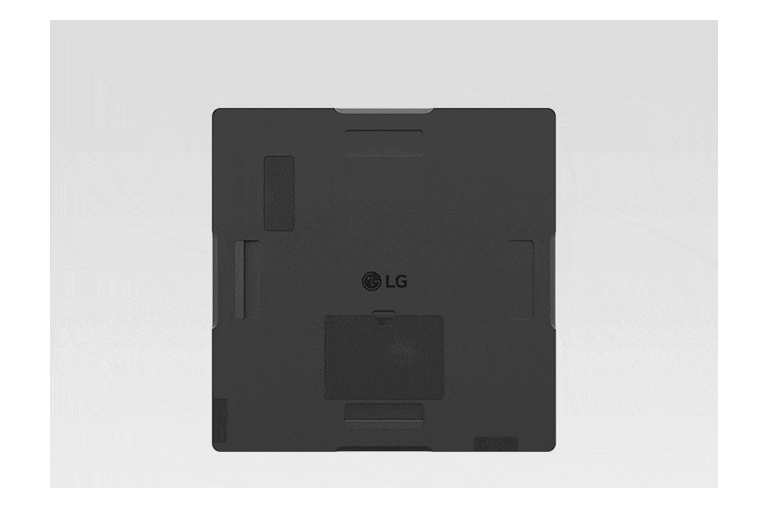

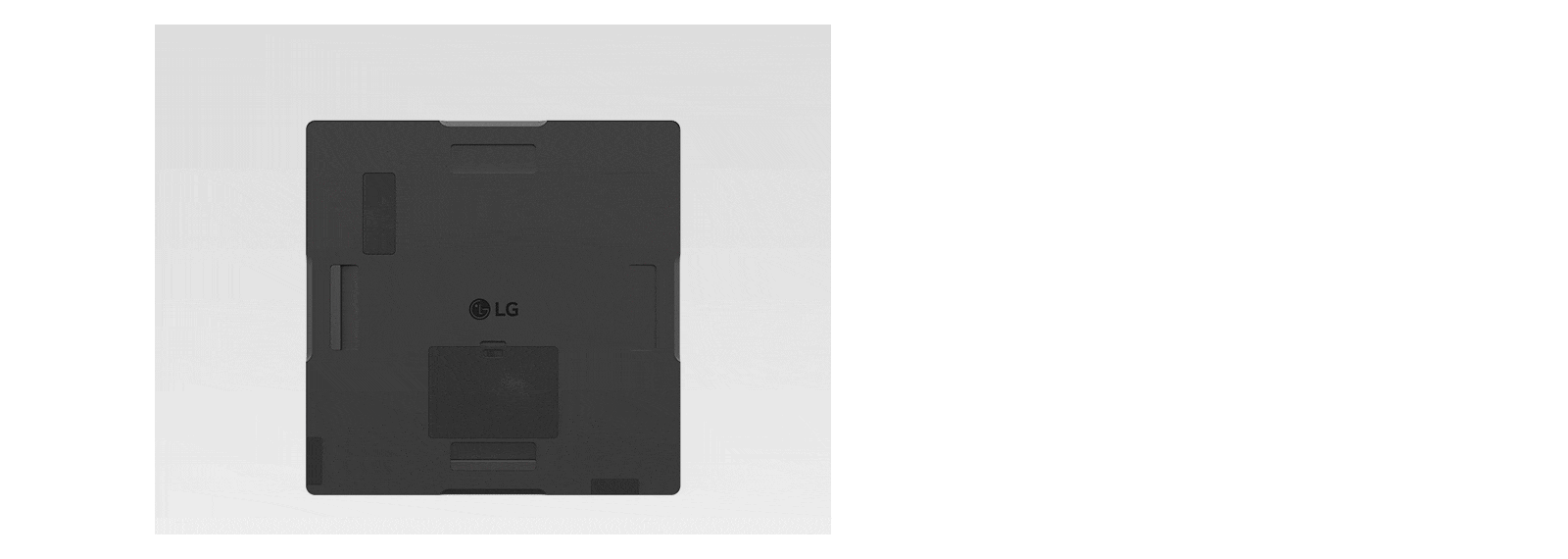

Light-weight Body (3.7kg (8.2 lbs)) with 4-side Chamfer. Light-weight Body (3.7kg (8.2 lbs)) with 4-side Chamfer.
Carbon & Magnesium Body

Light-weight Body (3.7kg (8.2 lbs)) with 4-side Chamfer

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Uninterrupted Use for Extended Operating Times

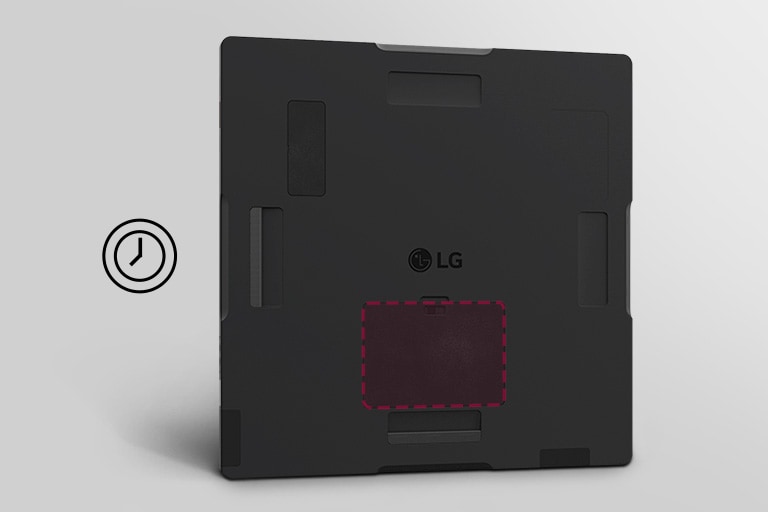

  • Long-lasting Battery Up to 7.5 Hours.

    Long-lasting Battery Up to 7.5 Hours

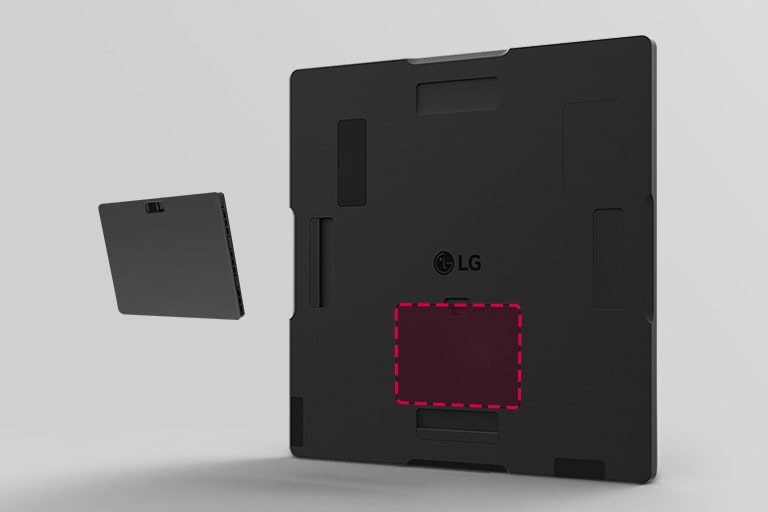

  • Hot Swap Up to 1min.

    Hot Swap Up to 1min.

*300 shots / 7.5 hours under conditions of cycle time 90 sec.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Upgraded Convenience

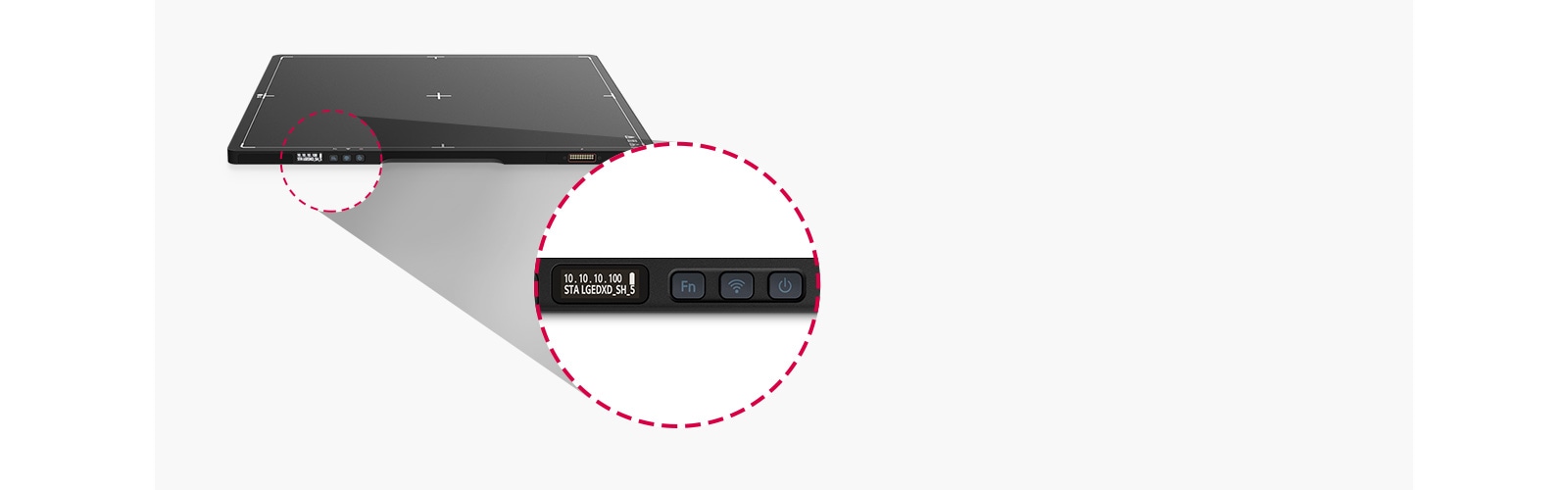

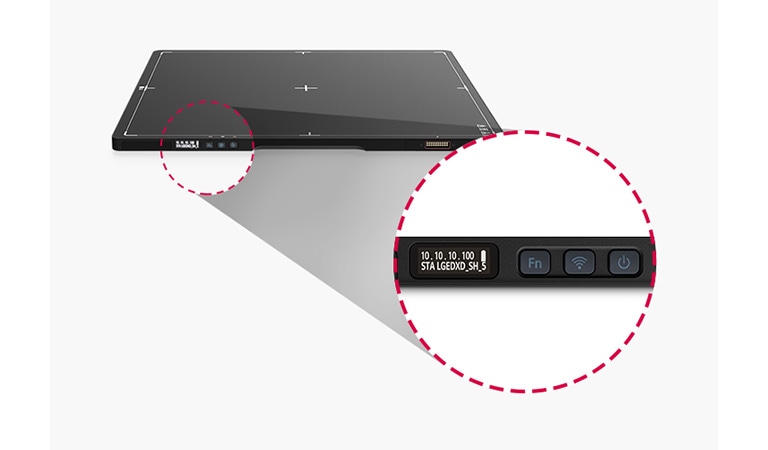

Monitor Device Status via OLED Display Panel. Monitor Device Status via OLED Display Panel.
Built-in OLED Display

Monitor Device Status via OLED Display Panel

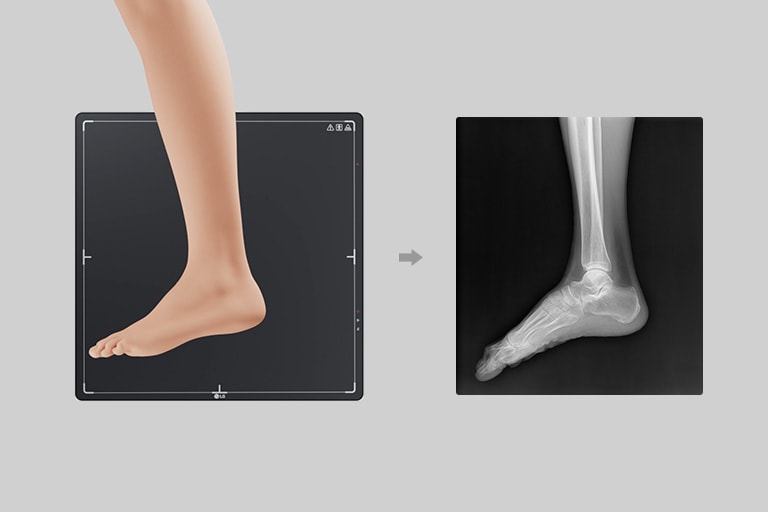

  • High Transmission Speed for Full Images.

    1.5 sec.(Wired)/2.5 sec.(Wireless)

    High Transmission Speed for Full Images

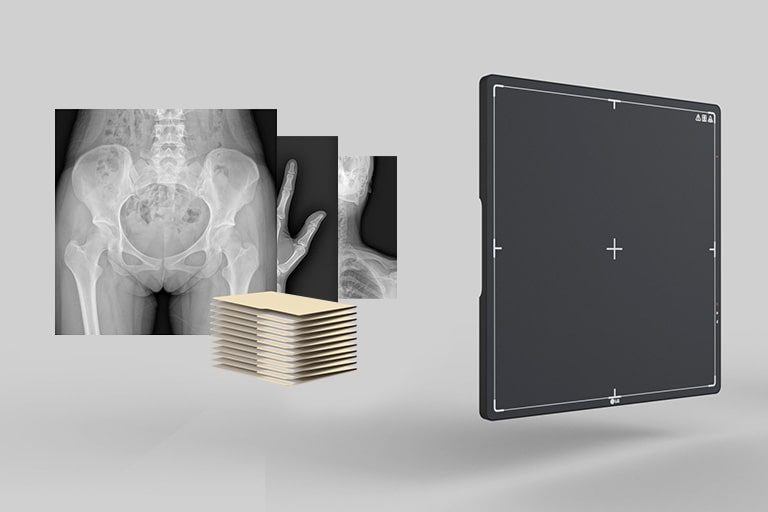

  • Storage on the Digital X-ray Detector.

    Local Storage

    Storage on the Digital X-ray Detector

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Close
DIMENSIONS/WEIGHT
  • Dimension
    460 mm x 460 mm x 15.6 mm
    Weight
    3.7 kg (8.2 lbs)
Technical
  • Intended Use
    General Radiography
    TFT Type
    a-Si
  • Scintillator
    CsI
    Pixel Pitch
    140 ㎛
  • A/D Conversion
    16 bit
    Data Output
    16 bit
IMAGE AREA
  • Number of Pixels
    3072 x 3072 pixels
    TFT Active Area
    430.08 × 430.08 mm
MTF
  • MTF @ 0.5lp/mm (Typ.)
    84%
COMMUNICATION
  • Type
    Wired / Wireless
    WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
  • Auto Exposure Detection
    Yes
    Cycle Time
    4.5 sec (Wired) / 5 sec (Wireless)
  • Full Image Transfer (Typ.)
    *Without window time
    1.5 sec (Wired) / 2.5 sec (Wireless)
DURABILITY
  • Maximum Load Weight
    Full (Uniform Load) : 400 kg (881.8 lbs)
    Local (Point Load) : 200 kg (440.9 lbs)
    Watertightness
    IP68
  • Sensor Protection Plate
    Carbon Fiber Plate
BATTERY
  • Operation Time
    300 shots / 7.5 hrs (Typ.) (Condition : Cycle Time 90 sec)
    Charging Time
    3 hrs (Typ.)
  • Hot Swap
    Yes (1 Min)

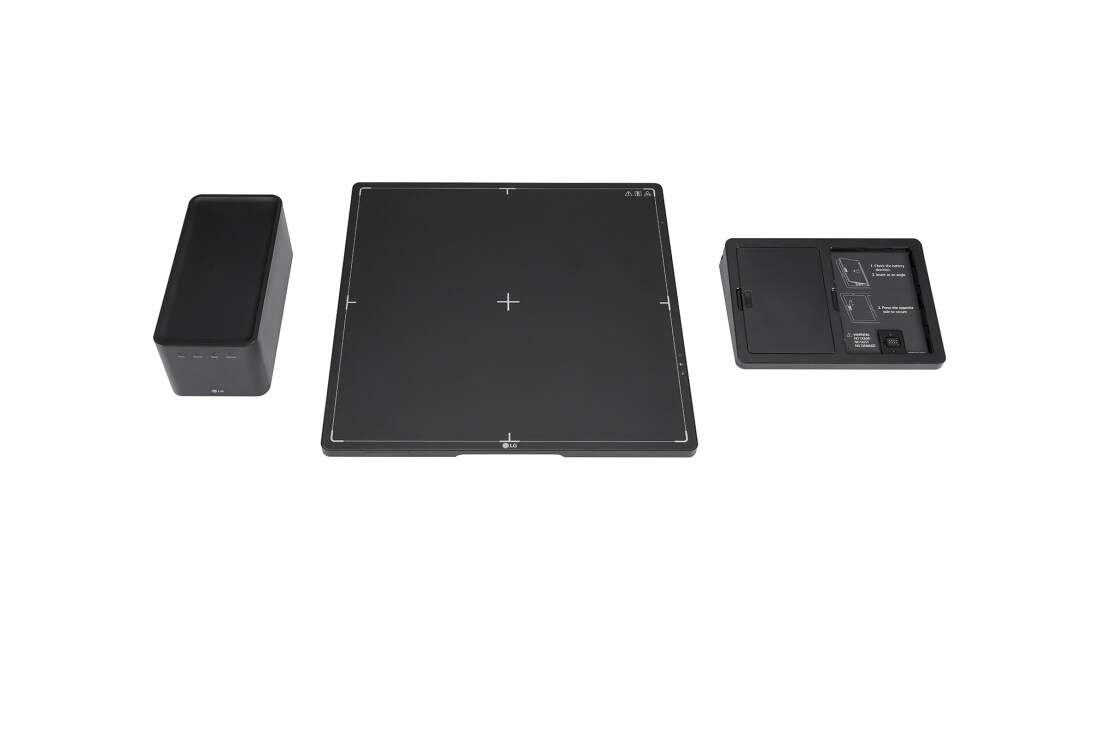

ACCESSORIES
  • Cable
    Power Cord, Main Cable 7 m (LAN Cable, Sync Cable Option)
    Other
    Battery Charger
    2 x Battery Packs
    Control Box
