21HK512D-B component-copyModelName
21.3” High Brightness (2048 x 1536) 3MP IPS Clinical Review Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HK512D-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HK512D-B)
    AED
    AED
    LG Members Price
Total
21.3” High Brightness (2048 x 1536) 3MP IPS Clinical Review Monitor
Find a Dealer

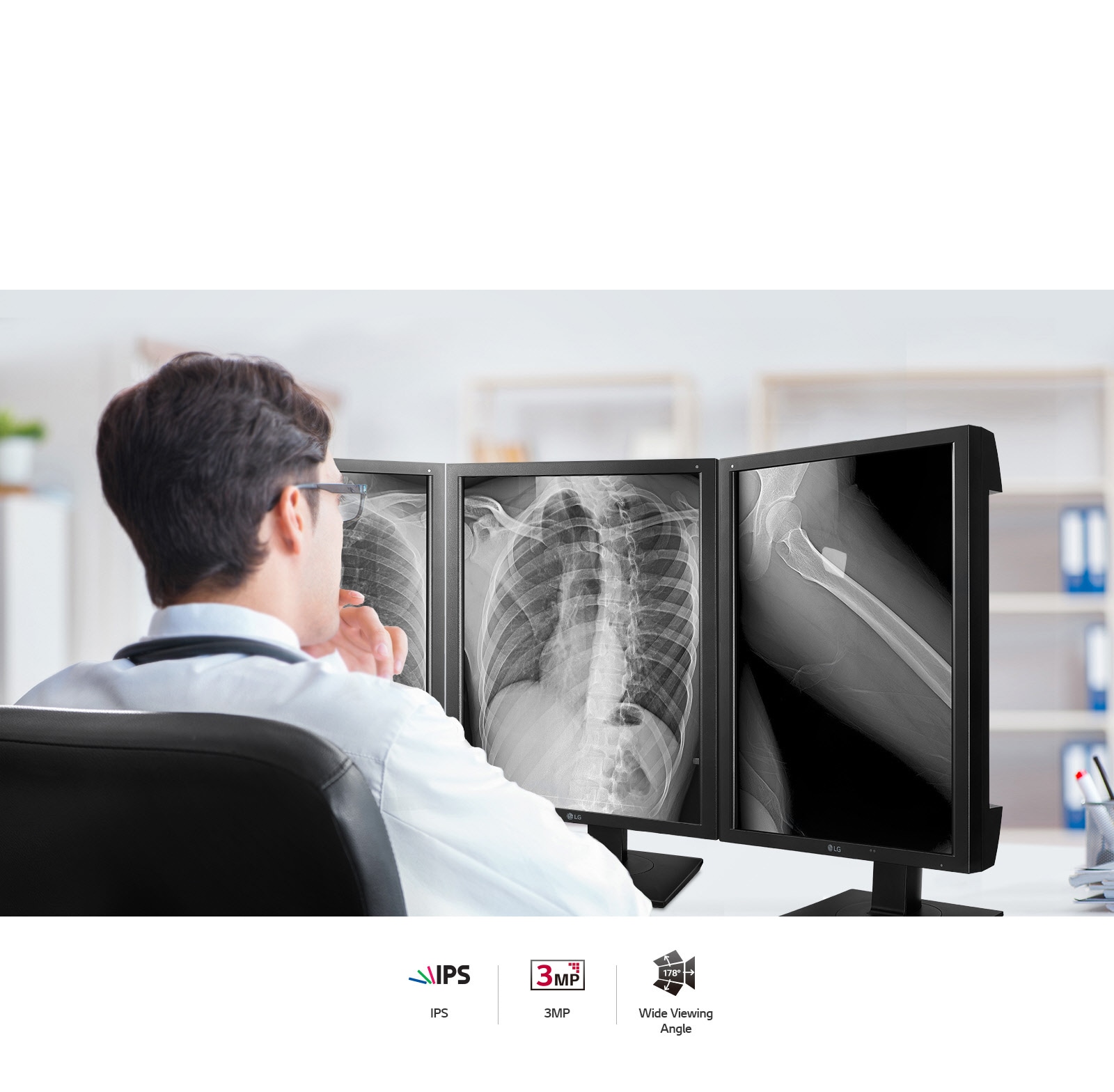

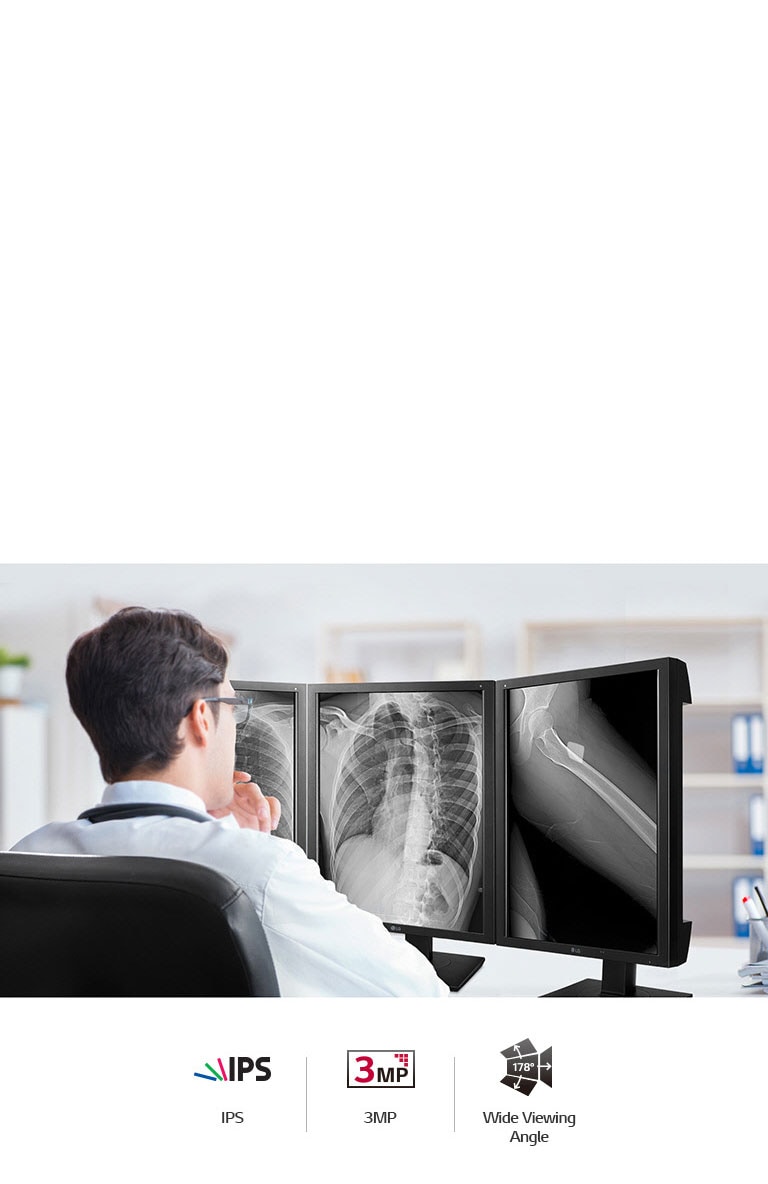

Accurate Image Quality1 Accurate Image Quality2
21.3” IPS 3MP

Accurate Image Quality

The 21.3-inch 3MP IPS display with 1000 nits brightness facilitates the viewing of medical images from CT and Angiography by presenting high quality, accurate images. The 21HK512D clinical monitor allows medical professionals to easily distinguish even delicate detail.
Reliable Image for Diagnosis1 Reliable Image for Diagnosis2

Reliable Image for Diagnosis

Stable Grayscale Images1 Stable Grayscale Images2

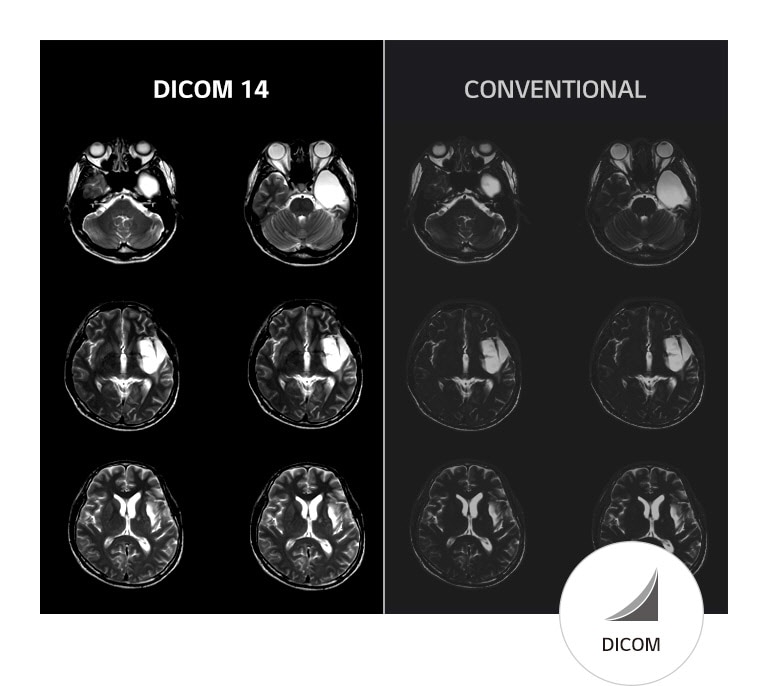

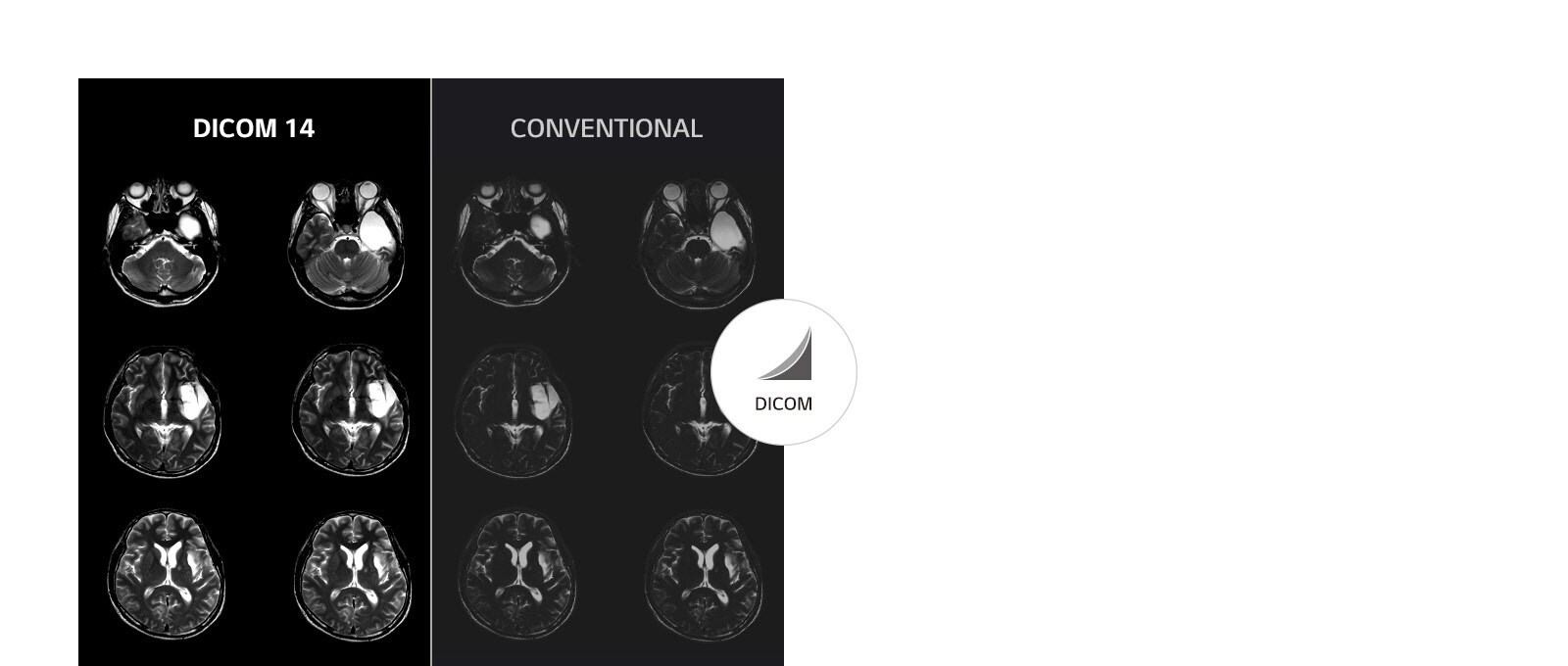

DICOM Part 14

Stable Grayscale Images

The standard DICOM Part 14 Gamma allows for accurate diagnostics as it adjusts the greyscale levels of medical images received from different types of image capturing devices. Plus, 18-bit LUT also makes enhanced, accurate grayscale image, smoothing out the transition between LUT values.
*Image for illustration purpose only.

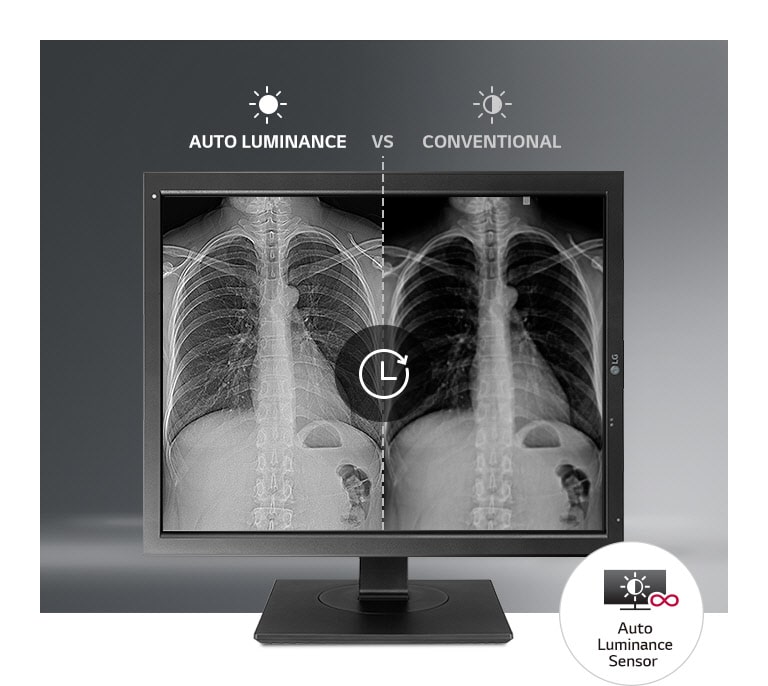

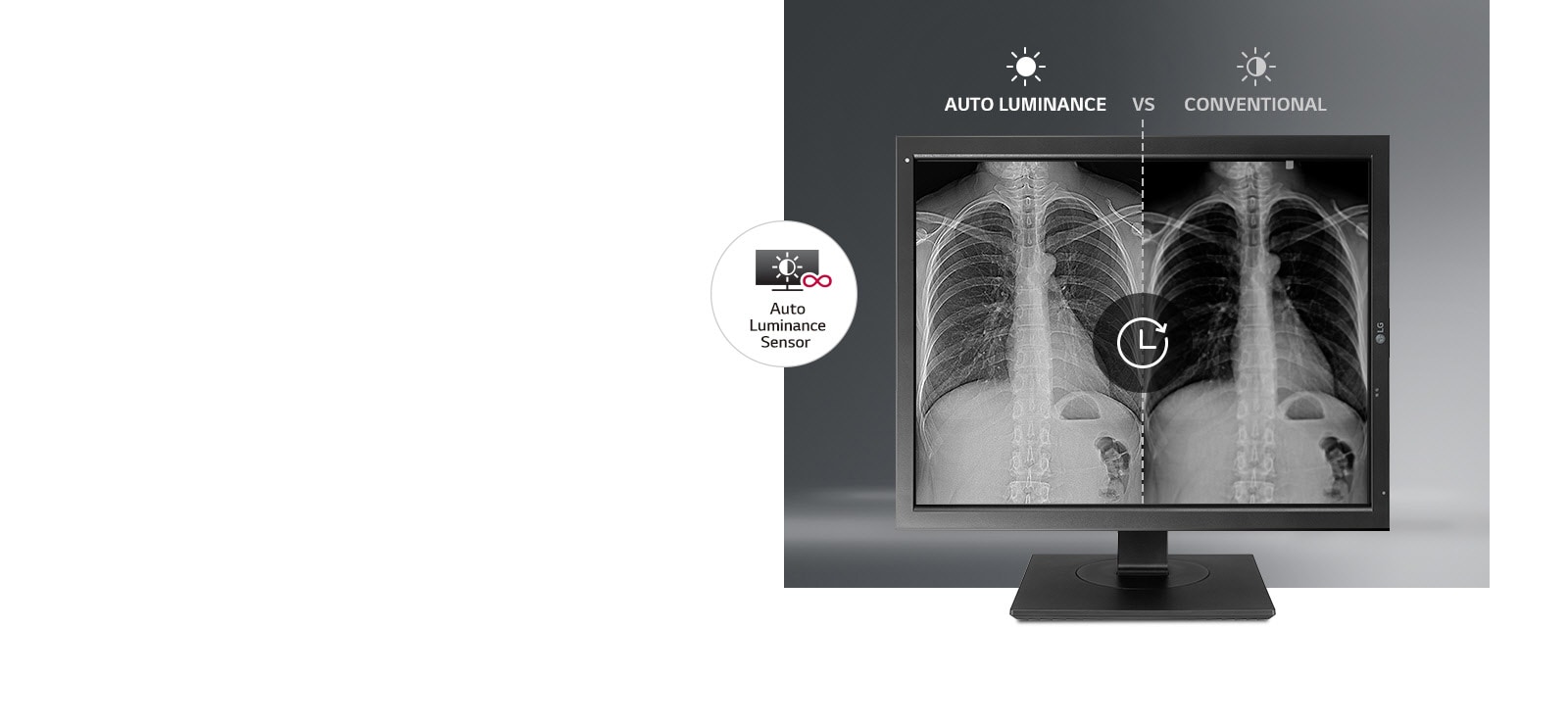

Automatic Brightness Stabilization1 Automatic Brightness Stabilization2
Auto Luminance Sensor

Automatic Brightness Stabilization

Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.
*Image for illustration purpose only.
Productive, Efficient Work1 Productive, Efficient Work2

Productive, Efficient Work

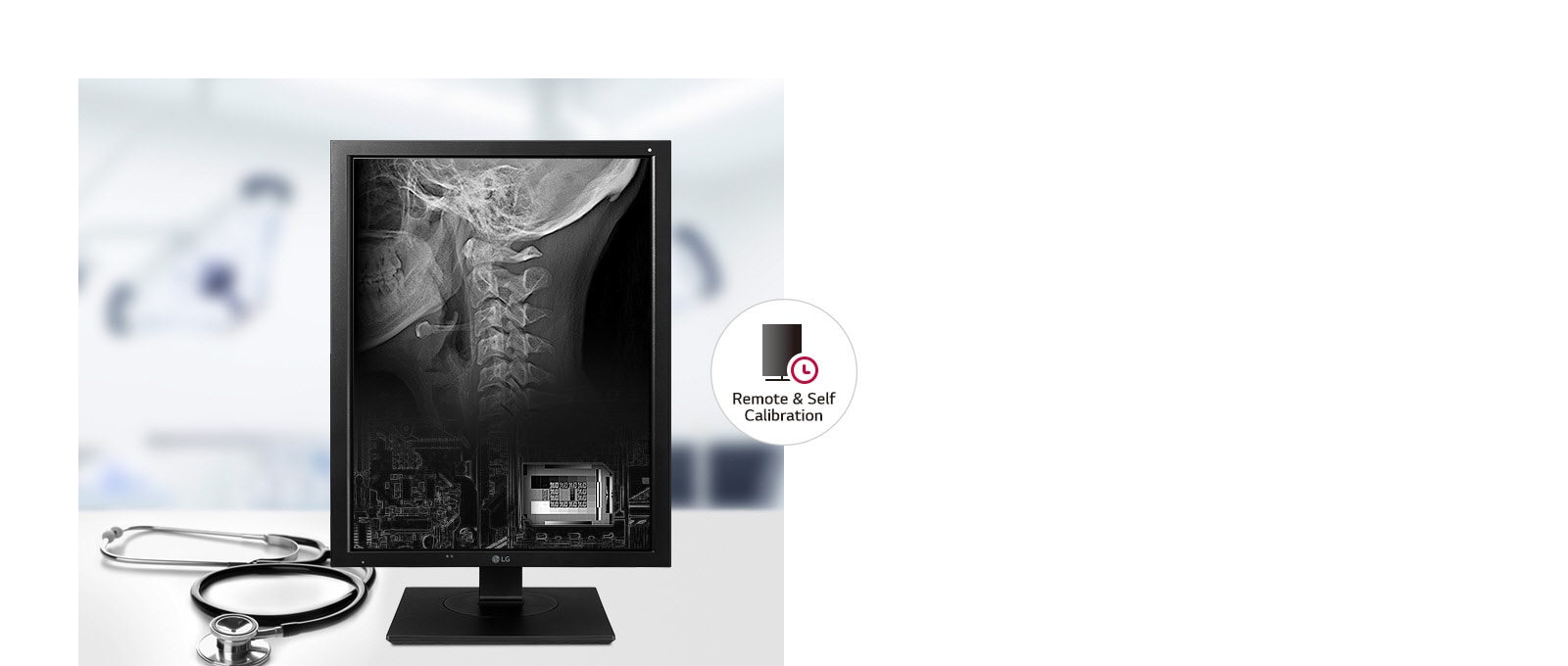

Improved Productivity1 Improved Productivity2

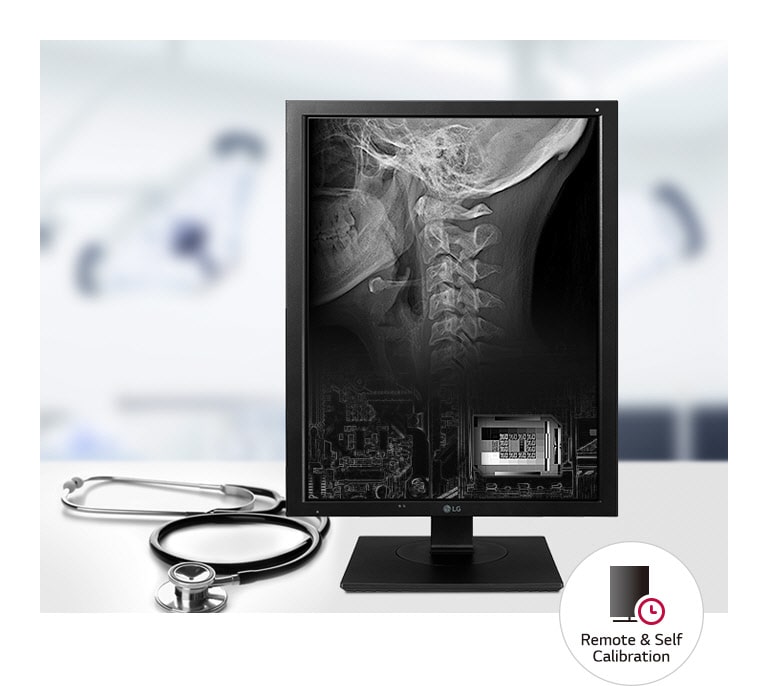

Remote & Self Calibration

Improved Productivity

The Built-in Remote and Self Calibration of the 21HK512D help to increase productivity and efficiency for medical professionals. It converts the medical images to a more suitable image to help medical staff make appropriate diagnosis.
*Image for illustration purpose only.

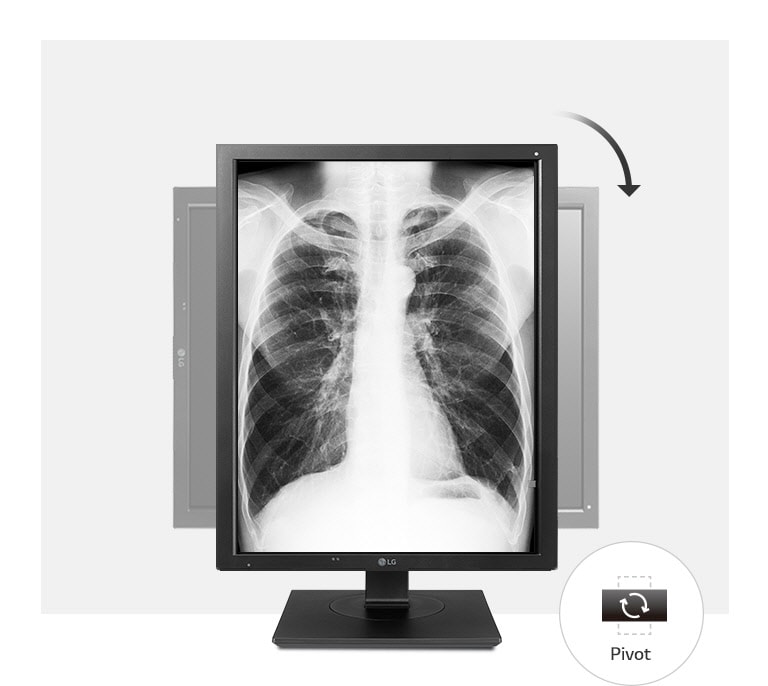

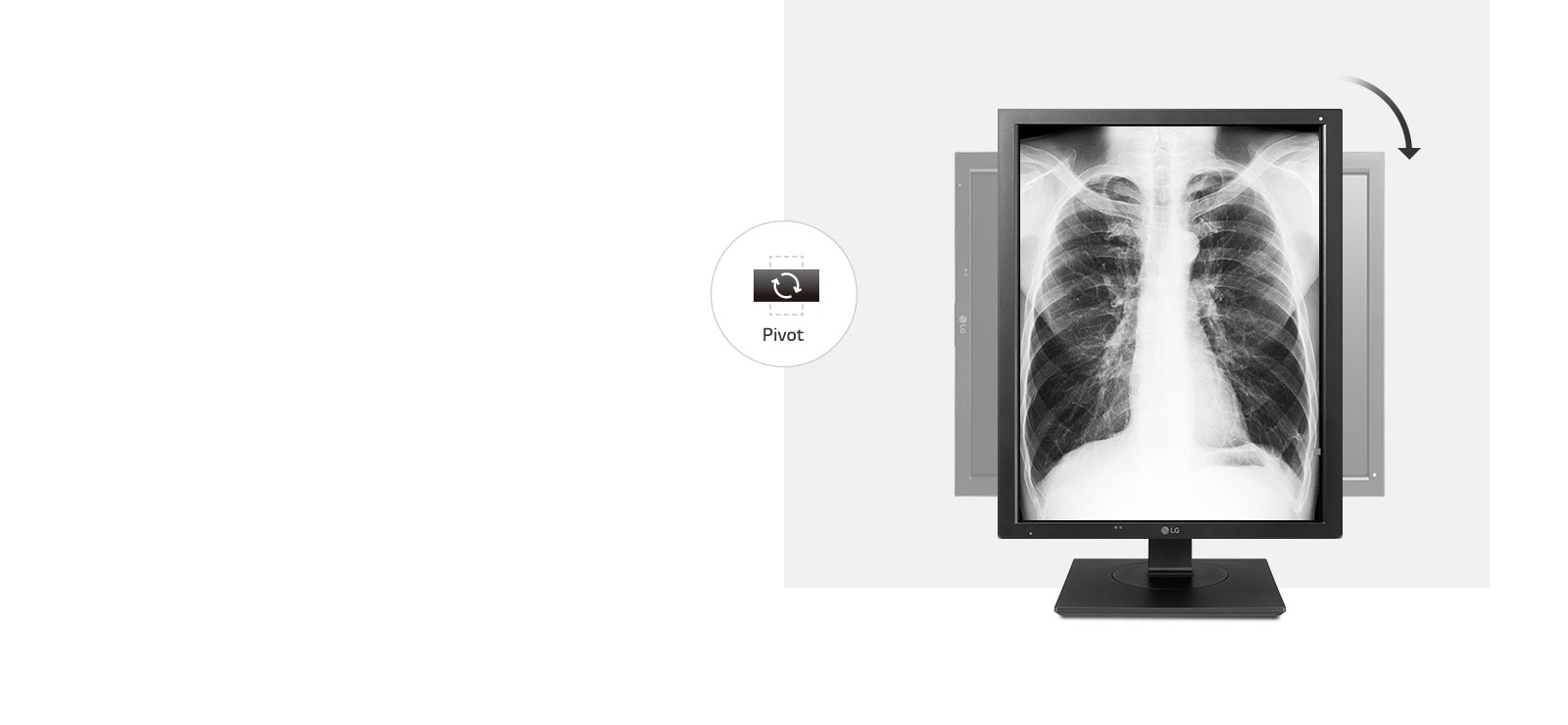

Ergonomic Design1 Ergonomic Design2
Pivot

Ergonomic Design

The 21HK512D Clinical Review monitors is on an ergonomic stand with pivot adjustment. This allows the user to create an optimized diagnostic workspace.
Close
DISPLAY
  • Size (Inch)
    21.3 inch
    Size (cm)
    54.102 cm
  • Resolution
    2048 x 1536
    Panel Type
    IPS
  • Backlight Technology
    LED
    Backlight Type
    Edge
  • Aspect Ratio
    4:3
    Pixel Pitch
    0.2115 (H) x 0.2115 (V)
  • Brightness
    1000 cd/m² (Typ.)
    Color Depth (Number of Colors)
    1.07G
  • Color Bit
    10bit
    Contrast Ratio_Min.
    1100:1
  • Contrast Ratio_Typ.
    1400:1
    Contrast Ratio with DFC
    Mega
  • Response Time
    30ms
    Viewing Angle (CR≥10)
    178º (R/L), 178º (U/D)
  • Surface Treatment
    Anti-Glare
FEATURES
  • HW Calibration
    Yes
    Auto Brightness
    Yes
  • OSD Language
    18 countries English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Polish, Russian, Greek, Chinese, Japanese, Korean, Ukrainian, Portuguese (brazil), Traditional Chinese, Hindi
CONNECTIVITY
  • DVI
    Yes
    DVI (V Frequency)
    60
  • DVI (Max Resolution at Hz)
    2048 X 1536 @60HZ
    DisplayPort
    Yes (1ea)
  • DP (V Frequency)
    60
    DP (Max. Resolution at Hz)
    2048 x 1536 @60HZ
  • USB Upstream Port
    Yes (1ea)
    USB Downstream Port
    Yes (2ea)
  • [Location]
    Bottom
POWER
  • Type
    Internal Power (LIPS)
    AC Input
    100-240Vac, 50/60Hz
  • DC Output
    24V, 4.17A
    Power Consumption (Typ.)
    85W
  • Power Consumption (Max.)
    100W
    Power Consumption (Sleep Mode)
    Less than 6.5W
  • Power Consumption (DC Off)
    Less than 6.5W
MECHANICAL
  • Borderless Design
    Normal
    Color (Front Cabinet)
    Black
  • Color (Back Cover)
    Black
    Color (Stand Body)
    Black
  • Color (Stand Base)
    Black
    Display Position Adjustments
    Tilt/Height/Pivot
  • Tilt
    -5 ~ +35 º(±3)
    Swivel
    0~355±5
  • Height Range
    0 ~ 130 mm
    Down Height
    71.3
  • Pivot
    90º
    Wall Mountable
    100 x 100 mm
  • Base Detchable
    YES
    OneClick Stand
    Yes
DIMENSIONS/WEIGHT
  • Dimension with Stand (W x H x D)
    553.8 x 512.9 x 240
    Dimension without Stand (W x H x D)
    553.8 x 333.1 x 67.6
  • Dimension in Shiping (W x H x D)
    626 x 474 x 194
    Weight with Stand
    6.1
  • Weight without Stand
    4
    Weight in Shipping
    TBD
  • Pallet Stuffing (20ft/40ft/40ft HC)
    440/928/1008
STANDARD
  • UL (cUL)
    Yes
    CB
    Yes
  • FCC-B
    Yes
    CE
    Yes
  • CCC (for China)
    Yes
    MFDS (for Rep. of Korea)
    Yes
  • ERP
    Yes
    Windows
    Yes
  • ROHS, REACH
    Yes
    PVC-Free
    Yes
  • VCCI (for Japan)
    Yes
ACCESSORY
  • Adapter (Color)
    Black
    Power Cord (Color/Length)
    Black / 3m
  • DVI-D
    Yes
    DVI-D (Color/Length)
    Black / 3m
  • Display Port
    Yes
    Display Port (Color/Length)
    Black / 3m

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
