17'' LG SXGA Touch Monitor 2024
17” SXGA touch display with 5ms response time

Touch lightly, control easily

LG SXGA (1280x1024) touchscreen monitor allows you to operate efficiently with your fingertips, enhancing work productivity and comfort. Plus, you can enjoy realistic videos with less screen stuttering, thanks to the fast 5ms response time.
A woman is touching LG SXGA touchscreen monitor. A woman is touching LG SXGA touchscreen monitor.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Response Time : 5ms (On/Off, Not Support OD)

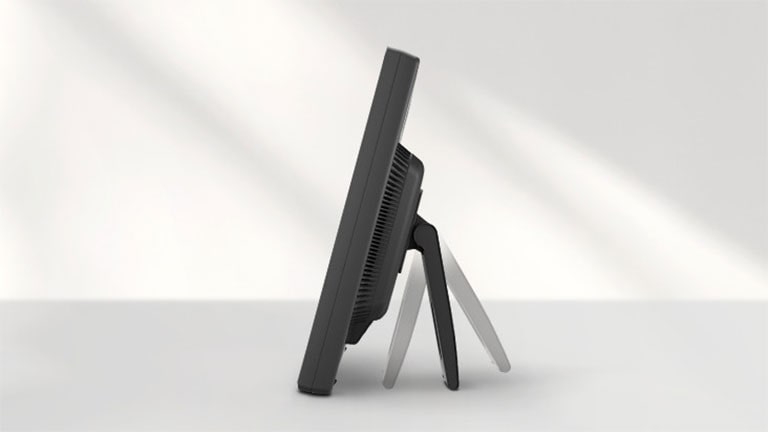

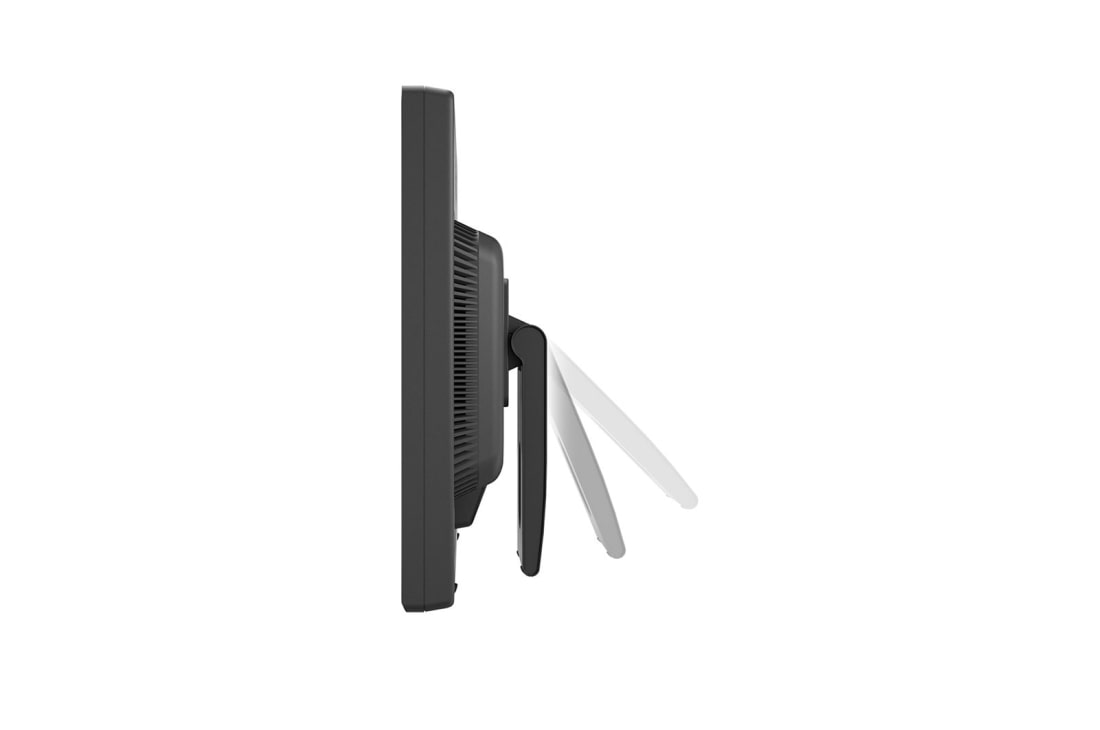

A 17BR30T monitor stand is showing tilting ranged from 15 to 66 degrees.
Ergonomic design

Easy and comfy

A stand with adjustable tilt enables a comfortable working environment, helping you sit comfortably for extended periods while working.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Tilt range: 15 ~ 66°.
Integrated power module

Fully use your desk

By providing built-in power, workstations can be designed with a streamlined and clutter-less layout. This allows for better space utilization and organization, creating a cleaner and more efficient work environment.

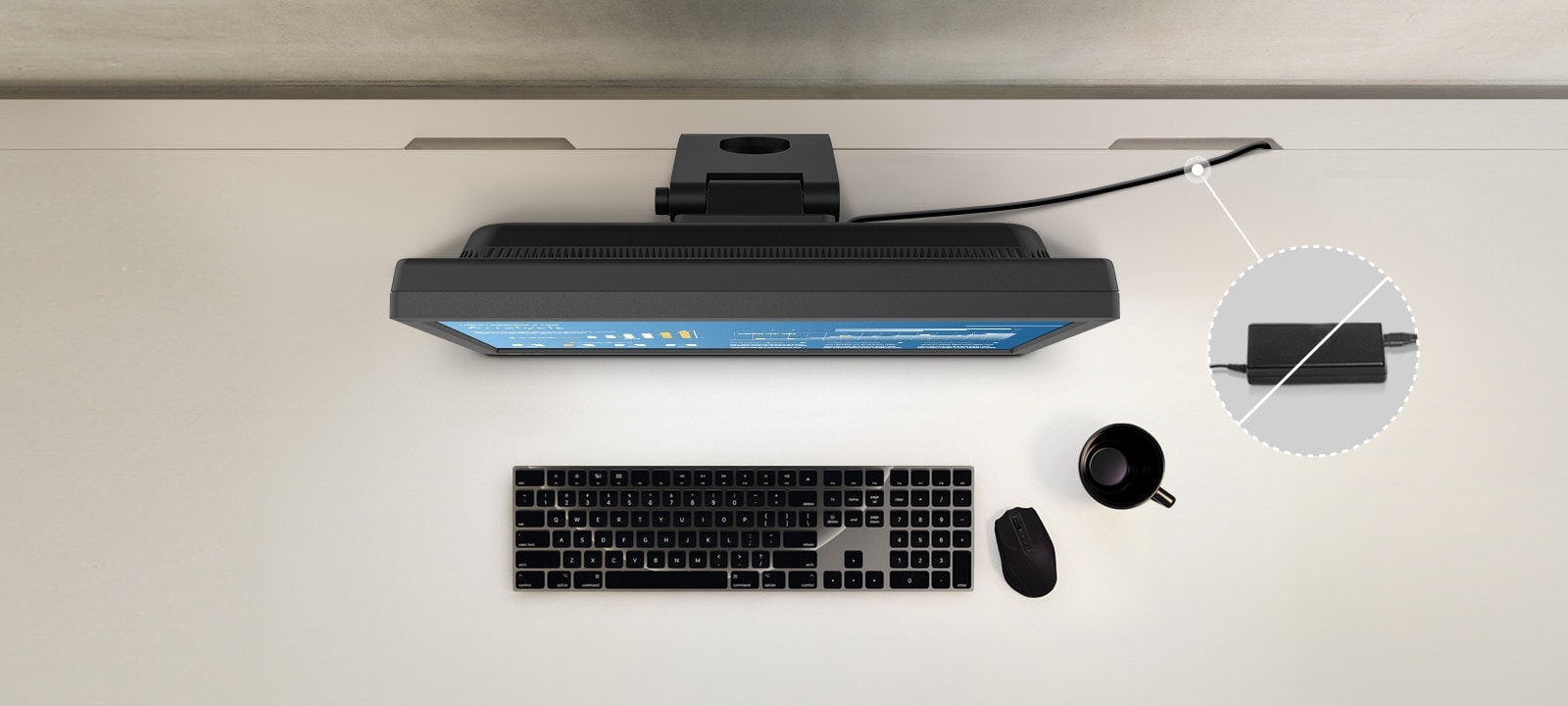

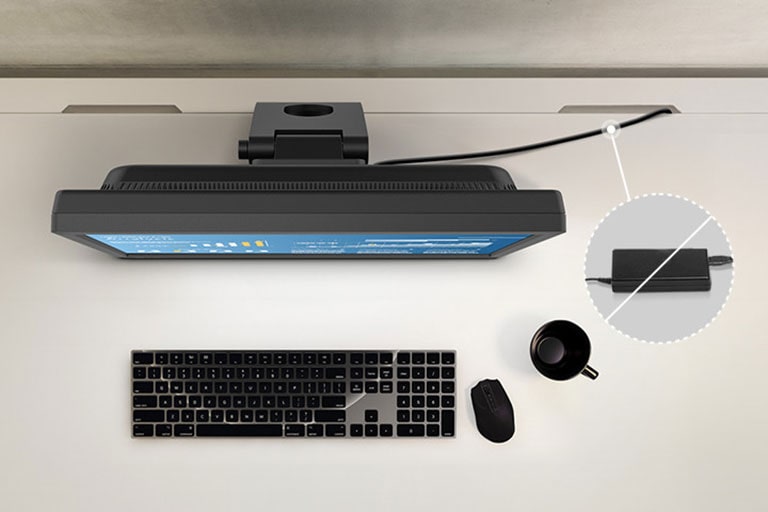

A clean and efficiently used desk because of LG SXGA touchscreen monitor with built-in power. A clean and efficiently used desk because of LG SXGA touchscreen monitor with built-in power.
*The images simulated to enhance feature understanding. It may differ from actual use.
*The keyboard and mouse are not included in the package (sold separately).
A picture of nature on 17BR30T monitor.
Smart Energy Saving

Smart saving without compromise

Our Smart Energy Saving mode reduces power consumption through a luminance compensation algorithm while keeping your monitor bright. Conserve energy without lowering the brightness of the monitor.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Luminance compensation algorithm: Adjusting backlight and color pixel current automatically using Scaler IC.
Close
INFO
  • Product name
    PC Monitor
    Year
    Y24
DISPLAY
  • Size (Inch)
    17
    Size (cm)
    43.18 cm
  • Resolution
    1280 x 1024
    Panel Type
    TN
  • Aspect Ratio
    5:4
    Pixel Pitch [mm]
    0.264 x 0.264
  • Brightness (Min.) [cd/m²]
    150 cd/m²
    Brightness (Typ.) [cd/m²]
    200 cd/m²
  • Color Gamut (Typ.)
    NTSC 72%(CIE1931)
    Color Depth (Number of Colors)
    16.7M
  • Color Bit
    8bit
    Contrast Ratio (Min.)
    600:1
  • Contrast Ratio (Typ.)
    1000:1
    Response Time
    5ms (On/Off, Not Support OD)
  • Viewing Angle (CR≥10)
    170º(R/L), 160º(U/D)
    Surface Treatment
    Anti-Glare
  • Curvature
    NO
FEATURES
  • HDR 10
    NO
    Dolby Vision™
    NO
  • VESA DisplayHDR™
    NO
    HDR Effect
    NO
  • Mini-LED Technology
    NO
    Nano IPS™ Technology
    NO
  • Advanced True Wide Pol.
    NO
    Color Calibrated in Factory
    NO
  • HW Calibration
    NO
    Auto Brightness
    NO
  • Flicker safe
    NO
    Reader Mode
    YES
  • Color Weakness
    NO
    Super Resolution+
    NO
  • Motion Blur Reduction Tech.
    NO
    NVIDIA G-Sync™
    NO
  • AMD FreeSync™
    NO
    VRR
    NO
  • VESA Adaptive Sync
    NO
    VESA Dual-Mode
    NO
  • VESA ClearMR
    NO
    Black Stabilizer
    NO
  • Dynamic Action Sync
    NO
    Crosshair
    NO
  • FPS Counter
    NO
    OverClocking
    NO
  • User Defined Key
    NO
    Auto Input Switch
    NO
  • RGB LED Lighting
    NO
    PBP
    NO
  • PIP
    NO
    Smart Energy Saving
    YES
  • OSD Language
    18 countries (English, Germanic, French, Spanish, Italian, Swedish, Finnish, Portuguese, Portuguese(brazil), Polish, Russian, Greek, Ukrainian, Chinese, Traditional Chinese, Japanese, Korean, Hindi)
    Camera
    NO
  • Mic
    NO
    Live Color Low Blue Light
    NO
  • Others (Feature)
    Single Point Touch
SW APPLICATION
  • LG Switch
    NO
    LG Calibration Studio (True Color Pro)
    NO
  • Dual Controller
    NO
    OnScreen Control (LG Screen Manager)
    NO
  • LG UltraGear™ Control Center
    NO
    LG UltraGear™ Studio
    NO
CONNECTIVITY
  • D-Sub
    YES(1ea)
    D-Sub (V Frequency)
    56~75Hz
  • D-Sub (Max. Resolution at Hz)
    1280 x 1024 at 75Hz
    DVI-D
    NO
  • DVI (V Frequency)
    NO
    DVI (Max Resolution at Hz)
    NO
  • HDMI
    NO
    DisplayPort
    NO
  • Thunderbolt
    NO
    USB-C
    NO
  • Daisy Chain
    NO
    USB Upstream Port(USB-B)
    1x USB2.0
  • USB Downstream Port(USB-A)
    NO
    Built-in KVM
    NO
  • LAN (RJ-45)
    NO
    SPDIF out (Optical Digital Audio Out)
    NO
  • Audio In
    NO
    Mic In
    NO
  • Headphone out
    NO
    Line out
    NO
  • [Location]
    Vertical
SOUND
  • Speaker
    NO
    Bluetooth Connectivity
    NO
  • DTS Headphone:X
    NO
    DTS Virtual:X
    NO
  • DepthSound
    NO
    Maxx Audio
    NO
  • Rich Bass
    NO
    Pixel Sound (Cinematic Sound OLED)
    NO
POWER
  • Type
    Built-in Power
    AC Input
    100~240V (50/60Hz)
  • DC Output
    28W(19V,1.6A)
    Power Consumption (On-Mode)
    16W
  • Power Consumption (On-Mode) (ErP)
    12W
    Power Consumption (Sleep Mode)
    Less than 0.3W
  • Power Consumption (DC Off)
    Less than 0.3W
MECHANICAL
  • Borderless Design
    Normal
    Color (Front Cabinet)
    Black - Non Glossy
  • Color (Middle Cabinet)
    Black - Non Glossy
    Color (Back Cover)
    Black - Non Glossy
  • Color (Stand Body)
    Black - Non Glossy
    Color (Stand Base)
    Black - Non Glossy
  • Display Position Adjustments
    Tilt
    Tilt
    +15º(±3°)~66º(±3°)
  • Wall Mountable [mm]
    75 x 75 mm
    Base Detachable
    NO
  • OneClick Stand
    NO
DIMENSIONS/WEIGHTS
  • Dimension with Stand (W x H x D) [mm]
    370 x 95 x 315
    Dimension without Stand (W x H x D) [mm]
    370 x 62 x 315
  • Dimension in Shiping (W x H x D) [mm]
    429×154×377
    Weight with Stand [kg]
    3.3
  • Weight in Shipping [kg]
    4.5
    Pallet Stuffing (20ft/40ft/40ft HC)
    936/2028/2028
ACCESSORY
  • Adapter
    NO
    Power Cord
    YES
  • Power Cord (Color/Length)
    Black / 1.5m
    D-Sub
    YES
  • D-Sub (Color/Length)
    Black / 1.5m
    DVI-D
    NO
  • DVI-D (Color/Length)
    NO
    HDMI
    NO
  • HDMI (Color/Length)
    NO
    Display Port
    NO
  • Display Port (Color/Length)
    NO
    Thunderbolt
    NO
  • Thunderbolt (Color/Length)
    NO
    USB-C
    NO
  • USB-C (Color/Length)
    NO
    USB A to B
    NO
  • USB A to B (Color/Length)
    Black / 1.8m
    Remote Controller
    NO
  • Remote Controller (Color)
    NO
    Calibration Report (Paper)
    NO
STANDARD
  • TCO
    NO
    EPA
    NO
  • TUV-type
    YES
    TUV-GS
    NO
  • TUV-Ergo
    NO
    CB
    YES
  • UL (cUL)
    YES
    FCC-B
    YES
  • EPEAT (USA)
    NO
    EPEAT (Germany)
    NO
  • ERP
    YES
    CE
    YES
  • BIS (for India)
    Depends on PDR
    VCCI (for Japan)
    Depends on PDR
  • BSMI (for Taiwan)
    Depends on PDR
    KC (for Rep. of Korea)
    Depends on PDR
  • CCC (for China)
    Depends on PDR
    Thunderbolt
    NO
  • USB-C (USB-IF)
    NO
    USB-C (VESA)
    NO
  • VESA wall mount standard
    NO
    Others (Standard)
    Win10
