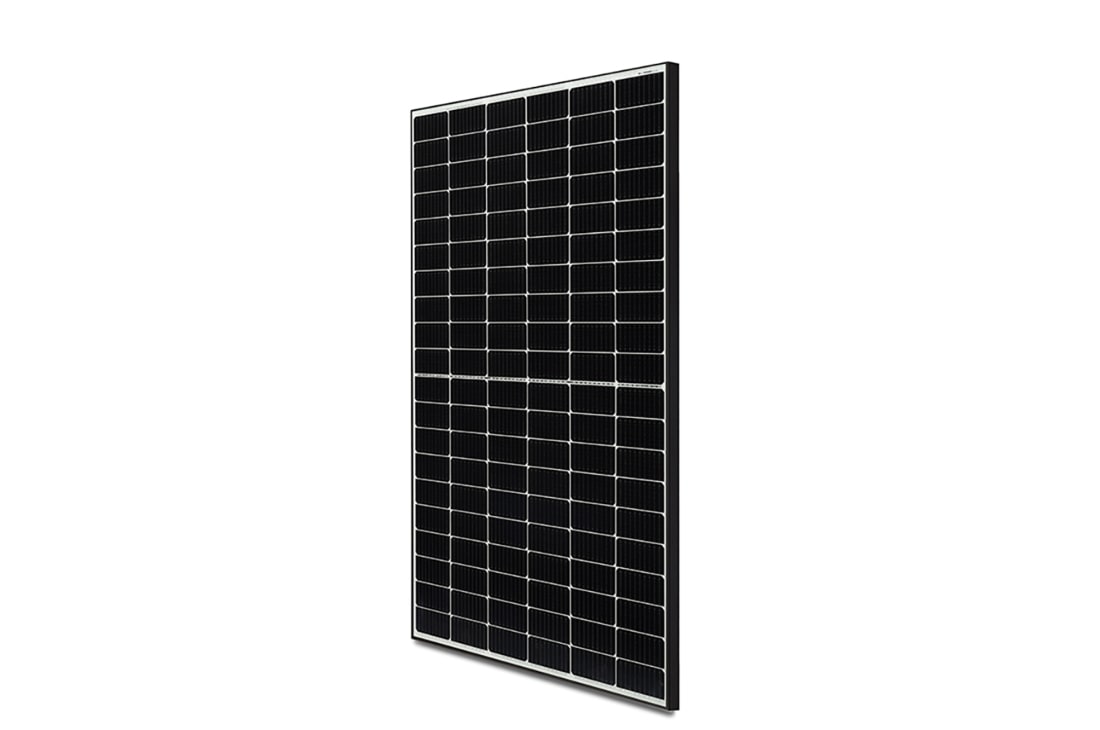

LG Mono X® Plus, 15 degree side view, LG365S1C-U6, thumbnail 1

LG Mono X® Plus, front view , LG365S1C-U6, thumbnail 2

LG Mono X® Plus, top view, LG365S1C-U6, thumbnail 3

LG Mono X® Plus, top side view, LG365S1C-U6, thumbnail 4

LG Mono X® Plus, rear view, LG365S1C-U6, thumbnail 5

ADD TO WISHLIST

Discontinued

LG365S1C-U6 component-copyModelName

LG Mono X® Plus

Name: LG Mono X® Plus
Brand: LG UAE
SKU: LG365S1C-U6
Rating: 0 (0 reviews)

Key Features

Maximum Power 365W
15-year product warranty
25-year performance warranty
Design improvements for durability / wind load back: 3.000 pa/frame thickness: 40 mm
Less weight for easy installation. Starting at 19.4 kg

component-OBScountrySelectDesc

Key Features

Maximum Power 365W
15-year product warranty
25-year performance warranty
Design improvements for durability / wind load back: 3.000 pa/frame thickness: 40 mm
Less weight for easy installation. Starting at 19.4 kg

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG Mono X® Plus

The next-generation Mono X® Plus is a robust P-type module offering high performance and efficiency.

Graphs and images showing long-lasting clean energy production with a 25-year product and performance warranty

An Outstanding Warranty is
There If You Need It

A 15-year product warranty and a 25-year performance warranty, fully backed by LG.

*① Comparison model : Conventional P-type ② Comparison part : LG’s product Degradation (1st year) -2%, Degradation (Annually) -0.40%/yr Conventional P-type model Degradation (1st) -2%, Degradation (Annually) -0.55%/yr
③ Comparison conditions Comparison by graphs ④ Result As shown in the graph, LG’s product performed 87.9% in the 25th year.

Light-weight and Durable

LG Mono X® Plus is lighter than competitors, thereby causing less strain on rooftops.
Mitigate your roof load with light-weight modules so your roof lasts longer.

LG Mono X® Plus is lighter than competing products, putting less strain on the roof.

* ① Comparison Model : Conventional P-type ② Comparison Part : Weight of LG product 22.3kg & conventional P-type 24.5kg ③ Comparison conditions weight comparison per kWp (22.3 kg/450 W=49.5 kg/kWp, 24.5 kg/430 W=57) and 5 kWp comparison when installed ④ Result LG’s product is lighter than conventional P-type

Strict Testing to Ensure
High Reliability

LG Mono X® Plus is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.

Graphs showing rigorous testing and high reliability to ensure

* = International Electrotechnical Commission
* This is based on 'LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.

ELECTRICAL PROPERTIES(STC*)

Maximum Power (Pmax) [W]

365

MPP Voltage (Vmpp) [V]

33.82
MPP Current (Impp) [A]

10.8

Open Circuit Voltage (Voc, ±3 %) [V]

41.57
Short Circuit Current (Isc, ±4 %) [A]

11.22

Module Efficiency [%]

19.5
Power Tolerance [%]

0 ~ +3

*

STC (Standard Test Condition) : Irradiance 1000W/m2, Cell temperature 25°C, AM 1.5

ELECTRICAL PROPERTIES(NMOT)

Maximum Power (Pmax) [W]

273

MPP Voltage (Vmpp) [V]

31.52
MPP Current (Impp) [A]

8.66

Open Circuit Voltage (Voc) [V]

38.95
Short Circuit Current (Isc) [A]

9.04

GENERAL DATA

Cell Properties (Material / Type)

Monocrystalline / N-type

Cell Configuration

120 Cells (6 x 20)
Number of Busbar

9 EA

Module Dimensions (L x W x H)

1,776 x 1,052 x 40mm
Weight

19.7kg

Glass (Material)

Tempered Glass with AR coating
Backsheet (Color)

White

Frame (Material)

Anodized Aluminium
Junction Box (Protection Degree)

IP68

Cables (Length)

1,150mm x 2EA
Connector (Type / Maker)

MC4 (IEC 1000V)

CERTIFICATIONS AND WARRANTY

Product Warranty

15 Years

Output Warranty of Pmax

Linear Warranty*
*

1) First years : 97.5%, 2) After 1st year : 0.4% annual degradation, 3) 87.9% for 25 years
