NeON® H BiFacial

NeON H BiFacial solar panels are equipped with HTAR glass and a dual faced design, enabling more power generation and absorption from the front and rear. The highly efficient Bifacial cells will maximise energy generation and minimise your impact on the environment.
00_NeON2iFacial_Global_PC_1563874702825 00_NeON 2 BiFacial_Mobile_1565677438672
NeON® H BiFacial

Double-sided Generation

Watch the Full Movie
VIEW FILTERS
FILTER
Selecting a checkbox will update the products displayed on screen.
0 of 0 Results
FILTER RESULTS (0)
0 Total Results 0 of 0 Results View All
Clear Filters

There is no data.

01_Double-sidedGenerationCellStructure_Global_PC_1563874901932 01_Double-sided-Generation-Cell-Structure_Mobile-2_1565615314249

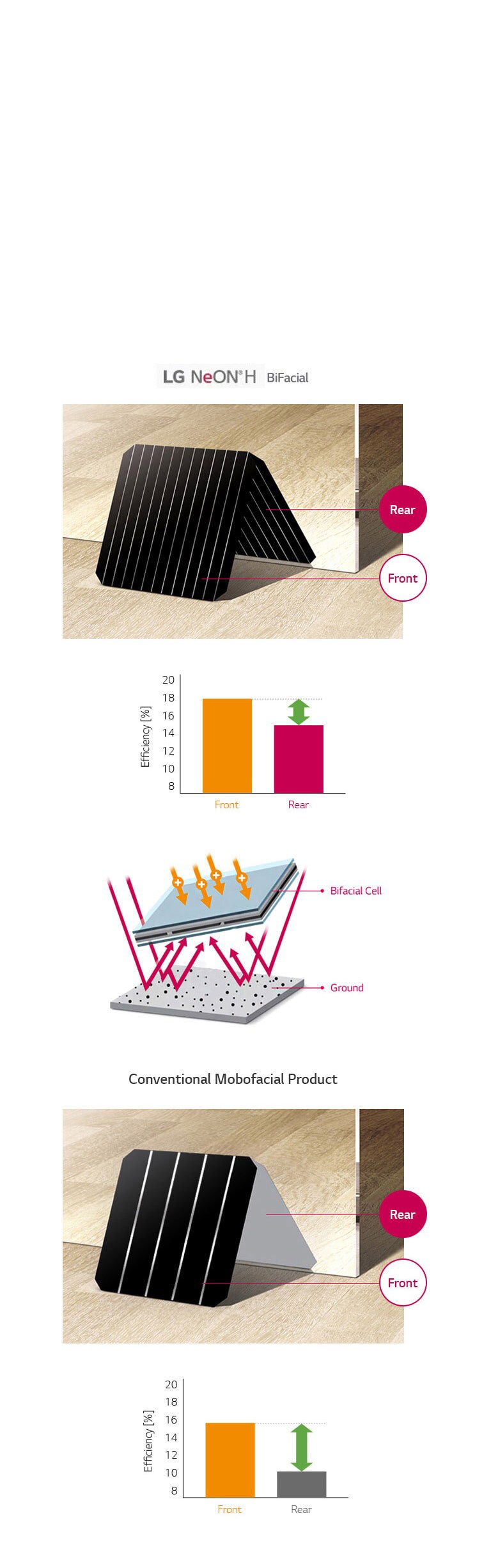

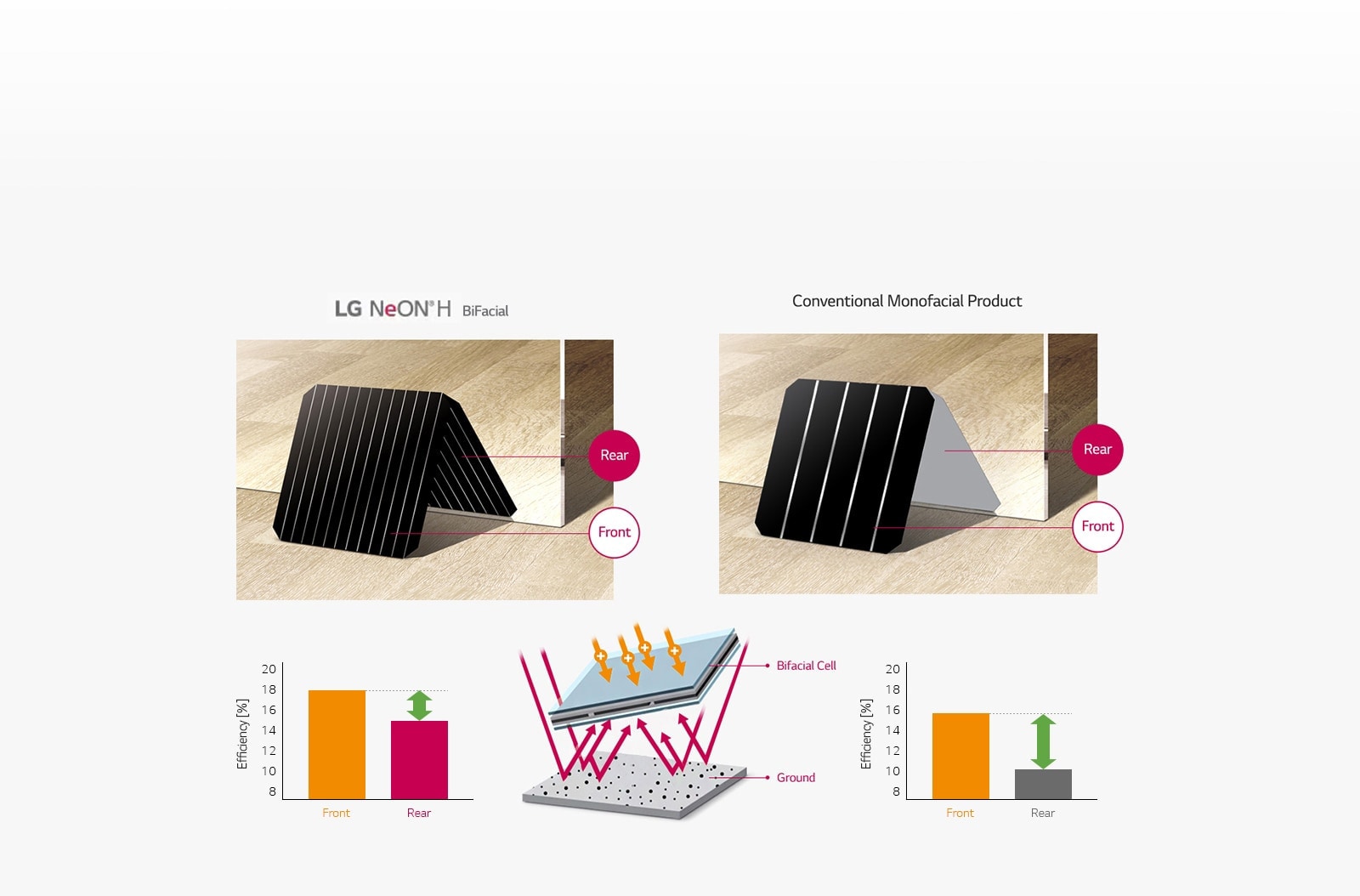

Double-sided Generation Cell Structure

Using highly efficient bifacial cell “NeON”, LG NeON® h BiFacial generates the power on the both side with almost same level.
02_SuperiorPerformanceEvenWhenItSnows_Global_PC_1563950416963 02_Superior-Performance-Even-When-It-Snows_Mobile_1565611436633

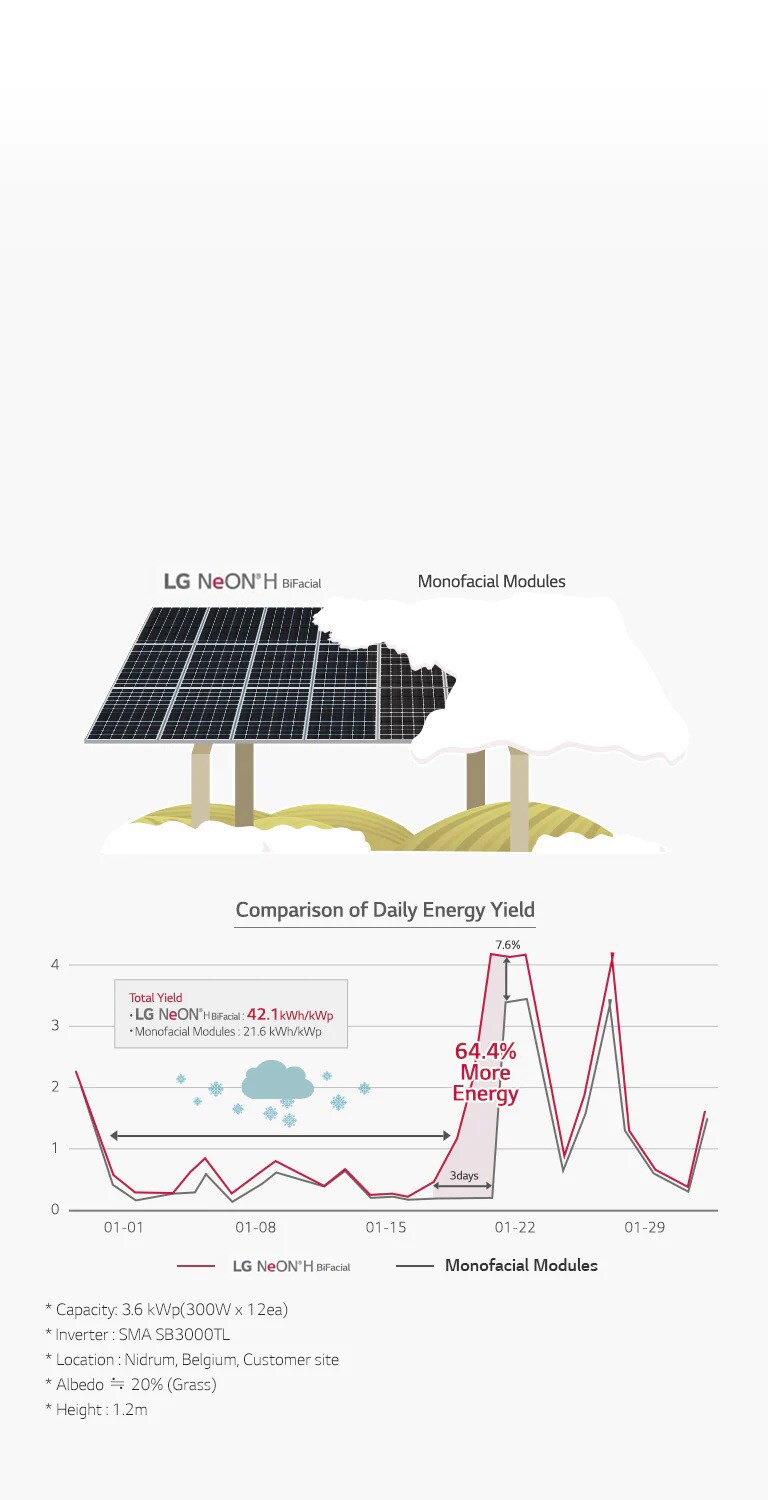

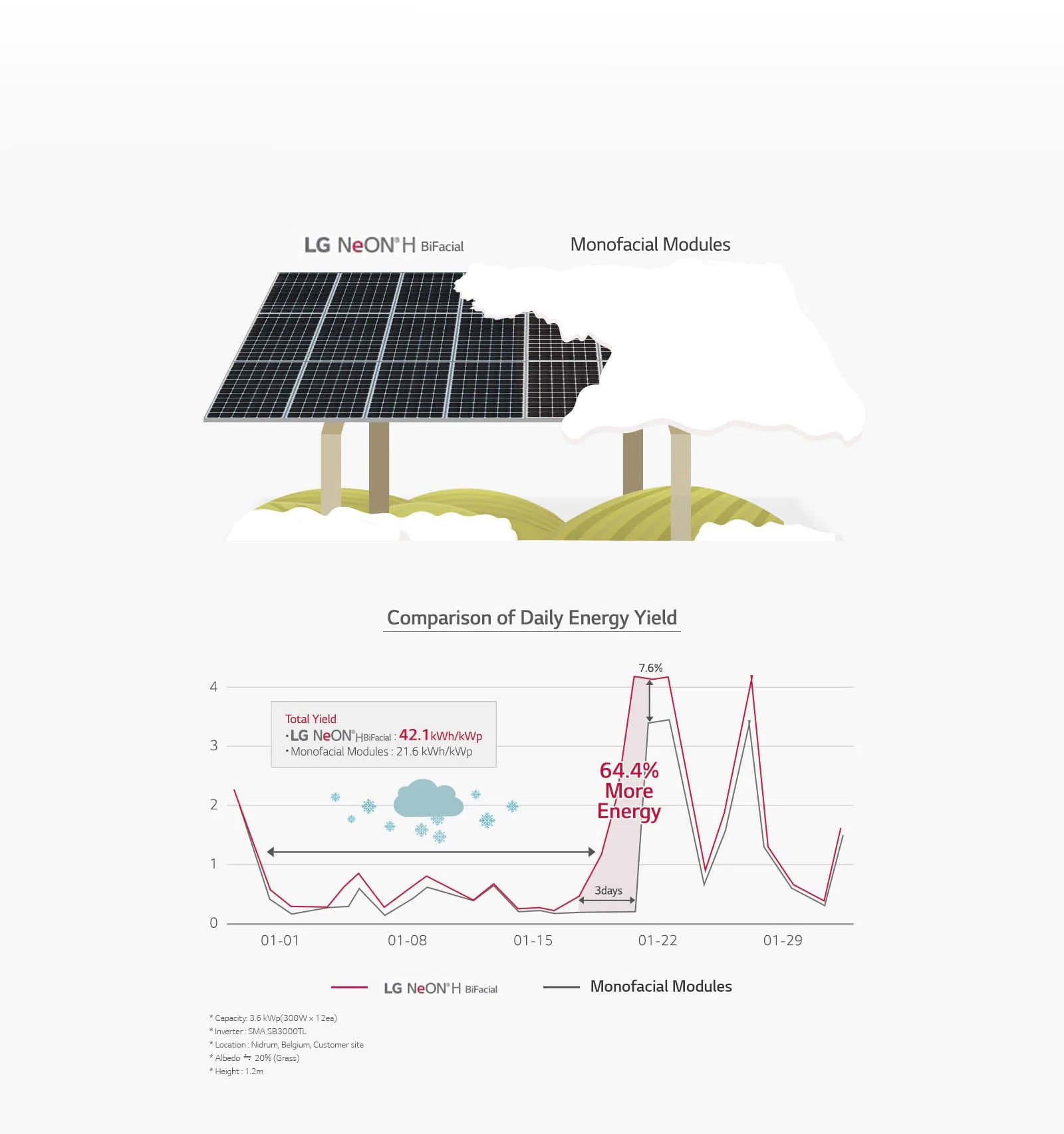

Superior Performance Even When It Snows

Using highly efficient bifacial cell “NeON”,LG NeON® h BiFacial generates more power even when it snows.
03_N-typeCellforAnti-LID_Global_PC_1563950456979 03_N-type-Cell-for-Anti-LID_Mobile-1_1565611593078

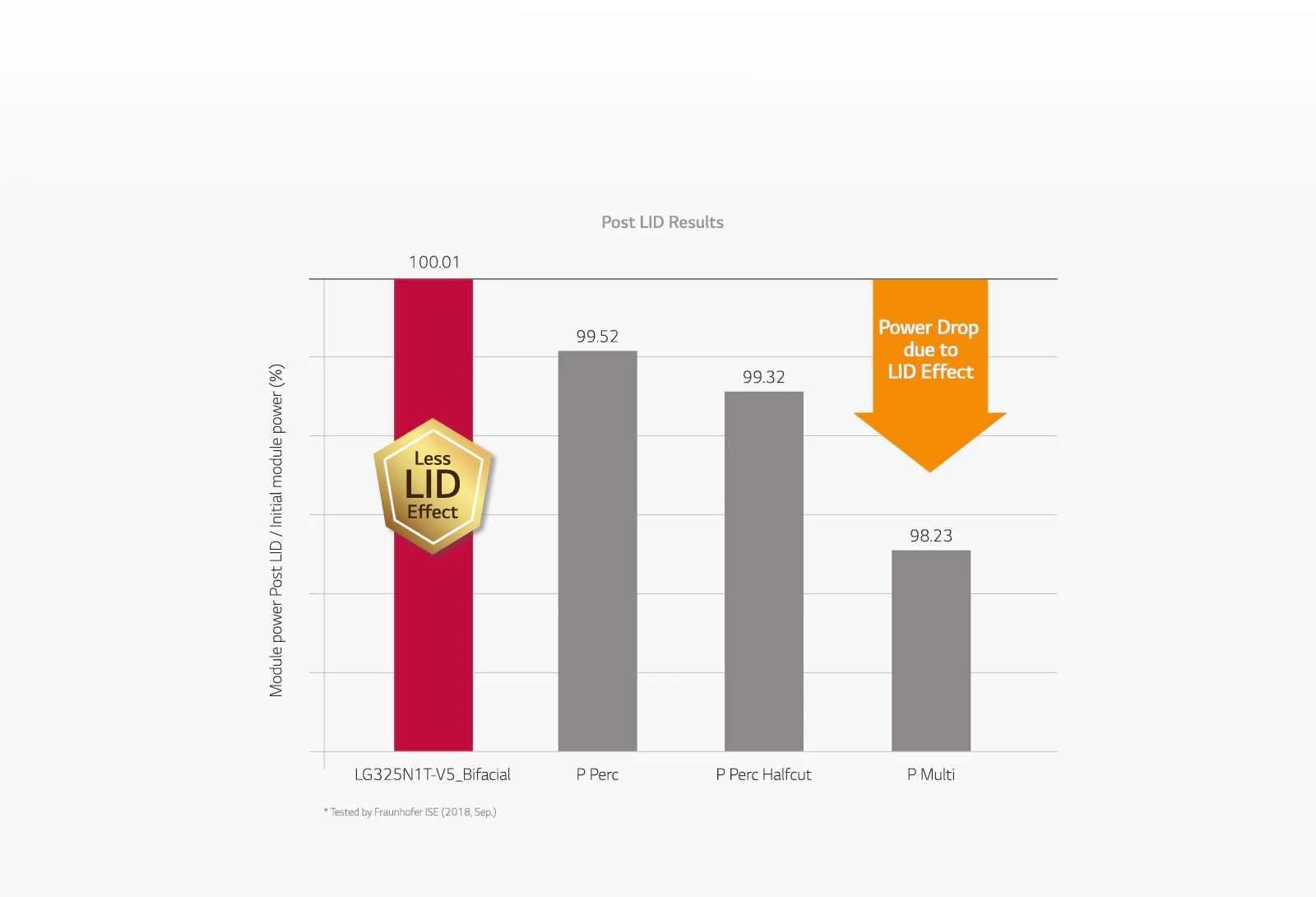

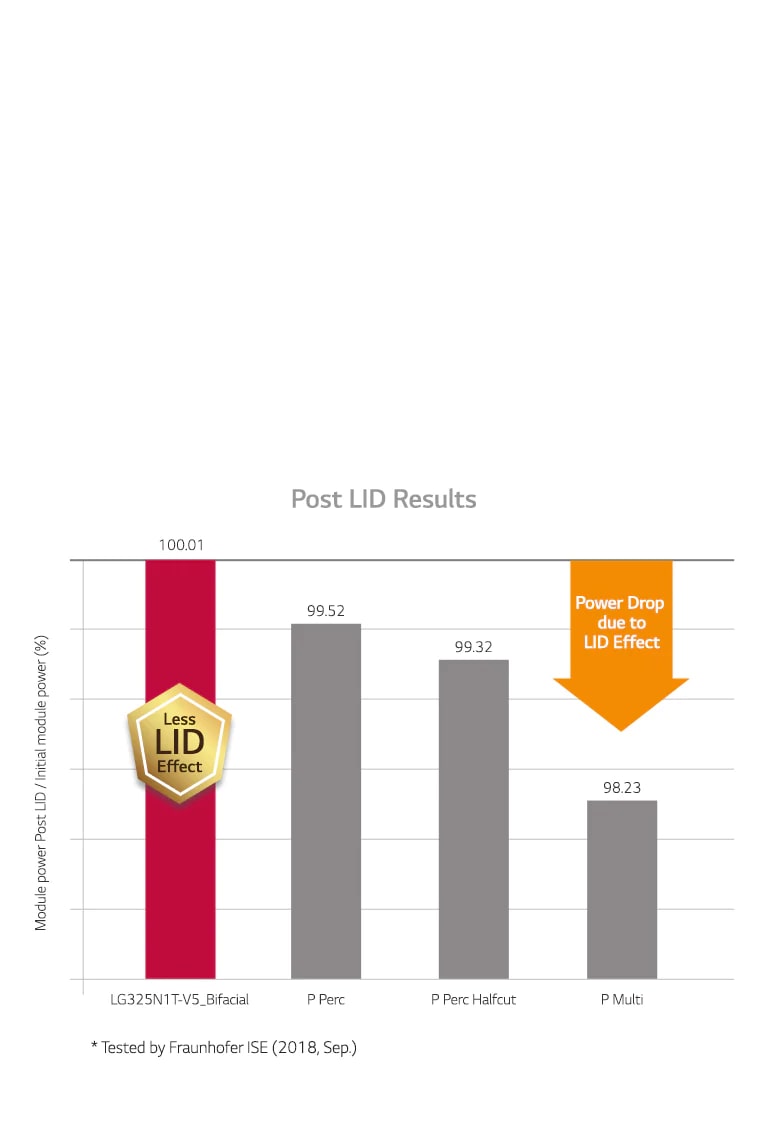

N-type Cell for Anti-LID

Using N-type cell, LG NeON® h BiFacial have less of an effect on LID than P-type solar panel.

Technical Specification

To access more technical documentation and downloads, please visit the

Download
60-Cell Module(6 x 10)
Vertical Table
Power
(STC1))		 340W 335W 330W
Module Efficiency
(STC1))		 19.8% 19.6% 19.3%
Power
(BiFi1002))		 360W 355W 350W
Module Efficiency
(BiFi1002))		 21.0% 20.7% 20.4%
Power
(BiFi2002))		 380W 375W 370W
Module Efficiency
(BiFi2002))		 22.2% 21.9% 21.6%
Cell Properties N-type Monocrystalline N-type Monocrystalline N-type Monocrystalline
Cell Configuration 60cells (6 x 10) 60cells (6 x 10) 60cells (6 x 10)
Dimensions 1,686 x 1,016 x 40 mm 1,686 x 1,016 x 40 mm 1,686 x 1,016 x 40 mm
Weight 17.1 kg 17.1 kg 17.1 kg
Performance Warranty Linear Warranty3) Linear Warranty3) Linear Warranty3)
Product Warranty 25 years 25 years 25 years
1) STC(Standard Test Condition) : Irradiance 1000W/m2, Cell Temperature 25°C, AM 1.5, Measure Tolerance : ±3%;
2) The electrical properties of BiFi100 and BiFi200 measure under the front irradiance 1000W/m2 + (1000W/m2 or 200W/m2)*BiFi.
Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200
3) Under BiFi100 conditions, 1st year : 104.4%, after 1st year : 0.35% annual degradation, 95.4% for 25 years
72-Cell Module(6 x 12)
Vertical Table
Power
(STC1))		 405W 400W 395W 390W
Module Efficiency
(STC1))		 19.5% 19.3% 19.1% 18.8%
Power
(BiFi1002))		 430W 425W 420W 415W
Module Efficiency
(BiFi1002))		 20.7% 20.5% 20.3% 20.0%
Power
(BiFi2002))		 455W 450W 445W 440W
Module Efficiency
(BiFi2002))		 22.0% 21.7% 21.5% 21.2%
Cell Properties N-type Monocrystalline N-type Monocrystalline N-type Monocrystalline N-type Monocrystalline
Cell Configuration 72cells (6 x 12) 72cells (6 x 12) 72cells (6 x 12) 72cells (6 x 12)
Dimensions 2,024 x 1,024 x 40 mm 2,024 x 1,024 x 40 mm 2,024 x 1,024 x 40 mm 2,024 x 1,024 x 40 mm
Weight 20.3 kg 20.3 kg 20.3 kg 20.3 kg
Performance Warranty Linear Warranty3) Linear Warranty3) Linear Warranty3) Linear Warranty3)
Product Warranty 25 years 25 years 25 years 25 years
1) STC(Standard Test Condition) : Irradiance 1000W/m2, Cell Temperature 25°C, AM 1.5, Measure Tolerence : ±3%;
2) The electrical properties of BiFi100 and BiFi200 measure under the front irradiance 1000W/m2 + (1000W/m2 or 200W/m2)*BiFi.
Use 100W/m2 for BiFi100 and 200W/m2 for BiFi200
3) Under BiFi100 conditions, 1st year : 104.4%, after 1st year : 0.35 annual degradation, 95.4% for 25 years
*Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.
The NeON® H BiFacial is designed to absorb irradiance not only from the front but also the rear side of its NeON® cell by using transparent back sheet. The dual faces of the cell allows for higher energy generation and HTAR glass increase absorption potential. LG are committed to providing commercial electronic products that help businesses perform better and reduce their impact on the environment. Find out more about the NeON H Bifacial solar panels now.
