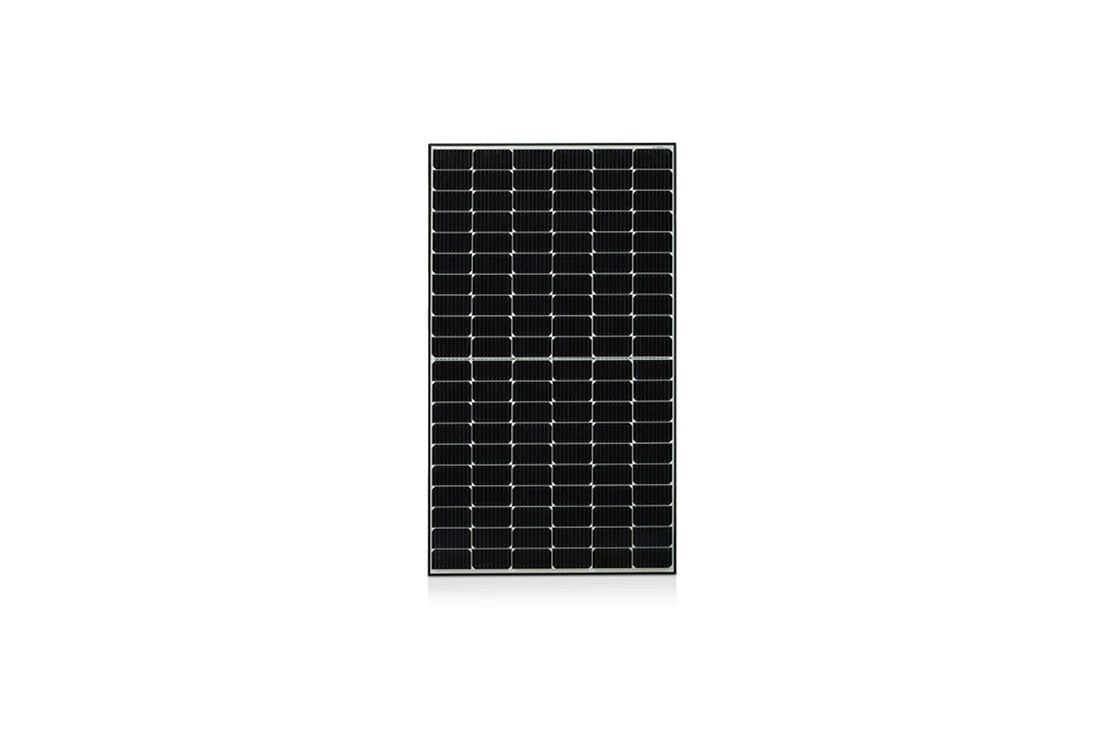

LG NeON H, front view , LG385N1C-E6, thumbnail 2

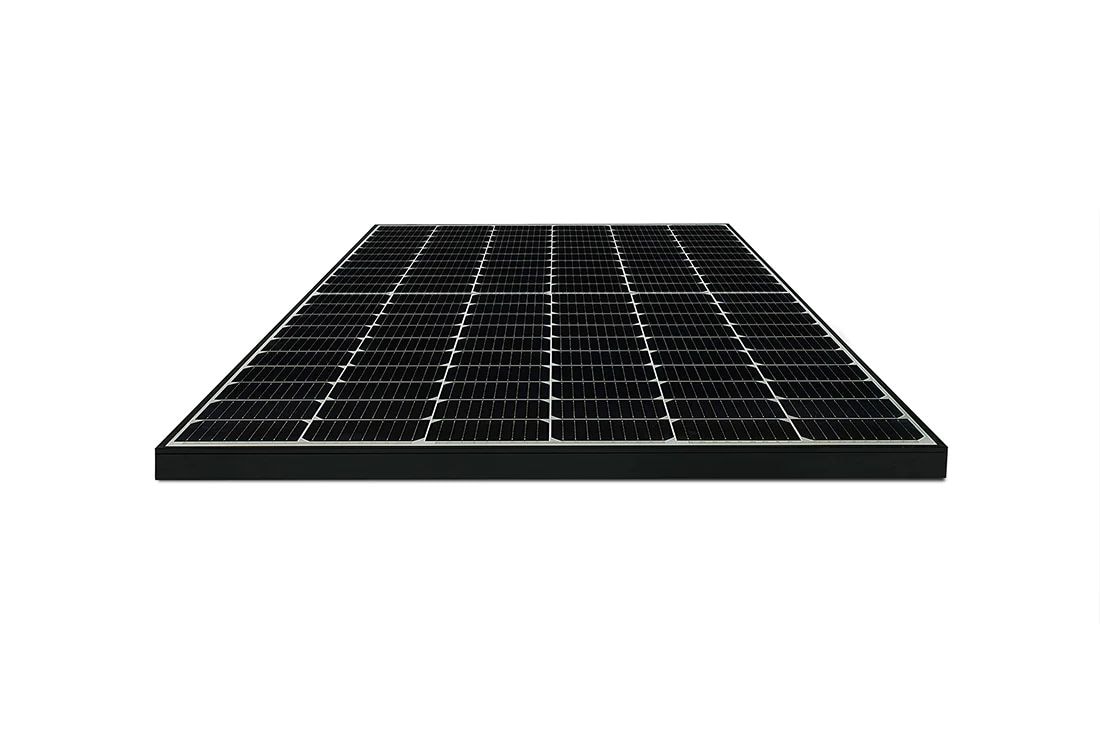

LG NeON H, top view, LG385N1C-E6, thumbnail 3

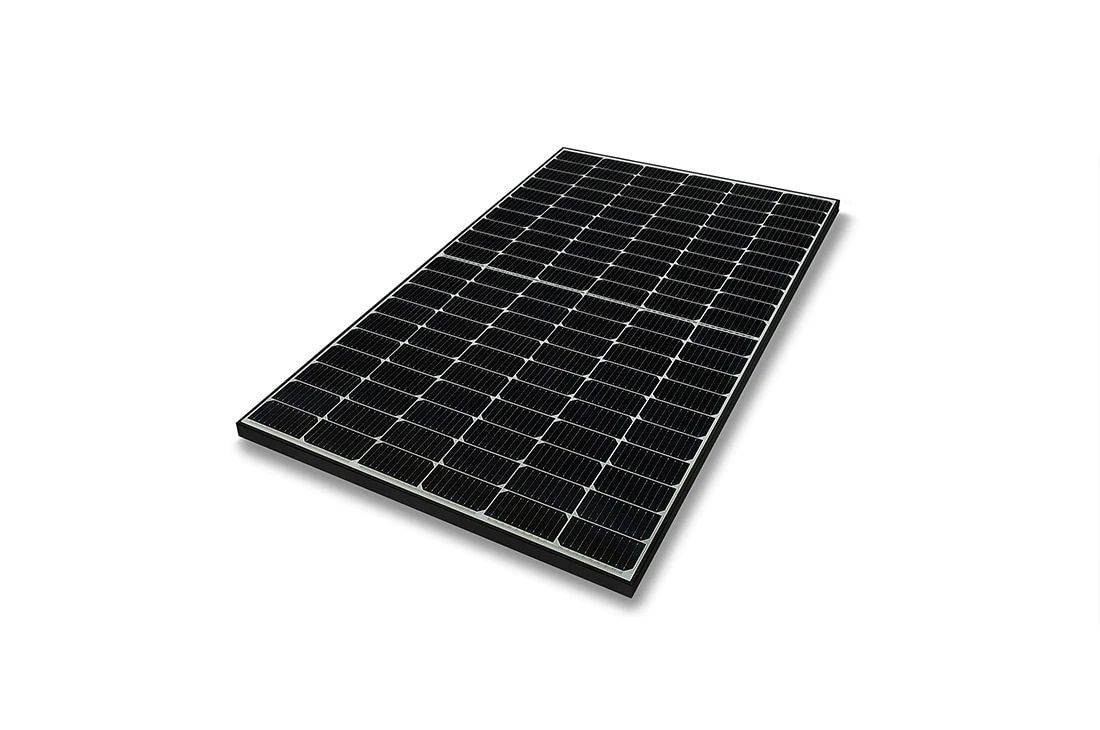

LG NeON H, top side view, LG385N1C-E6, thumbnail 4

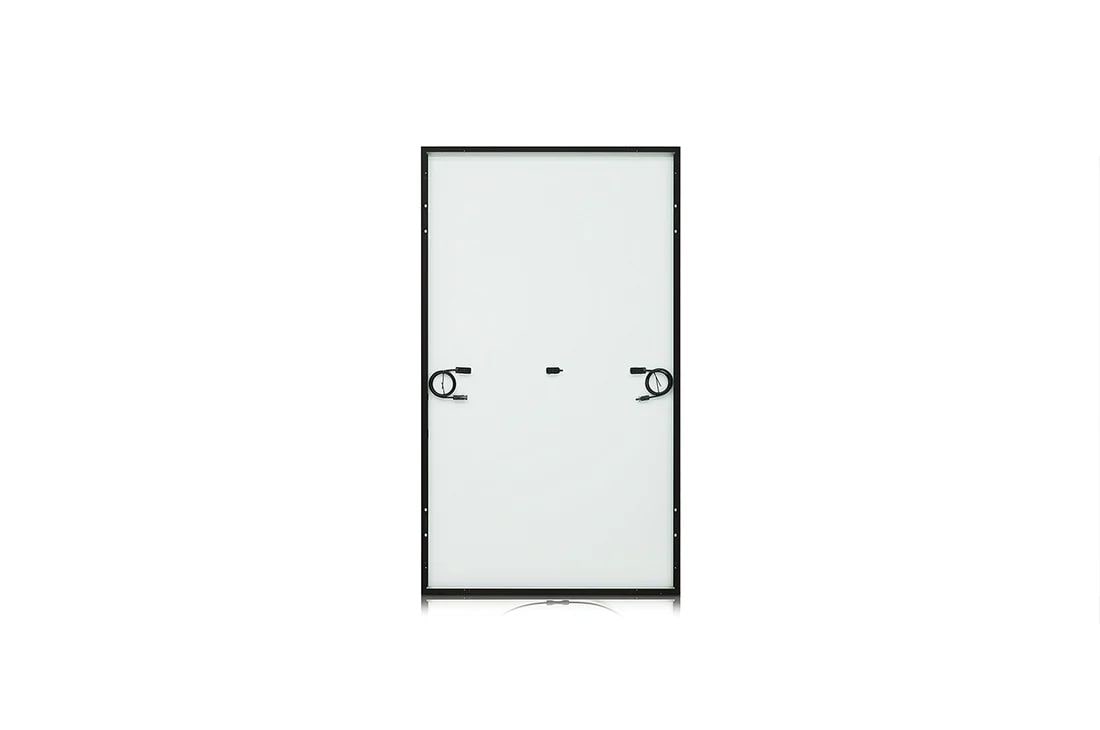

LG NeON H, rear view, LG385N1C-E6, thumbnail 5

ADD TO WISHLIST

LG385N1C-E6 component-copyModelName

LG NeON H

Name: LG NeON H
Brand: LG UAE
SKU: LG385N1C-E6
Rating: 0 (0 reviews)

Key Features

Maximum Power 385W
Product & Performance warranty 25 years
Reliable and Proven Quality through Rigorous Testing

SEE ALL SPECS

component-OBScountrySelectDesc

Key Features

Maximum Power 385W
Product & Performance warranty 25 years
Reliable and Proven Quality through Rigorous Testing

SEE ALL SPECS

component-OBScountrySelectDesc

component-copyModel-toastMsg

LG NeON H

NeON H

Introducing LG’s newest High-efficiency, High-performance evolutionary module.

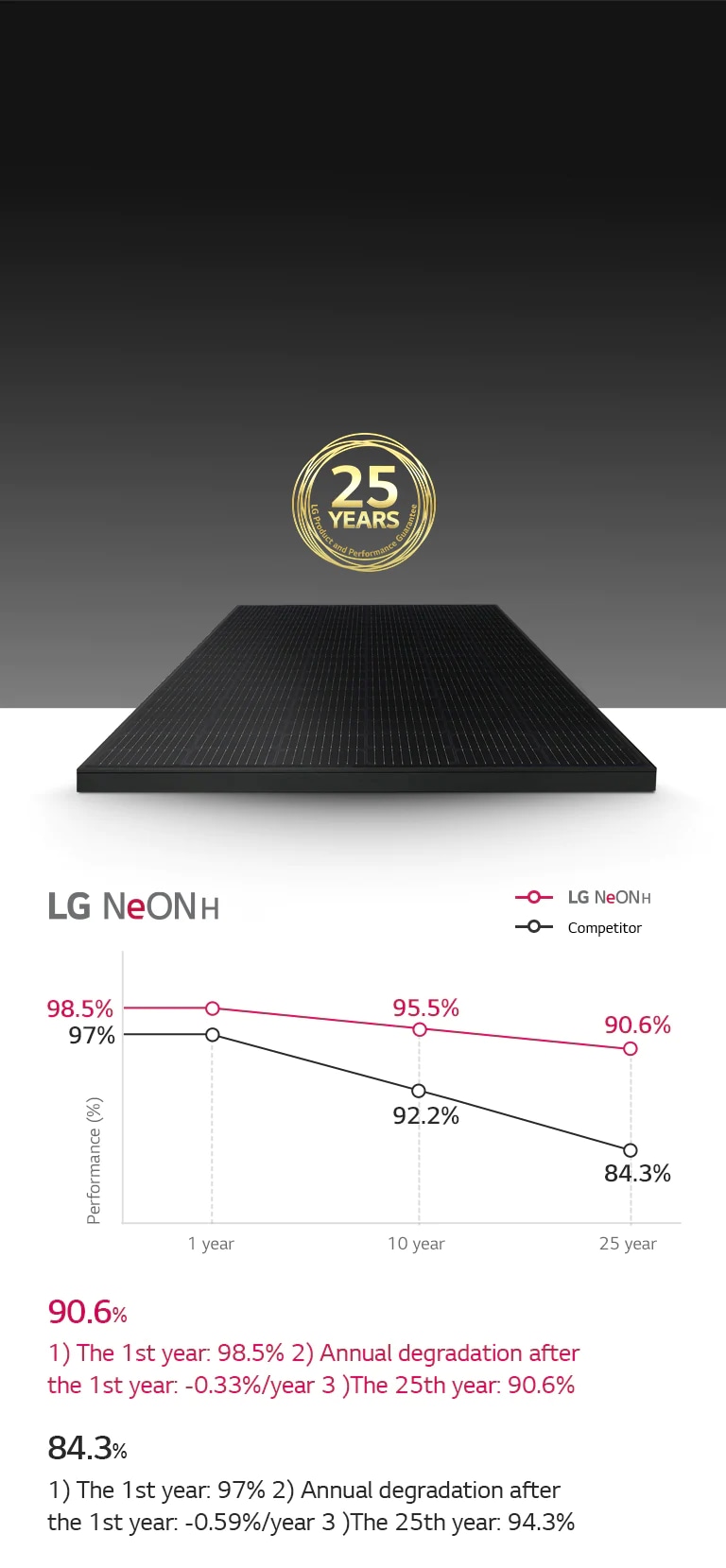

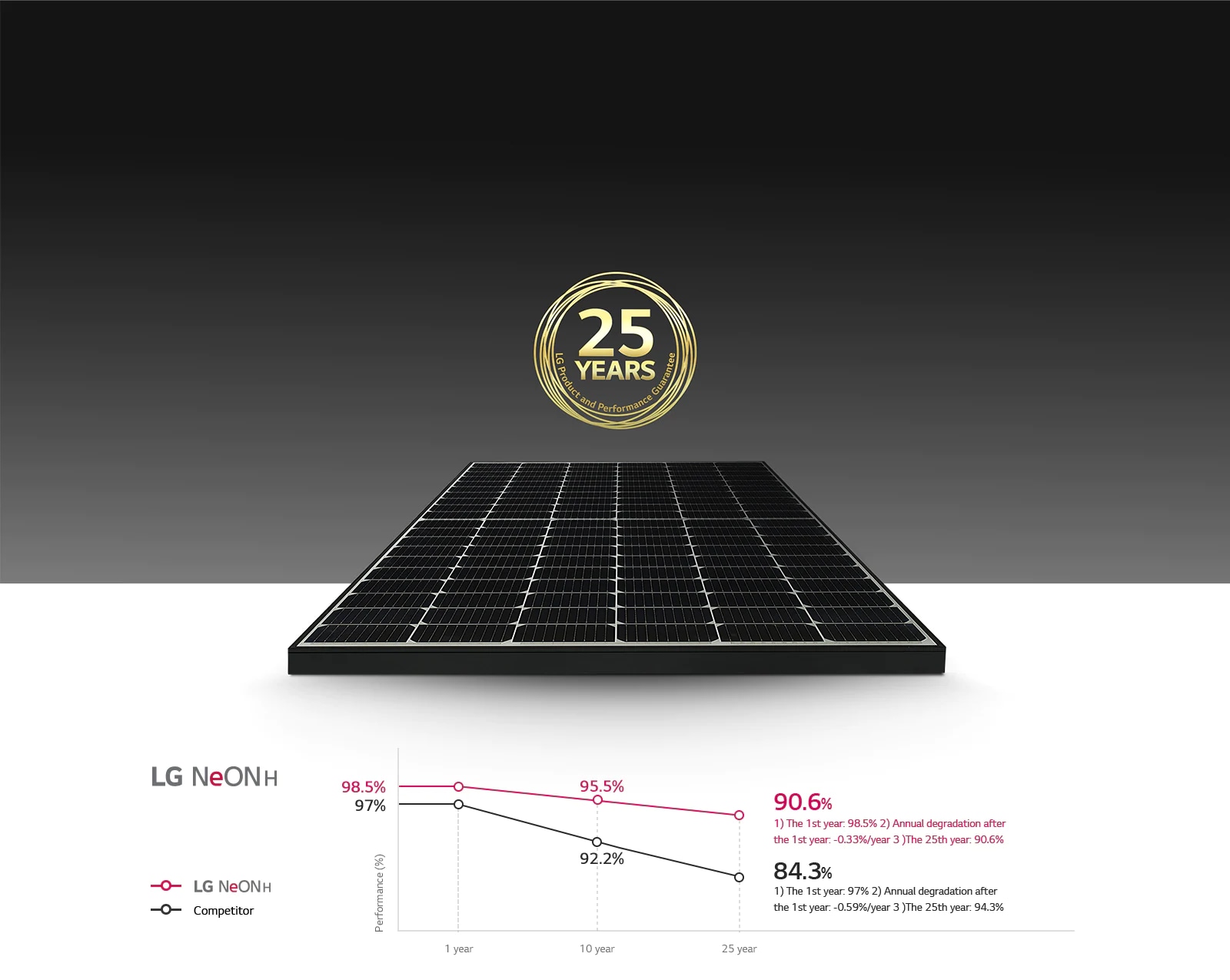

Graphs and images showing long-lasting clean energy production with a 25-year product and performance warranty

An Outstanding Warranty is
There If You Need It

With a 25-year product and performance warranty, you’ll generate clean energy long into the future.

* Top 5 Solar Manufacturers in 2018(estimated) from IHAS Markit. All figures are average of latest mono-perc products of each company.

Power output improvement was achieved
by implementing advanced technology

LG NeON H Technology: 3 Unique Features

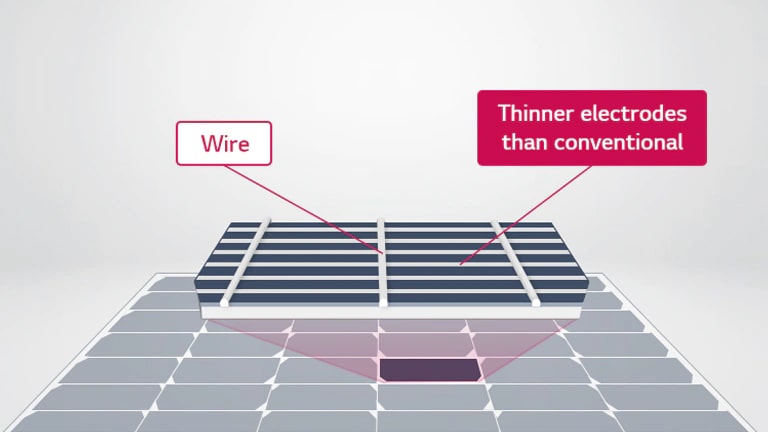

Compared to other products, LG NeON H applied a thin electrode (paste) to reduce electricity loss.

*Front side of the cell

Unique Features .01

Less power loss

LG reduced electrical loss by applying thinner electrodes (Paste) and improving the process (mask) in order to reduce electrical resistance Thin electrodes
with reduced surface area, minimize resistance to decrease power loss.

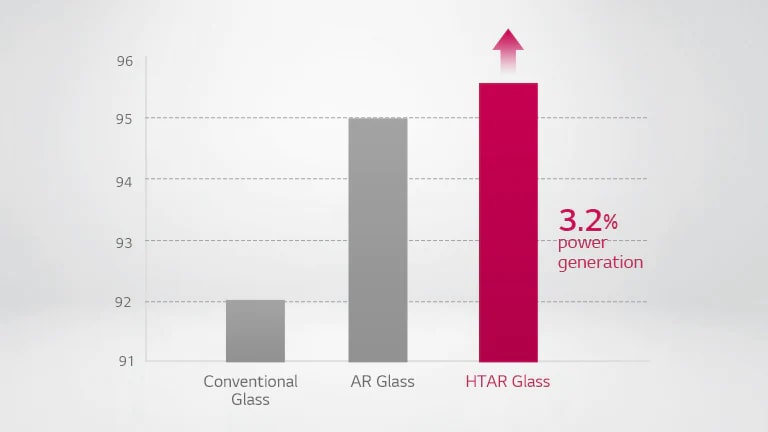

Comparison graph for HTAR Glass showing up to 3.2% or more of power generation compared to normal glass and AR glass

*HTAR : Highly Transmitted Anti-Reflection

Unique Features .02

More light absorption

LG uses *HTAR Glass, which has low reflectivity and high
transmittance to increase power generation by more than
0.4% compared to AR Glass and by more than 3.2% compared
to normal glass.

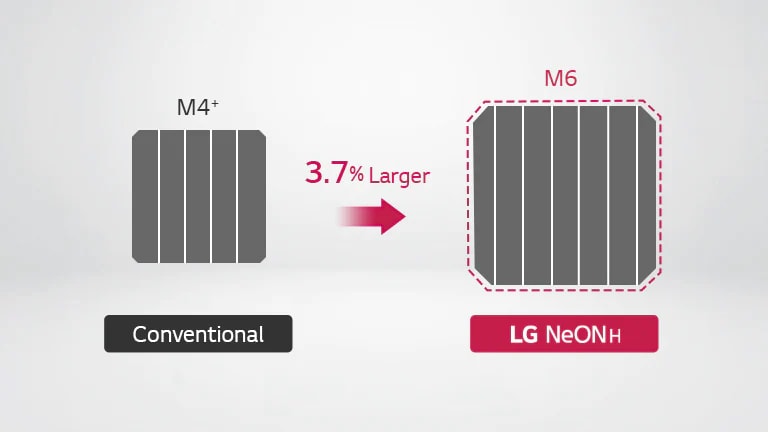

NeON® H improved the output by applying a cell that is 3.7% larger than other products.

Unique Features .03

Larger cell area

LG improved the output by applying a cell with a 3.7% larger
surface area.

Strict Testing to Ensure
High Reliability

LG NeON H is tested extensively to ensure high long-term operating reliability in a diverse range of challenging environments.

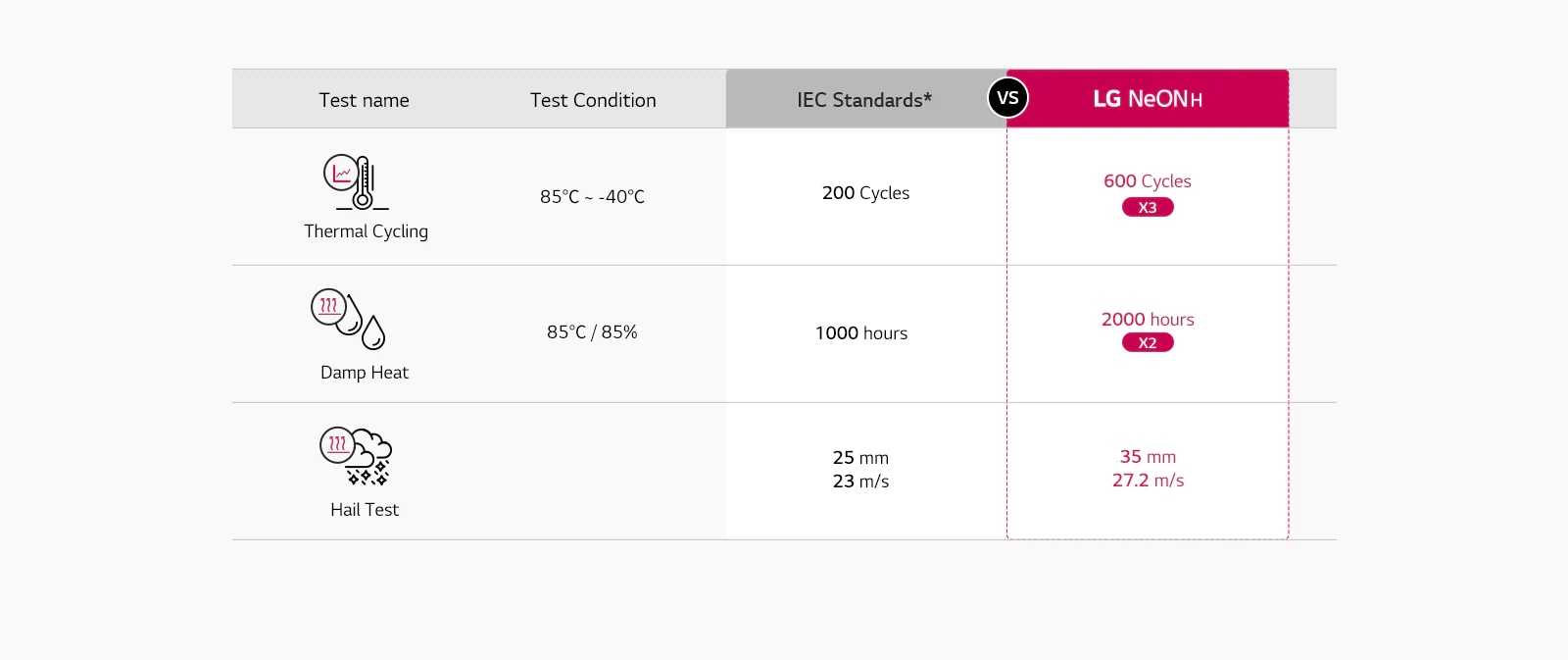

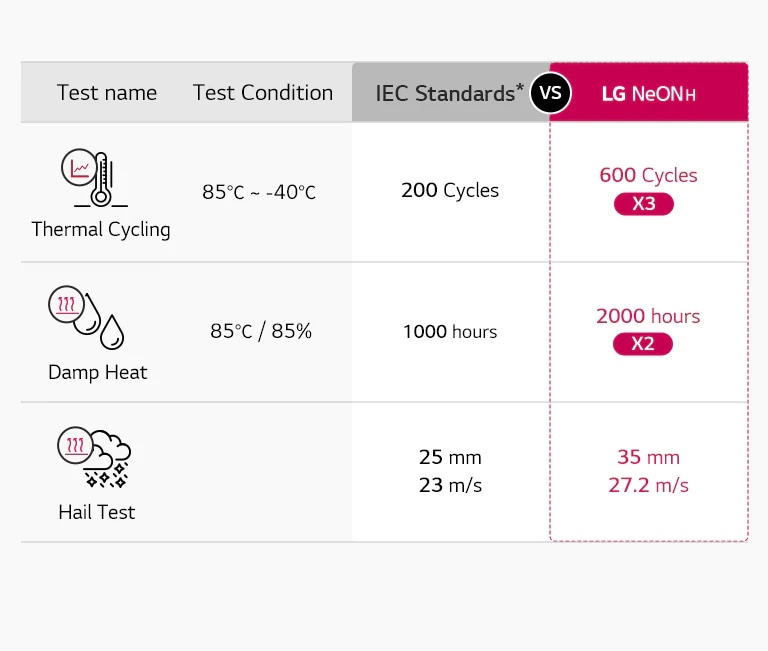

Graphs showing rigorous testing and high reliability to ensure

* = International Electrotechnical Commission
*This is based on LG Electronics' internal test. It is explained that thermal cycling is tested on a tripling basis and attenuation heat is tested double compared to IEC international standards.

ELECTRICAL PROPERTIES(STC*)

Maximum Power (Pmax) [W]

395

MPP Voltage (Vmpp) [V]

35.5
MPP Current (Impp) [A]

10.88

Open Circuit Voltage (Voc, ± 5%) [V]

42
Short Circuit Current (Isc, ± 5%) [A]

11.44

Module Efficiency [%]

20.9
Power Tolerance [%]

0 ~ +3

*

STC (Standard Test Condition) : Irradiance 1,000W/m2, Cell temperature 25°C, AM 1.5, Measure tolerance of Pmax : ±3%

ELECTRICAL PROPERTIES(NMOT)

Maximum Power (Pmax) [W]

291

MPP Voltage (Vmpp) [V]

33.4
MPP Current (Impp) [A]

8.72

Open Circuit Voltage (Voc) [V]

39.5
Short Circuit Current (Isc) [A]

9.21

GENERAL DATA

Cell Properties (Material / Type)

Monocrystalline / N-type

Cell Maker

LG
Cell Configuration

120 Cells (6 x 20)

Number of Busbars

9 EA
Module Dimensions (L x W x H)

1,768 x 1,042 x 40 mm

Weight

18.5 kg
Glass (Material)

Tempered Glass with AR coating

Backsheet (Color)

White
Frame (Material)

Anodized Aluminium

Junction Box (Protection Degree)

IP 68 with 3 Bypass Diodes
Cables (Length)(Included Connector)

1,200 mm x 2 EA

Connector (Type / Maker)

MC4 / Stäubli

CERTIFICATIONS AND WARRANTY

Solar Module Product Warranty

25 Years

Solar Module Output Warranty

Linear Warranty*
*

1) First years : 98.5%, 2) After 1st year : -0.33%/year, 3) 90.6% for 25 years
