2024 Transparent OLED Touch Signage

See the Unseen,
LG Transparent OLED Signage

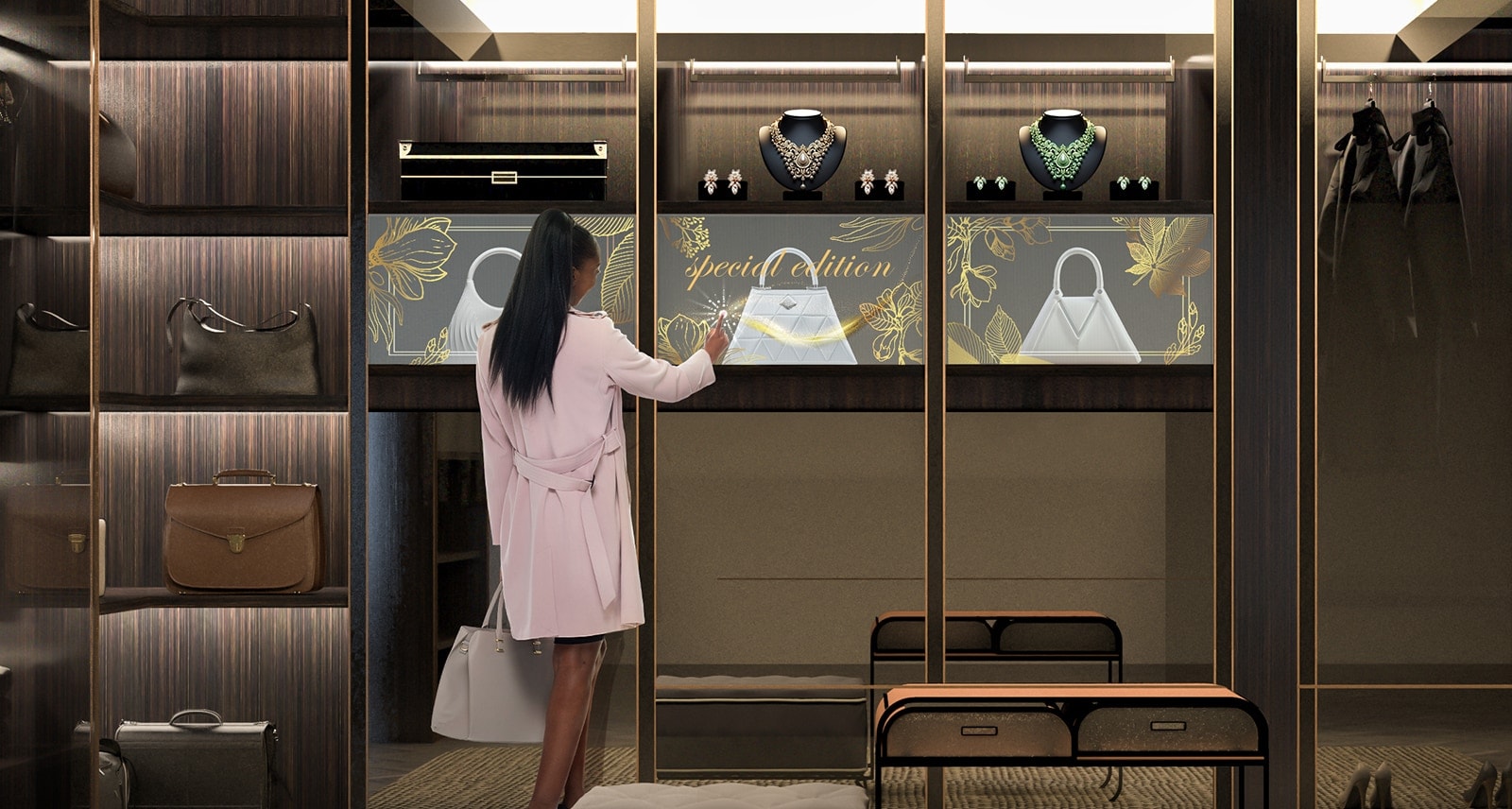

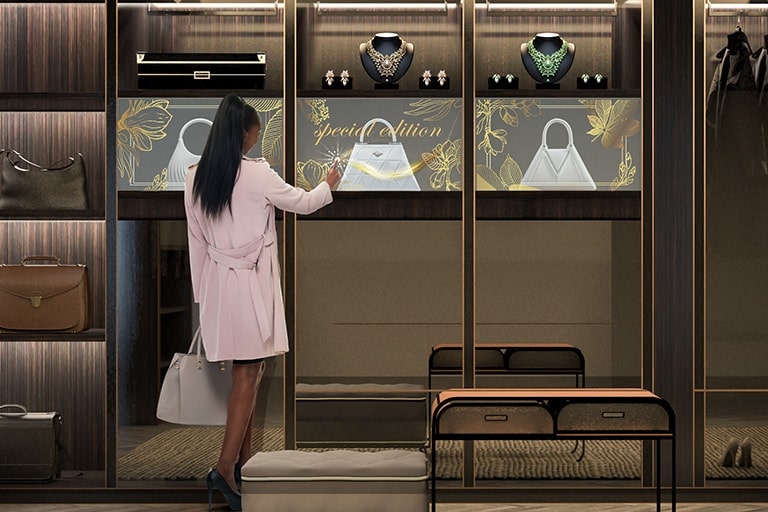

A man is doing his job by looking at the data displayed on the Transparent OLED screen. At an upscale store display, Transparent OLED Signage is installed as a woman interacts with the transparent screen, revealing patterns that seamlessly blend with the bags displayed behind the screen on the shelf.
* All images in this page are for illustrative purposes only.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

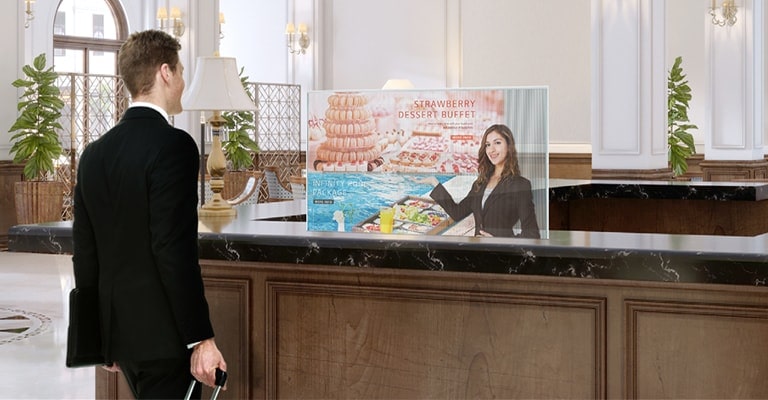

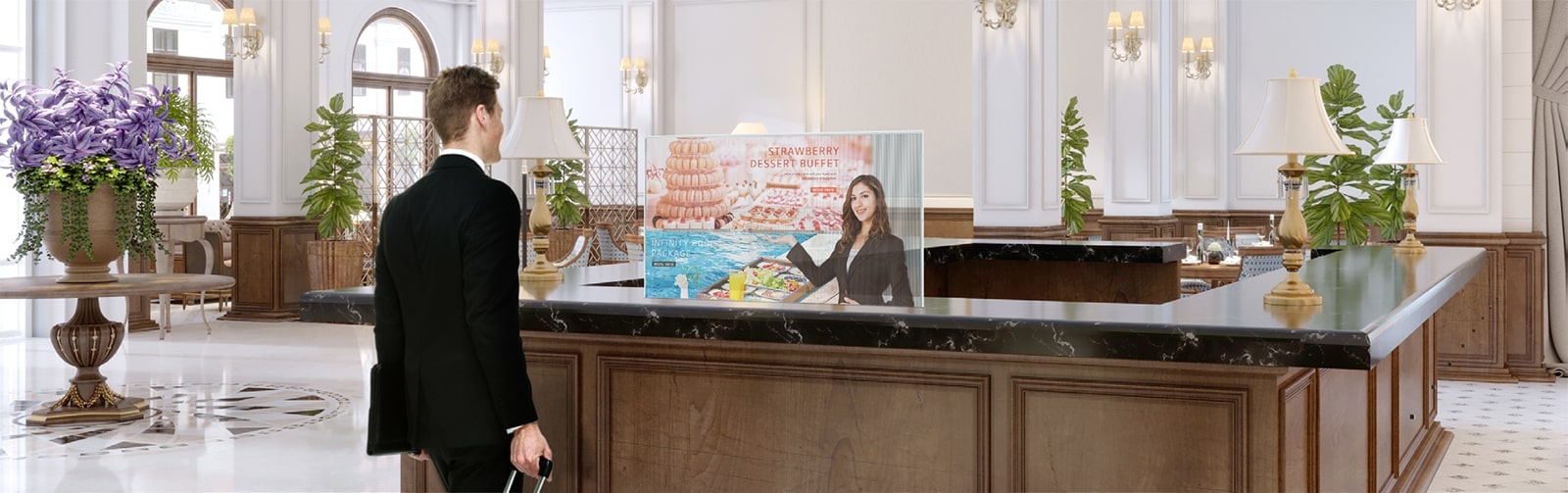

A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu. A man is getting information through the Transparent OLED Signage screen showing photos of the dessert menu.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.

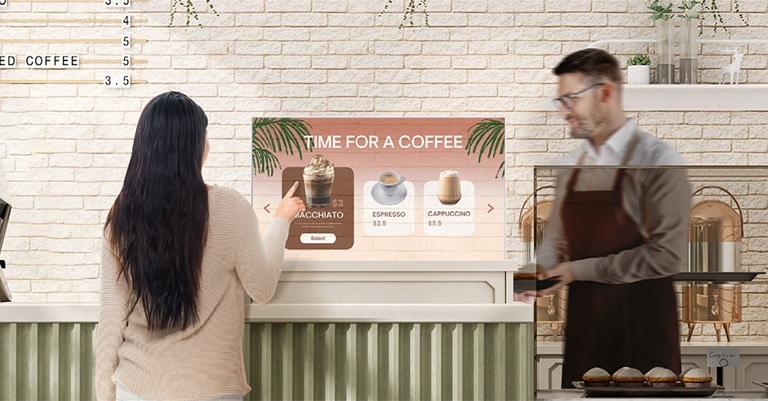

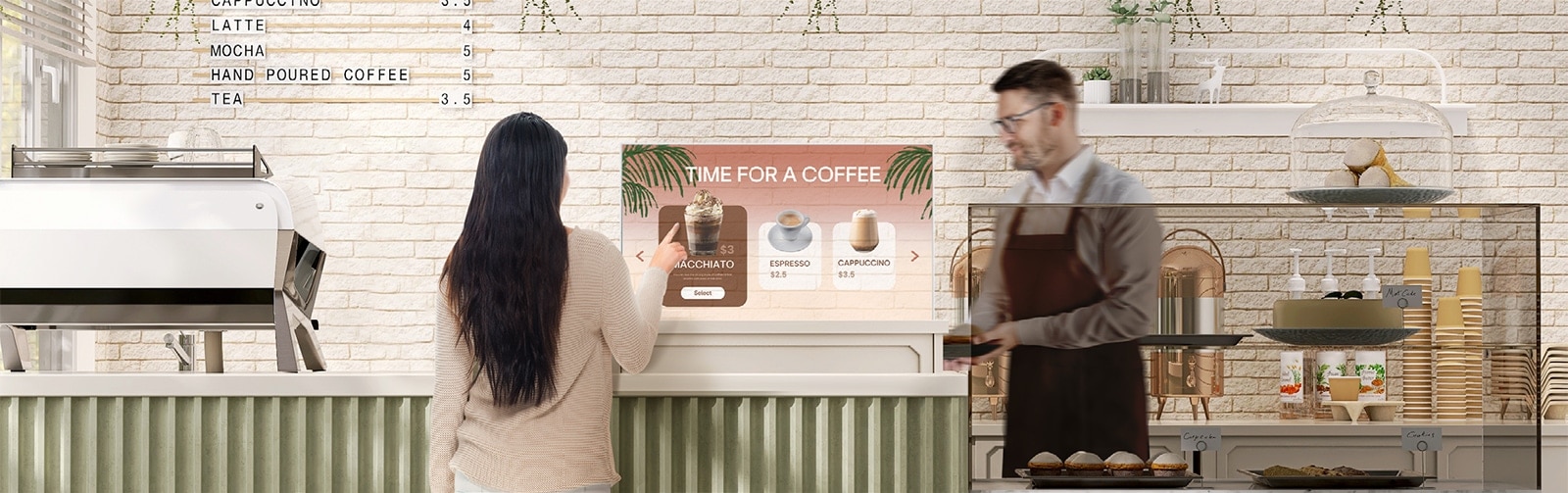

At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen. At a café, a woman is selecting from the menu by touching the Transparent OLED Signage screen.

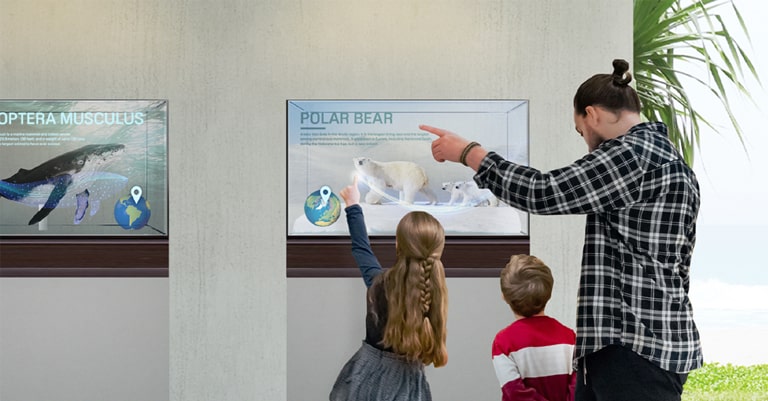

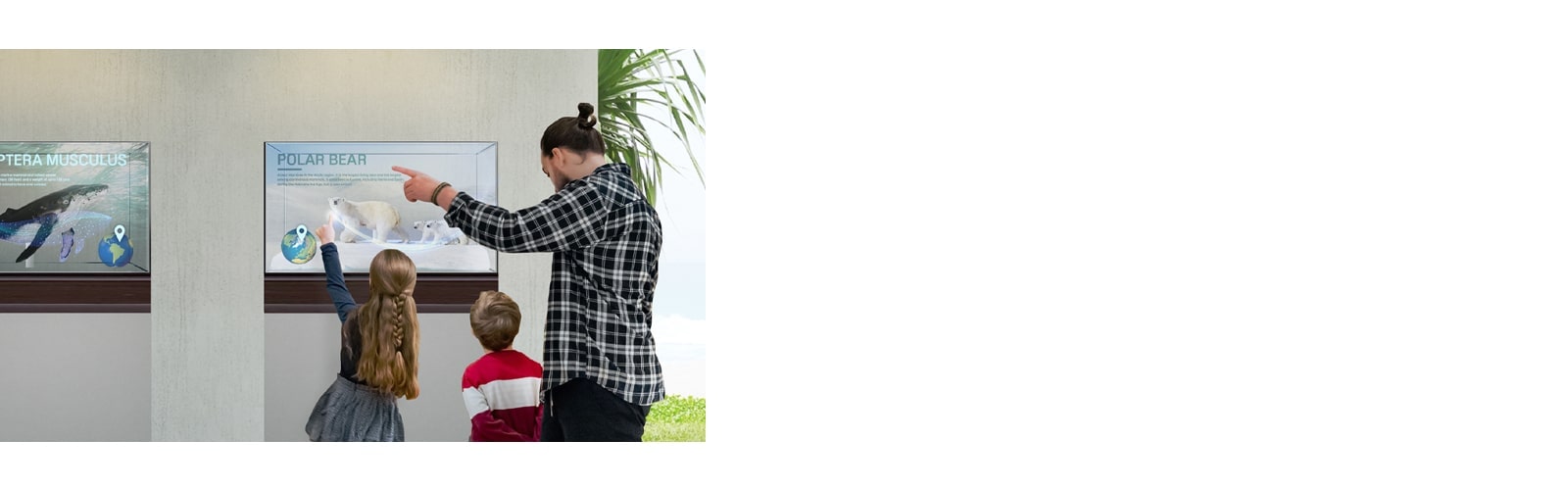

At the museum, a father and two children are touching the Transparent OLED Signage screen, learning about polar bears. Beyond the displaying explanation, miniature polar bear models are exhibited and visible through the screen. At the museum, a father and two children are touching the Transparent OLED Signage screen, learning about polar bears. Beyond the displaying explanation, miniature polar bear models are exhibited and visible through the screen.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

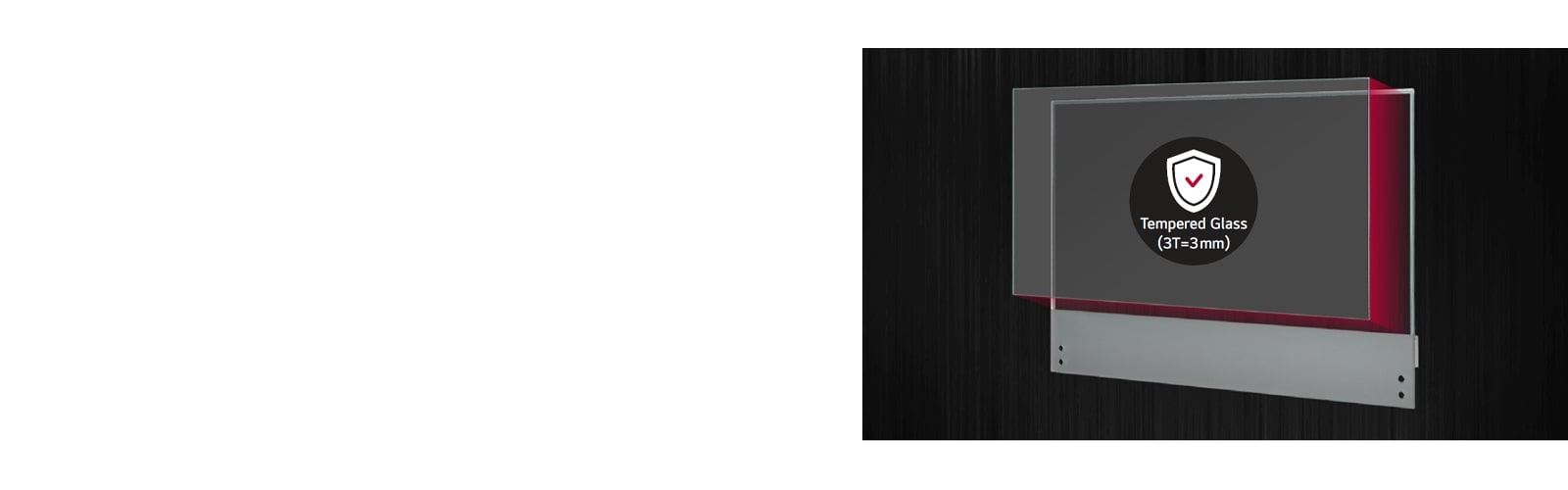

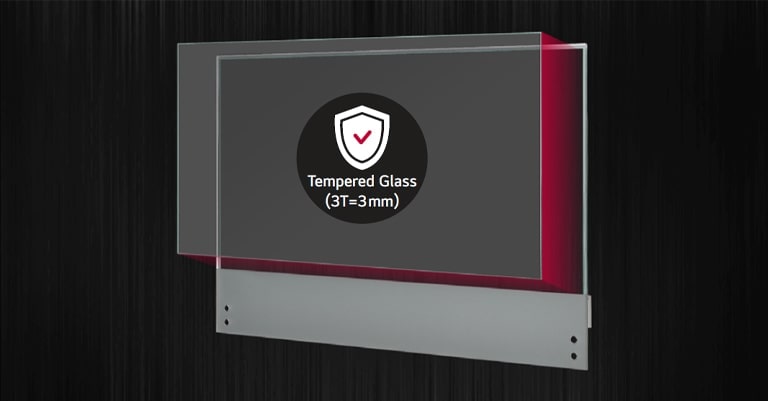

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety. Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

Enhanced Spatial Versatility

Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.

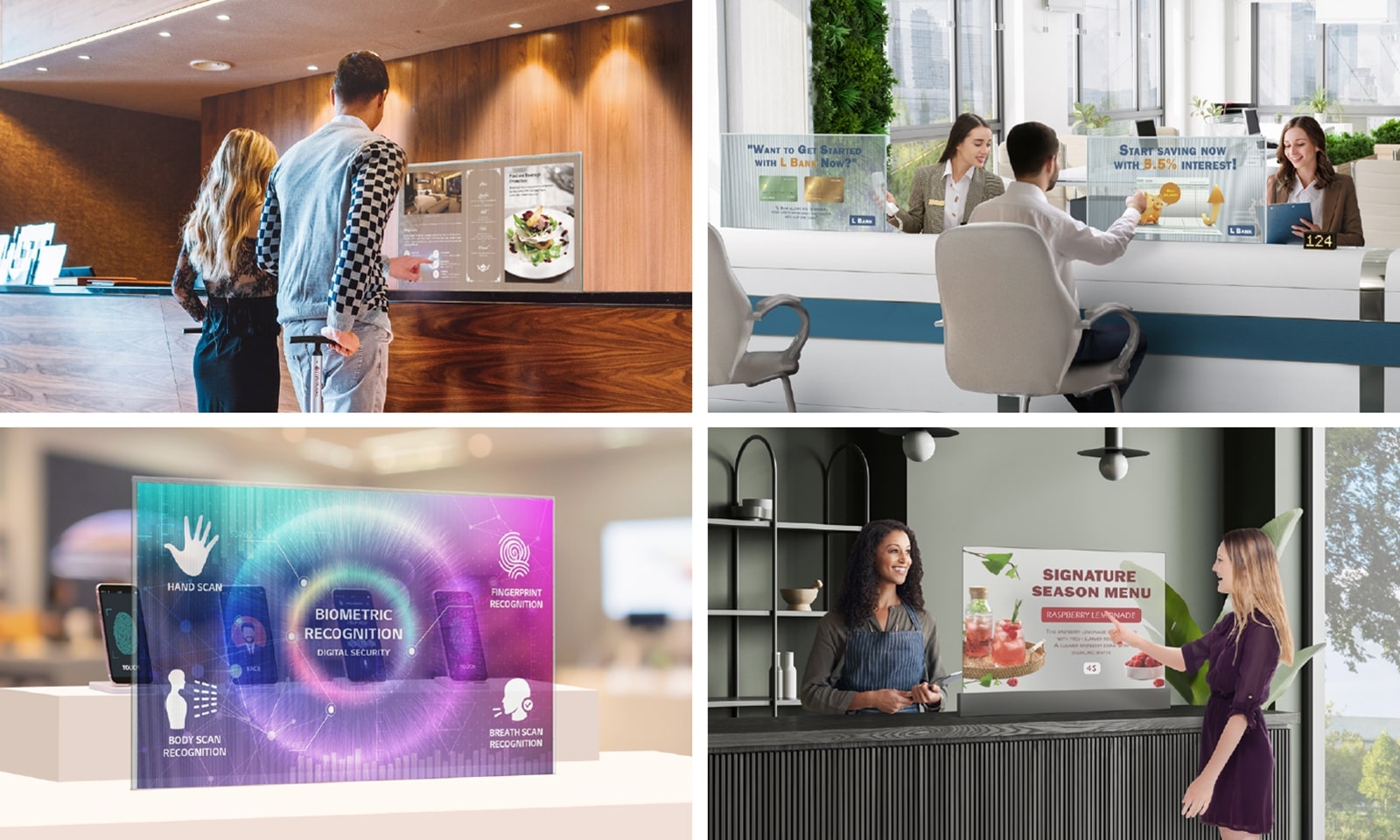

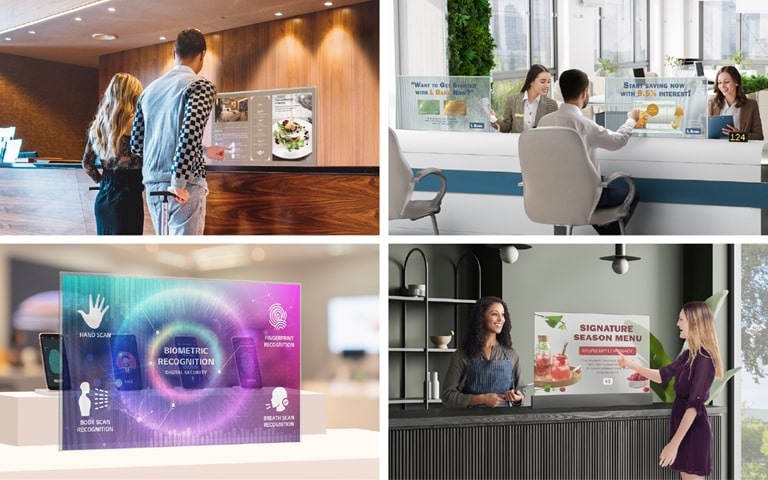

A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen. A man and a woman are selecting a room by touching the Transparent OLED Signage installed on the hotel lobby's front table. There are two Transparent OLED Signage displays installed at the bank counter, showing advertisements for bank products on the screens. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store, and the Transparent OLED Signage screen is showing a cell phone’s functions. A café has Transparent OLED Signage installed, and a woman is checking the menu by touching the Transparent OLED Signage screen.
* Installation accessories are not supplied by LG.
Close
PANEL
  • Screen Size (Inch)
    30"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1366x768 (HD)
    Refresh Rate
    120Hz
  • Brightness (Typ.)
    200/600nit (APL 100%/25%, Without Glass)
    Contrast Ratio
    200,000:1
  • Color Gamut
    BT709 110%
    Viewing Angle(H x V)
    178x178
  • Color Depth
    10bit(R), 1.07Bilion colors
    Response Time
    0.1ms (G to G), 8ms (MPRT)
  • Surface Treatment(Haze)
    Hard coating 5H, Haze 3% (Set)
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portrait / Landscape
    Yes / Yes
  • Transparency
    37% (Set)
CONNECTIVITY(JACK INTERFACE)
  • HDMI IN
    Yes((1), HDCP2.2/1.4
    DP IN
    Yes(1), HDCP1.3
  • RS232C IN
    Yes(1)
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes((1), External IR Receiver
    USB IN
    USB2.0 Type A(2ea, 1ea Controller)
  • DP Out
    Yes(1)
    Audio Out
    Yes(1)
  • Touch USB
    USB2.0 Type B(1)
    RS232C Out
    Yes(1)
  • RJ45(LAN) Out
    Yes(1)
    IR Out
    Sharing RS232C Out
MECHANICAL
  • Bezel Color
    Matt Silver (TBD)
    Bezel Width
    T/R/L/B : 7.9/7.9/7.9/114.7 mm
  • Weight (Head)
    4.2kg (Head), 2.4Kg (Signage Box)
    Packed Weight
    10.1 kg
  • Monitor Dimensions (W x H x D)
    680.2 x 496.2 x 15.3 mm (Head)
    449.2 x 288.6 x 42.8 mm (Signage Box)
    Carton Dimensions (W x H x D)
    826 x 593 x 195 mm
PROTECTION GLASS
  • Thickness
    3.0mm
    Tempered / Chemical strengthening
    Chemical strengthening
  • Anti-Reflective
    Yes (AR+AF Coating)
    Shatter-Proof
    Yes
HW FEATURE
  • Internal Memory (eMMC)
    16GB
    Temperature Sensor
    Yes
SW FEATURE
  • OS ver.
    webOS23
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Video Tag
    Yes (4)
  • Screen Rotation
    Yes
    Gapless Playback
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Status Mailing
    Yes
  • Control Manager
    Yes
    PM mode
    Yes
  • Wake on LAN
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    45W (IEC 62087)
    Power Consumption (Max.)
    86W
  • Power Consumption (British Thermal Unit)
    154 BTU/Hr(Typ.), 294 BTU/Hr(Max.)
    Power Consumption (DPM)
    0.5W
  • Power Consumption (Power Off)
    0.5W
CERTIFICATION
  • Safety
    CB/ NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5(Silver),M3xL5.5(Black) 8EA / Shield Cover Assy', Rubber Damper 4EA, Touch Cable Holder 2EA, MCX Cable Holder 2EA
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    Yes
PRODUCT DEDICATED
FEATURE
  • Available object size for touch
    Ø8 mm ↑
    Reponse Time(PC Win10, Education Mode)
    100ms ↓
  • Accuracy (Typ.)
    2mm
    Interface
    USB2.0
  • Protection Glass Thickness
    3.0T (Anti-Refllection / Anti-Finger print)
    Protection Glass Transmission
    85% (Typ.)
  • Operating System Support
    Windows 10/11
    Multi touch point
    Max 10 Points
