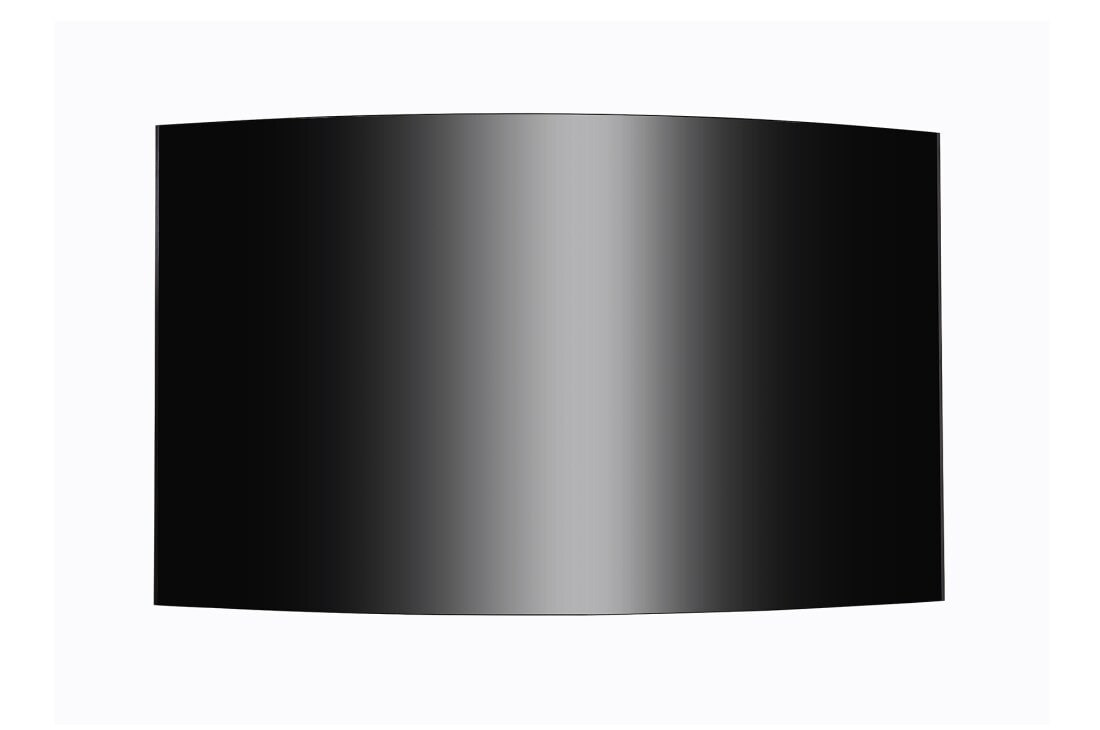

Flexible Curved Open Frame OLED Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EF5G-L)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EF5G-L)
    AED
    AED
    LG Members Price
Total
Flexible Curved Open Frame OLED Signage

Artistic Space beyond Display

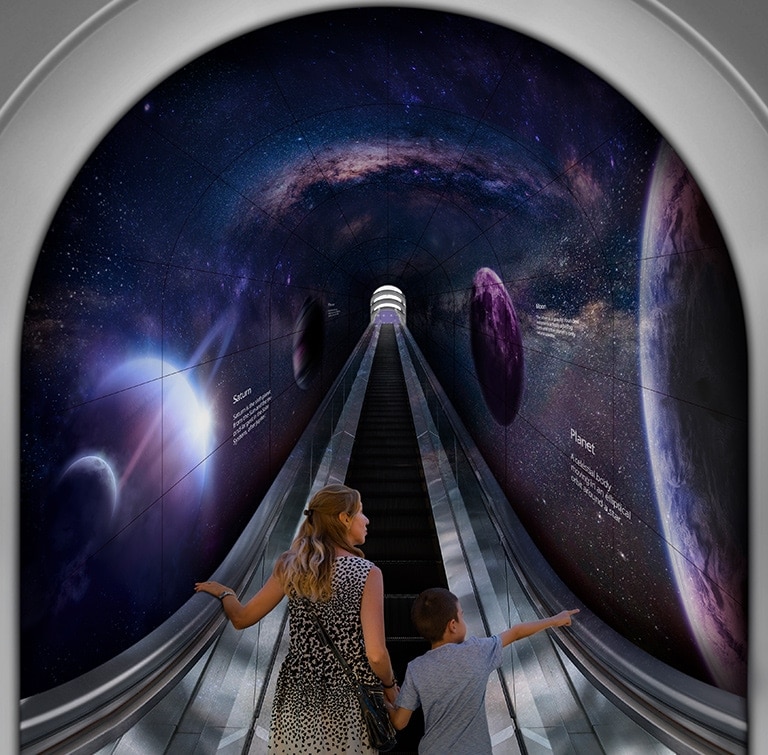

A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator. A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator.
* All images are for illustrative purposes only.

Variety of Curvature for Landmarks

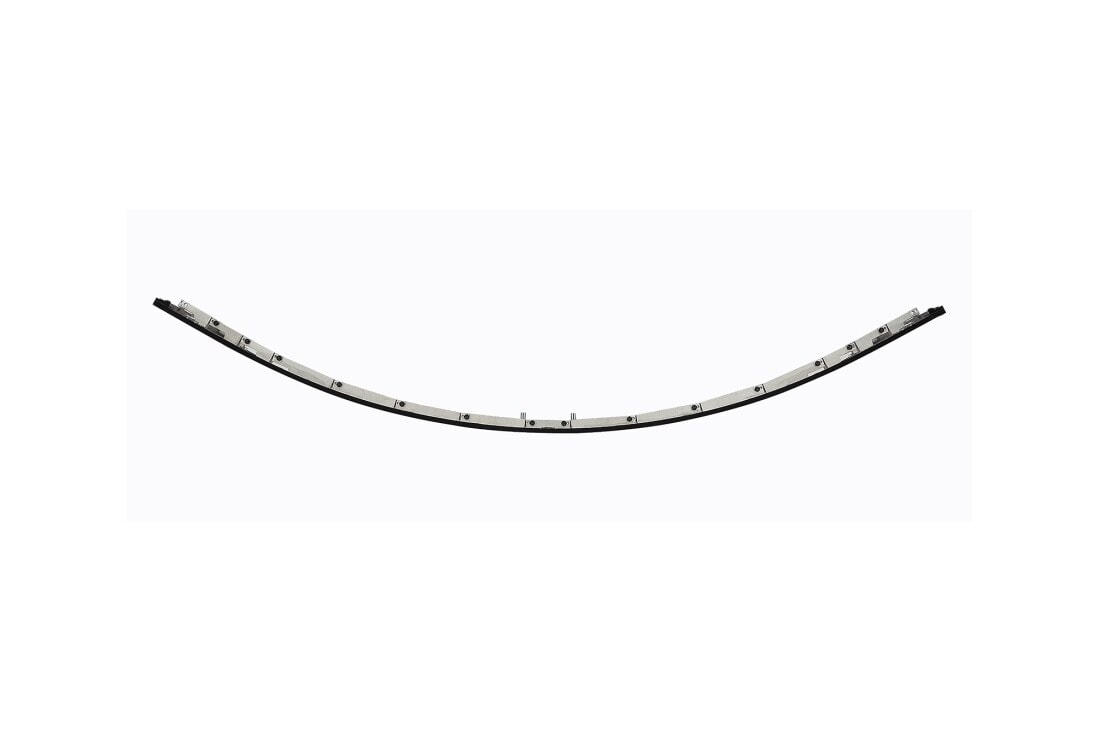

The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

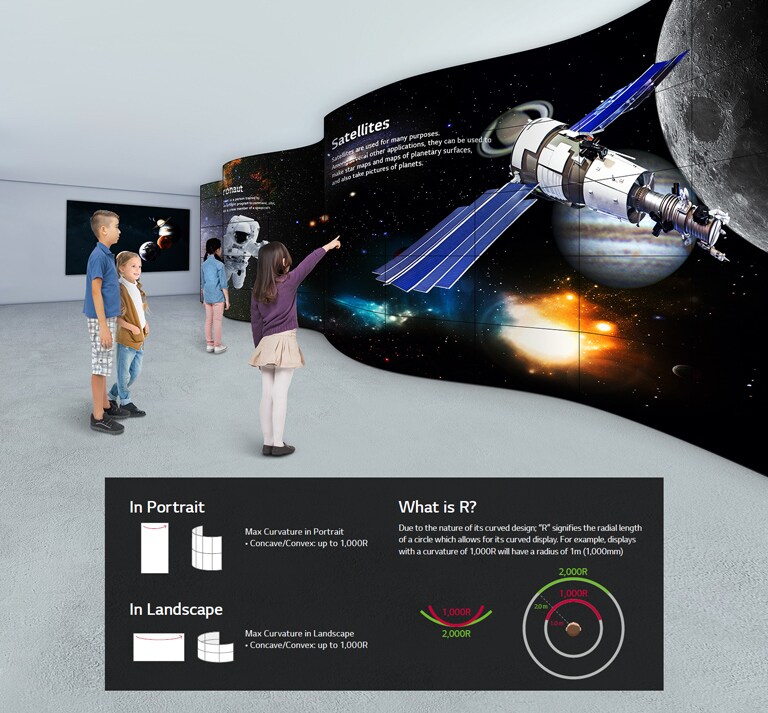

Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed. Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed.

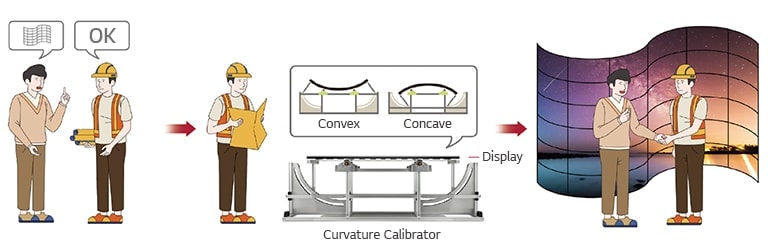

On-site Customization

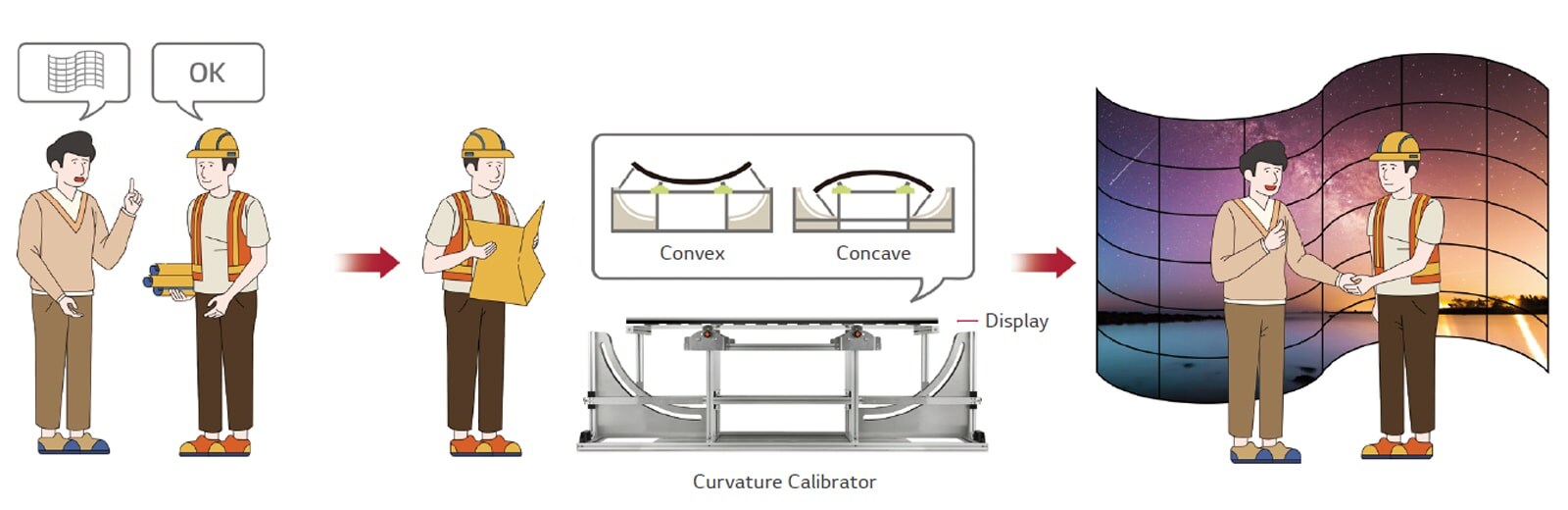

The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.
The 55EF5G series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site. The 55EF5G series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site.
* A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.
PANEL
  • Screen Size
    55"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    120 Hz
  • Brightness
    150/400nit (APL 100%/25%)
    Contrast Ratio
    150,000 : 1

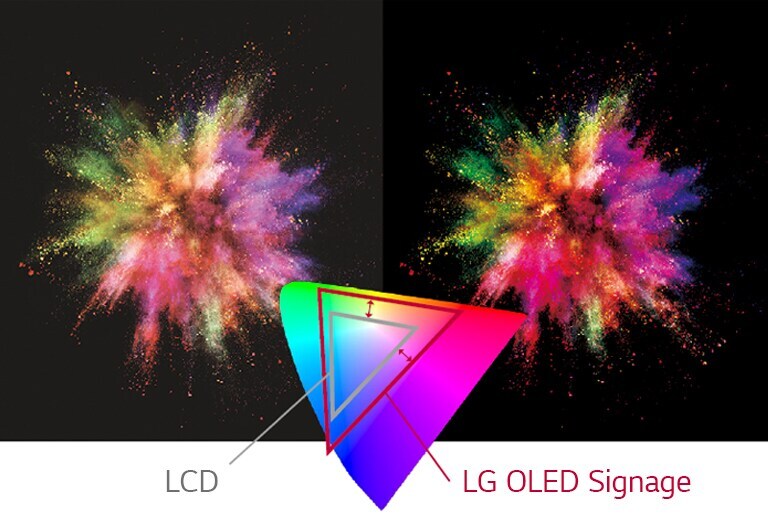

  • Color Gamut
    BT709 120%
    Viewing Angle(H x V)
    178 x 178
  • Color Depth
    10bit(R), 1.07Bilion colors
    Response Time
    1ms (G to G), 8ms (MPRT)
  • Surface Treatment(Haze)
    Hard coating (2H) Reflectance Typ. 1.2%
    Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
  • Portrait / Landscape
    Yes
CONNECTIVITY(JACK INTERFACE)
  • Input - Digital - HDMI
    Yes (1), HDCP1.4
    Input - Digital - DP
    Yes (1), HDCP1.3
  • Input - RS232C IN
    Yes (1)
    Input - RJ45(LAN)
    Yes (1)
  • Input - IR IN
    Yes (1), External IR Receiver
    Input - USB
    USB2.0 Type A(2)
  • output - DP Out
    Yes (1)
    output - Audio Out
    Yes (1)
  • output - RS232C OUT
    Yes(1) (w/ IR out)
    output - RJ45(LAN)
    Yes (1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)
    T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
    T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
  • Weight (Head)
    5.8Kg (LandScape, Head)
    7.0Kg (Portrait, Head)
    3.5Kg (Signage Box)
    Packed Weight
    17.0Kg (LandScape)
    17.6Kg (Portrait)
  • Monitor Dimension (W x H x D)
    1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
    701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)
    1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
    701.4 x 1219.7 x 12.4mm (Landscape, Head, w/o Pemnut)
    413 x 353 x 57.3mm (Signage Box)
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Sensor - Temperature Sensor
    Yes
  • HW - FAN
    Yes
    SW - webOS ver.
    webOS4.0
  • SW - Embedded CMS - Local Contents Scheduling
    Yes
    SW - Embedded CMS - Group Manager
    Yes
  • SW - USB Plug & Play
    Yes
    SW - Fail over
    Yes
  • SW - Sync Mode - RS-232C Sync
    Yes
    SW - Sync Mode - Local Network Sync
    Yes
  • SW - Video Tag
    Yes(4)
    SW - Rotation - Screen Rotation
    Yes
  • SW - Rotation - External Input Rotation
    Yes
    SW - Gapless Playback
    Yes
  • SW - Tile Mode Setting
    Yes
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Auto Set ID
    Yes
    SW - Status Mailing
    Yes
  • SW - Control Manager
    Yes
    SW - 3rd Party Compatibility - Crestron Inside
    Yes
  • SW - Power - PM mode
    Yes
    SW - Power - Wake on LAN
    Yes
  • SW - HDMI-CEC
    Yes
    SW - SI Server Setting
    Yes
  • SW - Pro:Idiom
    Yes
    SW - Scan Inversion
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309 W
    Max.
    318 W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
    DPM
    3W
  • Power off
    0.5 W
CERTIFICATION
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class “A” / CE / KC
  • ErP
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes (v3.0)
    SuperSign Control / Control+
    Yes (v1.7 / v1.9)
  • SuperSign WB
    Yes (v3.7.15)
    SuperSign Media Editor
    Yes (v3.7)
  • Signage 365 Care
    Yes (v2.9)
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, DP Cable(2M), LAN Cable(2M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Tape(4EA for Cabling), Screw(M3xL4.5,30EA / M3xL5.5,50EA / M3x3.5, 10EA), Shield Cover Assy', Tiling Set Fixer 6EA, Flex Bar 2EA
SPECIAL FEATURE
  • Tilt(Facedown)
    Yes
