55EF5G-P component-copyModelName
Flexible Curved Open Frame OLED Signage

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EF5G-P)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EF5G-P)
    AED
    AED
    LG Members Price
Total
Flexible Curved Open Frame OLED Signage
Find a Dealer

Artistic Space beyond Display

A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator. A woman and a child are going up a tunnel made of flexible Curved Open Frame OLED Signage through an escalator.
* All images are for illustrative purposes only.
The woman is looking at the weather and time information displayed on the curved screen. The woman is looking at the weather and time information displayed on the curved screen.
Blending in with the space while captivating everyone’s mind. LG OLED signage offers unprecedentedly flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
LG OLED Signage shows better contrast between black and white than ordinary LCD. LG OLED Signage shows better contrast between black and white than ordinary LCD.

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
LG OLED Signage has a variety of colors rather than LCD to express the object more vividly. LG OLED Signage has a variety of colors rather than LCD to express the object more vividly.

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.
A screen of LG OLED Signage is slim, light, and flexible. A screen of LG OLED Signage is slim, light, and flexible.

Splendid Design

LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.
Several screens can be arranged like tiles to embody the desired size. Several screens can be arranged like tiles to embody the desired size.

Expandable Screen Size

The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

Variety of Curvature for Landmarks

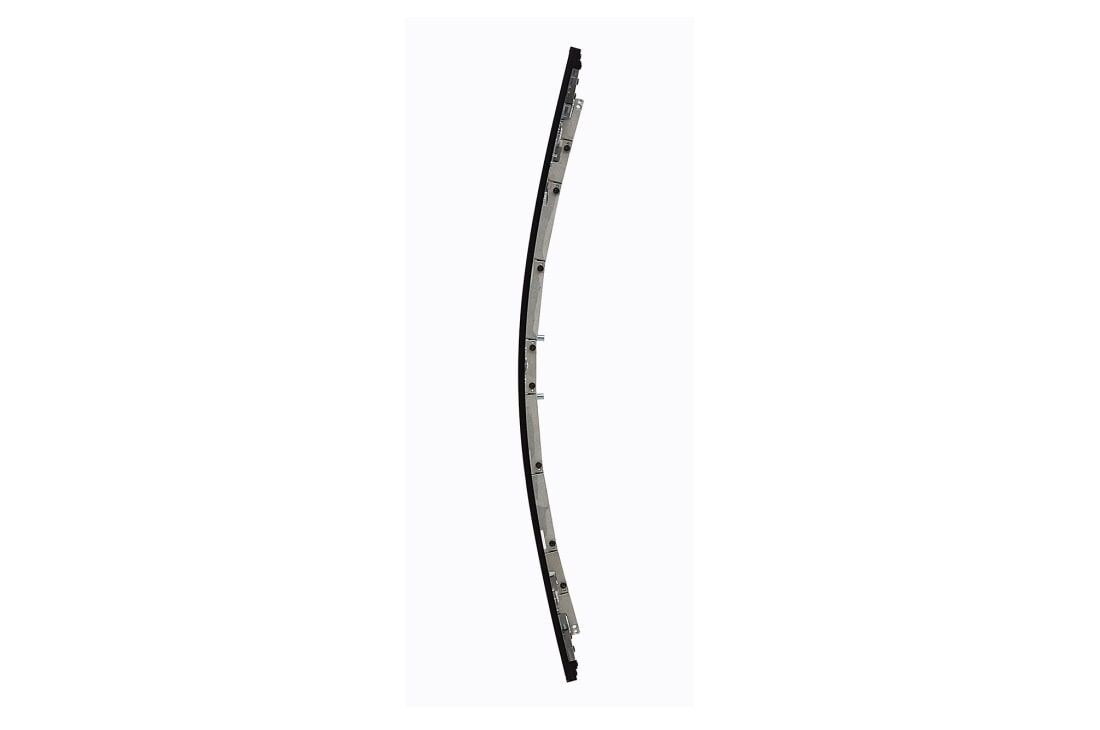

The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed. Children are looking at the screen that curved in a wave-shaped interestingly in which the universe is expressed.

On-site Customization

The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.
The 55EF5G series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site. The 55EF5G series is designed to bend the screen convex or concave, allowing flexibility in adjusting even when sudden requests are received on-site.
* A Curvature Calibrator needs to be purchased separately. Please contact your regional LG sales representatives for details.

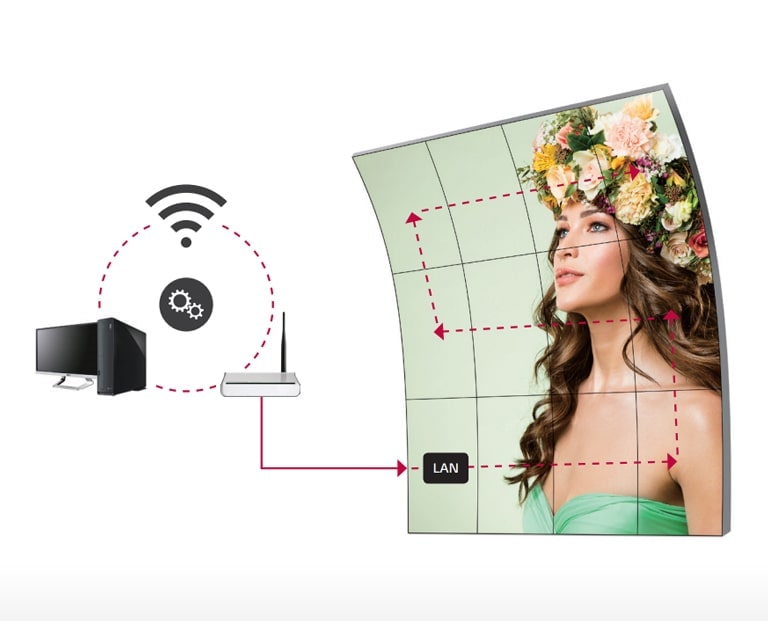

Displays are easily managed wirelessly through LAN daisy chain function. Displays are easily managed wirelessly through LAN daisy chain function.

LAN Daisy Chain Management

The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
Each of screen contents are synchronized and played without delay. Each of screen contents are synchronized and played without delay.

Videowall Playlist & Sync Playback

Through its built-in high performance SoC, each display plays its video tile for synchronized content playback.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    OLED
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    150/400nit (APL 100%/25%)
  • Contrast Ratio
    150,000 : 1
    Color Gamut
    BT709 120%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit(R), 1.07Bilion colors
  • Response Time
    1ms (G to G), 8ms (MPRT)
    Surface Treatment(Haze)
    Hard coating (2H)
    Reflectance Typ. 1.2%
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portrait / Landscape
    Yes / Yes
CONNECTIVITY(JACK INTERFACE)
  • Input - Digital - HDMI
    Yes (1), HDCP1.4
    Input - Digital - DP
    Yes (1), HDCP1.3
  • Input - RS232C IN
    Yes (1)
    Input - RJ45(LAN)
    Yes (1)
  • Input - IR IN
    Yes (1), External IR Receiver
    Input - USB
    USB2.0 Type A(2)
  • output - DP Out
    Yes (1)
    output - Audio Out
    Yes (1)
  • output - RS232C OUT
    Yes(1) (w/ IR out)
    output - RJ45(LAN)
    Yes (1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)
    T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
    T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
  • Weight (Head)
    5.8Kg (LandScape, Head)
    7.0Kg (Portrait, Head)
    3.5Kg (Signage Box)
    Monitor Dimension (W x H x D)
    1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
    701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)
    1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
    701.4 x 1219.7 x 12.4mm (Landscape, Head, w/o Pemnut)
    413 x 353 x 57.3mm (Signage Box)
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Sensor - Temperature Sensor
    Yes
  • HW - FAN
    Yes
    SW - webOS ver.
    webOS4.0
  • SW - Embedded CMS - Local Contents Scheduling
    Yes
    SW - Embedded CMS - Group Manager
    Yes
  • SW - USB Plug & Play
    Yes
    SW - Fail over
    Yes
  • SW - Sync Mode - RS-232C Sync
    Yes
    SW - Sync Mode - Local Network Sync
    Yes
  • SW - Video Tag
    Yes(4)
    SW - Rotation - Screen Rotation
    Yes
  • SW - Rotation - External Input Rotation
    Yes
    SW - Gapless Playback
    Yes
  • SW - Tile Mode Setting
    Yes
    SW - Setting Data Cloning
    Yes
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - Auto Set ID
    Yes
    SW - Status Mailing
    Yes
  • SW - Control Manager
    Yes
    SW - 3rd Party Compatibility - Crestron Inside
    Yes
  • SW - Power - PM mode
    Yes
    SW - Power - Wake on LAN
    Yes
  • SW - HDMI-CEC
    Yes
    SW - SI Server Setting
    Yes
  • SW - Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309 W
    Max.
    318 W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
