LG 2023 55inch Wallpaer OLED Signage

Artistic Space beyond Display, LG Wallpaper OLED Signage

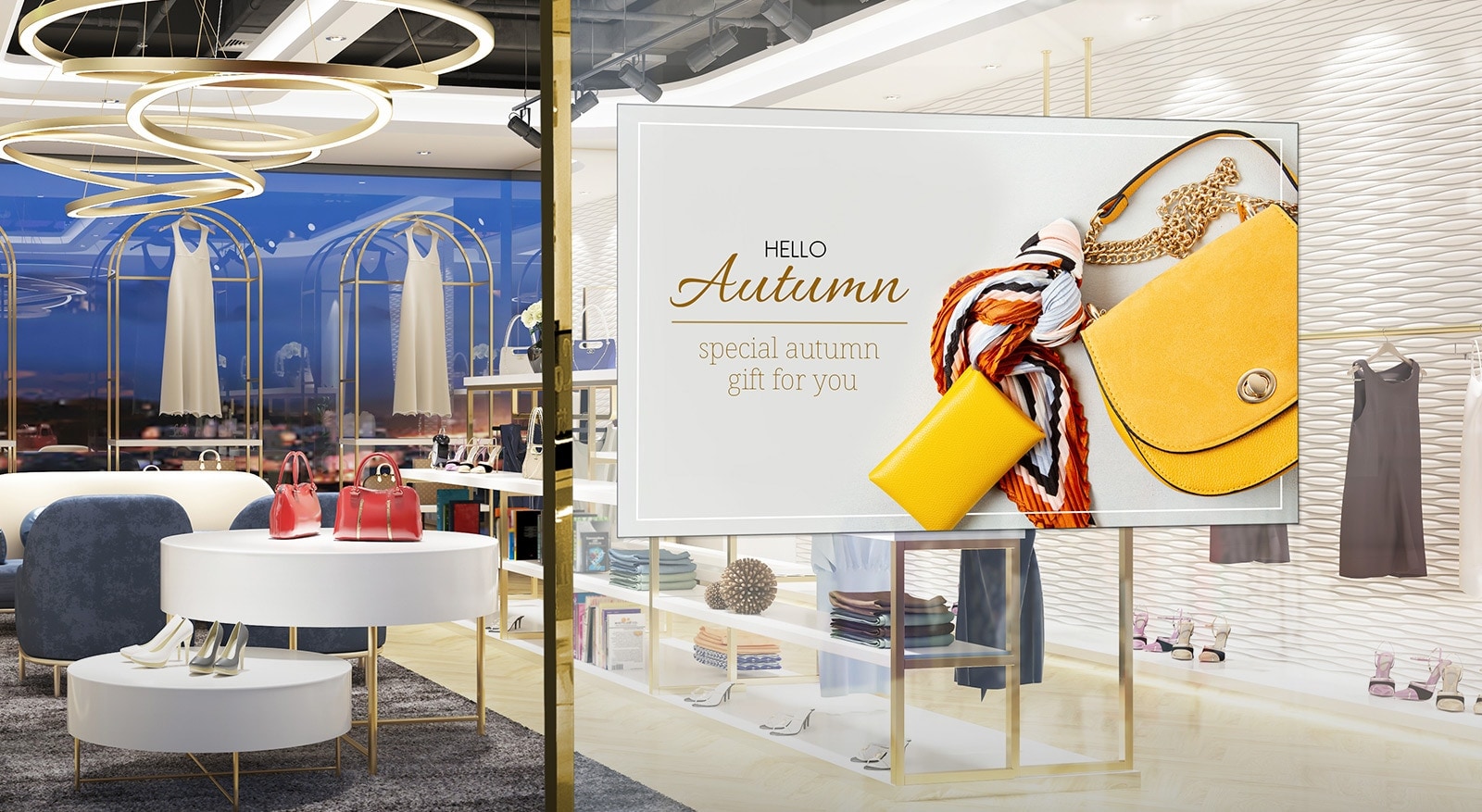

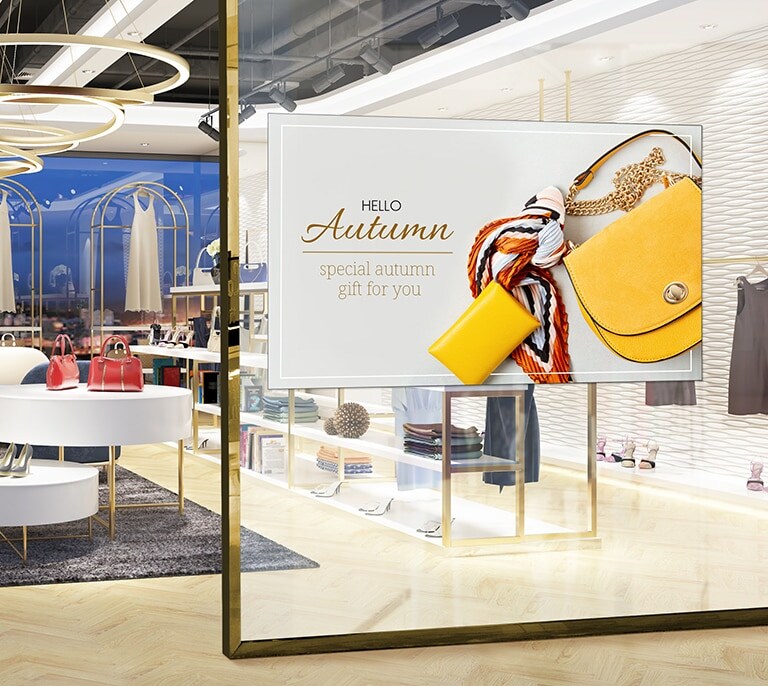

A display promoting a new product is installed in the store's window. A display promoting a new product is installed in the store's window.
* All images in this web page are for illustrative purposes only.
LG OLED Signage shows better contrast between black and white than ordinary LCD. LG OLED Signage shows better contrast between black and white than ordinary LCD.

Absolute Black

Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

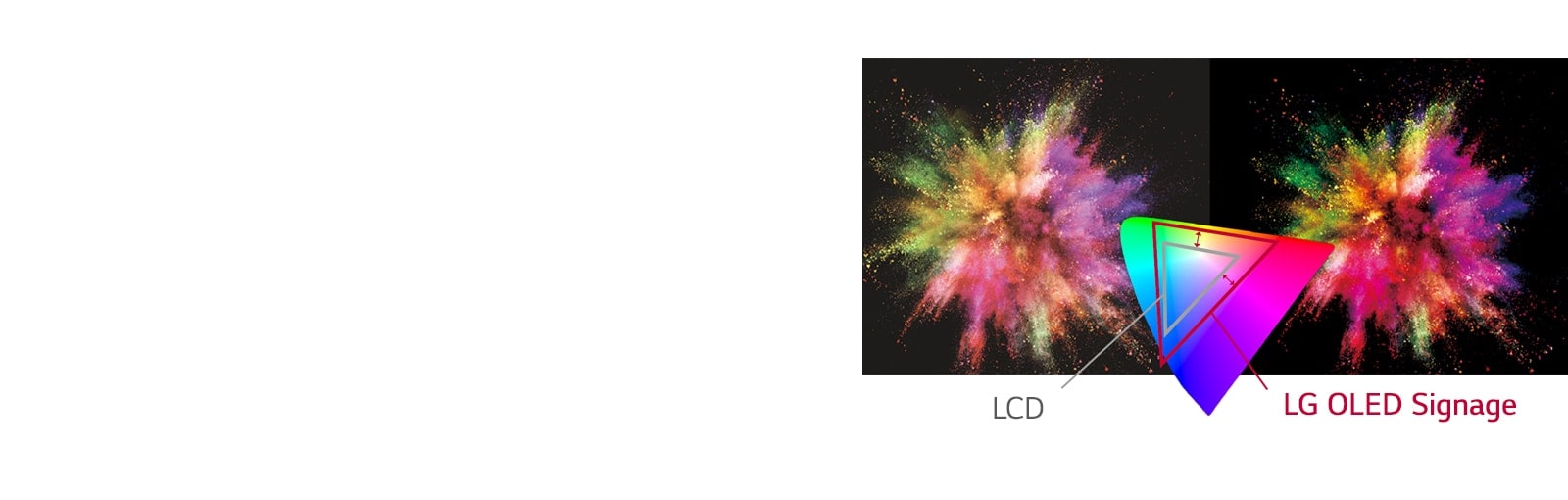

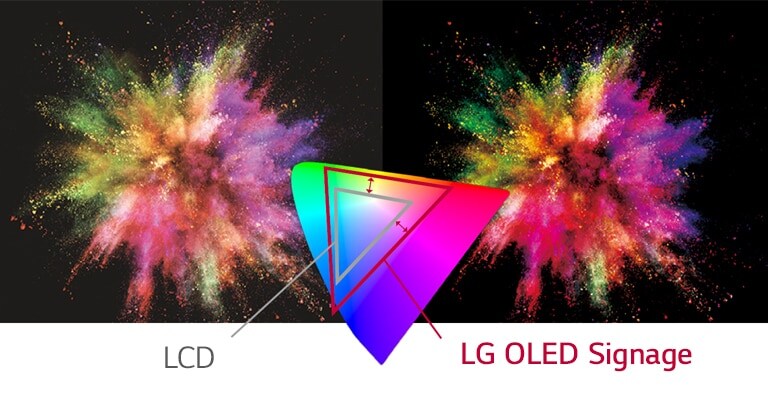

LG OLED Signage has a variety of colors rather than LCD to express the object more vividly. LG OLED Signage has a variety of colors rather than LCD to express the object more vividly.

Rich Color

LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

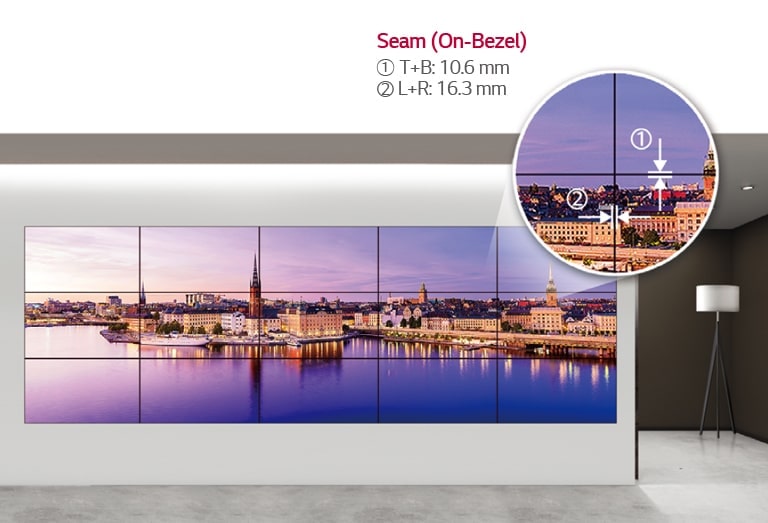

A large screen was made by tiling several screens. A large screen was made by tiling several screens.

N×N Expandable Screen Size

By tiling up displays horizontally and vertically, the screen size can be as large as users want. Expansive, large screens are more effective at moving viewers by providing an incredibly immersive viewing experience.

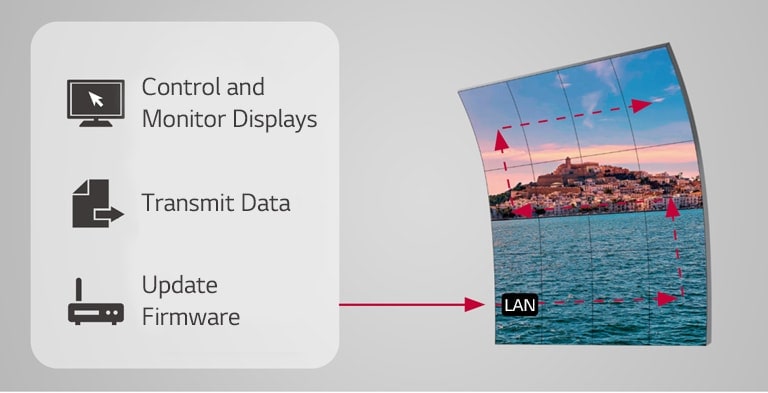

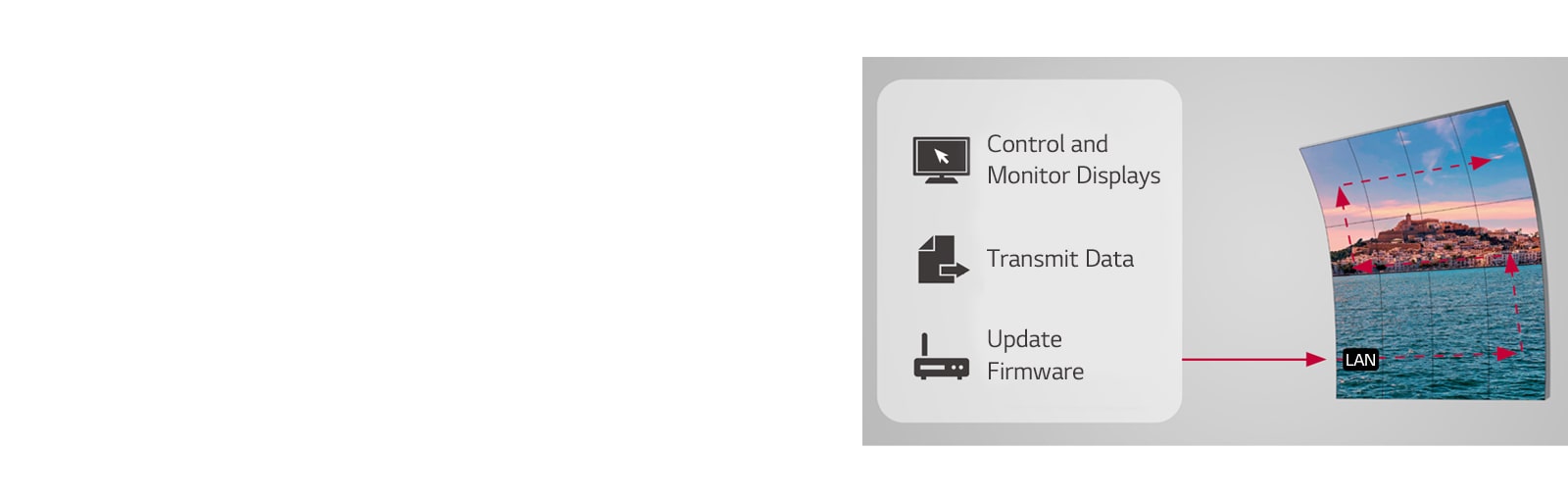

Displays are easily managed wirelessly through LAN daisy chain function. Displays are easily managed wirelessly through LAN daisy chain function.

LAN Daisy Chain Management

A LAN daisy chain is supported, allowing you to execute commands to control and monitor the displays and even update their firmware.

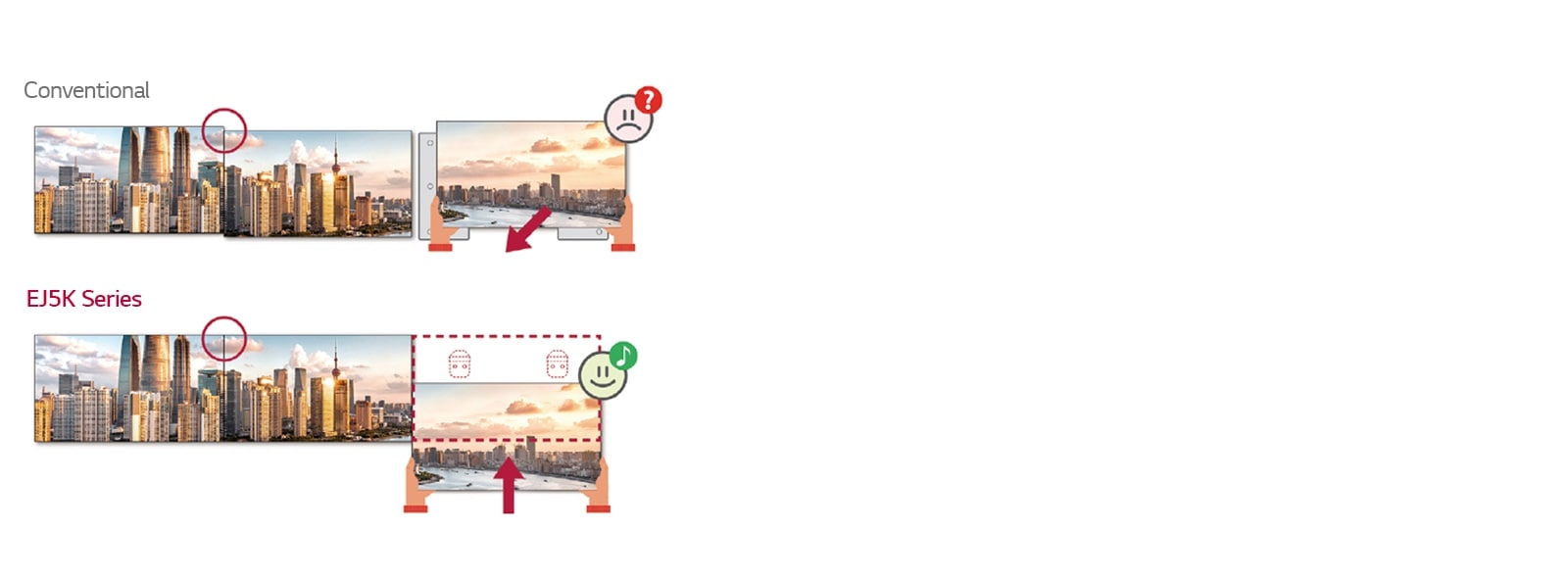

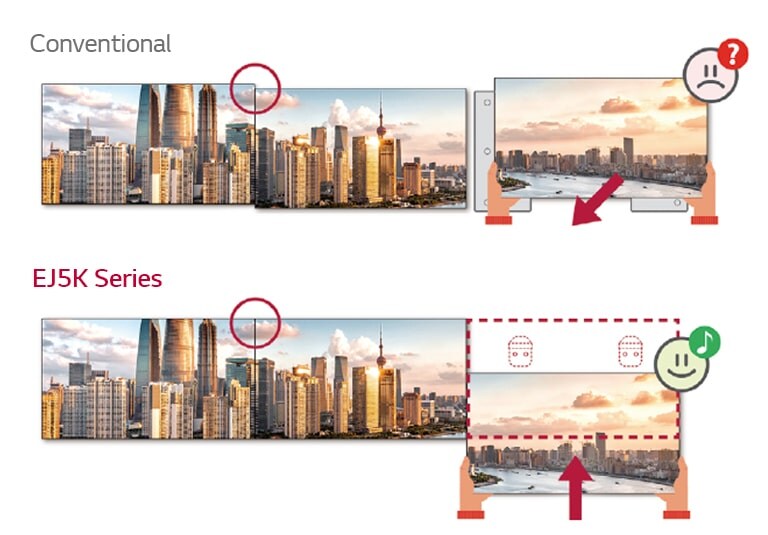

EJ5K series has a front installation feature, making it easier to tile displays. EJ5K series has a front installation feature, making it easier to tile displays.

Wall Fixers Optimized for Simple Tiling

The overall installation process of the wallpaper OLED has gotten much easier. Once the dedicated wall fixers are driven into a wall, a display can be easily hung on them. Video wall tiling has become more convenient, thanks to its front installation feature, which departs from the conventional sidesliding method.

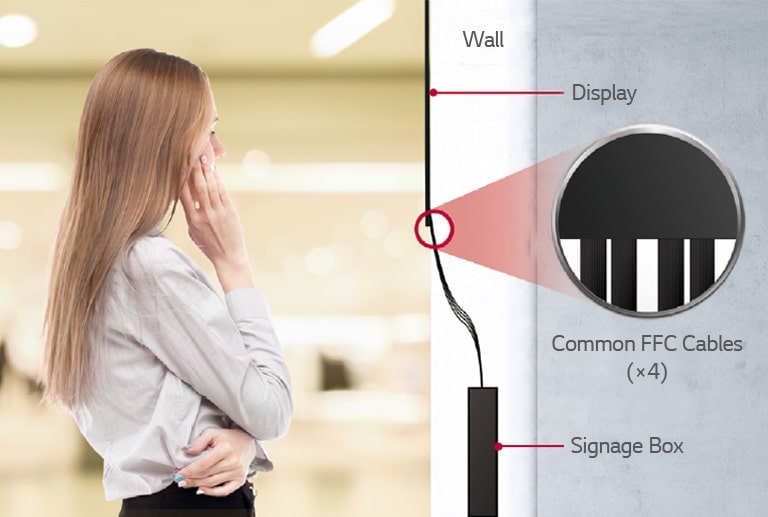

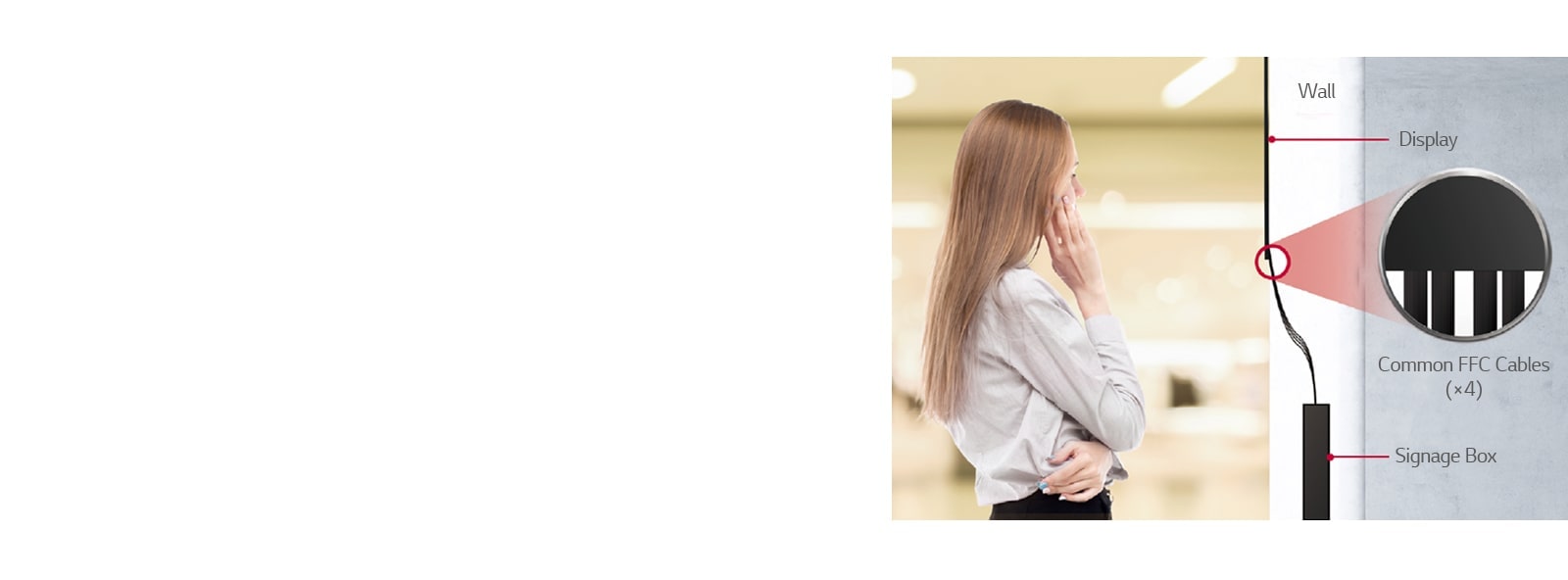

Cables are so flexible that it is easily embedded in a wall or other structures. Cables are so flexible that it is easily embedded in a wall or other structures.

Enhanced Flexibility of Cables

As a result of in-depth consideration of usage scenarios, improvements have been made to the flexibility of common cables connecting the display to the signage box. These new cables are pliable enough to be easily embedded in a wall or other structures.

Splendid Design

LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display. The advantages the OLED display brings are countless from the easier installation to a sleek look.

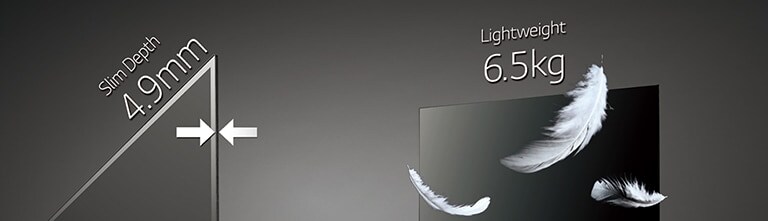

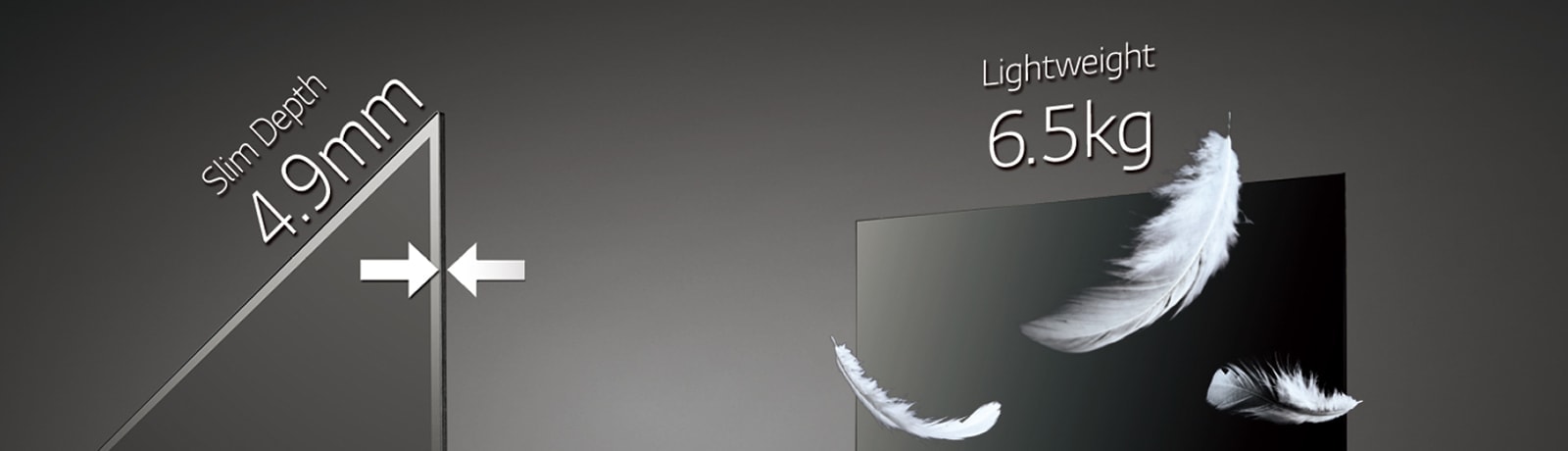

LG's OLED display is very slim and light with a depth of 4.9mm and a weight of 6.5kg. LG's OLED display is very slim and light with a depth of 4.9mm and a weight of 6.5kg.

Hide in Plain Sight

The subtle edge of the wallpaper OLED totally blends in with the wall, giving audiences the sensation that content is being played directly within the wall itself. Integrating with and adding to a luxurious interior design, the wallpaper OLED is an effective method for delivering advertisements and information.

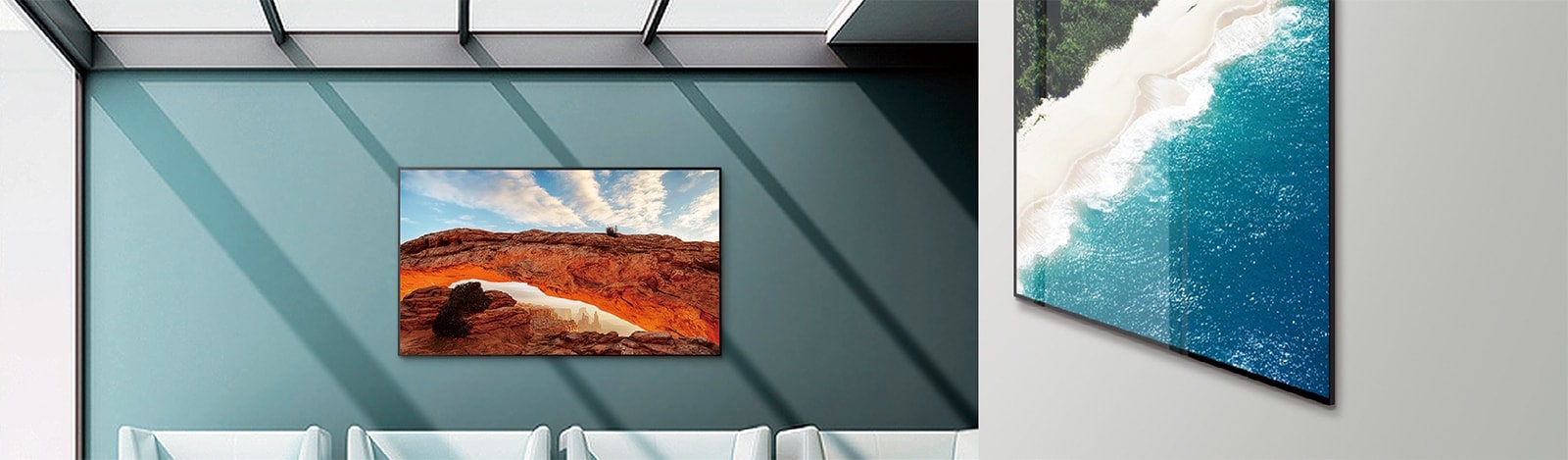

The edge of the display on the wall is so thin that it looks as if content is playing directly from the wall. The edge of the display on the wall is so thin that it looks as if content is playing directly from the wall.
Close
PANEL
  • Screen Size
    55
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    120 Hz
  • Brightness
    150/400nit (APL 100%/25%)
    Contrast Ratio
    150,000 : 1
  • Color Gamut
    BT709 120%
    Viewing Angle(H x V)
    178 x 178
  • Color Depth
    10bit(R), 1.07Bilion colors
    Response Time
    1ms (G to G), 8ms (MPRT)
  • Surface Treatment(Haze)
    Hard coating (2H)
    Reflectance Typ. 1.2%
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portrait / Landscape
    Yes
CONNECTIVITY(JACK INTERFACE)
  • Input
    HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45 (LAN), IR IN (1, External IR Receiver), USB2.0 Type A (2)
    Output
    DP Out, Audio Out, RS232C OUT (1, w/ IR out), RJ45 (LAN)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    Even Bezel : 0.9mm (Off Bezel)
    T/R/L/B : 5.3/5.3/5.3/11.0mm (On Bezel)
  • Weight(Head)
    6.5Kg (Head)
    3.4Kg (Signage Box)
    Packed Weight
    23.1Kg
  • Monitor Dimension(W x H x D)
    1220.3 x 696.8 x 4.9mm (Head)
    782.8x 238.4 x 34.7mm (Signage Box)
    Carton Dimensions(W x H x D) (Box outer size)
    1345 x 804 x 207mm
KEY FEATURE
  • HW
    Internal Memory 16GB, Temperature Sensor
    SW
    webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over,Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom, Scan Inversion
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    309W
    Max.
    318W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
    DPM
    0.5 W
  • Power off
    0.5 W
CERTIFICATION
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes (v3.0)
    SuperSign Control / Control+
    Yes (v1.7 / v1.9)
  • SuperSign WB
    Yes (v3.7.15)
    SuperSign Media Editor
    Yes (v3.7)
  • Signage 365 Care
    Yes (v2.9)
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(1600mmx4ea for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Wall Fixer(4EA), Wall Fixer Install Guide, Install Guide Sheet(2EA), Tape(10EA for Cabling/2EA for Dust proof), Screw(M4xL25,10EA / M3xL5.5,8EA)
