Transparent OLED

See the unseen,
LG Transparent OLED

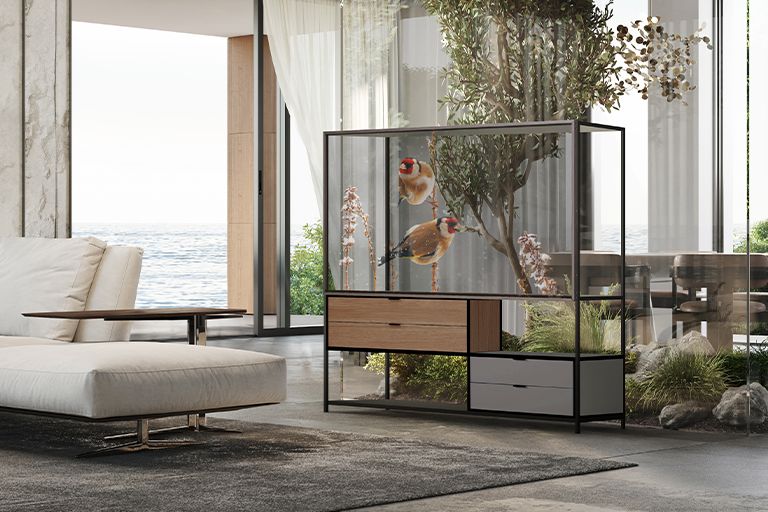

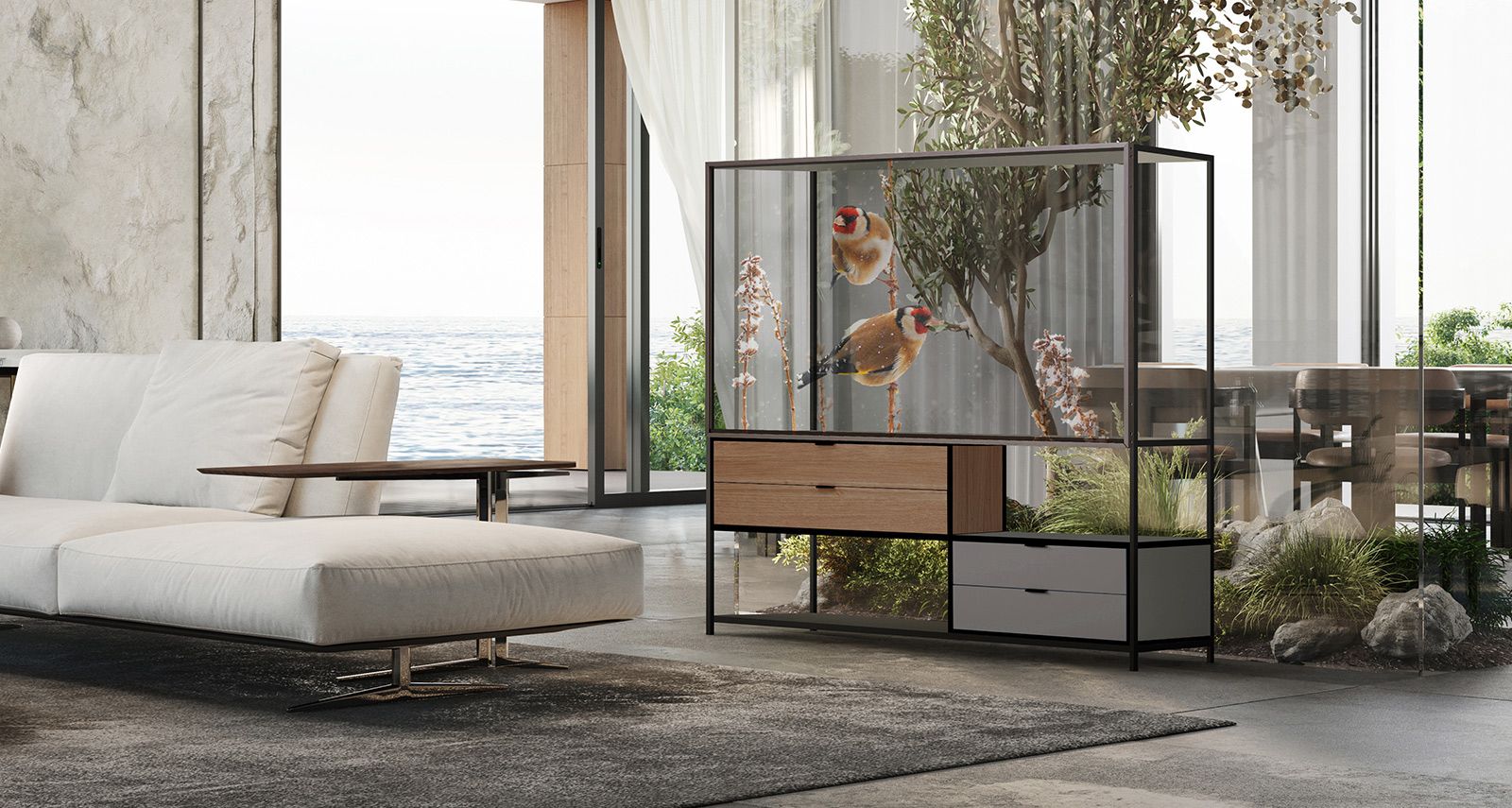

In the living room of a luxurious house with a high floor ocean view, furniture features an integrated transparent OLED display. The screen shows images of birds that blend seamlessly with the large tree visible behind the transparent display. In the living room of a luxurious house with a high floor ocean view, furniture features an integrated transparent OLED display. The screen shows images of birds that blend seamlessly with the large tree visible behind the transparent display.
* All images in this page are for illustrative purposes only.

High Transparency

LG’s OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43%* transparency. It clearly displays objects behind the screen while overlaying relevant information right in front of them.

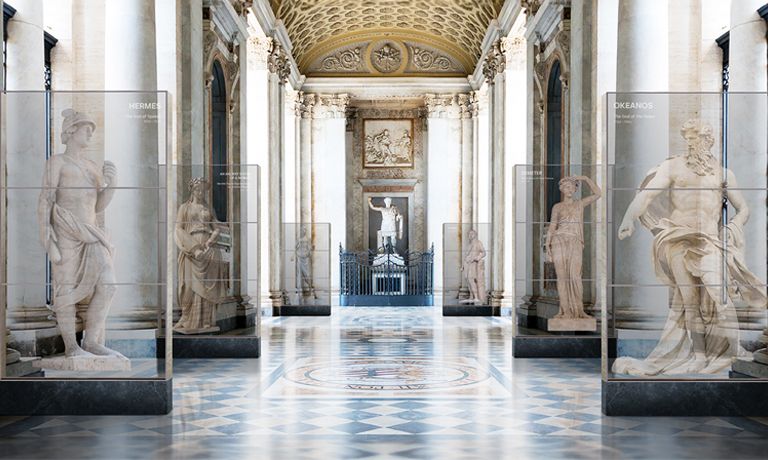

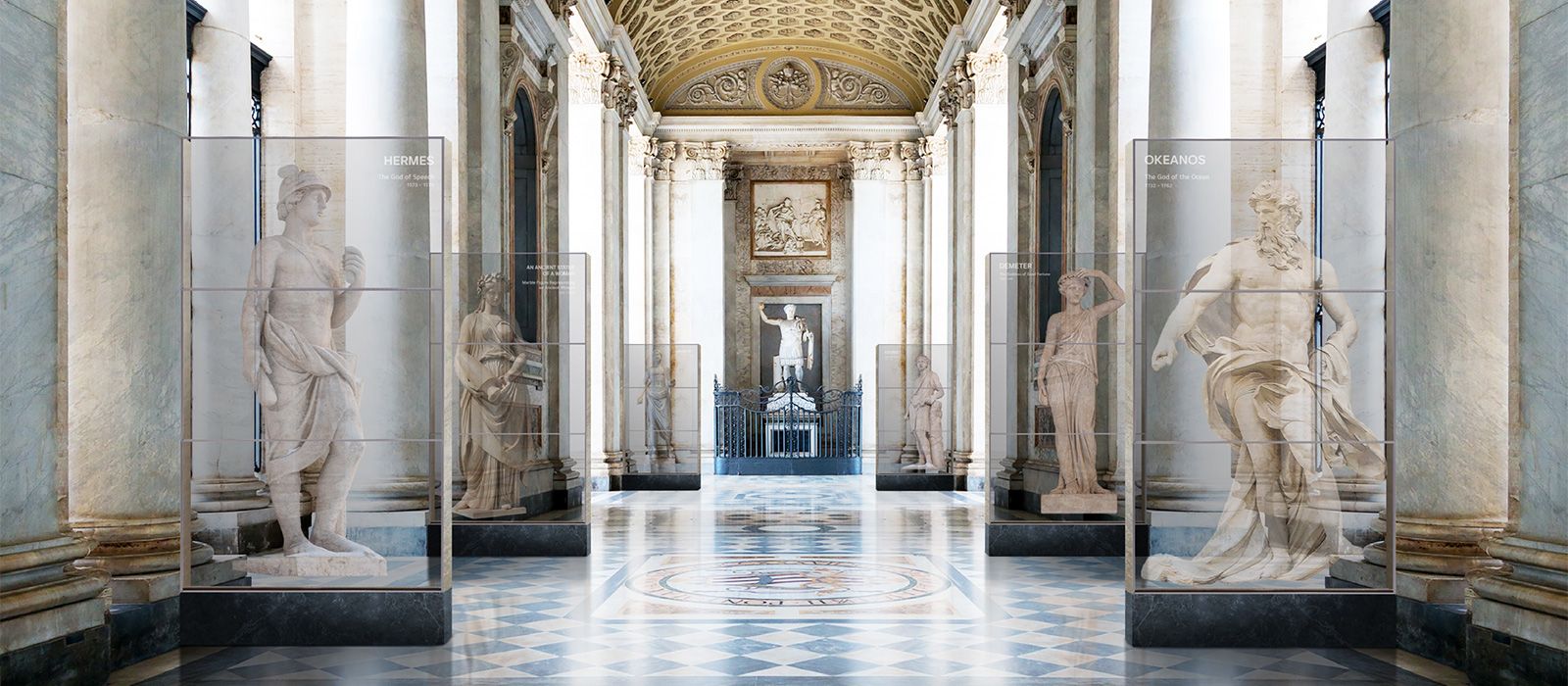

Transparent OLED screens are installed on both sides of the corridors in the museum. The screens display images of ancient statues along with information about them, with three 55EW5P-M stacked vertically to form the display. Transparent OLED screens are installed on both sides of the corridors in the museum. The screens display images of ancient statues along with information about them, with three 55EW5P-M stacked vertically to form the display.
* The Year of Measurement : 2022
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LG Display - internal testing

Sleek Elegance in Transparency

Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location.

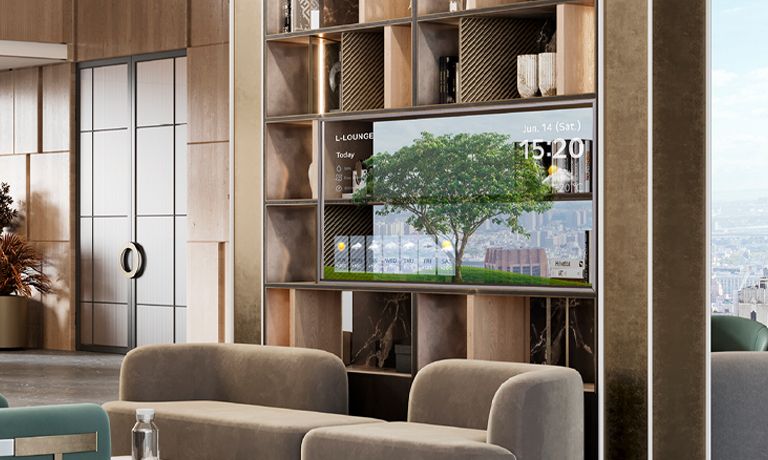

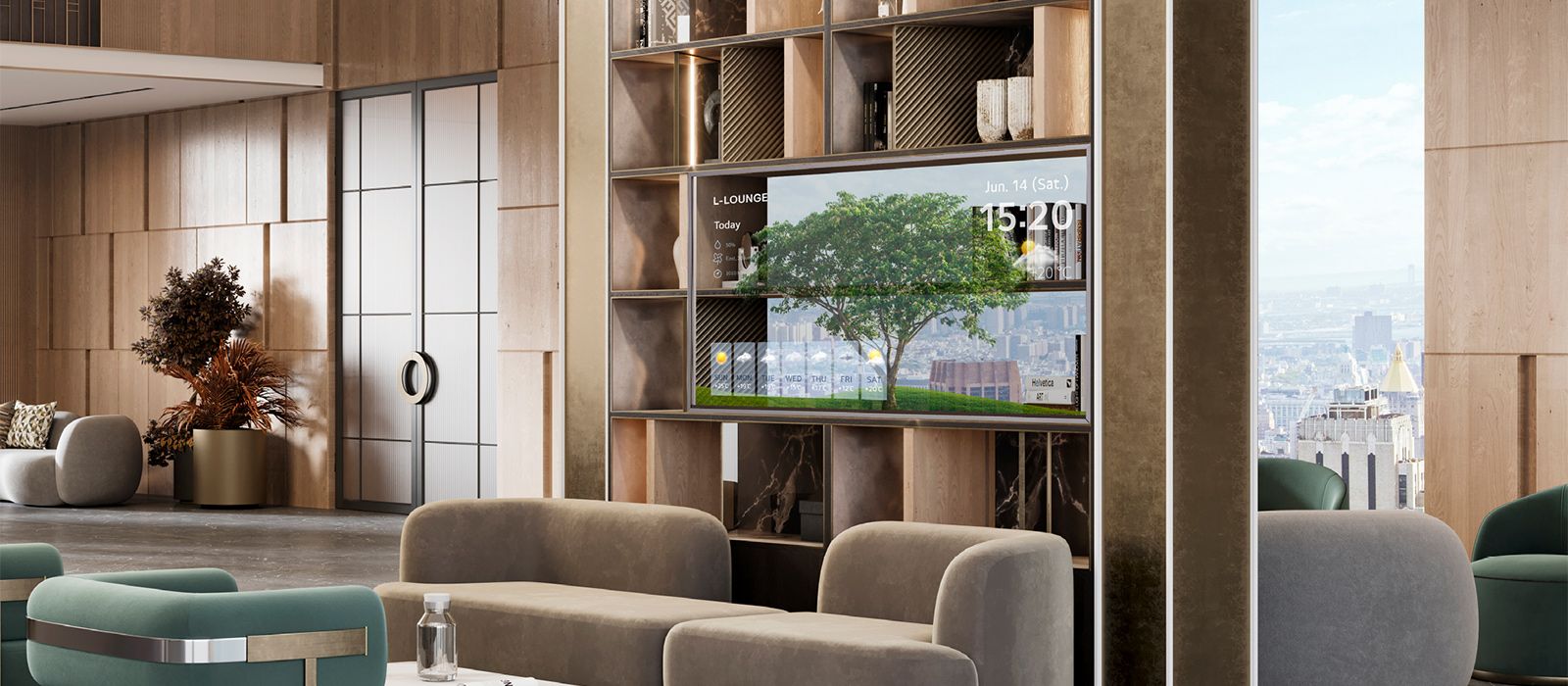

There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows images of trees along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive. There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows images of trees along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive.

Expandable Design

Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics.

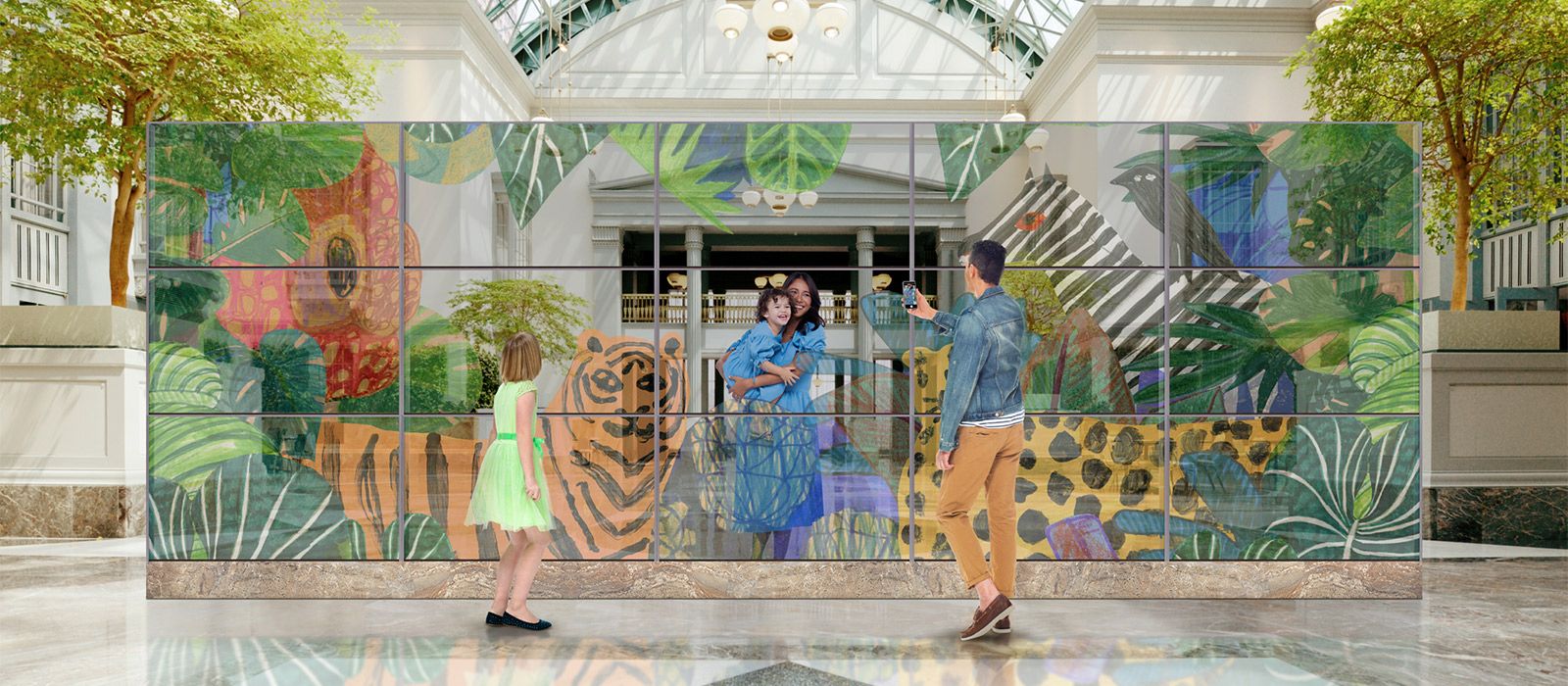

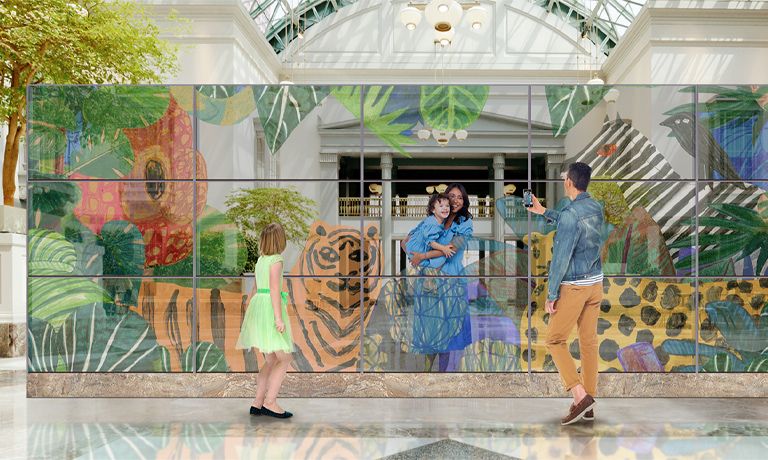

A family is taking a photo with a transparent OLED wall made up of 3ⅹ5 55EW5P-M indoors. The father, standing in front of the wall, is taking a picture of the mother and child, who are standing behind the wall with animals and plants naturally displayed on the screen. A family is taking a photo with a transparent OLED wall made up of 3ⅹ5 55EW5P-M indoors. The father, standing in front of the wall, is taking a picture of the mother and child, who are standing behind the wall with animals and plants naturally displayed on the screen.

Convenience of Installation & Stability

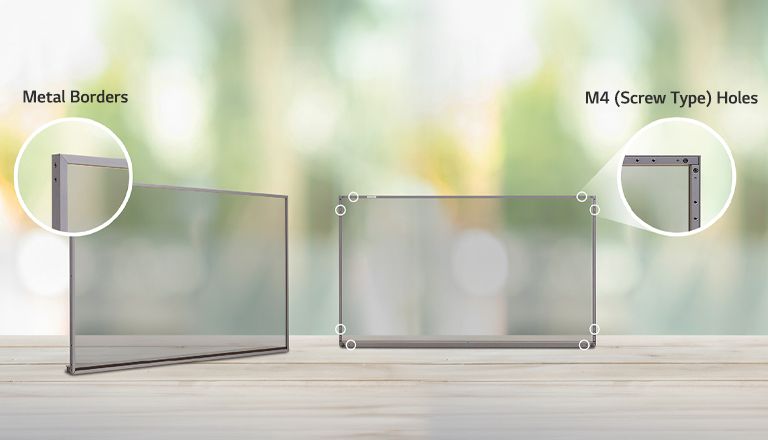

This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product’s rigidity. Additionally, M4 (screw type) holes, which are widely used globally, are incorporated into all rear corners to facilitate installation.

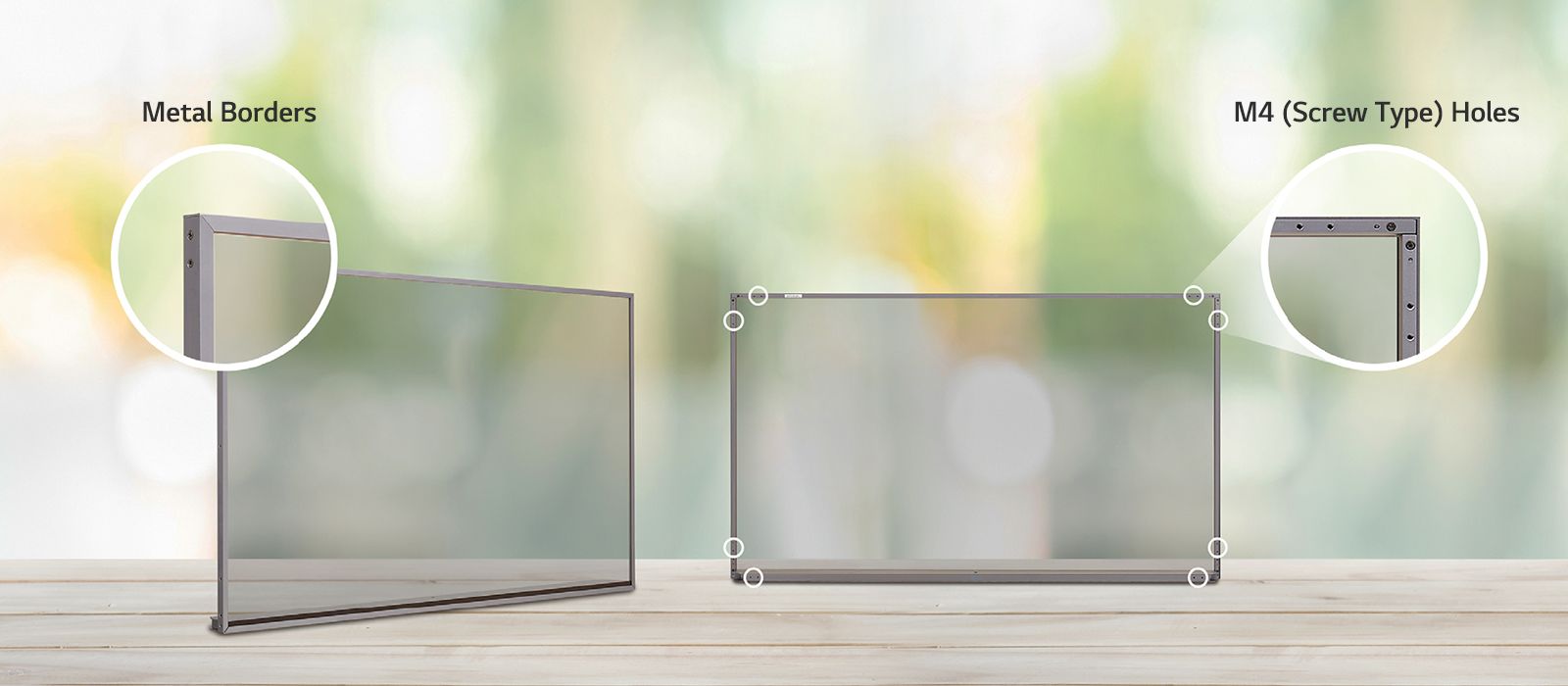

The metal borders on the bezel areas of the 55EW5P-M, along with the M4 (screw type) holes at each edge, are shown in an enlarged view. The metal borders on the bezel areas of the 55EW5P-M, along with the M4 (screw type) holes at each edge, are shown in an enlarged view.
* Screws are not supplied.

Usage Scenes

Experience the marvel of LG’s state-of-the-art Transparent OLED Signage, designed for use in various spaces. This product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.

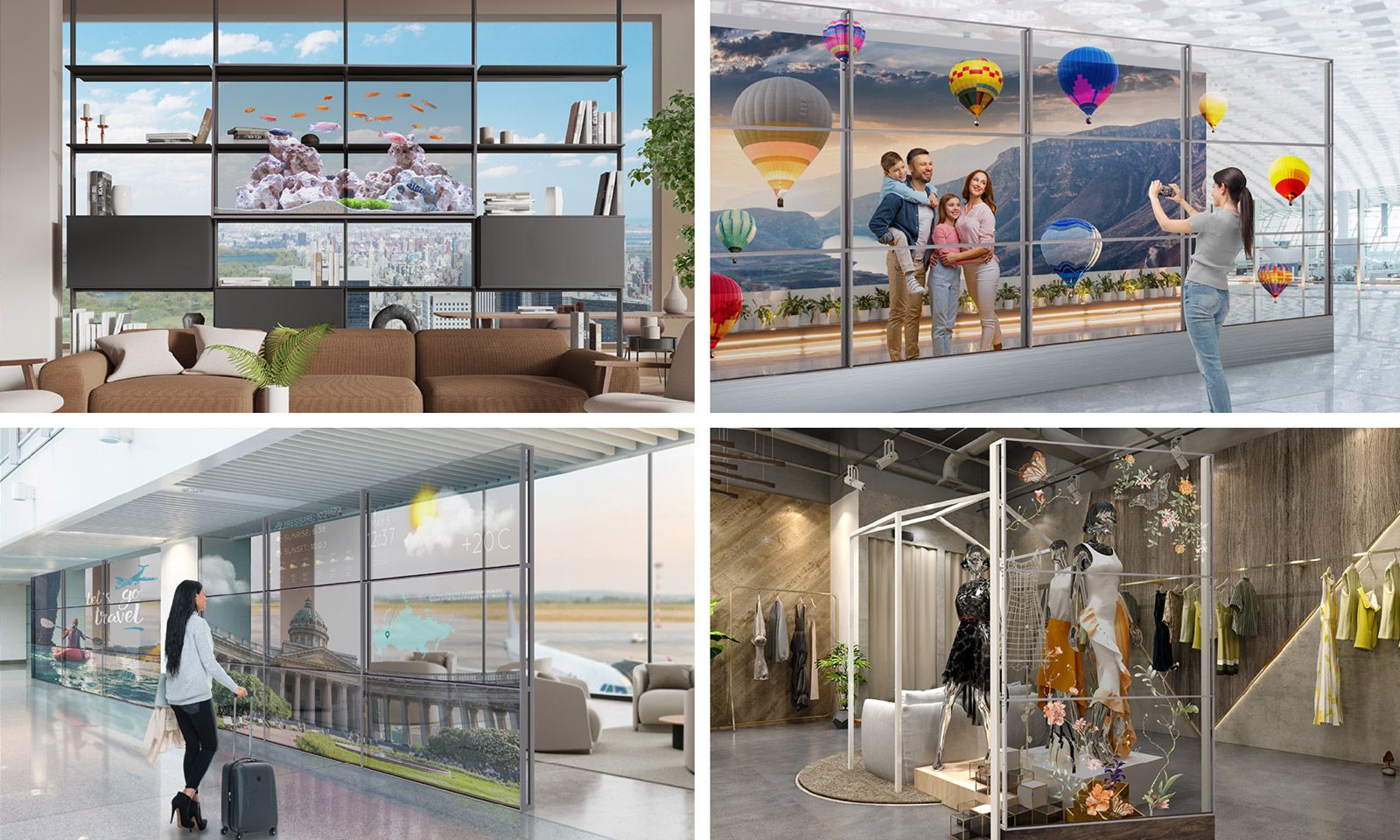

1. Used in the living room of a luxurious house 2. Used as a photo wall 3. Used as a wall at the airport lounge entrance 4. Used in a retail shop 1. Used in the living room of a luxurious house 2. Used as a photo wall 3. Used as a wall at the airport lounge entrance 4. Used in a retail shop
Close
INFO
  • Product
    OLED (Transparent)
    Year
    Y24
  • Month
    M08
PANEL
  • Screen Size (Inch)
    55"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    120Hz
  • Brightness
    200/600nit (APL 100%/25%, Without Glass)
    Contrast Ratio
    200,000 : 1
  • Color Gamut
    DCI 90%, BT709 110%
    Viewing Angle (H x V)
    178x178
  • Color Depth (Number of Colors)
    10bit(R), 1.07Bilion colors
    Response Time
    0.1ms (G to G), 8ms (MPRT)
  • Surface Treatment (Haze)
    Haze 3% (SET), Hard coating (5H)
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portait / Landscape
    Yes / Yes
  • Transparency
    43% (SET)
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(1), HDCP 2.2/1.4
    DP IN
    Yes(1), HDCP1.3
  • RS232C IN
    Yes(1)
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1), External IR Receiver
    USB IN
    USB2.0 Type A(2)
  • DP Out
    Yes(1)
    Audio Out
    Yes(1)
  • RS232C Out
    Yes(1)
    RJ45(LAN) Out
    Yes(1)
  • IR Out
    Sharing RS232C Out
    Daisy Chain
    Input HDMI, DP / Output DP
MECHANICAL
  • Bezel Color
    Transparent
    Bezel Width
    T/R/L/B : Even 12.2mm
  • Weight (Head)
    14.1Kg (Head), 2.6Kg (Signage Box)
    Packed Weight
    30.0Kg
  • Monitor Dimensions (W x H x D)
    1237.6 x 717.9 x 86.5mm (Head)
    381.6 x 217.6 x 73.6 (Signage Box)
    Carton Dimensions (W x H x D)
    1368 x 245 x 957mm
PROTECTION GLASS
  • Thickness
    3.0mm
    Tempered / Chemical strengthening
    Chemical strengthening
  • Anti-Reflective
    Yes (Film)
    Shatter-Proof
    Yes
HW FEATURE
  • Internal Memory (eMMC)
    16GB
    Temperature Sensor
    Yes
SW FEATURE
  • OS Ver. (webOS)
    webOS7.5
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Video Tag
    Yes(4)
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • PM mode
    Yes
    Wake on LAN
    Yes
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • Scan Inversion
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER
Consumption
  • Typ.
    70W (IEC 62087)
    Max.
    230W
  • BTU (British Thermal Unit)
    239 BTU/Hr(Typ), 785 BTU/Hr(Max.)
    DPM
    0.5W
  • Power off
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG,
    IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M3xL5.5 Black,24EA / M3xL5.5 Silver,8EA / M3xL6 Black, 14EA), Cover Shield Assy 1EA, Cable Rubber 2EA, Cable Cap Assy 2EA, Tiling Bracket 2EA, Signage Box Wing Bracket 2EA
SPECIAL FEATURE
  • Conformal Coating (Power Board)
    Yes
