Transparent OLED Touch Signage
Find a Dealer

See Beyond, LG Transparent OLED Touch Signage

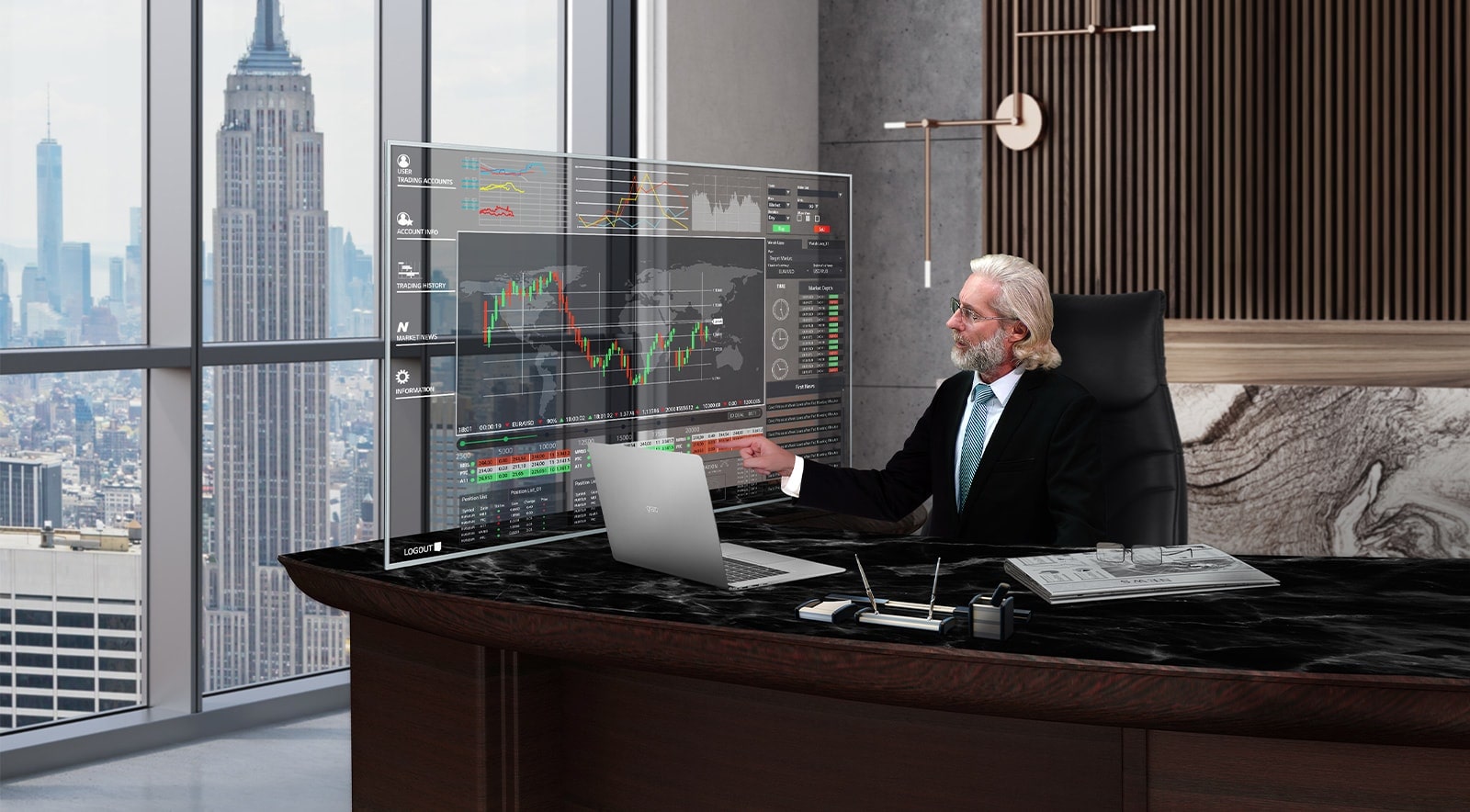

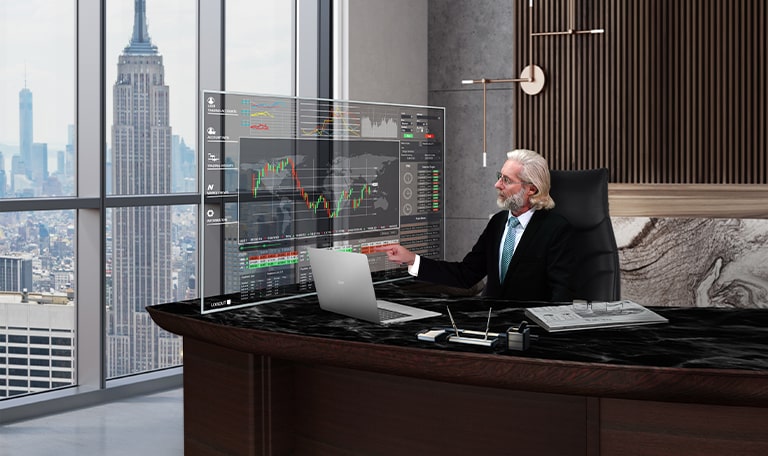

A man is doing his job by looking at the data displayed on the Transparent OLED screen. A man is doing his job by looking at the data displayed on the Transparent OLED screen.
* All images in this web page are for illustrative purposes only.

A New Level of
See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.
Not only that, it can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.
LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it. LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

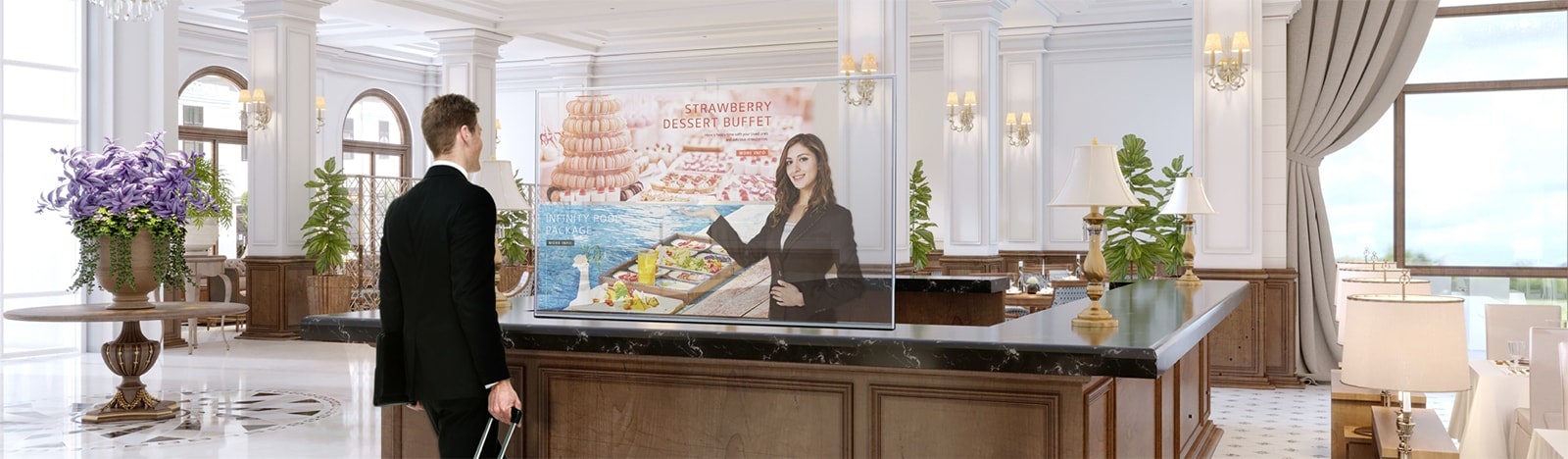

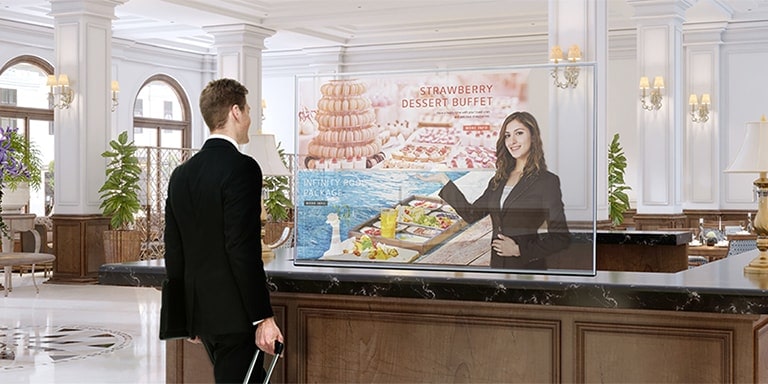

A man is getting information through the Transparent OLED screen showing photos of the dessert menu. A man is getting information through the Transparent OLED screen showing photos of the dessert menu.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips with no lag.

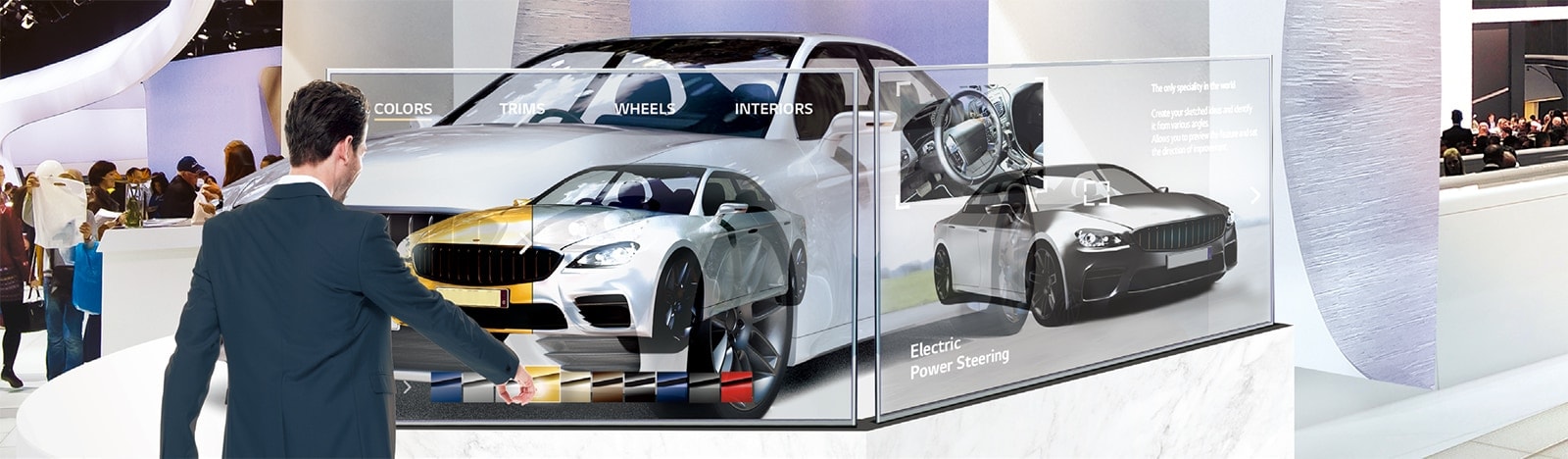

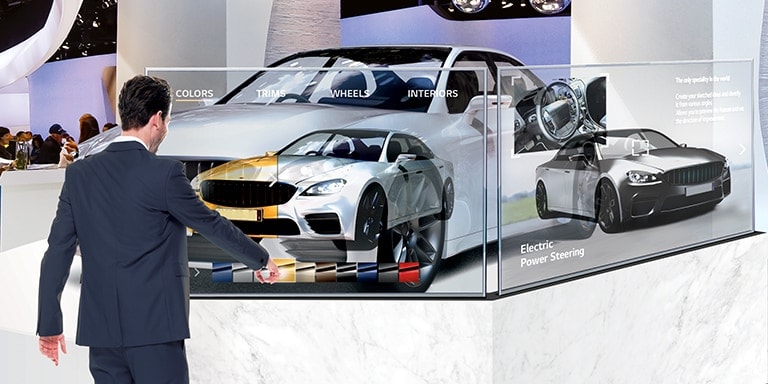

In a car exhibition hall, a man is changing the car’s color on the screen by touching the Transparent OLED Signage screen installed in front of the car. In a car exhibition hall, a man is changing the car’s color on the screen by touching the Transparent OLED Signage screen installed in front of the car.

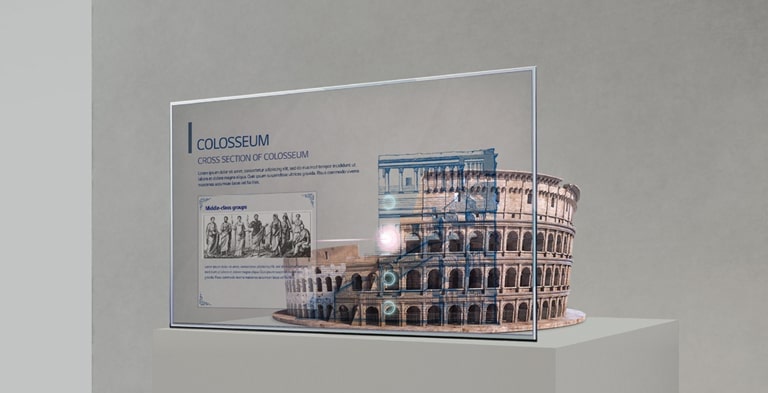

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model. Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

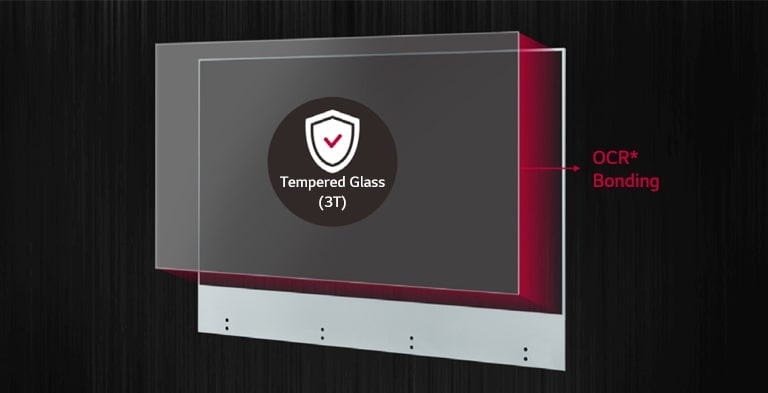

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety. Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* * Optically Clear Resin

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

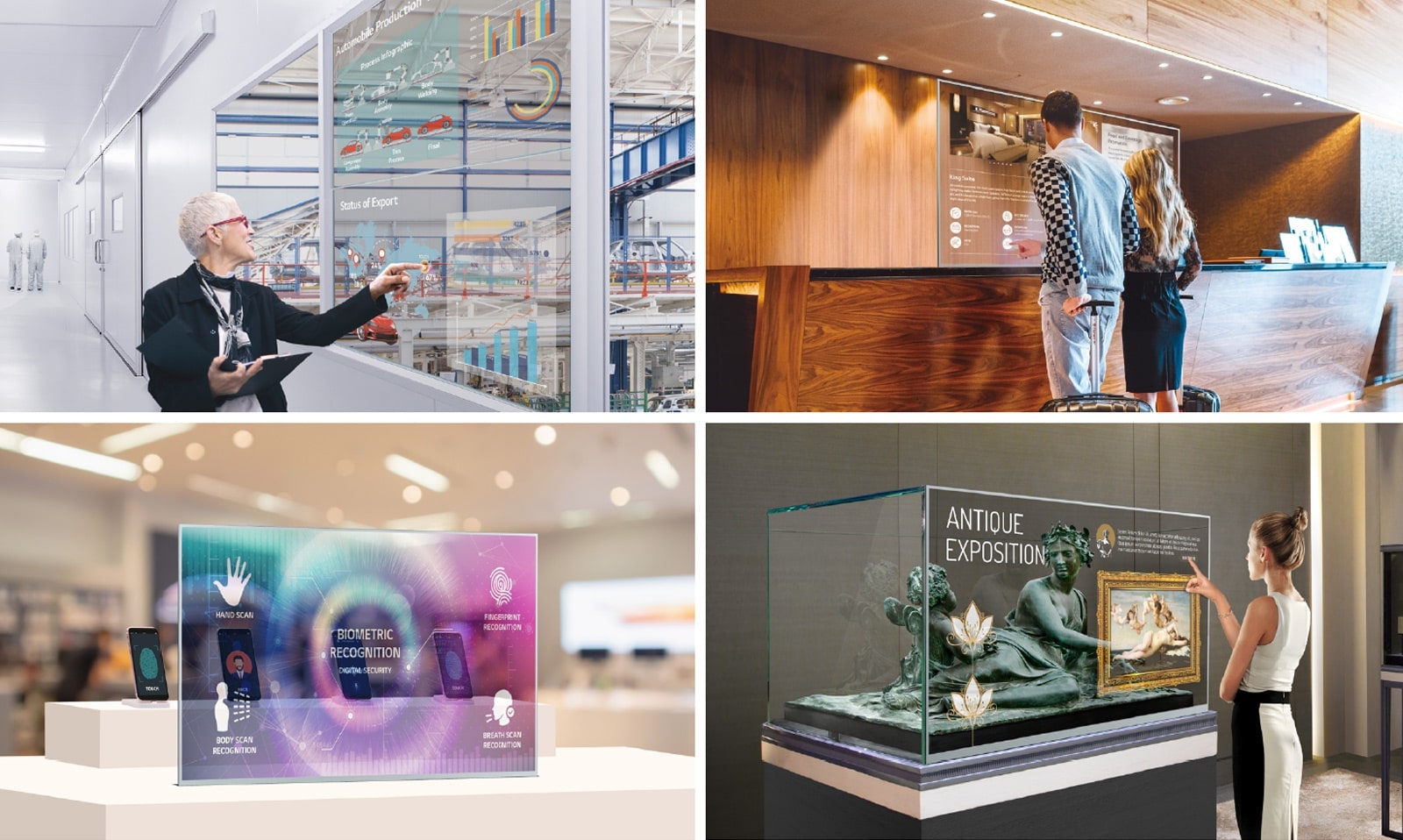

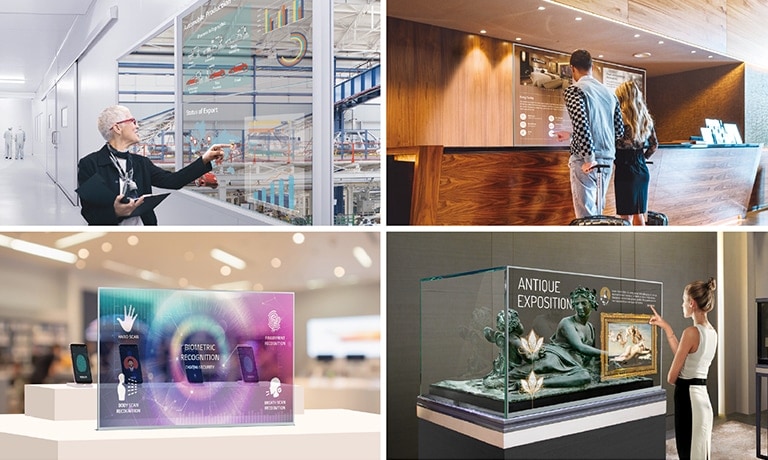

A woman is checking content with a Transparent OLED Signage installed next to the window. A woman is checking content with a Transparent OLED Signage installed next to the window.
* Installation accessories are not supplied by LG.
Close
PANEL
  • Screen Size
    55"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920 x 1080 (FHD)
    Refresh Rate
    120 Hz
  • Brightness
    150/400nit (APL 100%/25%, Without Glass)
    Contrast Ratio
    150000 : 1
  • Color Gamut
    BT709 120%
    Viewing Angle(H x V)
    178 x 178
  • Color Depth
    10bit(R), 1.07Bilion colors
    Response Time
    1ms (G to G), 8ms (MPRT)
  • Surface Treatment(Haze)
    Hard coating (2H)
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portrait / Landscape
    Yes
  • Transparency
    33% (SET)
CONNECTIVITY(JACK INTERFACE)
  • Input
    HDMI (1, HDCP1.4), DP (1, HDCP1.3), RS232C IN, RJ45(LAN), IR IN (1, External IR Receiver), USB2.0 Type A(1), USB2.0 Type A(1,Touch Control Board only)
    Output
    DP Out, Audio Out, Touch USB (USB2.0 Type B(1)), RS232C OUT (1, w/ IR out), RJ45(LAN)
MECHANICAL SPECIFICATION
  • Bezel Color
    Matt Silver
    Bezel Width
    T/R/L/B : 7.9/7.9/7.9/144.5mm
  • Weight(Head)
    12.9Kg (Head), 3.4Kg (Signage Box)
    Packed Weight
    24.5Kg
  • Monitor Dimension(W x H x D)
    1225.5 x 832.9 x 7.4mm (Head)
    782.8 x 238.4 x 34.7mm (Signage Box)
    Carton Dimensions(W x H x D) (Box outer size)
    1345 x 945 x 207mm
  • Protection Glass
    Depth 3.0mm, Tempered / Chemical strengthening (Chemical strengthening), Anti-Reflective (Coating), Shatter-Proof
KEY FEATURE
  • HW
    Internal Memory 16GB, Temperature Sensor
    SW
    webOS ver. (webOS4.0), Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Inside), Power (PM mode, Wake on LAN), HDMI-CEC, SI Server Setting, Pro:Idiom
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    280W (TBD)
    Max.
    300W (TBD)
  • BTU (British Thermal Unit)
    TBD
    DPM
    0.5 W
  • Power off
    0.5 W
CERTIFICATION
  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes (v2.9)
    SuperSign Control / Control+
    Yes (v1.7 / v1.9)
  • SuperSign Media Editor
    Yes (v3.11)
    Signage 365 Care
    Yes (v2.7)
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG,
    IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M(TBD) for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5,8EA / M3xL3.5,20EA), Shield Cover Assy', Rubber Damper 4EA, Touch Cable Holder 2EA, MCX Cable Holder 4EA
SPECIAL FEATURE
  • Touch - Available object size for touch
    Ø12 mm ↑
    Touch - Reponse Time(PC Win10)
    120ms ↓
  • Touch - Accuracy
    3.5mm
    Touch - Interface
    USB2.0
  • Touch - Protection Glass Thickness
    3.0T (Anti-Glare / Anti-Finger print)
    Touch - Protection Glass Transmission
    84% (Typ.)
  • Touch - Operating System Support
    Windows 8.1, Windows 10
    Touch - Multi touch point
    Max 10 Points
