UltraFine Display OLED Pro
Find a Dealer
Reddot Winner 2021 Reddot Winner 2021
LG UltraFine Display OLED Pro

Versatile OLED
with Accurate Color, Customized to Suit Your Needs

Enhance your workplace with LG’s 65EP5G OLED professional monitor that has been developed to meet a variety of use cases and workflows in content production, post-production and distribution. 65EP5G builds upon the capabilities of LG’s OLED displays recognized by a Technology and Engineering Emmy® award and incorporates additional features and functionality to meet the needs of professionals.

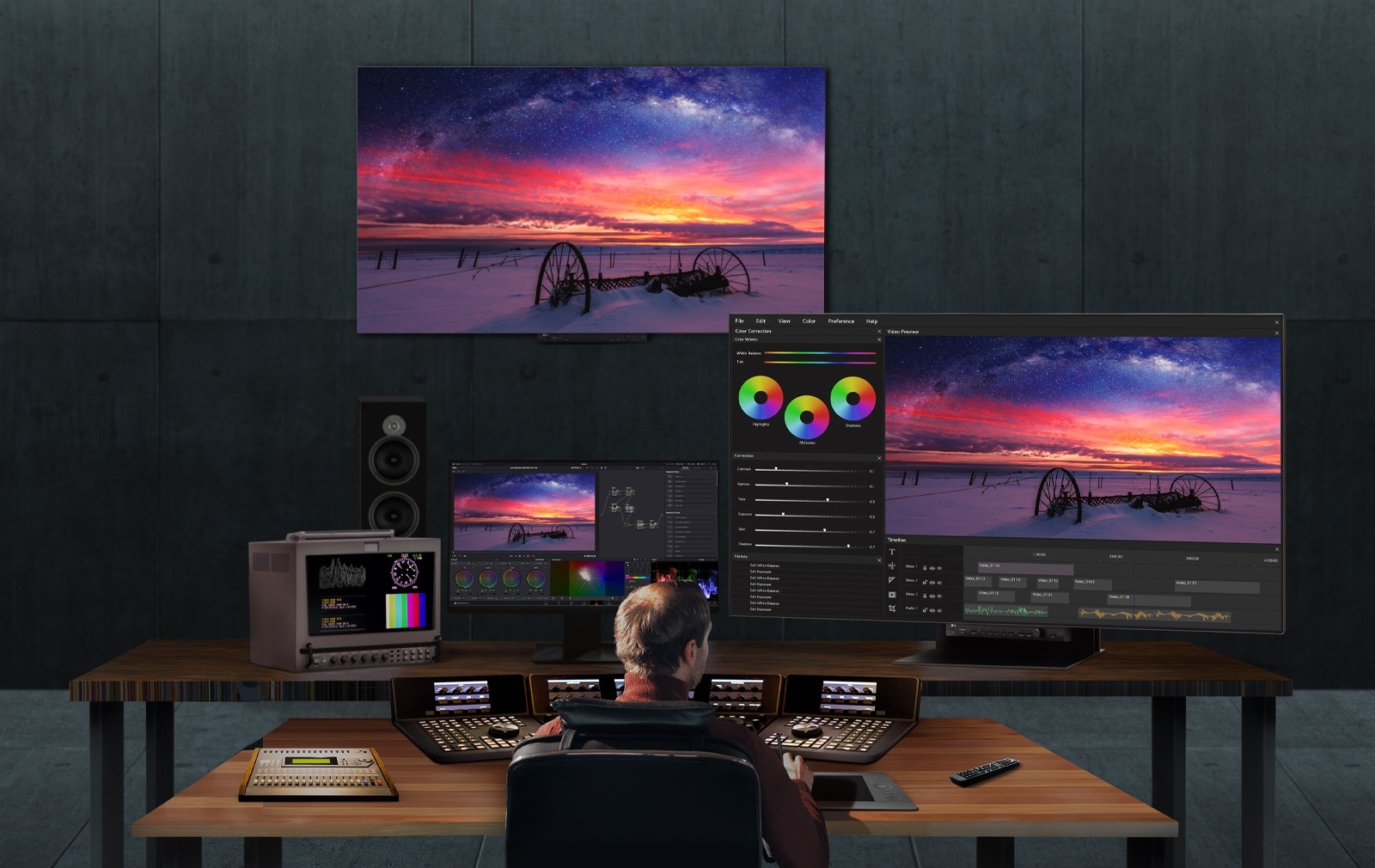

A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace. A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace.
* 65 Inch (65EP5G)
* All images are for illustrative purposes only.

Accurate Color
with a Wide OLED Screen

Advanced Calibration functionality allows display to achieve reference performance for picture quality-enabled by LG’s proprietary software (SuperSign for White Balance). It supports programmable hardware 1D & 3D LUTs and multiple color-accurate profiles for rapid transitioning between calibrated modes.

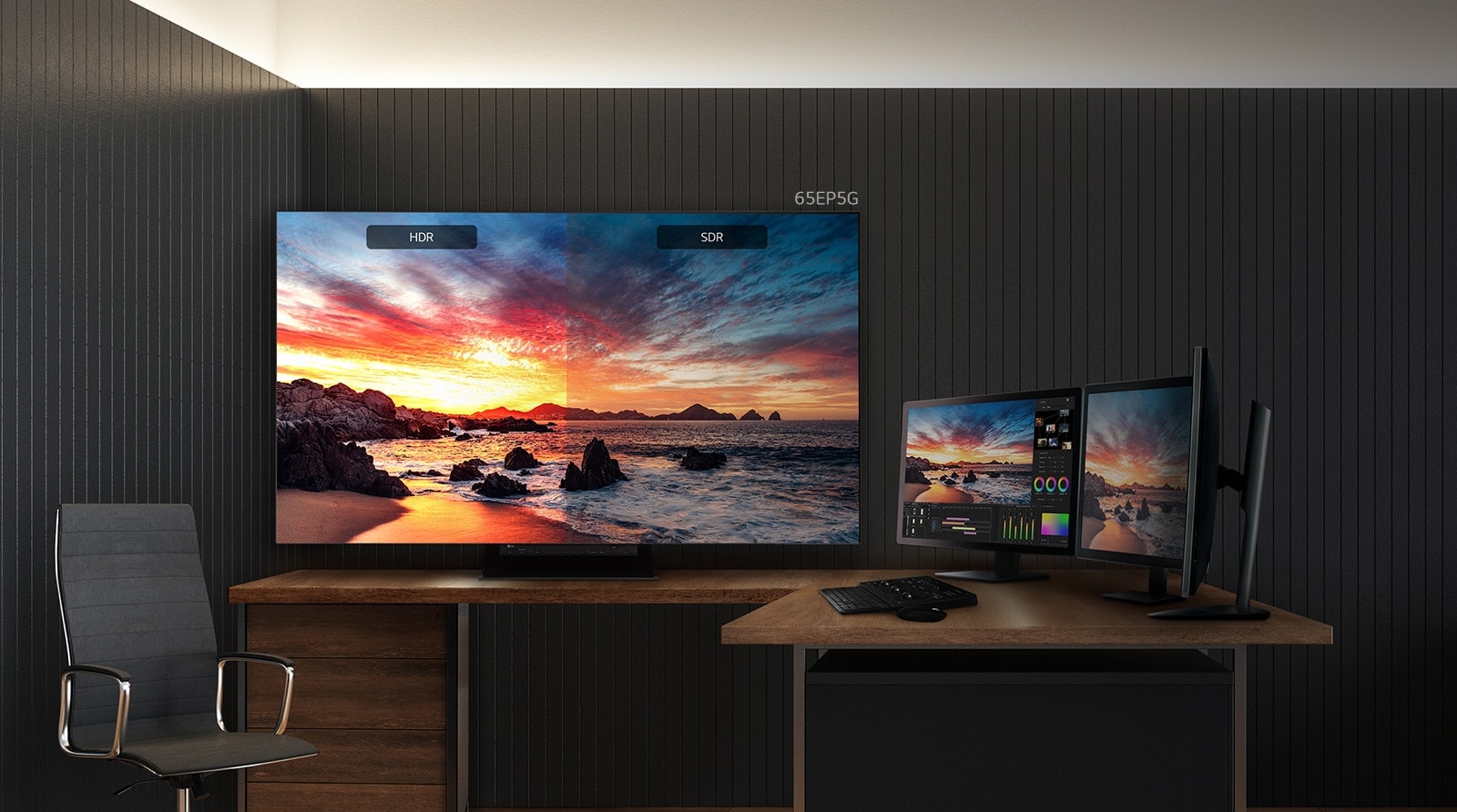

65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time. 65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time.
* All images are for illustrative purposes only.

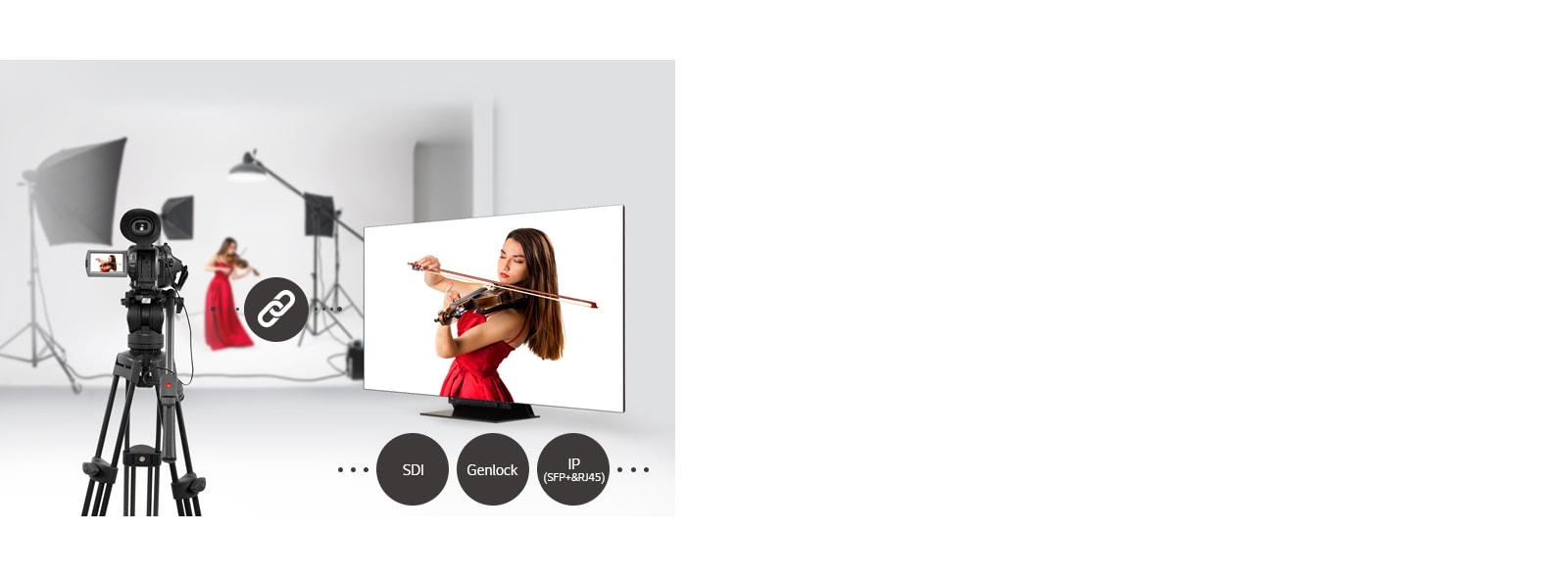

Equipped with jack interfaces such as SDI, Genlock, and IP(SFP+ &RJ45), 65EP5G can be connected to the camera, facilitating video transmission between studio devices. Equipped with jack interfaces such as SDI, Genlock, and IP(SFP+ &RJ45), 65EP5G can be connected to the camera, facilitating video transmission between studio devices.

Diverse I/O Interfaces

A variety of input interfaces are provided including HDMI, quad loop-thru SDI (BNC), IP (SFP+ & RJ45). Supported IP formats include ST-2110 and ST-2022-6. Also included interface is a Genlock input for use in broadcast and virtual production applications.
* All images are for illustrative purposes only.

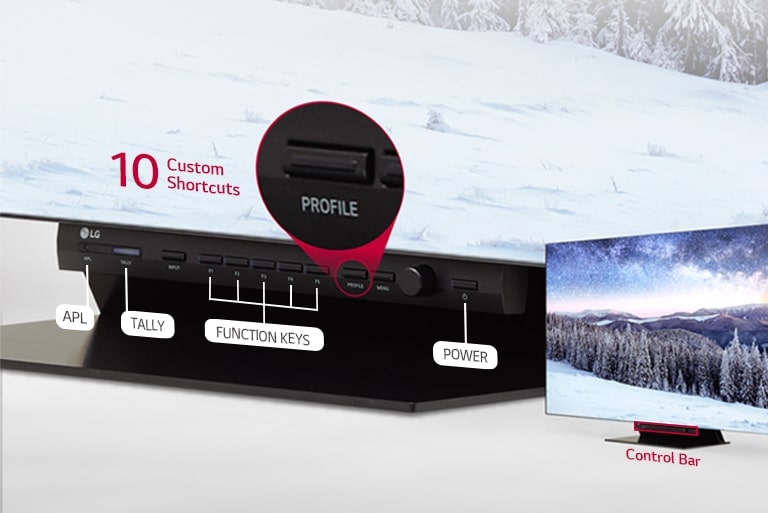

It is easy to set up through a control bar equipped with various functions such as APL, TALLY, Function keys, Power, and a profile key that can use 10 custom shortcuts. It is easy to set up through a control bar equipped with various functions such as APL, TALLY, Function keys, Power, and a profile key that can use 10 custom shortcuts.

Convenience and Functionality

The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.
* All images are for illustrative purposes only.
Close
PANEL
  • Screen Size
    65"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120 Hz
  • Brightness
    1000/900/500/185nit (APL 3%/10%/25%/100%)
    Contrast Ratio
    1,850,000 : 1
  • Color Gamut
    DCI-P3 98.5%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    0.1ms (G to G)
  • Life time
    30,000 Hrs (Typ.)
    Operation Hours (Hours / Day)
    12/7 (Moving Content Only)
  • Portrait / Landscape
    No / Yes
CONNECTIVITY
  • Input - Digital - HDMI
    HDMI2.1
    Input - SDI
    Yes(4)
    - Single Link : SD/HD/3G/6G/12G
    - Dual Link : HD/3G_4K
    - Quad Link : HD_4K/3G_4K
    - Quad View : SD/HD/3G/6G/12G
  • Input - REF In
    Yes (1), Black Burst, Tri-Level
    Input - External Control - RS232C IN
    Yes (1), Service only
  • Input - External Control - RJ45(LAN)
    Yes (1), 100base-T
    Input - External Control - RJ45(Remote)
    Yes (1), GPI 7port
  • Input - External Control - SFP
    Yes (1), SFP+, Support only for the Embrionix's SDI module
    Input - External Control - IR IN
    Yes(1)
  • Input - USB
    Yes (1), USB2.0 Type A
    Input - Power
    Yes (1), AC
  • Output - Audio Out
    Yes (1), Head-Phone
    Output - SDI
    Yes (4), Loop-through
  • Output - External Control - RJ45(Remote) OUT
    Yes (1), GPI 7port
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 2.0 /2.0 / 2.0 / 2.0mm (Off Bezel)
    T/R/L/B : 8.7 /8.9 / 8.9 / 11.6 mm (On Bezel)
  • Weight (Head)
    31kg
    Weight(Head+Stand)
    35kg
  • Packed Weight
    45.5kg
    Monitor Dimension (W × H × D)
    1446.3x 823.8 x 49mm (w/o control box)
    1446.3x 853.8 x 56.5mm(w/ control box)
  • Monitor Dimensions with Stand(W x H x D)
    1446.3x 896.5x 272mm
    Carton Dimensions(W x H x D) (Box outer size)
    1670 x 200 x 1108 mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    300 x 300
KEY FEATURE
  • HW - Internal Memory
    8GB
    HW - Sensor - Temperature Sensor
    Yes
  • HW - Power Indicator
    Yes (Standby : Red, Power On : White)
    HW - Local Key Operation
    Yes
  • HW - FAN
    Yes
    SW - webOS ver.
    webOS5.0
  • SW - Multi-screen - PIP
    Yes
    SW - Multi-screen - PBP
    Yes(2)
  • SW - SNMP
    Yes
    SW - ISM Method
    Yes
  • SW - HDMI-CEC
    Yes
    Picture - Adjust
    OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint
  • Picture - Color Temp
    VAR Temp, 9300K, 6500K, 5400K, 3200K, D65(6504K), C(6774K), D-Cinema(6302K)
    Picture - Gamut
    Native, BT.709, DCI-P3, BT.2020, EBU, SMPTE-C, NTSC, AdobeRGB
  • Picture - R/G/B Gain
    -100 ~ 100
    Picture - EOTF
    Auto, User, 1.9, 2.2, 2.4, 2.6, ST.2084 PQ, BT.2100 HLG, Dolby Vision
  • Picture - Transfer Matrix
    Auto / BT.709 / BT.601 / BT.2020
    Picture - Mastering Peak
    Auto / 0 / 400 / 540 / 700 / 1000 / 2000 / 3000 / 4000 / 10000
  • Picture - SDI Color Format
    Auto / RGB444 / YCbCr444 / YCbCr422
    Picture - SCAN
    Zero Scan /Over Scan / Under Scan
  • Picture - AFD (Active Format Description)
    Yes
    Picture - Aspect Ratio
    Original / Full Wide / 4:3 / 14:9 / 13:9 / 1.85:1 / 2.35:1 / 1:1
  • Picture - Zoom
    2x, 3x, 4x, 5x
    Picture - Mono/Blue Only
    Off/MonoColor/Blue Color
  • Picture - HDMI IT Content
    Yes
    Picture - HDR/SDR monitoring
    Yes
  • Picture - Input Range
    Auto, Narrow, Full, SDI Full
    Picture - Uniformity Compensation
    Yes (Δu*v*<2.6, EBU Grade1)
  • Picture - DeltaE
    <2
    Picture - Eyesafe
    Yes
  • Picture - PictureOptions
    Noise Reduction, MPEG Noise Reduction, Real Cinema, Motion Eye Care, Dynamic Tone Mapping, Dynamic Contrast, Dynamic Color
    Marker - Marker
    Off/16:9/4:3/14:9/13:9/1.85:1/2.35:1/User Marker 1/User Marker 2/User Marker 3
  • Marker - Safety Area
    Off/16:9 95%/16:9 93%/16:9 90%/16:9 88%/16:9 85%/16:9 80%/4:3 95%/4:3 93%/4:3 90%/4:3 88%/4:3 85%/4:3 80%
    Marker - Center Marker
    Yes
  • Marker - Marker Thickness
    Yes
    Marker - Marker Color
    Yes
  • Marker - Preset1
    Preset1~2
    Audio - Audio Source Selection
    SDI1/ SDI 2 / SDI 3 / SDI 4 / SFP+
  • Audio - Audio Level Meter
    Yes
    GPI - GPI Control
    Yes (GPI1~7)
  • Video Analysis - Waveform / Vector Scope
    Yes
    Video Analysis - Time Code
    Yes
  • Video Analysis - Caption
    Yes (608, 708)
    Video Analysis - PIP/PBP
    Yes
  • Advanced - Profile
    Profile 1~10
    Advanced - Function Key
    F1~5
  • Advanced - OnScreen Display
    Yes
    Advanced - UMD (Under Monitor Display)
    Yes
  • Advanced - VPID
    Yes
    Advanced - Information
    Yes
  • Advanced - Control(Key/LED/IR)
    Yes
    Advanced - HDMI Ultra HD Deep Color
    Yes
  • Advanced - OLED Panel Settings
    TPC, Pixel Refresher, Screen Shift, Logo Luminance Adjustment, Global Sticky Reduction, Convex Power Control
    Advanced - Screen Saver
    On / Off
  • Advanced - Screen Control
    I/P Mode, Internal Pattern
    Advanced - Power
    No Signal / No IR / DPM
  • Advanced - Network Settings
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    300W
    Max.
    470W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
    DPM
    3W
  • Power off
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
SOFTWARE COMPATIBILITY
  • SuperSign WB
    Yes
    CalMAN SW Compatibility
    Yes
  • IP Remote Utility
    Yes
Language
  • OSD
    English, Korean
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book
