ABNQ48GM3T7 ANWTBHR + ABUQ48GM3T7 ANWTBHR component-copyModelName

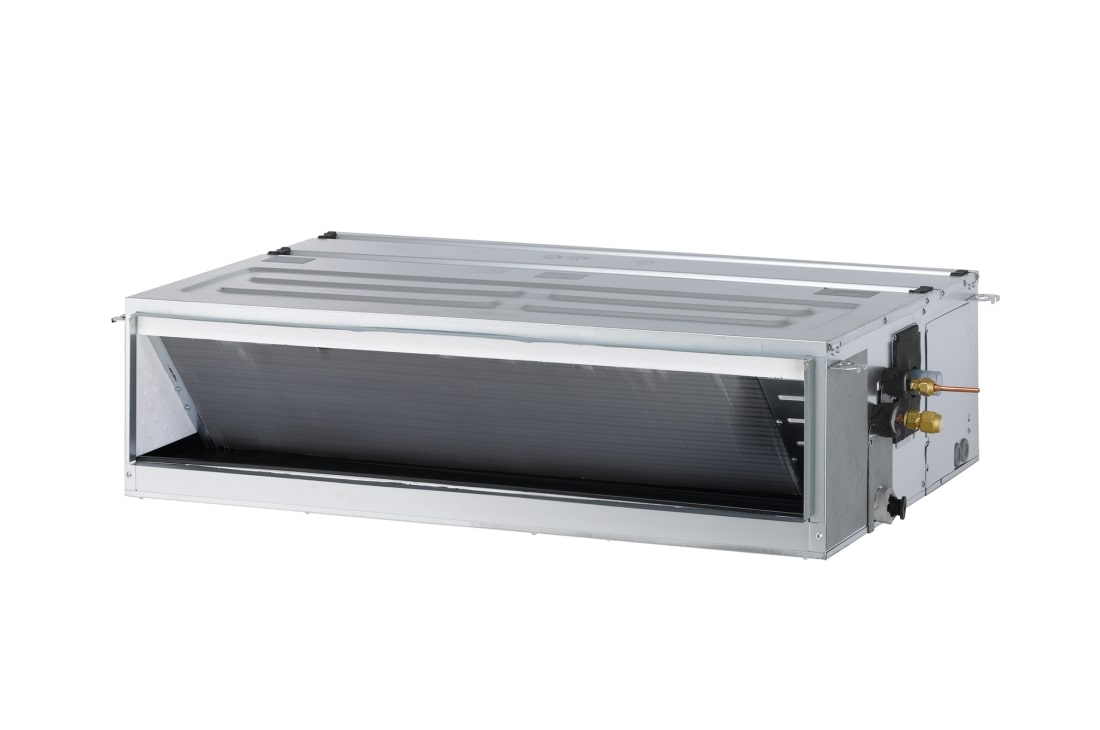

Inverter Ducted Dx 4.0 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ABNQ48GM3T7 ANWTBHR + ABUQ48GM3T7 ANWTBHR)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ABNQ48GM3T7 ANWTBHR + ABUQ48GM3T7 ANWTBHR)
    AED
    AED
    LG Members Price
Total
Inverter Ducted Dx 4.0 TR, Inverter Compressor, Corrosion resistant heat exchanger, Quick Cooling
Find a Dealer
  • A simple interface icon with 'ESP' in a rectangle, surrounded by control symbols indicating Easy Control of LG Ceiling Concealed Duct.

    Easy Control

    The ESP function adjusts air volume via a remote controller, while the BLDC motor controls fan speed and air volume. A wired remote control automatically sets external static pressure regardless of pipe length, providing easy installation.

  • A thermometer symbol icon with red arrows indicating adjustable temperature setting represents the Optimal Temperature Control for LG Ceiling Concealed Duct.

    Optimal Temperature Control

    Monitored via the remote control and the indoor unit, the two thermistors can optimize the indoor temperature by sensing temperatures from different positions and automatically setting the optimal temperature for users.

  • A simple house outline icon with three interior arrows indicates the airflow direction of the LG Ceiling Concealed Duct in different rooms, symbolizing efficient air Management of Multiple Spaces.

    Management of Multiple Spaces

    Simultaneous operation of cooling and heating for multiple rooms is achieved by using a spiral duct(embedded or flexible type) and a steam chamber.

  • An air conditioner outline icon within a dashed border emphasizes the small and space-saving design of the LG Ceiling Concealed Duct.

    Compact Size

    New mid-static ducts1) provide ideal solution for installation in limited space.

1. Conventional models are ARNU28GBGA2, ARNU36GBGA2, ARNU42GBGA2 and new models are ARNU28GM2A4, ARNU36GM2A4, ARNU42GM2A4.
Close
CAPACITY
  • Cooling¹ (Min. ~ Rated ~ Max.) (kW)
    4.62~13.75~16.41
    Cooling¹ (Min. ~ Rated ~ Max.) (Btu/h)
    15,800~47,000~56,000
  • Cooling² (Min. ~ Rated ~ Max.) (kW)
    11.70
    Cooling² (Min. ~ Rated ~ Max.) (Btu/h)
    40,000
POWER INPUT
  • Cooling¹ (Rated) (kW)
    3.79
    Cooling² (Rated) (kW)
    4.60
EER/COP
  • T1
    12.40
    T3 (W/W)
    12.40
OUTDOOR UNIT
  • Power Supply (V , Ø , Hz)
    220-240 , 1 , 50/60
    Casing Color
    Warm Gray
  • Dimensions Net (W × H × D) (mm)
    950 x 1380 x 330
    Net Weight (kg)
    89
  • Compressor Type
    Twin Rotary
    Refrigerant Type
    R410A
  • Fan Motor Type
    BLDC
    Sound Pressure Level Cooling (Rated) (dB(A))
    55
  • Piping Connections Liquid (Outer Dia.) (mm (inch))
    Φ9.52 (3/8)
    Piping Connections Gas (Outer Dia.) (mm (inch))
    Φ19.05 (3/4)
  • Piping Length IDU - ODU (Rated / Max / Min) (m)
    5/50/5
    Maximum Height Difference (IDU ~ ODU) (Max) (m)
    30
INDOOR UNIT
  • Type
    Ceiling Concealed Duct-Mid. Pressure
    Power Supply (V, Ø, Hz)
    220-240 , 1 , 50/60
  • Dimensions Net (W × H × D) (mm)
    1250 x 360 x 700
    Net Weight (kg)
    41
  • Fan Air Flow Rate H / M / L (m³/min)
    38.0 / 32.0 / 26.0
    Fan Motor Type
    BLDC
  • Safety Device
    Fuse
    Sound Pressure Level H / M / L (dB(A))
    38 / 36 / 34
  • Brochures
    • SCAC catalogue_New_short version.pdf
  • Catalog
    • 2019 SCAC MEA_High_long version.pdf
    • 21_CAC_Retrofit_Sales Guide Book_v10_High.pdf
    • FINAL_AC_Catalogue_ M_Eng_low res.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
