Usage guide by network

Find out more information and guides according to your server network. We provide different scenarios and how to set it up. Learn about the product features below.

Case 1

· Server: Public
· Monitors: Private

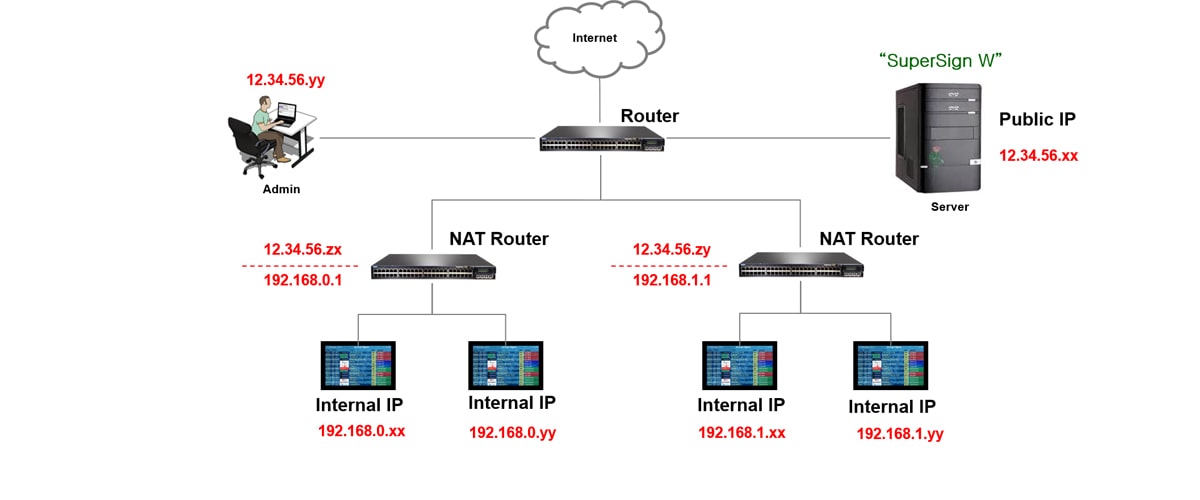

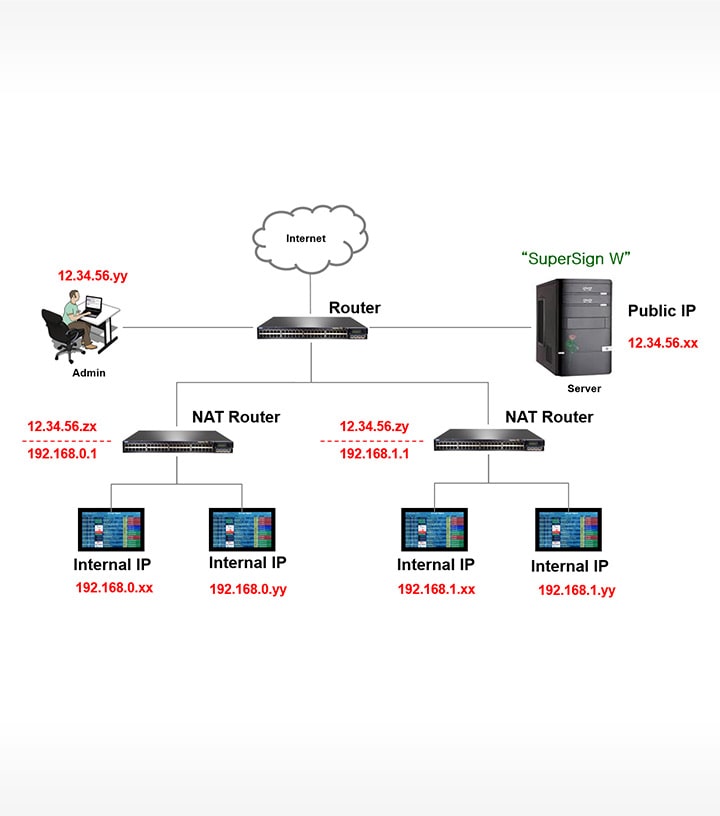

  • Server network diagram for Case 1 Server network diagram for Case 1
Horizontal Table
Feature Content distribution / Controlling
Available Available
Feature Register player by searching
Available Not Available
(Server IP should be installed)
Feature Wake on Lan
Available Not Available

Case 2

· Server: Public
· Monitors: Public

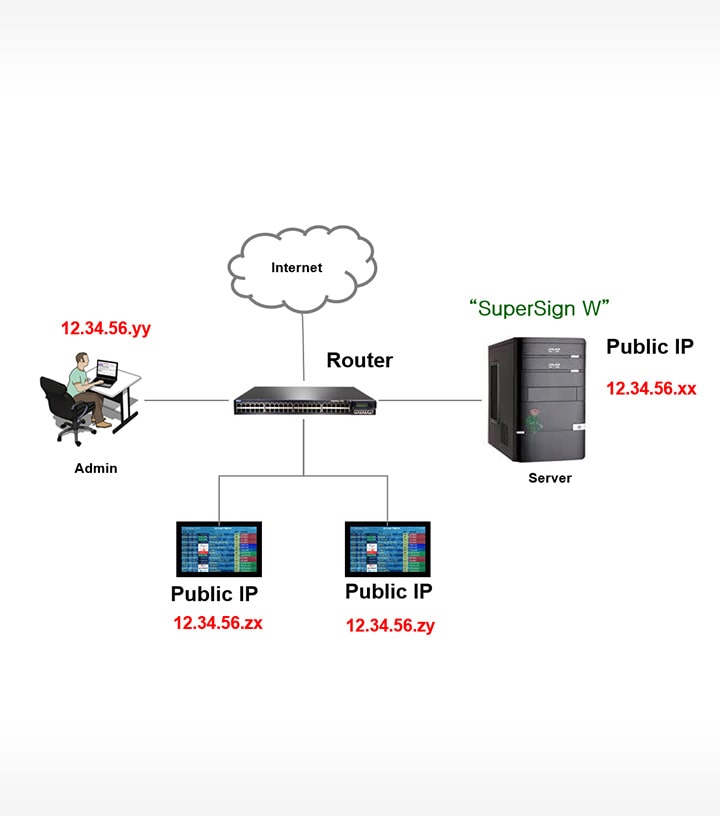

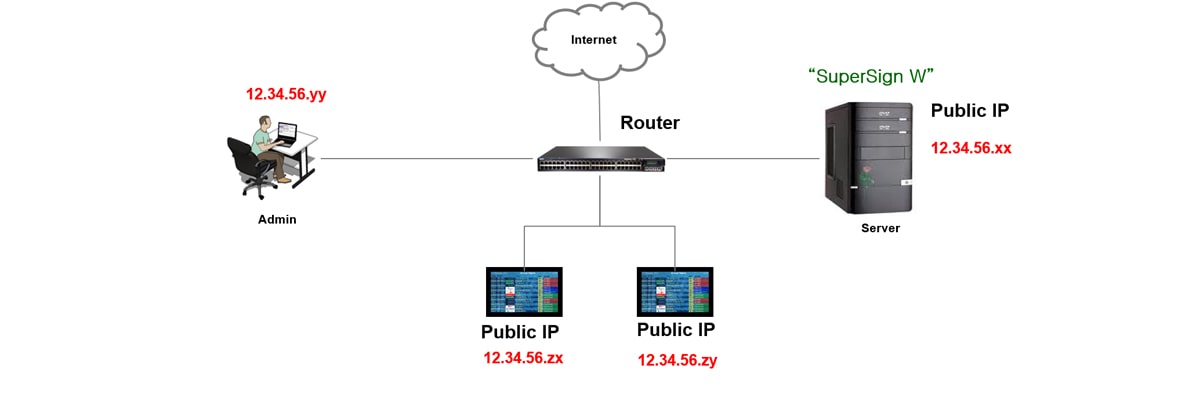

  • Server network diagram for Case 2 Server network diagram for Case 2
Horizontal Table
Feature Content distribution / Controlling
Available Available
Feature Register player by searching
Available Available
Feature Wake on Lan
Available Available

Case 3

· Server: Private
· Monitors: Private

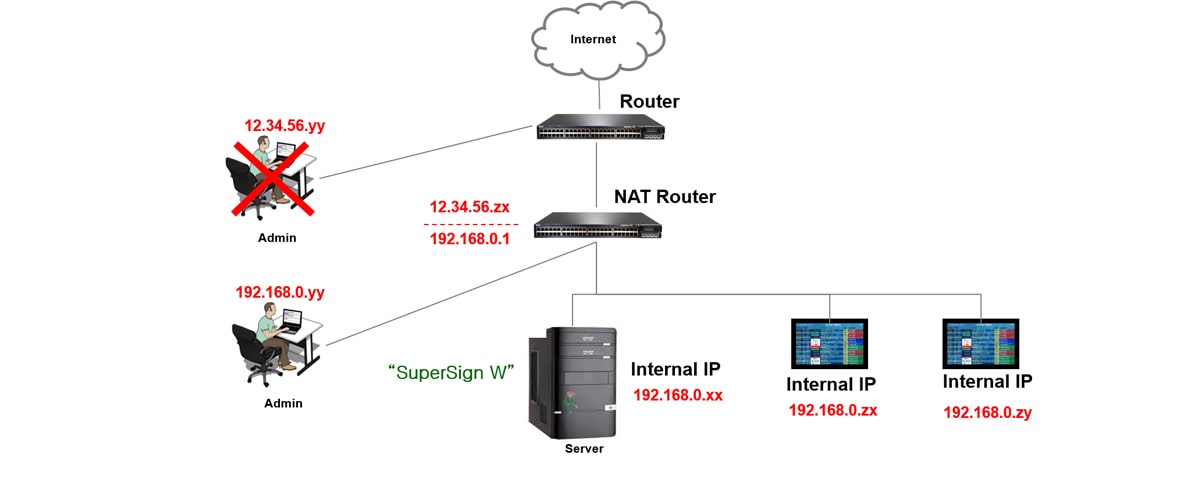

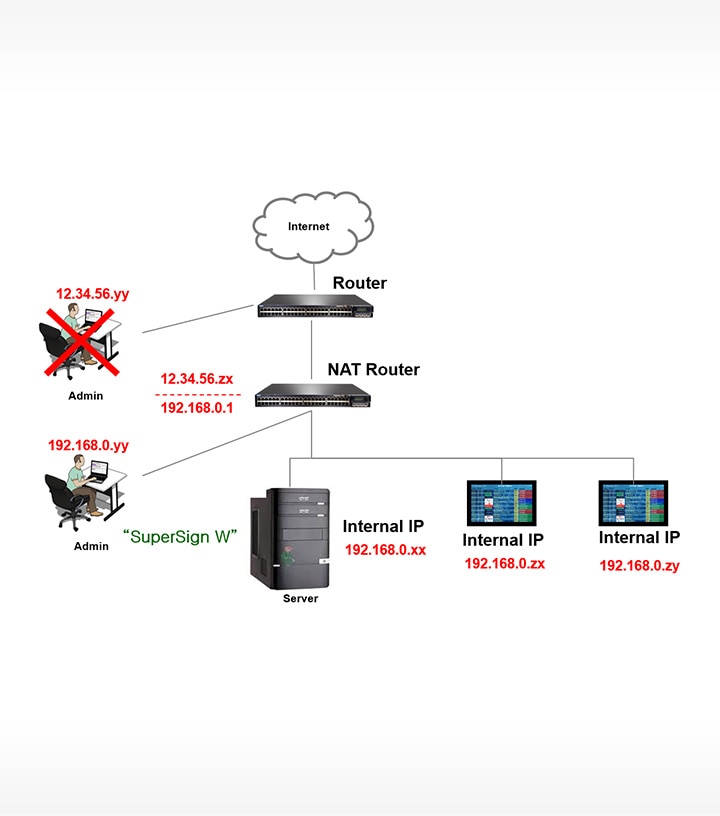

  • Server network diagram for Case 3 Server network diagram for Case 3
Horizontal Table
Feature Content distribution / Controlling
Available Available
Feature Register player by searching
Available Available
Feature Wake on Lan
Available Available

Case 4

· Server: Public
· Monitors: Public & Private

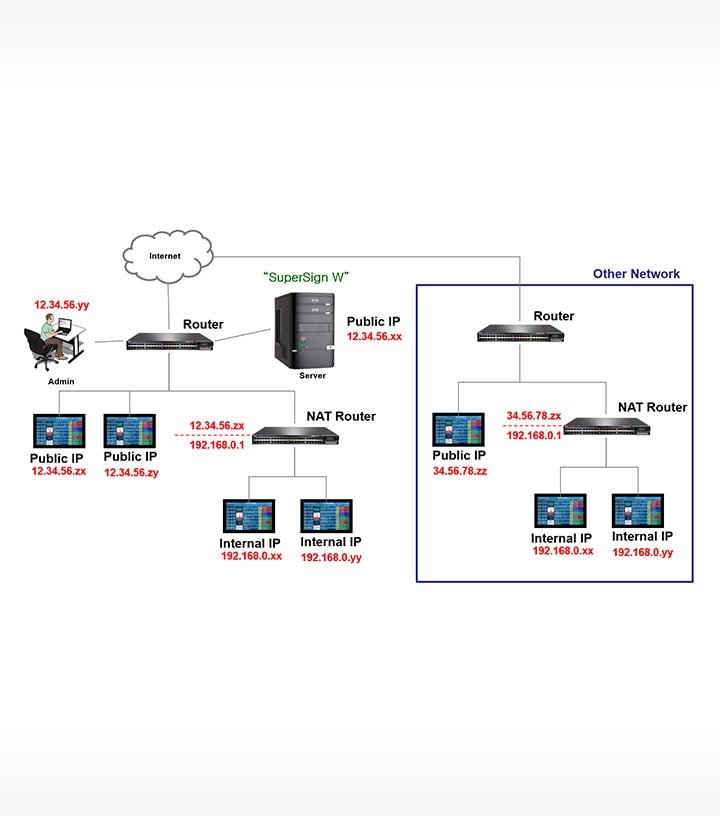

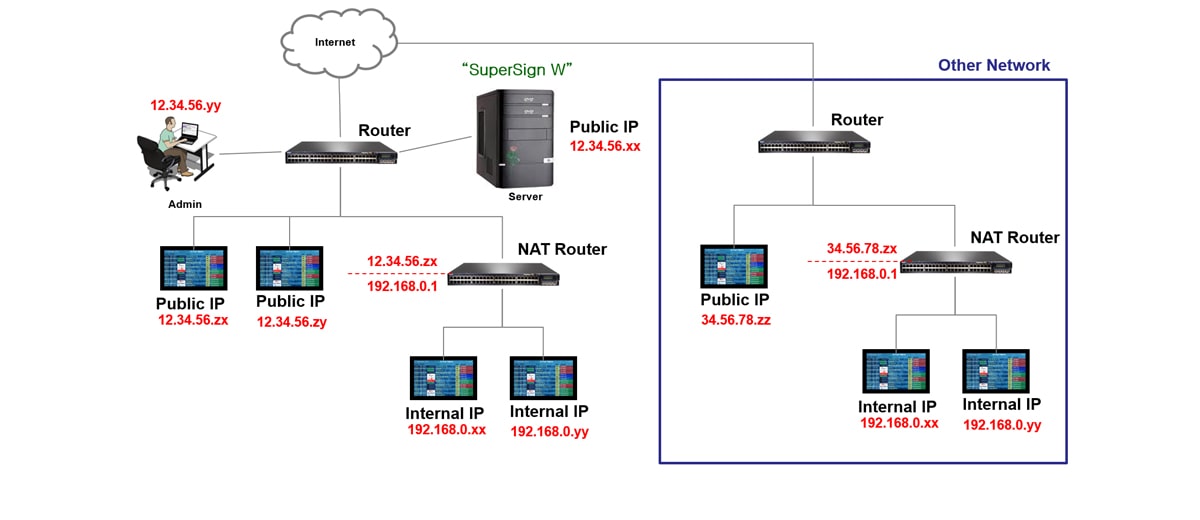

  •  Server network diagram for Case 4  Server network diagram for Case 4
Horizontal Table
Feature Content distribution / Controlling
Available Available
Feature Register player by searching
Available Not Available
(Server IP should be installed)
Feature Wake on Lan
Available Available
