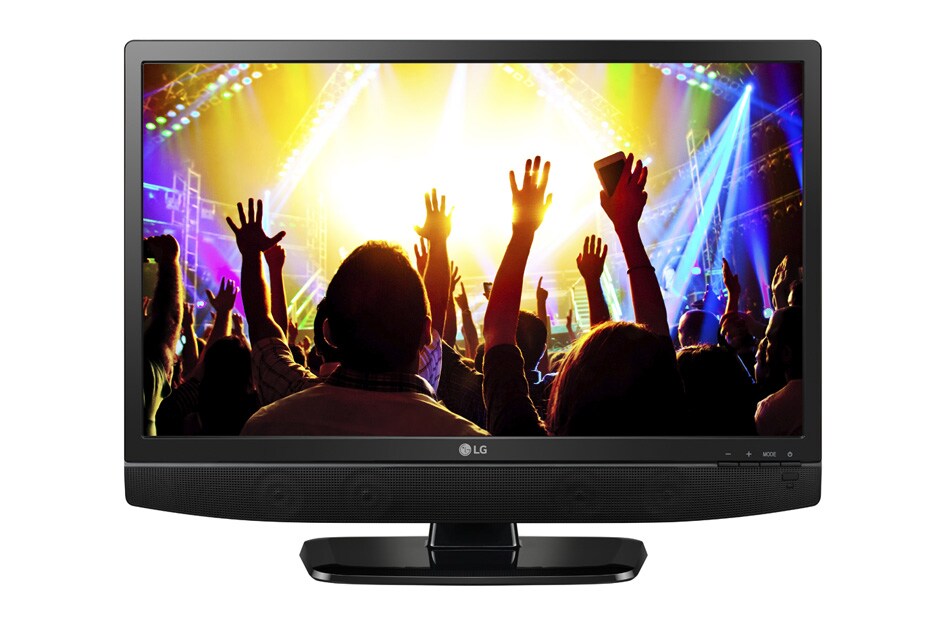

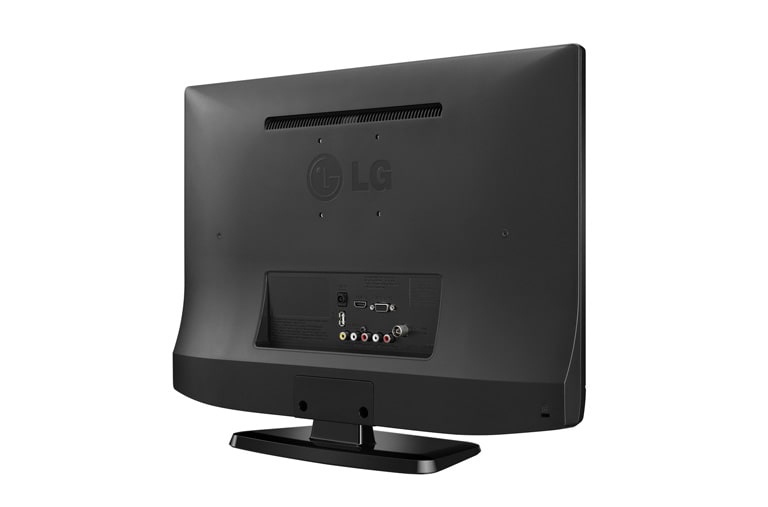

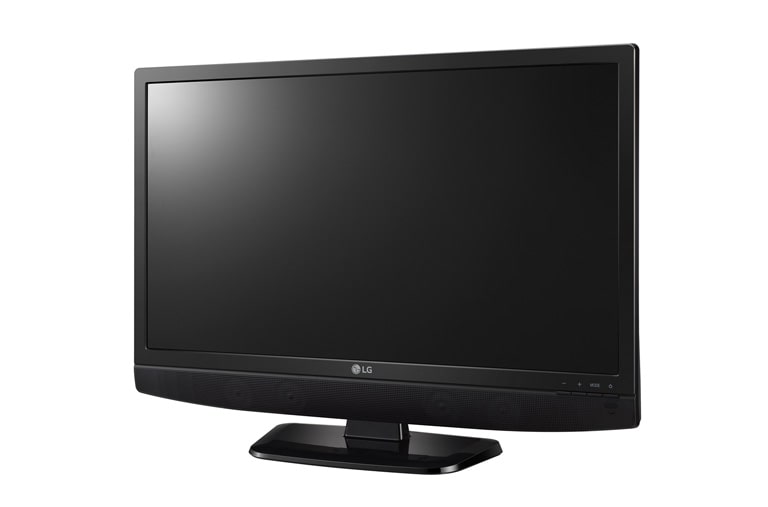

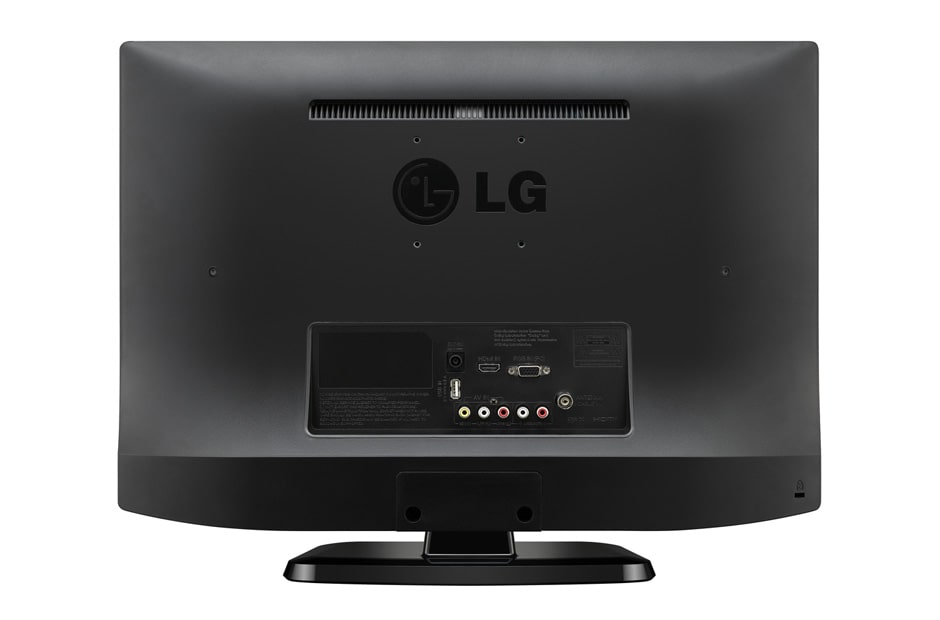

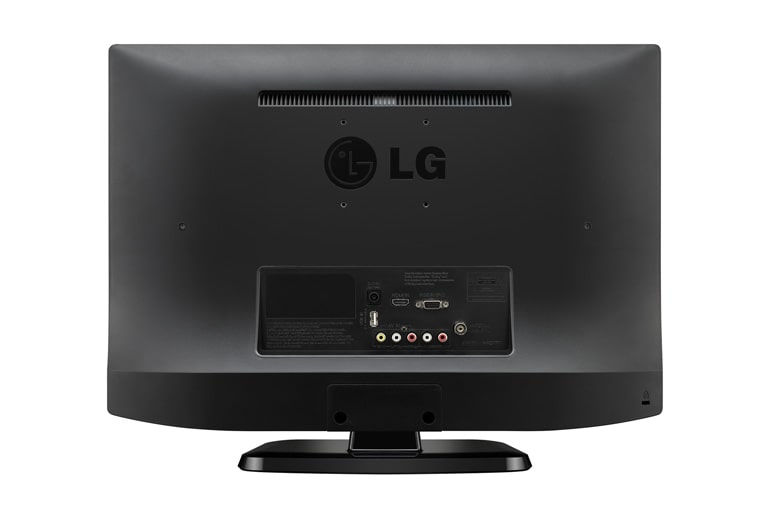

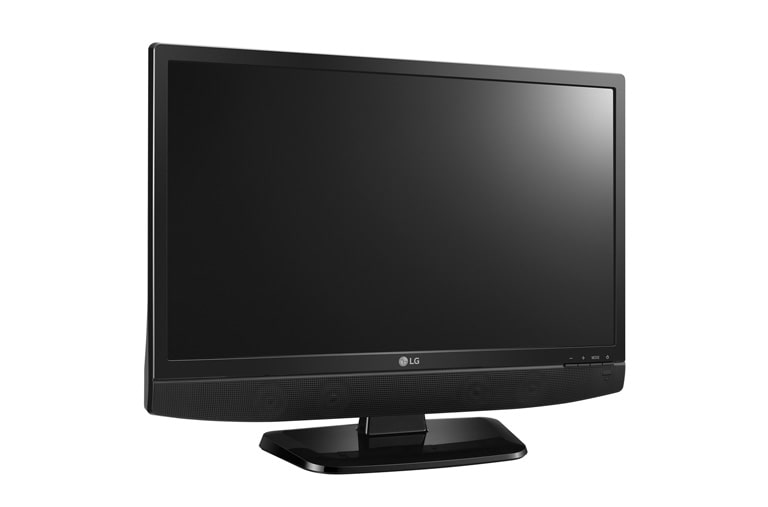

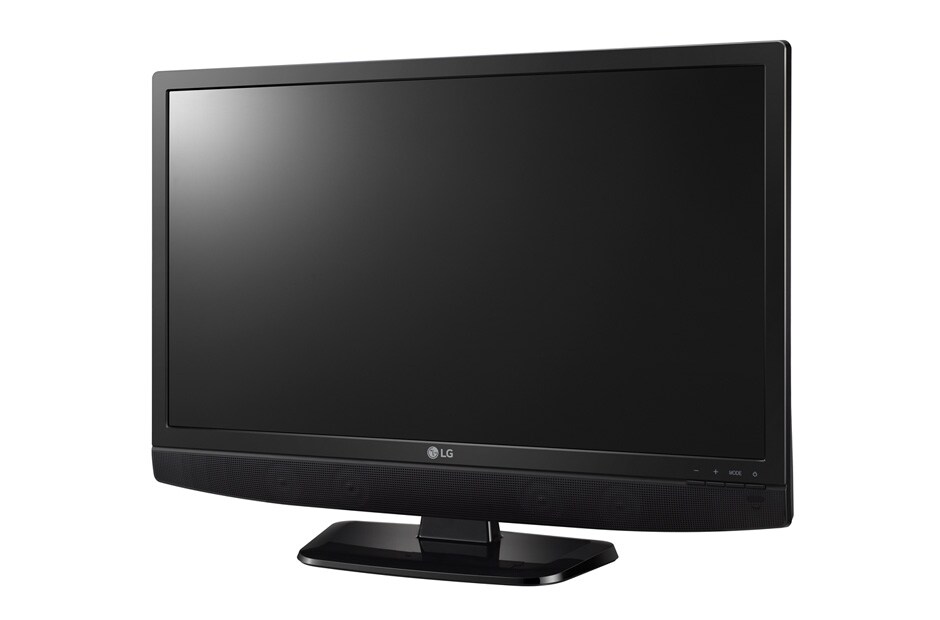

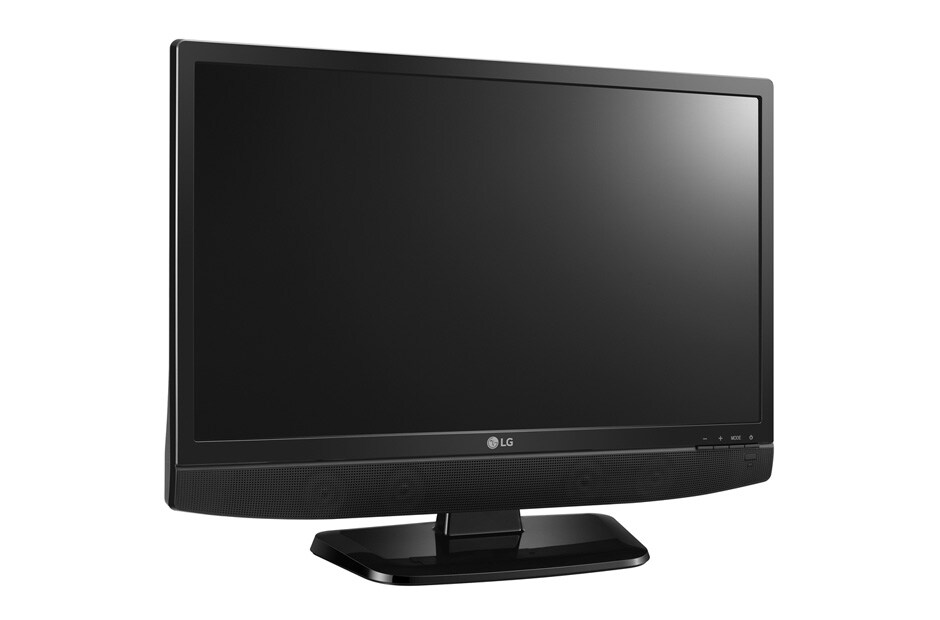

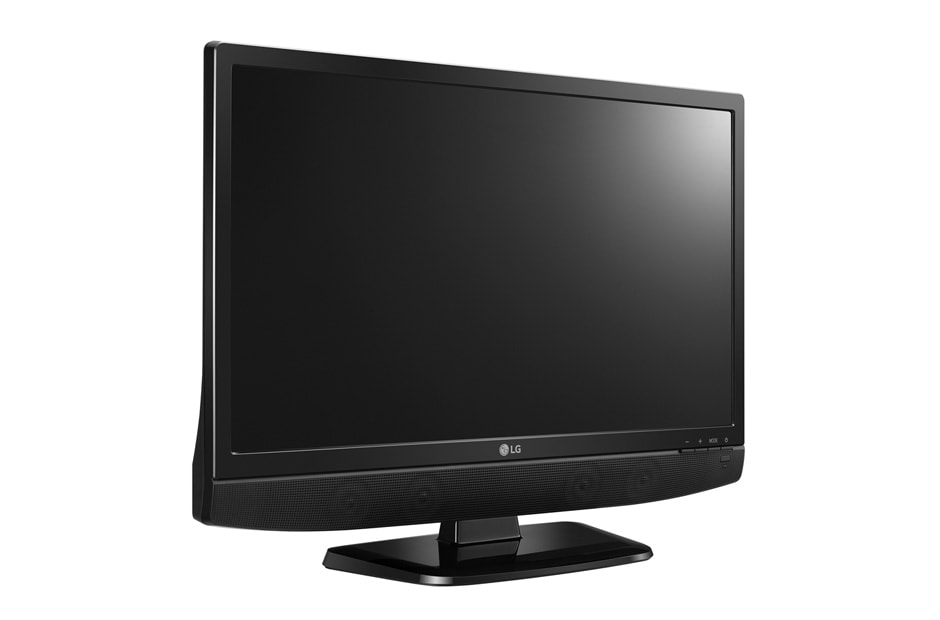

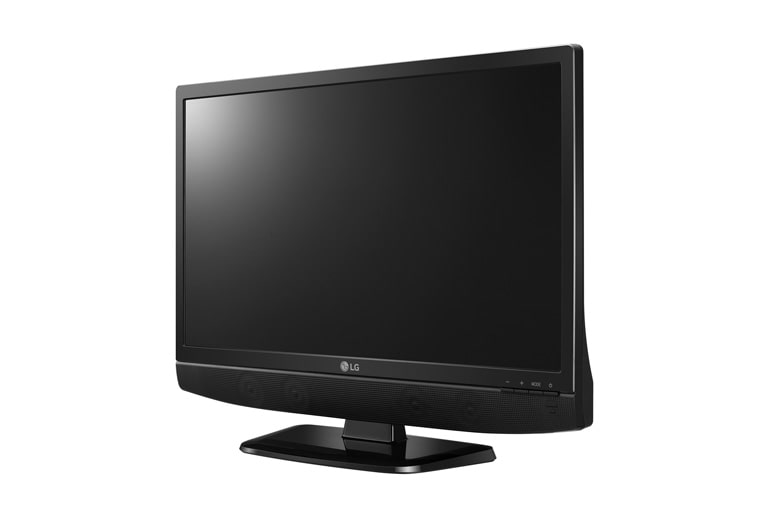

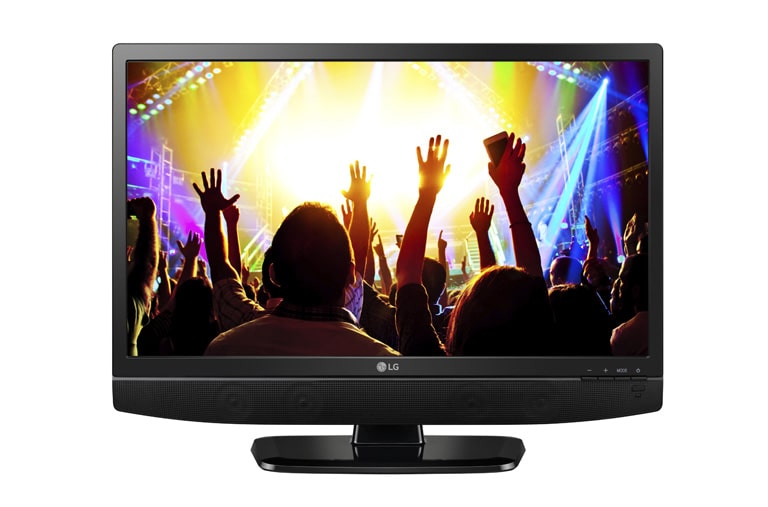

24'' Class HD TV Monitor (23.5'' Diagonal)

Key Features

component-OBScountrySelectDesc

24" Class HD TV Monitor (23.5" Diagonal)
GENERAL
  • Size( Inch / cm)
    23.6" / 59.82 cm
    Panel Type
    Wide Viewing Angle
  • Color Gamut (CIE1931)
    72%
    Color Bit
    8bit (6bit+FRC)
  • Color Depth (Number of Colors)
    16.7M
    Pixel Pitch (mm)
    0.38175 (H)mm x 0.38175 (V)mm
  • Aspect Ratio
    16:9
    Resolution
    1366 x 768
  • Brightness(Typ.)
    250cd/m2
    Contrast Ratio(Original)
    3000:1
  • Contrast Ratio (DFC)
    5M:1
    Response Time_Typ. (GTG)
    8.5ms
  • Viewing Angle(CR≥10)
    R/L 178 (Typ.), U/D178 (Typ.)
    Surface Treatment(Glare/non Glare)
    Hard coating(3H) & Anti-Glare

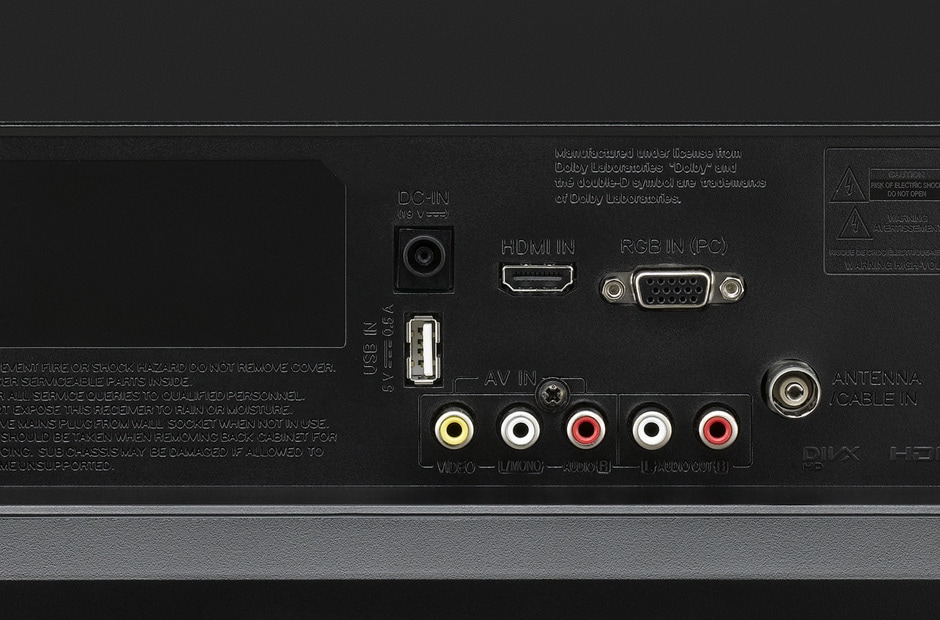

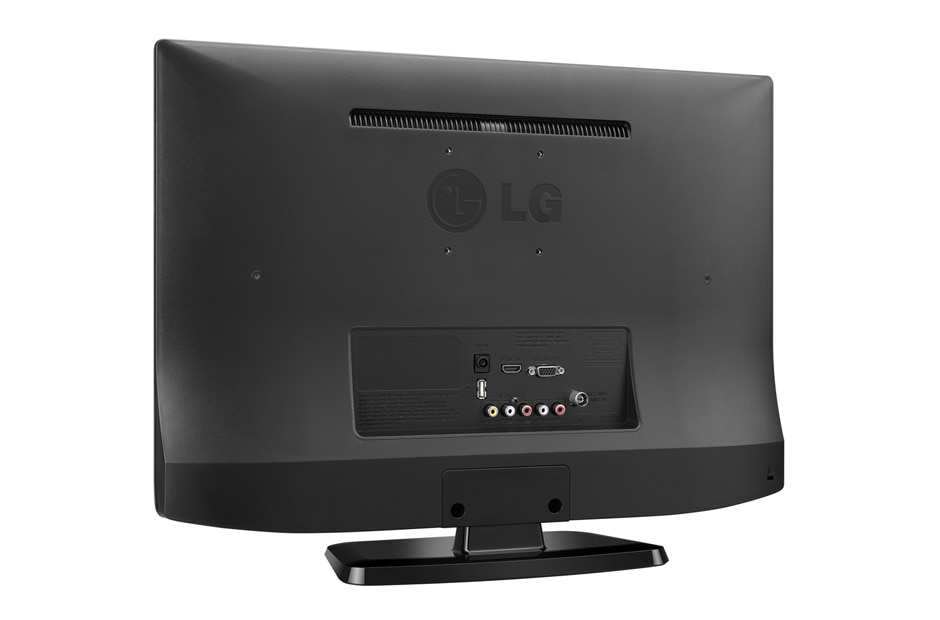

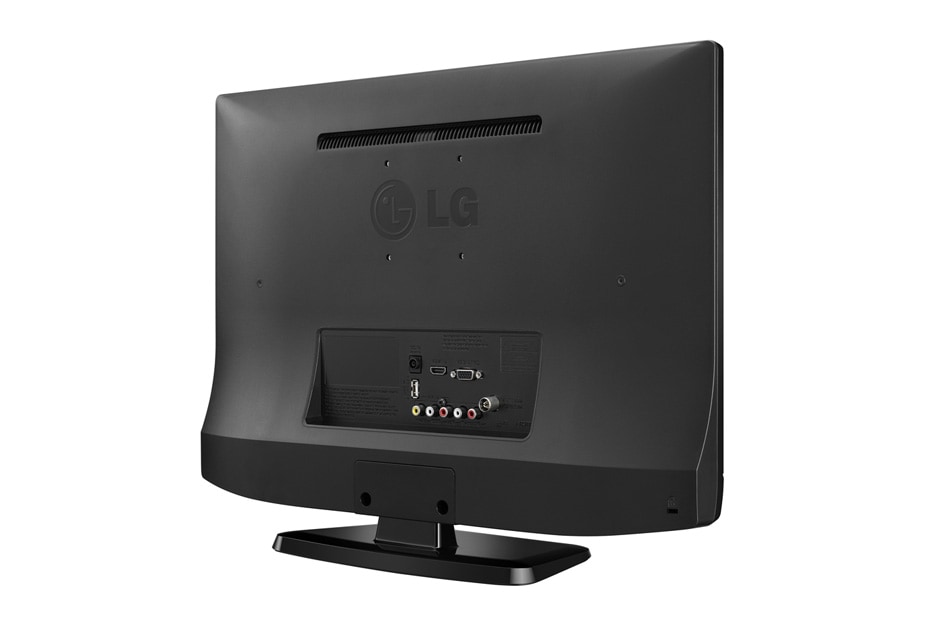

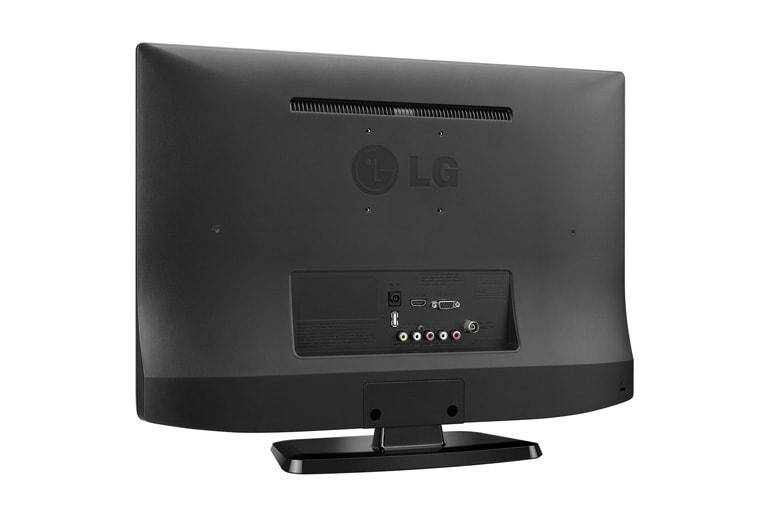

INPUT/OUTPUT
  • Signal Input(D-Sub)
    Yes
    Signal Input(Composite)
    Yes
  • HDMI (Ver.)
    Yes (HDMI1.3)
    USB (Ver.)
    Yes (USB2.0)
  • Signal Input(Jack Location)
    Rear/Side
    Audio Input(RCA)
    Yes
  • Audio Input(Jack Location)
    Rear
    Audio Output(RCA)
    Yes
  • Audio Output(Jack Location)
    Rear
    Tuner Input(Analog)
    PAL Multi
  • Tuner Input(Jack Location)
    Rear
    Network(Jack Location)
    Rear
SPEAKER
  • Type
    Internal
    Audio Output
    10W x 2
POWER
  • Input/Output(Type (w/ Watt))
    Adapter (40W)
    Input
    100~240V
  • Consumption(Normal On (Typ.))
    30W
    Consumption(DC Off(Max))
    0.5
FREQUENCY
  • D-sub( H-Frequency)
    30kHz~69kHz
    D-sub( V-Frequency)
    56Hz~61Hz
  • HDMI H-Frequency
    30kHz~69kHz
    HDMI V-Frequency
    56Hz~61Hz
RESOLUTION
  • PC (D-sub)
    1366 x 768
    Video(HDMI)
    480p, 576p 720p, 1080i, 1080p
  • Composite
    480i
CONTROL KEY
  • Key Number (Power Key Included)
    4 Key
    Key Type
    Tact
  • LED Color(On mode)
    Off
    LED Color(Power save mode)
    RED
  • [Key Location]
    Front
OSD
  • Number of Language
    18 Language (English/French/Spanish/Portuguese/Russian/Thai Malay/Indonesian/Hebrew/Farsi/Arabic/Kurd Vietnam, Hindi, Marathi, Telugu, Bengali, Tamil
SPECIAL FEATURE
  • General Function(HDCP)
    Yes
    General Function(Intelligent Auto)
    Yes
  • General Function(Remote Control)
    Yes
    General Function( Key Lock)
    Yes
  • General Function(Plug & Play)
    DDC2B
    Accessibility(Teletext)
    Yes
  • Flicker safe
    Yes
    Eye Comfort Mode
    Yes
  • Divx HD player (USB Media Player)
    Yes (Video, Music, Picture)
    USB Auto Play
    Yes
  • Smart Energy Saving
    Yes
    Motion Eye Care
    Yes
  • Built-in Game
    Yes
    Time/Clock (Auto / Manual Clock)
    Yes (Manual Only)
  • Time/Clock(On/Off Time)
    Yes
    Time/Clock(Sleep Timer)
    Yes
  • Time/Clock (Auto Off / Auto Sleep)
    yes
    Hotel Mode
    Yes
SOUND
  • AVL (Auto Volume)
    Yes
  • Picture Mode
    Vivid, Standard, Cinema, Soccer, Game
    ARC-PC
    16:9, 4:3
  • ARC-Video
    16:9 - ATV, AV, RGB, HDMI Just Scan – HDMI Original - ATV, AV, HDMI 4:3 - ATV, AV, RGB, HDMI 14:9 - ATV, AV, HDMI Zoom - ATV, AV, HDMI Cinema Zoom - ATV, AV, HDMI
COLOR
  • Front
    Black Glossy
    B/Cover
    Texture
  • Stand
    Black Glossy
    Base
    Black Glossy
STAND
  • Base Detchable
    Detachable

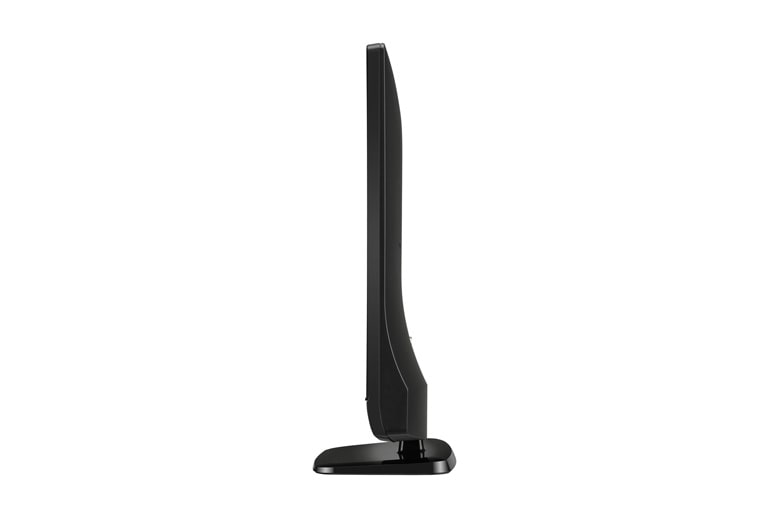

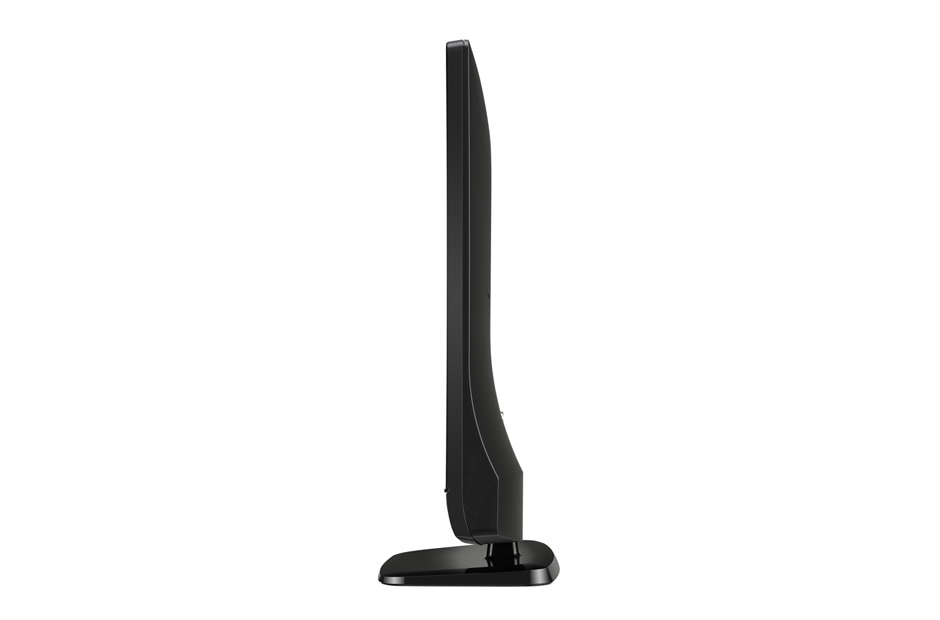

DIMENSION (W * D * H)(MM)
  • Set (with Stand)
    558.6 x 144.9 x 415.1
    Set (without Stand)
    558.6 x 55.9 x 379.4
  • Box
    691 x 454 x 127
    Wall Mount
    75x75
WEIGHT(KG)
  • Set (with Stand)
    3.7
    Set (without Stand)
    3.48
  • Box
    4.88
STUFFING
  • Individual (20ft/40ft/40ft HC)
    720 / - / 1548
    Pallet (20ft/40ft/40ft HC)
    640 / - / 1428
WRAP
  • Packing Material
    EPS
    Stacking Type
    Face down
  • Stand Packing Type
    Base Detach
    Box Printing Type
    Offset
ACCESSORY
  • Power Cord
    Yes
    Remote Controller
    Yes
  • Others
    Wall-mount Braket
