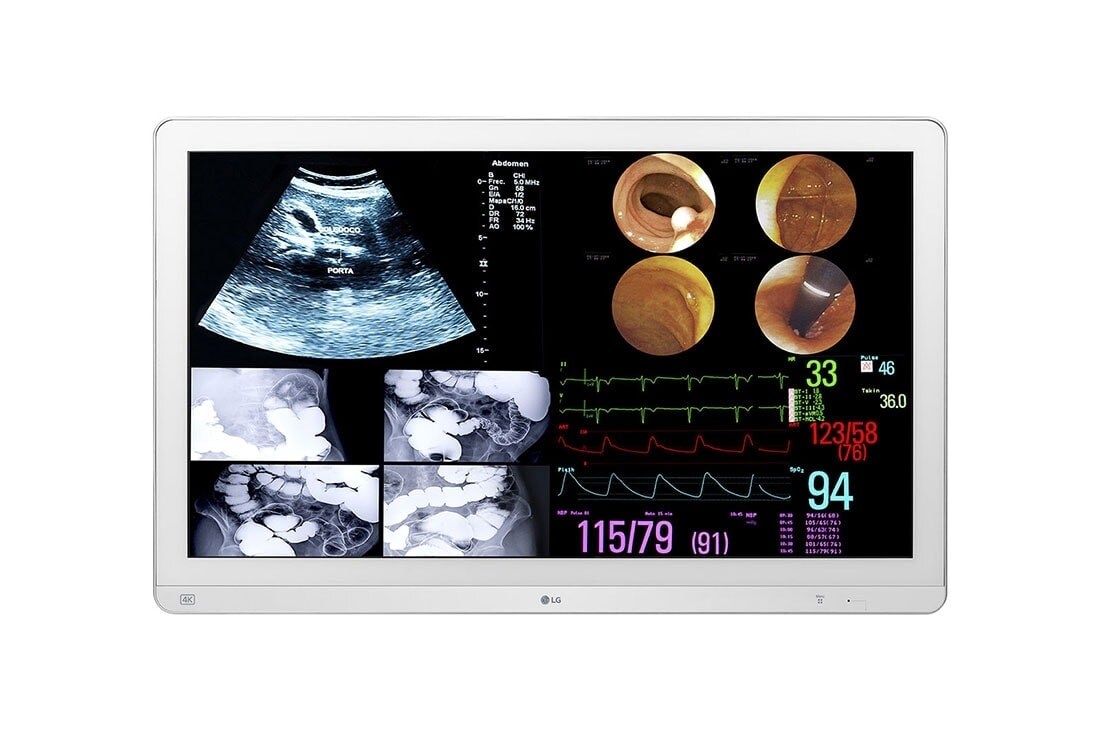

LG 31.5" 4K IPS Surgical Monitor
Where to Buy
4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

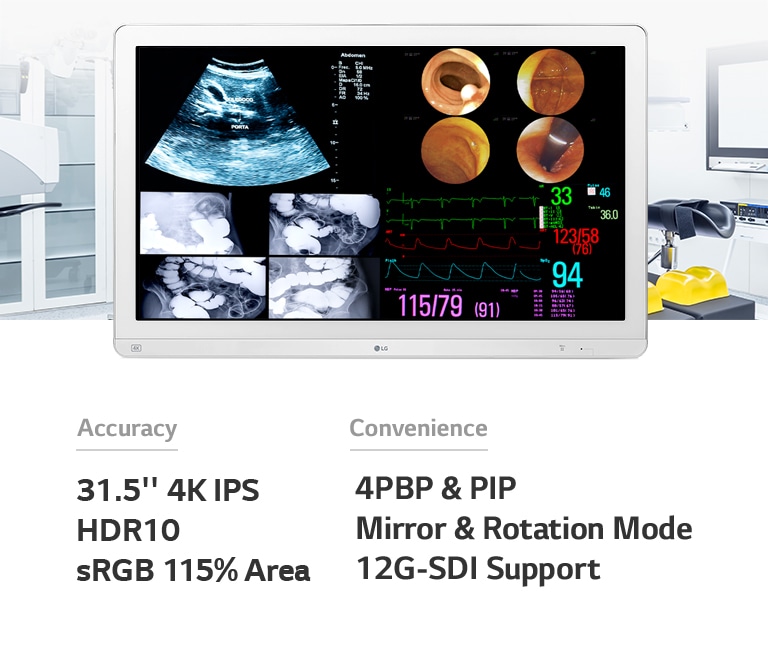

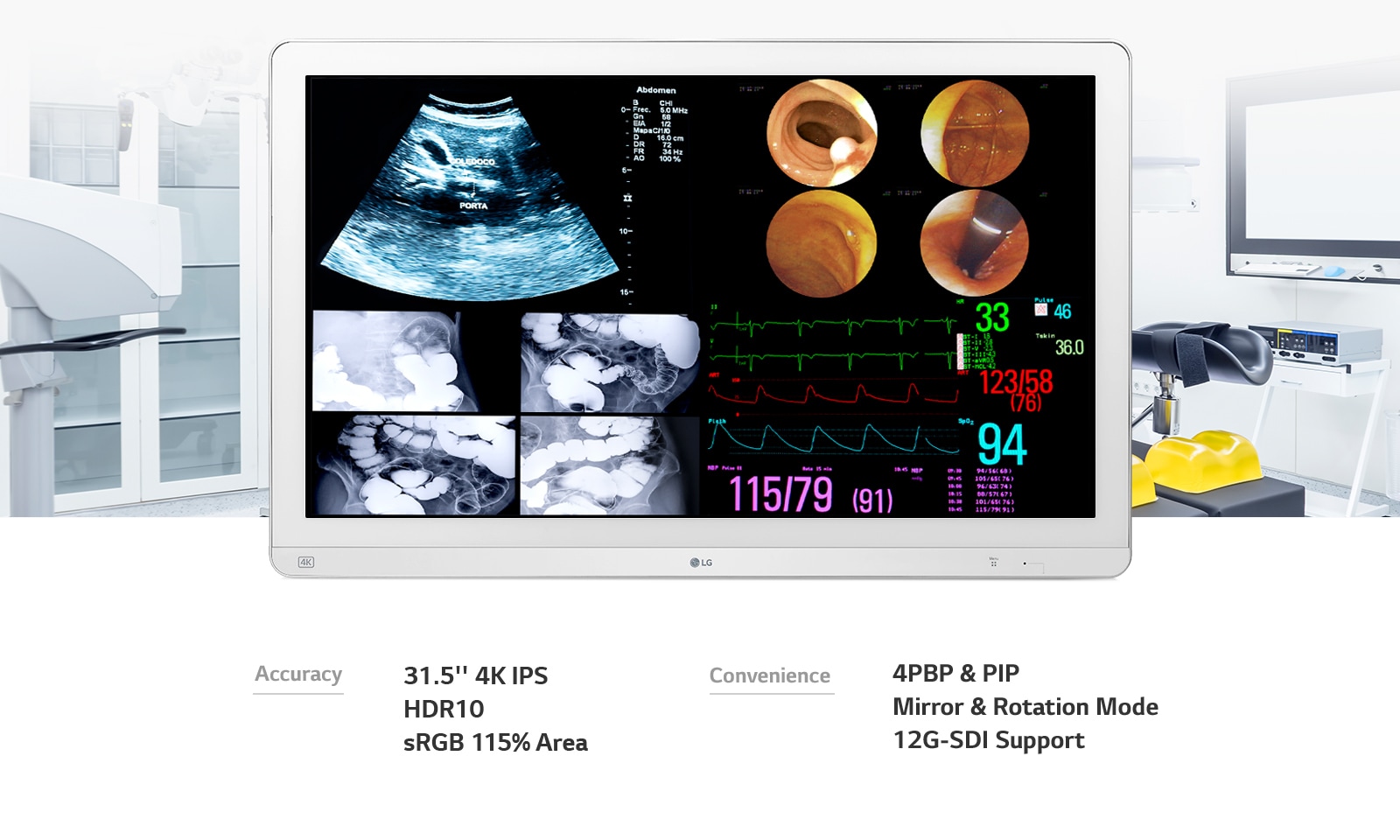

"Accuracy: 31.5"" 4K IPS / HDR10 / sRGB 115% Area, Convenience: 4PBP & PIP / Mirror & Rotation Mode / 12G-SDI Support" "Accuracy: 31.5"" 4K IPS / HDR10 / sRGB 115% Area, Convenience: 4PBP & PIP / Mirror & Rotation Mode / 12G-SDI Support"
31.5-inch 4K IPS

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

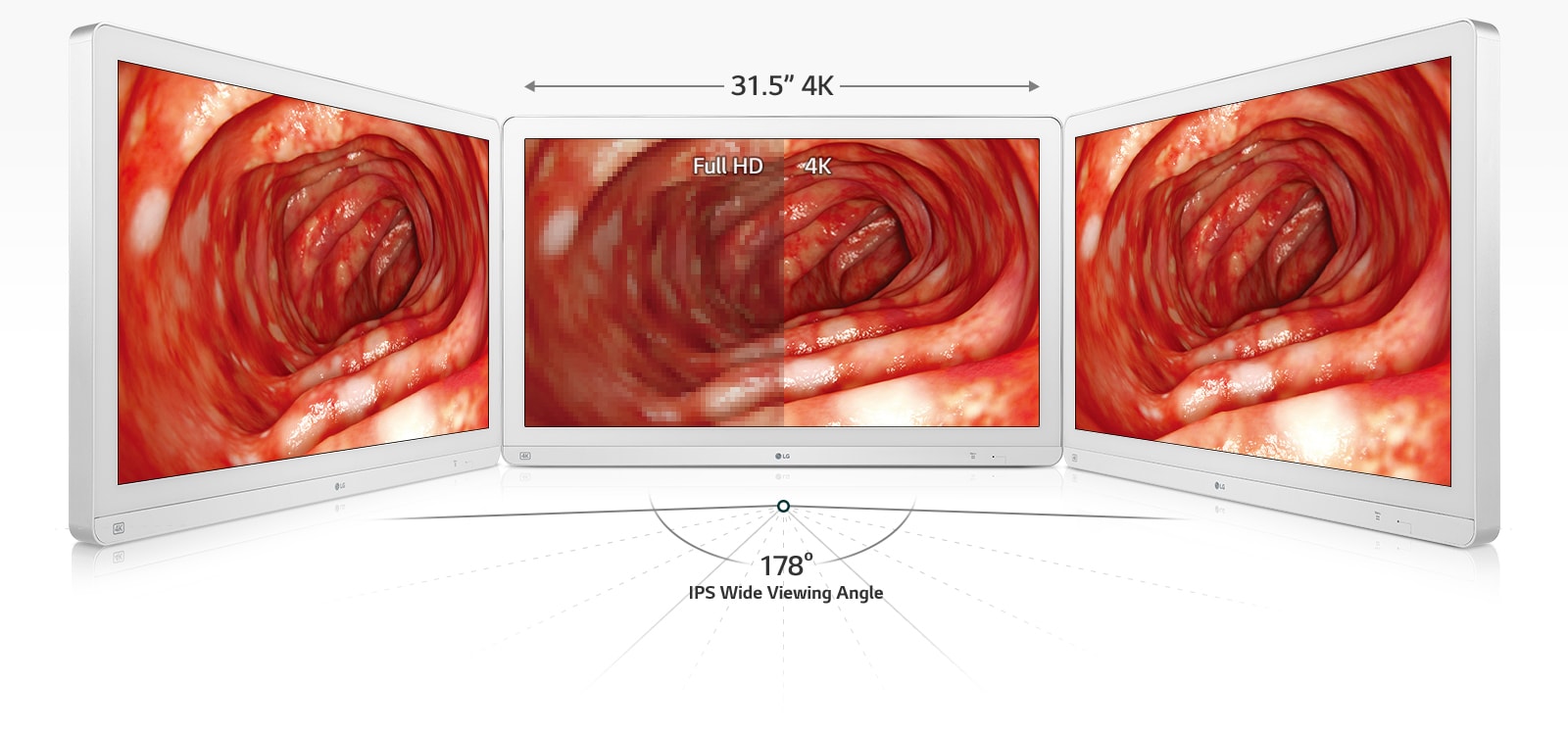

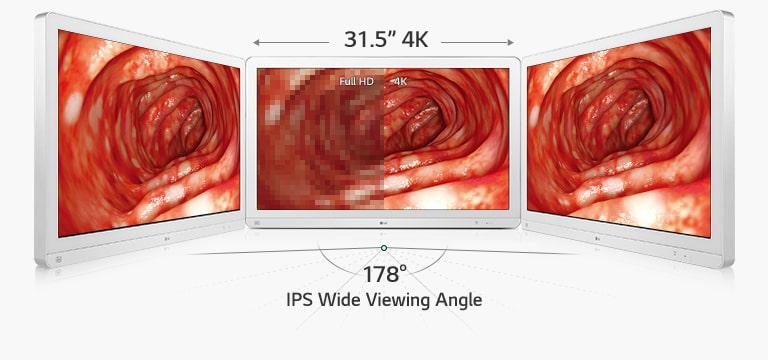

31.5" 4K : Full HD 4K, IPS Wide Viewing Angle : 178° 31.5" 4K : Full HD 4K, IPS Wide Viewing Angle : 178°

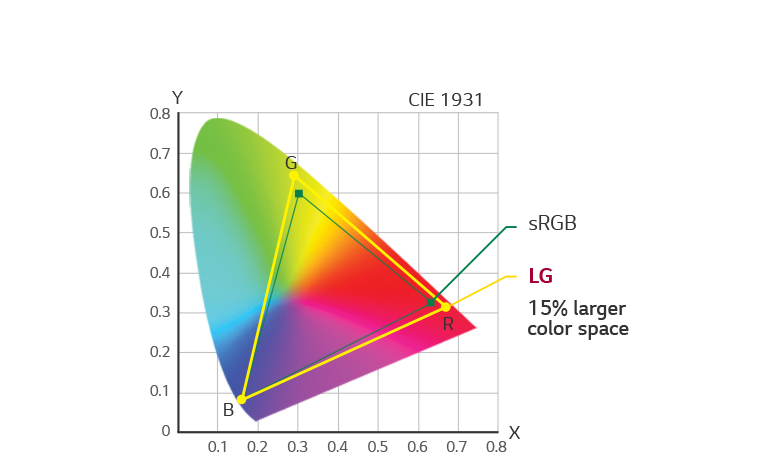

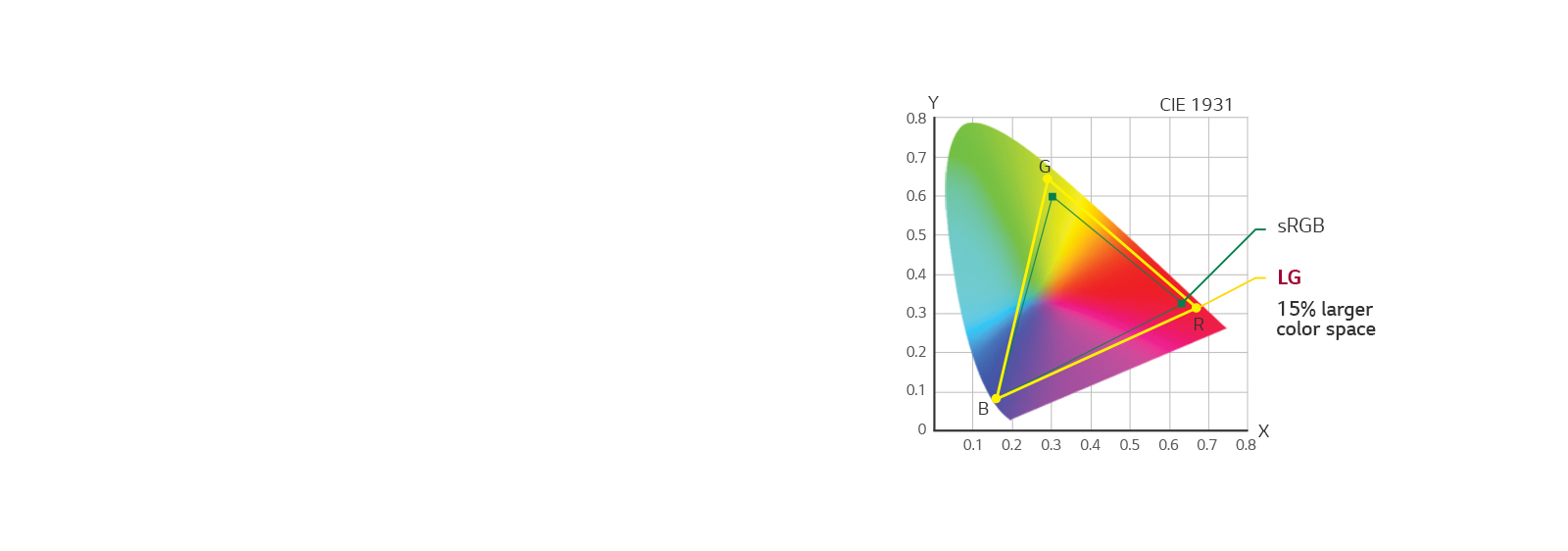

CIE 1931 color space diagram sRGB / LG, +15% larger color space CIE 1931 color space diagram sRGB / LG, +15% larger color space

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

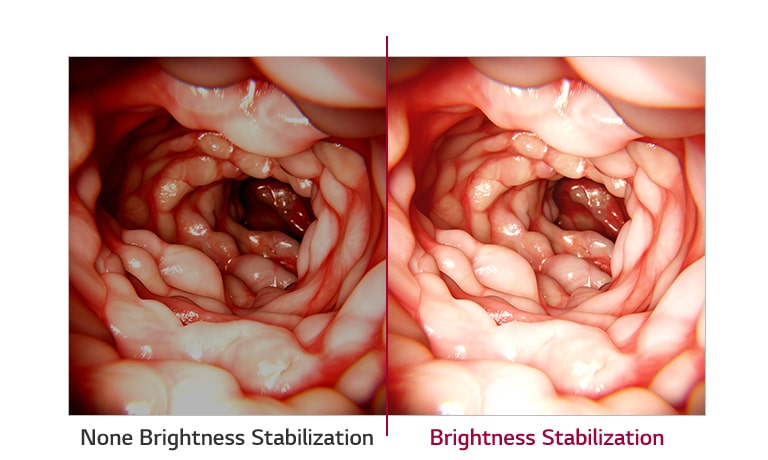

None Brightness Stabilization VS. Brightness Stabilization None Brightness Stabilization VS. Brightness Stabilization

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.

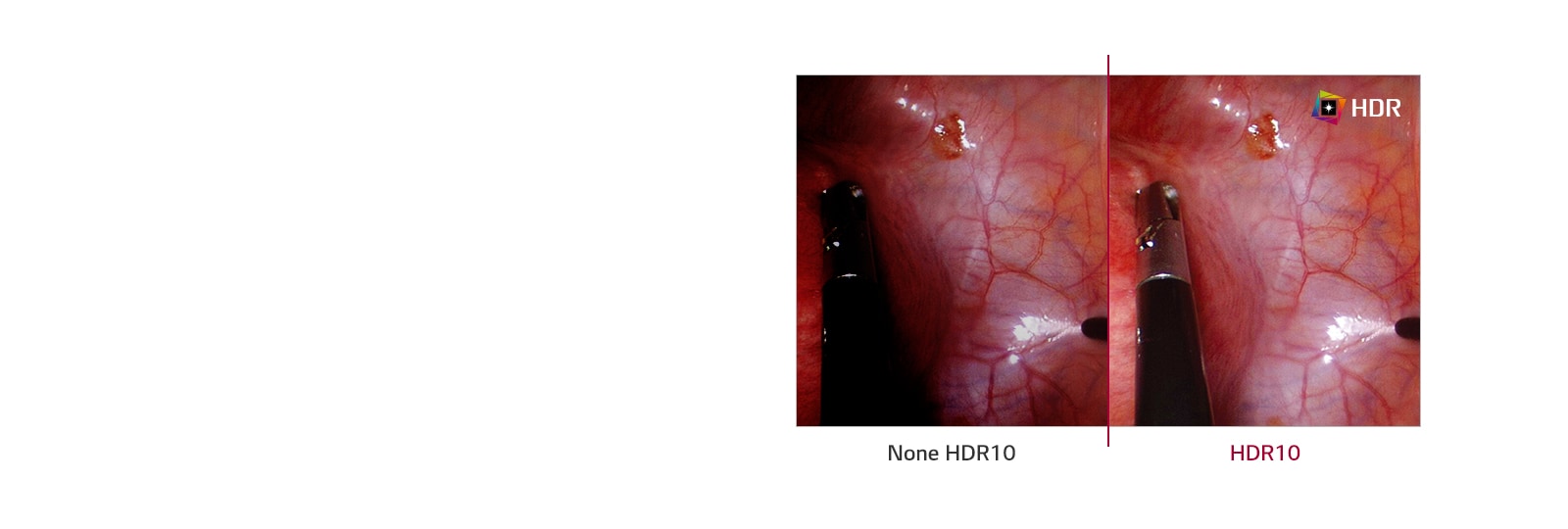

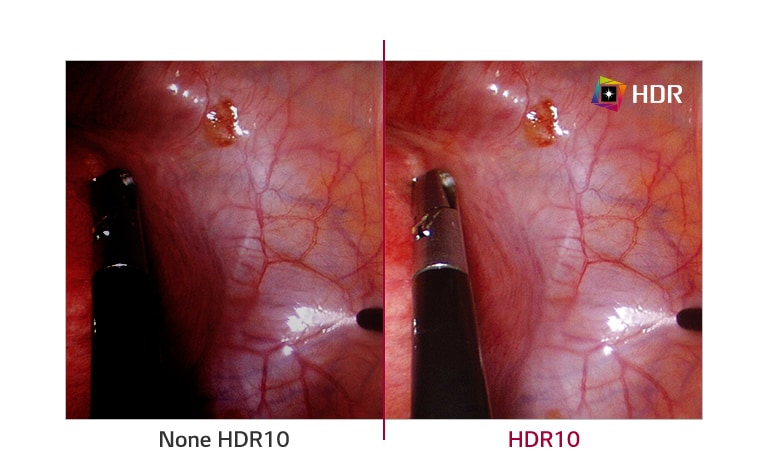

None HDR10 VS. HDR10 None HDR10 VS. HDR10

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.
PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

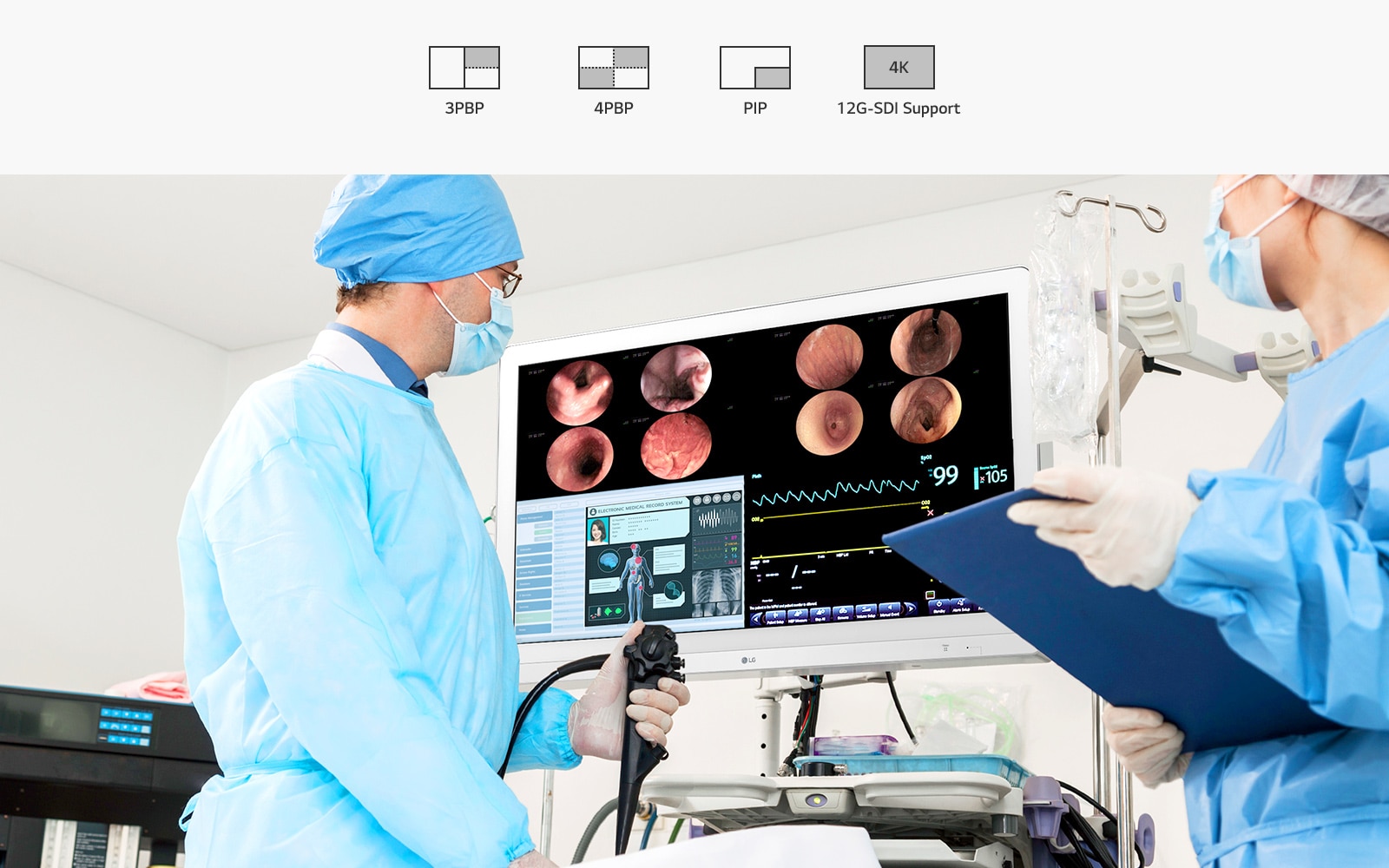

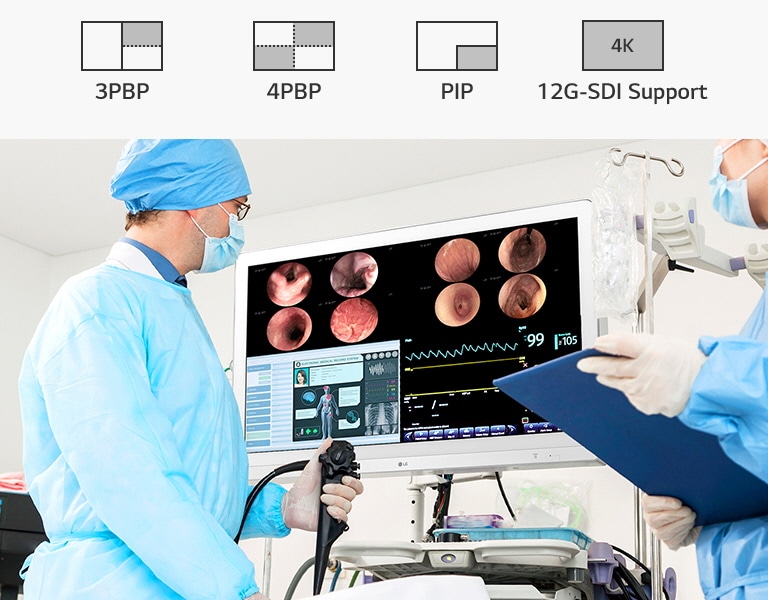

3PBP / 4PBP / PIP / 12G-SDI Support with 4K 3PBP / 4PBP / PIP / 12G-SDI Support with 4K

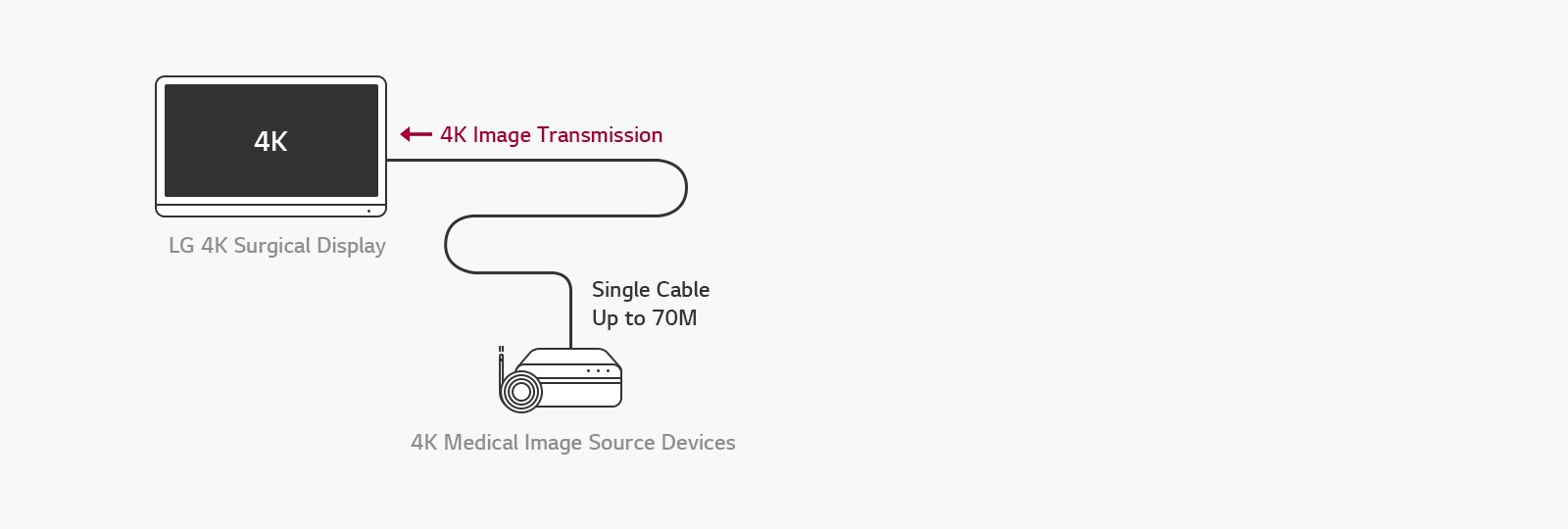

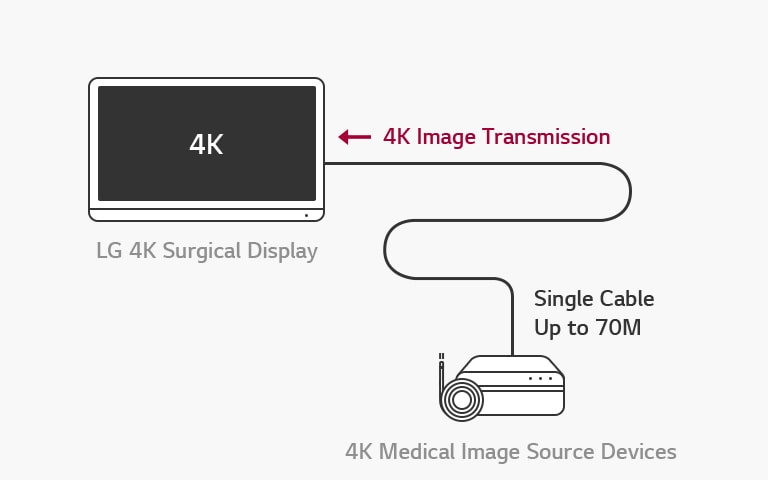

12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery. 12G-SDI Support : LG 4K Surgical Display enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.

12G-SDI Support

The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)

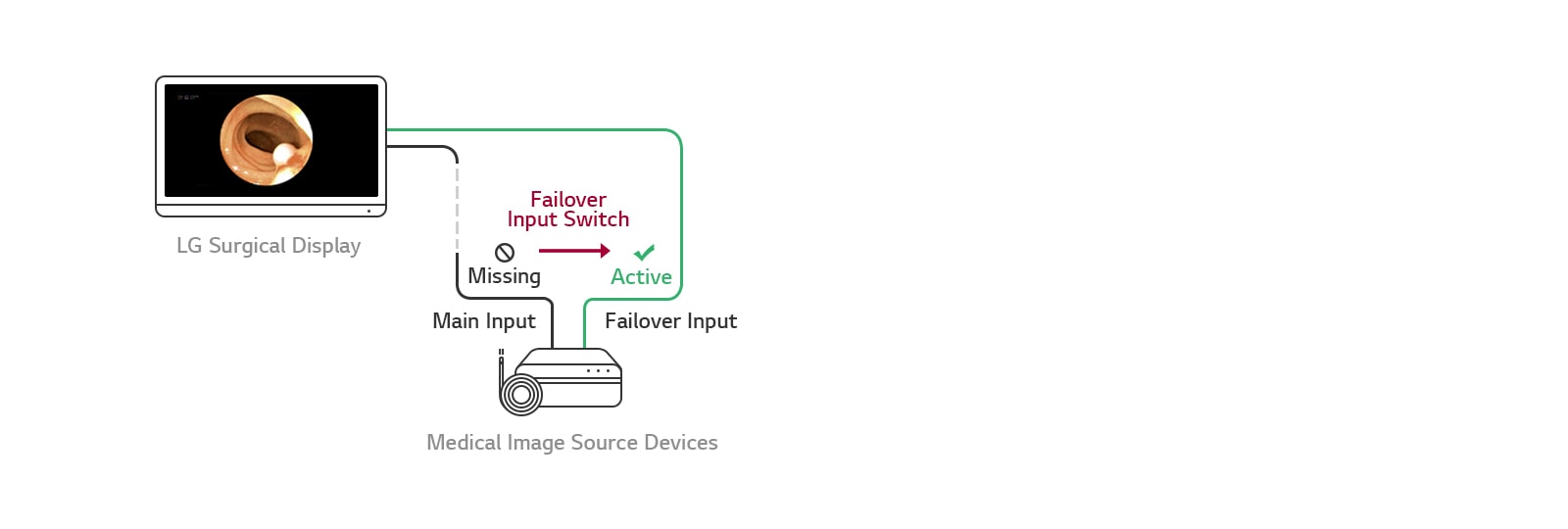

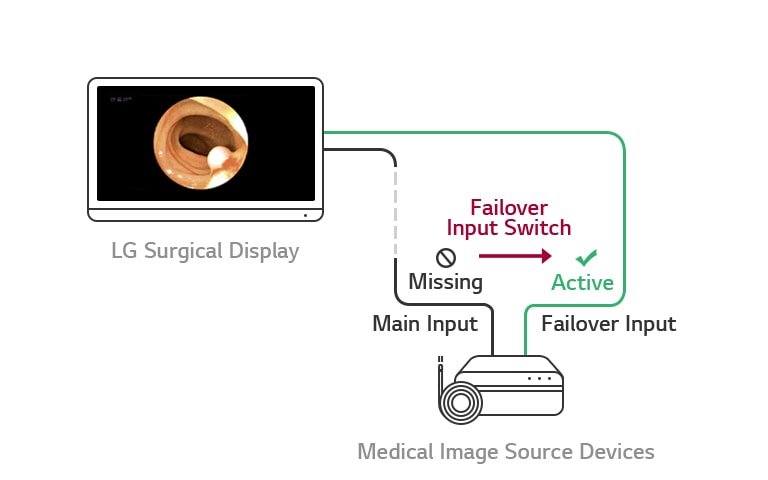

Failover Input Switch : When the main sourceis missing, the display will automatically switch to a failover source and restore the main source once the signal is back. Failover Input Switch : When the main sourceis missing, the display will automatically switch to a failover source and restore the main source once the signal is back.

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.

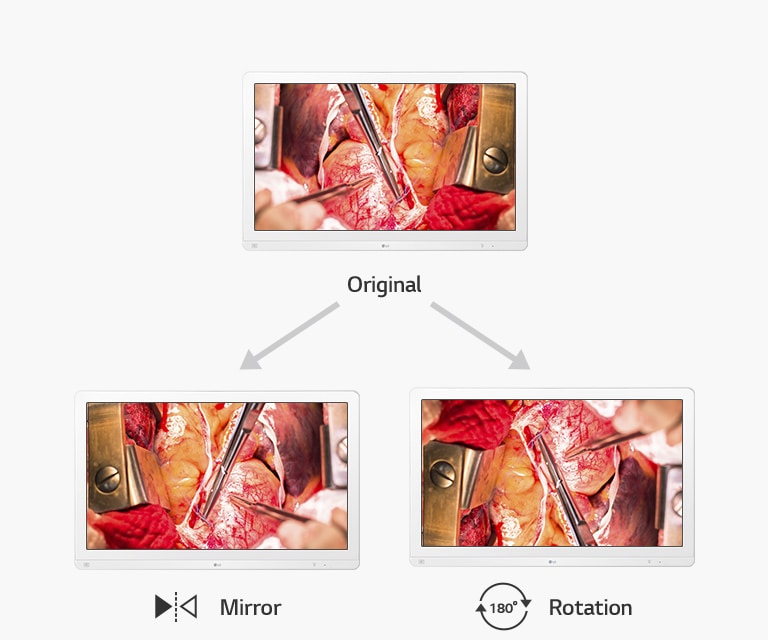

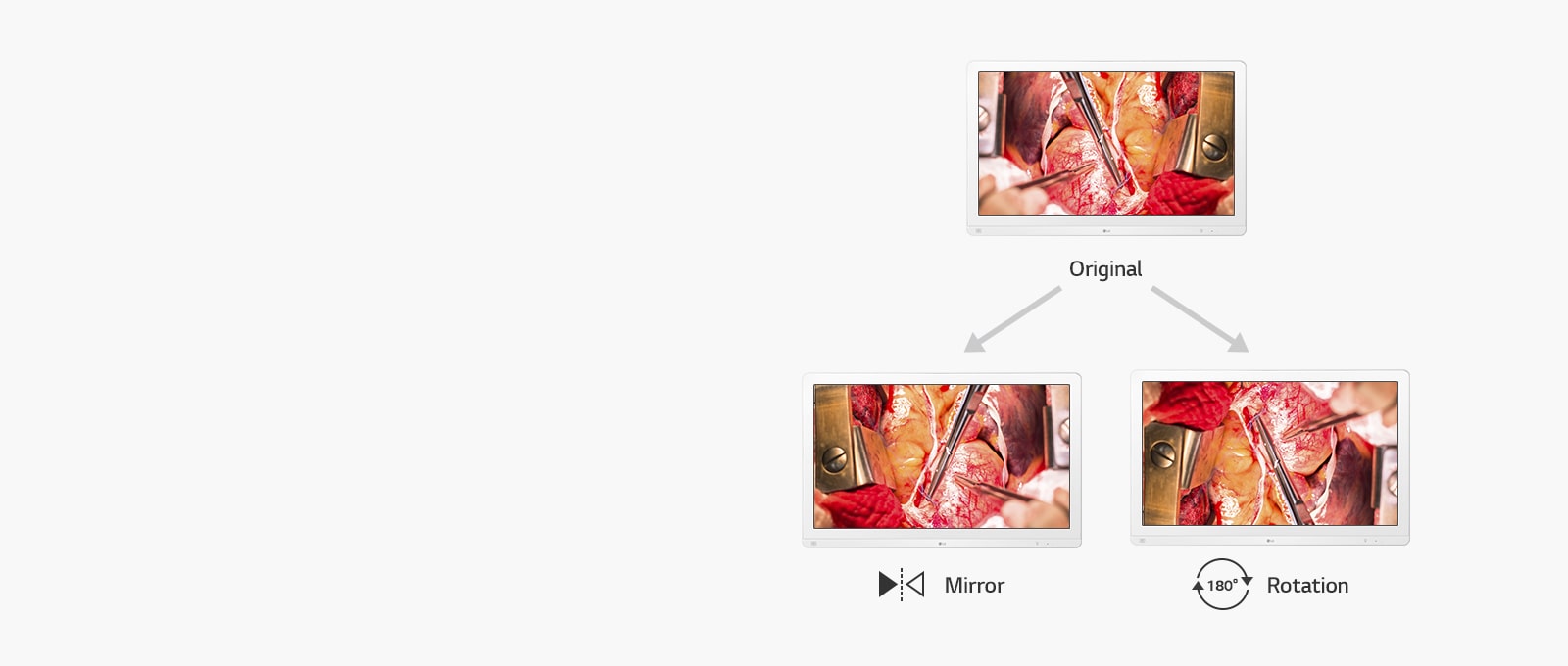

Original screen, Mirror screen and 180° Rotation Original screen, Mirror screen and 180° Rotation
Mirror & Rotation

Find the Perfect Operating View

The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

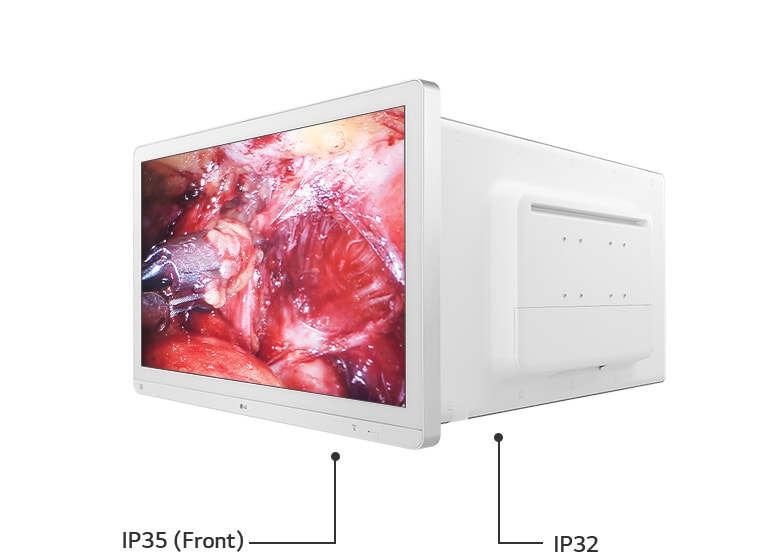

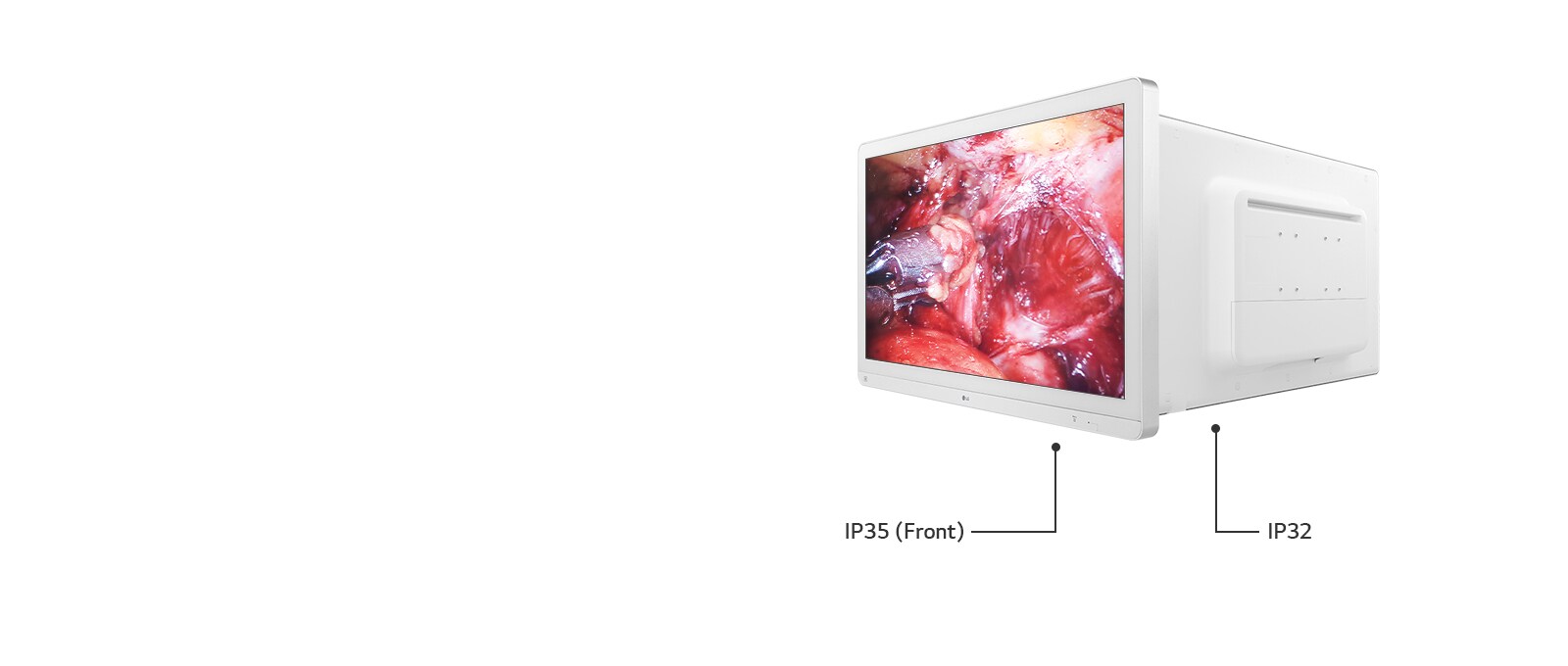

Dustproof & Water Resistant Iratings of IP35 (Front) / IP32 (the body except for front) Dustproof & Water Resistant Iratings of IP35 (Front) / IP32 (the body except for front)

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.
Close
PANEL
  • Panel Type
    IPS
    Color Gamut (Typ.)
    sRGB 115% (Area),
    sRGB over 99% (Coverage)
  • Viewing Angles (CR≥10)
    178° (Right/Left), 178° (Up/Down)
    Brightness (Typ.)
    800 cd/m2
  • Surface Treatment
    Protection Glass
    (1.6t, Anti-reflection, Anti-fingerprint)
    Contrast Ratio (Typ.)
    1300:1
  • Response Time (GTG1))
    14ms (Off- setting),
    5ms (Faster- setting)
FEATURE
  • DICOM Compliant
    Yes
    HW Calibration
    Yes (True Color Pro)
  • HDR
    HDR 10
Video Signals

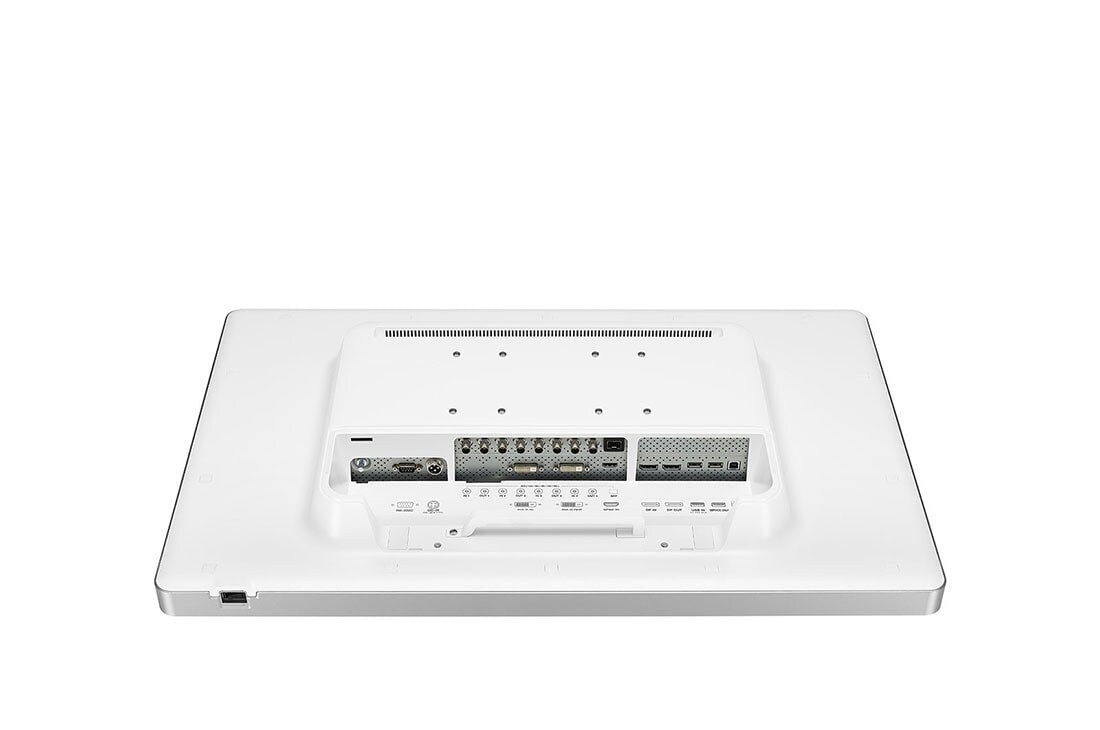

  • Input Terminals
    HDMI x1, DisplayPort x1, DVI x1, 12G-SDI x1
    Output Terminals
    DisplayPort x1, DVI x1, 12G-SDI x1
CONNECTIVITY
  • USB
    1 upstream, 1 downstream
POWER
  • AC Input
    100-240Vac, 50/60Hz
    Power Consumption (Max.)
    180W
  • Power Consumption (DC Off)
    Less than 0.3W
Resistance Rating
  • Resistance Rating
    IP35 (Front),
    IP32 (Except for Front),
    IK06
Certifications & Standards
  • Certifications & Standards
    IEC(IEC 60601-1 / IEC 60601-1-2),
    EN(EN 60601-1 / EN 60601-1-2),
    IEC(IEC 60950-1 / IEC 55032, 55024),
    EN (EN 60950-1 / EN 55032, 55024)
    cUL (ANSI/AAMI ES 60601-1,
    CSA CAN/CSA-C22.2NO. 60601-1)
    FCC (FCC part 15 Class A),
    FDA (Registration (Class I)),
    RoHS, REACH, WEEE
User
Convenience
  • PBP / PIP
    PBP (2/3/4PBP) / PIP
    Screen Filp
    Mirror Mode & Rotation Mode
  • Failover Input Switch2)
    Yes
Physical
Specifications
  • Weight
    13.5 kg (29.8 lb)
