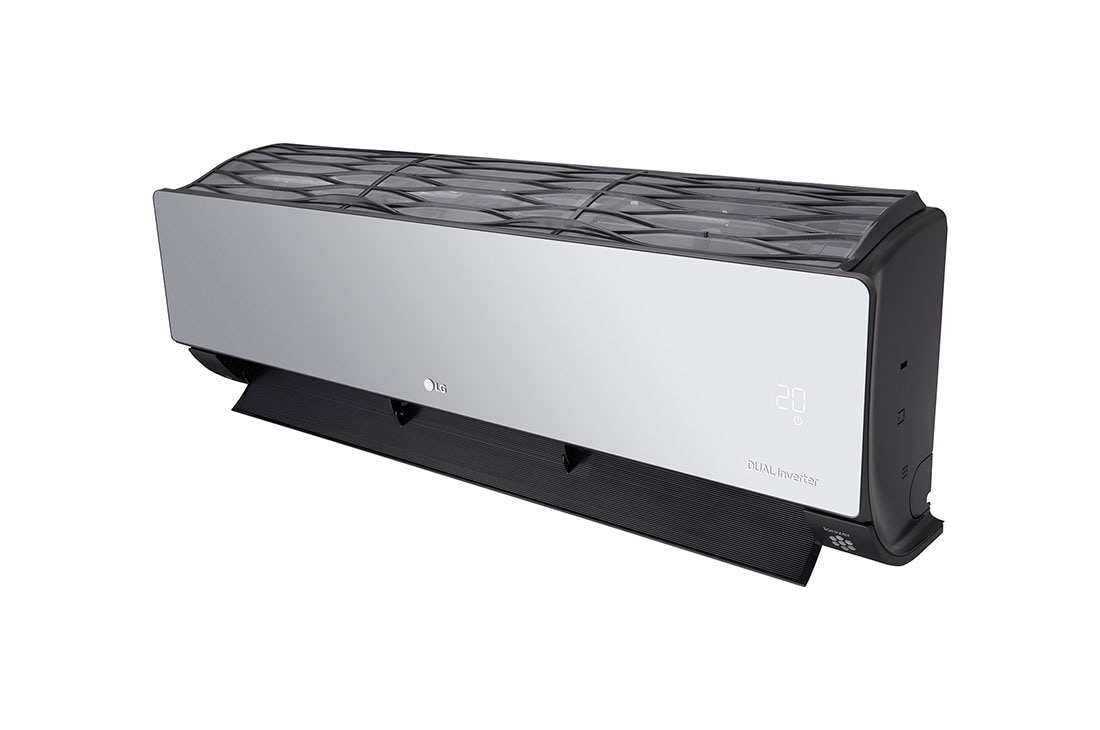

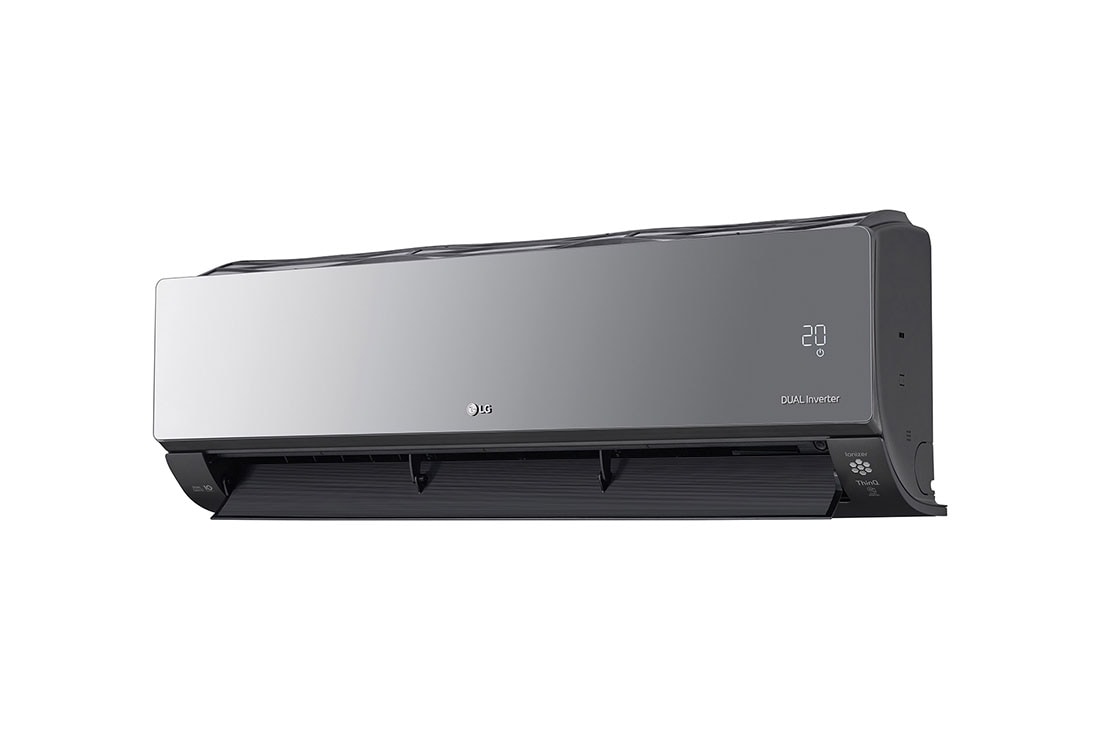

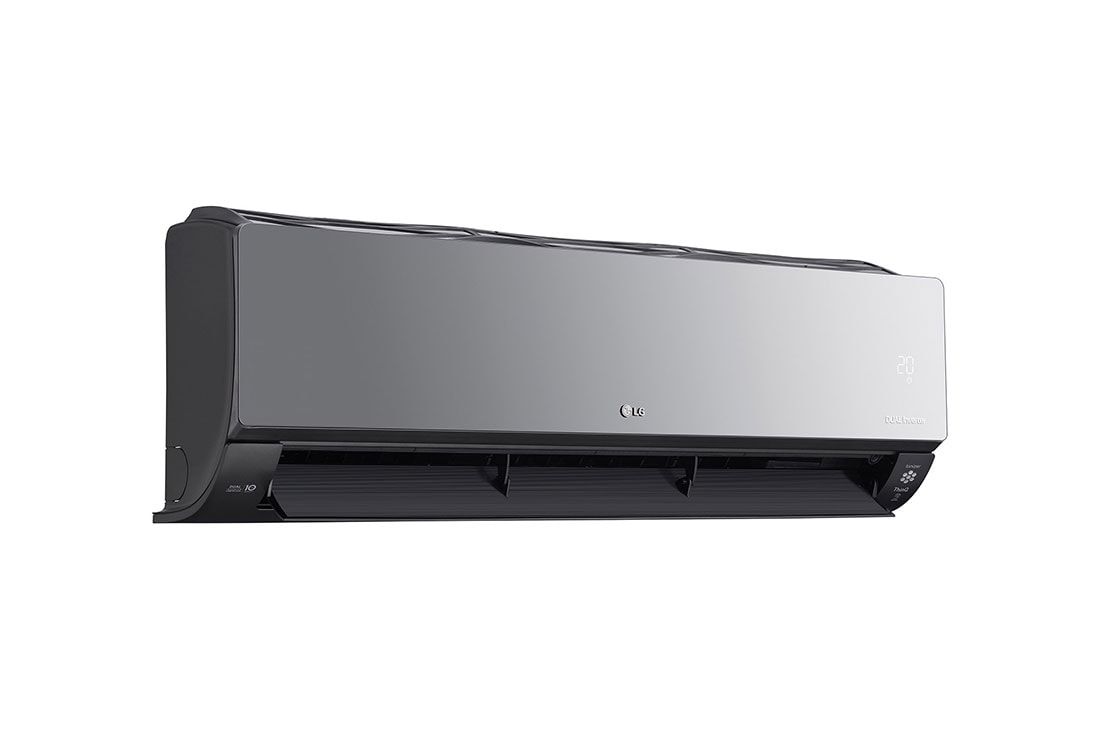

LG ARTCOOL 1.5 Ton Split AC, Dual Inverter

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (A18CMH)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (A18CMH)
    AED
    AED
    LG Members Price
Total
LG ARTCOOL 1.5 Ton Split AC, Dual Inverter
  • 10 Year Warranty1

    10 Year Warranty

    Verification obtained from TUV Rheinland for 10-year product life cycle

  • TUV Rheinland1

    TUV Rheinland

    TUV Rheinland, Long Term Accelerated-reliability Test & High Marginal Test.

*The test was performed by INTERTEK ETL SEMKO Korea Ltd. (Test report No.: IF 13-RE00573)
*The chamber size: 52m3 vloume
*The results may differ from results in actual room conditions
  • Active Energy Control1

    Active Energy Control

    Active Energy Control function allows you to select the level of energy consumption depending on the situation. Enjoy a cool and comfortable atmosphere with saving energy.

  • Jet Cool1

    Jet Cool

    The optimized design of the air outlet provides more powerful airflow, which cools the room quickly.

  • Auto Cleaning

    Auto Cleaning

    The comprehensive auto cleaning function prevents the forming of bacteria and mold on the heat exchanger and thus provides a more pleasant and comfortable environment for the user.

  • Vertical 6 Steps Louver1

    Vertical 6 Steps Louver

    Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.

  • 4 Way Swing1

    4 Way Swing

    LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many directions.

  • Gold Fin™1

    Gold Fin™

    The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

DUAL Protection Filter1

DUAL Protection Filter

The DUAL Protection Filter captures dust size over 10㎛.

Recommended Products

  I18CGH
I18CGH
Features
DUALCOOL Inverter AC 1.5 Ton, Dual Inverter Compressor, Faster Cooling, Low noise
Capacity 1.5 Ton
Dimension Indoor 998 × 345 × 210 / Outdoor 770 × 545 × 288
Dual Inverter Compressor™ Yes
Faster Cooling Yes
ThinQ NA
  where to buy


Features
Capacity
Dimension
Dual Inverter Compressor™
Faster Cooling
ThinQ

I18CGH
I18CGH
DUALCOOL Inverter AC 1.5 Ton, Dual Inverter Compressor, Faster Cooling, Low noise
1.5 Ton
Indoor 998 × 345 × 210 / Outdoor 770 × 545 × 288
Yes
Yes
NA
where to buy
Dimensions
A18CMH-V1 A18CMH-V1
SPEC SUMMARY
  • Capacity
    1.5 Ton
  • Dimension (W x H x D) mm
    Indoor 998 x 345 x 212 / Outdoor 770 x 545 x 288
  • Main Technology
    Inverter Compressor
  • Additional Benefit
    Energy Saving
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    1.08 / 5.45 / 5.54
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,685 / 18,600 / 18,900
  • Heating - Min ~ Rated ~ Max(kW)
    1.08 / 5.57 /6.24
    Heating - Min ~ Rated ~ Max(Btu/h)
    3,685 / 19,000 / 21,300
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    238 / 1,680 / 1,710
    Cooling (T3) - Min ~ Rated ~ Max(W)
    - / 0 / 0
  • Heating - Min ~ Rated ~ Max(W)
    238 / 1,520 / 1,800
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.10 / 7.70 / 8.10
    Cooling (T3) - Min ~ Rated ~ Max(A)
    - / 0.00 / 0.00
  • Heating - Min ~ Rated ~ Max(A)
    1.10 / 7.00 / 8.52
EER
  • EER(W/W)
    3.24
    EER((Btu/h)/W)
    11.07
COP
  • COP(W/W)
    3.66
    COP((Btu/h)/W)
    12.50
POWER SUPPLY
  • Ø / V / Hz
    1, 220~240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling / Heating(%)
    95
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    1.3
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    19 / 13.5 / 12 / 9
    Air Flow Rate - Heating, Max / H / M / L(㎥/min)
    20 / 14 / 13 / 9.5
  • Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    44 / 42 / 37 / 31
    Sound Pressure Level - Heating, Max / H / M / L(dB(A))
    47 / 42 / 37
  • Dimensions (W × H × D) - Net(mm)
    998 × 345 × 212
    Dimensions (W × H × D) - Shipping(mm)
    1085 × 427 × 286
  • Weight - Net(kg)
    12.9
    Weight - Shipping(kg)
    16.0
  • Exterior Color Code
    Munsell 7.5PB 0.2/20 (RAL 9005)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    38.0
    Fan Motor Speed - Cooling, Min ~ Max(rpm)
    150 ~ 900
  • Fan Motor Speed - Heating, Min ~ Max(rpm))
    150 ~ 900
    Sound Pressure Level - Cooling, Rated(dB(A))
    53
  • Sound Pressure Level - Heating, Rated(dB(A))
    55
    Dimensions (W × H × D) - Net(mm)
    770 × 545 × 288
  • Dimensions (W × H × D) - Shipping(mm)
    925 × 593 × 393
    Weight - Net(kg)
    36.3
  • Weight - Shipping(kg)
    40.5
    Max. Fuse Size(A)
    15
  • Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
    Operation Range - Cooling(℃ DB)
    18 ~ 48
  • Operation Range - Heating(℃ WB)
    -5 ~ 24
CIRCUIT BREAKER
  • Circuit Breaker(A)
    20
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 × 1.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 × 0.75
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 12.7
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    28.0, 16.4
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3.6 / 5.0 / 20
    Piping Length - No Charge(m)
    5.0
  • Max. Elevation Difference(m)
    10
    Piping Connection Heat Insulation
    Both liquid and Gas Pipes
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    1260
  • Additional Charge(g/m)
    20
    Control
    Capillary
  • Global Warning Potential
    2087.5
    t-CO₂ eq
    2.63
DEFROST METHOD
  • Defrost Method
    Reverse Cycle
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK / UL2
COMPRESSOR
  • Type
    Twin Rotary
    Model
    GKT141MBA
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D) / IDEMITSU
  • Oil Charge (cc)
    470
    Manufacturer / Country of Origin
    LG Electronics / China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    30
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    43
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IP23
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu / Al
    Condenser - Material, Tube / Fin
    Cu /Al
