DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling

component-thumbnail-objet
DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling play 360 degree rotating image, I23TTC, thumbnail 1

DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling play 360 degree rotating image, I23TTC, thumbnail 1

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 0

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 1

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 2

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 3

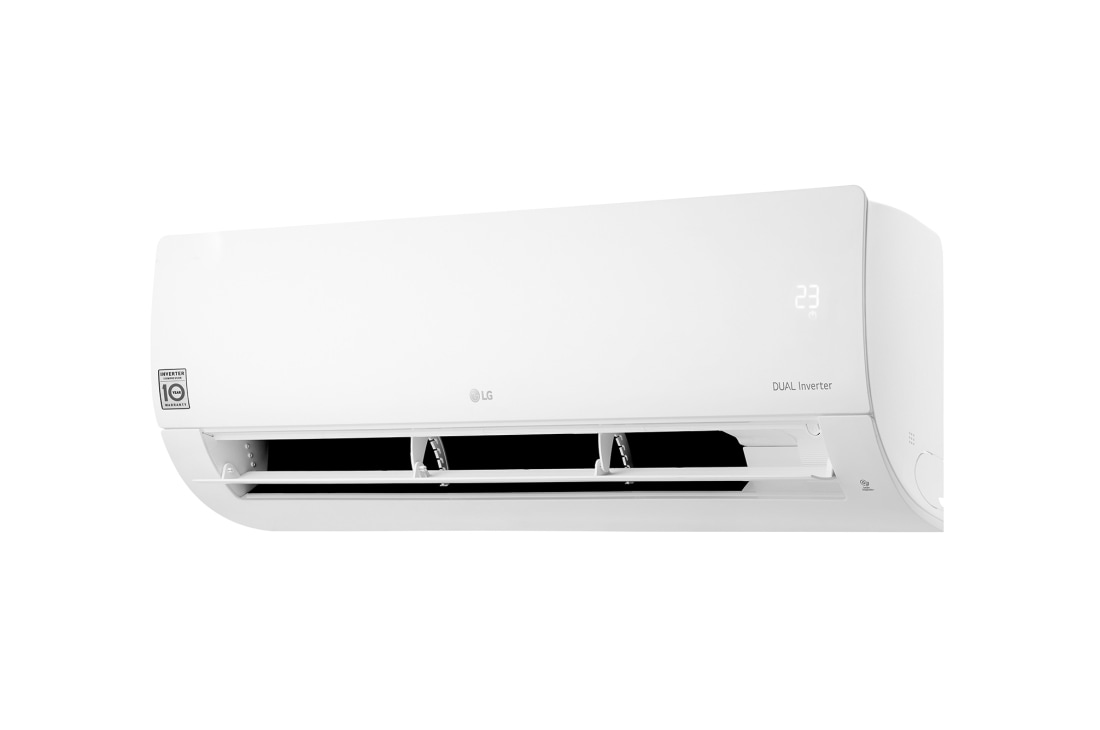

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 4

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 5

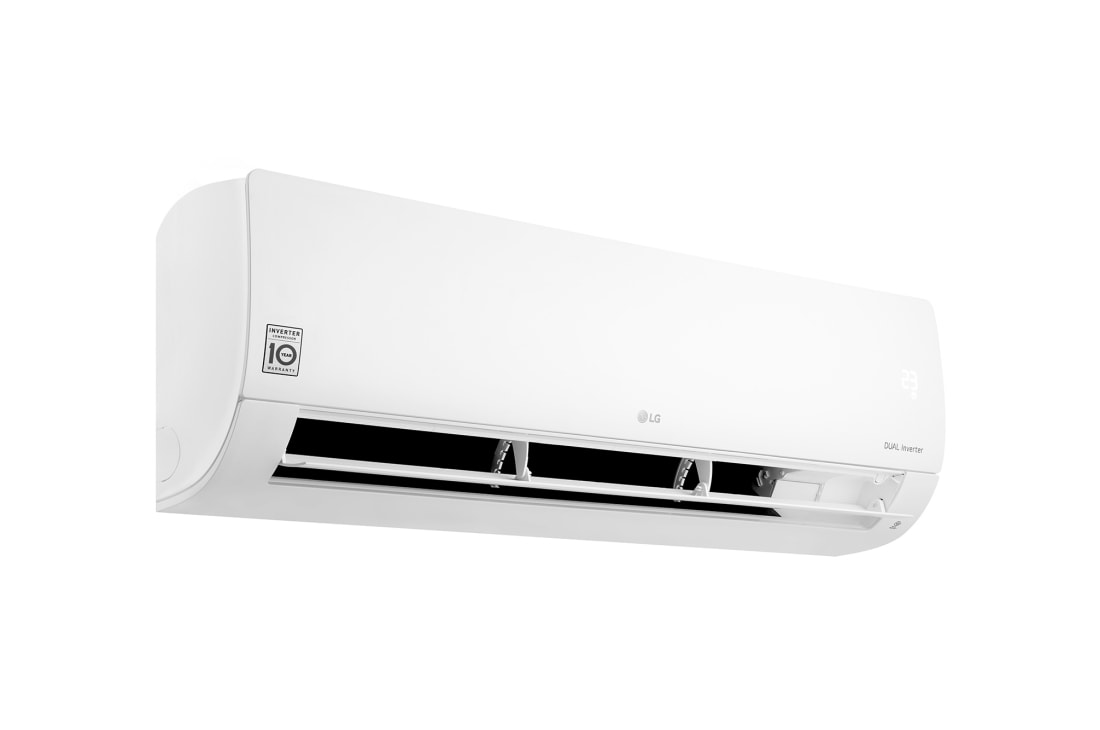

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 6

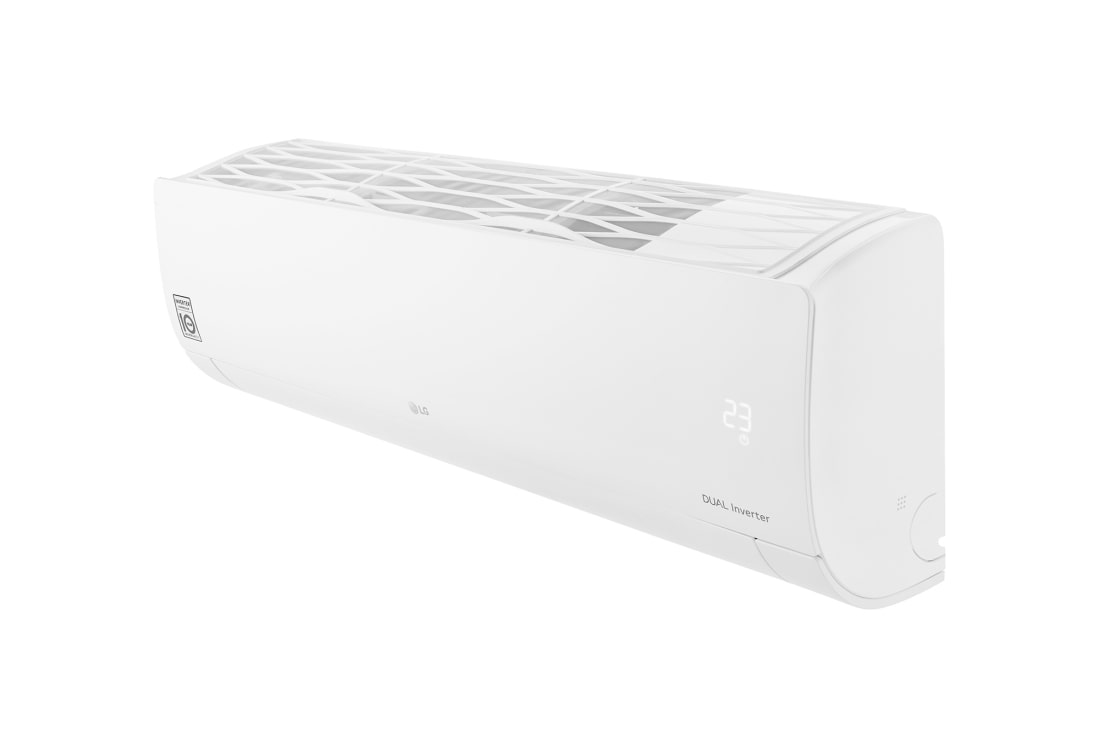

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 7

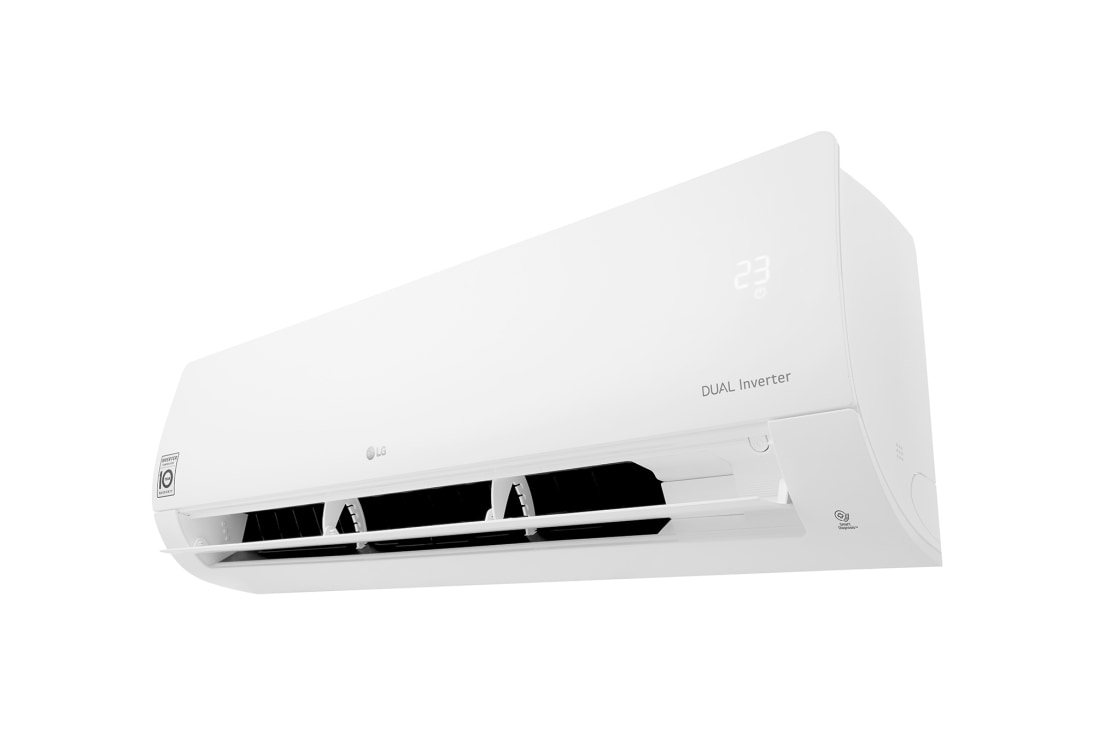

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 8

LG DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling, I23TTC, thumbnail 9

ADD TO WISHLIST

I23TTC component-copyModelName

DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling

Name: DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling
Brand: LG UAE
SKU: I23TTC
Rating: 0 (0 reviews)

Key Features

Dual Inverter Compressor™ that Works in Harsh Weather (Up to 65℃)
10-Year Warranty on the Inverter Compressor
60% Faster Cooling Compared to Conventional AC Thanks to Dual Inverter Compressor™
65% Energy Saving Compared to Conventional AC Thanks to Dual Inverter Compressor™
Comfort Sleep Mode with Indirect Air Flow, Timer, and Soft Wind
Gold Fin™: Corrosion Resistantcy for Enhanced Durability

Where to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Dual Inverter Compressor™ that Works in Harsh Weather (Up to 65℃)
10-Year Warranty on the Inverter Compressor
60% Faster Cooling Compared to Conventional AC Thanks to Dual Inverter Compressor™
65% Energy Saving Compared to Conventional AC Thanks to Dual Inverter Compressor™
Comfort Sleep Mode with Indirect Air Flow, Timer, and Soft Wind
Gold Fin™: Corrosion Resistantcy for Enhanced Durability

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

DUALCOOL Inverter AC 1.5 Ton, 65°Operation, 65% Energy Saving, 60% Faster cooling

Stock List

Tropical Dual Inverter Compressor™

LG's Tropical Dual Inverter Compressor™ that works even at 65℃ With the 10year warranty on the compressor, users can enjoy the benefits of LG air conditioner for a longer period of time.

Dual Inverter Compressor™

A compressor with a wider rotational frequency saves more energy and has a faster cooling range
10 Year Warranty

Verification obtained from TUV Rheinland for 10-year product life cycle
TUV Rheinland

TUV Rheinland, Verification on Fast Cooling & Power Saving Rate(aS-b246KcBd, BS-x186Kyb3)

Fast Cooling & Energy Saving

Inverter Compressor constantly adjusts a compressor's speed to maintain desired temperature levels. Moreover, Dual Inverter Compressor™ with power saving operation range frequency saves more energy than conventional compressor. Thanks to the Dual Inverter compressor, air is expelled farther and faster.

Fast Cooloing Energy Saving

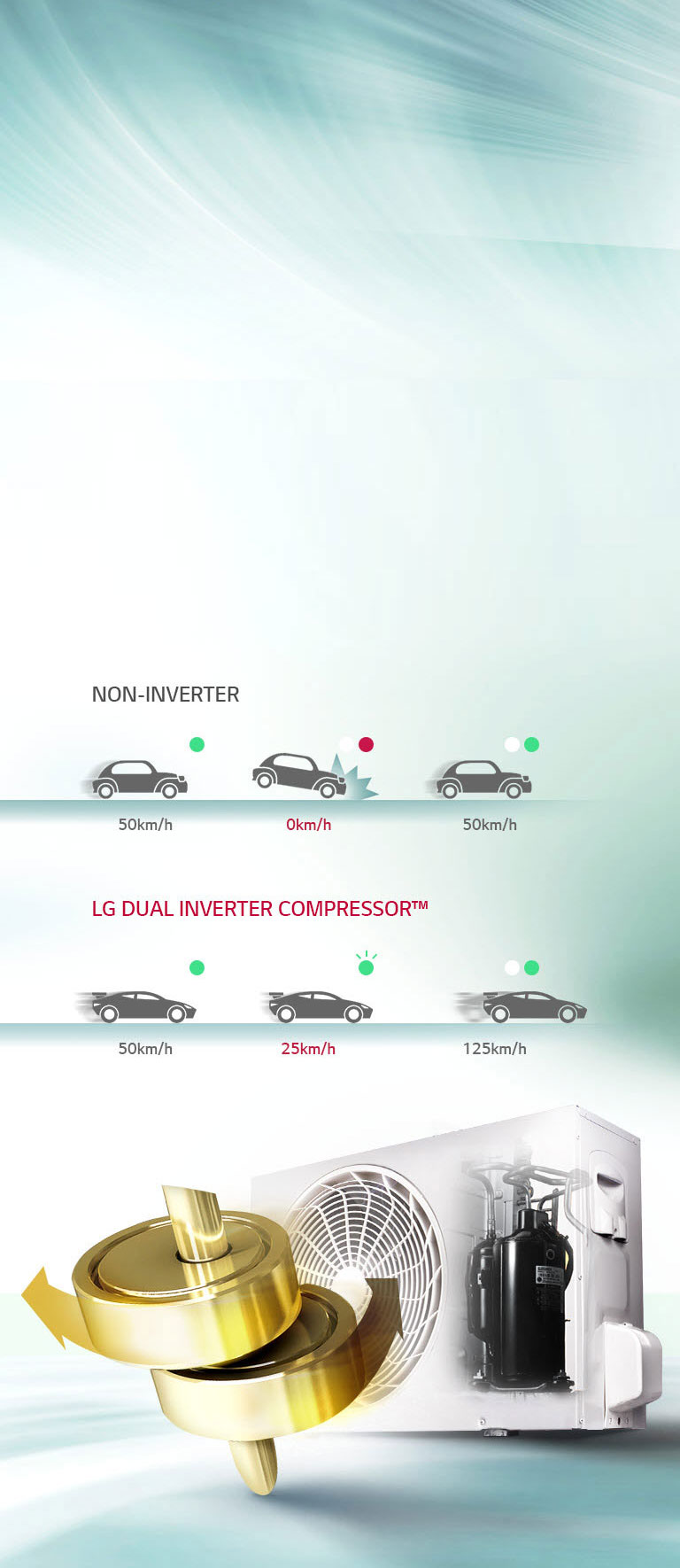

Dual Inverter Compressor™

Compressors on typical air conditioners turn off and on in order to adjust temperature, consuming a great deal of energy. Dual Inverter Compressor™ constantly adjusts a compressor's speed to maintain desired temperature levels. This minimal fluctuation saves energy and ensures greater cooling comfort.

Low Noise

LG air conditioners operate at low sound levels, thanks to LG's unique skew fan and Dual Inverter Compressor™ which eliminate unnecessary noise and allow for smooth operation.

Watch the Full Movie

Precise temperature control

The Compressor speed of LG Dual Inverter Compressor™ is constantly adjusted and varied to maintain the desired temperature with minimal fluctuation.

Quick and Easy Installation

LG air conditioners are designed for easier and more efficient installation, regardless of the surroundings and the number of persons involved in the installation process. By reducing the manpower and time required for installation, it is now possible to install more air conditioners at more homes in a shorter period of time.

4Way Swing

LG air conditioners deliver cool air to every corner of your room. The 4 way swing function blows the air quickly and efficiently in many direction.

Vertical 6 Steps Louver Control

Users can choose the vane direction among 6 preset positions to meet the exact wind blow direction you desire.
Horizontal 5 steps Louver Control

Direction of vertical louver can be adjusted from step 1 to 5, left & right, with full auto swing. This function also allows the air conditioner to cool specific areas in only a short period of time.

Comfort Sleep

Avail the utmost comfort sleep environment by automatically adjusting 3 different functions(Indirect airflow/7hr off time set/Soft wind & sleep time logic), with the simple click of button.
Gold Fin™

The Gold Fin™ ensures that the surface is more resistant to corrosion and enhances the durability of heat exchanger for a much longer period.

Auto Cleaning

It prevents forming of bacteria & mold on the heat exchanger. Thus provides a pleasant environment.
Dual Protection Filter

The Dual Protection Filter captures dust size over 10㎛ and bacteria.
Silent Mode

LG's unique new skew fan & low vibration compressor technology achieve world's lowest sound levels.

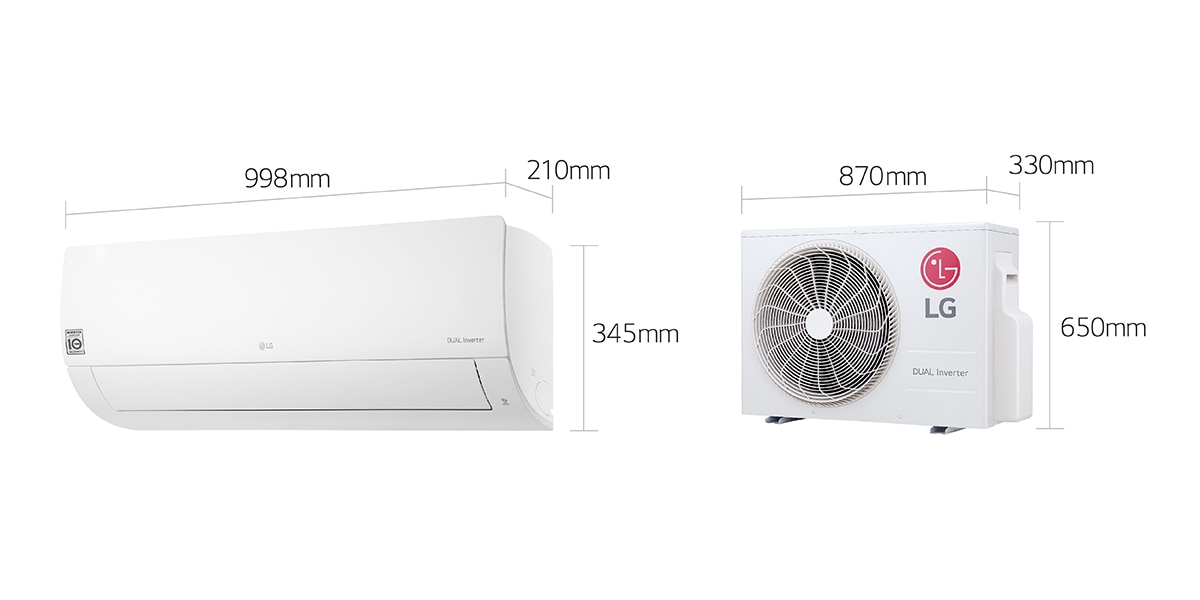

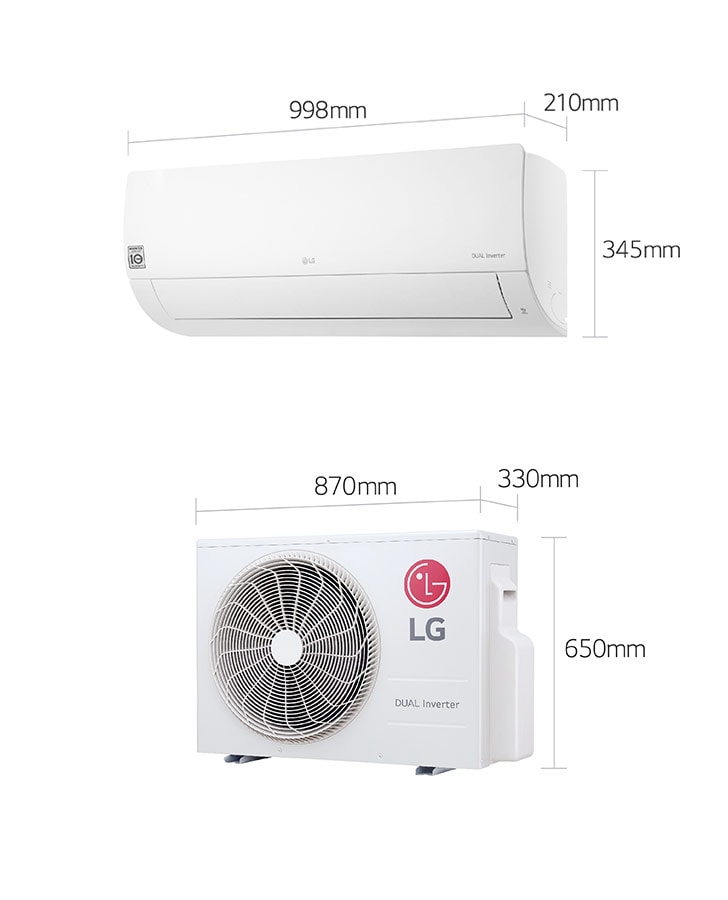

Dimensions

SPEC SUMMARY

Capacity

1.5 Ton
Dimension (W x H x D) mm

Indoor 998 x 345 x 210 / Outdoor 870 x 650 x 330
Main Technology

65°C Dual Inverter Compressor™
Additional Benefit

10 Year Warranty

See all Specs

CAPACITY

Cooling - Min ~ Rated ~ Max(kW)

0.90/6.45/7.97

Cooling - Min ~ Rated ~ Max(Btu/h)

3,070/18,000/23,500
Cooling (T3) - Min ~ Rated ~ Max(kW)

0.79 / 5.42 / 7.03

Cooling (T3) - Min ~ Rated ~ Max(Btu/h)

2,700/15,300/21,000

POWER INPUT

Cooling - Min ~ Rated ~ Max(W)

320/1452/2900

Cooling (T3) - Min ~ Rated ~ Max(W)

374/1759/2900

RUNNING CURRENT

Cooling - Min ~ Rated ~ Max(A)

1.45/6.5/14

Cooling (T3) - Min ~ Rated ~ Max(A)

1.77/7.5/14

EER

EER(W/W)

3.55

EER((Btu/h)/W)

12.4

EER(T3)

EER (T3)(W/W)

2.56

EER (T3)((Btu/h)/W)

8.7

POWER SUPPLY

Ø / V / Hz

1 , 220 ~ 240 ,50

AVAILABLE VOLTAGE RANGE

Available Voltage Range(V)

187~276

POWER FACTOR

Cooling / Heating(%)

98

MOISTURE REMOVAL

Moisture Removal(l/h)

2.5

INDOOR

Air Flow Rate - Cooling, Max / H / M / L(㎥/min)

19.0/14.5/13.0/10.5

Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))

-/46/42/37/28
Dimensions (W × H × D) - Net(mm)

998 x 345 x 210

Dimensions (W × H × D) - Shipping(mm)

1068 × 425 × 279
Weight - Net(kg)

11.3

Weight - Shipping(kg)

13.4
Exterior Color Code

Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR

Air Flow Rate - Max(㎥/min)

49

Sound Pressure Level - Cooling, Rated(dB(A))

54
Dimensions (W × H × D) - Net(mm)

870 x 650 x 330

Dimensions (W × H × D) - Shipping(mm)

1040 x 710 x 455
Weight - Net(kg)

41.00

Weight - Shipping(kg)

45.00
Max. Fuse Size(A)

20.00

Exterior Color Code

Munsell 9.54Y 8.34/1.31 (RAL 9001)
Operation Range - Cooling(℃ DB)

18 ~ 54

CIRCUIT BREAKER

Circuit Breaker(A)

25

POWER SUPPLY CABLE

Power Supply Cable(No. × ㎟)

3 x 2.5

POWER SUPPLY TO UNIT

Power Supply to Unit

Outdoor

POWER AND COMMUNICATION CABLE

Power and Communication Cable(No. × ㎟)

4 x 0.75

PIPING

Size - Liquid(mm)

Ø 6.35

Size - Gas(mm)

Ø 12.7
Connections Method - Indoor / Outdoor

Flared / Flared

DRAIN HOSE SIZE

O.D, I.D(mm)

21.5 , 16.0

BETWEEN INDOOR & OUTDOOR

Piping Length - Min / Standard / Max(m)

3/7.5/30

Piping Length - No Charge(m)

7.5
Max. Elevation Difference(m)

25

Piping Connection Heat Insulation

Both liquid and Gas Pipes

REFRIGERANT

Type

R410A

Pre Charge(g)

1300
Additional Charge(g/m)

15

Control

Electronics Expansion Valve

TOOL CODE(CHASSIS)

Indoor / Outdoor

SK / U24A

COMPRESSOR

Type

Dual Inverter Compressor

Model

GAT156MCA
Motor Type

BLDC

Oil Type / Maker

POE (RN68GP) / Jx Nippon, PVE (FW68D) / IDEMITSU
Oil Charge (cc)

400

Manufacturer / Country of Origin

LG Electronics/China

FAN(INDOOR)

Type

Cross Flow Fan

Motor Output(W)

30

FAN(OUTDOOR)

Type

Propeller Fan

Motor Type

BLDC
Motor Output (W)

85

Motor Insulation

Class E
Motor Enclosure / Ingress Protection

TEAO/IPX4

HEAT EXCHANGER

Evaporator - Material, Tube / Fin

Cu/Al

Evaporator - Corrosion Protection

PCM
Condenser - Material, Tube / Fin

Cu/Al

Condenser - Corrosion Protection

Gold
Condenser - Fin Type

Wide Louver Plus
