All New Air Conditioner, LG DUALCOOL Inverter

Key Features

component-OBScountrySelectDesc

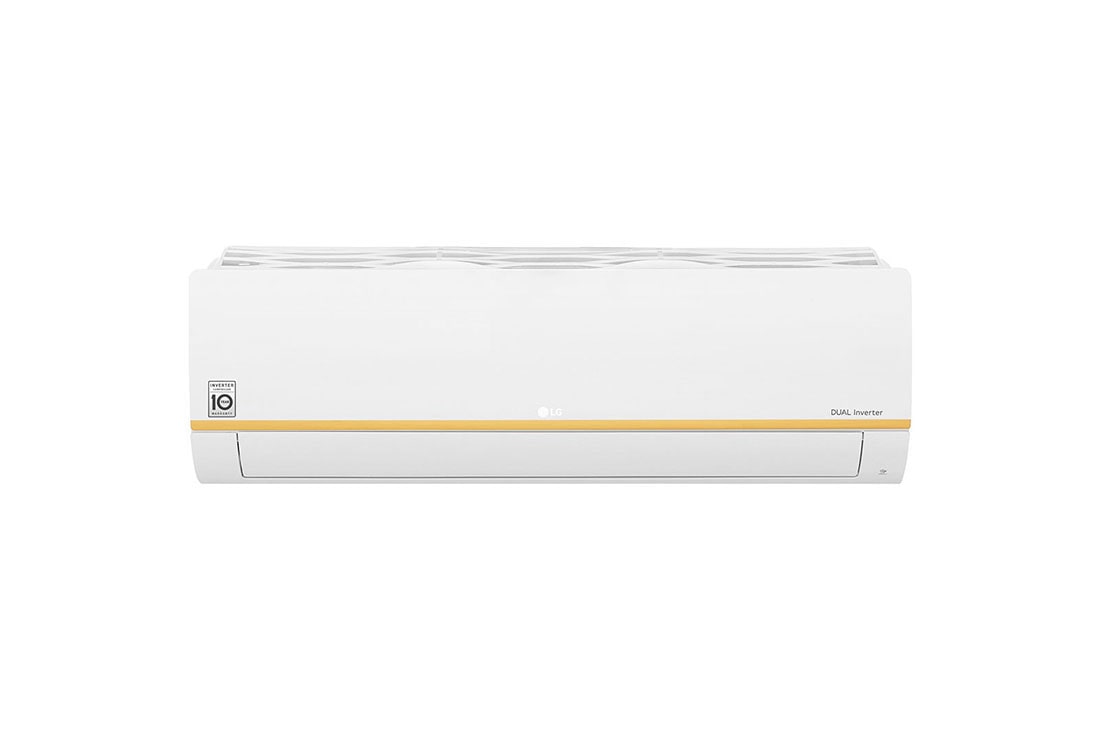

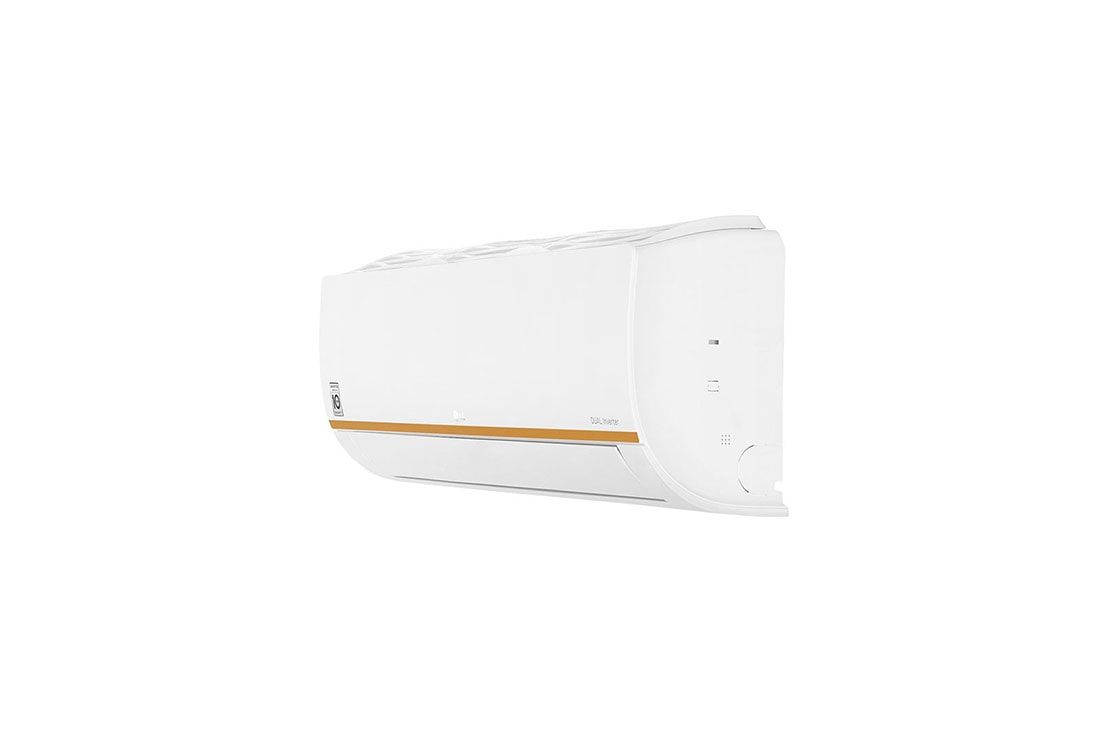

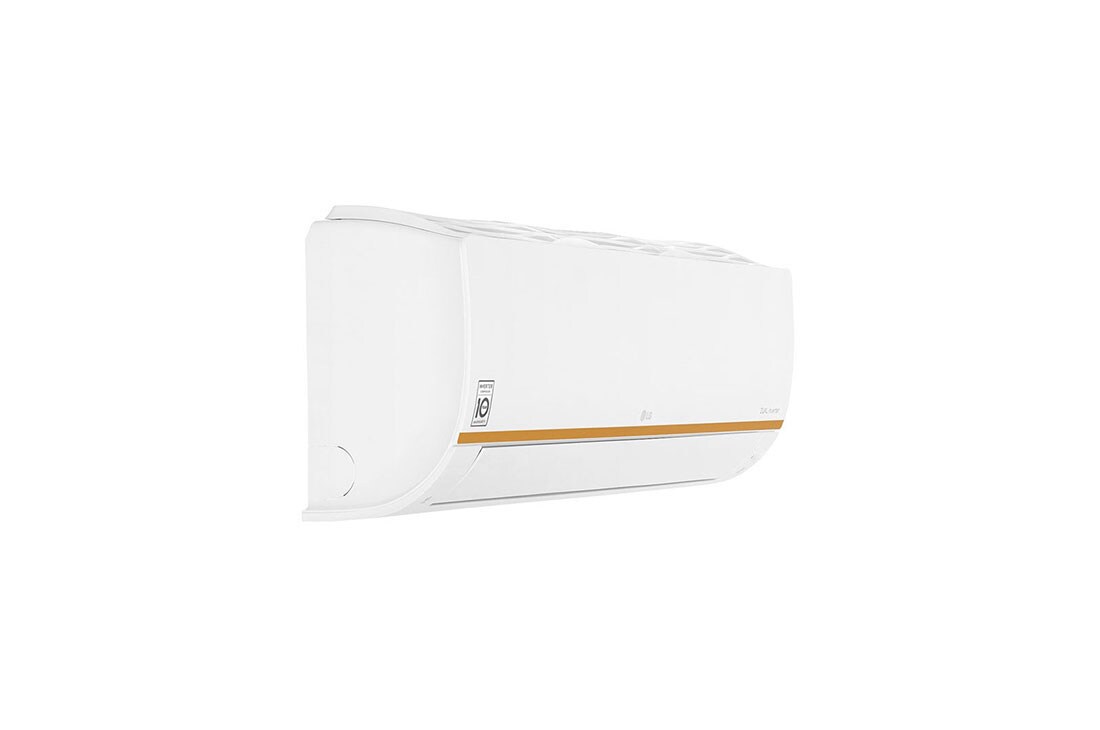

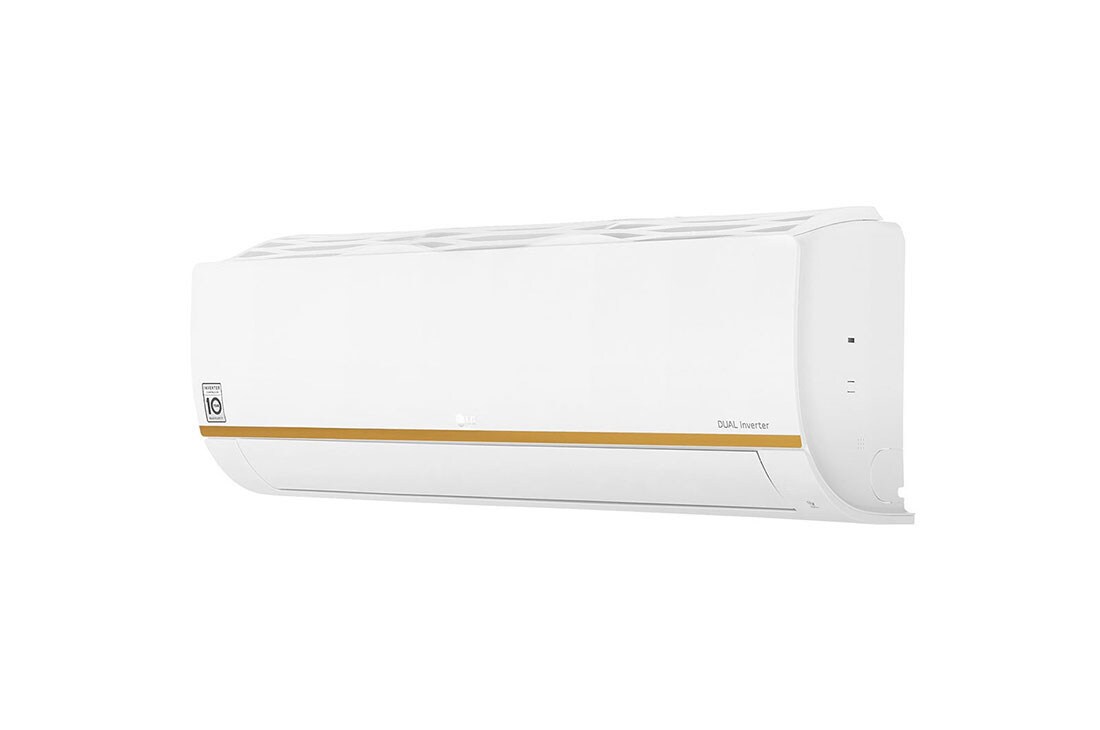

All New Air Conditioner, LG DUALCOOL Inverter
CAPACITY
  • Cooling - Min ~ Rated ~ Max(kW)
    0.90 / 7.03 / 8.00
    Cooling - Min ~ Rated ~ Max(Btu/h)
    3,070 / 24,000 / 27,300
  • Cooling (T3) - Min ~ Rated ~ Max(kW)
    0.79 / 6.10 / 6.74
    Cooling (T3) - Min ~ Rated ~ Max(Btu/h)
    2,700 / 20,800 / 23,000
POWER INPUT
  • Cooling - Min ~ Rated ~ Max(W)
    340 / 2,329 / 3,700
    Cooling (T3) - Min ~ Rated ~ Max(W)
    404 / 2,773 / 3,700
RUNNING CURRENT
  • Cooling - Min ~ Rated ~ Max(A)
    1.65 / 10.40 / 17.00
    Cooling (T3) - Min ~ Rated ~ Max(A)
    1.96 / 12.00 / 17.00
EER
  • EER(W/W)
    3.02
    EER((Btu/h)/W)
    10.30
EER(T3)
  • EER (T3)(W/W)
    2.20
    EER (T3)((Btu/h)/W)
    7.50
ENERGY LABEL GRADE
  • Cooling / Heating
    2 / -
ANNUAL ENERGY CONSUMPTION (UAE)
  • Cooling / Heating
    2,773 / -
POWER SUPPLY
  • Ø, V, Hz
    1, 220-240, 50
AVAILABLE VOLTAGE RANGE
  • Available Voltage Range(V)
    187 ~ 276
POWER FACTOR
  • Cooling / Heating(%)
    97.4 / -
MOISTURE REMOVAL
  • Moisture Removal(l/h)
    2.5
INDOOR
  • Air Flow Rate - Cooling, Max / H / M / L(㎥/min)
    18.5 / 14.0 / 12.5 / 10.0
    Sound Pressure Level - Cooling, Max / H / M / L / SL(dB(A))
    - / 44 / 41 / 37 / 28
  • Dimensions (W × H × D) - Net(mm)
    998 × 345 × 210
    Dimensions (W × H × D) - Shipping(mm)
    1068 × 425 × 279
  • Weight - Net(kg)
    12.3
    Weight - Shipping(kg)
    14.0
  • Exterior Color Code
    Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
  • Air Flow Rate - Max(㎥/min)
    49.0
    Sound Pressure Level - Cooling, Rated(dB(A))
    55
  • Dimensions (W × H × D) - Net(mm)
    870 × 650 × 330
    Dimensions (W × H × D) - Shipping(mm)
    1040 × 710 × 455
  • Weight - Net(kg)
    43.0
    Weight - Shipping(kg)
    47.0
  • Max. Fuse Size(A)
    30
    Exterior Color Code
    Munsell 9.54Y 8.34/1.31 (RAL 9001)
  • Operation Range - Cooling(℃ DB)
    18 ~ 54
COMPRESSOR
  • Type
    Dual Inverter Compressor™
    Model
    GKT208MAA
  • Motor Type
    BLDC
    Oil Type / Maker
    PVE (FVC68D) / IDEMITSU
  • Oil Charge (cc)
    570
    Manufacturer / Country of Origin
    LG Electronics / China
FAN(INDOOR)
  • Type
    Cross Flow Fan
    Motor Output (W)
    60
FAN(OUTDOOR)
  • Type
    Propeller Fan
    Motor Type
    BLDC
  • Motor Output (W)
    85
    Motor Insulation
    Class E
  • Motor Enclosure / Ingress Protection
    TEAO / IPX4
HEAT EXCHANGER
  • Evaporator - Material, Tube / Fin
    Cu / Al
    Evaporator - (Φ x Row x Column x FPI/FPDM x L) x Qty.(W)
    (Φ7 x 2 x 16 x 20FPI x 744) x 1
  • Evaporator - Corrosion Protection
    PCM
    Condenser - Material, Tube / Fin
    Cu /Al
  • Condenser - (Φ x Row x Column x FPI/FPDM x L) x Qty.(#3)
    (Φ7 x 2 x 28 x 18FPI x 940) x 1
    Condenser - Corrosion Protection
    Gold Fin™
CIRCUIT BREAKER
  • Circuit Breaker(A)
    30
POWER SUPPLY CABLE
  • Power Supply Cable(No. × ㎟)
    3 × 2.5
POWER SUPPLY TO UNIT
  • Power Supply to Unit
    Outdoor
POWER AND COMMUNICATION CABLE
  • Power and Communication Cable(No. × ㎟)
    4 × 1.0
PIPING
  • Size - Liquid(mm)
    Ø 6.35
    Size - Gas(mm)
    Ø 15.88
  • Connections Method - Indoor / Outdoor
    Flared / Flared
DRAIN HOSE SIZE
  • O.D, I.D(mm)
    21.5, 16.0
BETWEEN INDOOR & OUTDOOR
  • Piping Length - Min / Standard / Max(m)
    3 / 7.5 / 30
    Piping Length - No Charge(m)
    7.5
  • Max. Elevation Difference(m)
    25
REFRIGERANT
  • Type
    R410A
    Pre Charge(g)
    1400
  • Additional Charge(g/m)
    20
    Control
    Electronic Expansion Valve
TOOL CODE(CHASSIS)
  • Indoor / Outdoor
    SK / U24A
FEATURE
  • Air Flow - 4way Swing
    Yes
    Air Flow - Jetcool
    Yes
  • Air Flow - Comfort Air
    Yes
    Air Purifying - Dual Protection Filter
    Yes
  • Air Purifying - Auto Cleaning
    Yes
    Convenience - Comfort Sleep
    Yes
  • Convenience - Smart Diagnosis
    Yes
    Special Function - Wi-Fi ²
    Yes
