Discontinued
S0968H component-copyModelName

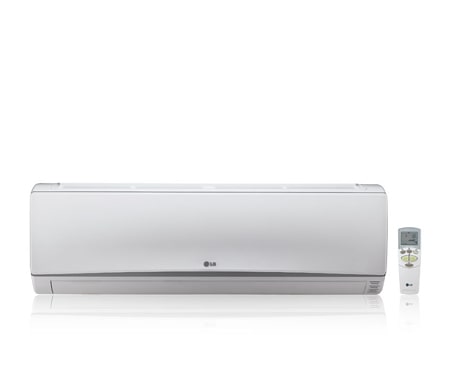

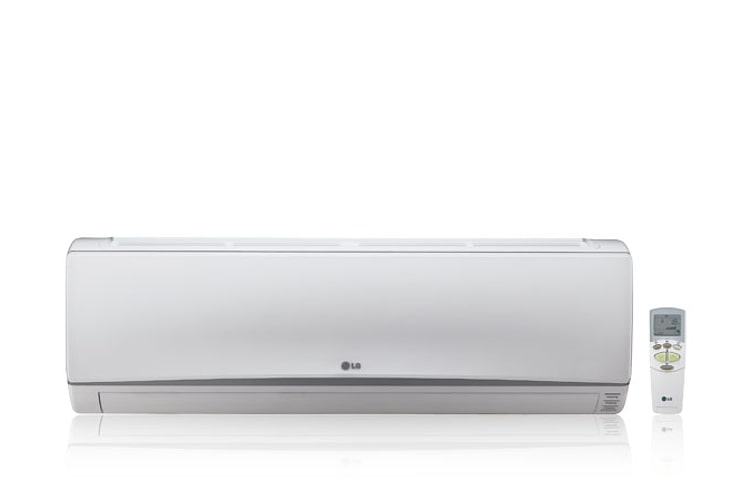

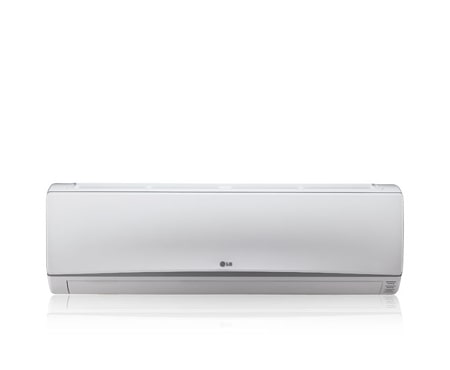

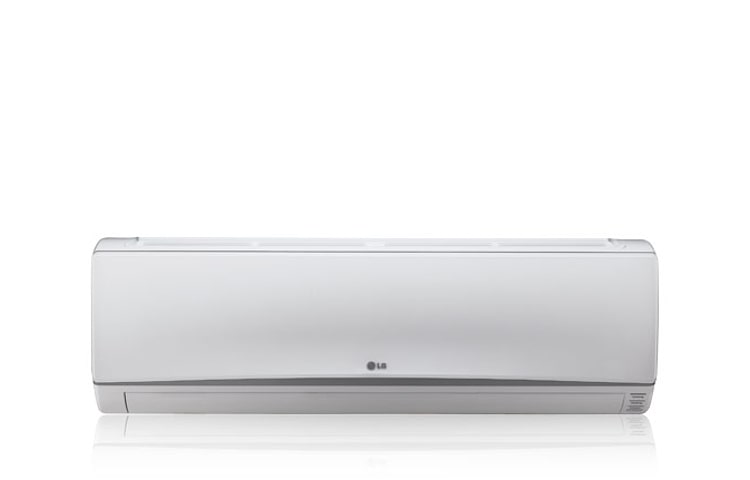

Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability (Heating & Cooling)

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Titan Deluxe boasts an unrivaled package of the most complete air conditioning solution with power cooling and durability (Heating & Cooling)
Close
AIR FLOW RATE
  • Indoor, Max (m3 / min(CFM))
    6.5(229)
    Outdor, Max (m3 / min(CFM))
    20(706.3)
MOISTURE REMOVAL
  • l/h.
    1.0
ADDITIONAL REFRIGERANT CHARGE
  • g/m (oz/ft)
    20(0.21)
COMPRESSOR
  • Type
    Rotary
    Model
    QK164PCB
  • Motor Type
    PSC
    Oil Type
    NM56 or 4GSI
  • Oil Charge (cc)
    350
    O.L.P. name
    MRA 98776-12026
FAN(INDOOR)
  • Type
    SKEW FLOW FAN
    Motor Output (W)
    7
FAN(OUTDOOR)
  • Type
    Axial Fan
    Motor Type
    AC INDUCTION
  • Motor Output (W)
    25
CIRCUIT BREAKER*
  • A
    15
POWER SUPPLY CABLE
  • No.*mm²
    3*1.0(Including Earth)
PIPING CONNECTIONS
  • Liquid Side (mm(in))
    6.35(1/4)
    Gas Side (mm(in))
    9.52(3/8)
DIMENSIONS
  • Indoor(W*H*D)(mm)
    890*290*210
    Indoor(W*H*D)(inch)
    35.0*11.4*8.3
  • Outdoor(W*H*D)(mm)
    717*498*229
    Outdoor(W*H*D)(inch)
    28.2*19.6*9.0
NET WEIGHT
  • Indoor (kg(lbs))
    10(22)
    Outdoor (kg(lbs))
    30.3 (66.8)
OPERATION RANGE
  • Cooling (outdoor) °C
    21~43(69.8~109.4)
    Heating (outdoor) °C
    1~24(33.8~75.2)
MAX. ELEVATION DIFFERENCE
  • m(ft)
    7(23)
TOOL CODE(CHASSIS)
  • Indoor + Outdoor
    SB + UA3
FUNCTIONS
  • Temperature Control
    Thermistor
    Auto Clean
    Yes
  • CHAOS Wind (Auto Wind)
    Yes
    Steps, Fan/Cool/Heat
    3/4/3
  • Airflow Direction Control(Up & Down)
    Auto
    Airflow Direction Control(Left & Right)
    Auto

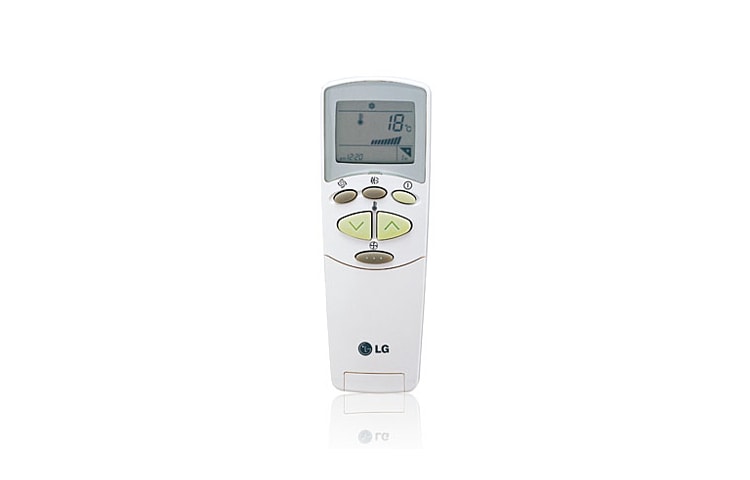

  • Remote Controller Type
    Wireless LCD
    Setting Temperature Range_Cooling
    18°C ~ 30°C
  • Setting Temperature Range_Heating
    16°C ~ 30°C
    Temperature Increment
    1
  • Auto Changeover (Micom Control)
    Yes
    Self Diagnosis
    Yes
  • Timer
    24h, On/Off
    Sleep Operation
    Yes
  • Soft Dry Operation
    Yes
    Restart Delay (minute)
    3
  • Hot Start
    Yes
    Jet Cool
    Yes
  • Deice Control(Defrost)
    Yes
POWER INPUT
  • Cooling/Heating(W)
    920 / 870
E.E.R.
  • W / W
    2.74
    Btu / h.W
    9.35
C.O.P.
  • W / W
    3.02
RUNNING CURRENT
  • Cooling/Heating(W)
    4.2 / 3.8
POWER SUPPLY
  • Ø / V / Hz
    1 / 220~240 / 50
COOLING CAPACITY
  • kW
    2.52
    Btu/hr
    8,600
HEATING CAPACITY
  • kW
    2.63
    Btu/hr
    9,000
POWER FACTOR
  • %
    95
SOUND LEVEL
  • Indoor, H/M/L(dB(A) ± 3)
    34/30/27
    Outdoor, Max(dB(A) ± 3)
    48
POWER AND TRANSMISSION CABLE NO.*
  • No. *mm²
    3*0.75(Including Earth)+2*0.75
DRAIN HOSE
  • O.D / I.D(mm(in))
    21.5/16 (0.85/0.63)
MAX. PIPING LENGTH
  • m(ft)
    15(49.2)
FILTER
  • Plasma
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Virus + Allerge + Triple (case)
    Yes
REFRIGERANT & CHARGE (AT 7.5 M) (G(OZ))
  • g(oz)
    750(26.5)

Compare

0
Compare 0
*Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.
We have a wide range of stylish and innovative split air conditioners. Our LG DUAL Inverter Compressor™ is an example of this and it's innovative technology saves energy and cools faster, giving you a better way to stay cool. Explore our range online.
LG Titan Deluxe protects consumers through a complete Air Purifying System: the Plasmaster filter reduces microscopic contaminants and dust to protect users from allergy and asthma symptoms
