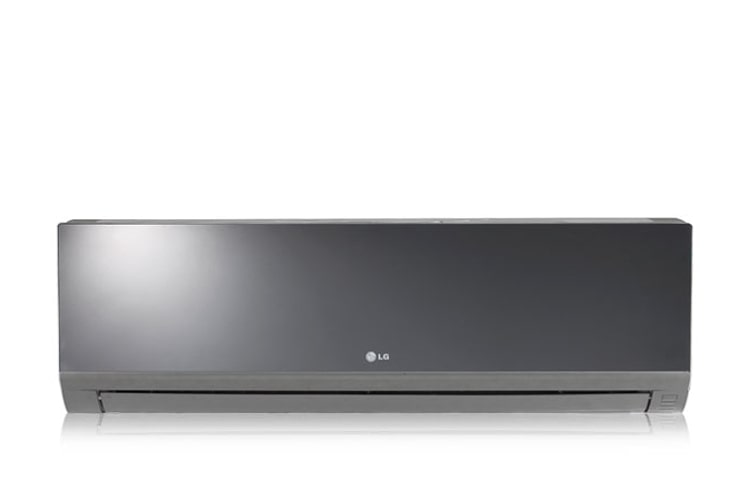

T246RC component-copyModelName
cooling only

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

cooling only
Close
DIMENSION
  • Indoor (W*H*D)(mm)
    1,030*325*250
    Indoor (W*H*D)(inch)
    40.6*12.8*9.8
  • Outdoor (W*H*D)(mm)
    34.3*25.8*12.6
    Outdoor (W*H*D)(inch)
    870*655*320
FILTER
  • 3M Multi Protection Filter
    Yes
    Prefilter(washable/anti-fungus)
    Yes
  • Plasma Filter
    Yes
HIGHLIGHTS
  • Cooling (Min / Rated / Max) T1
    6.74 KW, 23,013 Btu/h.
    Heating (Min / Rated / Max) T3
    5.75 KW , 19,633 Btu/h.
  • Power Input (Cooling) T1-W
    2,640
    Power Input (Cooling) T3-W
    3,010
  • Power Supply
    1 / 220-240 / 50 - Ø / V / Hz
    Running Current (Cooling) T1-A
    11.9
  • Running Current (Cooling) T3-A
    13.6
    Starting Current (Cooling) T1-A
    11.9
  • Starting Current (Cooling) T3-A
    13.6
NET WEIGHT
  • Indoor (kg(lbs))
    15 (33.1)
    Outdoor (kg(lbs))
    46 (101.4)
OPERATION RANGE
  • Cooling (outdoor) °C(°F)
    18°C~30°C
OTHER FUNCTIONS
  • Additional Refrigerant charge
    30 g/m
    Circuit Breaker
    30 A
  • Max. Elevation Difference
    15 (49.2) m(ft)
    Max. Piping Length
    20 (65.6) m(ft)
  • Moisture Removal
    3.0 l/h.
    Refrigerant & Charge
    R22,1030 (36.3) g(oz)
PERFORMANCE
  • Air Flow Rate (Indoor, Max)
    14.4 (509) m3/min(CFM)
    Air Flow Rate (Outdoor, Max)
    41.7 (1,473) m3/min(CFM)
  • EER
    2.6 T1-W/W , 8.7 T1-Btu/h.W , 1.9 T3-W/W , 6.5 T3-Btu/h.W
    Noise Level © (Indoor,H / M / L / LL)
    44 / 40 / 35 / dB(A)±3
  • Noise Level © (Outdoor, Max)
    56 dB(A)±3
PIPING CONNECTIONS
  • Liquid Side (mm(in))
    9.52 (3/8)
    Gas Side (mm(in))
    15.88(5/8)
