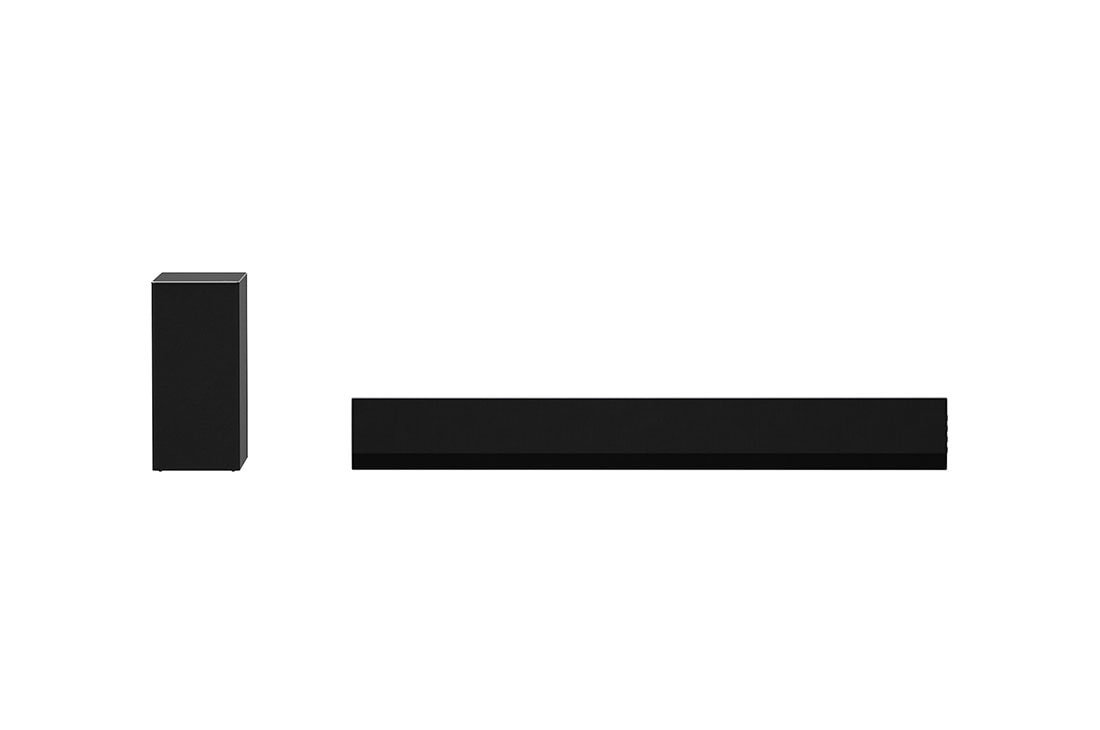

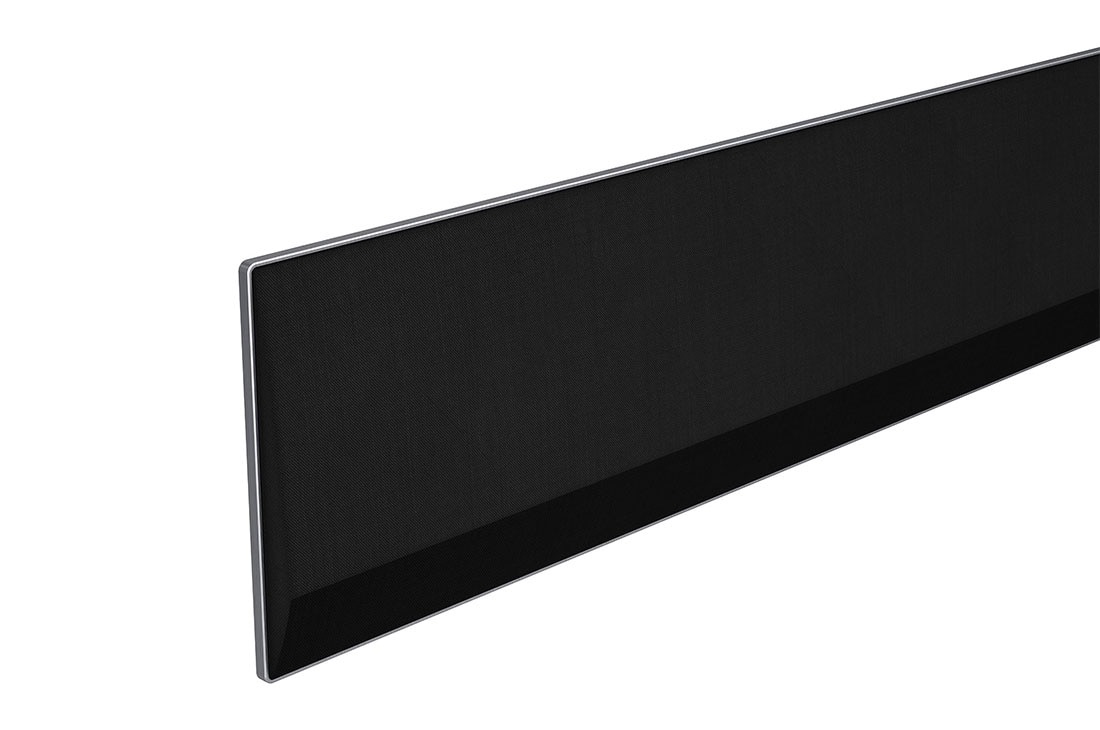

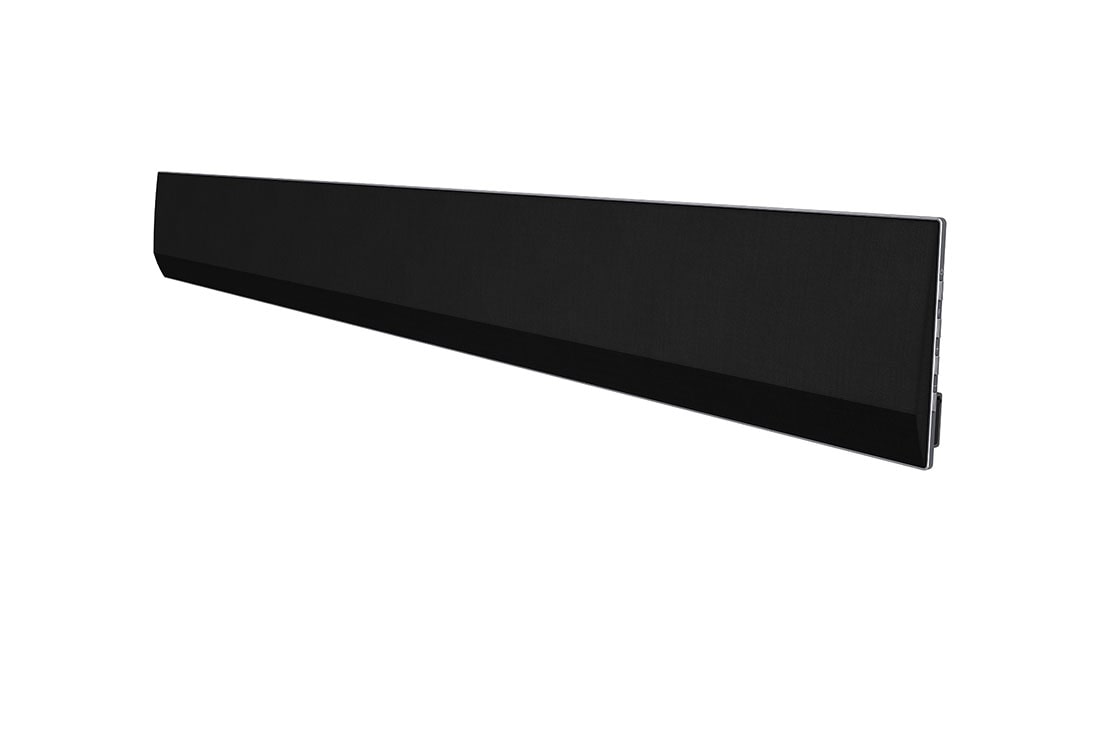

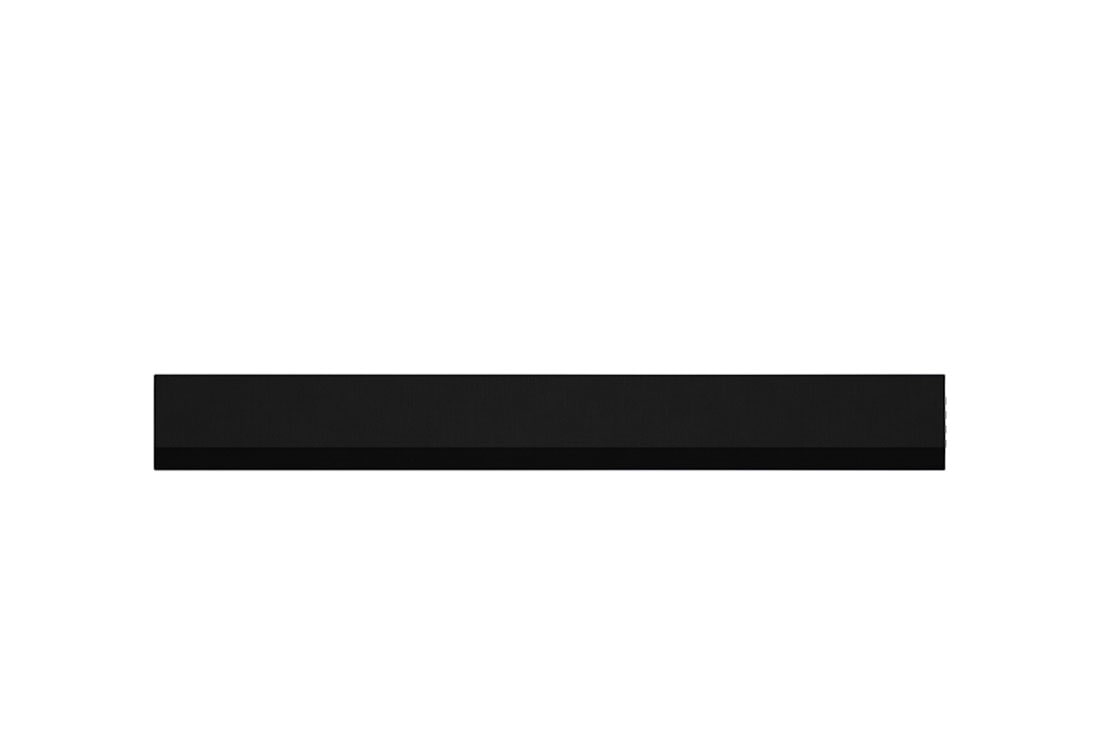

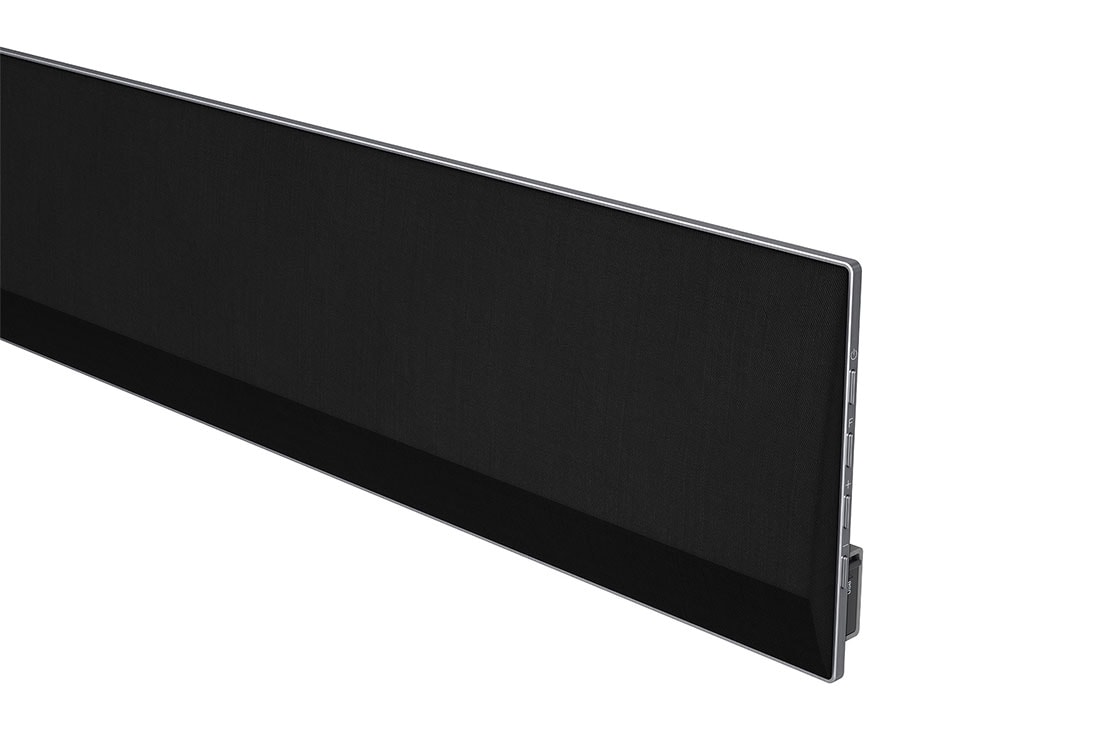

G1 component-copyModelName

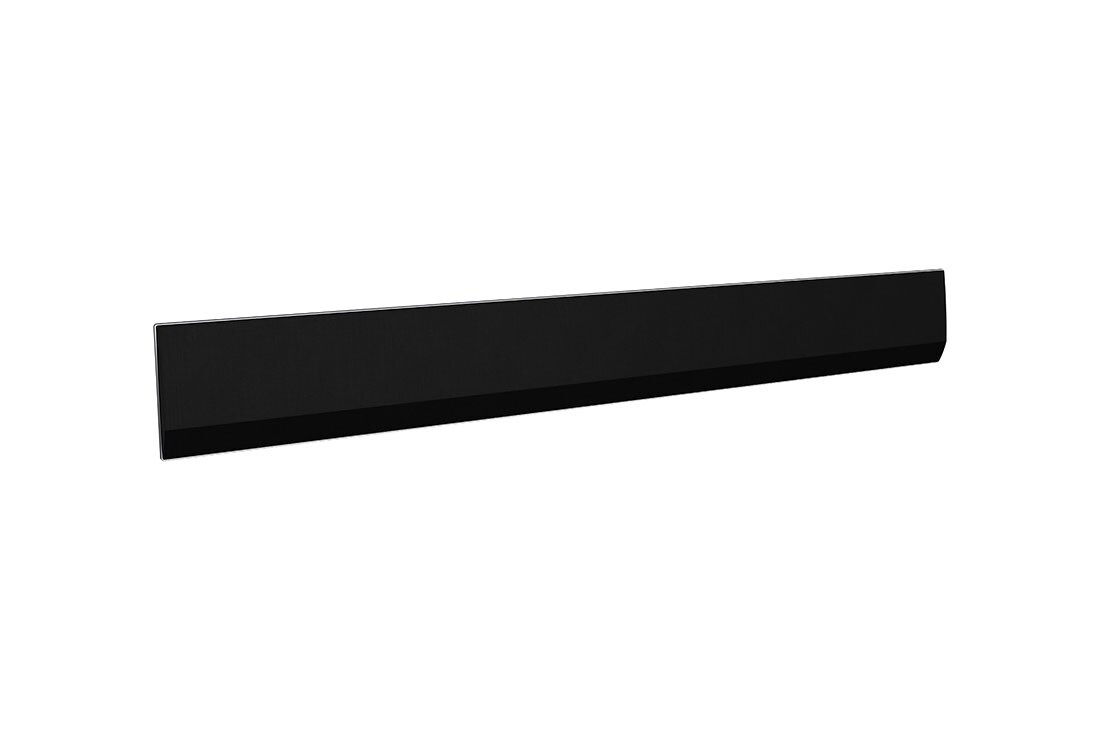

G1 | 3.1ch | 360W | Dolby Atmos

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

G1 | 3.1ch | 360W | Dolby Atmos
Close
MODEL INFORMATION
  • Brand Information
    LG Sound Bar
    Model Name
    G1
  • Subwoofer Model Name
    SPN5-W
    System (Main Chip)
    MT8531
  • Mainset / Subwoofer Color
    Black / Dark Silver (Top)
SIZE(W X H X D, MM)
  • Main (w/ Foot )
    1225 x 150 x 32.5
    Matching TV size (`20 New)
    55 inch ↑

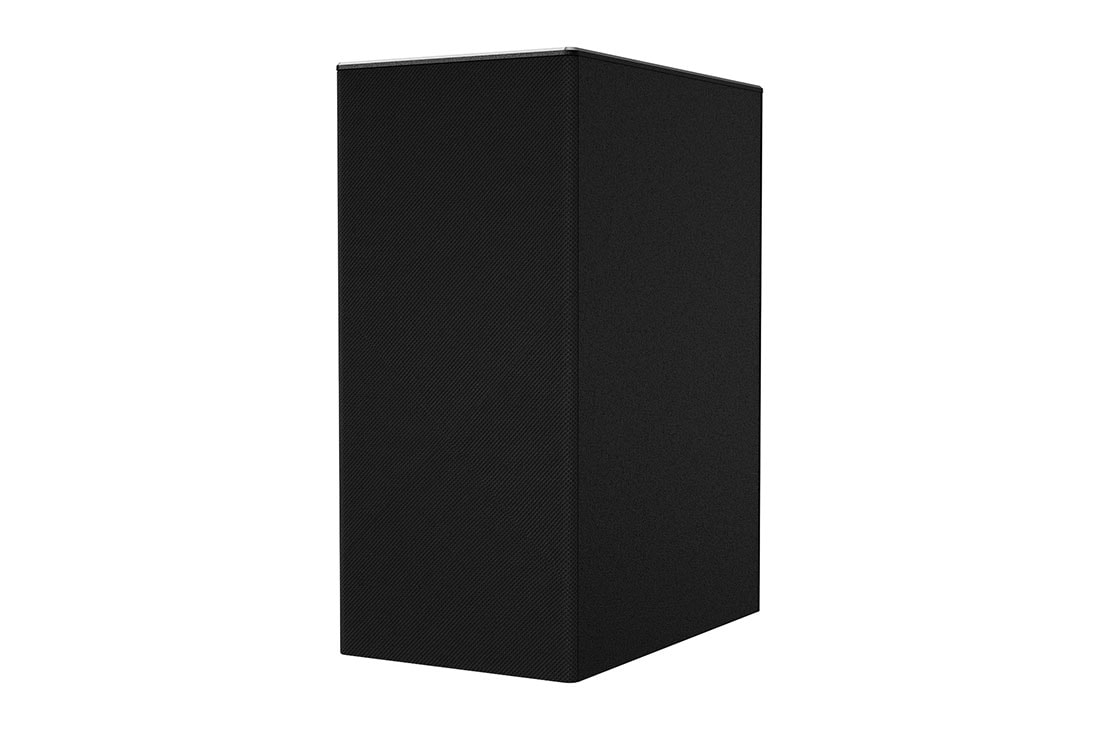

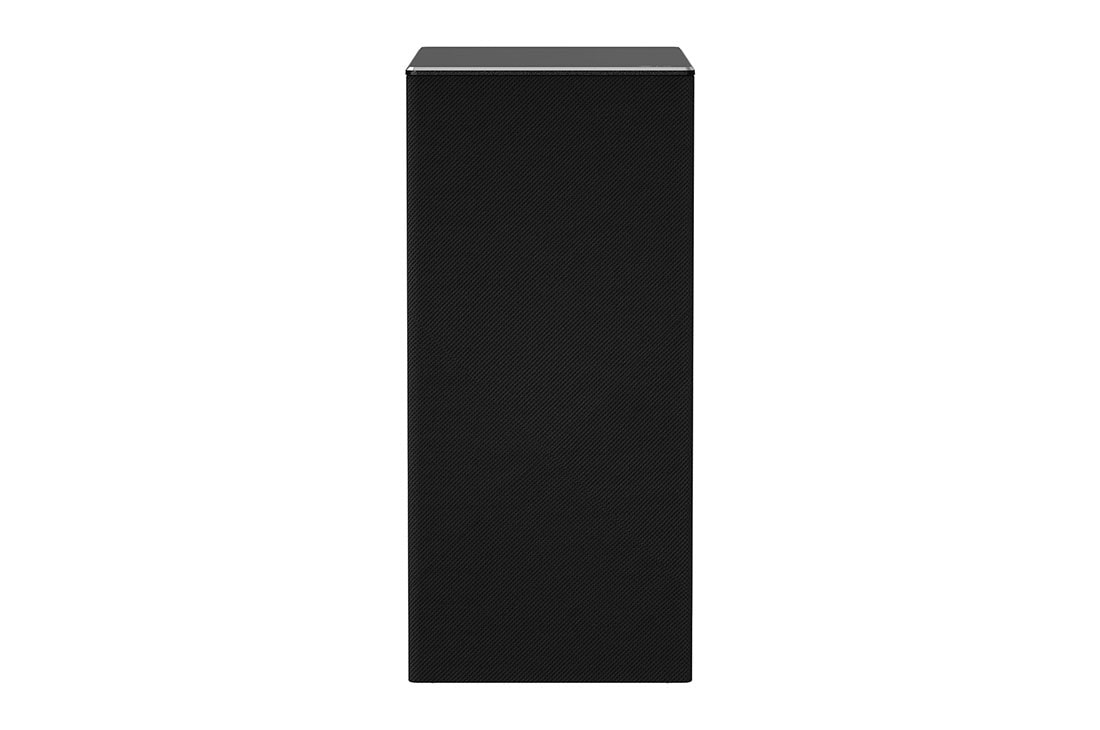

  • Subwoofer
    180 x 394 x 290
MATERIAL
  • Main - Front / Top / Bottom
    Jersey / Mold / Aluminum
    Subwoofer - Front / Body
    Jersey / Wood
Weight(Kg)
  • Main
    3.4Kg
    Subwoofer
    5.8Kg
  • Gross Weight
    16.3Kg
Container Q
  • 20ft
    190
    40ft
    405
  • 40ft (HC)
    477
NUMBER OF CHANNELS
  • Number of channels
    3.1ch
OUTPUT POWER(THD 10%)
  • Total
    360W
    Front
    50W*2
  • Center
    40W
    Subwoofer
    220W(Wireless)
SPEAKER UNIT_FRONT(L/R)
  • SPL
    83dB
    System
    Closed Box
  • Tweeter Unit
    20 mm (2EA)
    Woofer Unit
    3 Inch (2EA)
  • Impedance
    4ohm
SPEAKER UNIT_CENTER
  • SPL
    83dB
    System
    Closed Box
  • Woofer Unit
    2.3 Inch
    Impedance
    4ohm
SPEAKER UNIT_SUBWOOFER
  • SPL
    85dB
    System
    Bass Reflex
  • Woofer Unit
    6 inch
    Impedance
    3ohm
NO. OF SPEAKER UNIT
  • Number of speakers
    6EA

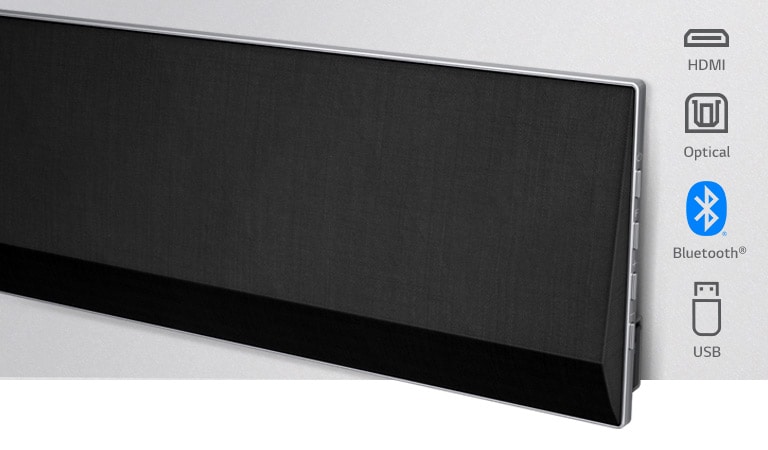

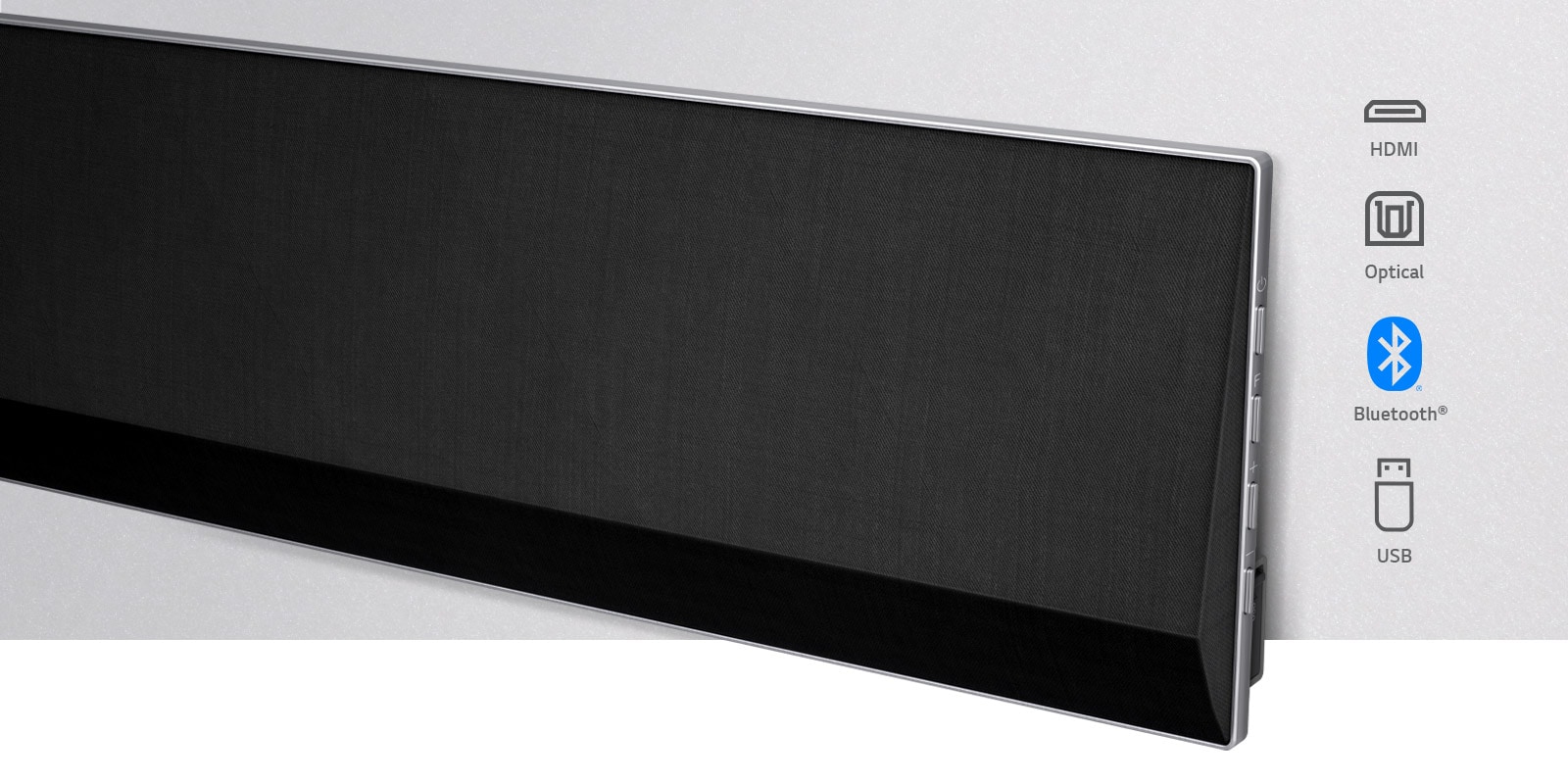

CONNECTIVITY_GENERAL
  • Optical
    Yes(1)
    HDMI 2.1 (HDCP 2.3) - In / Out
    Yes(1) / Yes(1)
  • HDR10 / HDR10+
    Yes / X
    Dolby Vision
    Yes
  • USB
    Yes
CONNECTIVITY_WIRELESS
  • Bluetooth Version
    4.0
    Bluetooth Codec - SBC / AAC
    Yes / Yes
  • Wireless Rear Ready
    Yes (1:1)
DISPLAY INFORMATION
  • Display Type
    LCD (5 char.)

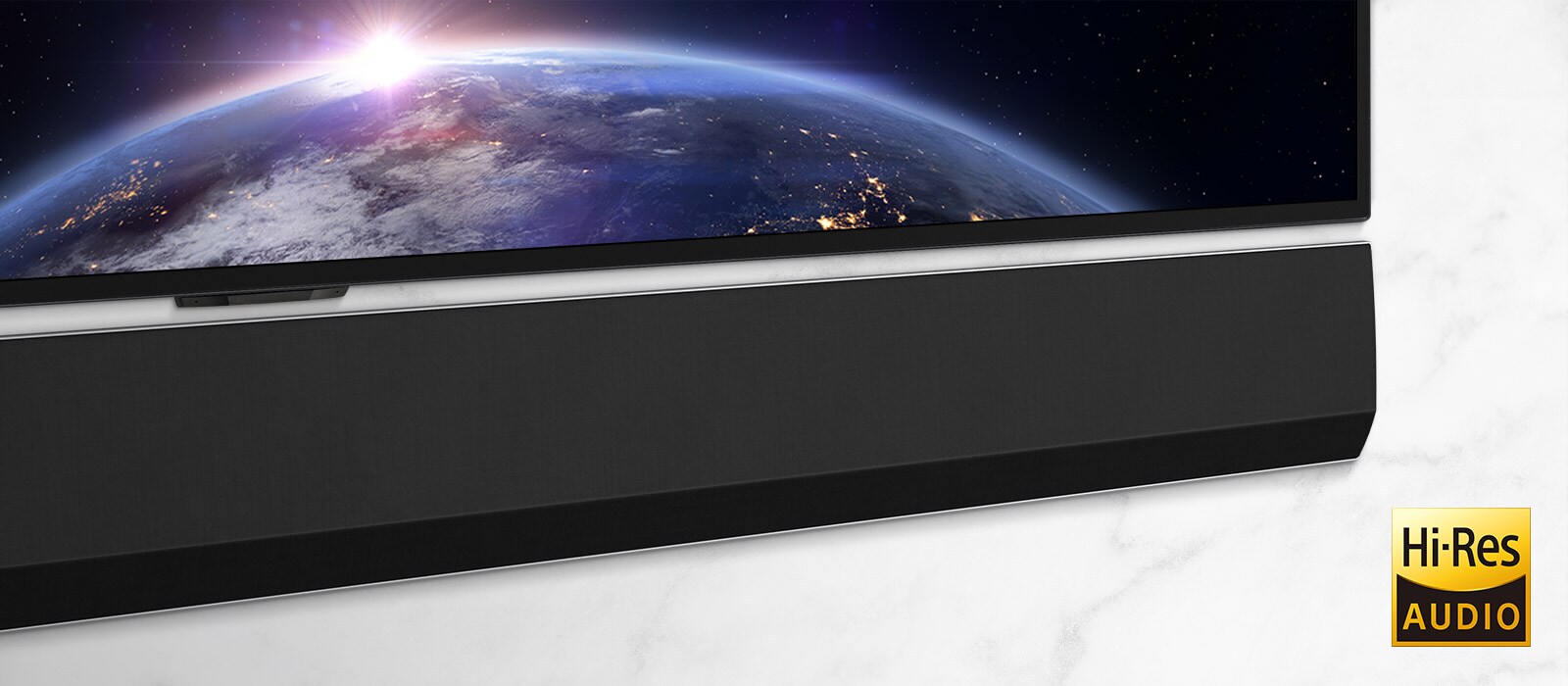

HI-RESOLUTION AUDIO
  • Sampling -"24bit/96kHz"
    Yes
    Upbit/upsampling - "24bit/96kHz"
    Yes
SOUND EFFECT
  • AI Sound Pro
    Yes
    Standard
    Yes
  • Music
    Yes
    Cinema → Movie
    Yes
  • Bass Blast / Bass Blast +
    Yes
    Dolby ATMOS
    Yes
  • DTS:X
    Yes
SOUND CONTROL
  • App
    Yes
CONVENIENCE
  • Remote App - Android OS
    Yes
    Smart Phone File Playback (Bluetooth)
    Yes
  • FOTA
    Yes
    Control with your TV Remote (Vol+/-, Mute)
    Yes / Yes
  • Sound Sync - Bluetooth(LG TV) / Optical
    Yes / Yes
    Auto Power On/Off - Bluetooth (LGTV) / Optical
    Yes / Yes
  • Auto Power On/Off - RCU / APP
    Yes / Yes
    A/V Sunc (0~300ms) - APP
    Yes
  • HDMI SIMPLINK
    Yes
    HDMI Audio Return Channel (ARC)
    Yes
  • HDMI Audio Return Channel (e-ARC)
    Yes
    Woofer Level (-15 ~ 6dB, 1dB/Step)
    Yes
  • Channel Level (-6 ~ 6dB, 1dB/Step)
    - Center / Rear
    Yes / Yes
    Mute
    Yes
  • Auto Dimmer
    Yes
    USB Host
    Yes
  • Built-in Music
    Yes
    Bluetooth Stand-By
    Yes
AUDIO FORMAT(BITSTREAM)
  • LPCM
    Yes
    Dolby Atmos
    Yes
  • Dolby TrueHD
    Yes
    Dolby Digital Plus
    Yes
  • Dolby Digital
    Yes
    DTS:X
    Yes
  • DTS-HD Master Audio
    Yes
    DTS-HD High Resolution
    Yes
  • DTS Digital Surround
    Yes
    AAC / AAC+
    Yes
FILE FORMAT
  • USB
    Yes
POWER_MAIN
  • Adapter
    25V, 2A
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    30W
POWER_SUBWOOFER
  • Type (SMPS)
    100~240V, 50/60Hz
    Power Off Consumption
    0.5W ↓
  • Power Consumption
    33W
    Wireless Frequency
    5GHz
ACCESSORY_MANUAL
  • Web Manual (File)
    Yes (Full)
    Built-in Manual (Book) (Simple or Full)
    Yes (Simple)
  • Wall Mount Guide
    Yes
    Wireless Speaker Reset Guide
    X
  • Open Source - Yes (Full or Simple)
    Yes (Full)
    Warranty Card
    Yes
ACCESSORY_REMOTE CONTROL
  • Model Name
    MA6
    Battery(Size)
    AAA x 2
  • Battery Built-in
    Yes
ACCESSORY_OTHERS
  • Wall Mount Bracket / Stand Bracket
    Yes / Yes
    HDMI Cable
    Yes
