SK5R component-copyModelName

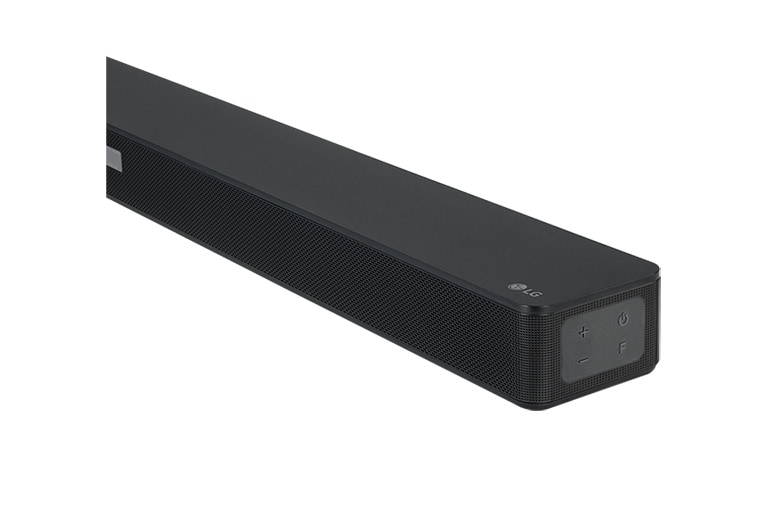

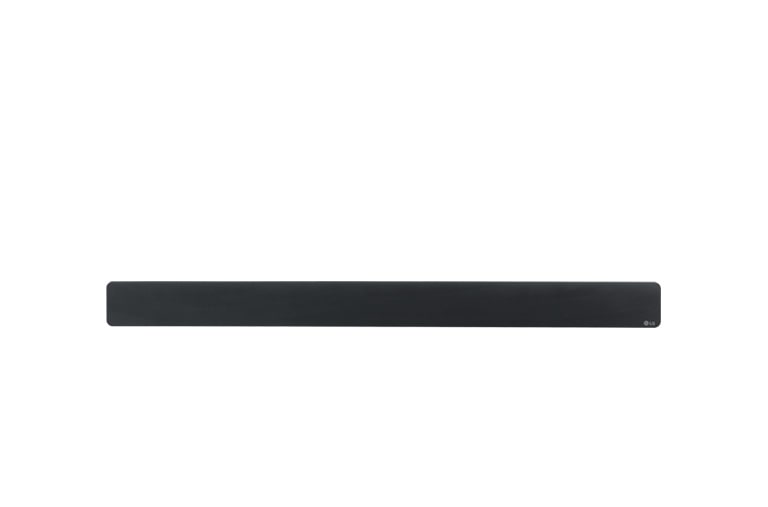

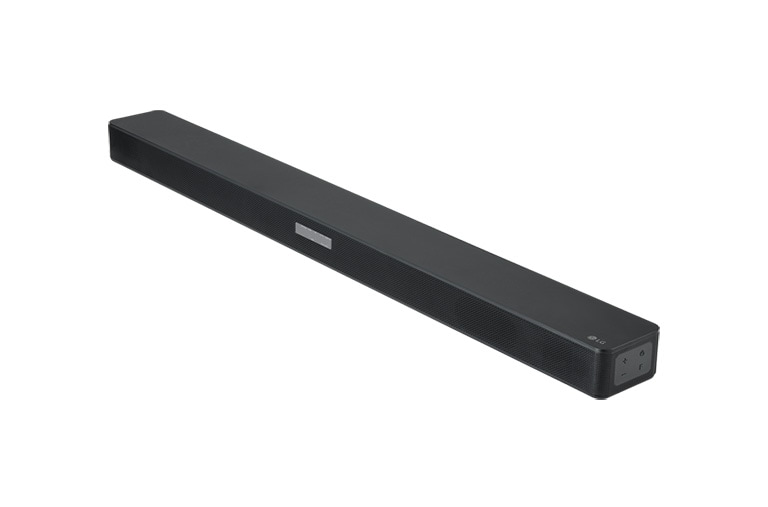

480W,4.1Ch Sound Bar, DTS Virtual:X, Hi-Res Audio

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

480W,4.1Ch Sound Bar, DTS Virtual:X, Hi-Res Audio
Close
PHYSICAL
  • Size (W x H x D)mm - Main (w/foot)mm
    890 X 57 X 87
    Size (W x H x D)mm - Main (w/foot)mm - Matching TV size ('18 New Designed LG TV)
    40inch ↑
  • Size (W x H x D)mm - Main (w/foot)mm - Built-in Foot (H)mm
    2
    Size (W x H x D)mm - Wireless Box
    60 x 220 x175
  • Size (W x H x D)mm - Rear speaker
    88 x 122 x 81
    Size (W x H x D)mm - Subwoofer
    171 X 392 X 247.5
  • Material - Mainset - Front
    Mold
    Material - Mainset - Top/Bottom
    Mold
  • Material - Wireless Box - Front
    Mold
    Material - Wireless Box - Top/Bottom
    Mold
  • Material - Rear speaker - Front
    Metal
    Material - Rear speaker - Top/Bottom
    Mold
  • Material - Subwoofer - Front
    Mold
    Material - Subwoofer - Body
    Mold
  • Net Weight (Kg) - Main
    2.35Kg
    Net Weight (Kg) - Wireless Box
    0.97Kg
  • Net Weight (Kg) - Rear speaker (1)
    0.87Kg
    Net Weight (Kg) - Subwoofer
    5.3Kg
  • Carton Size (W x H x D)mm
    946 x 373 x 223
    Carton Type
    Offset
  • Gross Weight (Kg)
    9.8Kg
    Container Q'ty - 20ft
    359
  • Container Q'ty - 40ft
    743
    Container Q'ty - 40ft (HC)
    867
CHANNEL/OUTPUT POWER
  • Channel
    4.1ch
    Output Power (THD 10%) - Total
    480W
  • Output Power (THD 10%) - Front
    80W X 2
    Output Power (THD 10%) - Rear
    60W X 2
  • Output Power (THD 10%) - Subwoofer
    200W (Wireless)
    Audio DAC - 24bit/96kHz
    Yes
SPEAKER
  • Main - SPL
    82dB
    Main - System
    Closed
  • Main - Tweeter Unit - Front Only
    20mm AL Dome
    Main - Woofer Unit
    40 x 100mm/4ohm
  • Main - Impedance
    4ohm
    Rear speaker - SPL
    82dB
  • Rear speaker - System
    Closed
    Rear speaker - Woofer Unit
    2.5inch paper (BK)
  • Rear Speaker - Impedance
    3ohm
    Subwoofer - SPL
    85dB
  • Subwoofer - System
    Bass Reflex
    Subwoofer - Woofer Unit
    6inch
  • Subwoofer - Impedance
    3ohm
CONNECTIVITY
  • General - Audio Input - Portable In (3.5Ø)
    Yes
    General - Optical
    Yes (1)
  • General - HDMI 1.4 (HDCP 1.4) - In/Out
    Yes (1)/Yes (1)
    General - USB
    Yes
  • Wireless - Bluetooth 4.0
    Yes
INFORMATION DISPLAY
  • Display Type
    Dot LED
    LED indicator Color
    Red (Stand By) + White (5)
SOUND MODE
  • Hi-Res Audio - Upbit/upsampling to - 24bit/96kHz
    Yes
    Sound Effect - ASC (Adaptive Sound Control)
    Yes
  • Sound Effect - Standard
    Yes
    Sound Effect - Bass Blast
    Yes
  • Sound Effect - DTS Virtual X
    Yes
    Night Mode - On/Off
    Yes
  • Auto sound engine - Default
    Yes
    SFX - Default
    Yes
CONVENIENCE
  • Smart Phone/Tablet Remote App (ios/android)
    Yes
    Smart Phone/Tablet Remote App (ios/android) - Update manager (FOTA)
    Yes
  • Smart Phone File Playback
    Yes
    Control with your TV Remote - Vol + , - , Mute
    Yes
  • Sound Sync - Bluetooth (LG TV)
    Yes
    Sound Sync - Optical
    Yes
  • Automatic Power on/off - Bluetooth (LG TV)
    Yes/Yes
    Automatic Power on/off - Optical
    Yes/Yes
  • SIMPLINK
    Yes
    Audio Return Channel (ARC)
    Yes
  • Woofer Level - -15 ~ +6dB
    Yes
    Mute
    Yes
  • Auto Dimmer
    Yes
    USB Host
    Yes
  • Bluetooth Stand-By
    Yes
    Wireless Rear Speaker Ready - 1:1 Rx module Type (Wireless Kit for rear)
    Yes
AUDIO FORMAT
  • LPCM
    Yes
    Dolby Digital
    Yes
  • DTS Digital Surround
    Yes
    DTS Virtual X
    Yes
  • FLAC - Up to 192kHz
    Yes
    OGG - Up to 48kHz
    Yes
  • WAV
    Yes
    MP3
    Yes
  • WMA
    Yes
    AAC/AAC+ - Bluetooth
    Yes
POWER CONSUMPTION
  • Main - Type - Adaptor
    25V, 1.52A
    Main - Power Off Consumption
    0.5W ↓
  • Main - Power Consumption
    22W
    Wireless Box - Type - SMPS
    100~240V, 50/60Hz
  • Wireless Box - Power Off Consumption
    0.5W Under
    Wireless Box - Power Consumption
    50W
  • Subwoofer - Type - SMPS
    100~240V, 50/60Hz
    Subwoofer - Power Off Consumption
    0.5W ↓
  • Subwoofer - Power Consumption
    33W
    Subwoofer - Wireless Frequency
    5.8GHz
FEATURE LIST ACCESSORY KIT
  • Owners Manual - Web
    Yes (Full)
    Owners Manual - Book
    Simple/Yes
  • Owners Manual - Wall Mount Guide
    Yes
    Owners Manual - Wireless Speaker Reset Guide (Rear Kit)
    Yes
  • OM - Open Source : X/Yes (Full/Simple)
    Yes (Full)
    Remote Control Unit - Model Name
    MA7
  • Remote Control Unit - Battery (Size)
    AAA x 2
    Batteries
    Yes
  • Warranty Card
    Yes
    Rear Speaker Cable
    Yes
  • Optical Cable
    Yes
    Wall Mount Bracket
    Yes
  • Box Type
    Offset
COUNTRY
  • Nigeria
    Yes
