47LY540S component-copyModelName
47'' TV Tuner Built-In Digital Signage

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

47" TV Tuner Built-In Digital Signage
Close
PANEL
  • Frame Rate
    60Hz
    Response Time
    8 ms (G to G)
  • Viewing Angle(HxV)
    178° x 178°
    Brightness
    230 cd/m2
  • Panel Technology
    Slim Direct LED
    Native Resolution
    1920x1080 (FHD)
  • Static (Panel) Contrast Ratio
    1,200:1
    Dynamic Contrast Ratio (Dynamic MCI (Hz))
    2,000,000:1
  • Panel Size (Measured Diagonally)
    47” Class(46.96”)
SPECIAL FEATURES
  • Digital Signage CMS
    Yes (SuperSign lite)
    Remote Diagnosis
    Yes (USB)
  • USB Cloning
    Yes
    Smart Energy Saving
    Yes
  • HDMI-CEC
    Yes
    Welcome Screen (Splash Image)
    Yes
  • Lock Mode
    Yes
    Audio Codec
    MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
  • MHL
    Yes
    Hotel Mode/ PDM /Installer Menu
    Yes
  • Multi IR Code
    Yes
    IR Out
    Yes (RS232C)
  • Auto Off / Auto Sleep
    Yes / Yes
    RJP Compatibility
    Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
  • RJP Interface
    Yes (RS232C, HDMI CEC)
    Kensington Lock
    Yes
  • External Speaker Out
    Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)
    USB Auto Play Back
    Yes
  • USB
    Yes (USB 2.0)
    Moving Picture Playback (SD/HD/Plus HD)
    Divx HD
  • Picture
    JPEG
    HTNG-CEC
    Yes (1.3)
  • Motion Eye Care (Intelligent Sensor)
    Yes
    One Channel Map/ Logical Channel Map
    Yes
REQUIRED LISTING (CERTIFICATION)
  • Safety
    cUL, UL, FCC, NOM
    RoHS Compliant
    Yes
BROADCASTING SYSTEM
  • Analog
    Yes (NTSC)
    Digital
    Yes (ATSC/Clear QAM/VSB)
CABINET
  • Dimensions with stand(WxHxD)
    42.2" X 26.6" X 9.7"
    Weight (with stand)
    28.0 Ibs
  • Dimensions without stand (WxHxD)
    42.2” x 24.8” x 2.2”
    Weight (without stand)
    27.1 lbs
  • Flame Retardent
    Yes
    Bezel Width (off Bezel) (mm)
    8.5mm/8.5mm/14mm
  • Bezel Width (on Bezel) (mm)
    11mm/11mm/16.5mm
    Carton
    45.3” x 28.0” x 6.0”
  • VESA™ Standard Mount Interface
    400mm x 400mm
    Color
    Dark Titan
  • Weight (with carton)
    36.2 Ibs
VIDEO
  • Dynamic Color Enhancer
    Yes
    Triple XD Engine
    Yes
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    Yes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)
INTERFACE (SIDE)
  • HDMI In
    1 Side
    USB (2.0)
    2 Side
AUDIO
  • Audio Output
    10W + 10W
    Sound Mode
    Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
  • Speaker System
    2.0 ch
    Optical Sound Sync
    Yes
  • Clear Voice II
    Yes
    Invisible Speaker
    Yes

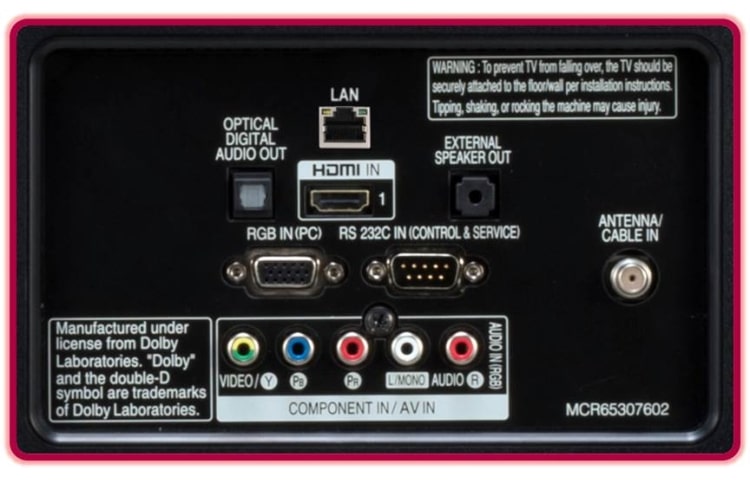

INTERFACE (REAR)
  • RF In
    1 Rear
    AV In
    1 (Sharing with Component in)
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1 Rear
  • RGB In (D-sub 15pin) - PC
    1 Rear
    PC Audio Input
    1(Share with component audio input)
  • RS-232C (D-Sub 9pin)
    1 (Control & Service)
    External Speaker Out
    1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical
  • Component in (Y,Pb,Pr) + Audio
    1 (5)
POWER
  • Stand-by
    0.5W↓
    Watts (typical)
    43.4W
  • Power Source
    110 ~ 240V, 50/60Hz
WARRANTY
  • Warranty
    2 Year Limited Warranty (Parts/Labor)
ACCESSORIES
  • Cable
    Power cord (1.5m, Angle Type)
