47WS50 component-copyModelName
47″ WS SERIES Eco Friendly & Professional Display

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

47″ WS SERIES Eco Friendly & Professional Display
Close
PANEL
  • Surface Treatment
    Hard Coating(3H), Anti-glare (Haze 10%)
    Screen Size
    47" Class (46.96" measured diagonal)
  • Panel Technology
    IPS
    Aspect Ratio
    16 : 9
  • Native Resolution
    1920 x 1080 (FHD)
    Brightness
    700cd/m2
  • Contrast Ratio
    1,300:1
    Dynamic CR
    500,000:1
  • Viewing Angle(H x V)
    178 x 178
    Life time
    60,000 Hrs
  • Pixels(H x V x 3)
    6,220,800
    Response Time
    12 ms(G to G), 6.15ms(40.0℃)
  • Tni
    110℃
    Orientation
    Portrait & Landscape
  • Color Depth
    1.06 Billion
    Color gamut
    72%
CONNECTIVITY - INPUT
  • Digital
    HDMI(1), DVI-D(1), Display Port(1) with HDCP for all input
    Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Audio
    RGB/DVI-D/AV/Component(3.5Φ 1)
    External Control
    RS232C(1), RJ45(1), IR(1)
  • USB
    Yes(1)
    HDTV Formats
    Component : 720p, 1080i , 1080p / HDMI : 720p, 1080i, 1080p
CONNECTIVITY - OUTPUT
  • Digital
    DVI-D(1)
    Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Audio
    External Speaker
    External Control
    RS232C(1), IR(1)
PHYSICAL SPECIFICATION
  • Weight(Head+Stand)
    16.9kg
    Handle
    No
  • Bezel Width
    11.5mm
    Monitor Dimension(W x H x D)
    107.18cm x 61.6cm x 3.1cm
  • Weight(Head)
    15.6kg
    Carton Dimensions(W x H x D)
    119.7cm x 77.0cm x 14.0cm
  • Packed Weight
    19.3kg
    VESA™ Standard Mount Interface
    400mm x 400mm
  • Weight(Head+Stand+Speaker)
    17.8kg
    Monitor with Optional Stand
    107.18cm x 69.04cm x 29.83cm
  • Monitor with Optional Stand & Speaker Dimensions(W x H x D)
    107.18cm x 69.04cm x 29.83cm
    Color
    Black
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
SPECIAL FEATURES
  • Auto Config/Phase
    Yes
    Smart Energy Saving
    Yes
  • Energy Saving
    Yes(Minimum, Medium, Maxium)

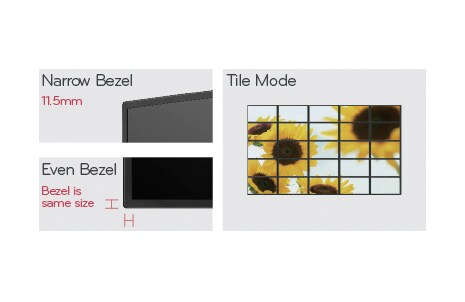

    Tile Mode
    Yes, Up to 15 x 15
  • Natural Mode @Tile Mode
    Yes
    Power Indicatior On/Off
    No
  • PIP/PBP
    Yes
    Time
    Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
  • DPM Select
    Yes
    Key Lock
    Yes
  • Language (USB Playback)
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
    Language (OSD)
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
  • Advanced
    Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
    Information
    Model/Type, Software Version, Serial Number, IP Address, MAC Address, Homepage
  • ISM Method
    Normal, White Wash, Orbiter, Inversion
    Language (ESG)
    English, French, Italian, German, Spanish, Portugues, Greek, Polish, Czech, Slovak
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    No
  • File Play with USB
    Yes
    Logo Light On/Off
    No
  • Auto Power/Source Memory
    Yes
    Source Selection
    AV, Component, RGB, Display Port, DVI-D, HDMI, SuperSign(Option)
  • Language (Manual)
    English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian, Polish, Arabic, Indonesian, Korean, Japanese, Turkish, Czech, Taiwanese, Slovak
    Brightness/Contrast/Backlight
    Yes
  • Input Label
    Yes(PC/DTV)
    Position/Size
    Yes
  • Cooling FAN
    No
POWER
  • Power Type
    Built-In Power
    Power Supply
    100-240V~, 50/60Hz
  • Power Consumption - Typ.
    120W
    Power Consumption - Smart Enegy Saving
    85W
  • Power Consumption - Power off
    0.5W
    Power Consumption - DPM
    1W(Set Only), 2W(With External Device)
  • Power Switch
    No
STANDARD(CERTIFICATION)
  • Safety
    UL, cUL, CB scheme, TUV
    EMC
    FCC Class "B", VCCI, C-tick, CE, KCC
  • ErP / Energy Star
    Yes / Yes(Energy Star 5.1)
MEDIA PLAYER COMPATIBILITY
  • Slot PC compatible (optional)
    No
    External Media player Attatchable
    No
SOFTWARE COMPATIBILITY
  • SuperSign Elite-w lite
    Yes - Editing, Scheduling, Distribution & Play, Control
    ez-Net Manager
    No
ACCESSORY
  • Optional Accessory
    AP-WX60 / AP-WX70 (Wall Mount), SP-2000(Speaker), ST-200T(Stand)
    Accessory
    Remote Controller, Power Cable, RGB Cable, Manual, ESG, IR Receiver
AUDIO
  • Auto Volume
    No
    Balance
    Yes
  • Audio Power
    20W(10W x 2)
    Speaker On/Off
    Yes
  • Clear Voice II
    Yes
    Sound Mode
    Standard, Music, Cinema, Sport, Game
VIDEO(PC)
  • Max Input Resolution
    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)
    Recommended Resolution
    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)
  • H-Scanning Frequency
    30 ~ 83kHz(RGB, HDMI, DVI-D, Display Port)
    V-Scanning Frequency
    56 ~ 75Hz(RGB), 60Hz(HDMI, DVI-D, Display Port)
  • Pixel Frequency
    148.5MHz(RGB, HDMI, DVI-D, Display Port)
    Sync Compatability
    Separate, Composite, Digital
  • Video Input
    RGB, HDMI, DVI-D, Display Port
    Picture mode
    Vivid, Standard, Cinema, Sports, Game
  • Color temperature
    Warm, Medium, Cool
