47WV30 component-copyModelName
47'' FHD LED Super-Narrowest Bezel Video Wall Monitor

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

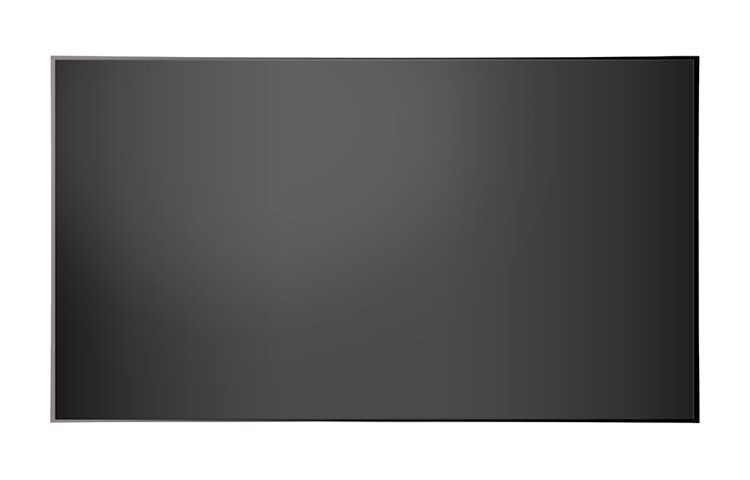

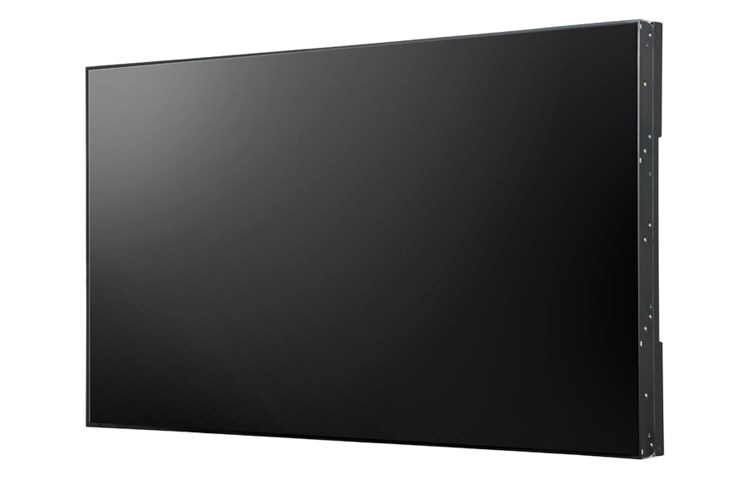

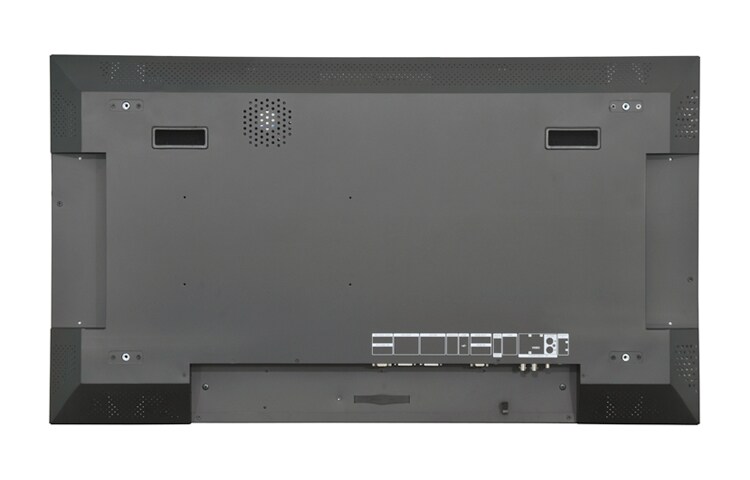

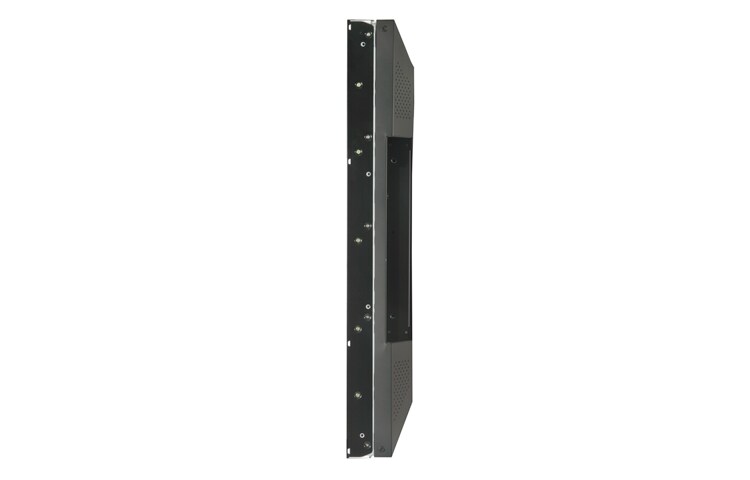

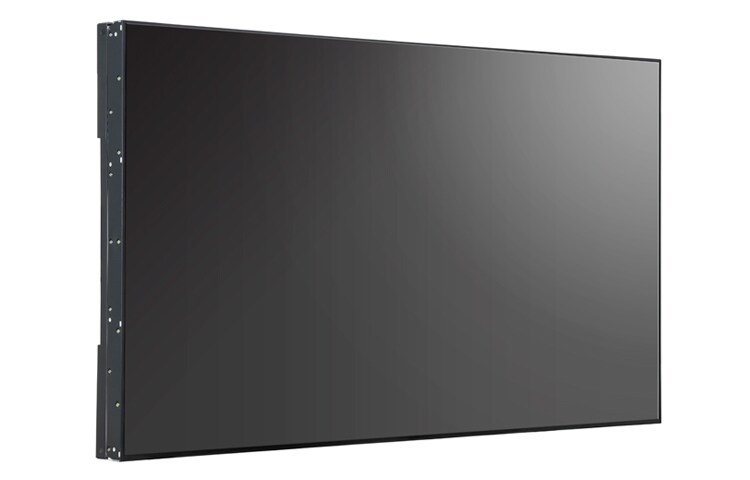

47'' FHD LED Super-Narrowest Bezel Video Wall Monitor
Close
PANEL
  • Screen Size
    47"
    Panel Technology
    IPS (LED BLU)
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,366 x 768 (HD) , 1,920x 1,080 at Video Wall
  • Brightness
    800nit
    Contrast Ratio
    1,400 : 1
  • Dynamic CR
    500,000 : 1
    Viewing Angle(H x V)
    178 x 178
  • Response Time
    8ms (G to G, *WOT)

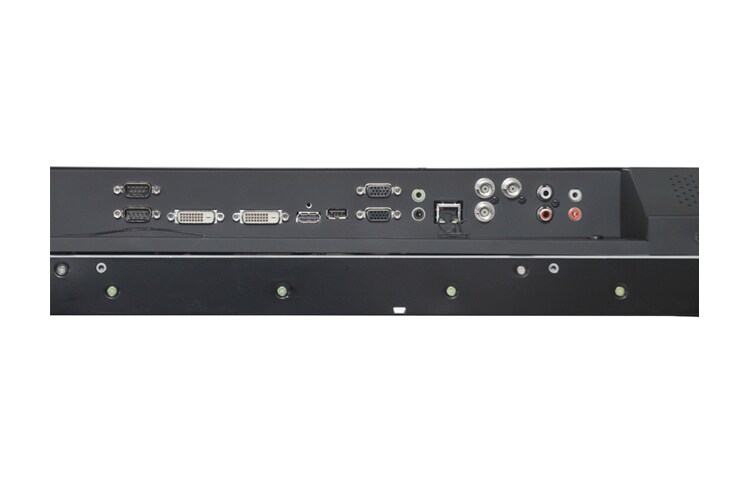

CONNECTIVITY
  • Input (Rear) - Digital
    DVI, HDMI/DVI with HDCP
    Input (Rear) - Analog
    RGB(1), Component(BNC, 1), AV(BNC, 1)
  • Input (Rear) - Audio
    PC Audio In (1), AV/Component Audio(RCA,1)
    Input (Rear) - External Control
    RS232C(1), RJ45(1), IR Receiver(1)
  • Input (Rear) - USB
    USB(1)
    Output (Rear) - Digital
    DVI-D(1)
  • Output (Rear) - Analog
    RGB
    Output (Rear) - Audio
    External speaker
  • Output (Rear) - External Control
    RS232C
PHYSICAL SPECIFICATION
  • Bezel Width
    3.9 (left/top) / 2.4 (right/bottom) mm
    Monitor Dimension(W x H x D)
    104.68cm x 59.16cm x 9.11cm
  • Weight(head)
    29kg
    Carton Dimensions(W x H x D)
    119.5cm x 75.0cm x 33.5cm
  • Packed Weight
    35kg
    VESATM Standard Mount
    800mm x 400mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
SPECIAL FEATURES
  • Additional
    Temp sensor, 15X15 Tile mode, 2 types of Handle, Shine out, USB playback
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Consumption - Typical / Smart Energy saving
    160W (Typ), 110W (SES)
  • Power Consumption - DPMS
    1.0W (RGB), 1.0W (HDMI)
    Power Consumption - Power Off
    0.5W
STANDARD(CERTIFICATION)
  • Safety
    UL / c-UL / CB / TUV / KC
    EMC
    FCC / CE / KCC / VCCI / JQA
  • ErP / Energy Star
    Yes / Yes (Energy Star 5.1)
MEDIA PLAYER COMPATIBILITY
  • External Media player Attachable
    Yes
SOFTWARE COMPATIBILITY
  • Supersign Compatibility
    Elite-w / Elite-w lite (Only control)
ACCESSORY
  • Included
    Remote Controller, Power cable, RGB Cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw, Ring Core
    Optional
    Wall Mount
