LX761H Series

Key Features

component-OBScountrySelectDesc

LX761H Series
LCD PANEL SPECIFICATION
  • Backlight Type
    Edge LED
    Cinema 3D
    -
  • Resolution
    1,920 x 1,080 (FHD)
    Brightness (cd/㎡)
    300
BROADCASTING SYSTEM
  • Analog
    PAL/SECAM/NTSC-M
    Terrestrial
    DVB-T2
  • Cable
    DVB-C
    Satellite
    DVB-S2
VIDEO
  • Real Cinema 24p (3:3 Pull down)
    Yes
    Aspect Ratio
    8 modes (16:9, Just scan, Original, Full Wide, 4:3, 14:9, Cinema Zoom 1, Zoom)
AUDIO
  • Audio Output
    10W + 10W
    Wireless Sound Sync
    -
FEATURE

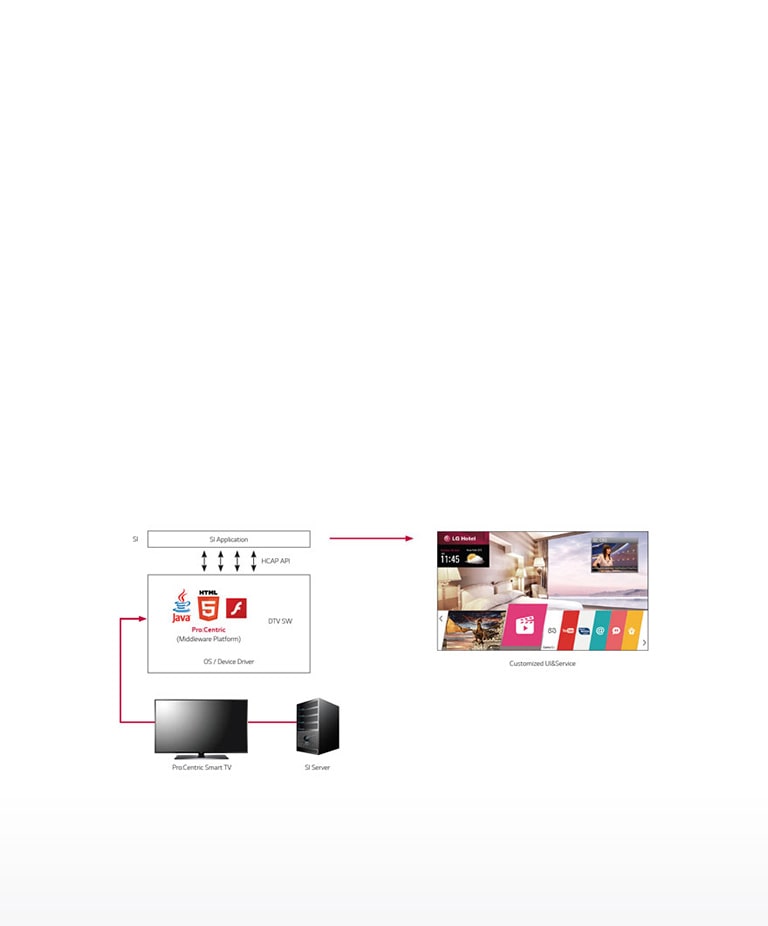

  • Pro:Centric
    Yes (Smart)
    Pro:Idiom
    Yes
INTERFACE - SET SIDE
  • Headphone Out
    1
    RF In
    -
  • AV in
    -
    S-Video In
    -
  • RGB In (D-sub 15pin)
    -
    PC Audio Input
    -
  • Component In (Y,Pb,Pr)
    -
    HDMI In
    1
  • USB (2.0)
    2
    CI Slot
    1
  • IR Out
    -
INTERFACE - SET REAR
  • RF In
    2
    AV In
    1 (RCA type)
  • AV Out
    -
    S-Video In
    -
  • Full Scart
    -
    Component in (Y,Pb,Pr) + Audio
    1 (RCA 5, Component)
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    HDMI/HDCP Input
    1
  • USB 2.0
    -
    RGB In (D-sub 15pin) - PC
    -
  • PC Audio Input
    -
    RS-232C (D-sub 9pin)
    1
  • Headphone Out
    -
    Clock Interface
    -
  • LAN Port
    2
    RJ45 (RJP interface)
    -
  • External Speaker Out (3.5mm phone jack)
    2 (Spk-out 1, Vol. Control 1)
    TV link Configuration (phone jack type)
    -
POWER
  • Voltage, Hz
    100 ~ 240V, 50/60Hz
    Typical (Watts)
    77.6W
TOOL DESCRIPTION
  • Swivel (angle)
    Yes
    VESA Compatibility
    300 X 300
REQUIRED LISTING(CERTIFICATION)
  • Safety
    CB
    EMC
    CE
  • ETC
    ROHS
DIMENSION
  • Set Size (W/O Stand, WxHxD, mm)
    1,106 X 647 X 37 (SPK 55.1)
    Set Size (With Stand, WxHxD, mm)
    1,106 X 701 X 325
GENERAL
  • Region
    Middle East & Africa
