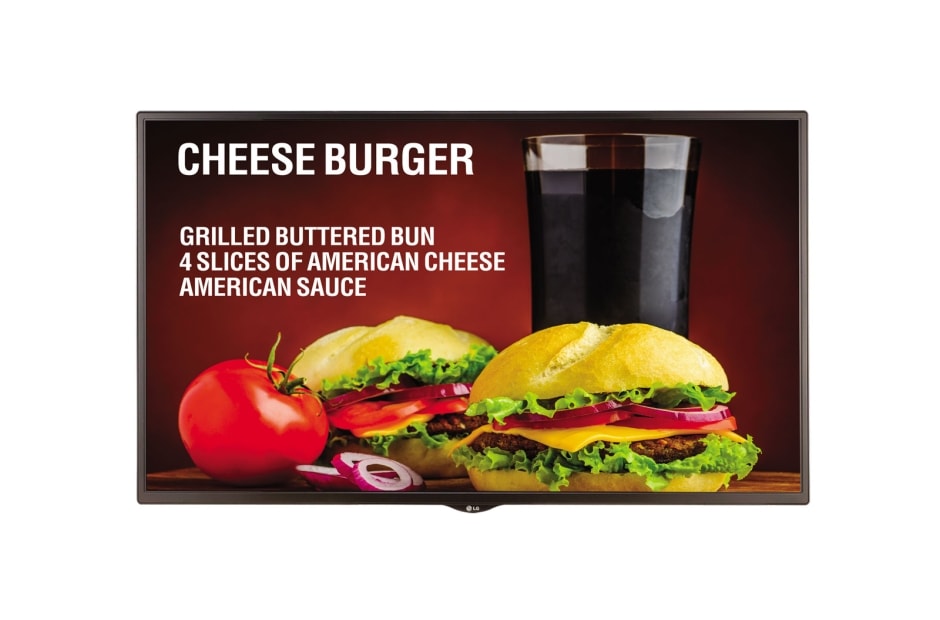

49SM5KC component-copyModelName
SM5KC Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49SM5KC)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49SM5KC)
    $
    $
    LG Members Price
Total
SM5KC Series
Quad Core SoC*<br>1 Quad Core SoC*<br>2
Smart Platform

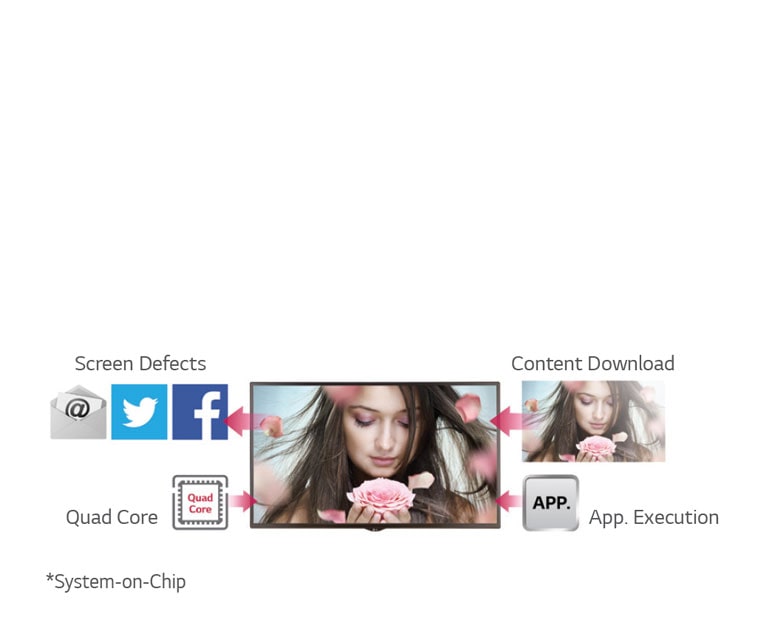

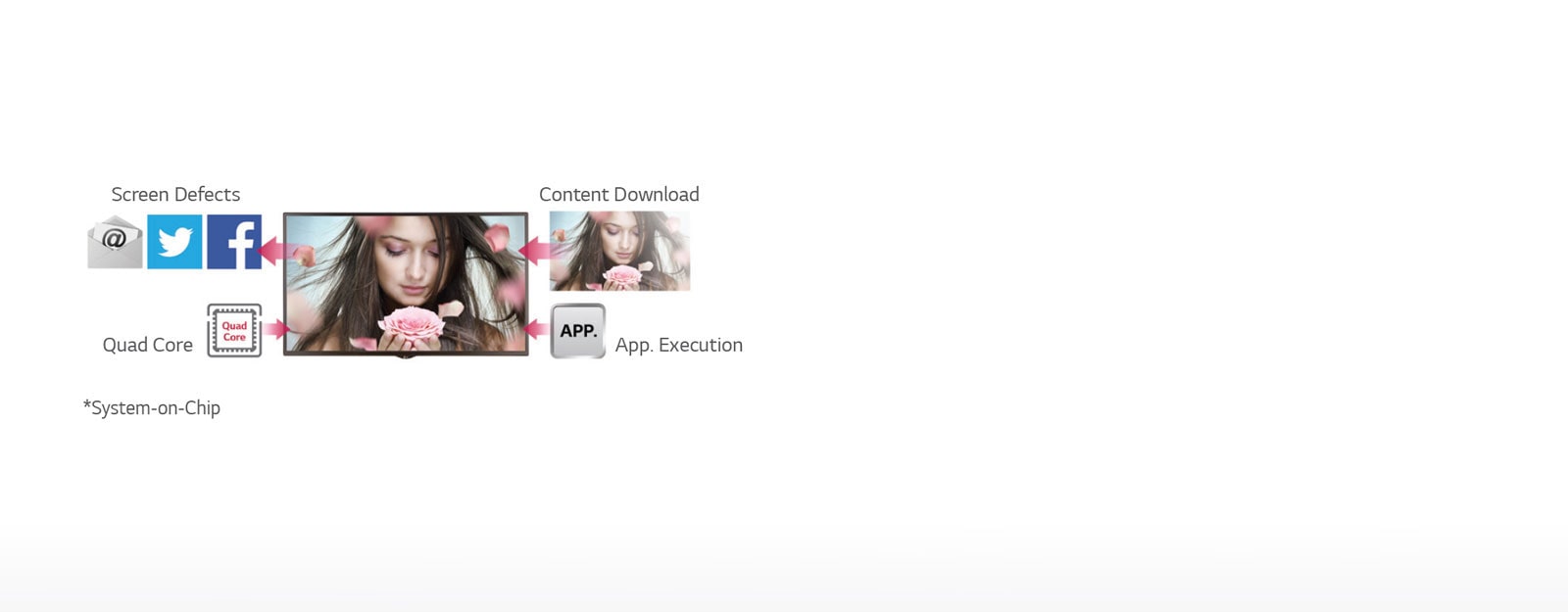

Quad Core SoC*

The high-performance SoC can execute several tasks at the same time and provides smooth content playback.
webOS 3.0<br>1 webOS 3.0<br>2
Smart Platform

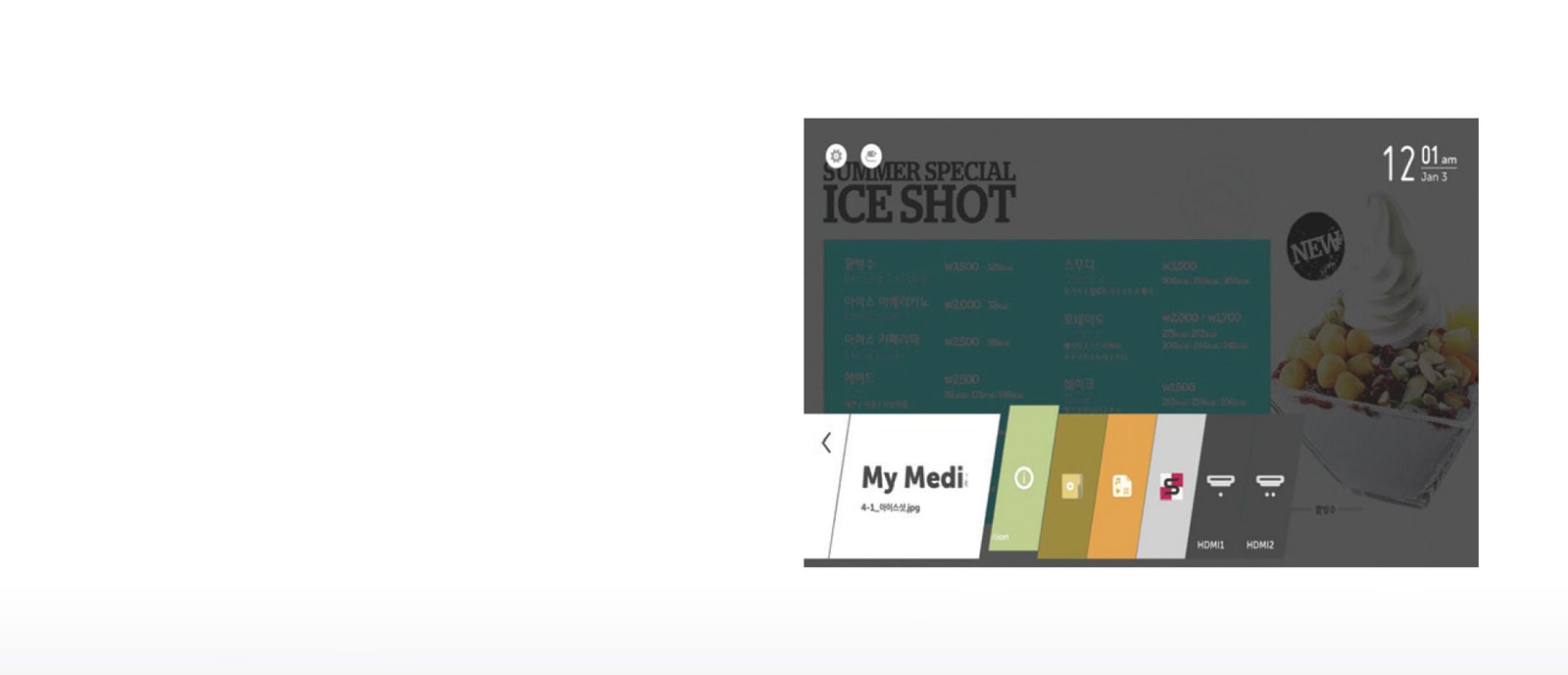

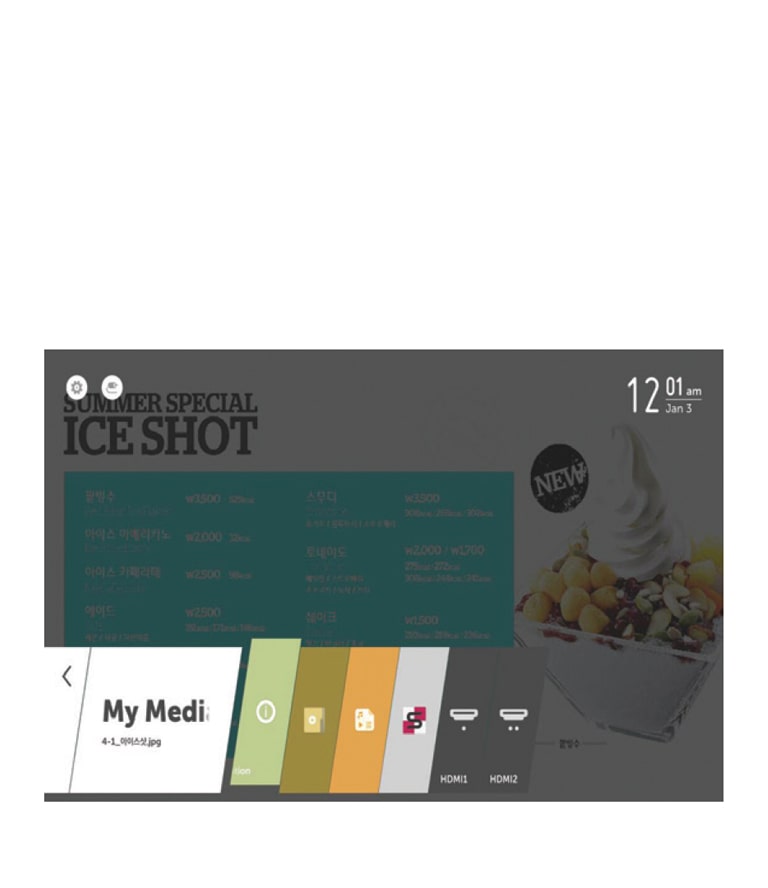

webOS 3.0

The webOS 3.0 platform provides powerful and convenient creation tools, including app development materials.
Group Manager<br>1 Group Manager<br>2
Smart Platform

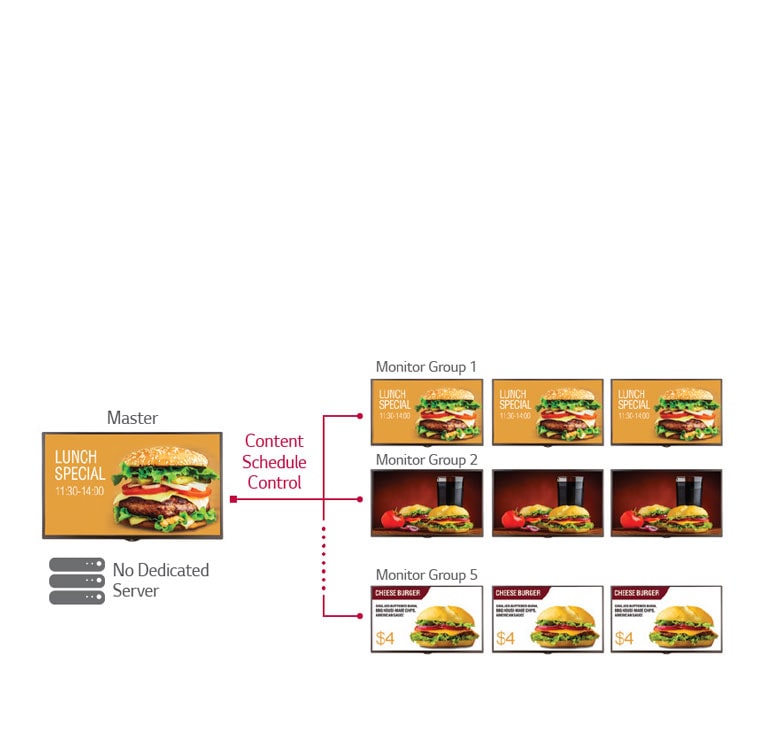

Group Manager

Content can be created, distributed and controlled by a signage without a dedicated PC or server.

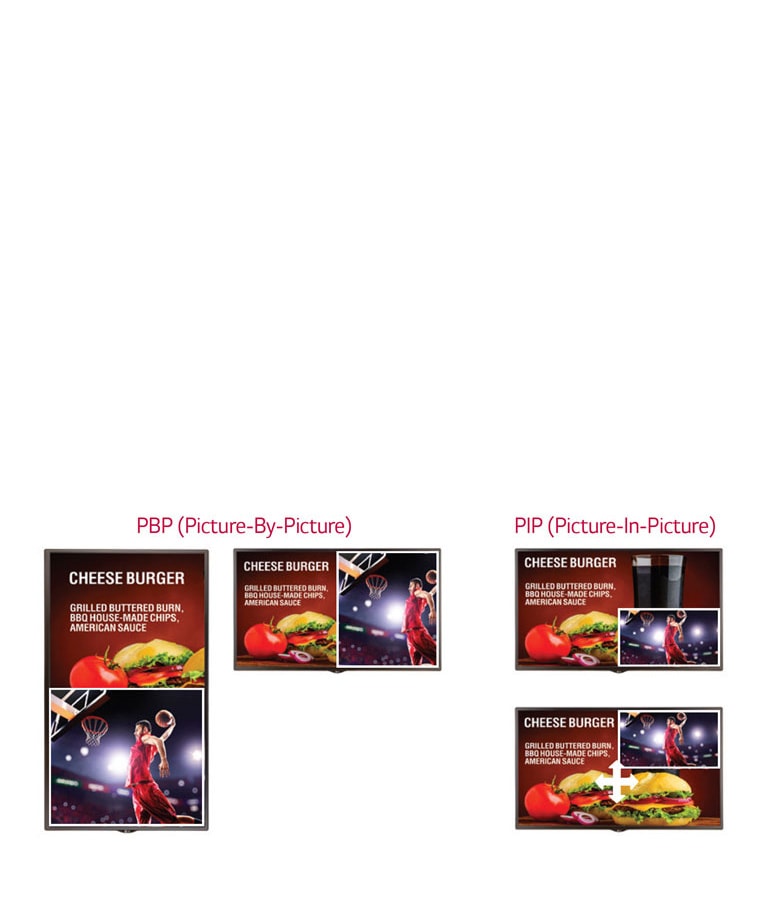

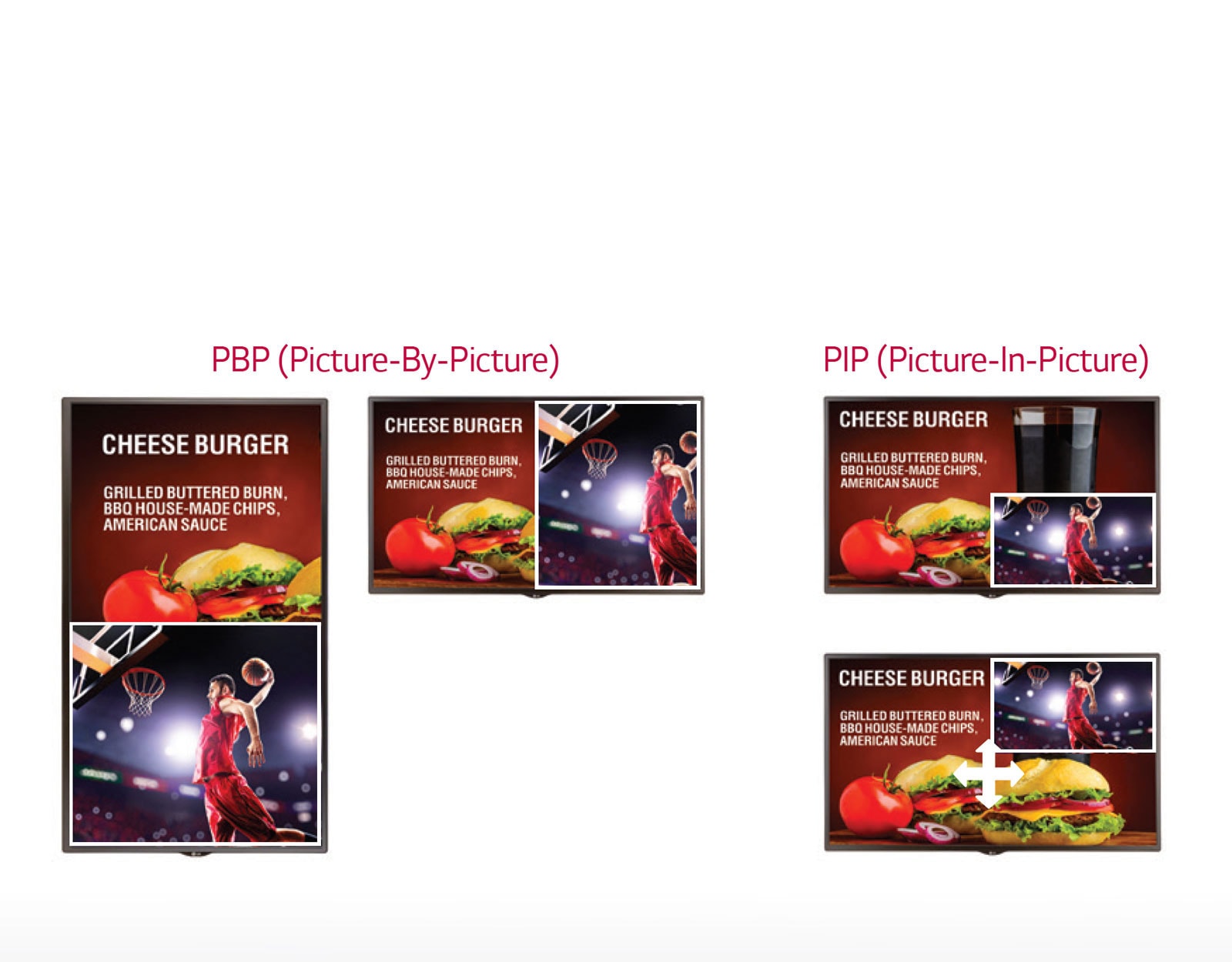

PBP(Picture-By-Picture) / PIP(Picture-In-Picture)<br>1 PBP(Picture-By-Picture) / PIP(Picture-In-Picture)<br>2
Smart Platform

PBP(Picture-By-Picture) / PIP(Picture-In-Picture)

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) features enable you to compose various layouts for several digital devices.

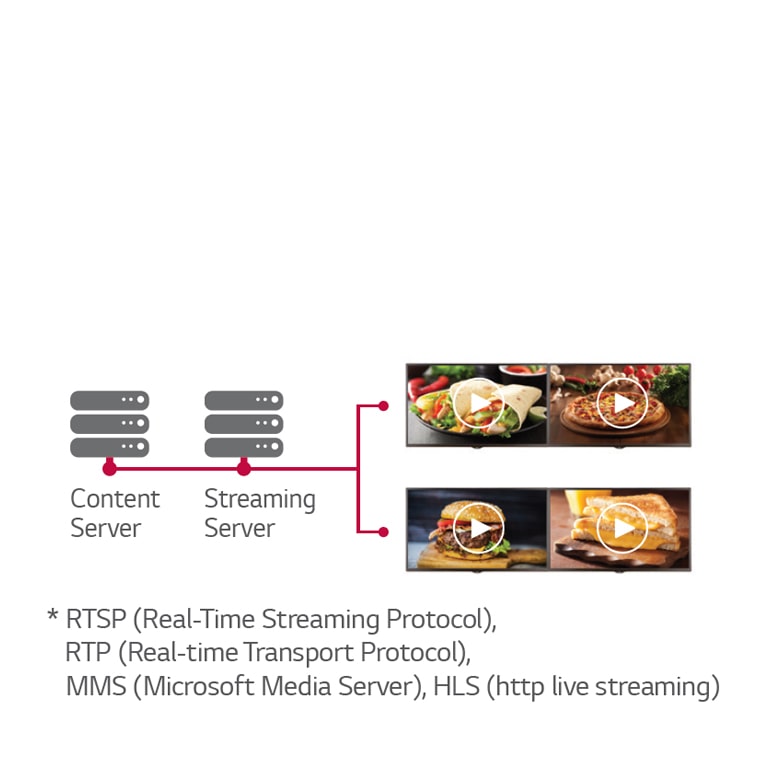

IP Streaming Protocol<br>1 IP Streaming Protocol<br>2
Support Network Protocol

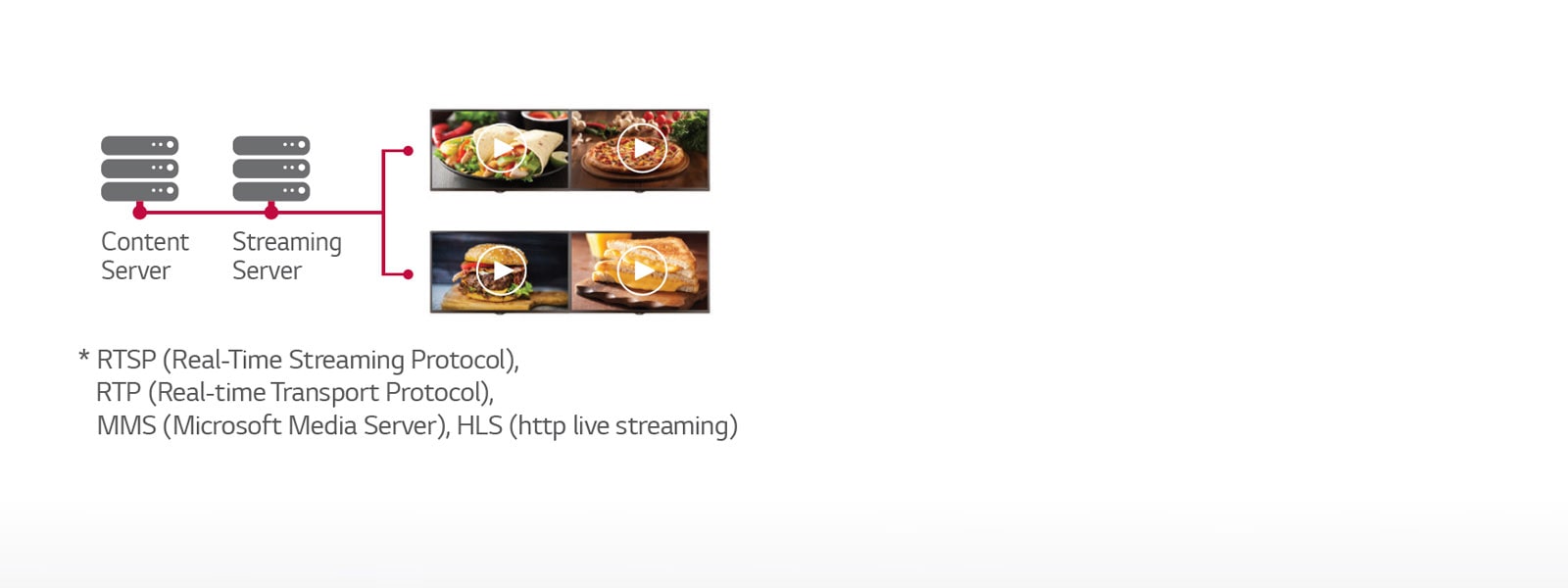

IP Streaming Protocol

Various types of IP video streaming protocol are supported, such as RTSP/RTP, MMS, HLS and MPEG-2 TS*.
Secure Communication Protocol<br>1 Secure Communication Protocol<br>2
Support Network Protocol

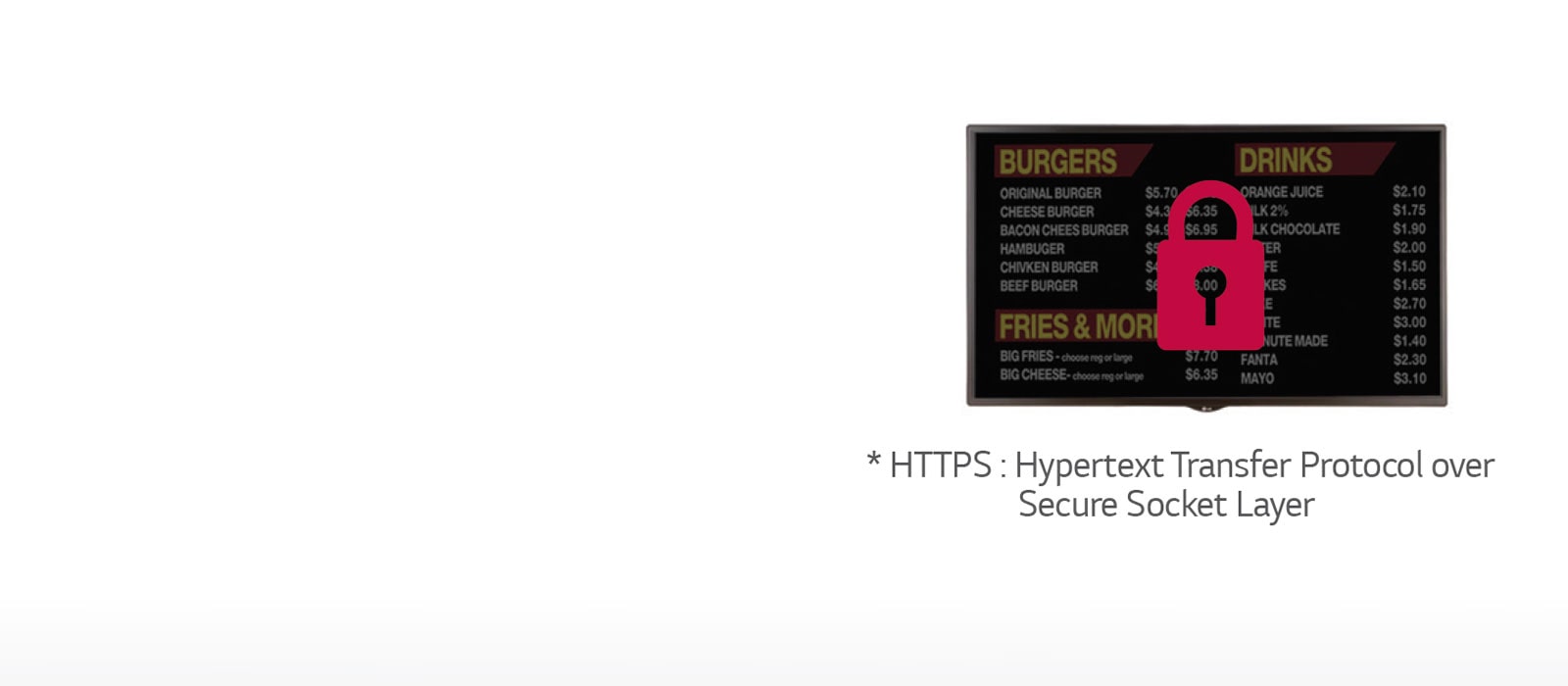

Secure Communication Protocol

By supporting HTTPS* protocol, communication between server and signage is more secure.
Proxy Server<br>1 Proxy Server<br>2
Support Network Protocol

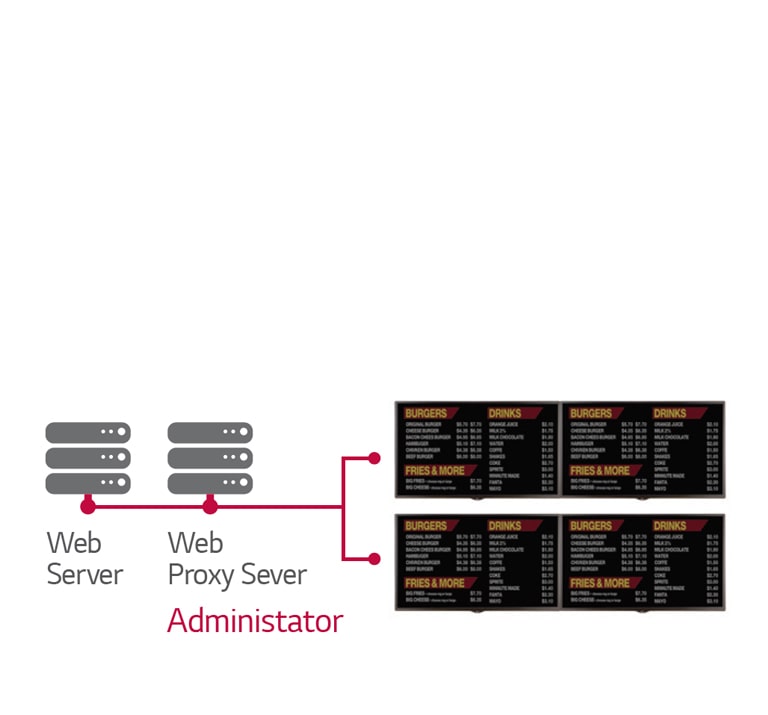

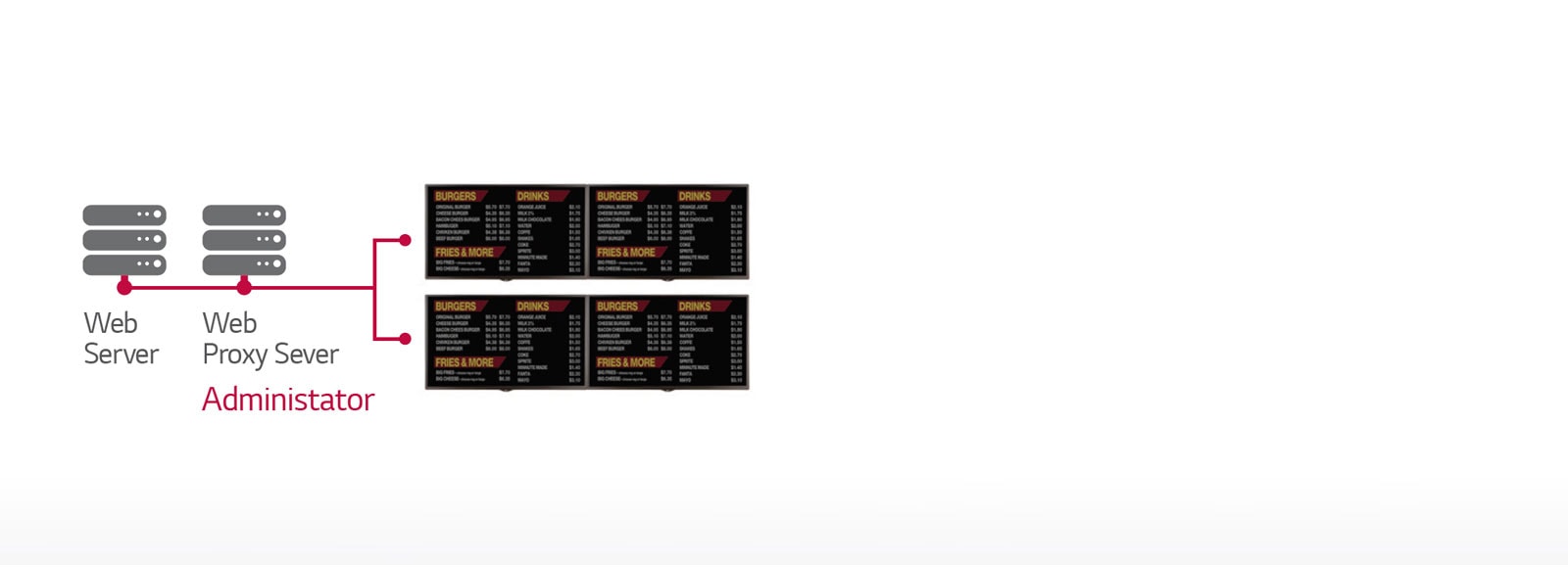

Proxy Server

Web access speed and security can be improved by supporting Proxy Server (A server that acts as an intermediary for requests from clients seeking resources from other servers.)
Mirroring<br>1 Mirroring<br>2
Built-in Wi-Fi

Mirroring

Content sharing is more convenient
on a Wi-Fi network.
Soft AP <br>1 Soft AP <br>2
Built-in Wi-Fi

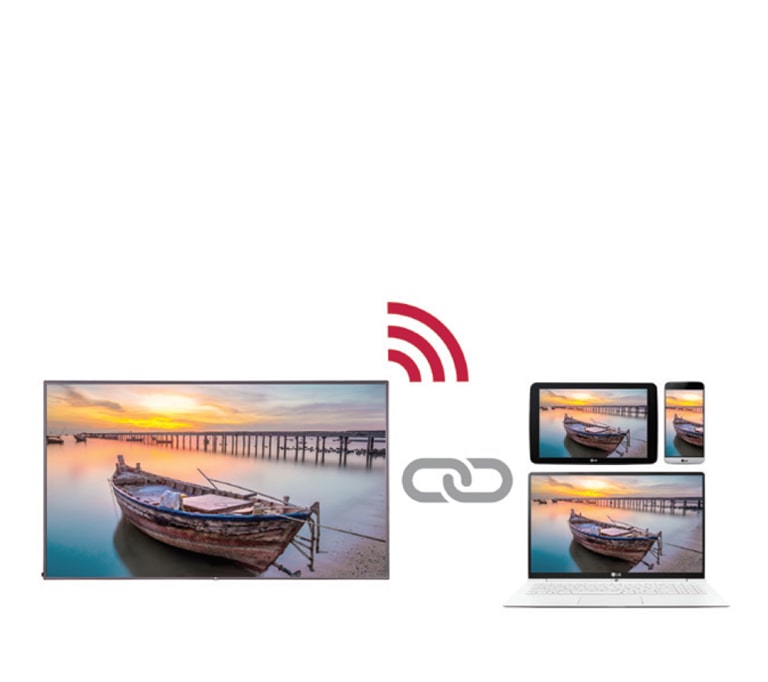

Soft AP

The SM5KC with Soft AP software can
operate as a wireless access point for mobile
devices.
Simple Installation<br>1 Simple Installation<br>2
Built-in Wi-Fi

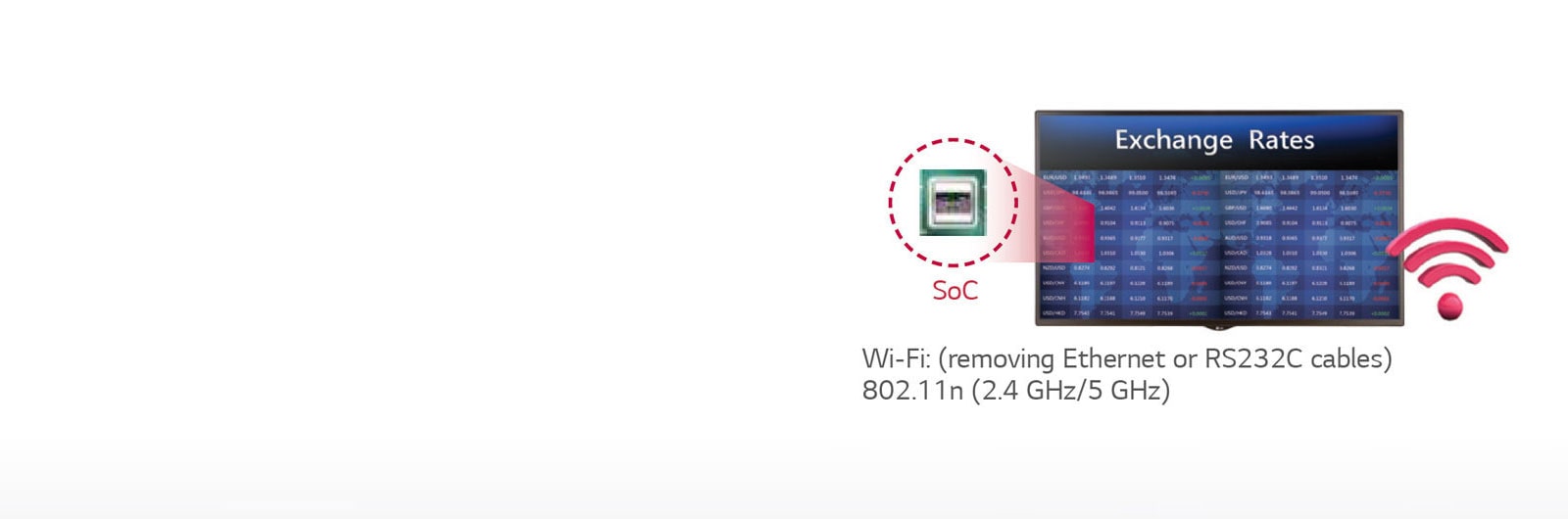

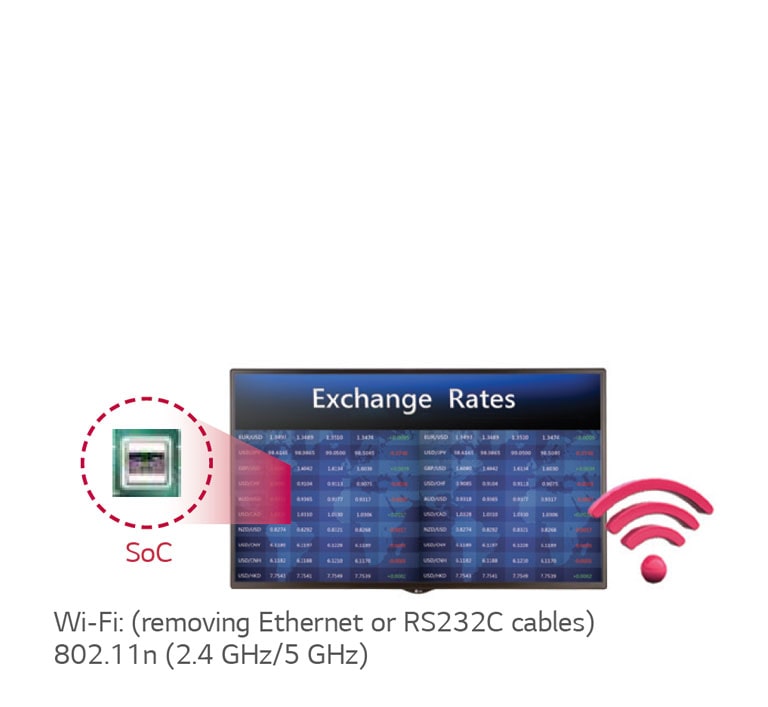

Simple Installation

Installation has been simplifi ed by removing
the external media player and Ethernet / RS232C cables.
Supportive Convenience<br>1 Supportive Convenience<br>2

Supportive Convenience

BEACON
With BEACON and Bluetooth Low Energy (BLE) supported by SM5KC*, retail stores can provide coupons and information in real time.
Industrial Design<br>1 Industrial Design<br>2

Industrial Design

Detachable logo

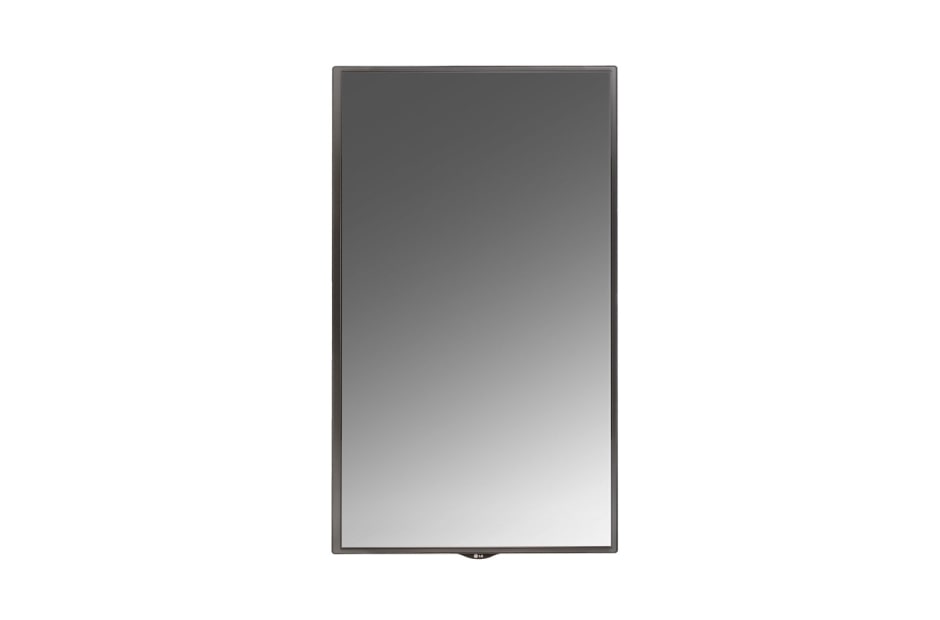

The detachable logo allows for installation in the desired orientation : landscape or portrait mode.
Enhanced Maintenance<br>1 Enhanced Maintenance<br>2

Enhanced Maintenance

Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Close
PANEL
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    450cd/m²
    Orientation
    Portrait & Landscape
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, RGB, Audio, SD card
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ in, IR Receiver, Pixel Sensor, USB 3.0, SD Card
PHYSICAL SPECIFICATION
  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    1,102.2 x 638.5 x 38.6 mm
  • Weight (Head)
    14.1 kg
    VESA™ Standard Mount Interface
    300mm x 300mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Switch
    No
POWER CONSUMPTION
  • Typ.
    85 W
    Smart Energy Saving
    60 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    N/A / Yes (Energy Star 7.0)
    Audio Power
    20 W (10 W x 2) for Internal Speaker (6 ohm)
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller (included 2ea batteries), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory cover
    Optional
    Speaker (SP-5000), Stand (ST-492T), Pixel sensor (KT-SP0), Media player, Wall bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
