TA3E Series
Built-in Interactive Touch<br>1 Built-in Interactive Touch<br>2
All-in-one Touch Experience

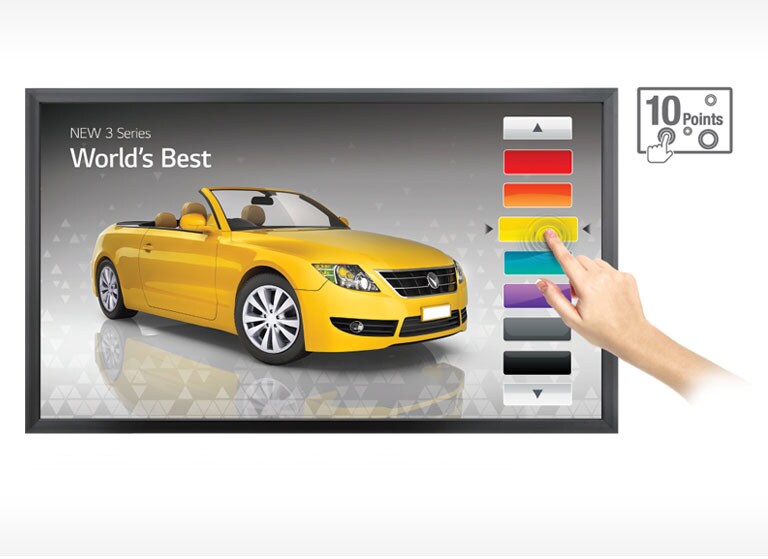

Built-in Interactive Touch

The TA3E series is a built-in touch display that provides immediate touch experiences without the need to purchase any separate overlay touch accessories. Various touch-based solutions can be applied for customer interactions to promote your brand, with a maximum of 10 touch points* supported.
*Touch points can vary depending on the connection environment.
Embedded Writing Solution<br>1 Embedded Writing Solution<br>2
All-in-one Touch Experience

Embedded Writing Solution

The LG IDB, the embedded writing application, offers an all-in-one solution for advanced customer engagement. No separate PC or software is necessary for white board performance, so operators can easily create two-way communication channels.
User-friendly Smart Platform<br>1 User-friendly Smart Platform<br>2
Simple Customization

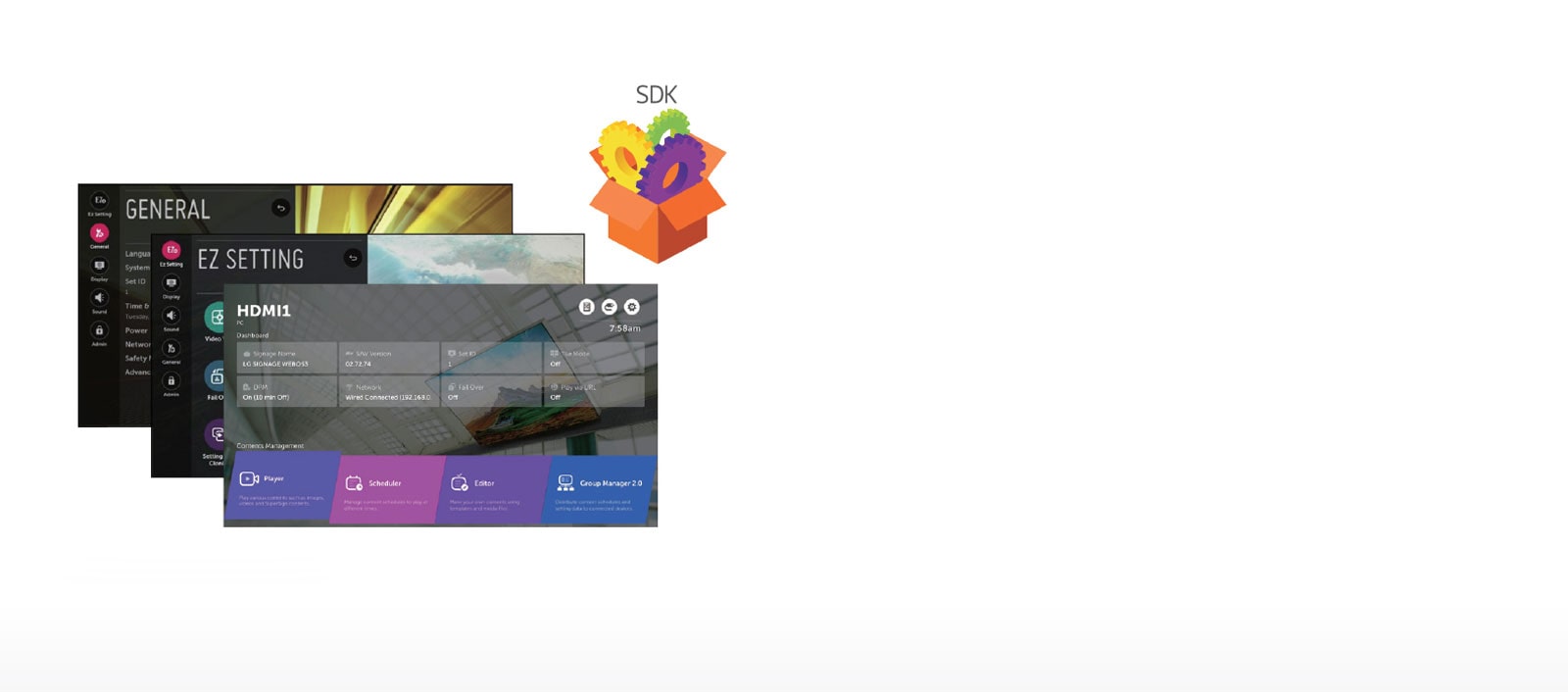

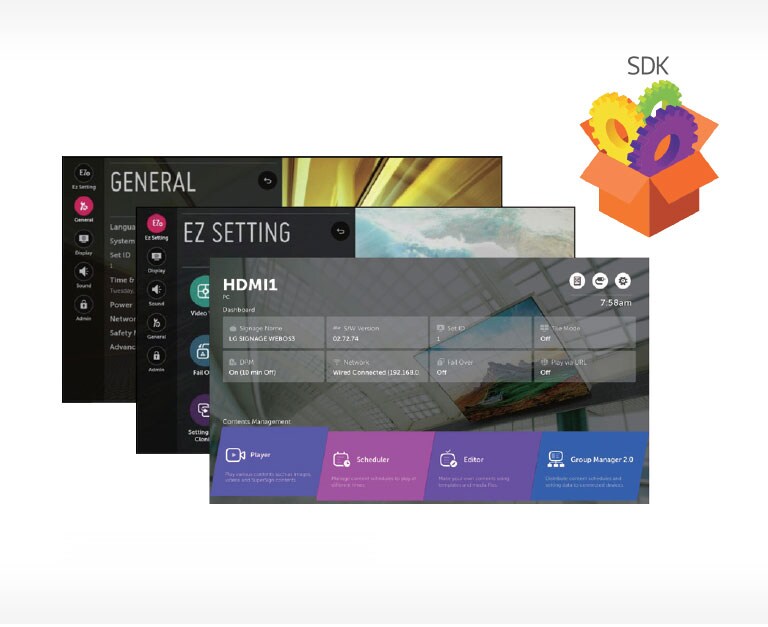

User-friendly Smart Platform

The LG webOS smart platform supports web-based HTML5 and offers SDK*, allowing SIs to easily build their own apps for customer solutions. Also, it enhances user convenience with an intuitive UI optimized for business purposes.
*SDK: Software Development Kit.
Compatibility with AV Control System<br>1 Compatibility with AV Control System<br>2
Simple Customization

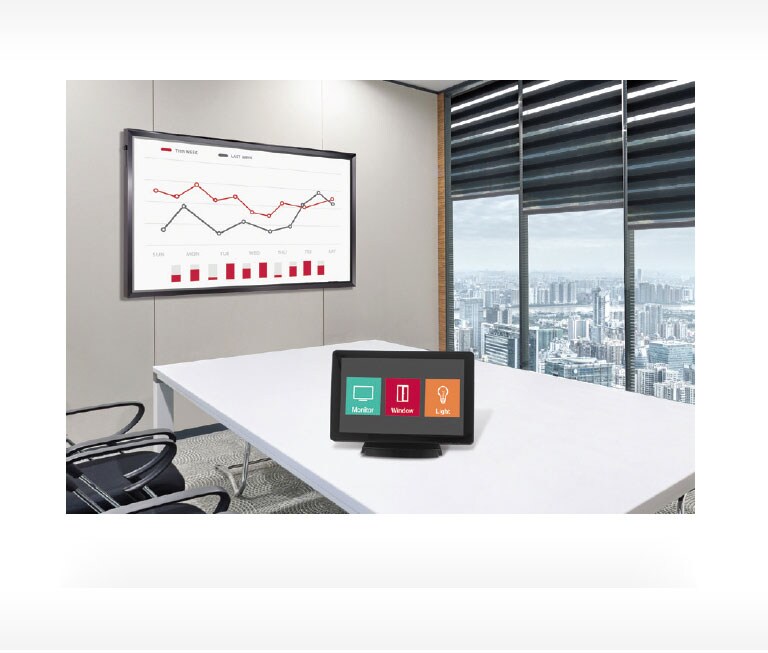

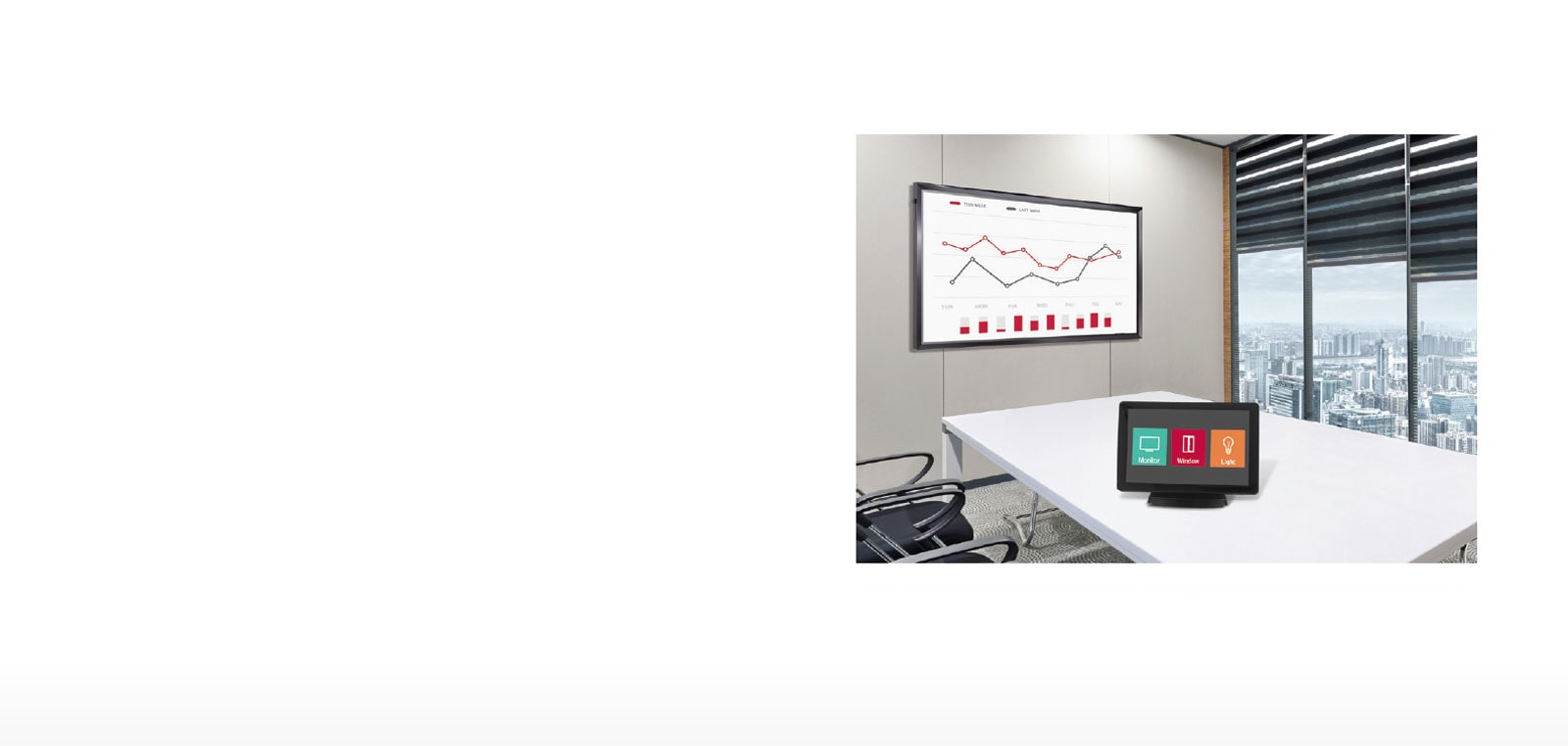

Compatibility with AV Control System

The TA3E series is compatible with AV control system, with which users can easily manage, monitor and control LG commercial displays from one location.
*It is a network based control system. Available AV control system may differ by regions.
Beacon Supported<br>1 Beacon Supported<br>2
Simple Customization

Beacon Supported

With Beacon and Bluetooth Low Energy (BLE) support, the TA3E series lets stores provide coupons and information in real-time, which increases interactivity with customers at the moments when it most counts.
Easy Touch Navigator on Display<br>1 Easy Touch Navigator on Display<br>2
User Convenience

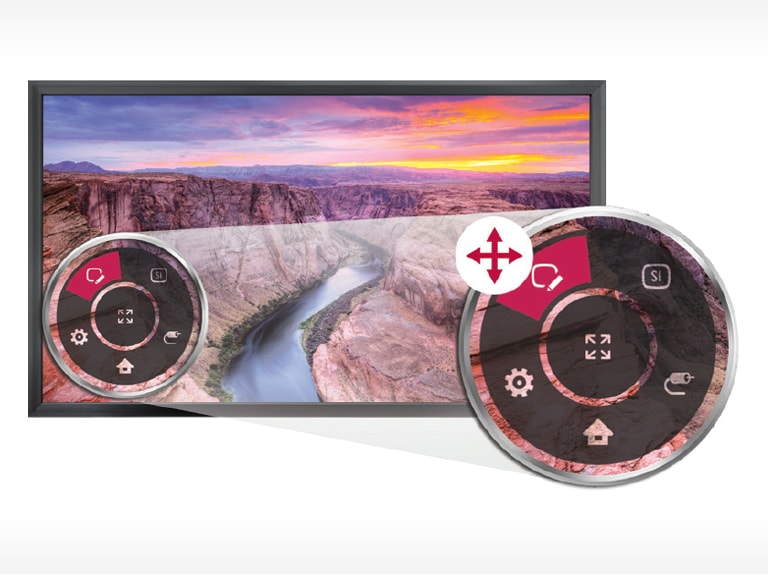

Easy Touch Navigator on Display

The touch menu is a subsidiary menu introduced to improve user-friendliness. Users can run the desired function or change the settings from anywhere by softly pressing the screen to call up the touch menu. The SI folder is especially designed to gather and show customized apps, making it easy for users to find and use them.
Auto Signal Switching<br>1 Auto Signal Switching<br>2
User Convenience

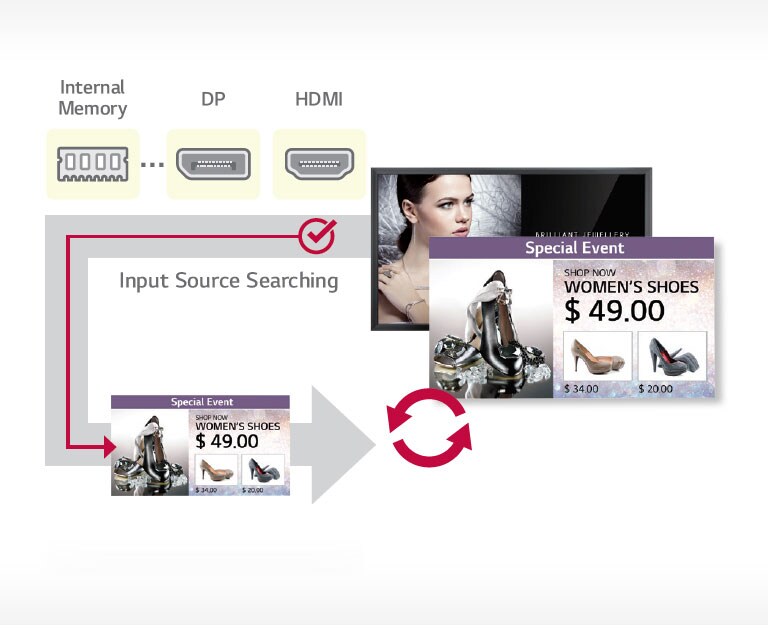

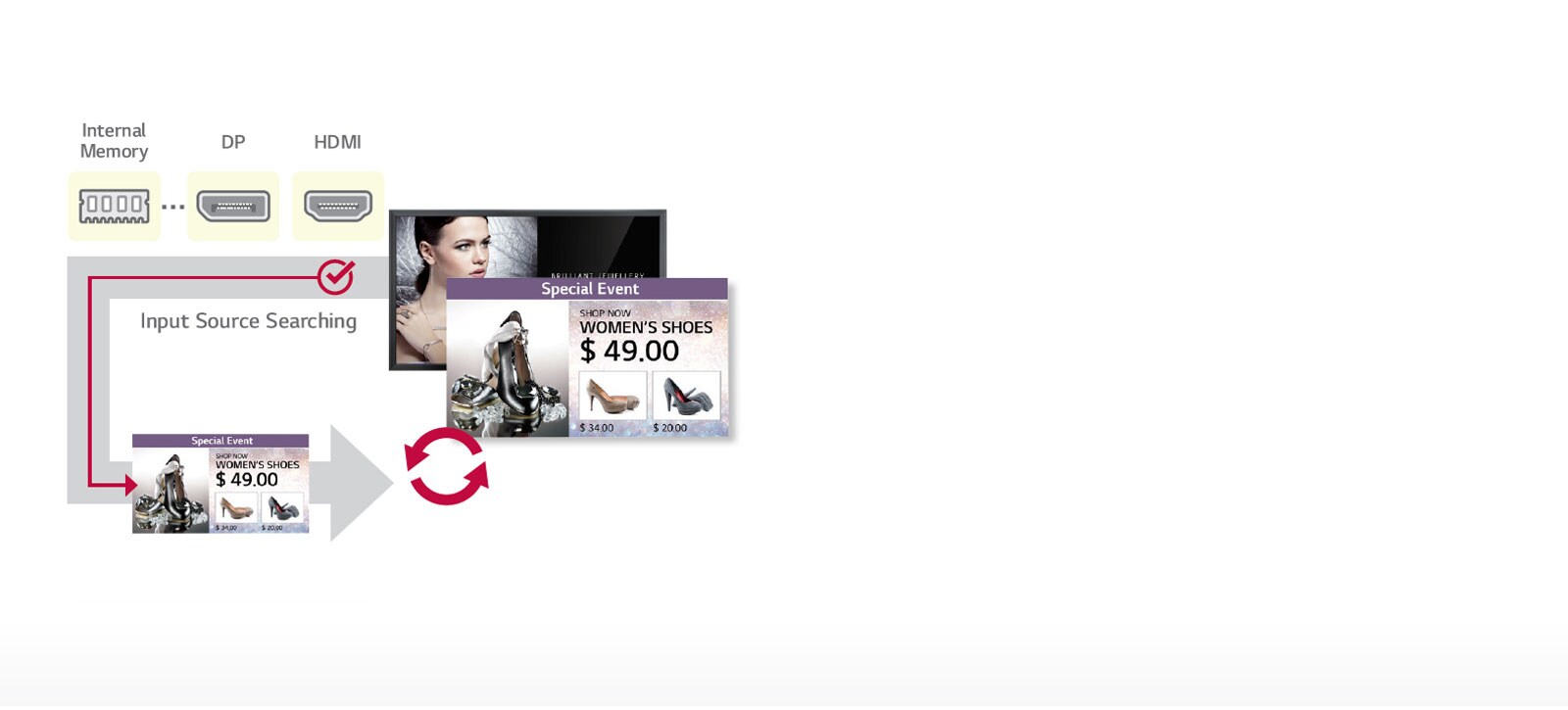

Auto Signal Switching

The failover function enables the display to detect the available input signals and automatically change the source when the current signal is disconnected or other higher priority signals* are connected. Users can prepare backup sources for any unexpected error.
*The priority can be set by users.
Multi Screen with PBP/PIP<br>1 Multi Screen with PBP/PIP<br>2
User Convenience

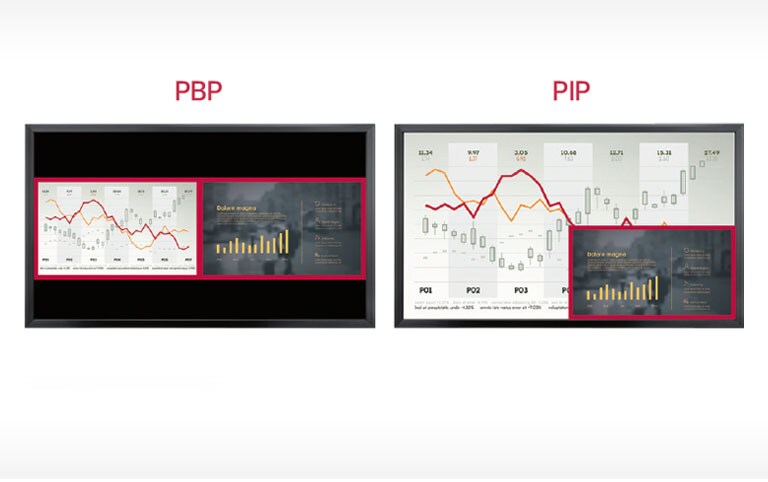

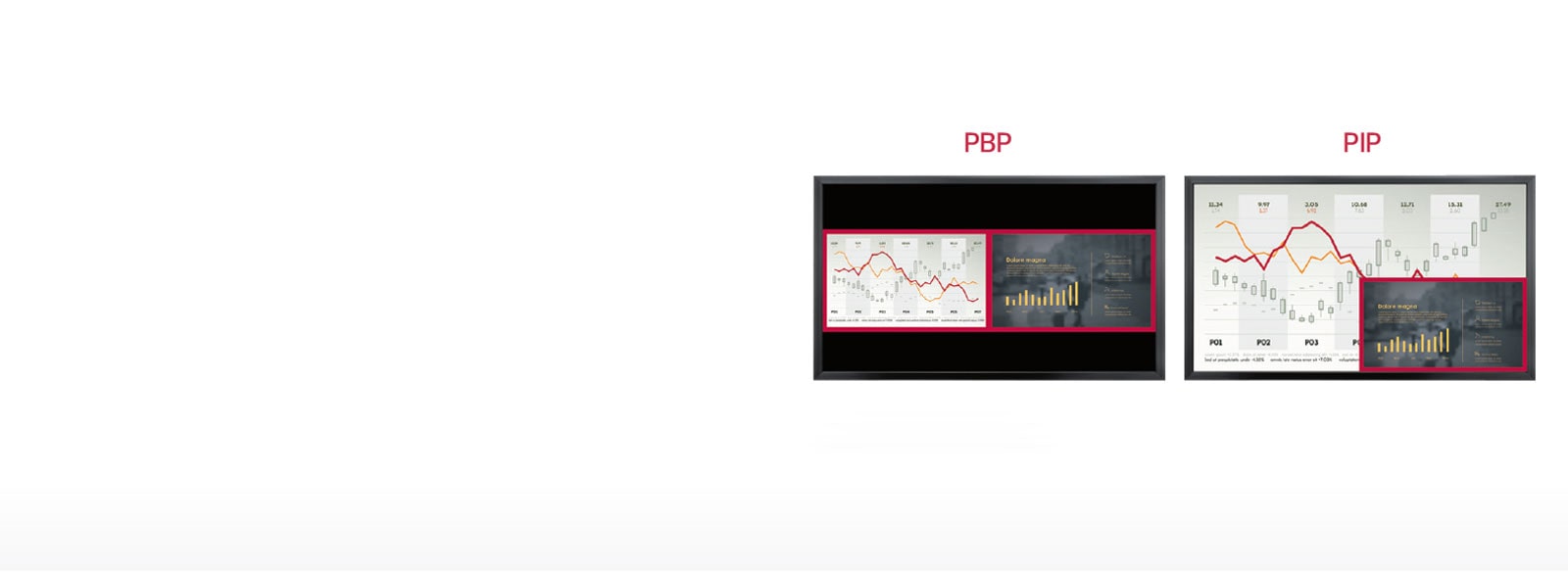

Multi Screen with PBP/PIP

PBP* features multi screen in a single display with upto 2 input sources, thus maximizing usability of the screen. In addition, PIP** supports playing both main screen and sub screen at the same time with various layouts, so users can arrange many different usage scenarios efficiently.
*PBP: Picture-by-Picture.
**PIP: Picture-in-Picture.
High Reliability<br>1 High Reliability<br>2

High Reliability

Superior Picture Quality with IPS
The LG IPS panel has a wide viewing angle that delivers clear content, no matter where viewers see content on the display.
Conformal Coating
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Close
PANEL
  • Screen Size
    49"
    Brightness(Module, Typ., cd/m²)
    450
CONNECTIVITY

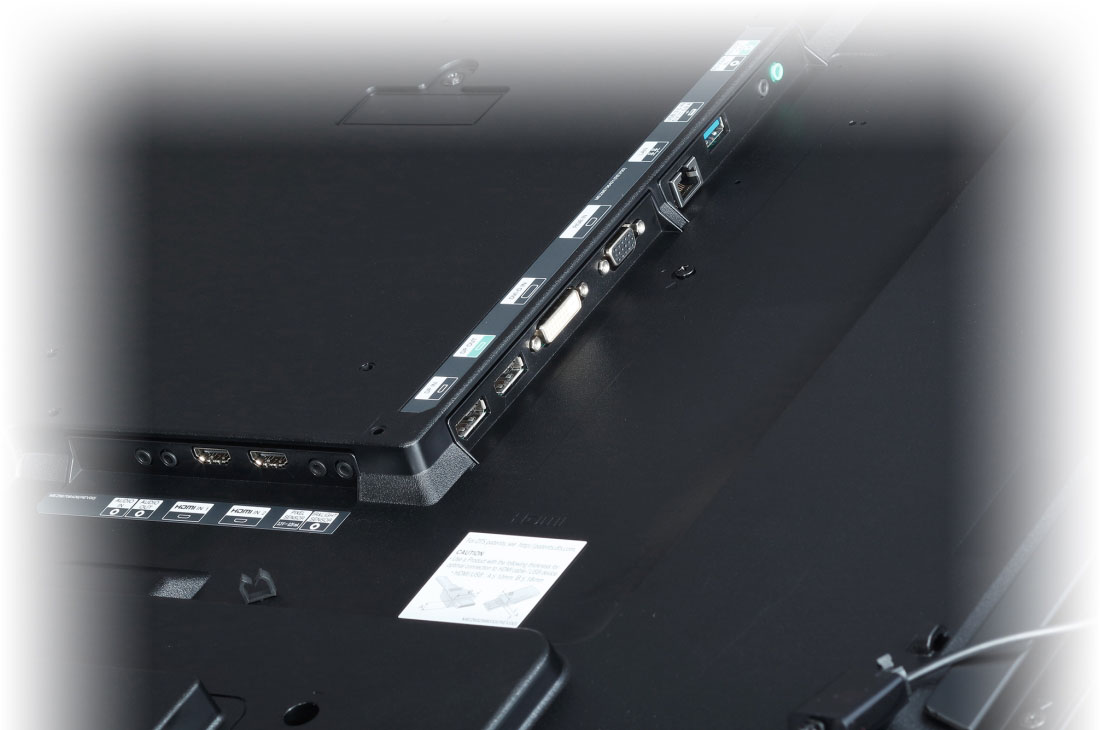

  • Input
    HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out
  • External Control
    RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In
PHYSICAL SPECIFICATION
  • Bezel Width
    32.7mm (Even)
    Monitor Dimension (W x H x D)
    1,142.2 x 672.4 x 71.4mm
  • Weight (Head)
    22.3kg
    Carton Dimensions (W x H x D)
    1,260 x 785 x 162mm
  • Packed Weight
    26.3kg
    VESA™ Standard Mount Interface
    300 x 300mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
TOUCH
  • Touch type
    IR (Scattering)
    Scan Time
    10ms ↓
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)
    Multi touch point
    Max 10 Points
