49VH7E-A component-copyModelName
VH7E Series

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49VH7E-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49VH7E-A)
    $
    $
    LG Members Price
Total
VH7E Series
Artistic Immersion, Overwhelming Captivation1 Artistic Immersion, Overwhelming Captivation2

Artistic Immersion, Overwhelming Captivation

The impressive immersion generated by the extremely narrow 0.9 mm bezel becomes even more powerful with a state-of-the-art smart signage platform. Beyond the self-playing feature, the VH7E series is capable of multitasking that raises brand awareness, drives traffic to your store, and engages customers in brand storytelling.

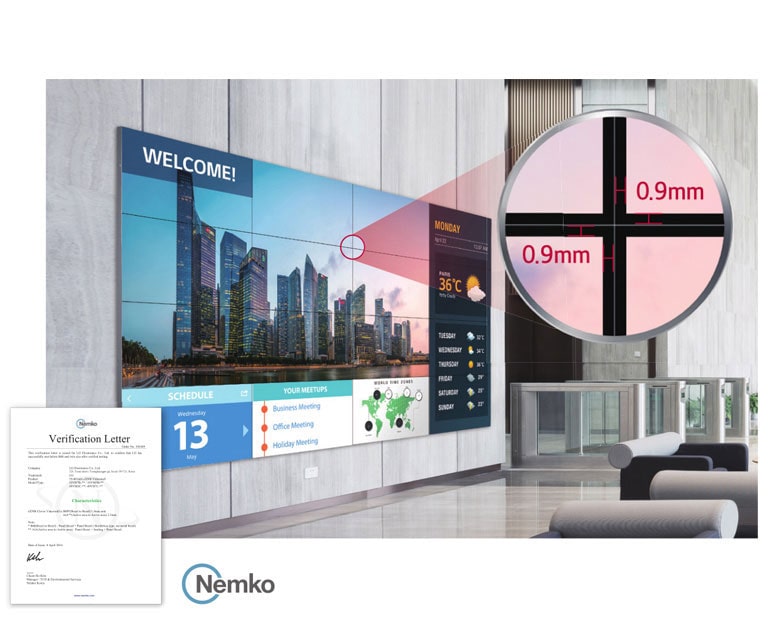

Seamless Large Screens with Extreme-Narrow Bezel1 Seamless Large Screens with Extreme-Narrow Bezel2

Achieving Incredible Immersion

Seamless Large Screens with Extreme-Narrow Bezel

The borderless design, with its 0.9 mm* even bezel and 1.8 mm* BtB (Bezel to Bezel), verified by Nemko, minimizes bezel interference and delivers immersive and seamless content on assembled video wall screens.
*The 0.9mm even panel bezel and 1.8mm BtB size (borderless type, no metal bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.
Image Gap Reduction1 Image Gap Reduction2
Achieving Incredible Immersion

Image Gap Reduction

The VH7E series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
*The "Conventional" refers to displays which do not include an image improvement algorithm.

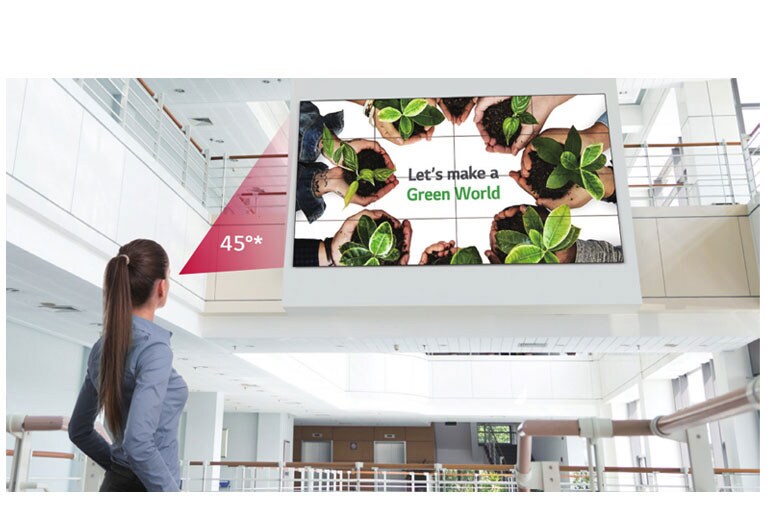

Higher Viewing Angle1 Higher Viewing Angle2
Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VH7E series is high enough to display vivid colors throughout the screen with no distortion.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
Wider Viewing Angle1 Wider Viewing Angle2
Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology provides better control of liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Thereby, the VH7E series captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

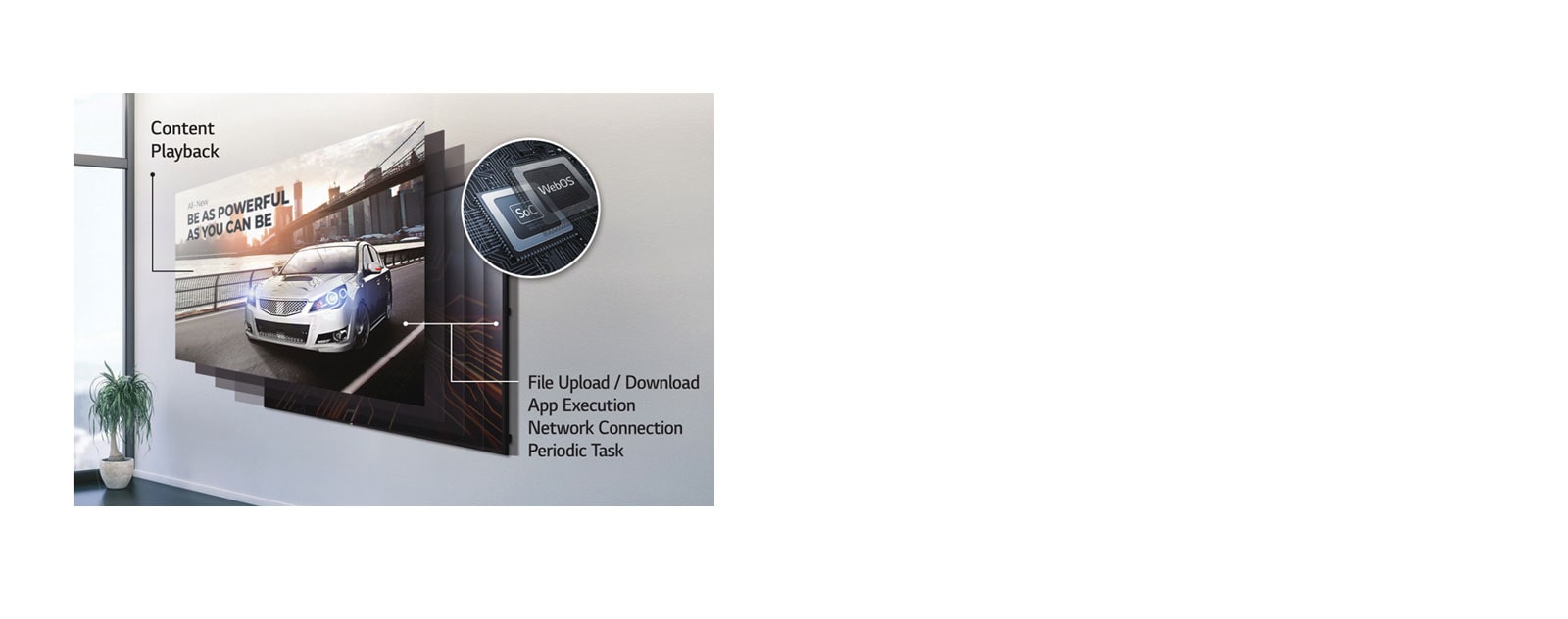

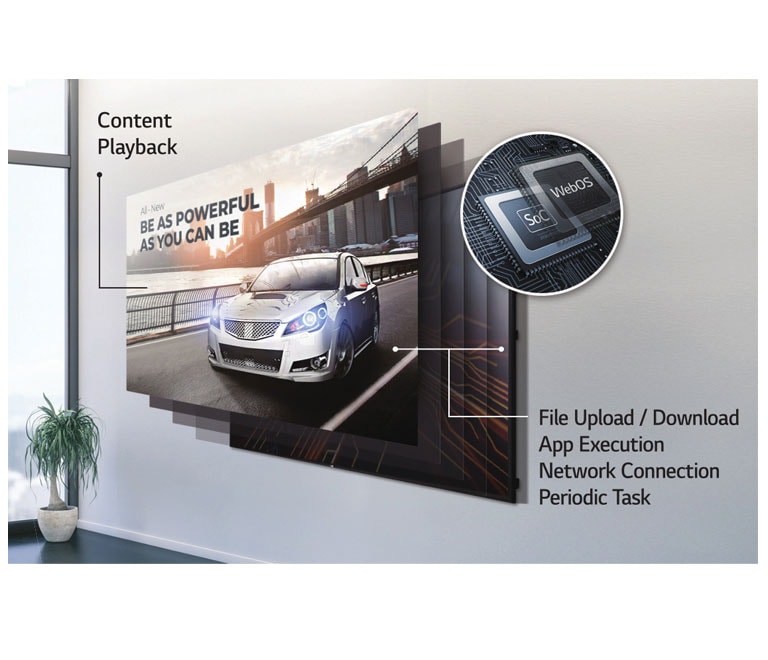

High Performance and Great Scalability1 High Performance and Great Scalability2

Powerful Smart Signage Platform

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VH7E series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize.

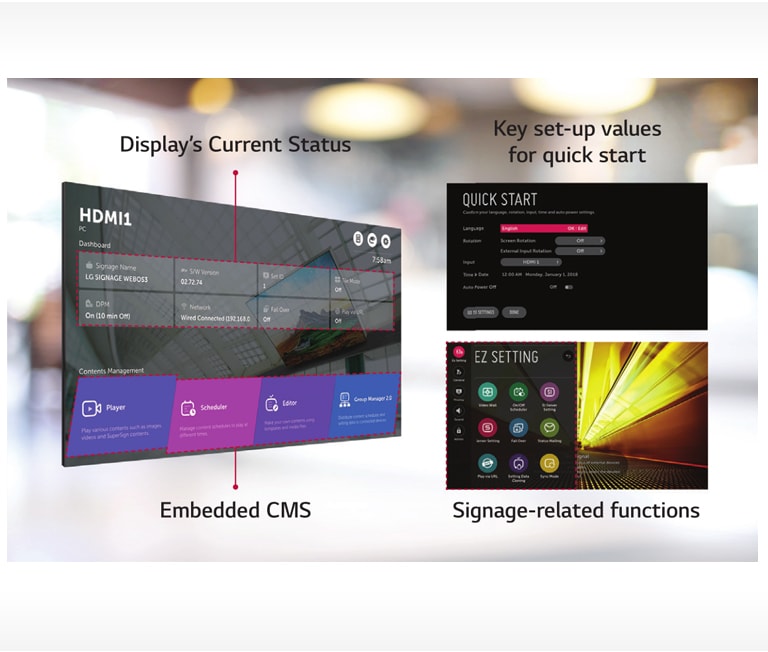

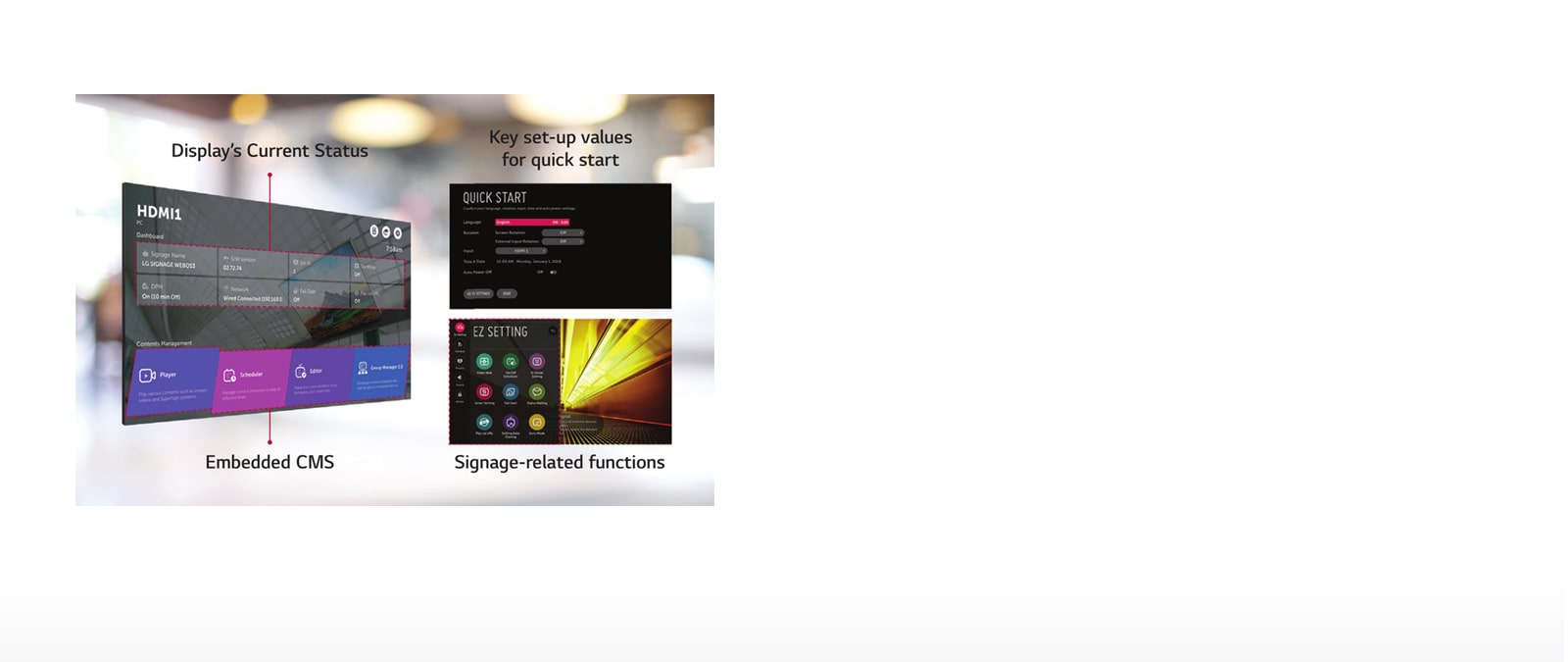

Intuitive Menu Structure1 Intuitive Menu Structure2
User-Friendly Smart Signage UX

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.
Dedicated GUI for Portrait Orientation<br>1 Dedicated GUI for Portrait Orientation<br>2
User-Friendly Smart Signage UX

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the VH7E series, however, consists of a long range menu, creating a comfortable and efficient business environment.
Easy Color Adjustment1 Easy Color Adjustment2
User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.
Simple White Balance Adjustment1 Simple White Balance Adjustment2
User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VH7E series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.
LAN Daisy Chain Management<br>1 LAN Daisy Chain Management<br>2
User Convenience

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.
Real-Time Care Service1 Real-Time Care Service2
User Convenience

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage365Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
*The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.
Close
PANEL
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45(LAN) In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    0.9mm (Even), B to B 1.8mm
    Monitor Dimension (W × H × D)
    1,075.6 x 605.8 x 86.2 mm
  • Weight (Head)
    17.5kg
    Carton Dimensions (W × H × D)
    1,214 x 775 x 263 mm
  • Packed Weight
    23.2kg
    VESA™ Standard Mount Interface
    600 x 400
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    150W
    Max
    180W
  • Smart Energy Saving
    80W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)
MEDIA PLAYER COMPATIBILITY
  • OPS Type compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSF)
