49VL5F Series

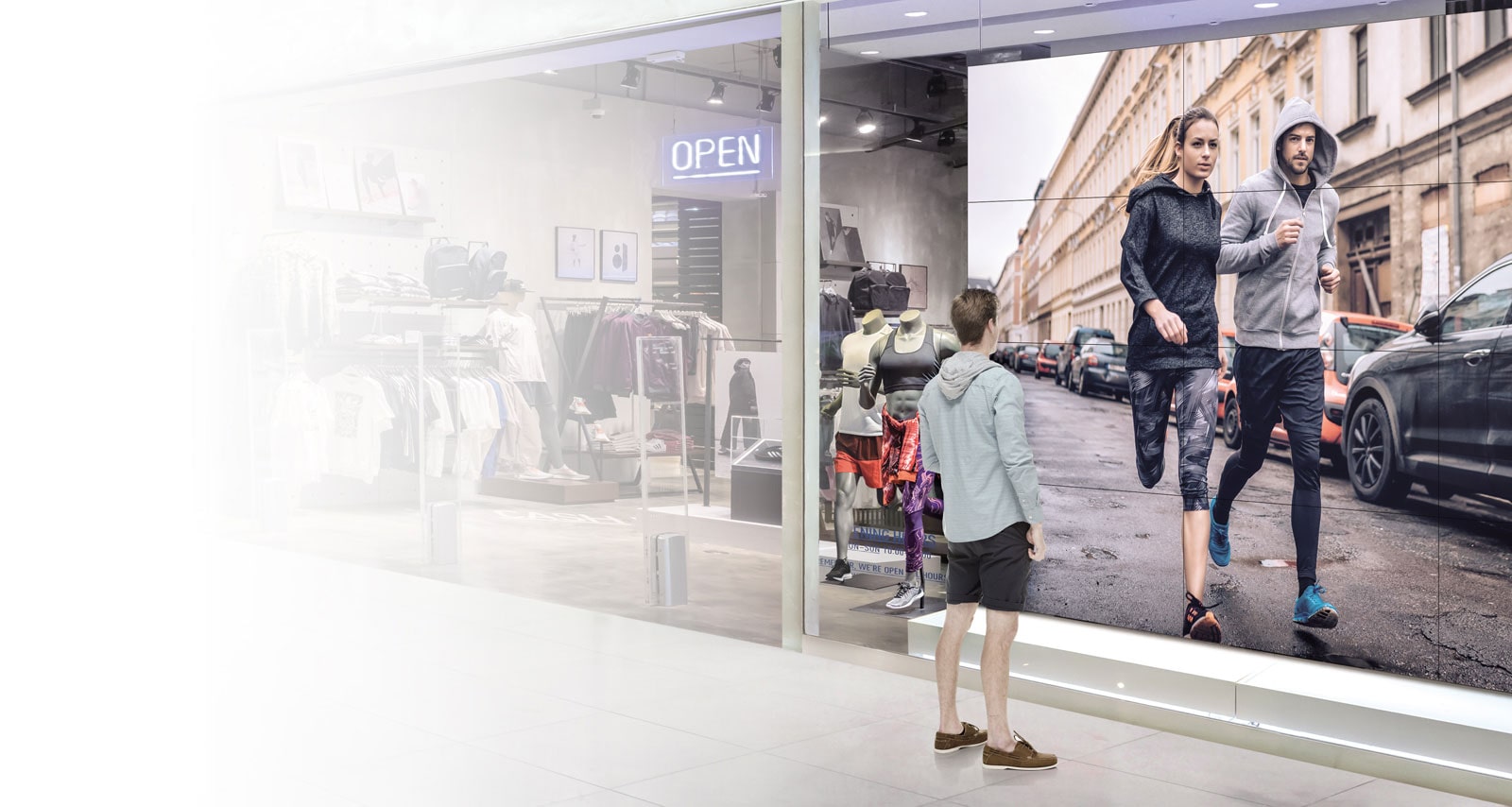

Incredible Immersion with Ultra-Narrow Bezel1 Incredible Immersion with Ultra-Narrow Bezel2

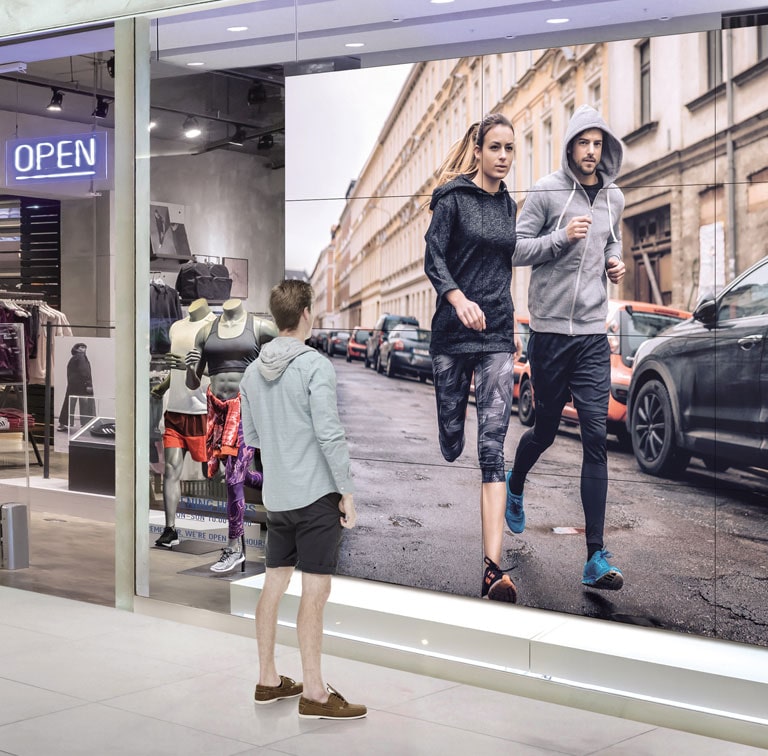

Incredible Immersion with Ultra-Narrow Bezel

The 49VL5F provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.

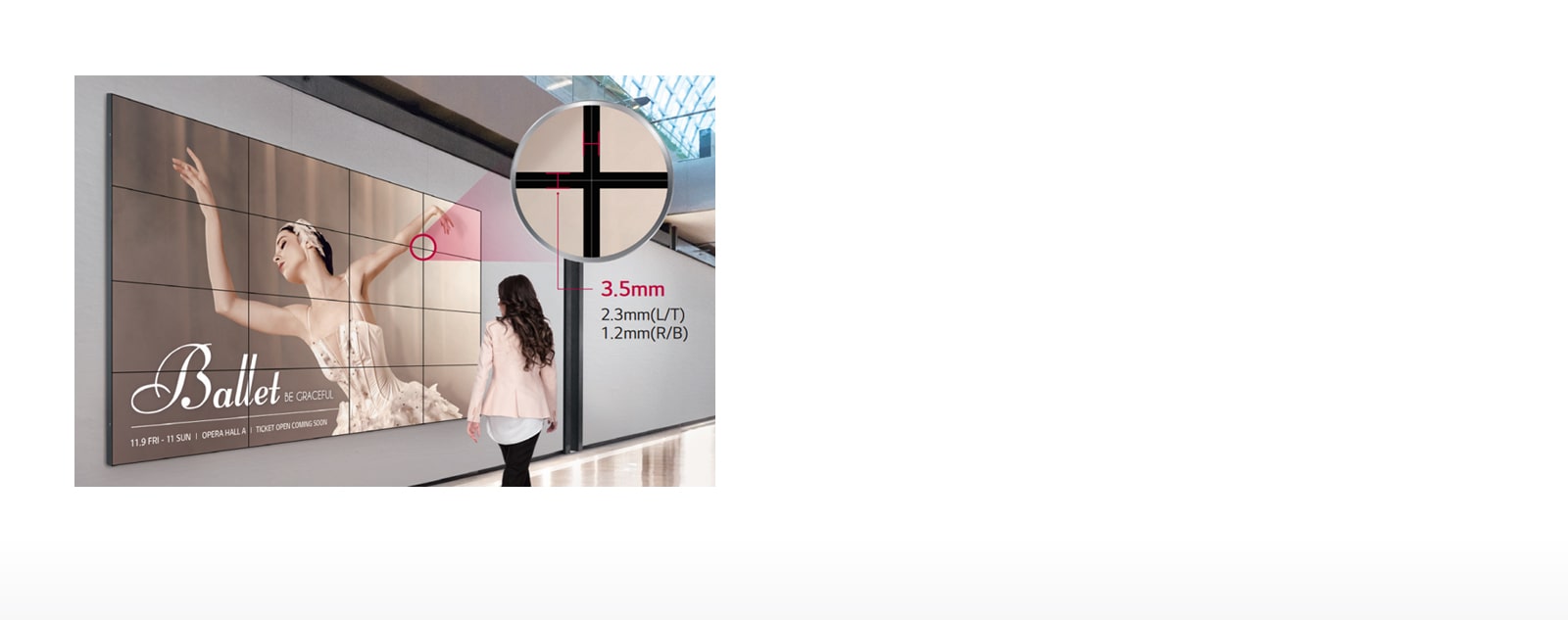

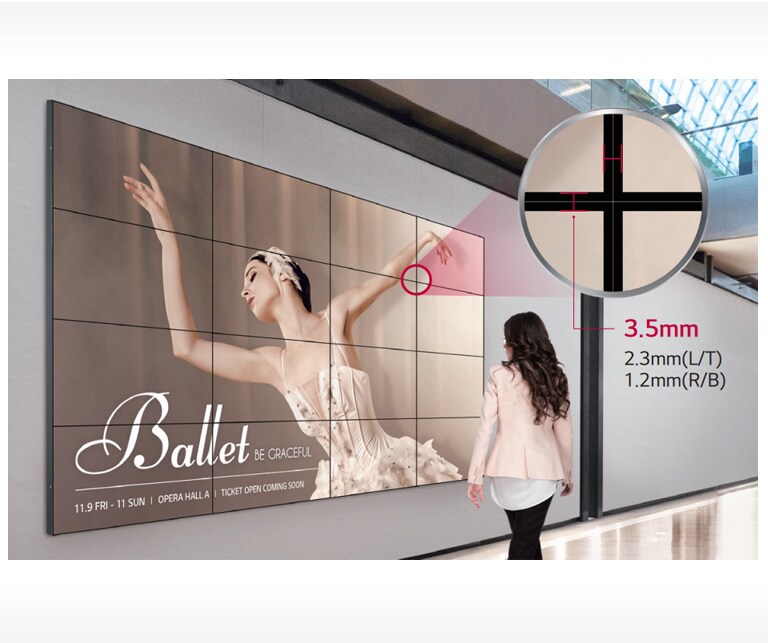

Seamless Large Screens with Ultra-Narrow Bezel1 Seamless Large Screens with Ultra-Narrow Bezel2
Achieving Incredible Immersion

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

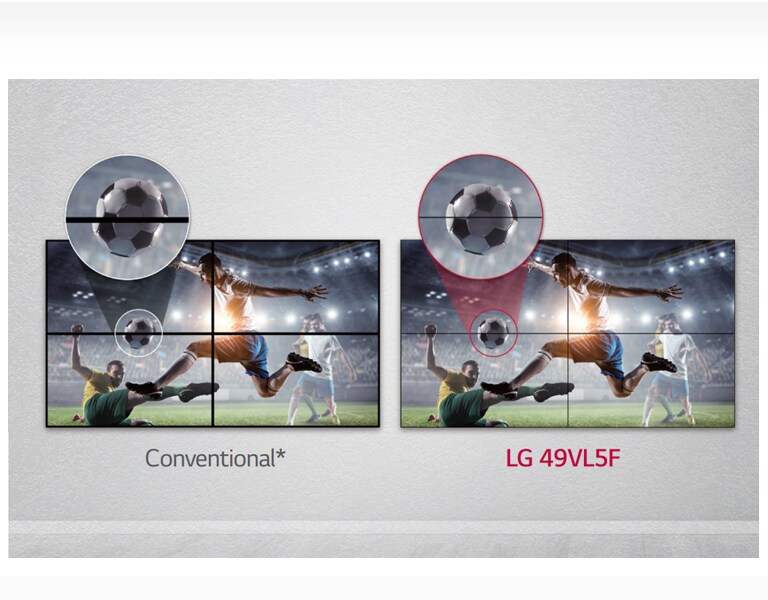

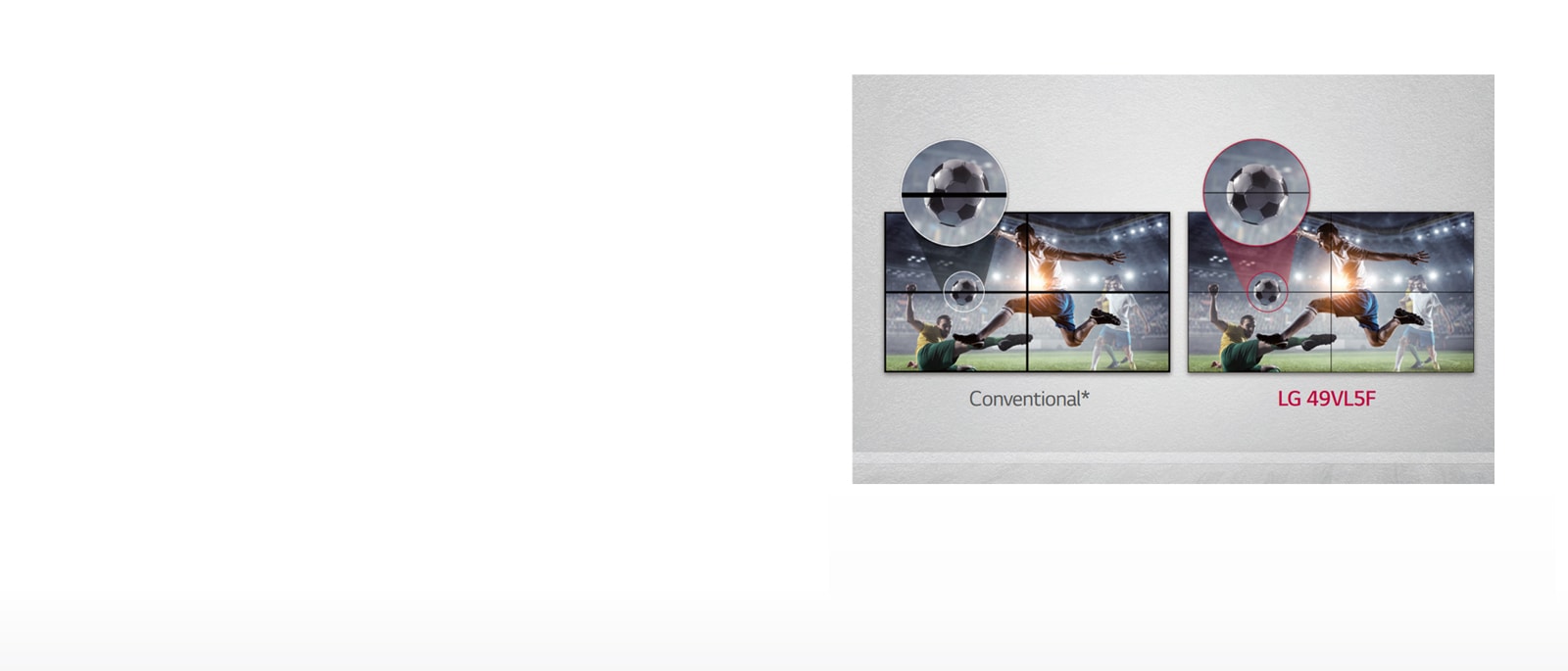

Image Gap Reduction1 Image Gap Reduction2
Achieving Incredible Immersion

Image Gap Reduction

The 49VL5F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "Conventional" refers to displays which do not include an image improvement algorithm.

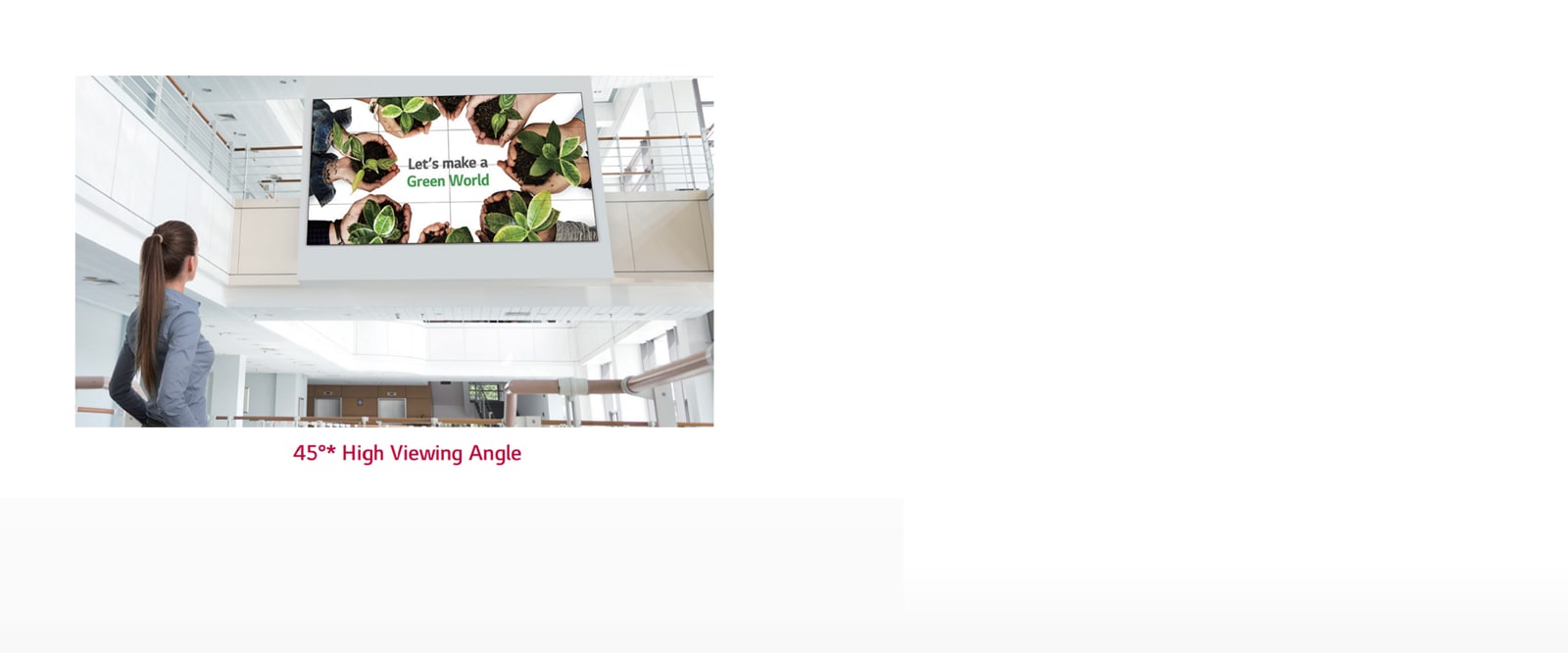

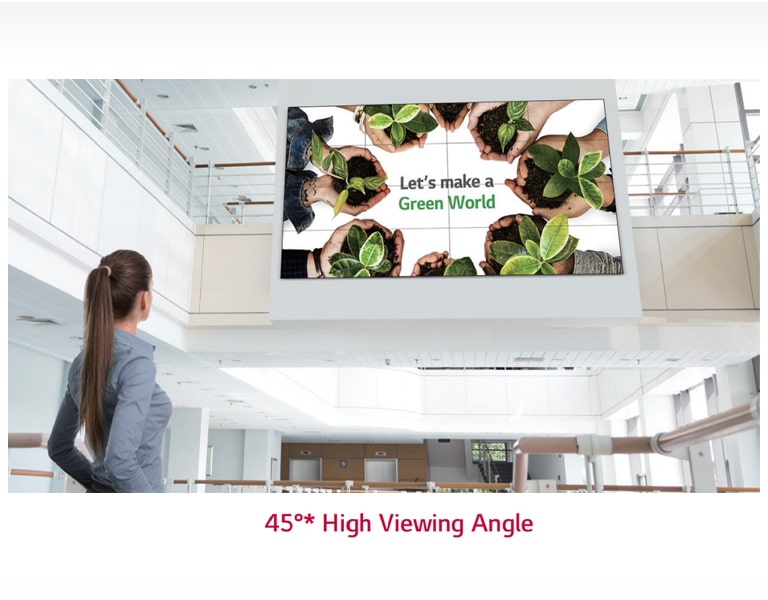

Higher Viewing Angle1 Higher Viewing Angle2
Vivid and Dynamic Picture Quality

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 49VL5F is high enough to display vivid colors throughout the screen with no distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

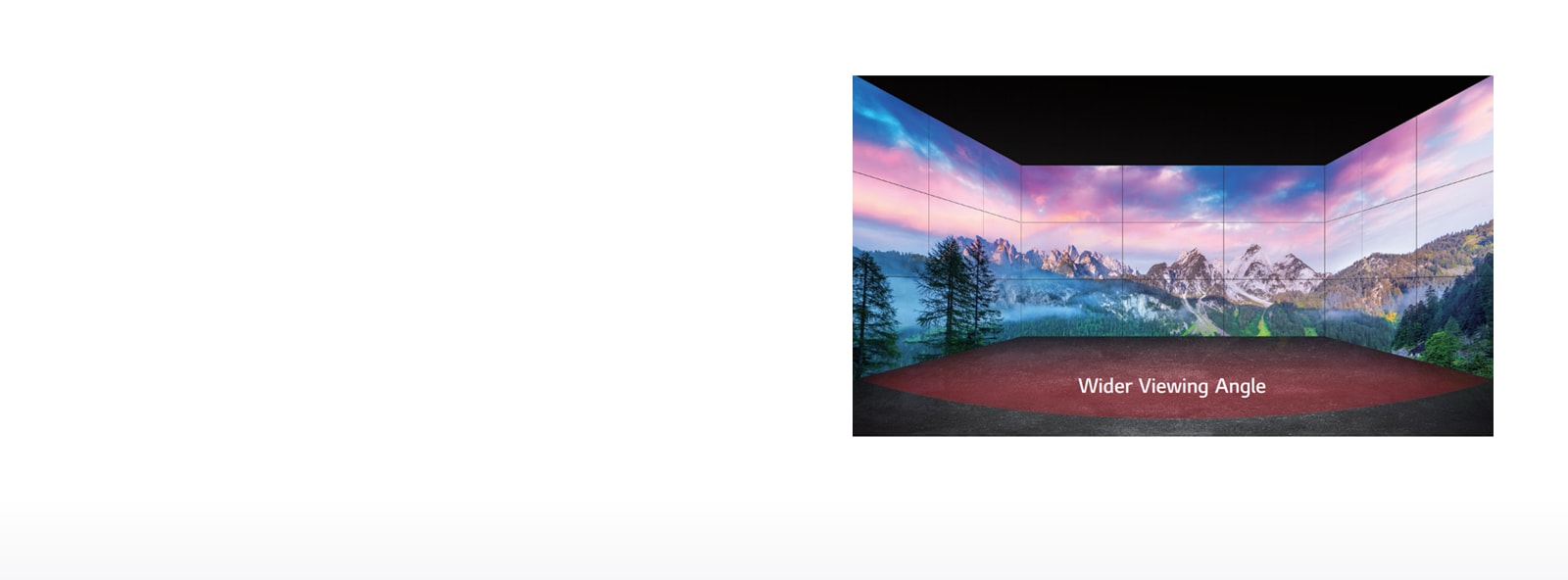

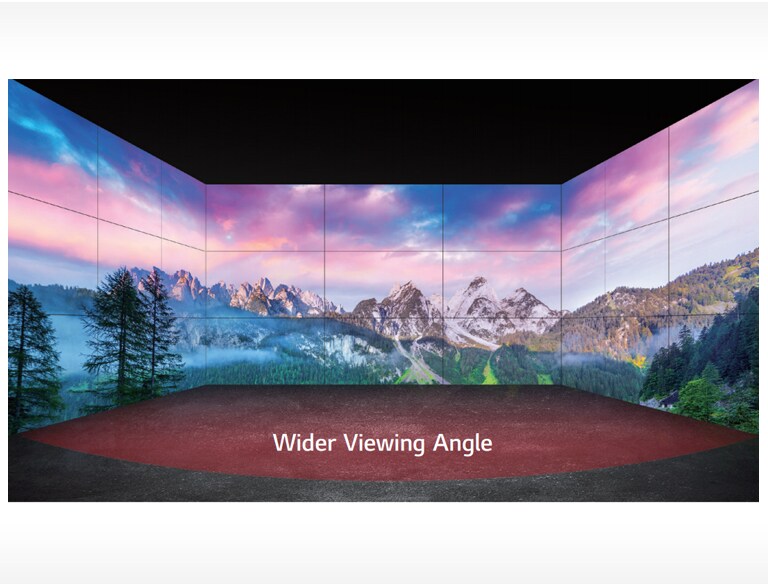

Wider Viewing Angle1 Wider Viewing Angle2
Vivid and Dynamic Picture Quality

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

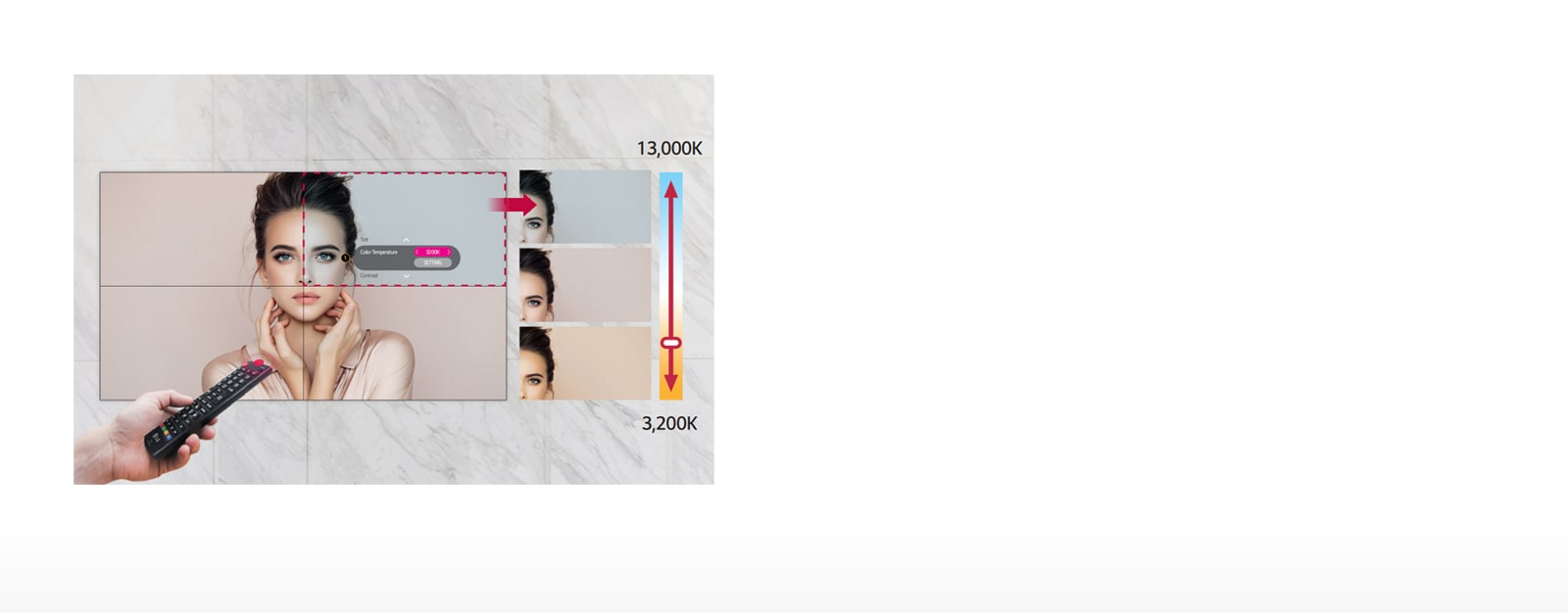

Easy Color Adjustment1 Easy Color Adjustment2
User Convenience

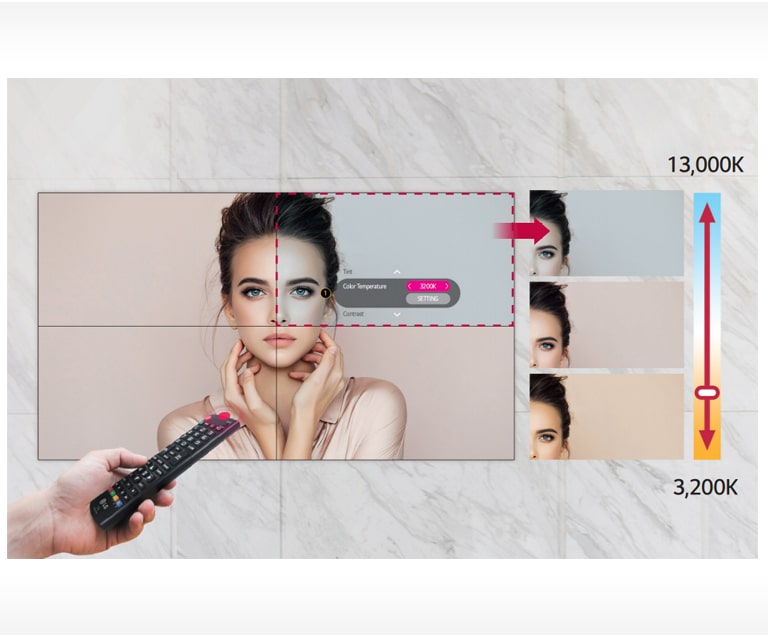

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

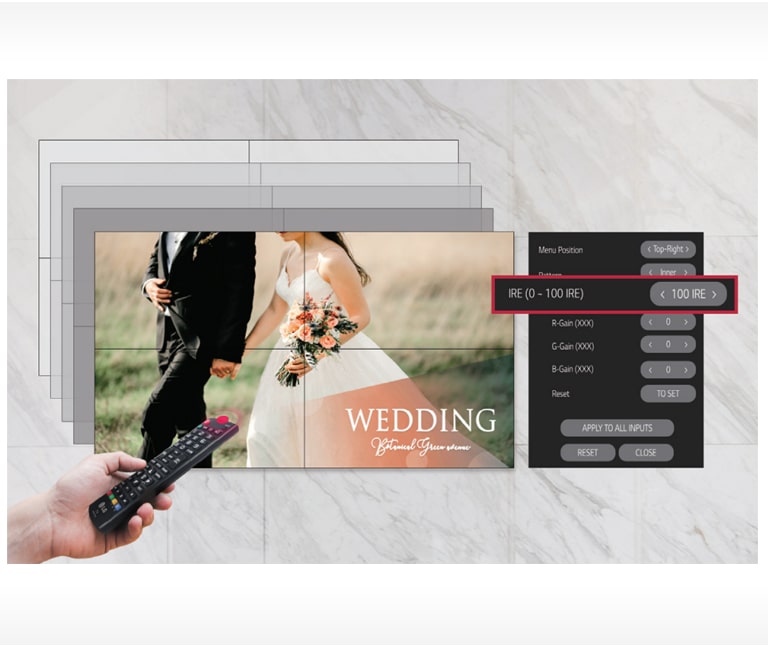

Simple White Balance Adjustment1 Simple White Balance Adjustment2
User Convenience

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 49VL5F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

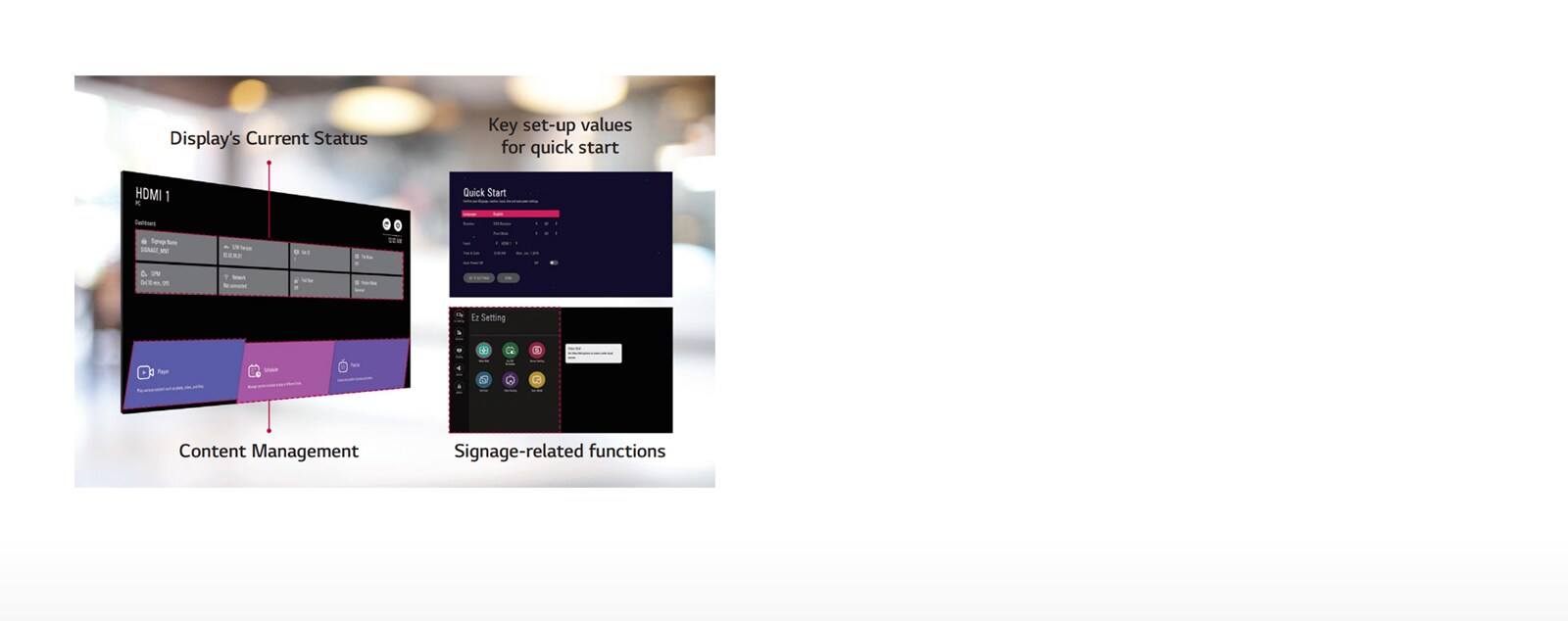

User-Friendly Menu Structure1 User-Friendly Menu Structure2
User Convenience

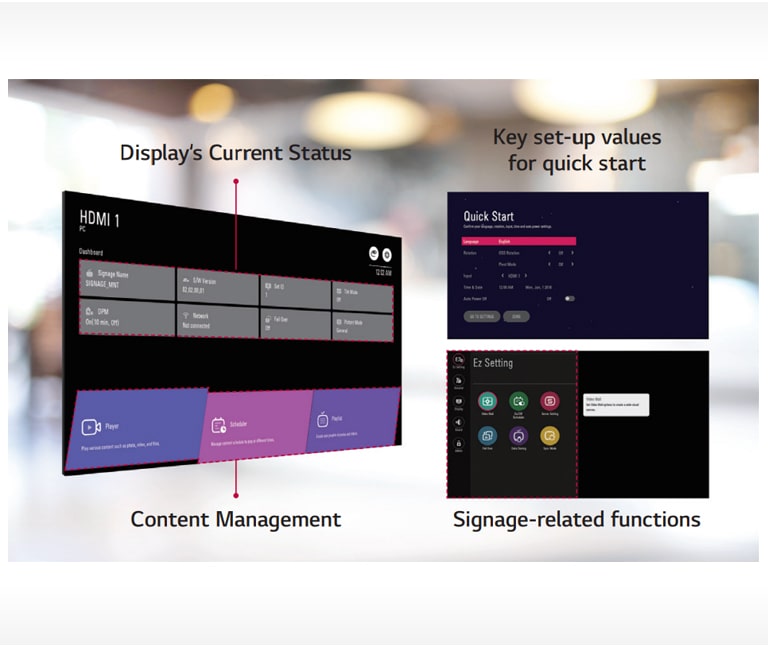

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

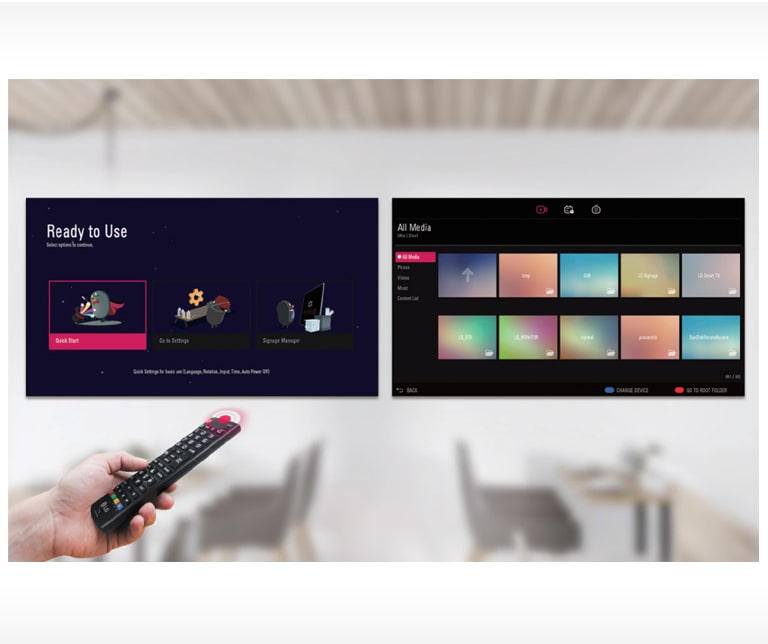

Intuitive GUI1 Intuitive GUI2
User Convenience

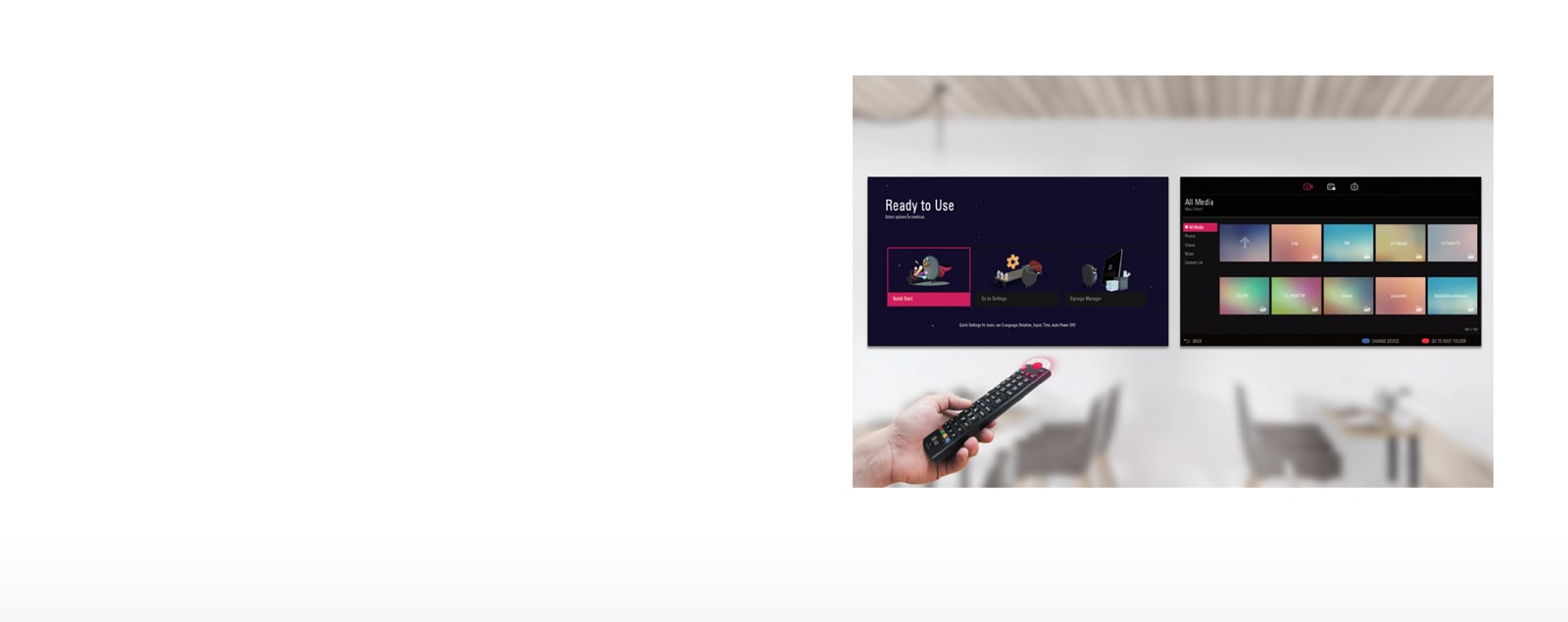

Intuitive GUI

The GUI(Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.
Close
PANEL
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    450
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, RGB, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    2.25 mm (T/L) / 1.25 mm(B/R)
    Monitor Dimension (W × H × D)
    1,077.6 x 607.8 x 89.7 mm
  • Weight (Head)
    17.8 kg
    Carton Dimensions (W × H × D)
    1,214 x 778 x 263 mm
  • Packed Weight
    22.8 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    90 W
    Max
    110 W
  • Smart Energy Saving
    55 W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes(EU Only) / Yes (Energy Star 8.0, US Only)
MEDIA PLAYER COMPATIBILITY
  • OPS Type compatible
    No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
