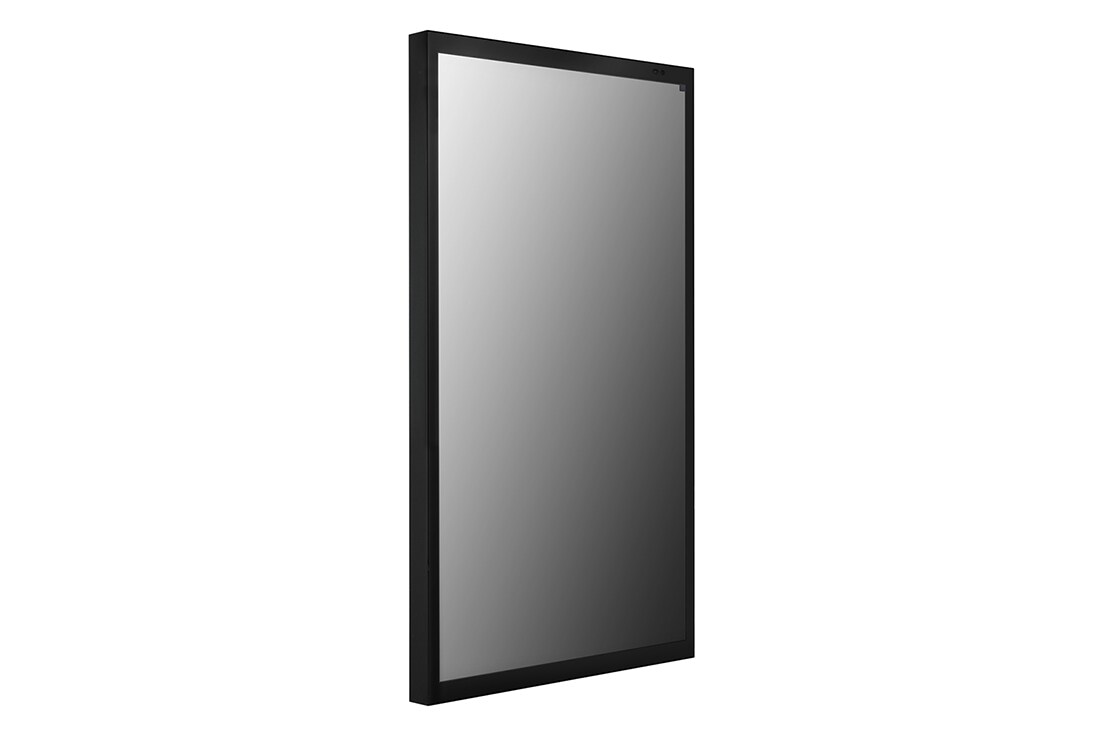

49XE4F-B component-copyModelName
XE4F Series

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49XE4F-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49XE4F-B)
    $
    $
    LG Members Price
Total
XE4F Series
Slim & Robust Design with Outstanding Visibility1 Slim & Robust Design with Outstanding Visibility2

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XE4F series can be easily installed to meet the customer's needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer's attention even under strong and direct sunlight.
Slim & Light Design1 Slim & Light Design2
SLIM & ROBUST DESIGN

Slim & Light Design

XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
Easy integration for partner's customized design1 Easy integration for partner's customized design2
SLIM & ROBUST DESIGN

Easy integration for partner's customized design

The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use.
Bright & Brilliant1 Bright & Brilliant2
OUTSTANDING VISIBILITY

Bright & Brilliant

The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
Wide Viewing Angle<br>1 Wide Viewing Angle<br>2
OUTSTANDING VISIBILITY

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
Long Lasting Brightness1 Long Lasting Brightness2
OUTSTANDING VISIBILITY

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
Visible with Polarized Sunglasses1 Visible with Polarized Sunglasses2
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
* Quarter Wave Plate
Secured Protection with IP56 Design1 Secured Protection with IP56 Design2
RELIABILITY FOR OUTDOOR USAGE

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
Protective Glass (IK10 Certified)<br>1 Protective Glass (IK10 Certified)<br>2
RELIABILITY FOR OUTDOOR USAGE

Protective Glass (IK10 Certified)

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
* The image is for illustrative purposes only* IK rating refers to the deqree of resistance against external impacts on a scale of 0 to 10. (10 indicates the highest level of protection.)
Support HDBaseT ™1 Support HDBaseT ™2
EASY MAINTENANCE

Support HDBaseT ™

XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.
* XE4F Series don't support the power supply
Web Monitoring1 Web Monitoring2
EASY MAINTENANCE

Web Monitoring

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
* The image is for illustrative purposes only
USER SCENE1 USER SCENE2

USER SCENE

Close
PANEL
  • Screen Size
    49
    Panel Technology
    IPS, M+(WRGB)
  • Backlight Type
    Direct
    Aspect Ratio
    16:09
  • Native Resolution
    1,920 x 1,080 (FHD, WRGB)
    Brightness (Typ., cd/m²)
    4000
  • Brightness (Min., cd/m²)
    3200
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    Typ. 8ms (G to G BW)
    Surface Treatment (Haze, Quarter Wave Plate)
    Haze 3%, QWP
  • Local dimming
    48 Blocks
    Life Time (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Portrait & Landscape
CONNECTIVITY
  • Input
    HDMI(2), DP, HDBaseT, USB(2)
    Output
    External Speaker Out(L/R)
  • External Control
    RS232C In/Out, RJ45(LAN) In/Out
PHYSICAL SPECIFICATION
  • Protection Glass
    5mm(IK 10, Degree of Protection, Chemical Strengthening,Anti-Reflective)
    Bezel Color
    Black
  • Bezel Width
    38.4mm(T/B), 26.0mm(L/R)
    Monitor Dimension (W x H x D)
    1,153 x 656.2 x 88.0mm
  • Weight (Head)
    32Kg
    Packing Dimensions (W x H x D)
    1,286 x 797 x 207mm
  • Packed Weight
    37Kg
    Handle
    X
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30°C to 50 °C
    Operation Humidity
    5 % to 100 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    300W (Full White)
    144W (IEC 62087)
    Max
    350W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    No/NA
SOFTWARE COMPATIBILITY
  • SuperSign
    Yes(CMS, Control)
    Signage365Care
    Yes
ACCESSORY
  • Basic
    Remote Controller, Manual(EIG, IG , OM), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE
