Outdoor Display
High Brightness1 High Brightness2
Outstanding Visibility

High Brightness

With a powerful brightness of 3,000 cd/㎡ and wide viewing angles, the XE series delivers content clearly and catches the attention of passersby no matter where they are, making it the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses1 Visible with Polarized Sunglasses2
Outstanding Visibility

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
* Quarter Wave Plate
Smart Brightness Control1 Smart Brightness Control2
Outstanding Visibility

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Secured Protection with IP56 Design1 Secured Protection with IP56 Design2
Outdoor Reliability

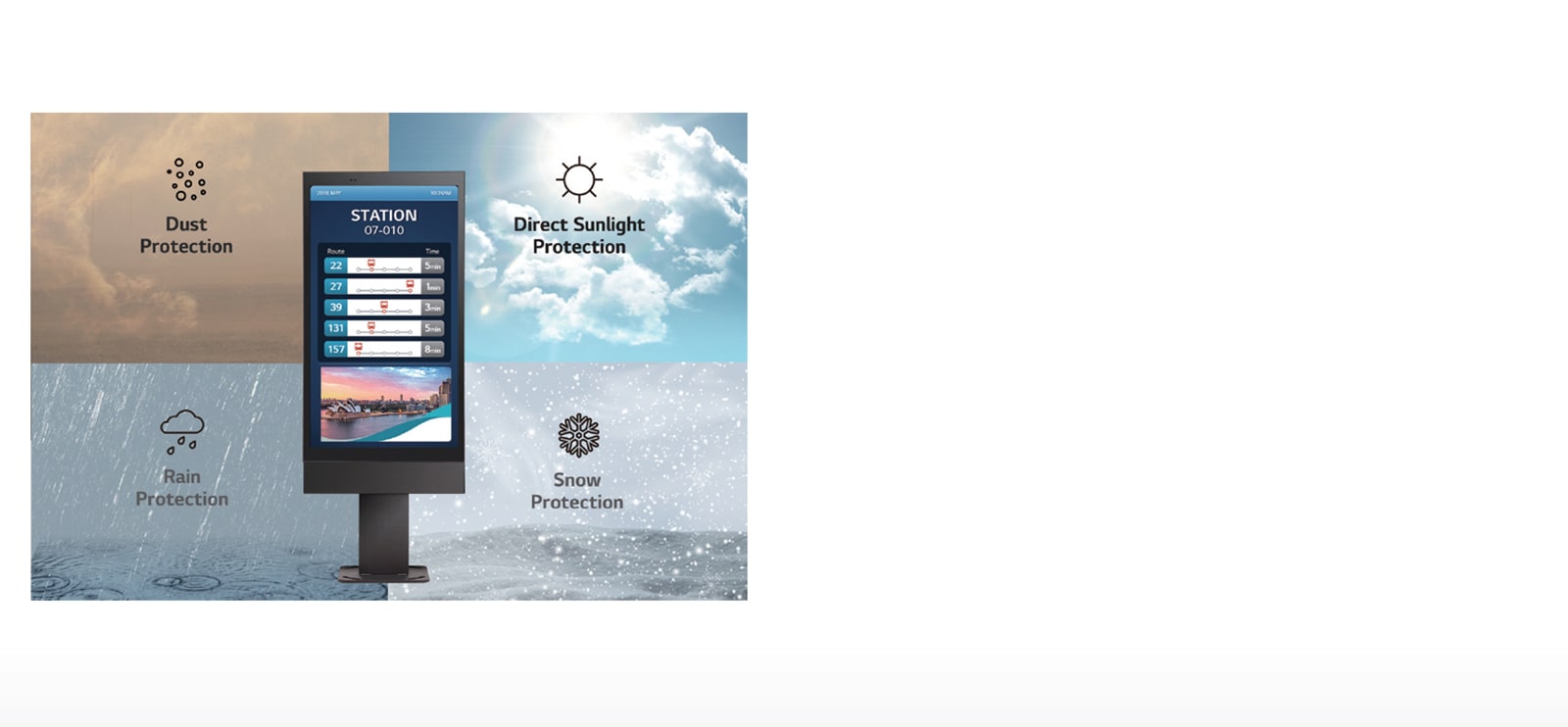

Secured Protection with IP56 Design

The XE series is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
Conformal Coating1 Conformal Coating2
Outdoor Reliability

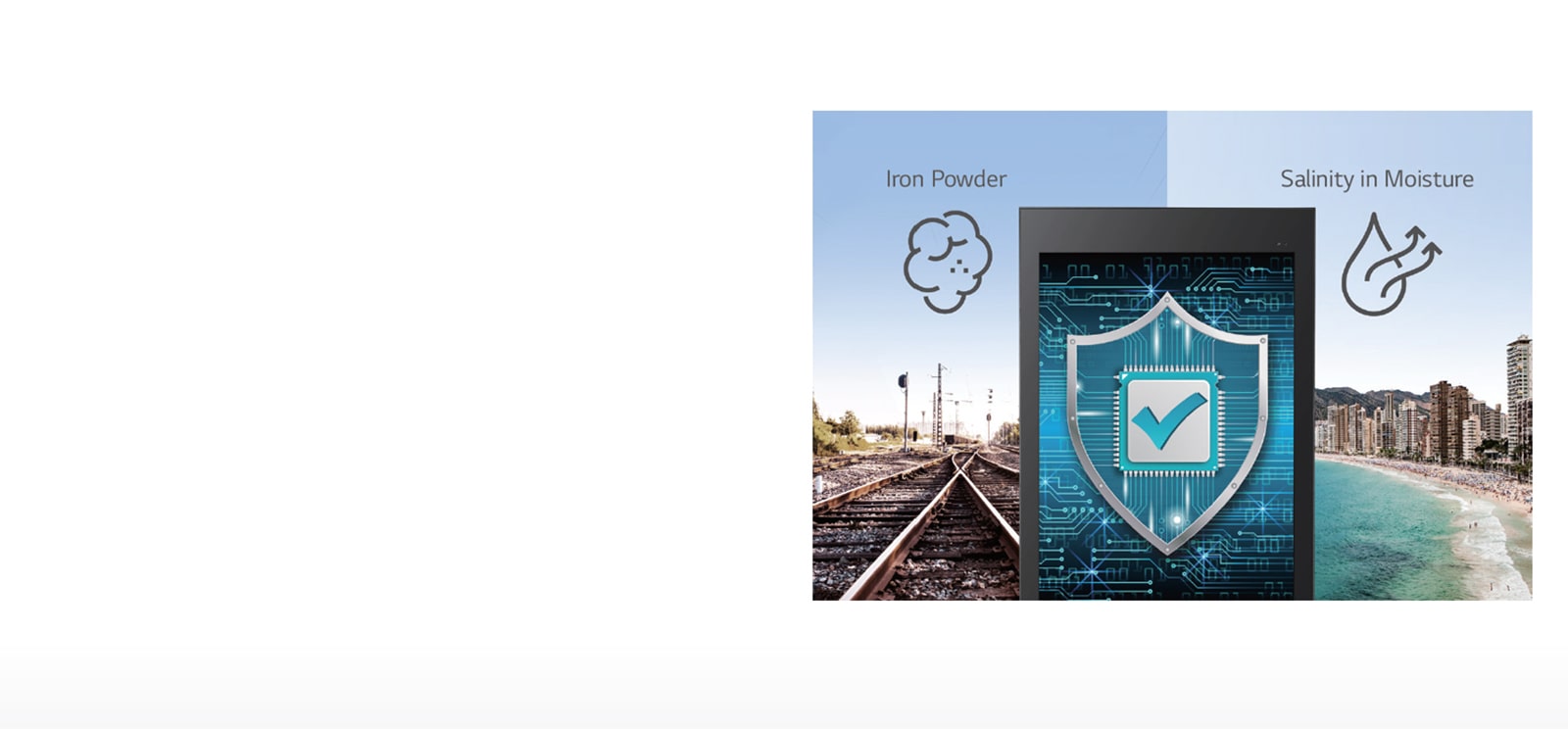

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
Electrical Safety1 Electrical Safety2
Outdoor Reliability

Electrical Safety

Circuit breaker and surge suppressor are integrated inside ensuring absolute protection from overcurrent short circuits, and unwanted voltages. This type of integration establishes preventative solutions for signage's from having future damages.
Protective Glass1 Protective Glass2
Outdoor Reliability

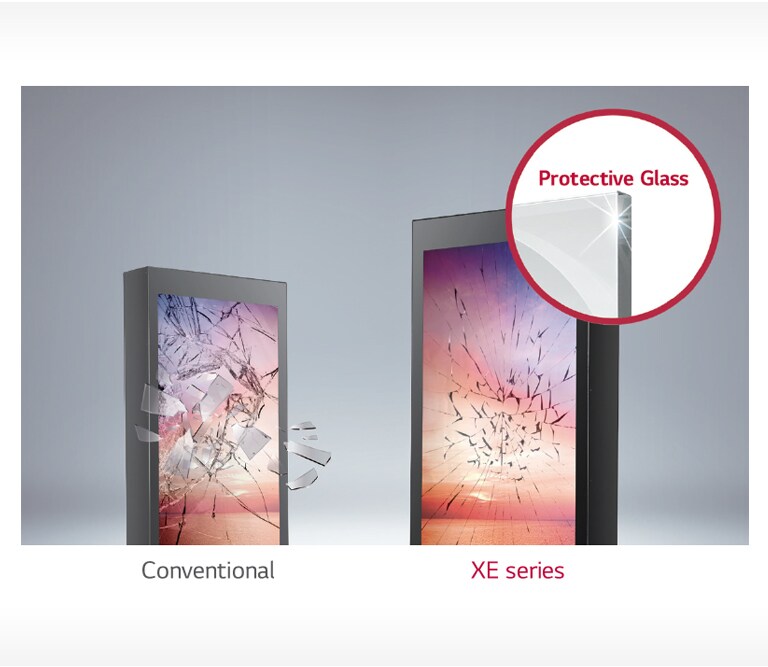

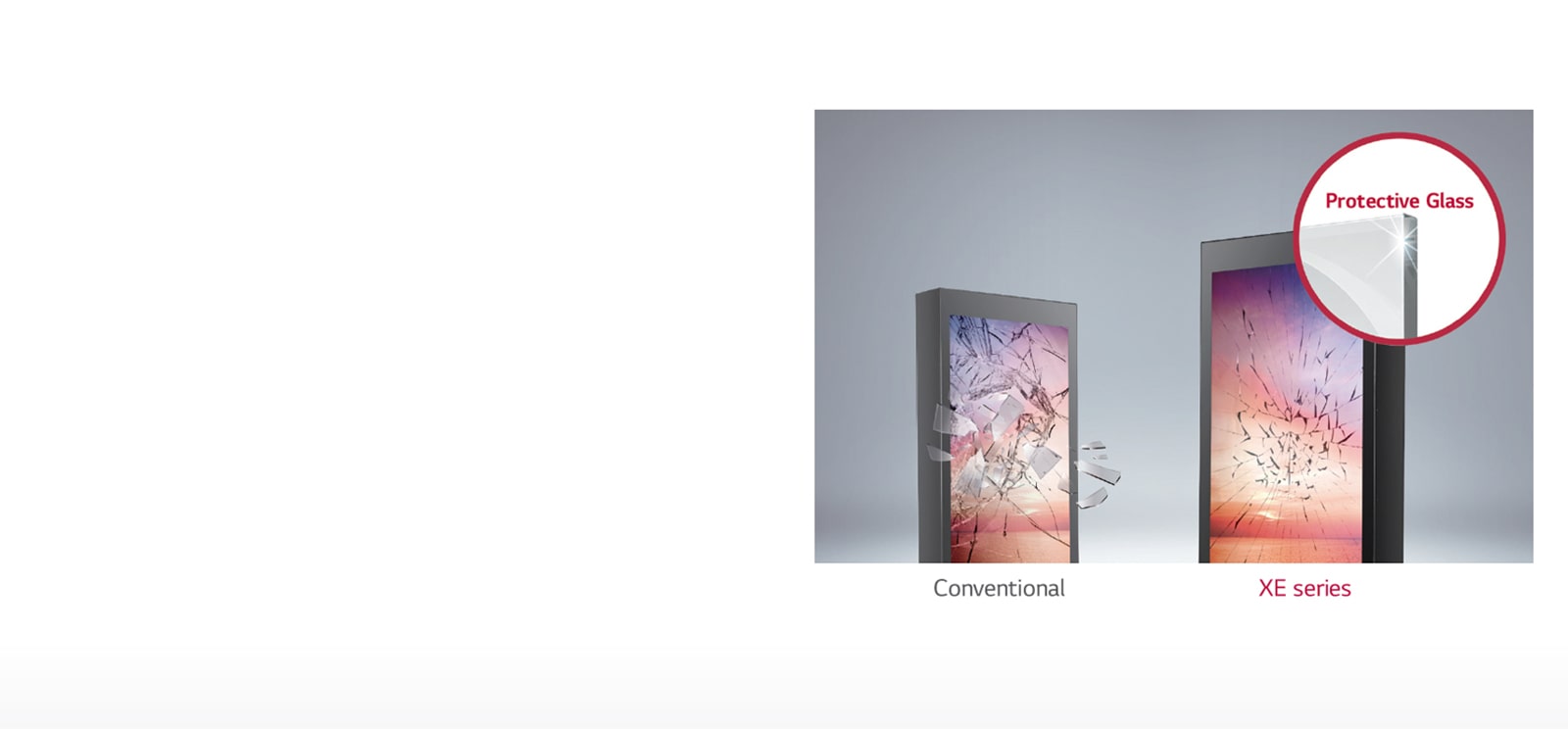

Protective Glass

Tempered and laminated front glass ensures optimum protection, from outdoor extremities allowing minimal to no damage from external impacts.
Wide Range of Operating Temperature1 Wide Range of Operating Temperature2
Outdoor Reliability

Wide Range of Operating Temperature

The panel offers superb reliablity under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

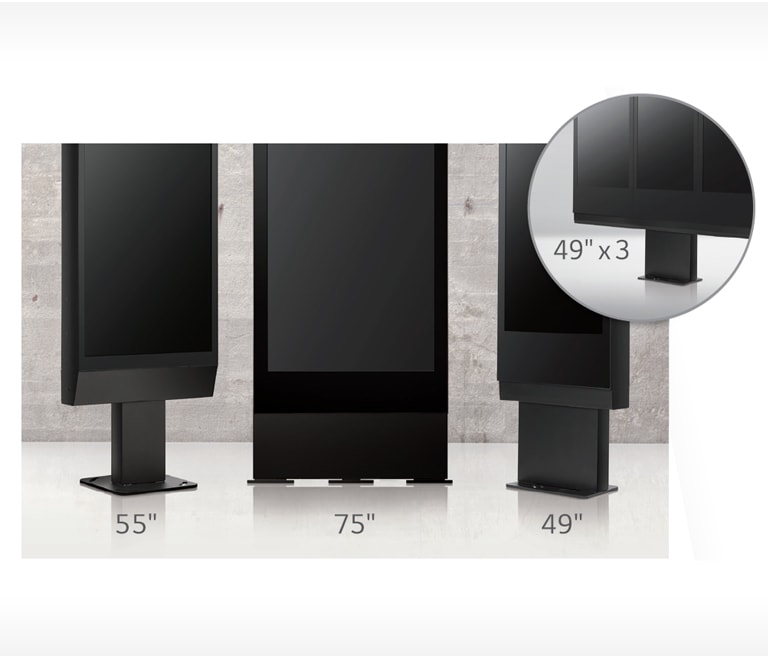

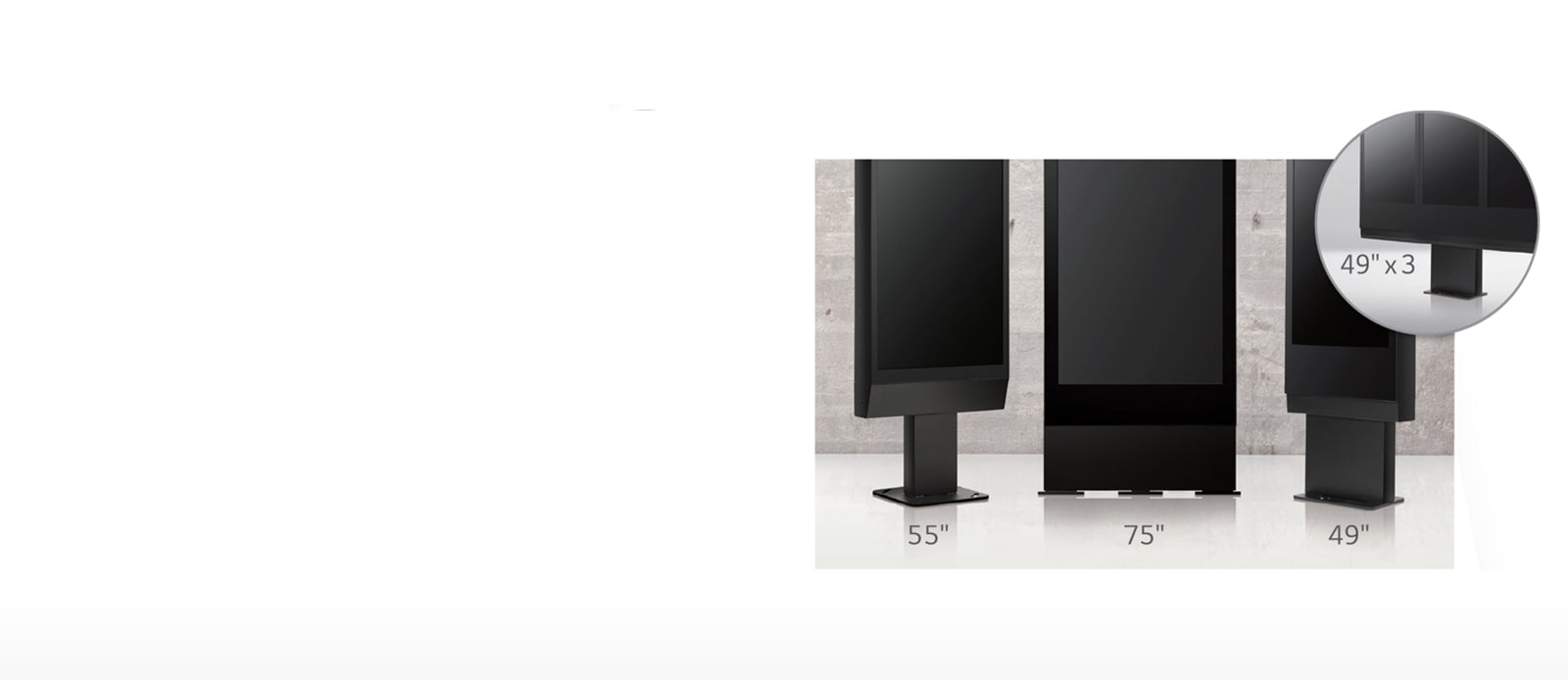

Optional Configuration1 Optional Configuration2
Easy Management

Optional Configuration

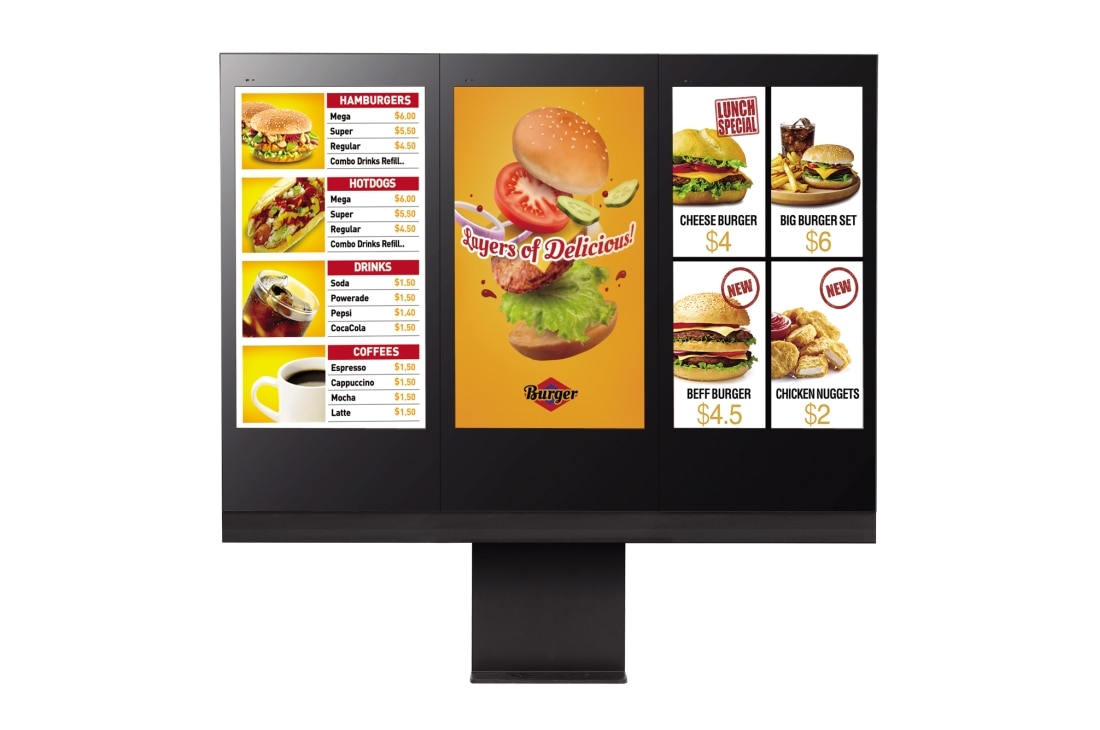

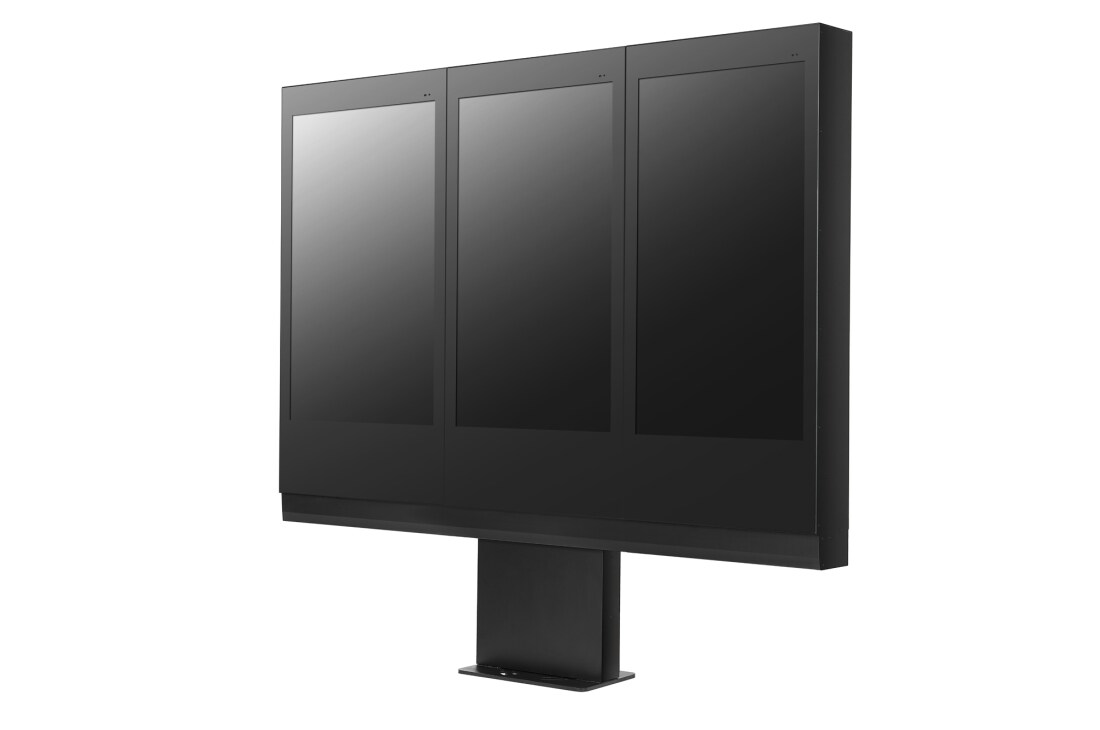

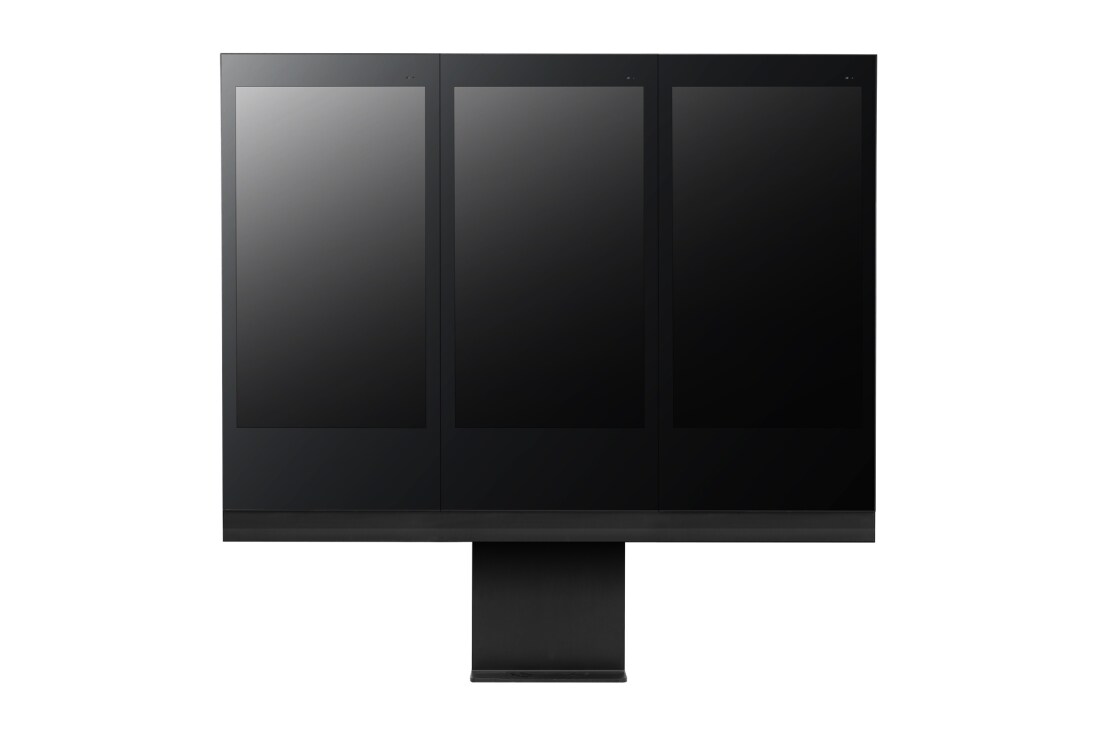

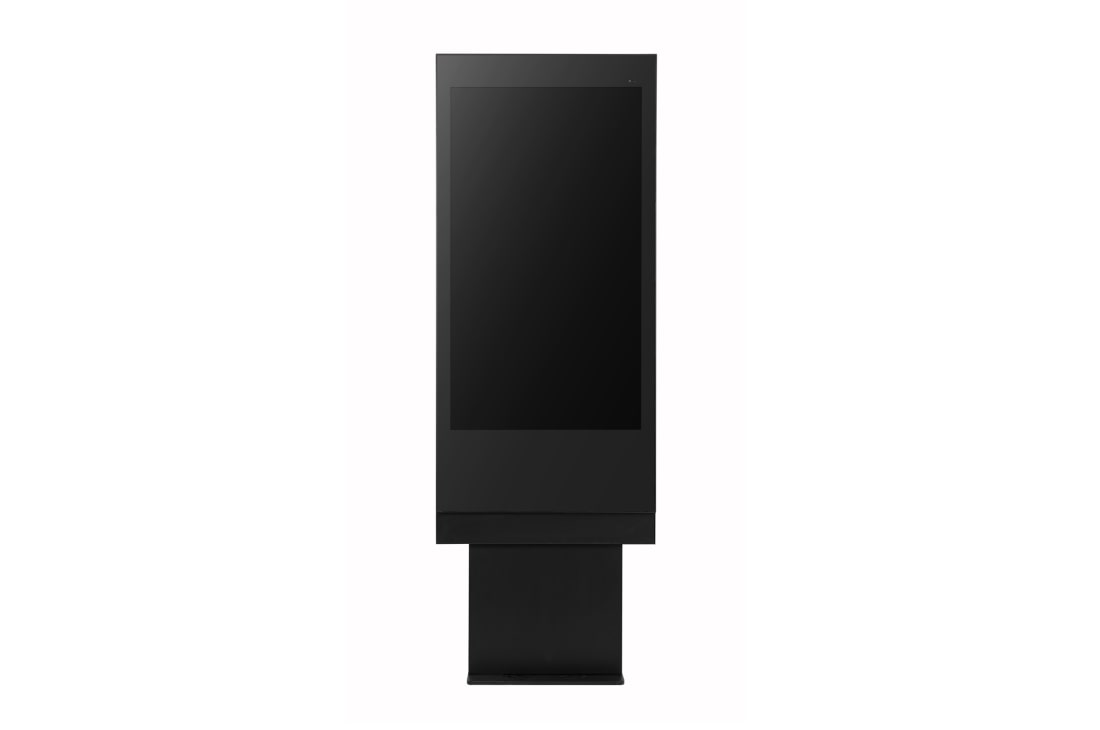

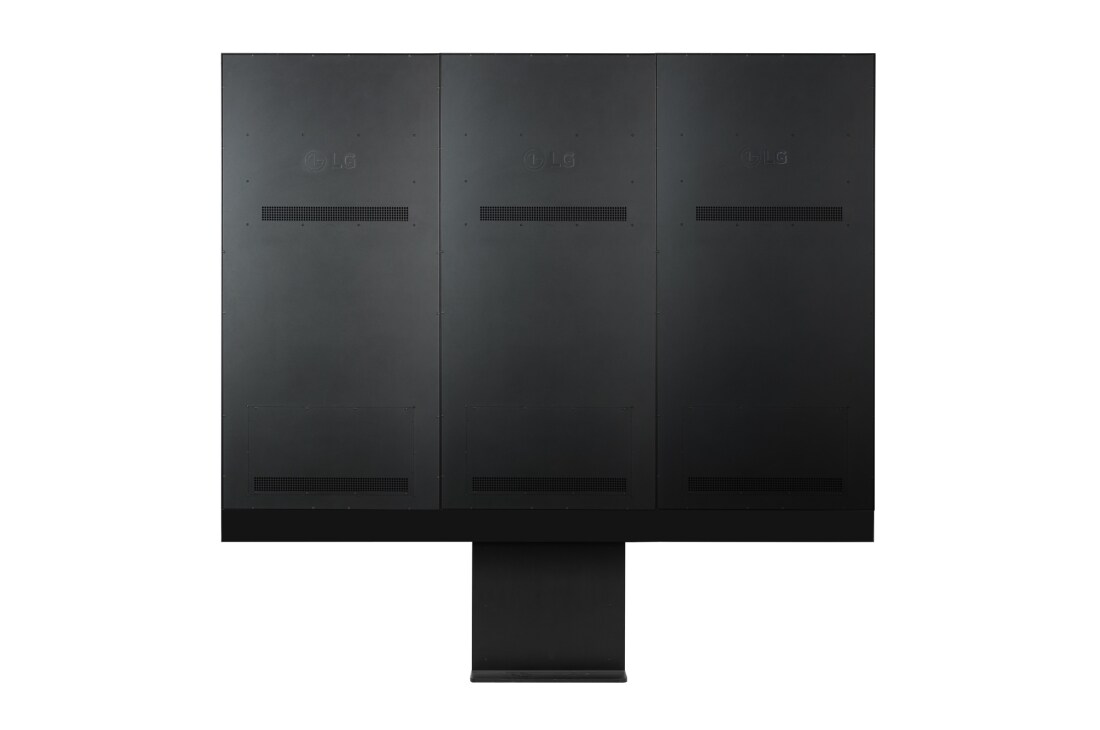

Optional stand accessories are provided to allow panel to stand freely on the ground and facilitate easy cable management. As for 49XEB3E, the exclusive stand for 1x3 configuration is also available to meet various business requirements.
Replaceable Front Glass1 Replaceable Front Glass2
Easy Management

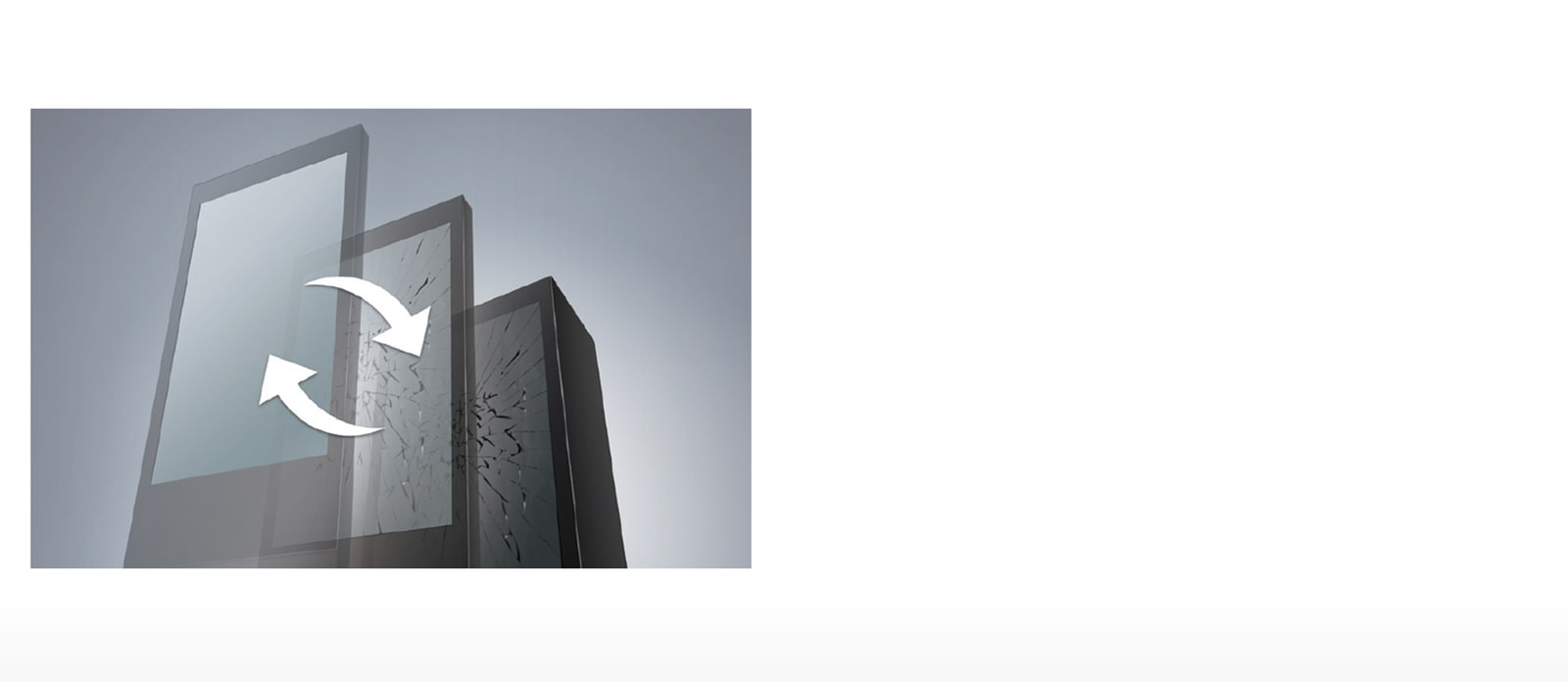

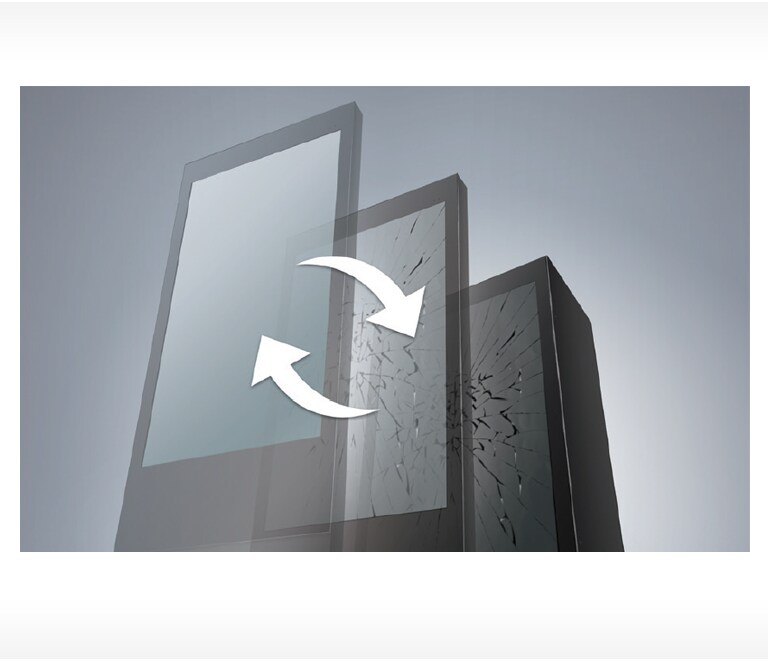

Replaceable Front Glass

The outdoor display is exposed and is a high risk for vandalism. The protective glass of 49XEB3E can be detached from its main body which allows for an instant replacement on site.
Close
PANEL
  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD), M+ (WRGB)
  • Brightness(Typ.,cd/m²)
    3000
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, Audio In, USB 3.0
    Output
    DP, External Speaker Out
  • External Control
    RS232C in/out, RJ45 in
PHYSICAL SPECIFICATION
  • Front glass
    6.8 mm (AR, Tempered & Laminated Glass)
    Bezel Width
    103.0 mm (T), 262.0 mm (B), 46.5 mm (L/R)
  • Monitor Dimension (W x H x D)
    701 x 1,445 x 180.9 mm
    Weight (Head)
    58.6 kg
  • Monitor with Optional Stand Dimensions (W x H x D)
    745 x 1,980x 321 mm (TBD)
    Weight (Head+Stand)
    100 kg(TBD)
  • Packing Dimensions (W x H x D)
    863 x 1,624 x 333 mm
    Packed Weight
    73.4 kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30°C to 50°C
    Operation Humidity
    5% to 100%
  • Dust / Water Proofing
    IP56
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ./Max.
    270 W / 400 W
    Smart Energy Saving
    145 W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB
    EMC
    FCC Class "A" / CE / KCC
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller, Manual (EIG, ESG), Regulation Book, Phone to RS232C Gender, USB Cable, HDMI Cable
    Optional
    Enclosure Stand (ST-491X, ST-493X), Circuit Breaker & Surge Suppressor (KT-PS)
