Window Facing Display

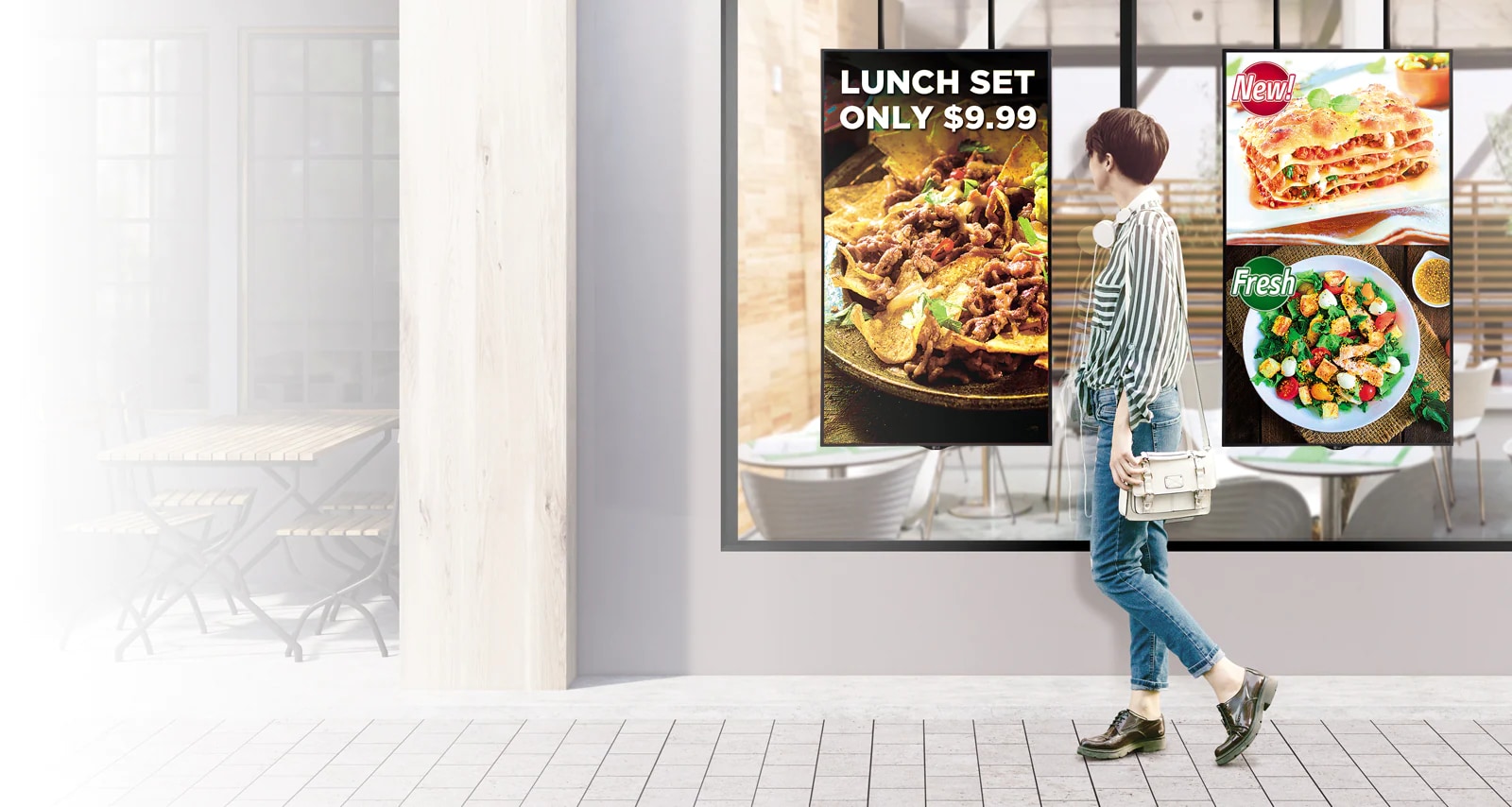

XS4F-B-01-Outstanding Visibility with Extreme Brightness-High Brightness-Monitor Signage-ID_1559690561823 XS4F-B-01-Outstanding Visibility with Extreme Brightness-High Brightness-Monitor Signage-ID_1559690561823

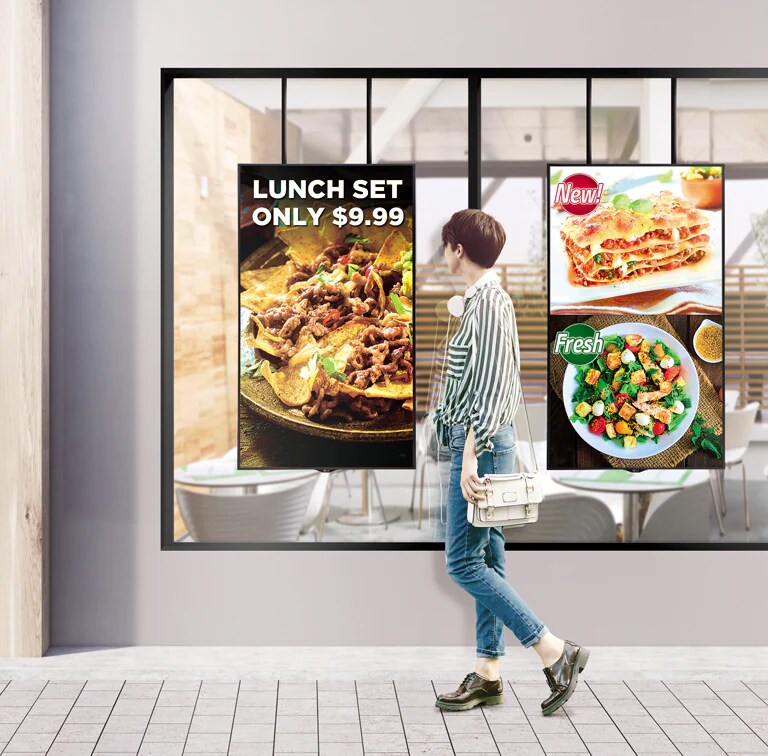

Outstanding Visibility with Extreme Brightness

LG's XS series of window-facing digital signage captivates customers with their bright and vivid image quality. The XS series helps businesses enhance their brand image while making customers' shopping experience more enjoyable.

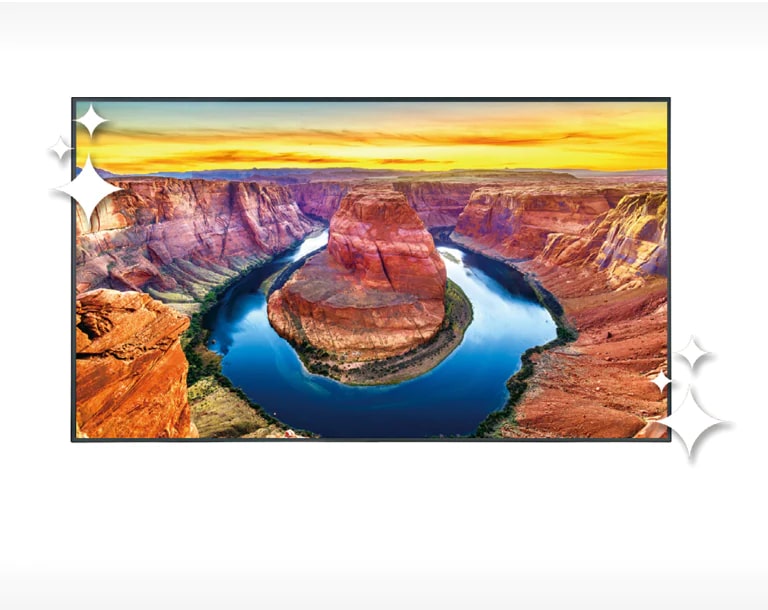

XS4F-B-02-High Brightness-High Brightness-Monitor Signage-ID_1559690655010 XS4F-B-02-High Brightness-High Brightness-Monitor Signage-ID_1559690655010
OUTSTANDING VISIBILITY

High Brightness

With a great brightness of 4,000 cd/m², XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

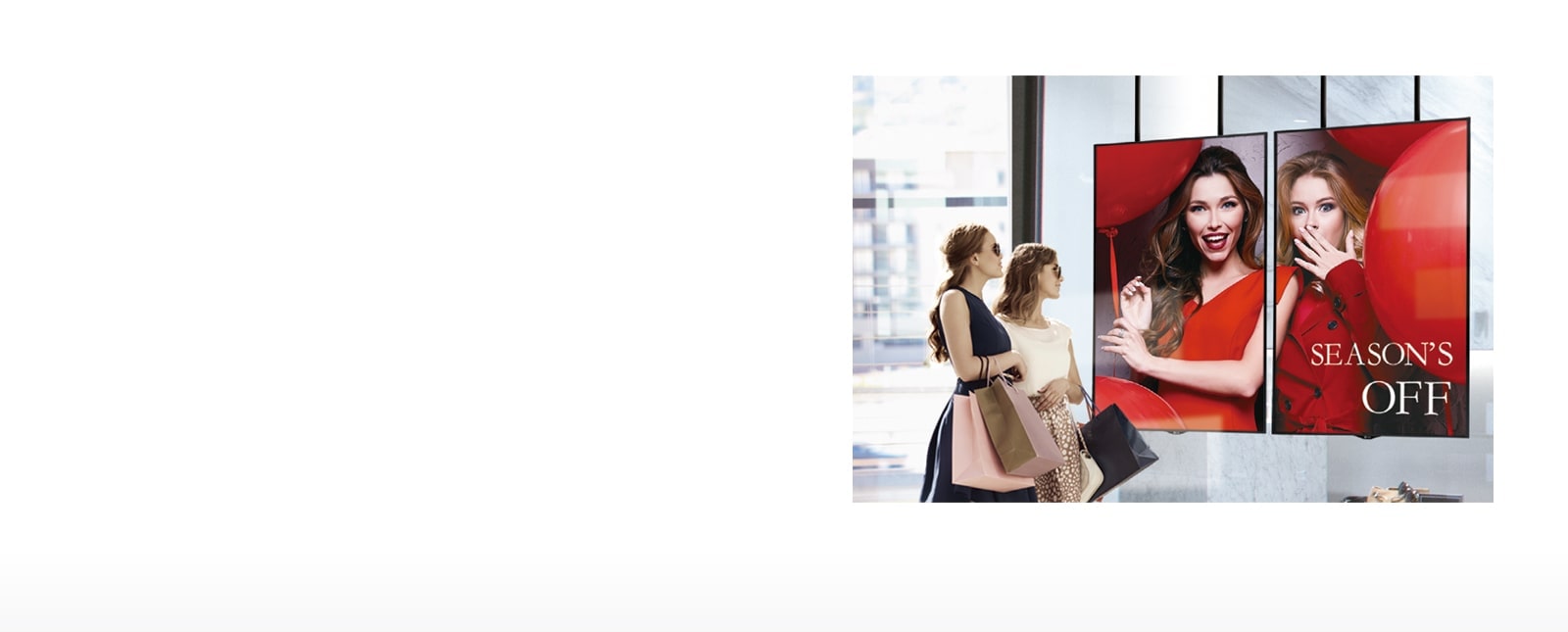

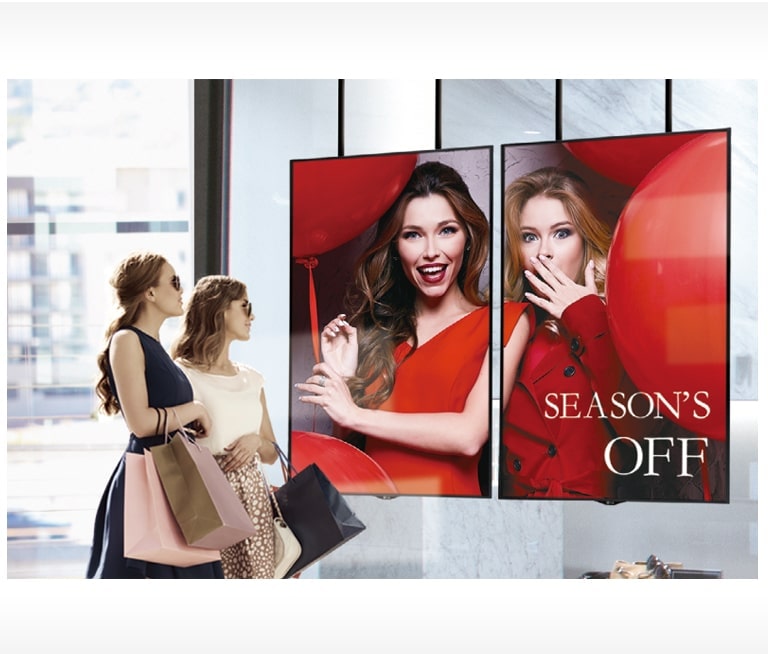

XS4F-B-03-Visible with Polarized Sunglasses-High Brightness-Monitor Signage-ID_1559690701256 XS4F-B-03-Visible with Polarized Sunglasses-High Brightness-Monitor Signage-ID_1559690701256
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.
XS4F-B-04-Slim Bezel-High Brightness-Monitor Signage-ID_1562895643187 XS4F-B-04-Slim Bezel-High Brightness-Monitor Signage-ID_1562895643187
HIGH PERFORMANCE & RELIABILITY

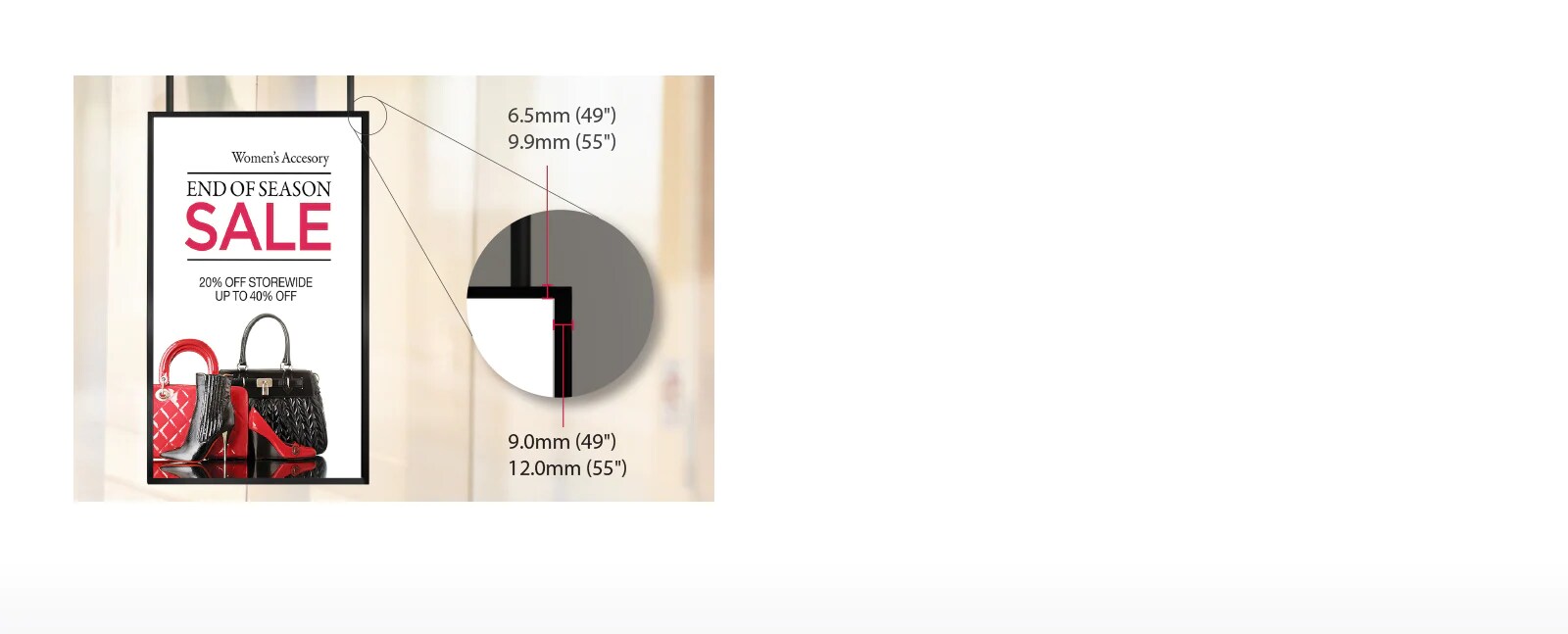

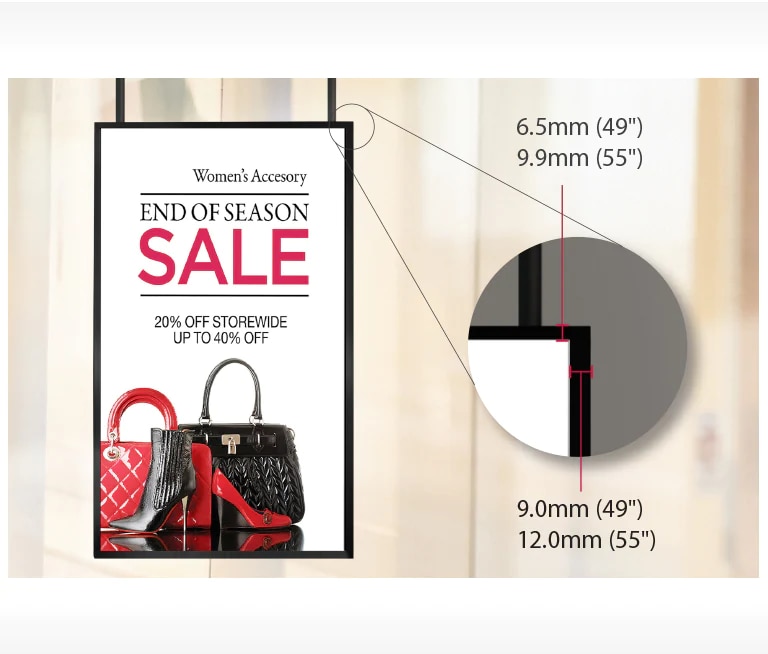

Slim Bezel

The XS series attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of the played content and the retail store's overall atmosphere.

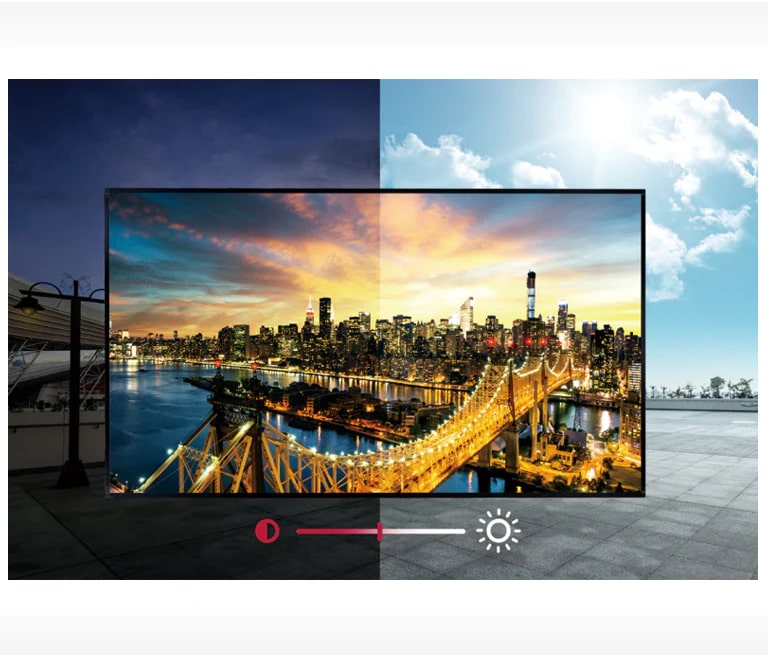

XS4F-B-05-Smart Brightness Control-High Brightness-Monitor Signage-ID_1559690801848 XS4F-B-05-Smart Brightness Control-High Brightness-Monitor Signage-ID_1559690801848
HIGH PERFORMANCE & RELIABILITY

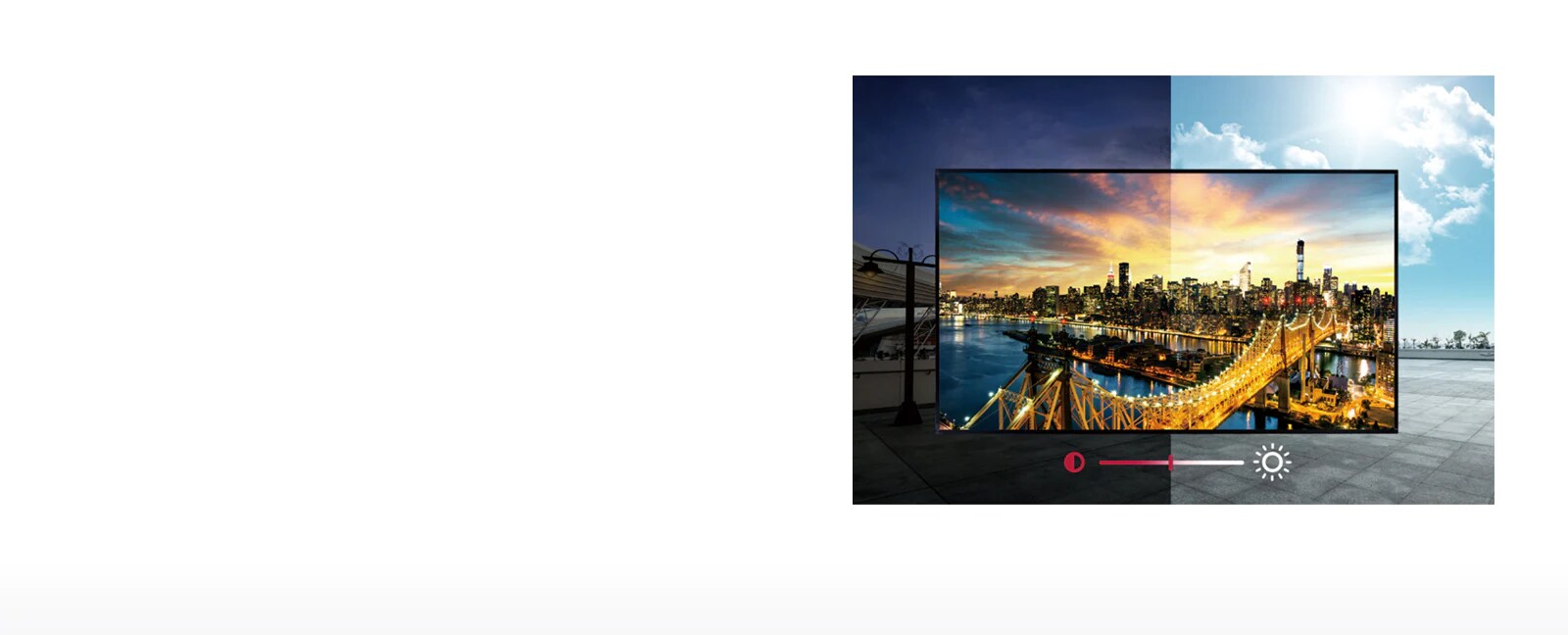

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for effi cient power management.
XS4F-B-06-Wide Operating Temperature Range-High Brightness-Monitor Signage-ID_1559690856783 XS4F-B-06-Wide Operating Temperature Range-High Brightness-Monitor Signage-ID_1559690856783
HIGH PERFORMANCE & RELIABILITY

Wide Operating Temperature Range

The panel offers superb reliability in a wide range of operating temperatures.
XS4F-B-07-Conformal Coating-High Brightness-Monitor Signage-ID_1559690900459 XS4F-B-07-Conformal Coating-High Brightness-Monitor Signage-ID_1559690900459
HIGH PERFORMANCE & RELIABILITY

Conformal Coating

Conformal Coating improves the long-term reliability of the main board and power board, protecting them from dust, iron powder, humidity, etc.
XS4F-B-08-Energy Saving-High Brightness-Monitor Signage-ID_1559690936648 XS4F-B-08-Energy Saving-High Brightness-Monitor Signage-ID_1559690936648
HIGH PERFORMANCE & RELIABILITY

Energy Saving

XS Series offers high energy effi ciency, thanks to the M+ panels.

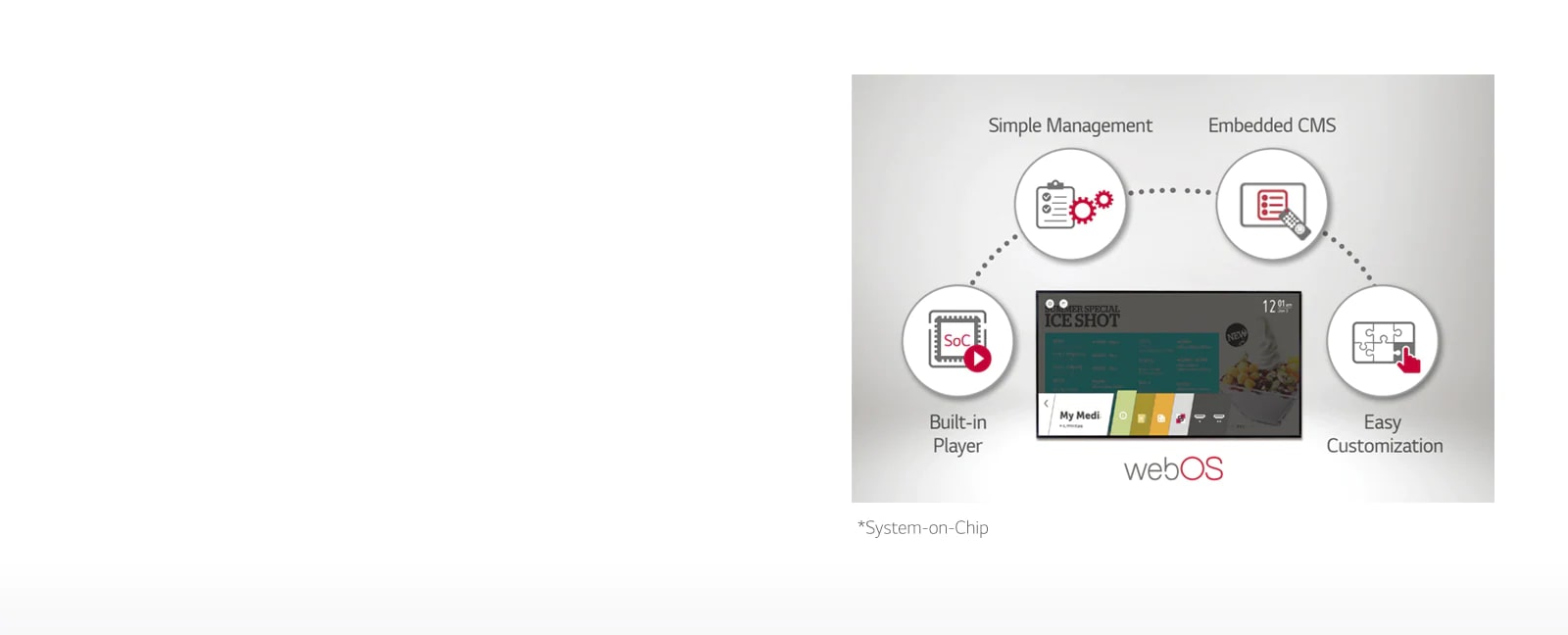

XS4F-B-09-webOS Smart Platform-High Brightness-Monitor Signage-ID_1559690997146 XS4F-B-09-webOS Smart Platform-High Brightness-Monitor Signage-ID_1559690997146
HIGH PERFORMANCE & RELIABILITY

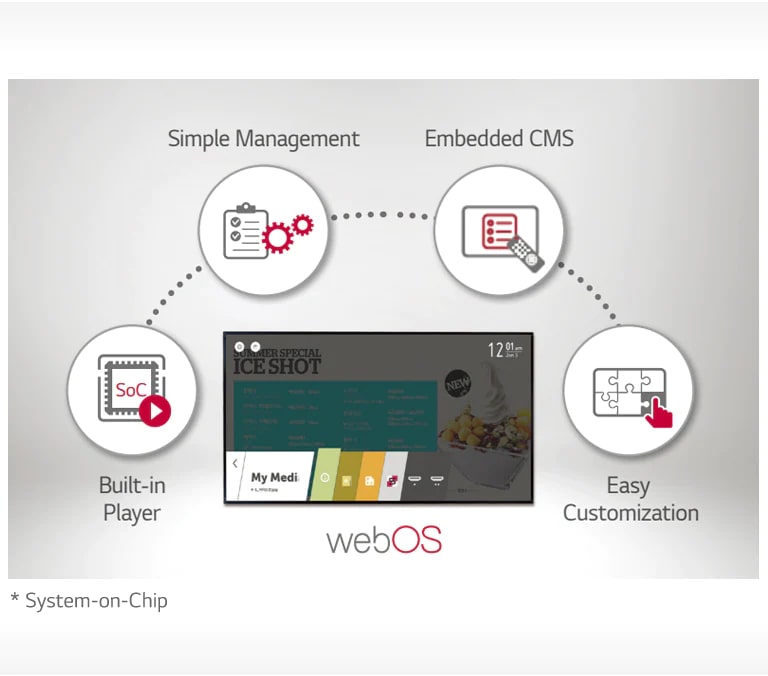

webOS Smart Platform

Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

Explore more showroom at Digital Connect

Close
PANEL
  • Screen Size
    49"
    Panel Technology
    IPS, M+(WRGB)
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Typ., cd/m²)
    4000
    Brightness (Min., cd/m²)
    3200
  • Contrast Ratio (Typ.)
    1,300:1
    Viewing Angle (H x V)
    178 x 178
  • Surface Treatment
    Haze 3%, QWP
    Lifetime
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI(2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker (L/R)
  • External Control
    RS232C In/Out, RJ45 In, IR Receiver In
PHYSICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    9 mm (T/B), 6.5 mm (L/R)
  • Monitor Dimension (W x H x D)
    1,092.7 x 626.4 x 83.5 mm
    Weight (Head)
    20.5 kg
  • Packed Weight
    25 kg
    Handle
    Yes (2ea)
  • VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Type
    Built-In Power
    Power Supply
    100-240 V~, 50/60 Hz
POWER CONSUMPTION
  • Typ./Max
    345 W / 370 W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    Yes (EU Only) / No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, HDMI Cable, Manual (EIG / IG), IR Receiver (w/ Ambient Light Sensor)
    Optional
    Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)
