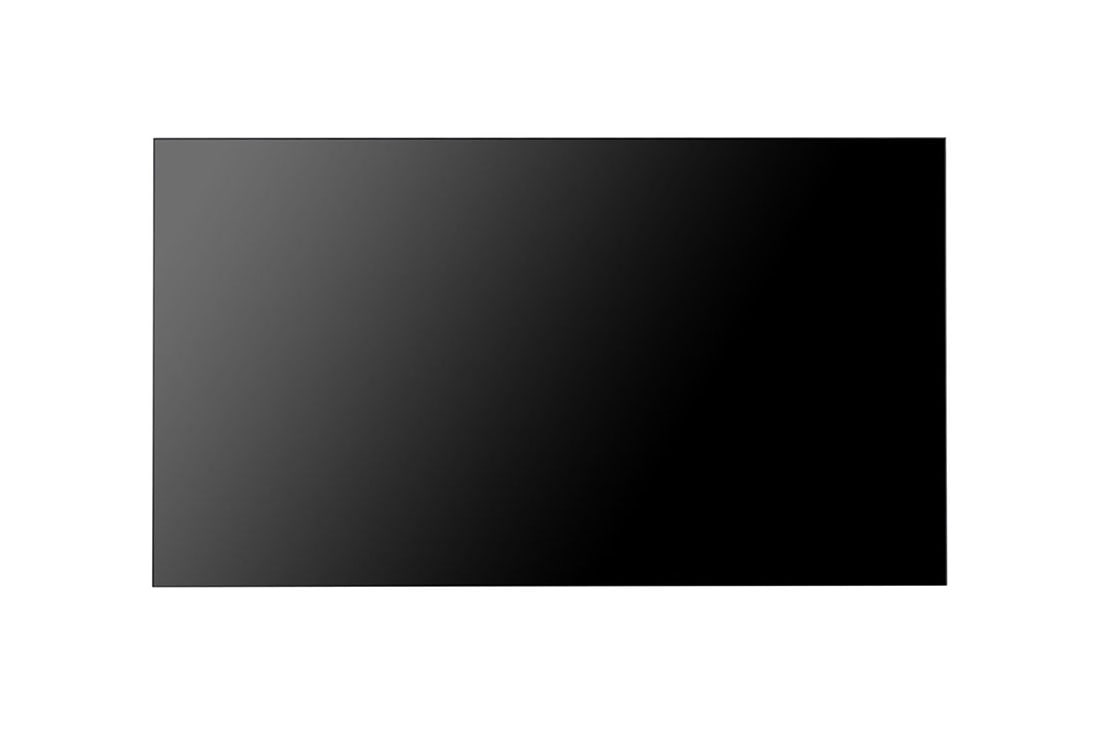

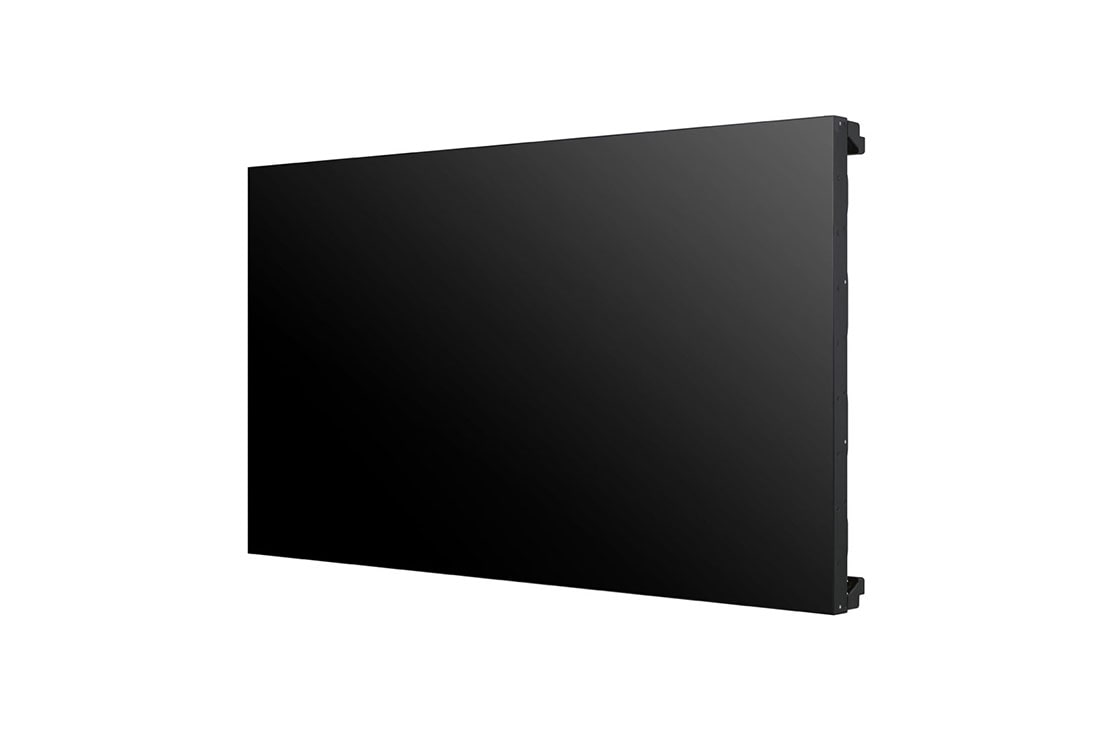

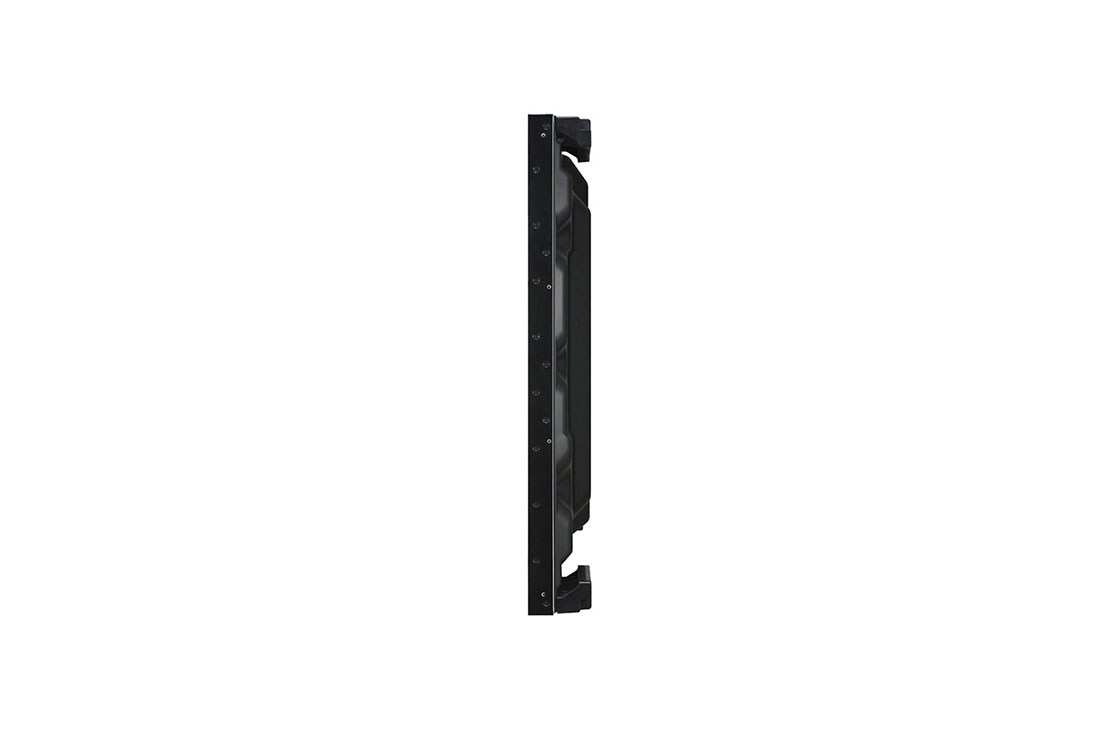

55LV75D-B component-copyModelName
Ultra Narrow Bezel Video Wall

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55LV75D-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55LV75D-B)
    $
    $
    LG Members Price
Total

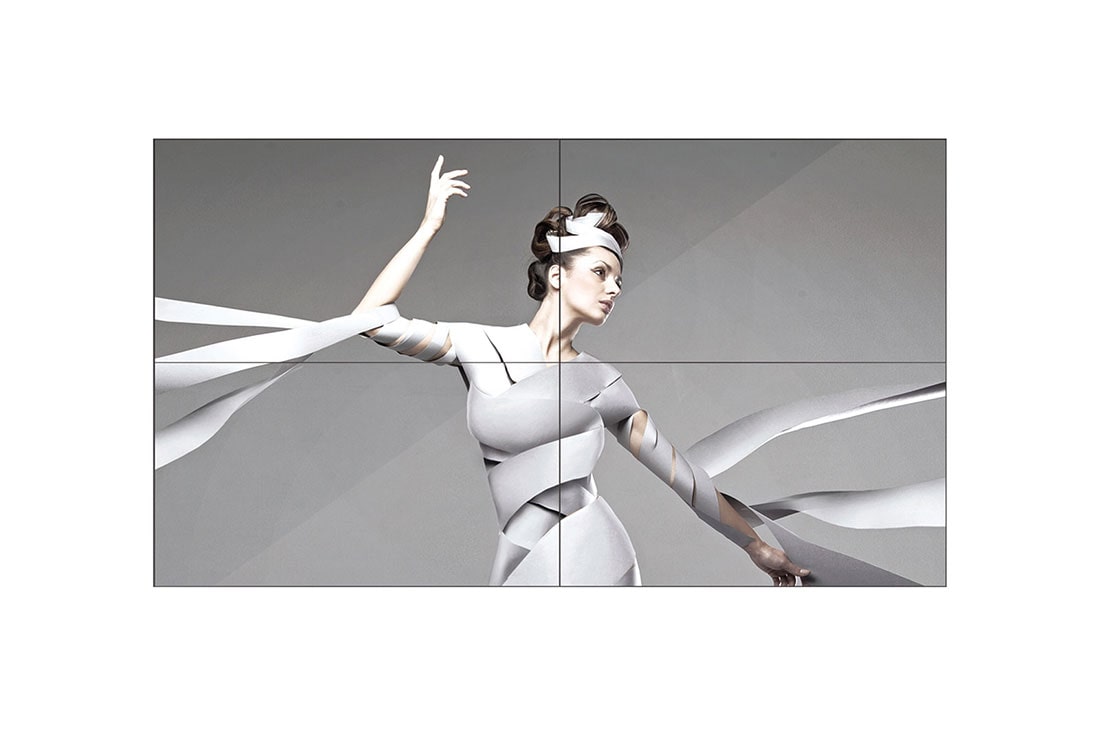

Ultra Narrow Bezel Video Wall

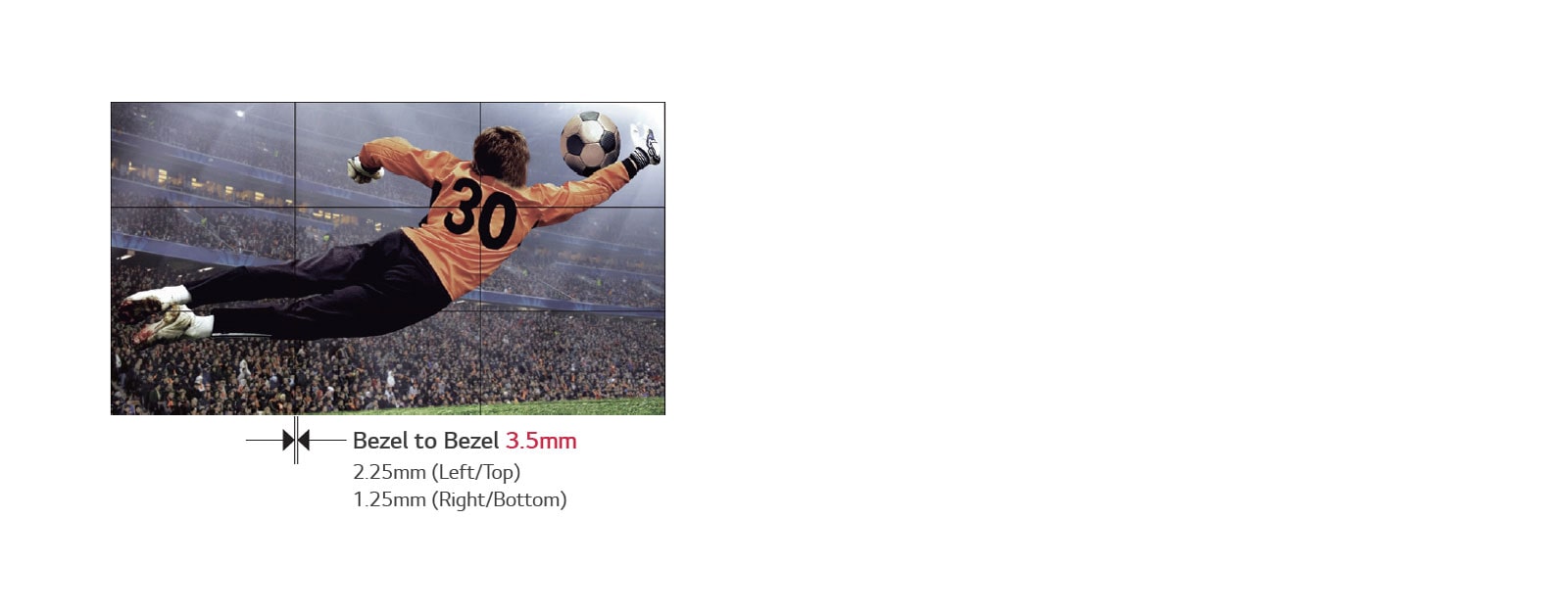

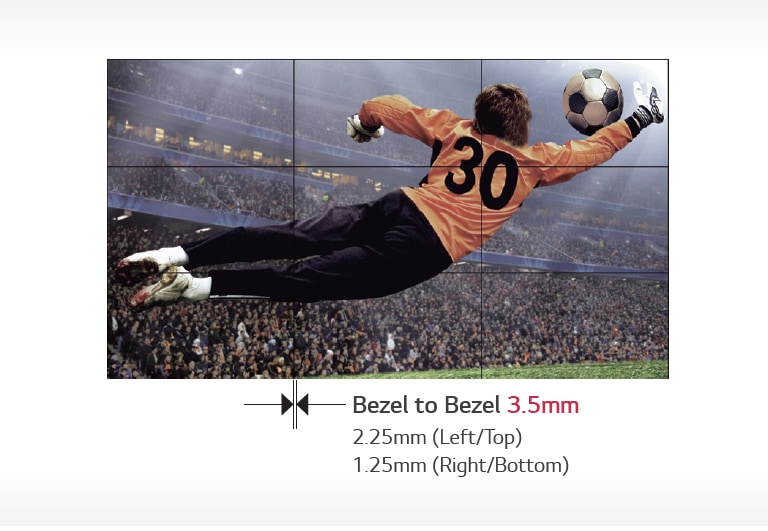

Ultra Narrow Bezel<br>1 Ultra Narrow Bezel<br>2
Immersive Viewing Experience

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

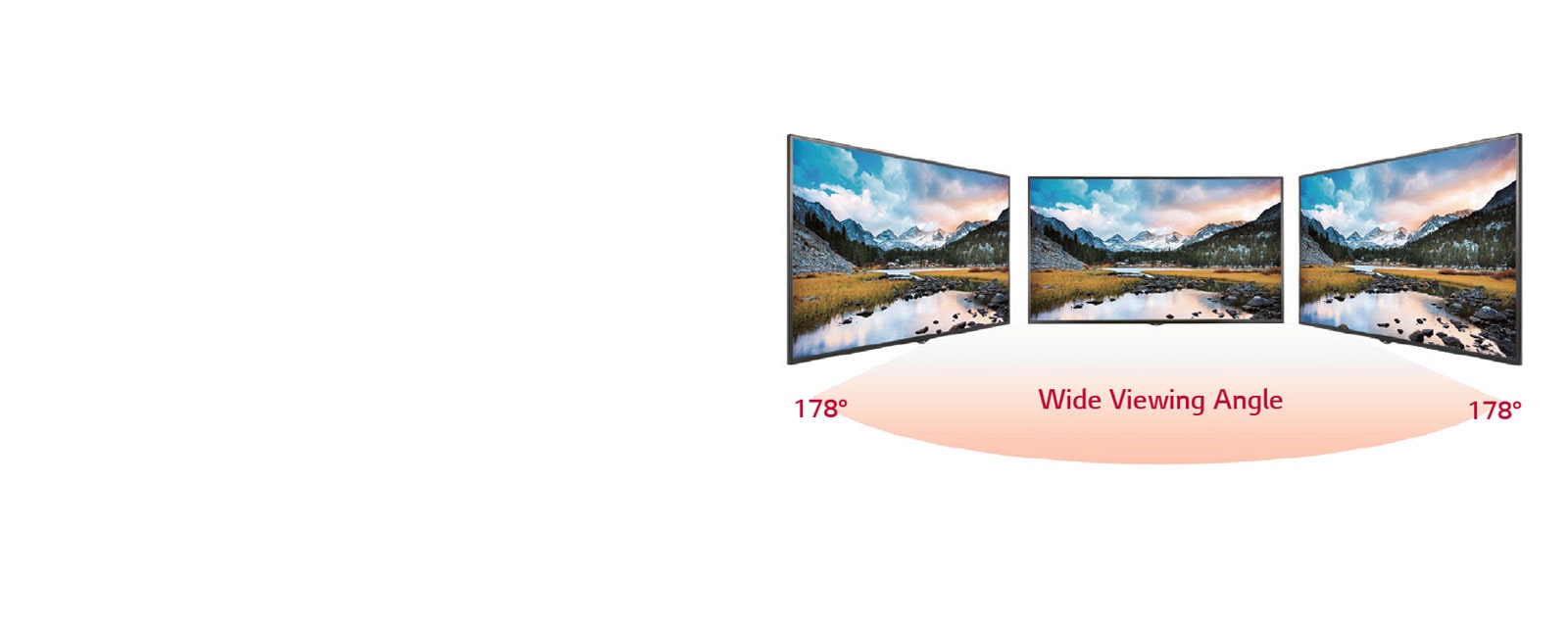

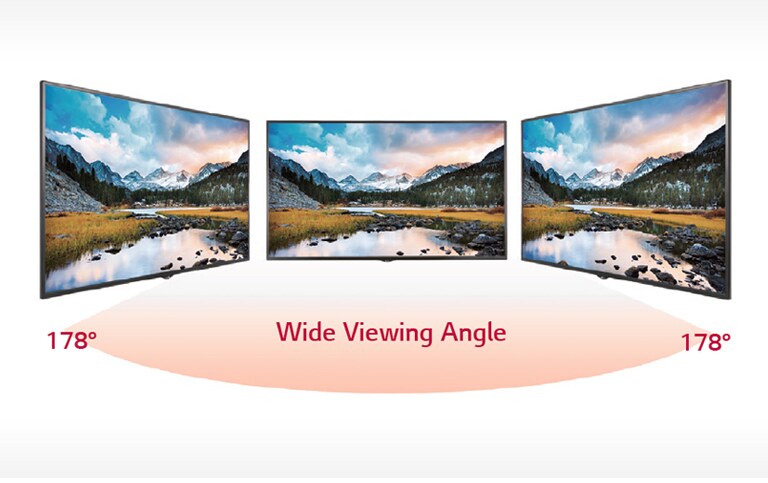

Wide Viewing Angle<br>1 Wide Viewing Angle<br>2
Immersive Viewing Experience

Wide Viewing Angle

IPS panel technology means a more advanced control of the loqiud crystal display. As a result, it has a wide viewing angle that delivers clear content, no matter where a passerby views. Every pixel in the IPS panel truly reproduces the image colors without distorting them.
Uniform Brightness<br>1 Uniform Brightness<br>2
Superior Picture Quality

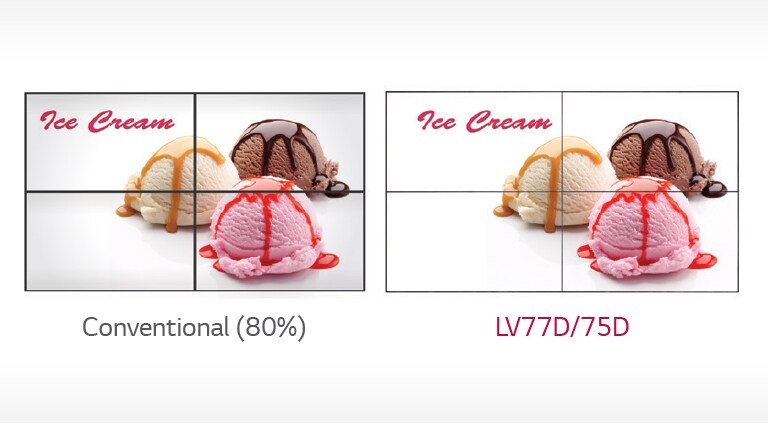

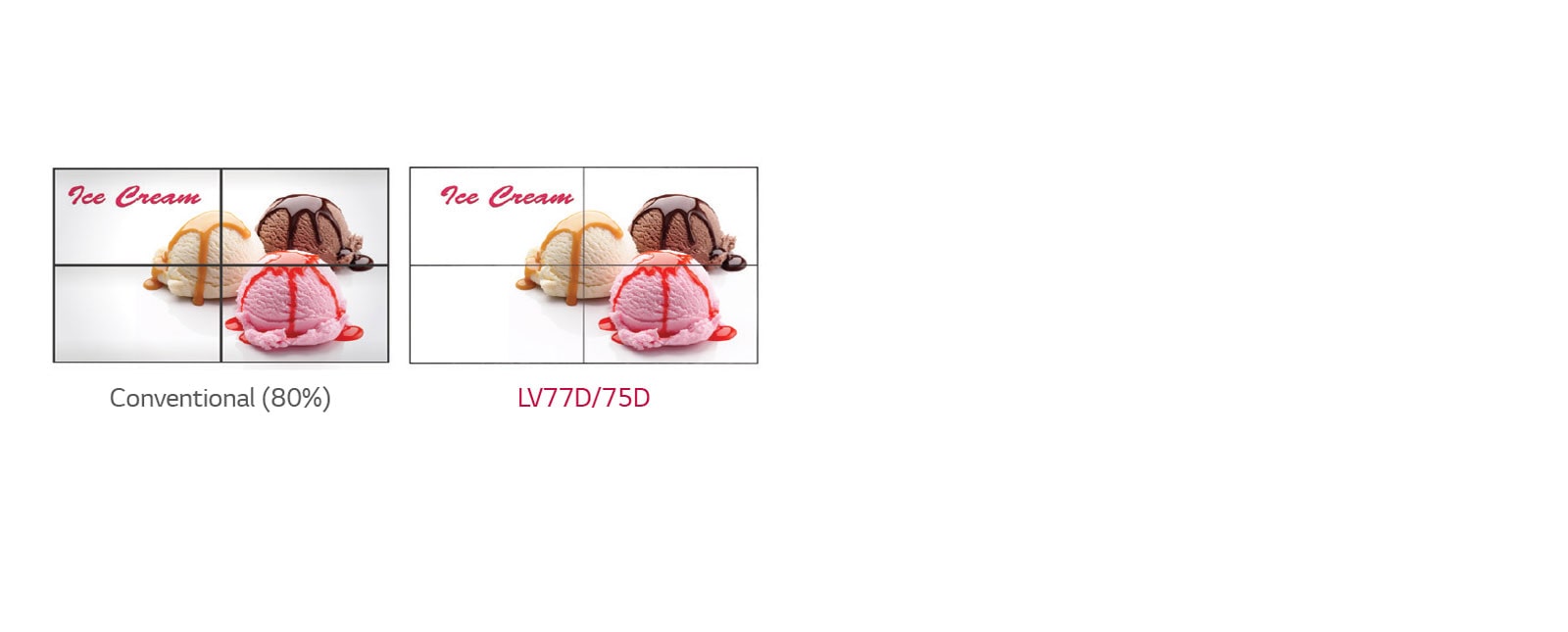

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new LV77D/75D generates high visibility and a consistent brightness across the whole screen.
Consistent White Balance<br>1 Consistent White Balance<br>2
Superior Picture Quality

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

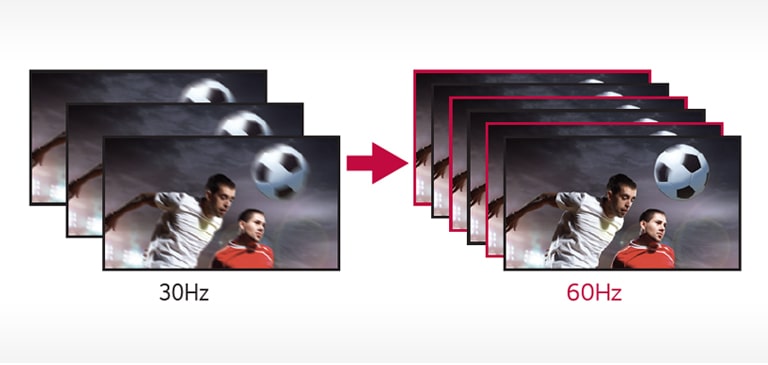

Vivid Imagery Viewing<br>1 Vivid Imagery Viewing<br>2
Superior Picture Quality

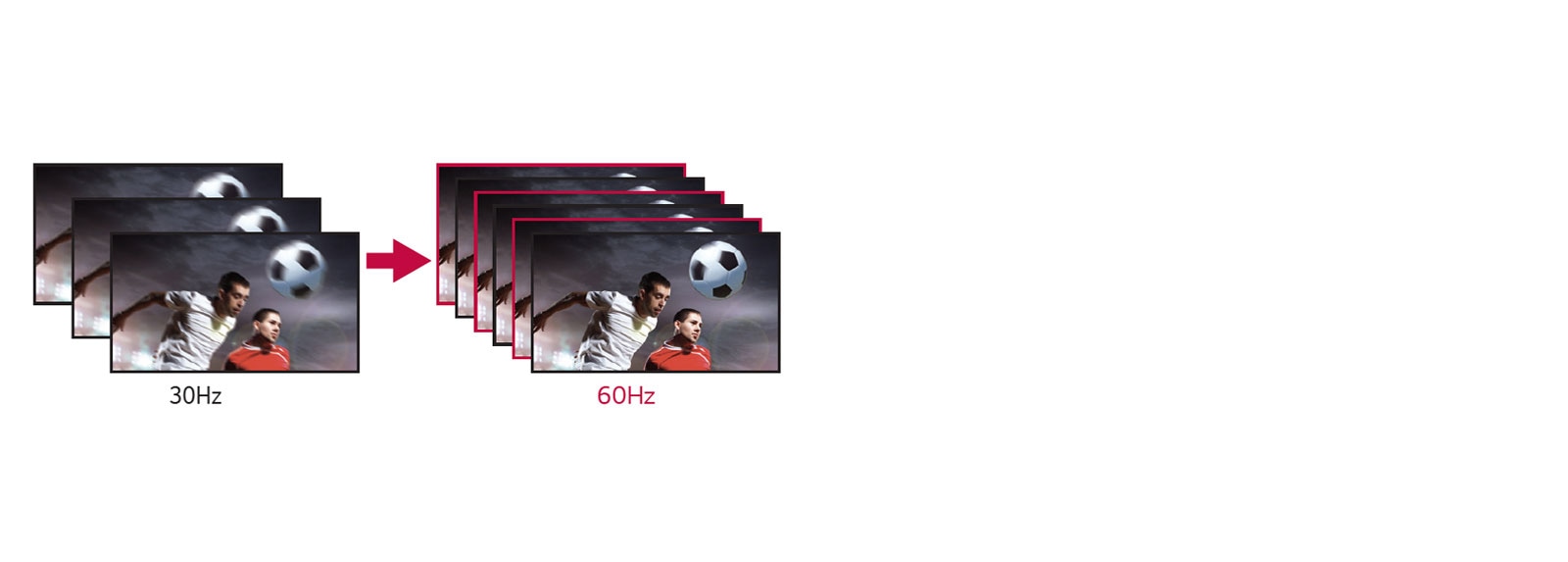

Vivid Imagery Viewing

TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image playback with fine details.

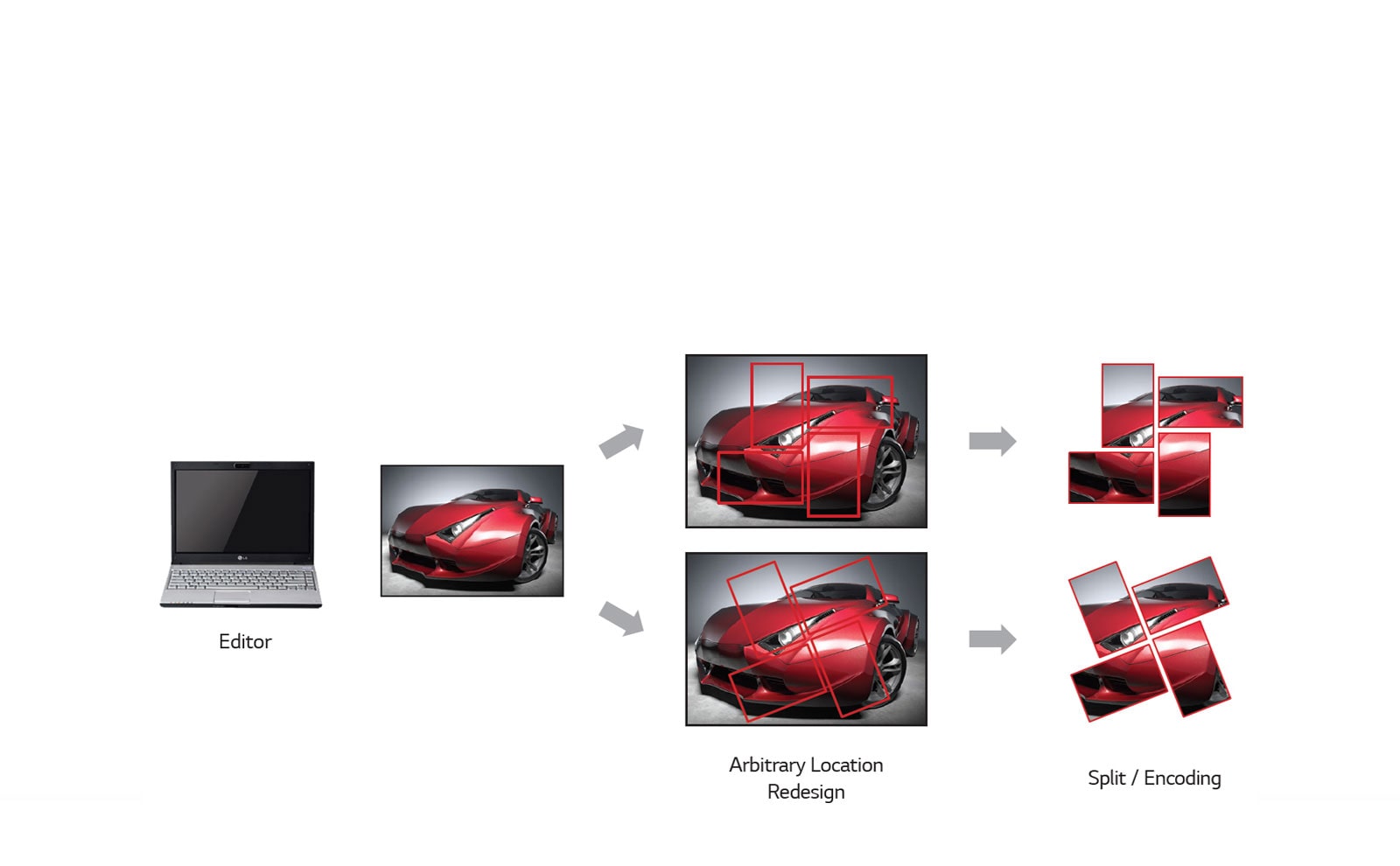

SuperSign W Content Management<br>1 SuperSign W Content Management<br>2
Content Management

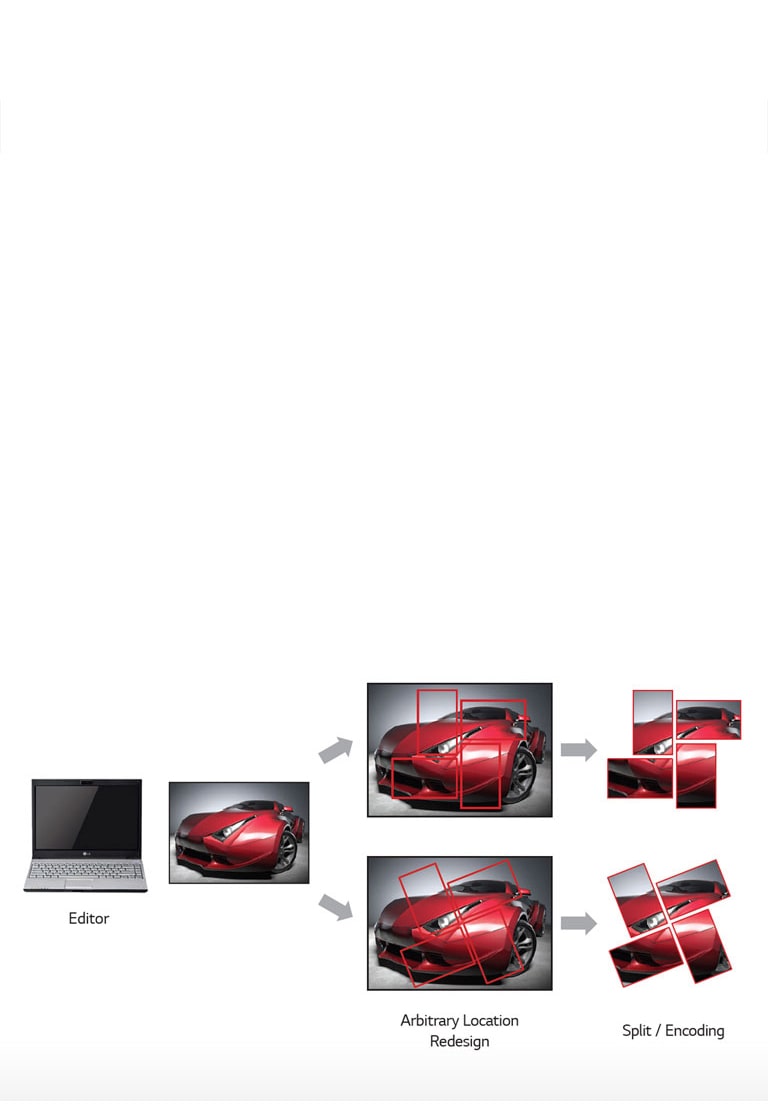

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.
Close
PANEL
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    500
    Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI, DP, DVI, RGB, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/Out, RJ45 In, IR Reciever
PHYSICAL SPECIFICATION
  • Bezel Width
    2.25mm (L/T)/1.25mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23kg
    Carton Dimensions (W x H x D)
    1,337 x 828 x 239 mm
  • Packed Weight
    30.5kg
    Handle
    Yes
  • VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER CONSUMPTION
  • Typ.
    160W
    Max
    230W
  • Smart Energy Saving
    130W
STANDARD(CERTIFICATION)
  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP/Energy Star
    NA/Yes (Energy Star 7.0)
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    No
    External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C
ACCESSORY
  • Basic
    Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)
