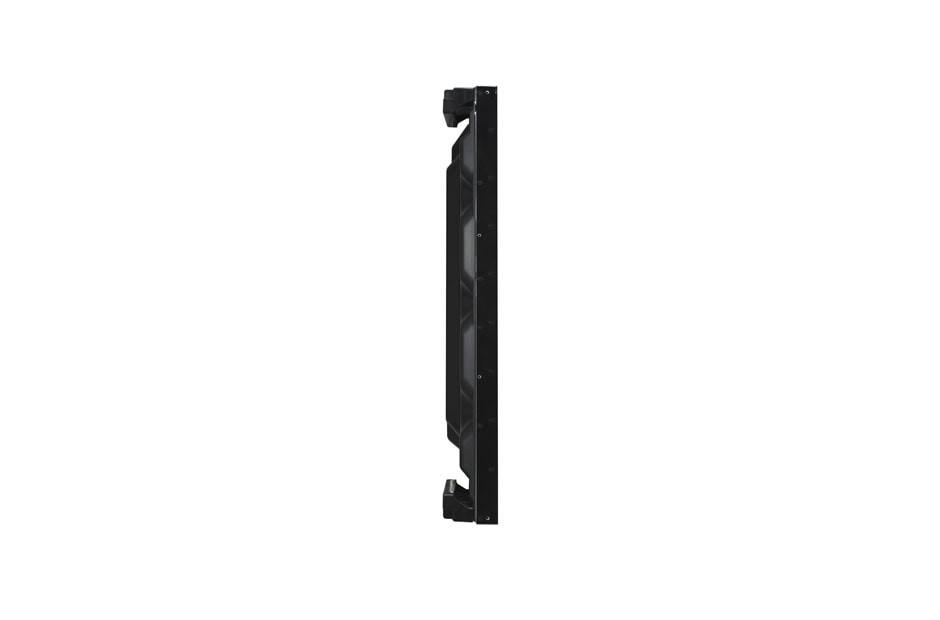

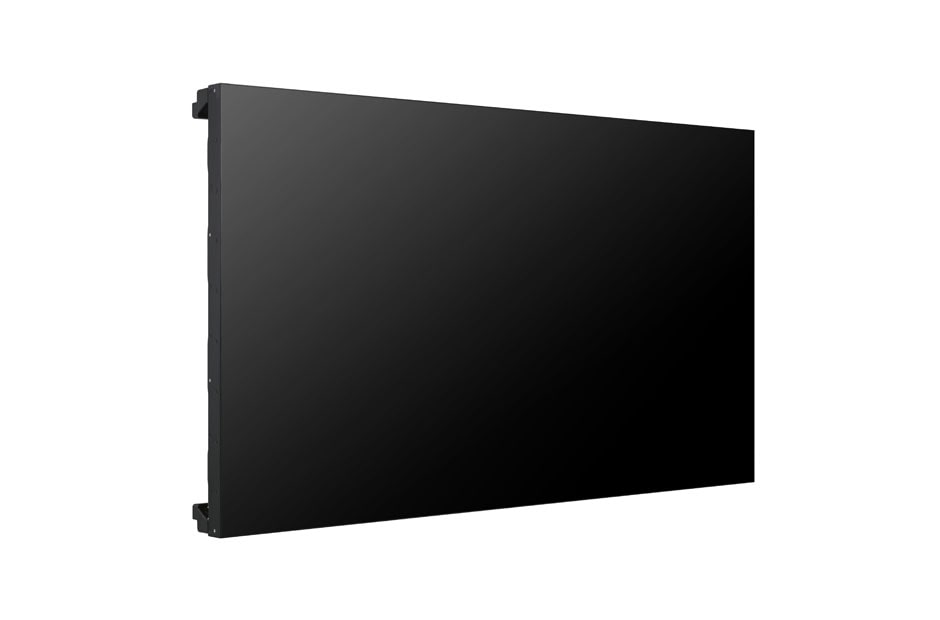

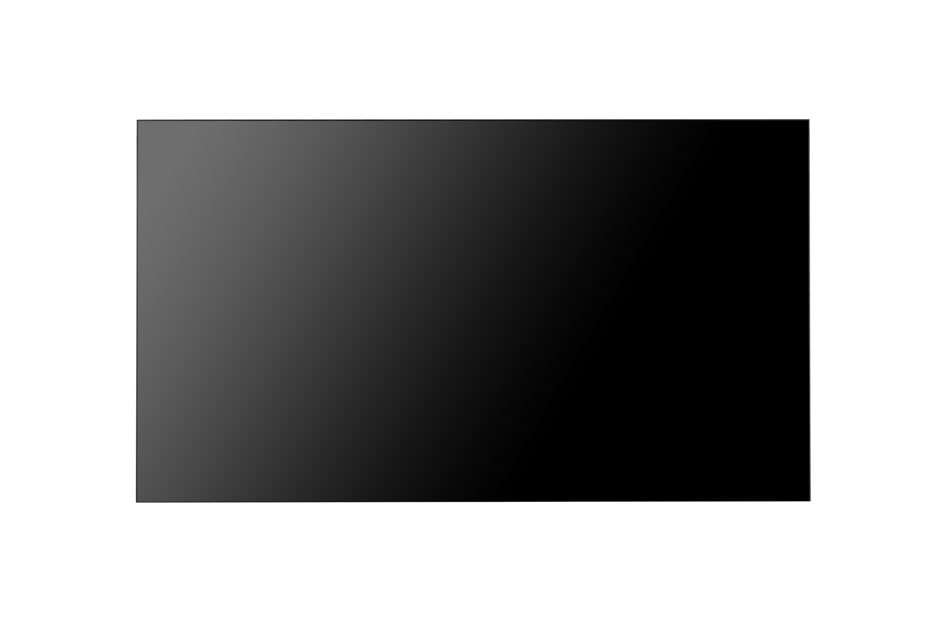

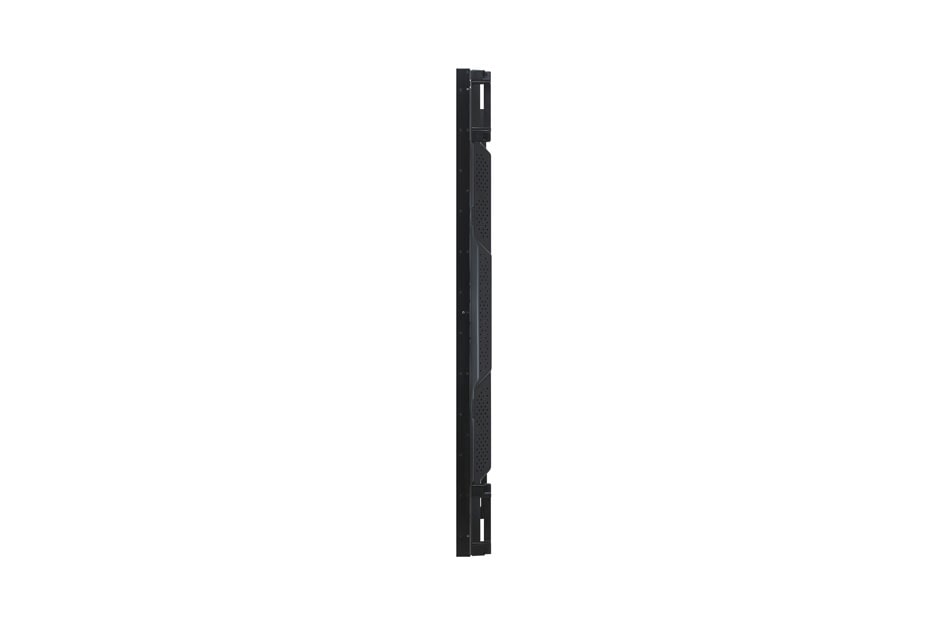

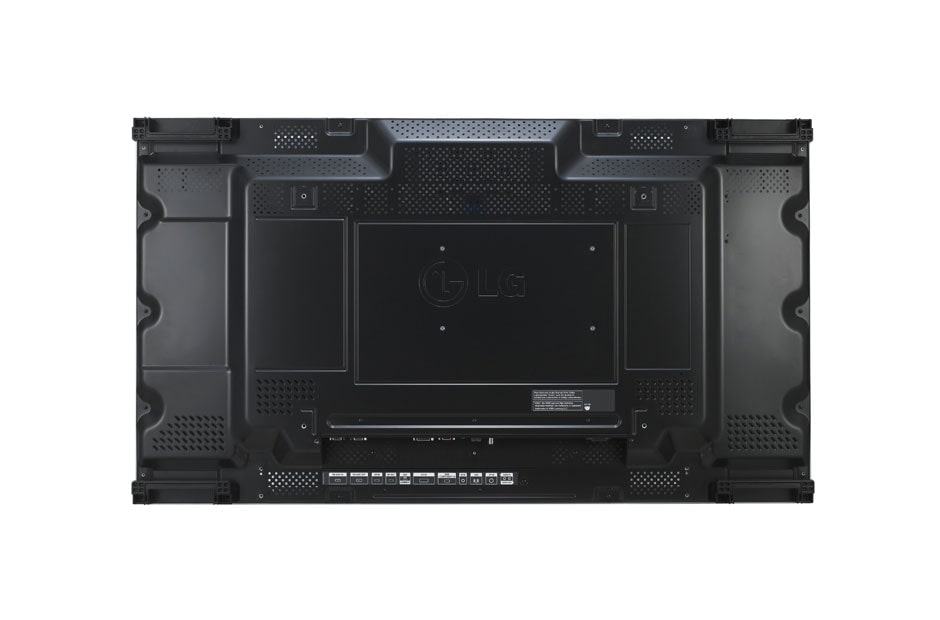

55LV77A
component-copyModelName
LV77A Series
/
component-OBScountrySelectDesc
*titleText*
component-copyModel-toastMsg
See Retailer for Pricing
Limited Quantity Sale
Available QTY
*quantity* ea
-
Product Price(55LV77A)
$*rPrice*$*rPromoPrice**discountPDPMsg*LG Members Price(55LV77A)$*rMemberPrice*$*rMembershipPrice**discountPDPMsg*vip-price-message(55LV77A)$*rPrice*$*rVipPrice**discountPDPMsg*OBS_CHEAPERPRICE_MSG $*cheaperPrice*
LG Members Price$*rMembershipPrice**rWelcomePriceDescription**rWelcomePriceTooltip*
$*rWelcomePrice*
Total
MSRP
$*improveTotalPrice*
component-previousPrice-prefix
$*rPrice*
$*rPromoPrice*
*discountMsg*
MSRP
$*rPrice*
See Retailer for Pricing
*obsMemberShipLinkStart*
OBS_MEMBERSHIP_MSG $*membershipPrice*
*obsMemberShipLinkEnd*OBS_LOWEST_PRICE_MARK_MSG
OBS_CHEAPERPRICE_MSG $*cheaperPrice*
MSRP
$
See Retailer for Pricing
OBS_MEMBERSHIP_MSG $*recommendedMembershipPrice*
┗ *modelName*
$*discountedPrice*
*userFriendlyName*
bundle-unable-text
$*discountedPrice*
component-discountMsg $*discountPrice*
component-protectYour
0 component-selectedItems
*modelName*
$*rPrice*.*rPriceCent*
$*rPromoPrice*.*rPromoPriceCent*
*discountMsg*
OBS_LOWEST_PRICE_MARK_MSG
*retailerPricingText*
*modelName*
$*rPrice*.*rPriceCent*
$*rPromoPrice*.*rPromoPriceCent*
*discountMsg*
OBS_LOWEST_PRICE_MARK_MSG
*retailerPricingText*
LV77A Series
MSRP
$*rPrice*
MSRP
$*rPromoPrice*
*discountMsg*
MSRP
$
See Retailer for Pricing
MSRP
vip-price-message
$
DISPLAY

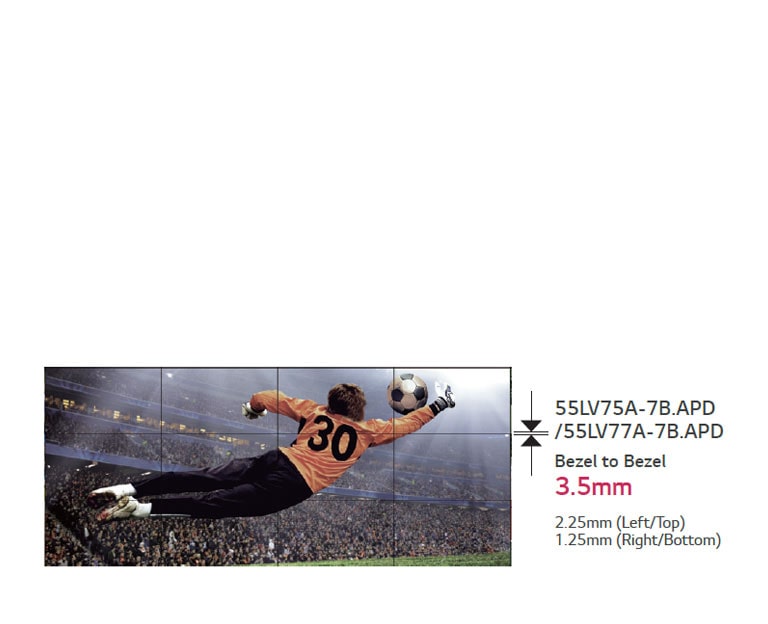

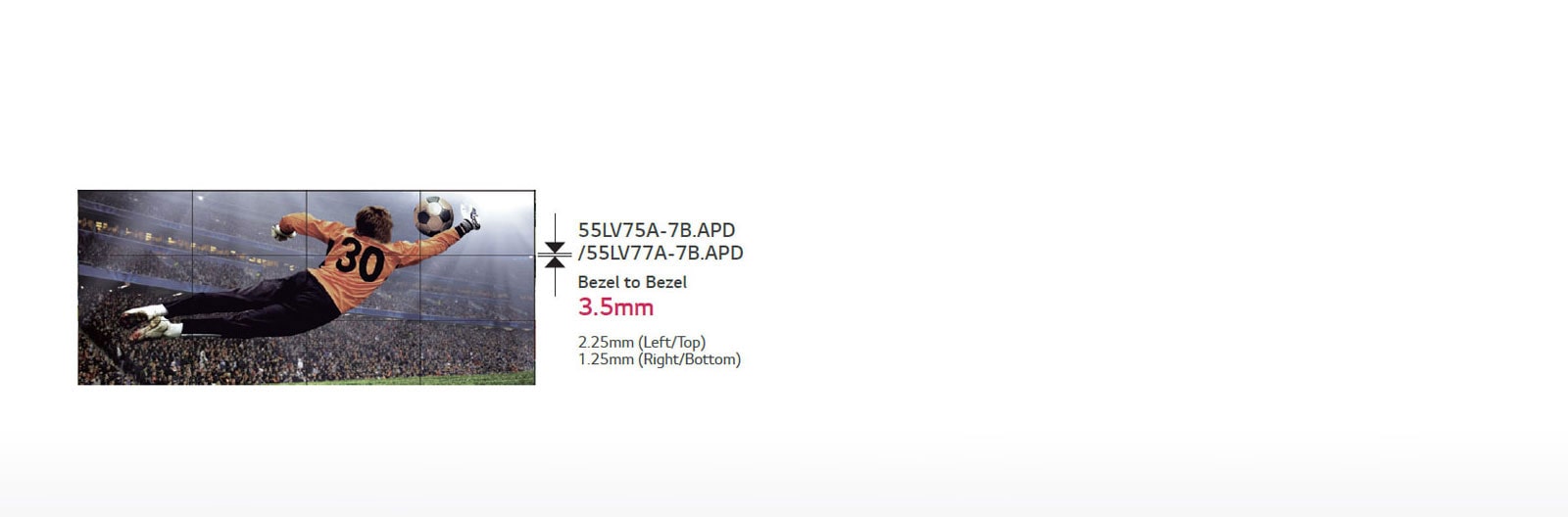

Super Narrow Bezel
47" super narrow bezel 4.9mm and 55" super narrow bezel 3.5mm video wall displays create visually stunning digital wall that is easily installed, maintained and managed.
DISPLAY

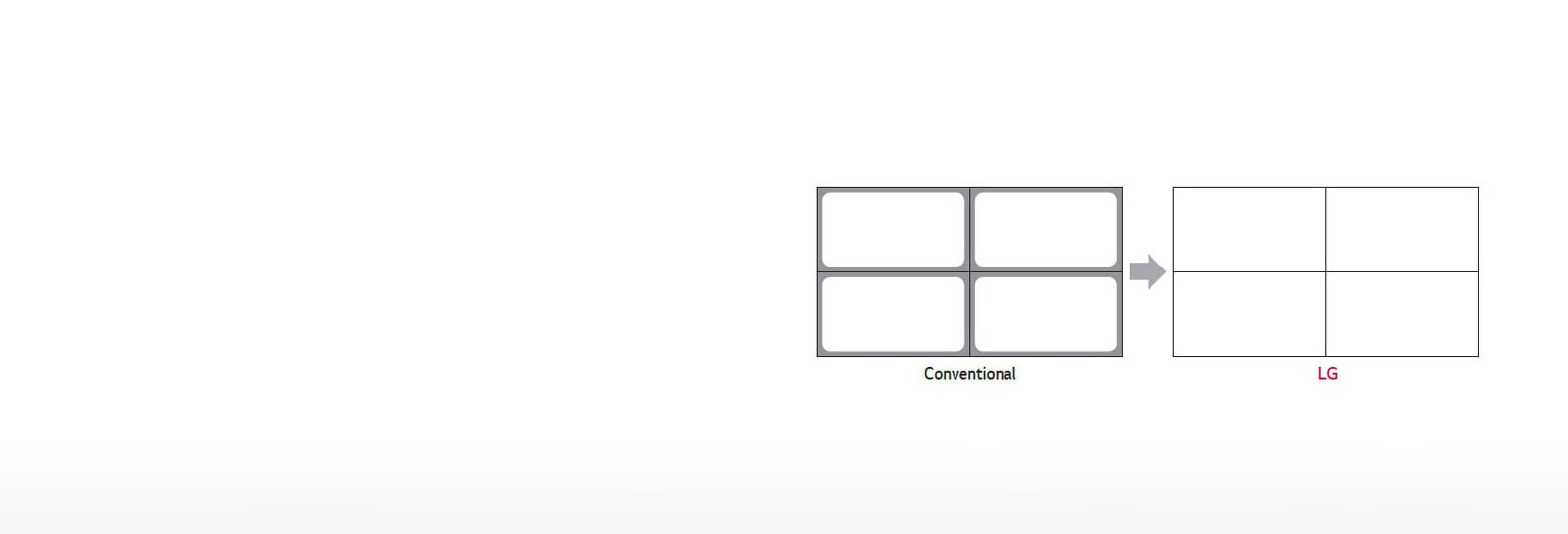

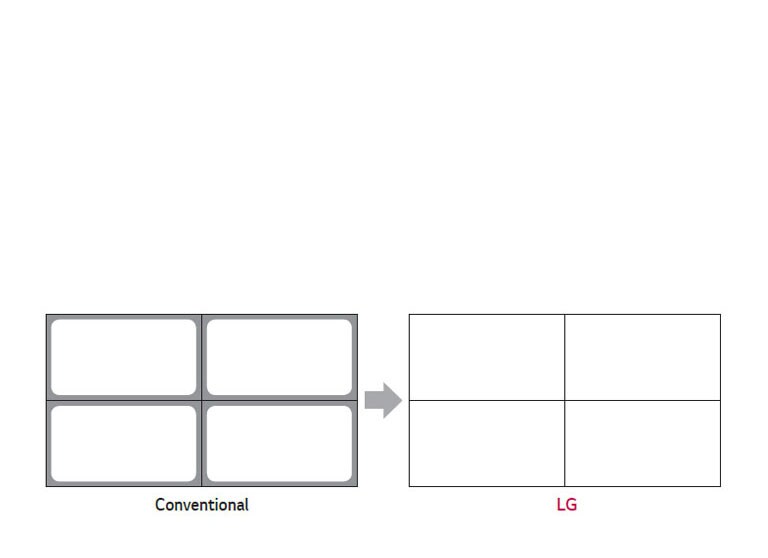

Higher Brightness Uniformity
Brightness uniformity 90 ensures high-quality image delivered across displays.
DISPLAY

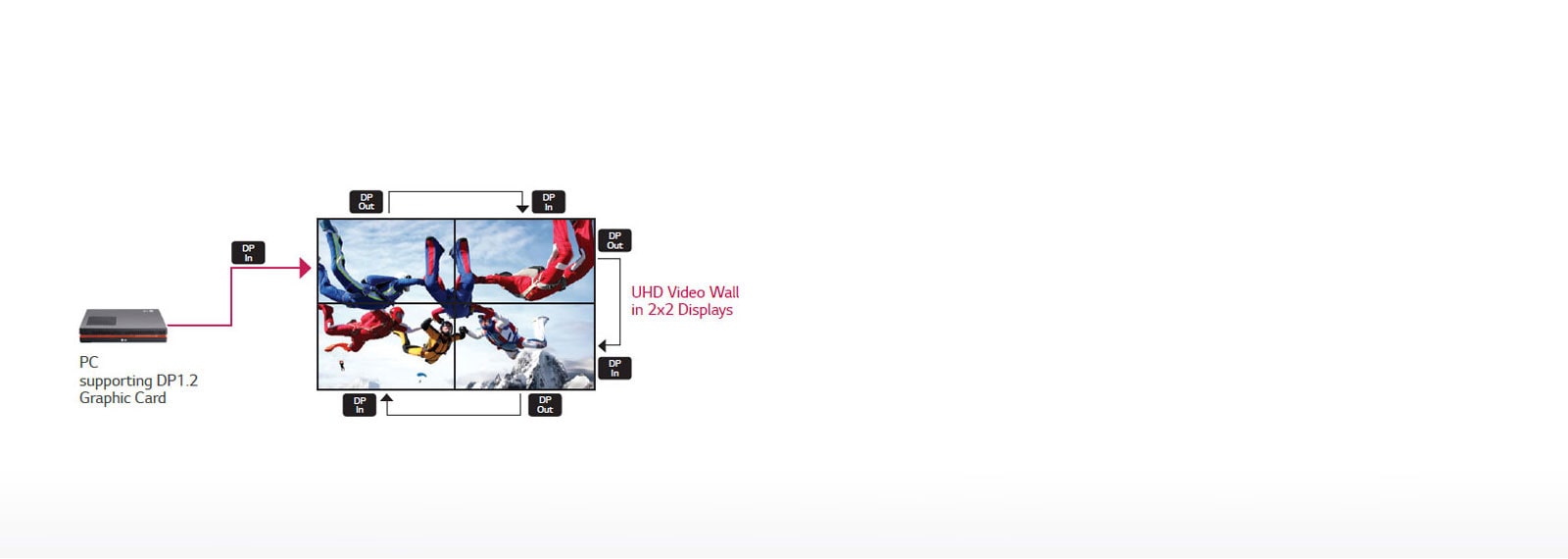

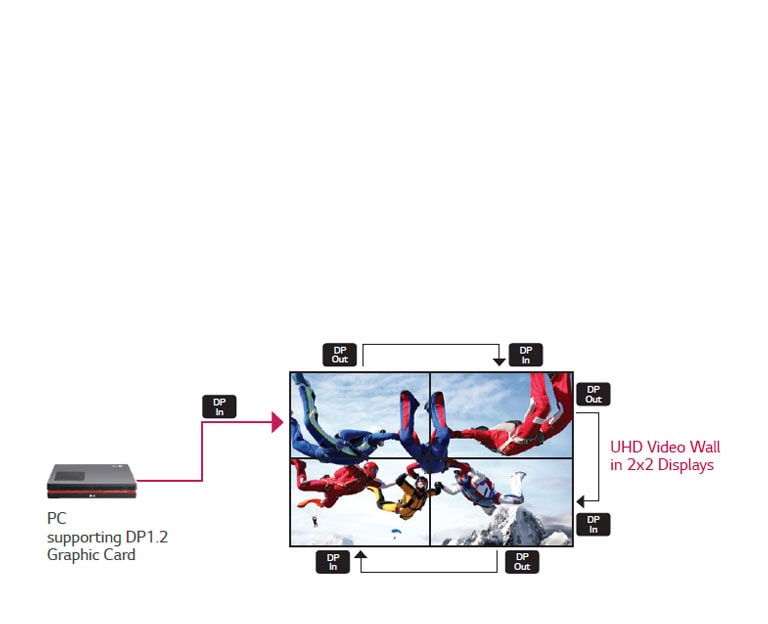

Evolved Daisy-Chain Performance
DisplayPort1.2 connectors enable UHD content playback on 4K Video
Wall in 2x2 displays. (available on 55LV75A-7B.APD/55LV77A-7B.APD)
Wall in 2x2 displays. (available on 55LV75A-7B.APD/55LV77A-7B.APD)
DISPLAY

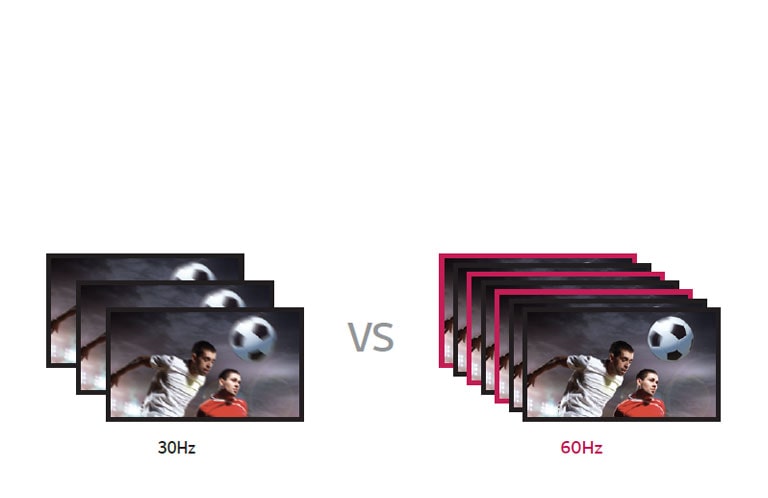

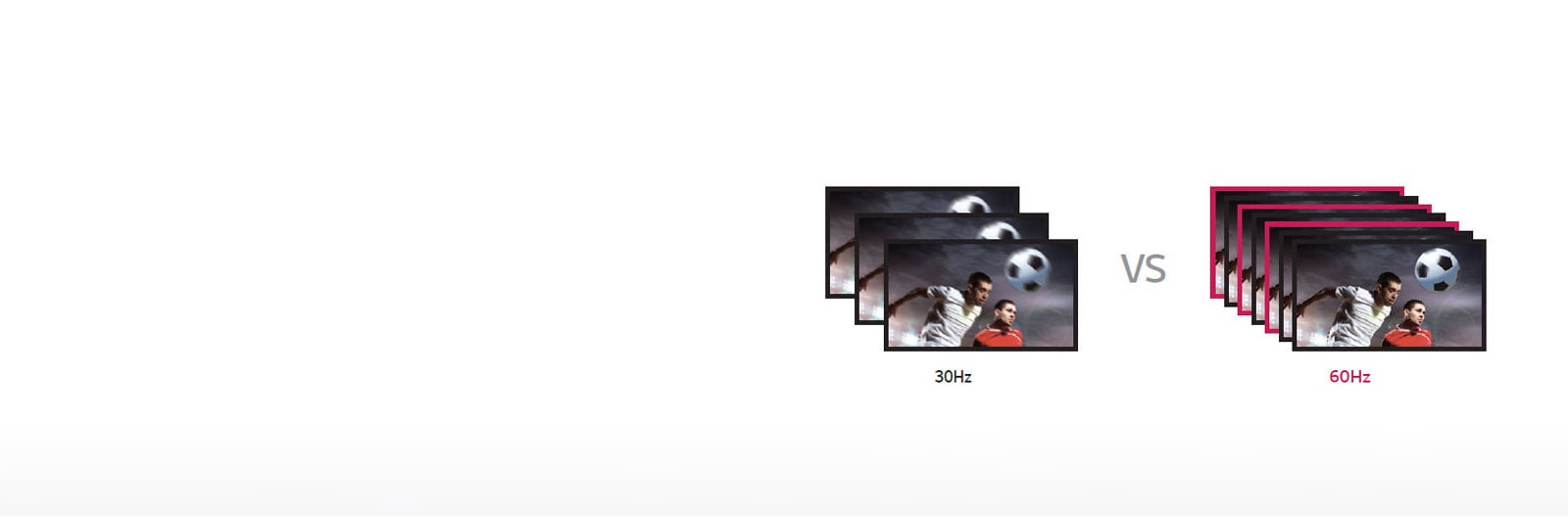

Vivid Imagery Viewing
TruMotion™ 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image details.
SOFTWARE

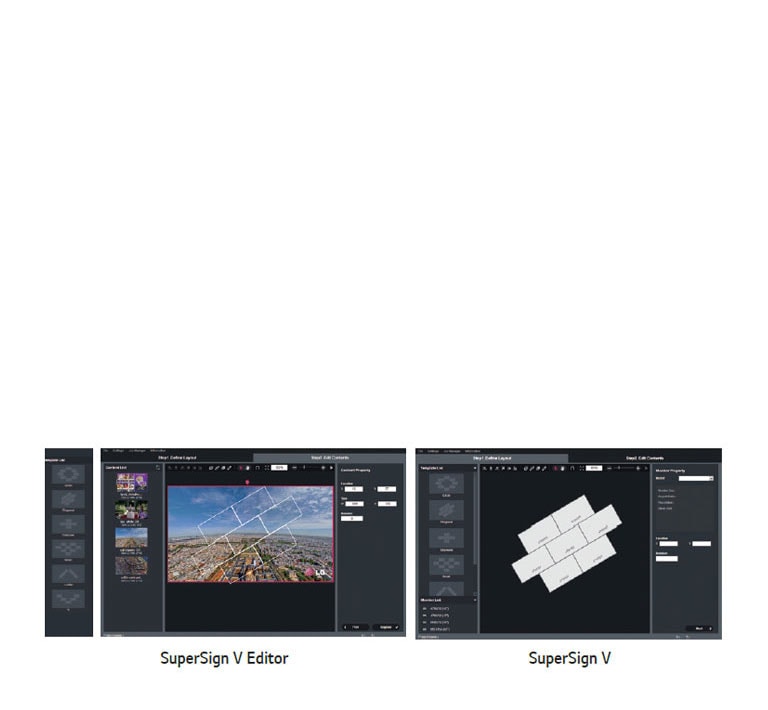

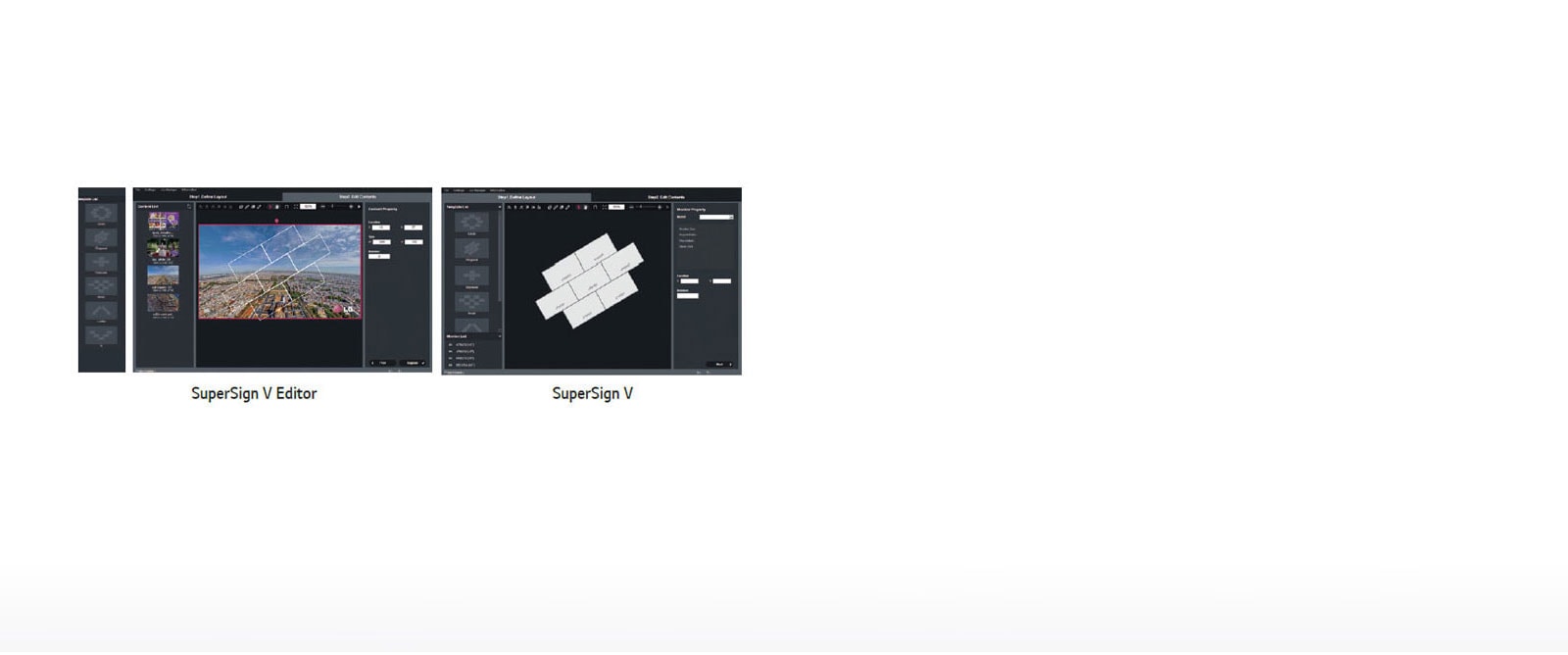

SuperSign V for Dynamic Layout
- Use given templates to configure video wall layout easily
- Rotate, cut and edit content according to a defined layout
- Flexible content editing in various layouts is viable
- Scheduled-based content playback based on time and day
- Distribute content to media players as well
- Rotate, cut and edit content according to a defined layout
- Flexible content editing in various layouts is viable
- Scheduled-based content playback based on time and day
- Distribute content to media players as well
SOFTWARE

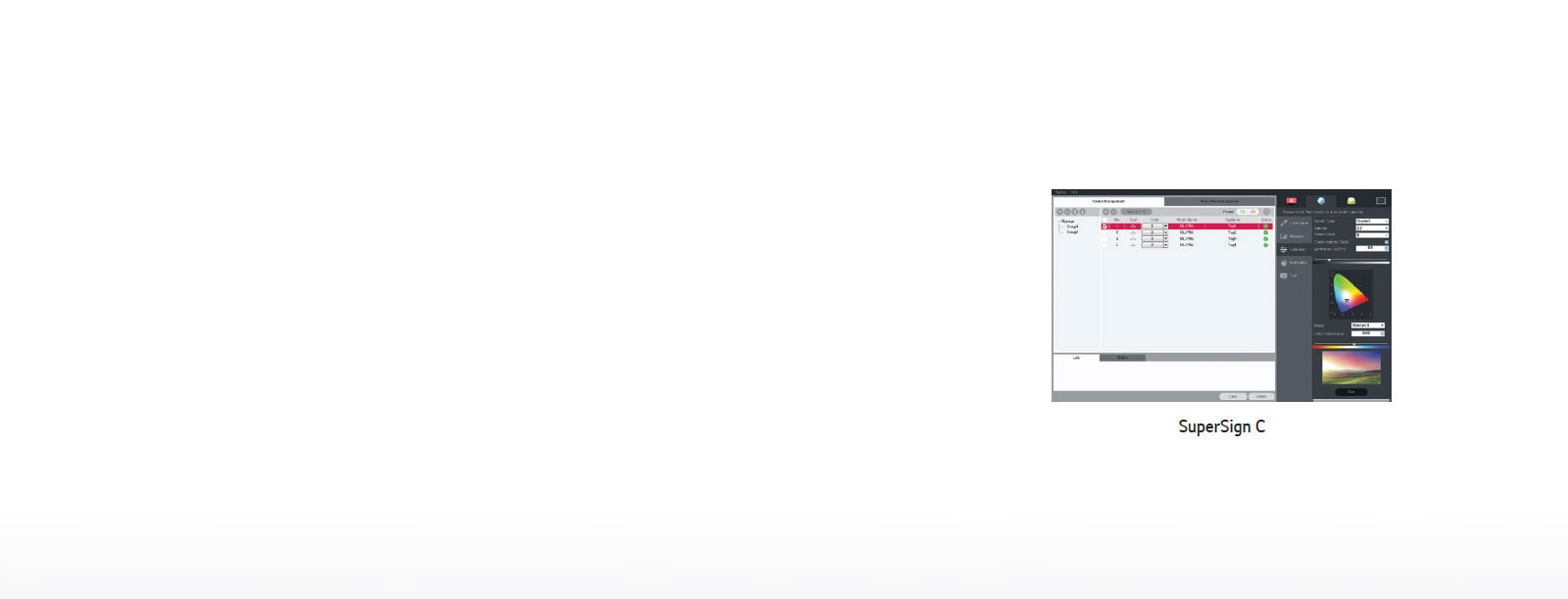

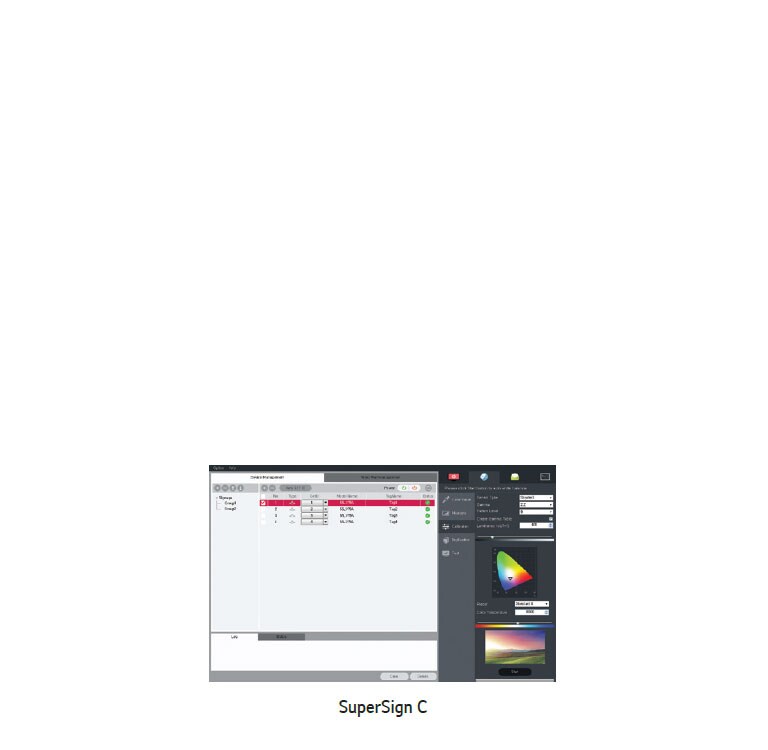

Free SuperSign C for Advanced Color Adjustment
- Intuitive GUI in SuperSign C S/W allows to measure and adjust color
and brightness instantly on display
- Automatic white balancing of a video-wall display using a sensor
and brightness instantly on display
- Automatic white balancing of a video-wall display using a sensor
SOFTWARE

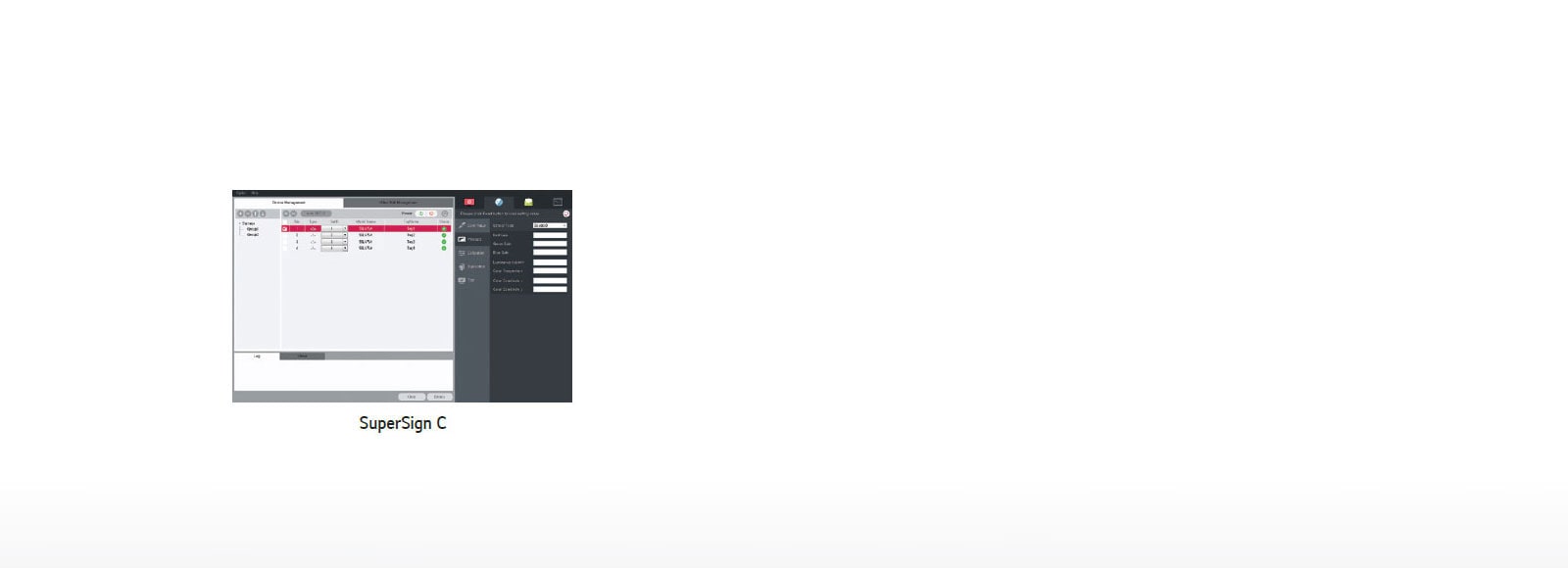

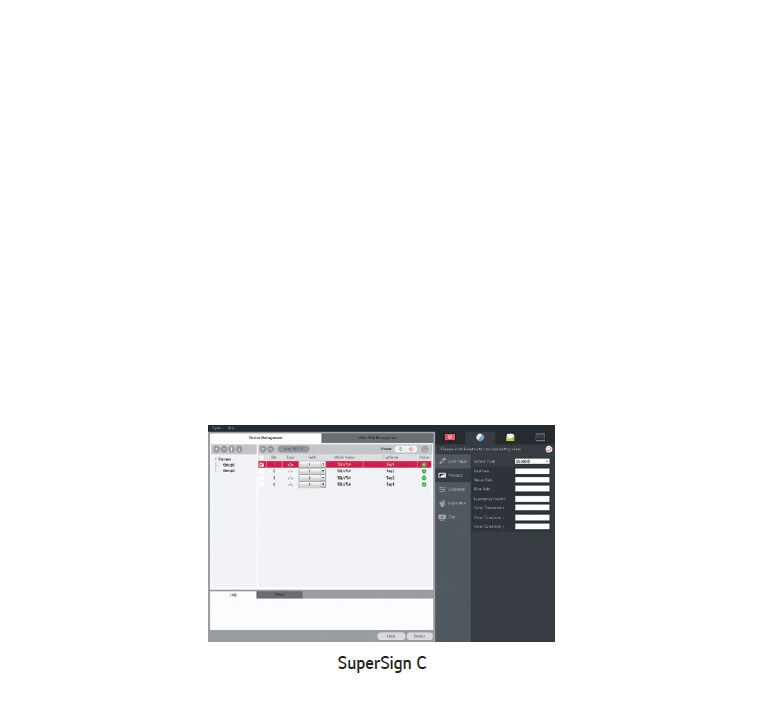

Free SuperSign C for Remote Monitor and Control
Intuitive GUI-based Remote Monitoring & Control via the networks and
RS232 connection feature in SuperSign C S/W.
RS232 connection feature in SuperSign C S/W.
PANEL
-
- Screen Size
- 55" (54.64" measured diagonal)
- Resolution
- 1,920 x 1,080 (FHD)
-
- Brightness
- 700cd/m²
CONNECTIVITY - INTPUT
-
- Digital
- DVI-D (1), HDMI (2), Display Port (1) with HDCP for input
- Analog
- RGB (1), Shared Component, AV (1)
-
- Audio
- PC Audio In (1)
- External Control
- RS232C (1), RJ45 (1), IR Receiver (1)
-
- USB
- USB (1)
CONNECTIVITY - OUTPUT
-
- Digital
- Display Port(1)
- Audio
- Audio Out(1)
-
- External Control
- RS232C(1)
PHYSICAL SPECIFICATION
-
- Bezel Width
- 2.25mm (left/top), 1.25mm (right/bottom)
- Monitor Dimension (W x H x D)
- 1213.4 x 684.2 x 88.5 mm
-
- Weight (Head)
- 23.2kg
- VESA™ Standard Mount Interface
- 600mm x 400mm
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0°C to 40°C
- Operation Humidity
- 10 % to 80 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
POWER CONSUMPTION
-
- Typ.
- 230 W
- Smart Energy Saving
- 130 W
-
- DPM
- 0.7 W
- Power off
- 0.5 W
STANDARD(CERTIFICATION)
-
- Safety
- UL / cUL / CB / TUV / KC
- EMC
- FCC Class "B" / CE / KCC
-
- ErP / Energy Star
- NA / Yes (Energy Star 6.0)
MEDIA PLAYER COMPATIBILITY
-
- External Media player Attatchable
- Yes
SOFTWARE COMPATIBILITY
-
- SuperSign-w lite
- Yes
- SuperSign-c
- Yes
ACCESSORY
-
- Basic
- Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw
- Optional
- WM-L640V(Landscape), WM-P640V(Portrait)
