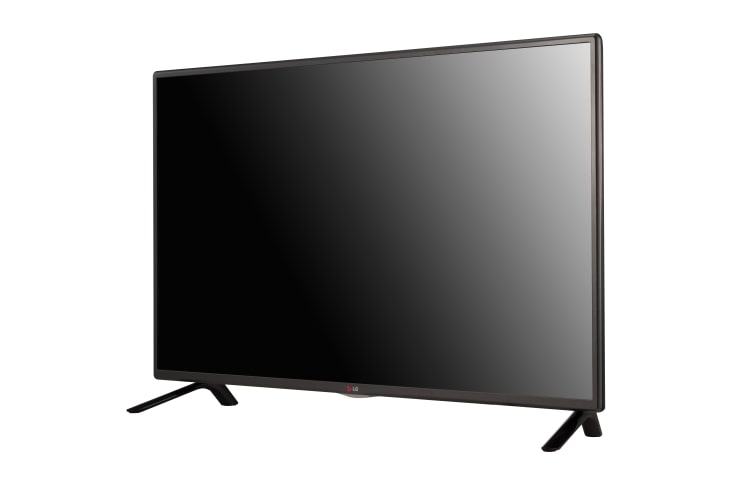

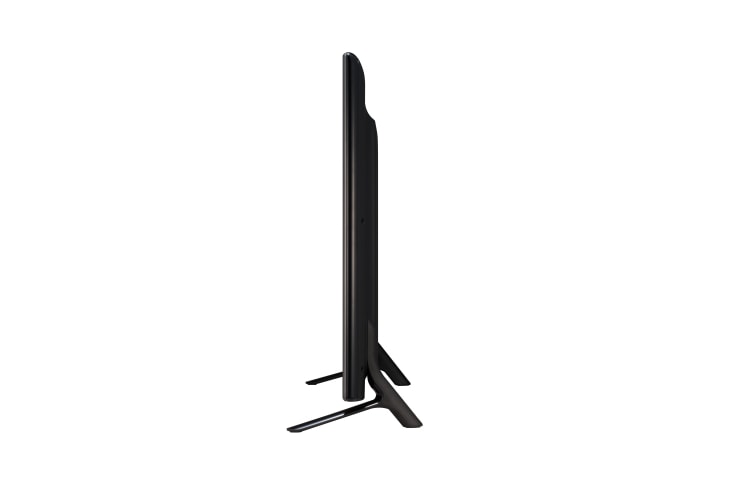

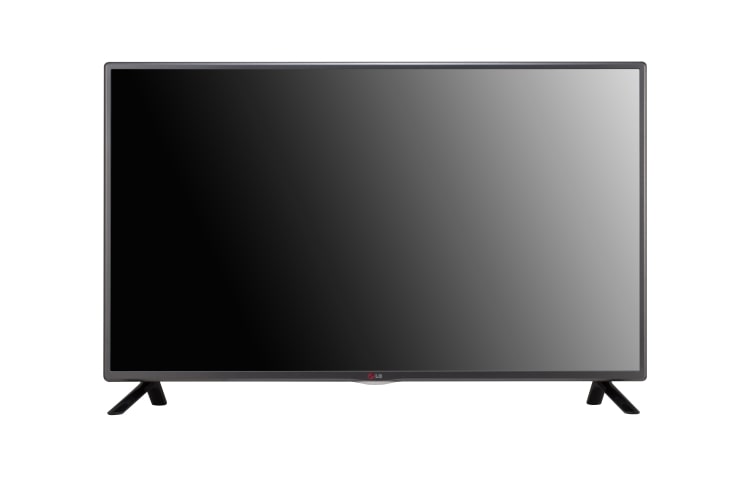

55LY540S component-copyModelName
55'' TV Tuner Built-In Digital Signage

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

55" TV Tuner Built-In Digital Signage
Close
PANEL
  • Panel Technology
    Slim Direct LED
    Panel Size (Measured Diagonally)
    55” Class(54.64”)
  • Response Time
    8 ms (G to G)
    Native Resolution
    1920x1080 (FHD)
  • Brightness
    230 cd/m2
    Static (Panel) Contrast Ratio
    1,200:1
  • Dynamic Contrast Ratio (Dynamic MCI (Hz))
    2,000,000:1
    Frame Rate
    60Hz
  • Viewing Angle(HxV)
    178° x 178°
BROADCASTING SYSTEM
  • Analog
    Yes (NTSC)
    Digital
    Yes (ATSC/Clear QAM/VSB)
AUDIO
  • Audio Output
    10W + 10W
    Speaker System
    2.0 ch
  • Sound Mode
    Yes (6 Modes: Standard, News, Music, Cinema, Sport, Game)
    Optical Sound Sync
    Yes
  • Clear Voice II
    Yes
    Invisible Speaker
    Yes
VIDEO
  • Triple XD Engine
    Yes
    Dynamic Color Enhancer
    Yes
  • Aspect Ratio
    Yes, 6 Modes (16:9, Just scan, Set by program, 4:4, Zoom, Cinema zoom1)
    Real Cinema 24p (3:3 Pull down)
    Yes
INTERFACE (SIDE)
  • USB (2.0)
    2 Side
    HDMI In
    1 Side

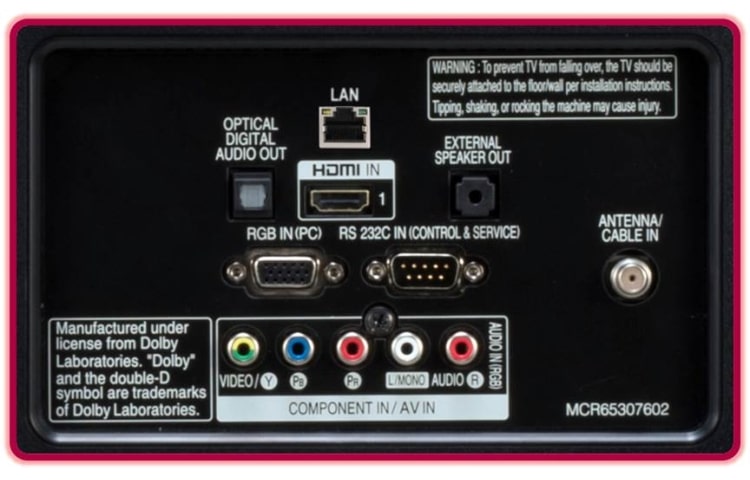

INTERFACE (REAR)
  • Digital Audio Out (Coaxial / Optical)
    1 (Optical)
    RS-232C (D-Sub 9pin)
    1 (Control & Service)
  • PC Audio Input
    1(Share with component audio input)
    AV In
    1 (Sharing with Component in)
  • RGB In (D-sub 15pin) - PC
    1 Rear
    RF In
    1 Rear
  • Component in (Y,Pb,Pr) + Audio
    1 (5)
    External Speaker Out
    1 Rear (Variable/Fixed/Line Out, 3.5mm, Stereo, Single ended Type(GRD,L+,R+), 1W with 8Ω), Digital Opitical
  • HDMI/HDCP Input
    1 Rear
POWER
  • Stand-by
    0.5W↓
    Watts (typical)
    52.7W
  • Power Source
    110 ~ 240V, 50/60Hz
SPECIAL FEATURES

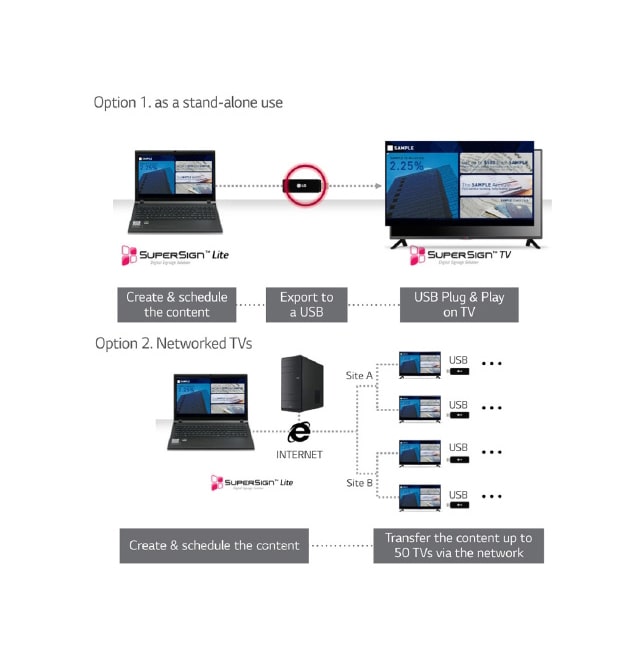

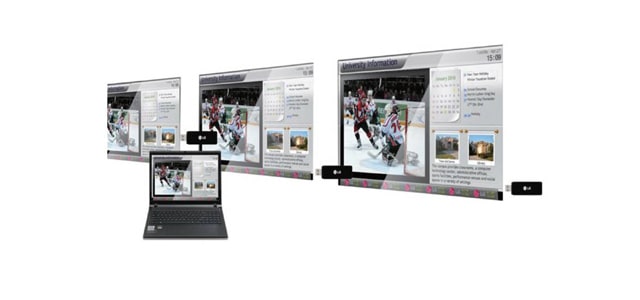

  • Digital Signage CMS
    Yes (SuperSign lite)
    IR Out
    Yes (RS232C)
  • Remote Diagnosis
    Yes (USB)
    HTNG-CEC
    Yes (1.3)
  • Welcome Screen (Splash Image)
    Yes
    HDMI-CEC
    Yes
  • Multi IR Code
    Yes
    Lock Mode
    Yes
  • Motion Eye Care (Intelligent Sensor)
    Yes
    USB Auto Play Back
    Yes
  • USB
    Yes (USB 2.0)
    External Speaker Out
    Yes (Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 1W with 8Ω)
  • Audio Codec
    MP3, AC3, MPEG, AAC,HEAAC, CDDA, LPCM
    RJP Compatibility
    Yes, LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
  • One Channel Map/ Logical Channel Map
    Yes
    Smart Energy Saving
    Yes
  • USB Cloning
    Yes
    MHL
    Yes
  • Kensington Lock
    Yes
    Auto Off / Auto Sleep
    Yes / Yes
  • RJP Interface
    Yes (RS232C, HDMI CEC)

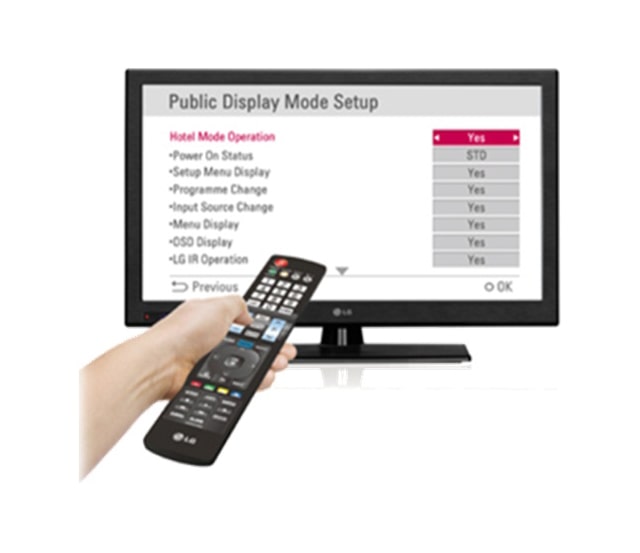

    Hotel Mode/ PDM /Installer Menu
    Yes
  • Picture
    JPEG
    Moving Picture Playback (SD/HD/Plus HD)
    Divx HD
CABINET
  • Bezel Width (on Bezel) (mm)
    11mm/11mm/16.5mm
    Bezel Width (off Bezel) (mm)
    8.5mm/8.5mm/14mm
  • Dimensions with stand(WxHxD)
    48.9" X 30.4" X 9.7"
    Weight (with stand)
    39.0 Ibs
  • Dimensions without stand (WxHxD)
    48.9” x 28.5” x 2.2”
    Weight (without stand)
    38.1 lbs
  • Carton
    52.4” x 31.9” x 6.9”
    Weight (with carton)
    48.7 Ibs
  • VESA™ Standard Mount Interface
    400mm x 400mm
    Flame Retardent
    Yes
  • Color
    Dark Titan
ACCESSORIES
  • Cable
    Power cord (1.5m, Angle Type)
REQUIRED LISTING (CERTIFICATION)
  • RoHS Compliant
    Yes
    Safety
    cUL, UL, FCC, NOM
  • Energy Star 6.1
    Yes
UPC
  • 55LY540S
    7 19192 91621 0
WARRANTY
  • Warranty
    2 Year Limited Warranty (Parts/Labor)
