55SVH7E-A component-copyModelName
SVH7E Series

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55SVH7E-A)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55SVH7E-A)
    $
    $
    LG Members Price
Total
SVH7E Series
Beyond a Video Wall<br>1 Beyond a Video Wall<br>2

Beyond a Video Wall

The World's Narrowest 0.44mm Even Bezel Video Wall
Learn More

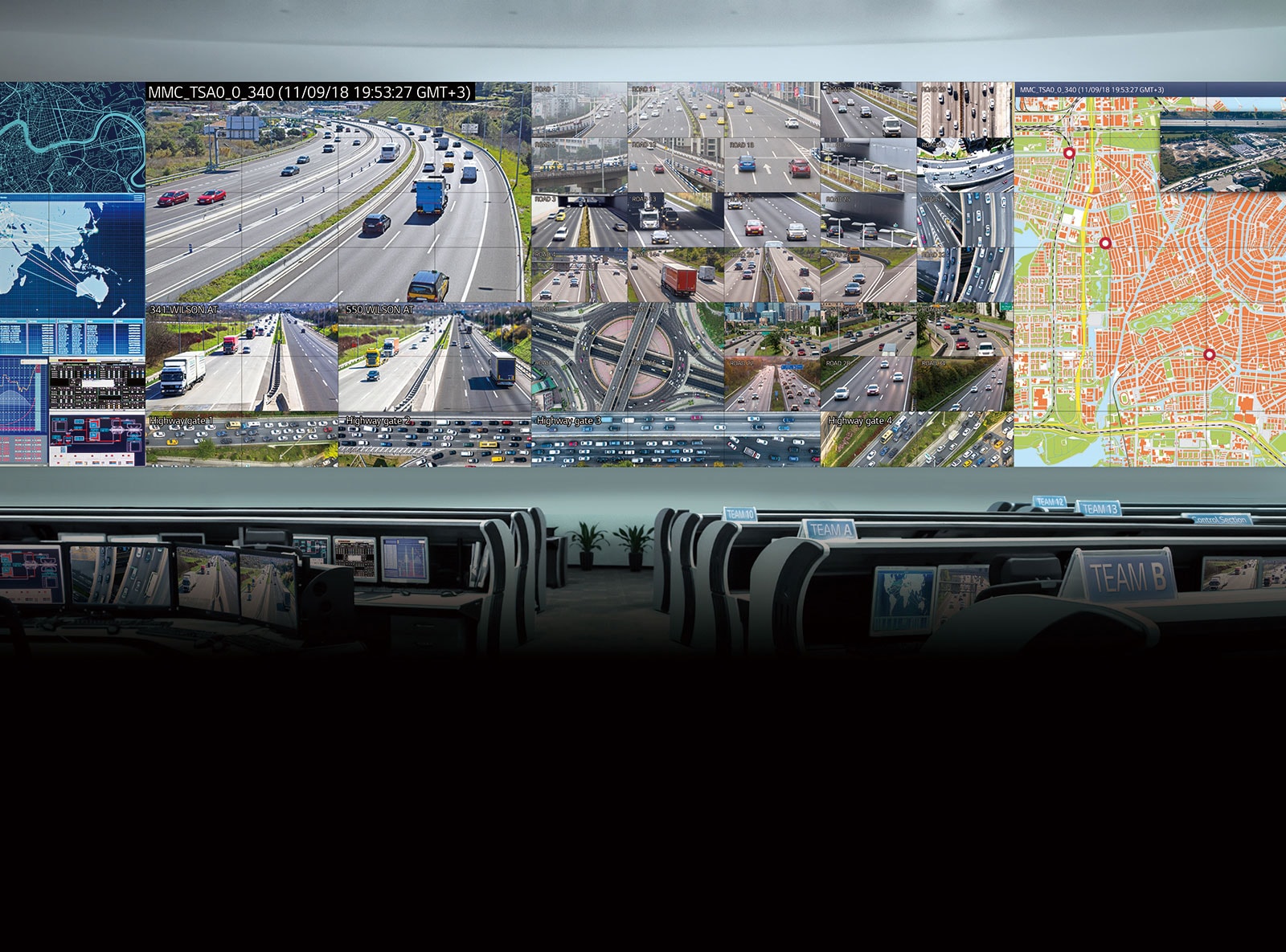

ZERO. VIDEO WALL<br>1 ZERO. VIDEO WALL<br>2

ZERO. VIDEO WALL

LG has finally introduced the world's first* slim bezel under 1 mm, the 0.44 mm even bezel. Instead of contrasting the reduced bezel size with previous bezels, LG's 55SVH7E highlights the similarity of its display with the bezel-less ‘original' picture.
* As of Novenmber 2018

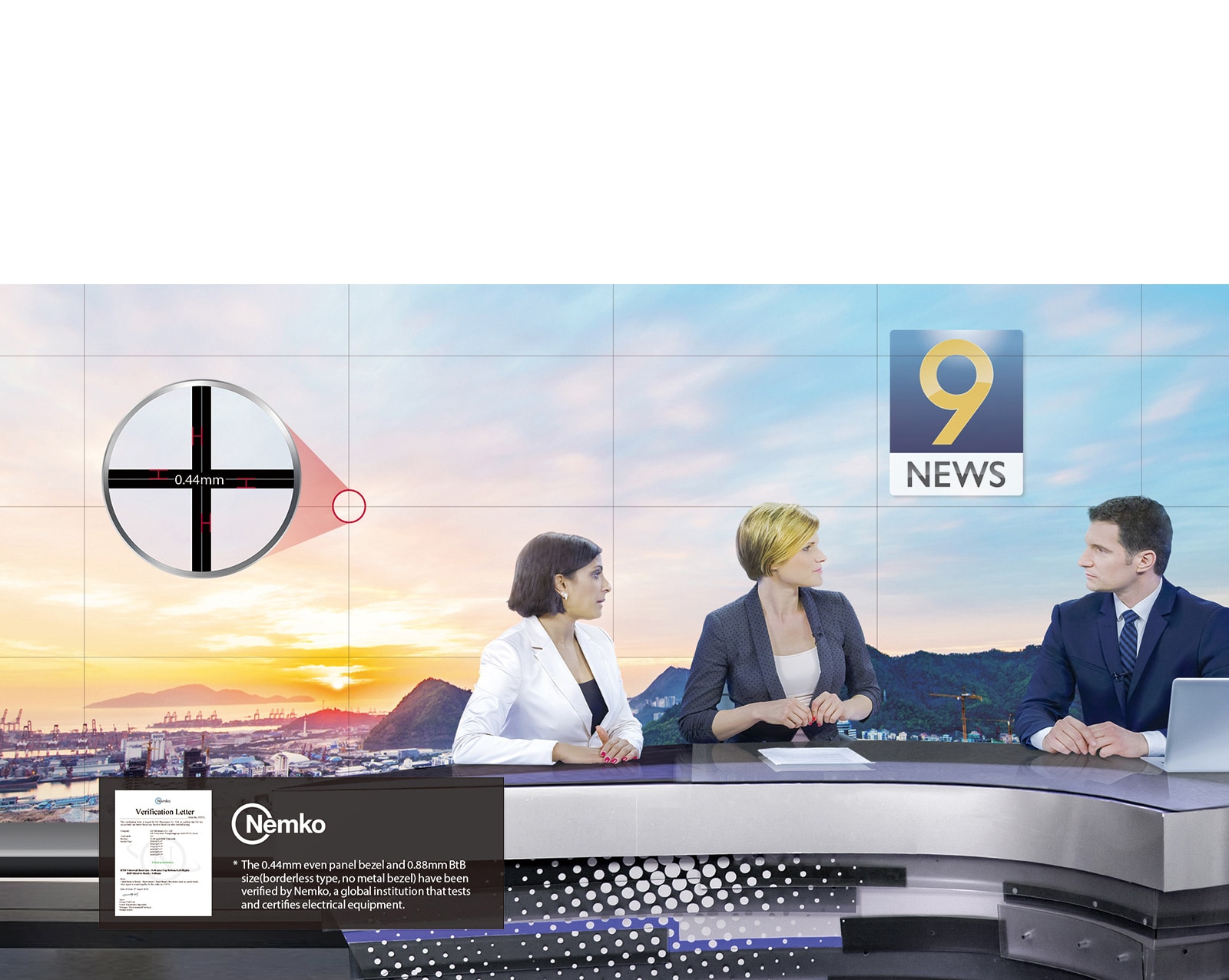

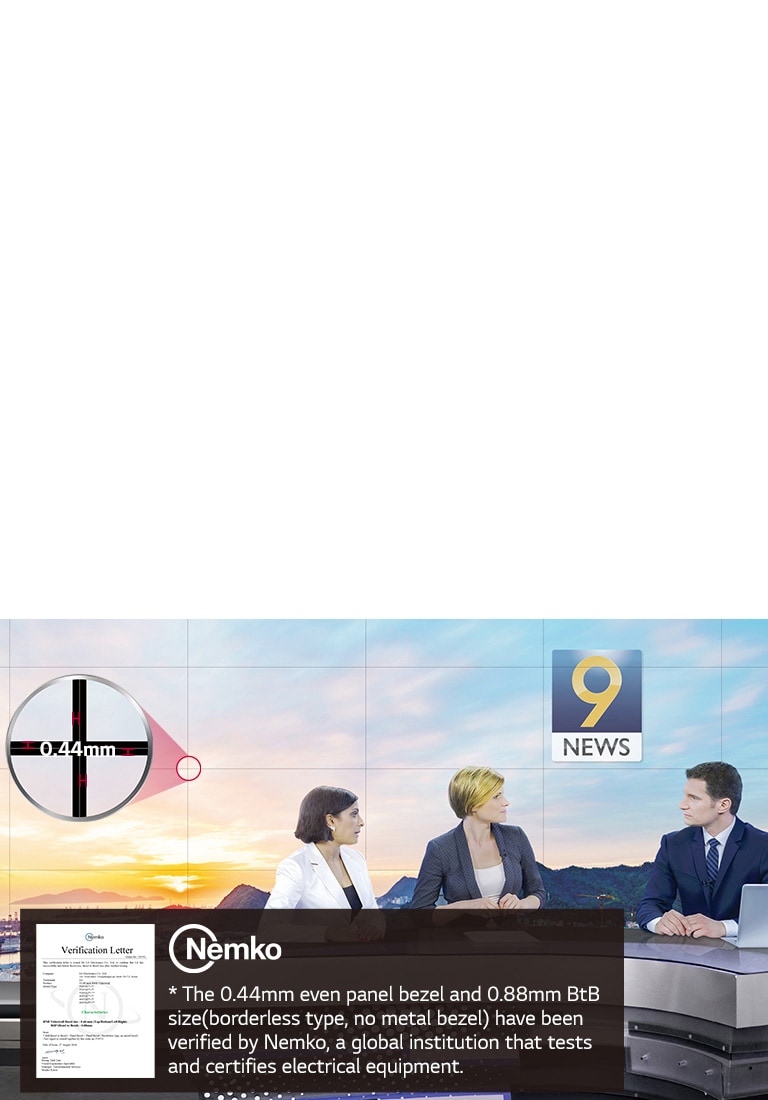

Groundbreaking 0.44mm Even Bezel<br>1 Groundbreaking 0.44mm Even Bezel<br>2

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions.
Higher Viewing Angle<br>1 Higher Viewing Angle<br>2
Vivid and Dynamic Picture Quality

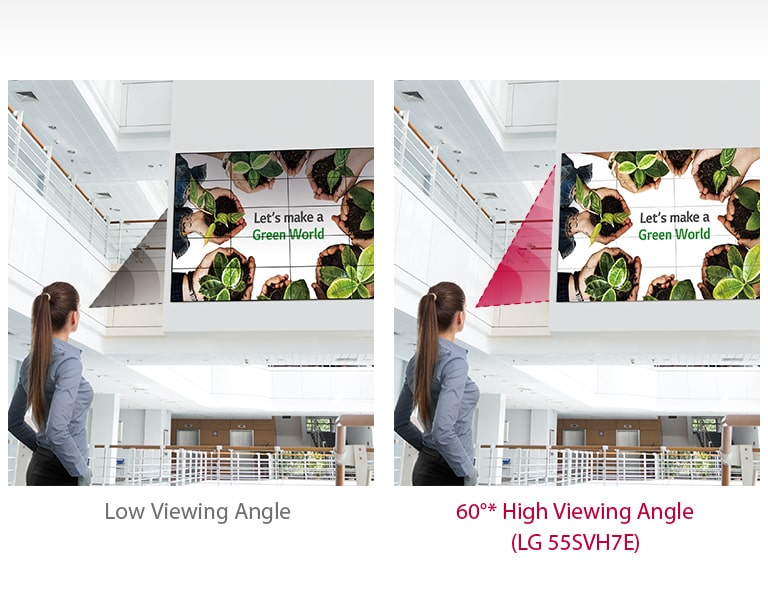

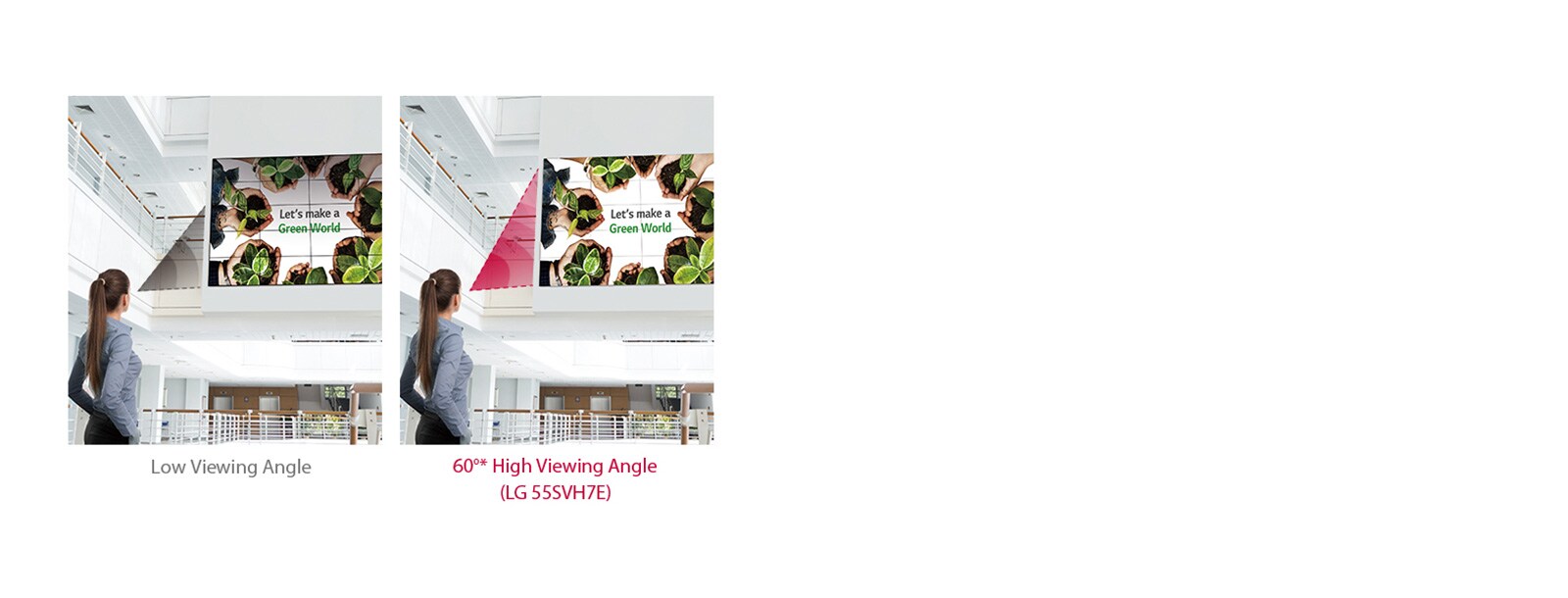

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7E is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.
* Results basd on in-house testing. Actual test results may differ depending on environment and measuring equipment.

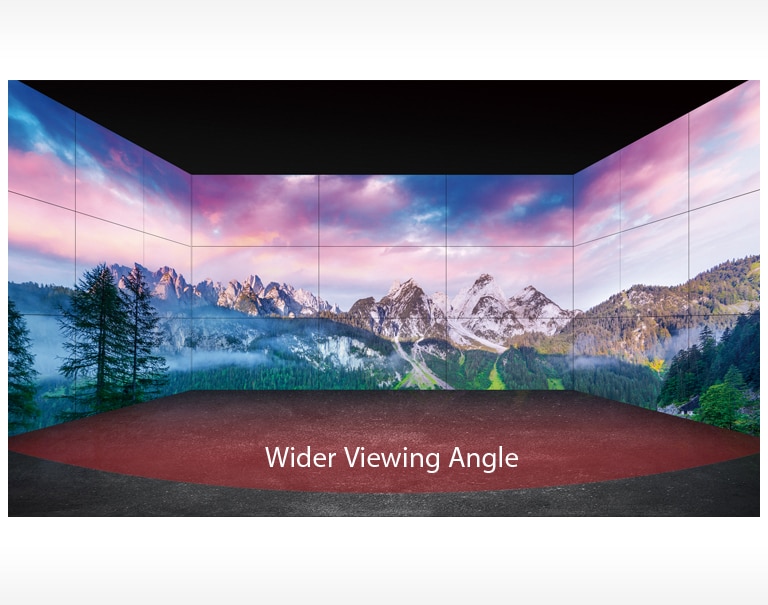

Wider Viewing Angle<br>1 Wider Viewing Angle<br>2
Vivid and Dynamic Picture Quality

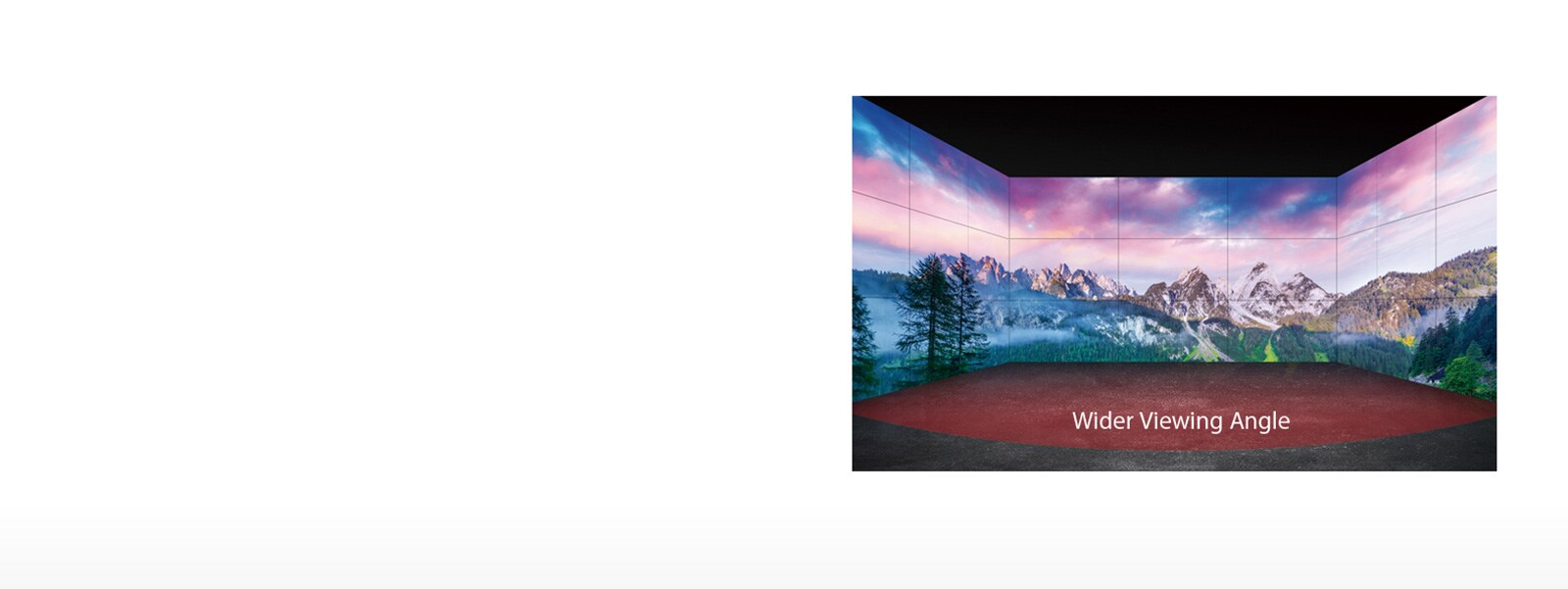

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7E captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

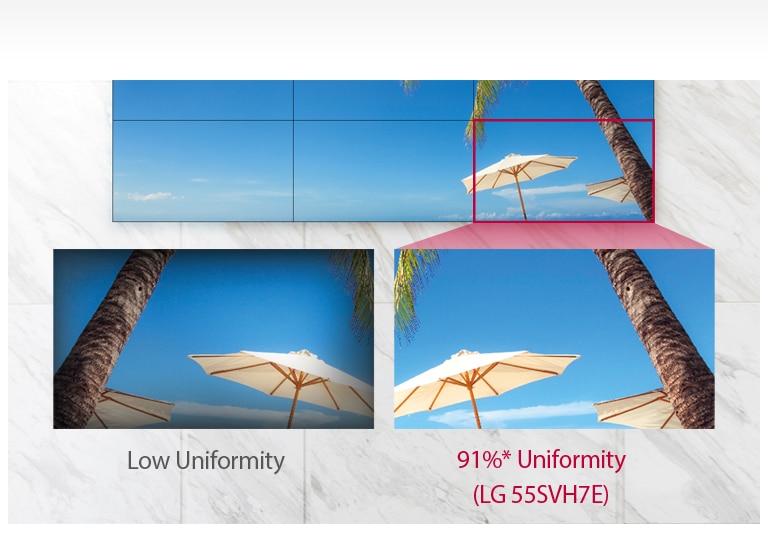

Uniform Color Expression<br>1 Uniform Color Expression<br>2
Vivid and Dynamic Picture Quality

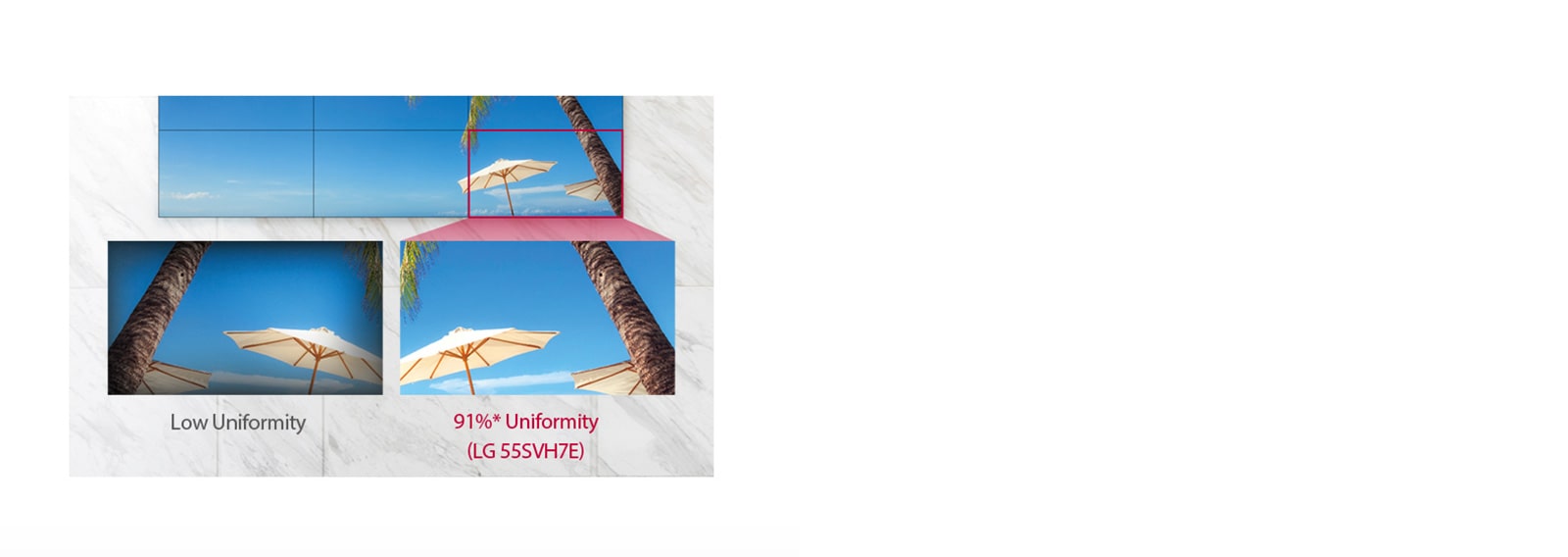

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the 55SVH7E has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
* Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

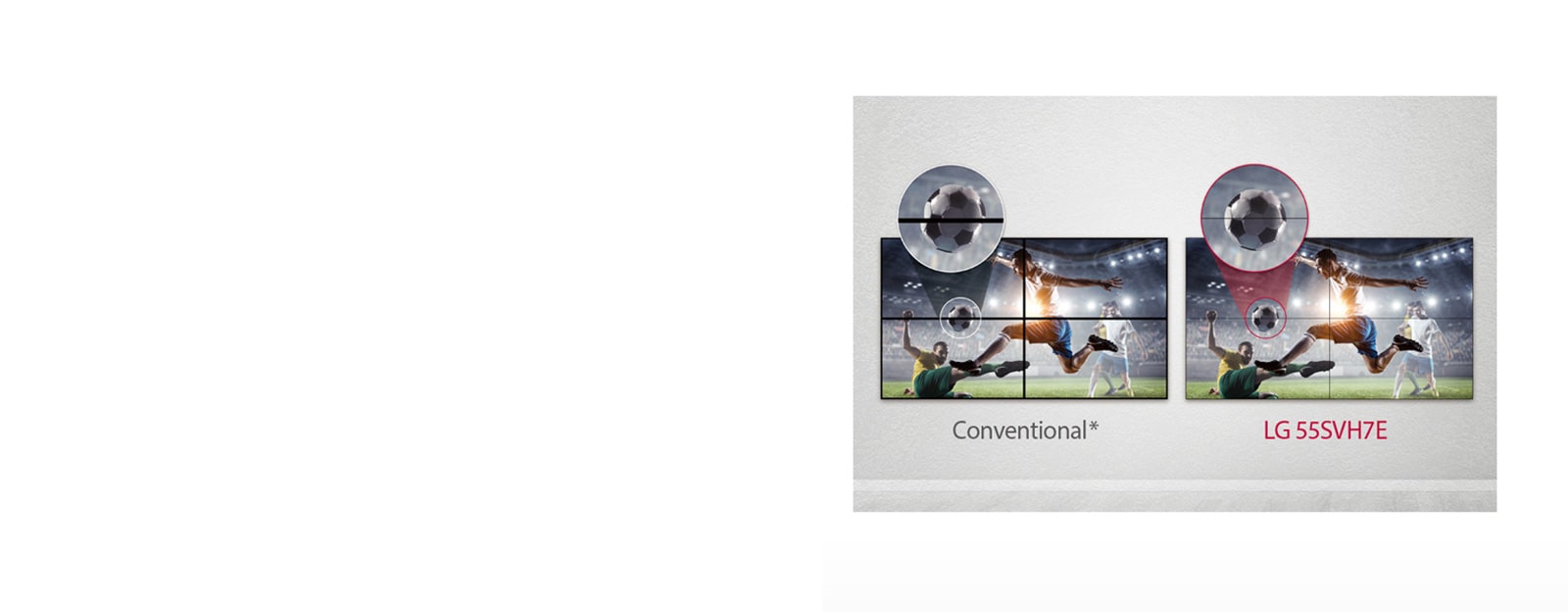

Image Gap Reduction<br>1 Image Gap Reduction<br>2
Vivid and Dynamic Picture Quality

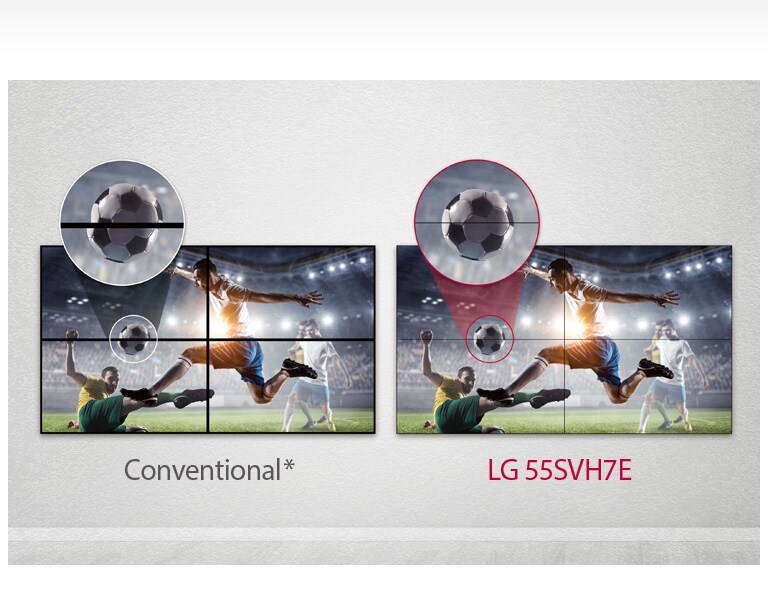

Image Gap Reduction

The 55SVH7E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "Conventional" refers to displays which do not include an image improvement algorithm.

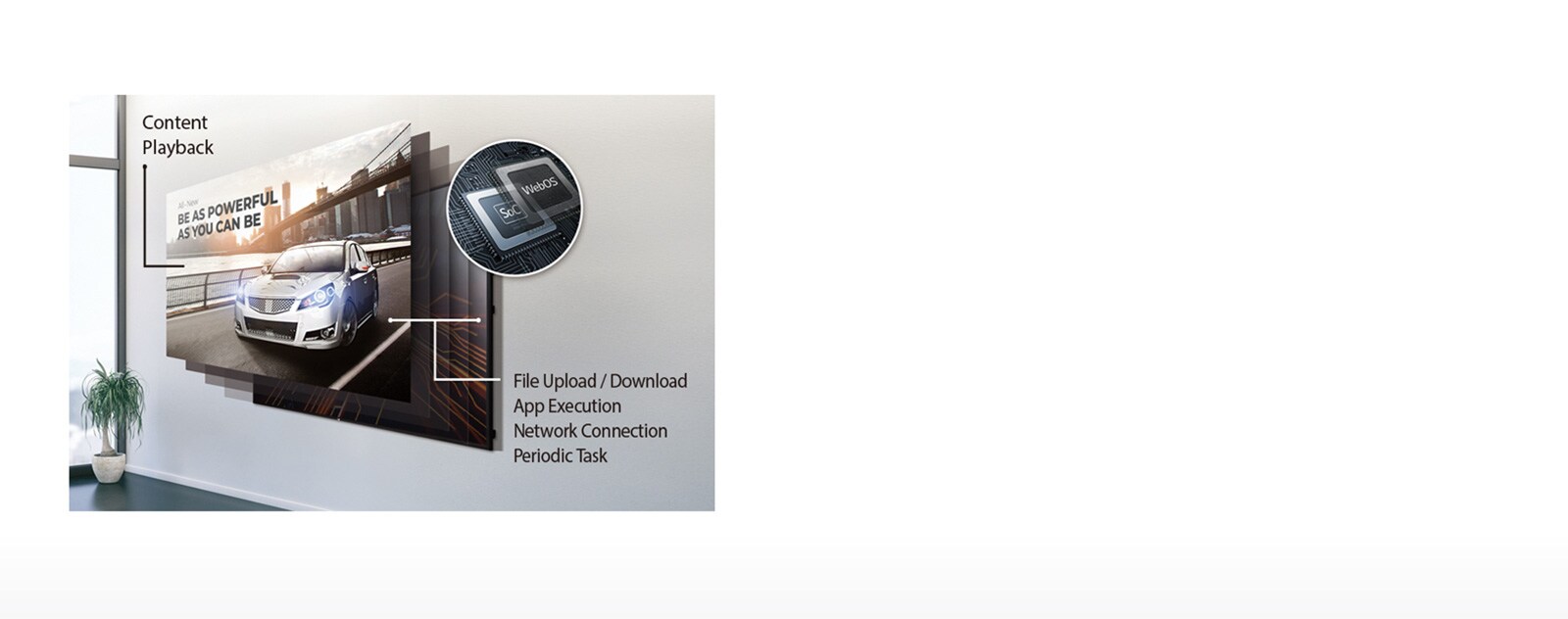

High Performance and Great Scalability<br>1 High Performance and Great Scalability<br>2
Powerful Smart Signage Platform

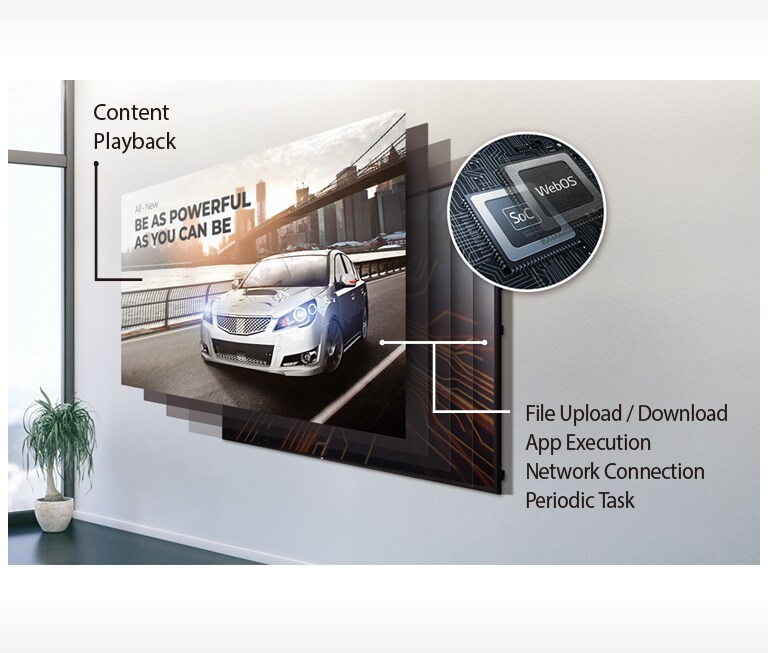

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK(Soft Development Kit), it is even easier for SIs to build and optimize.

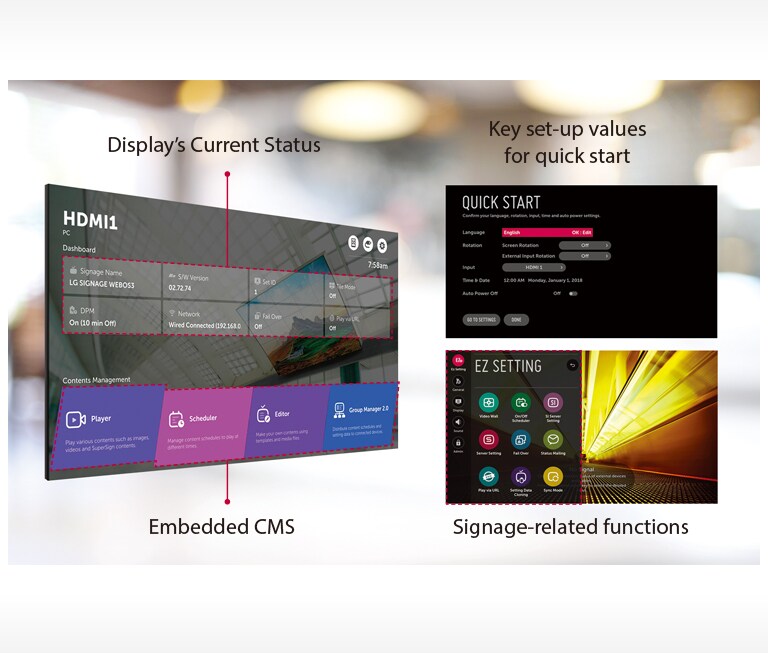

Intuitive Menu Structure<br>1 Intuitive Menu Structure<br>2
User-Friendly Smart Signage UX

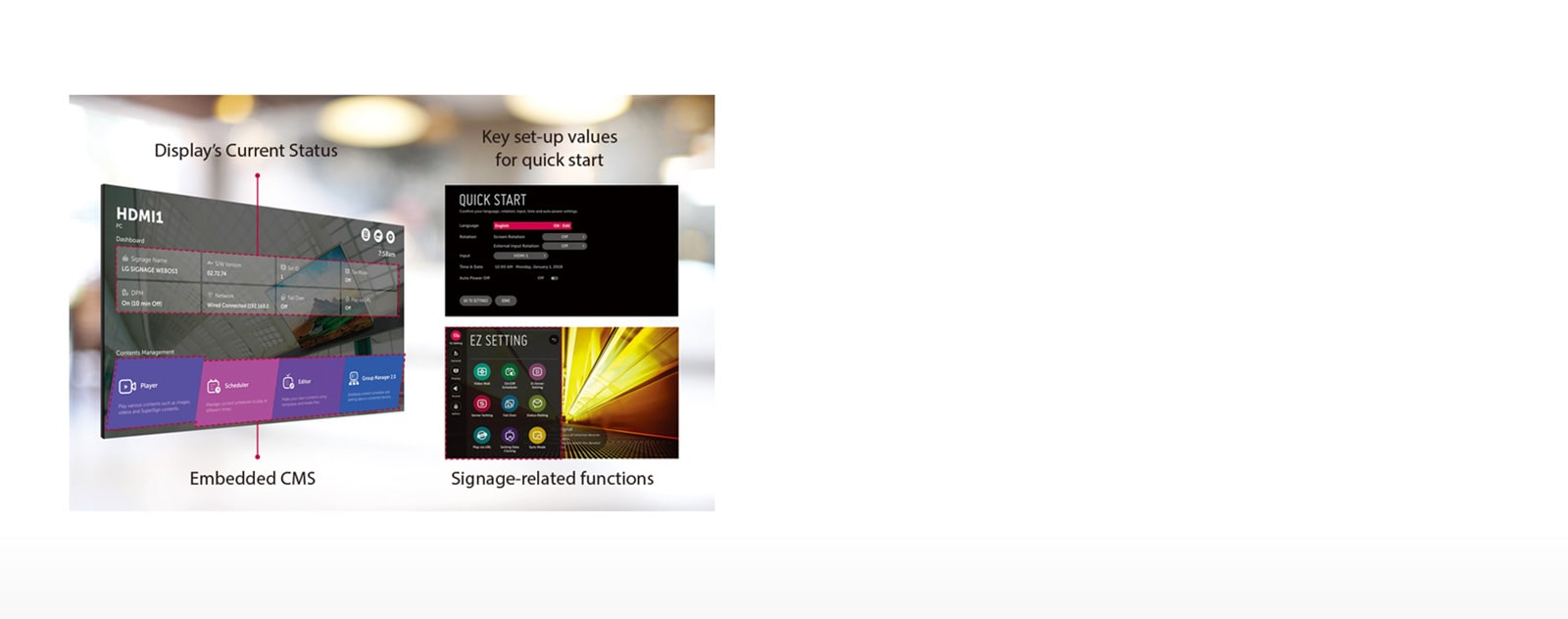

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

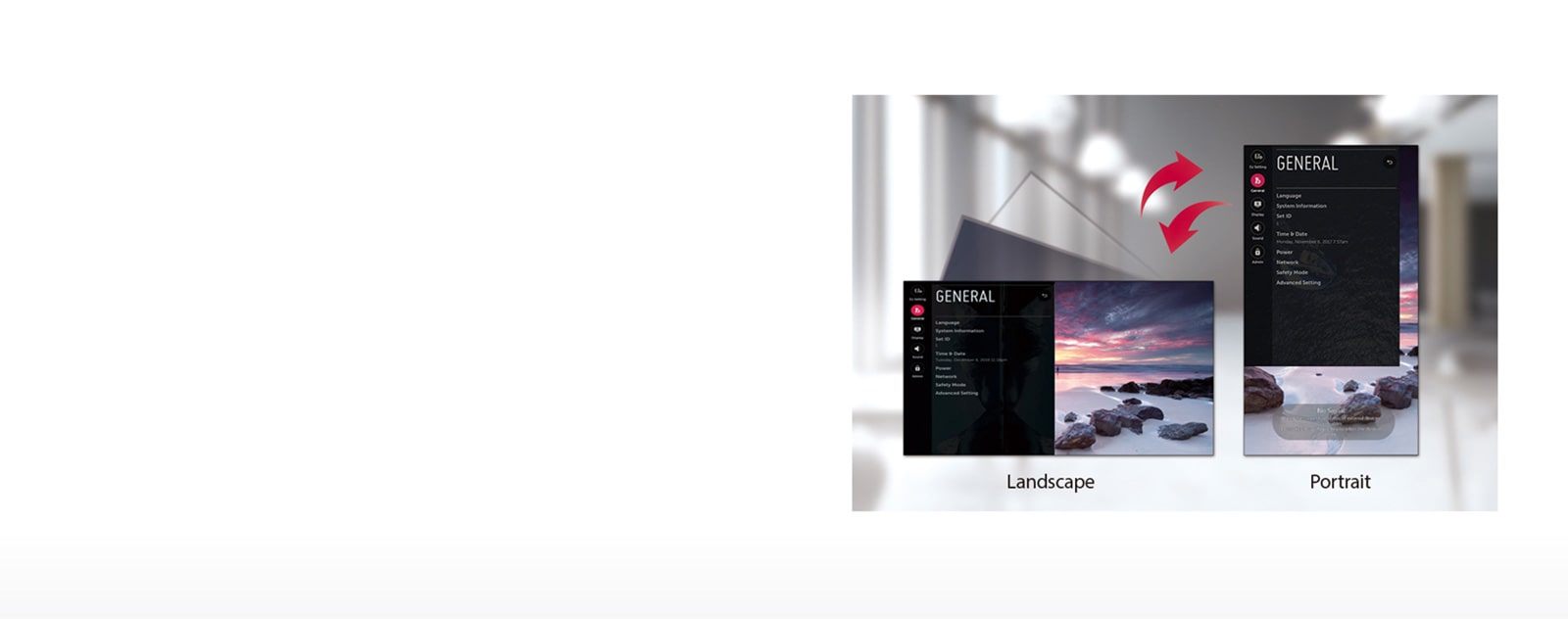

Dedicated GUI for Portrait Orientation<br>1 Dedicated GUI for Portrait Orientation<br>2
User-Friendly Smart Signage UX

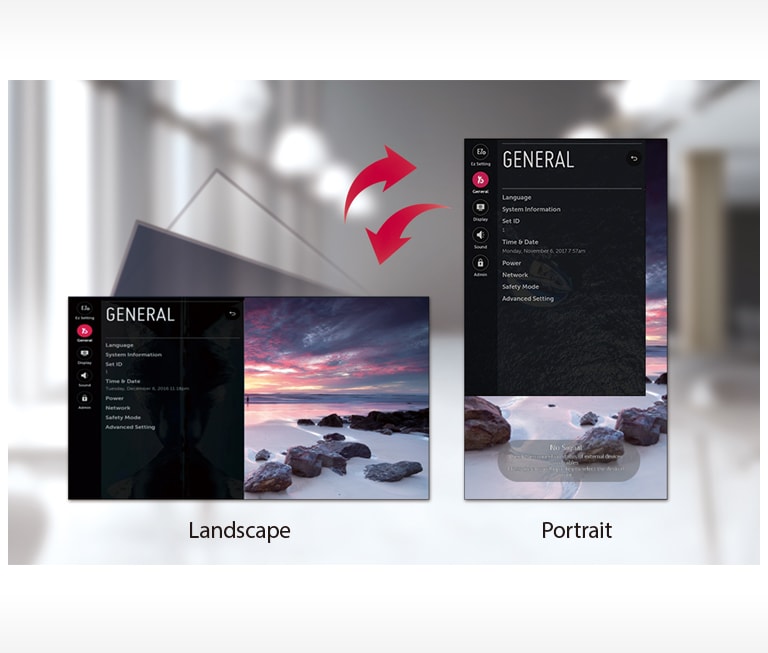

Dedicated GUI for Portrait Orientation

The conventional GUI(Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn't well-suited for screens in portrait mode. The OSD of the 55SVH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio.

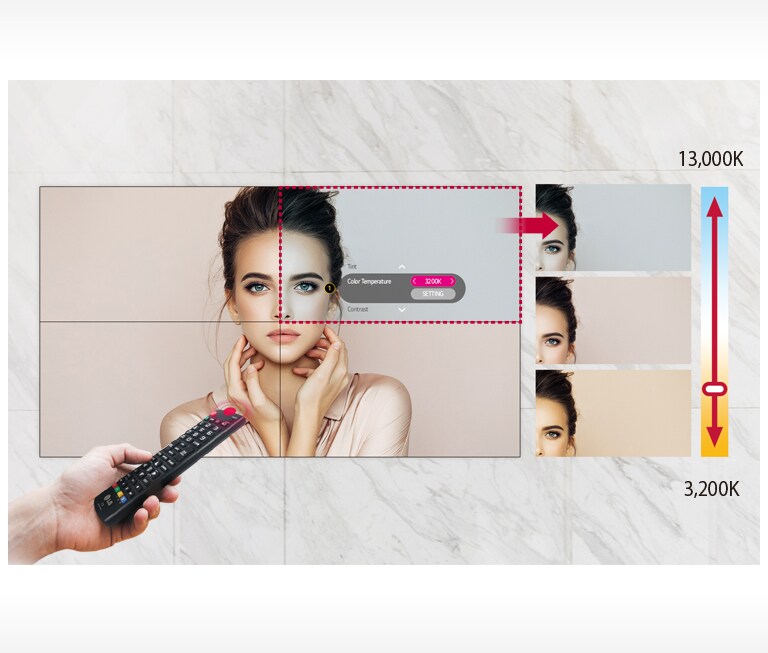

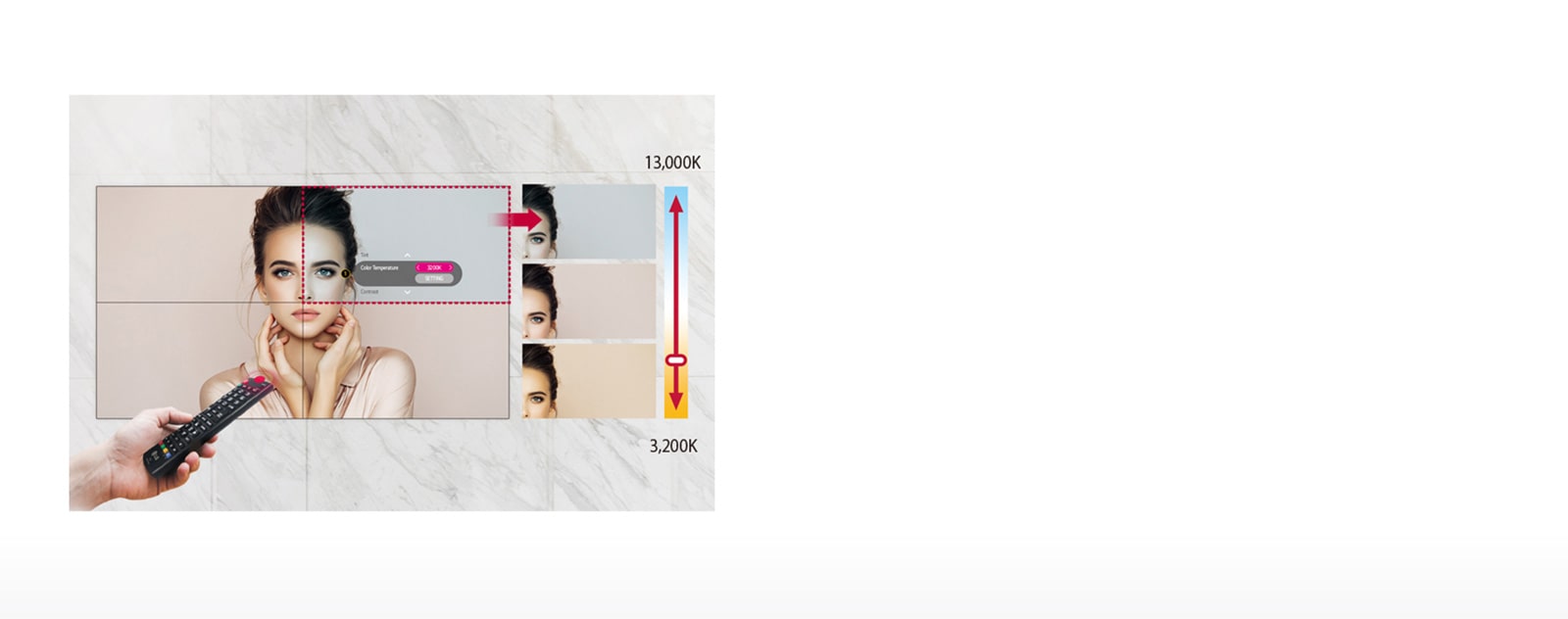

Easy Color Adjustment<br>1 Easy Color Adjustment<br>2
User Convenience

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

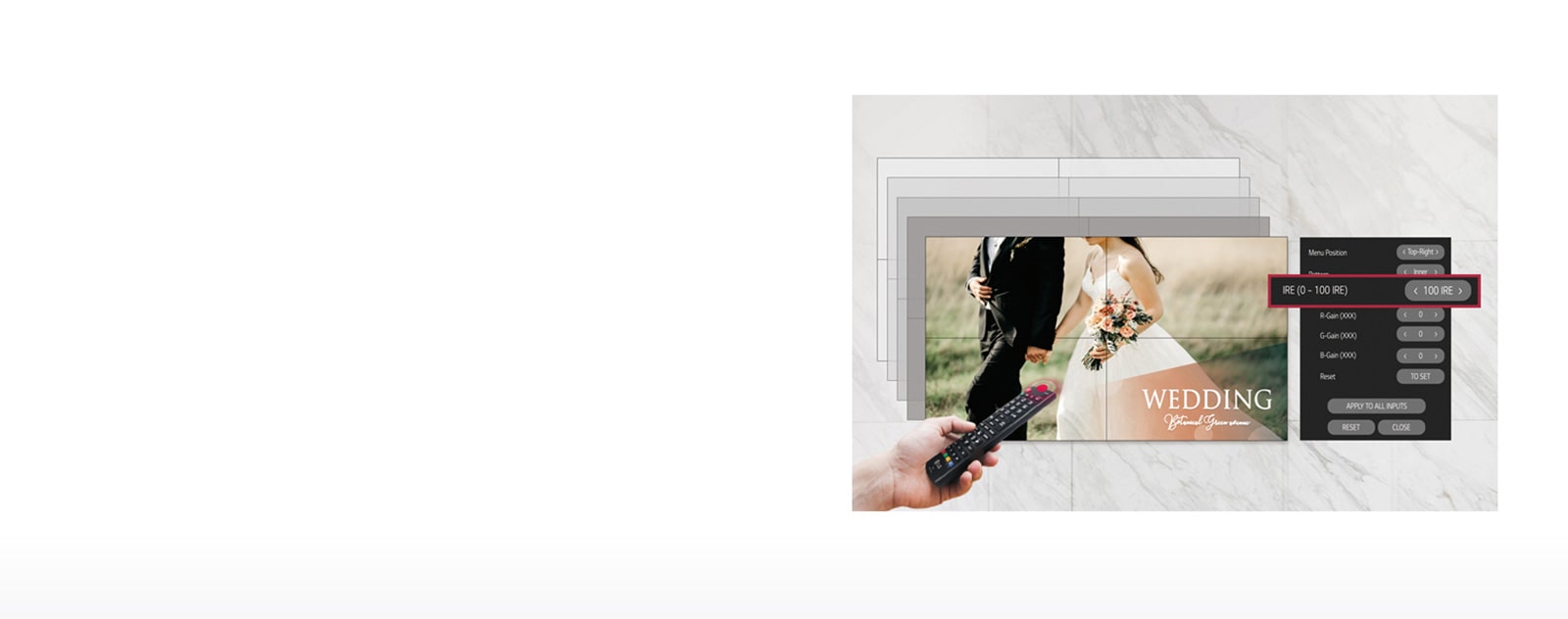

Simple White Balance Adjustment<br>1 Simple White Balance Adjustment<br>2
User Convenience

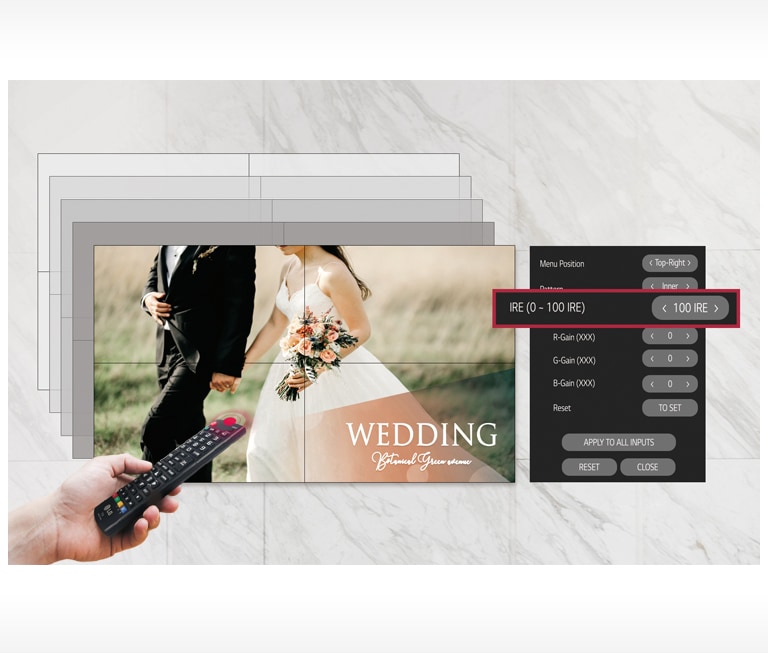

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

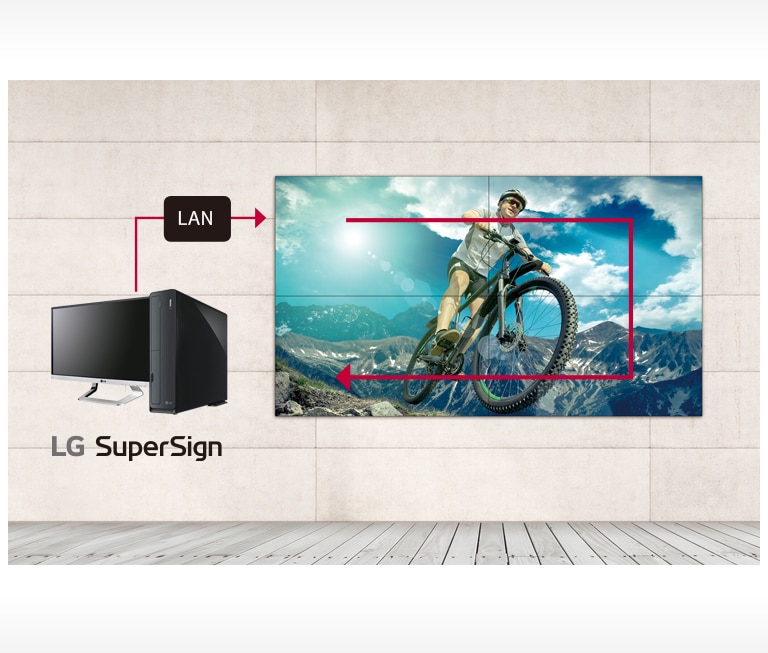

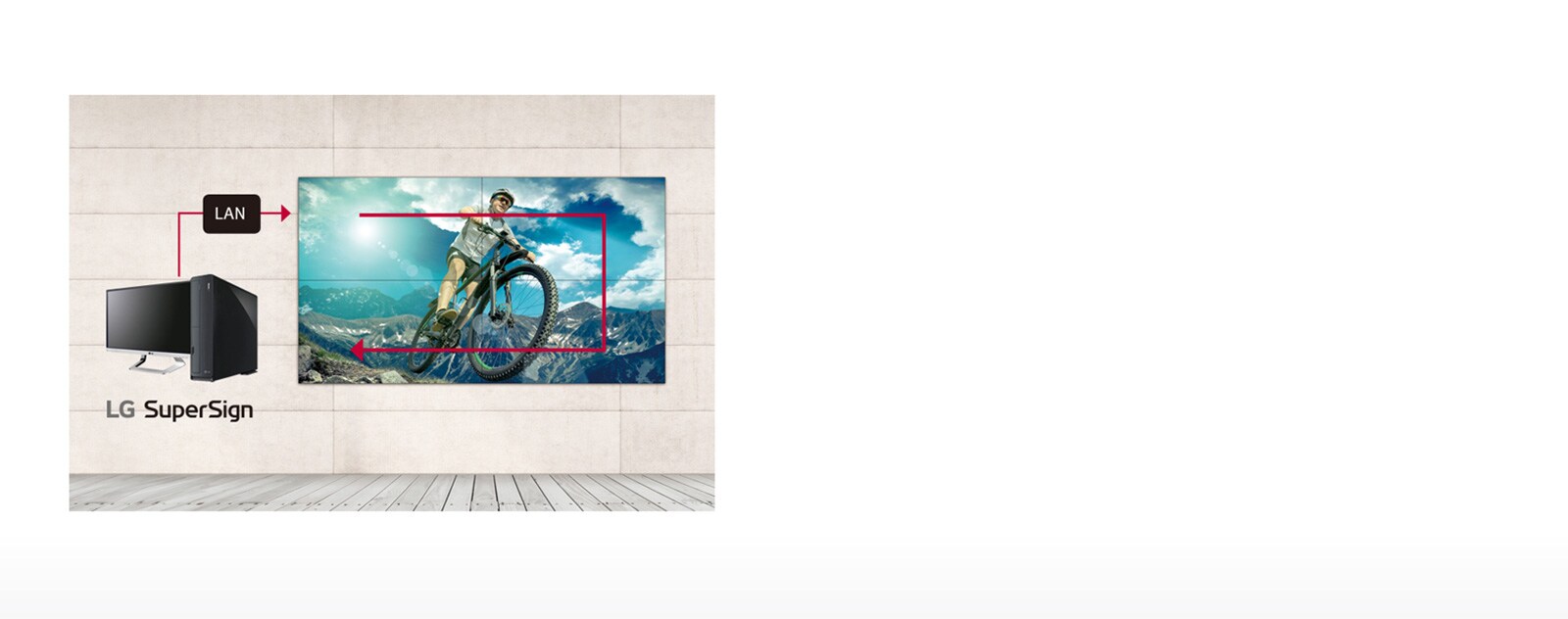

LAN Daisy Chain Management<br>1 LAN Daisy Chain Management<br>2
User Convenience

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.
Real-Time Care Service<br>1 Real-Time Care Service<br>2
User Convenience

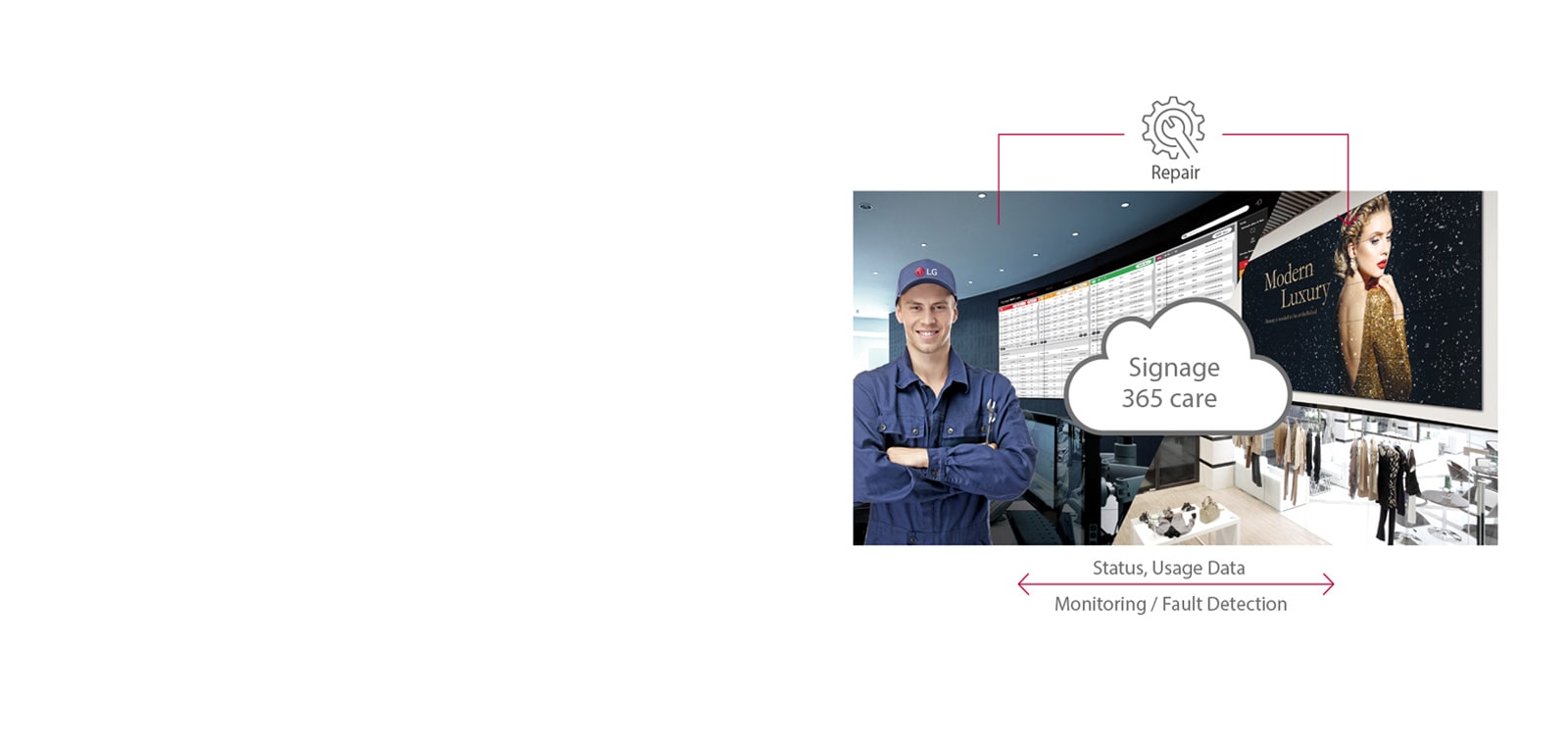

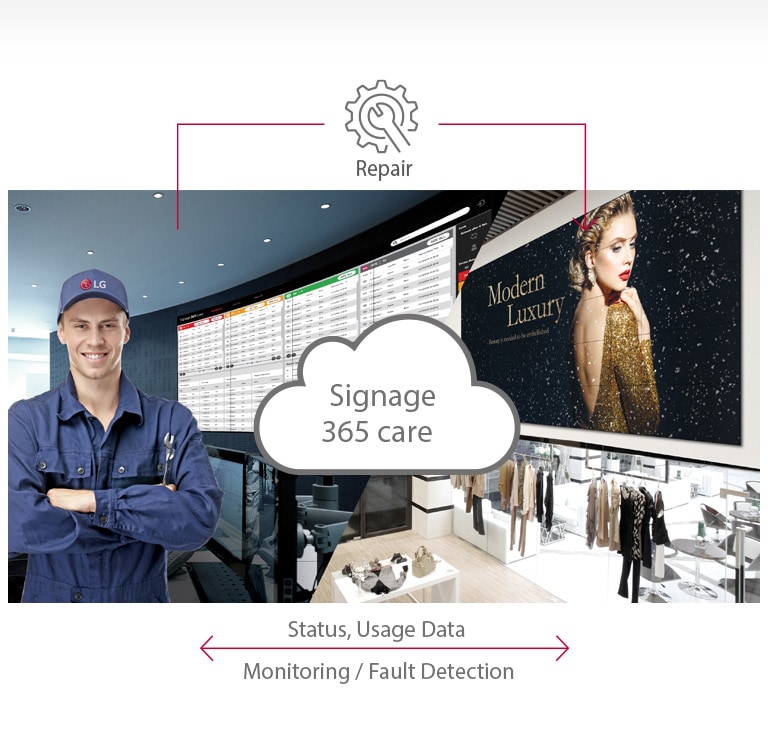

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.
* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.
Close
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700

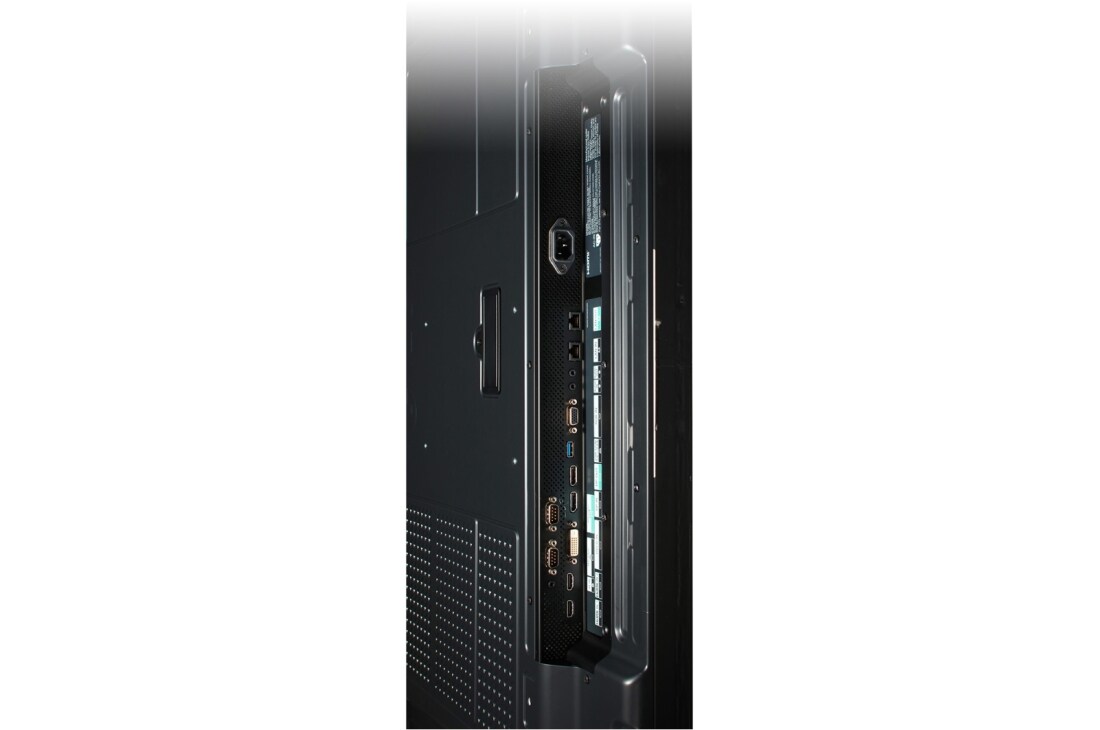

CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0
    Output
    DP, Audio
  • External Control
    RS232C In/out, RJ45 In/out, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    0.44 mm (Even)
    Monitor Dimension (W × H × D)
    1,210.51 x 681.22 x 86.5 mm
  • Weight (Head)
    16.8 kg
    Carton Dimensions (W × H × D)
    1,353.0 x 855.0 x 263.0 mm
  • Packed Weight
    23.6 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    170 W
    Max
    220 W
STANDARD(CERTIFICATION)
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control / Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSA)
