55VX1D-B component-copyModelName
High Brightness Video Wall

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VX1D-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VX1D-B)
    $
    $
    LG Members Price
Total
High Brightness Video Wall
Clear and Vivid Screen<br>1 Clear and Vivid Screen<br>2
Superior Picture Quality

Clear and Vivid Screen

Other video walls are unable to sufficiently display content due to low visibility under bright lighting. LG's new high brightness video wall stands out against such backgrounds, with a high luminance of 1,500 cd/㎡. It delivers advertisements clearly under the brightest lights.
*For exterior window-facing video walls, the conditions of the installation site should be checked in advance.

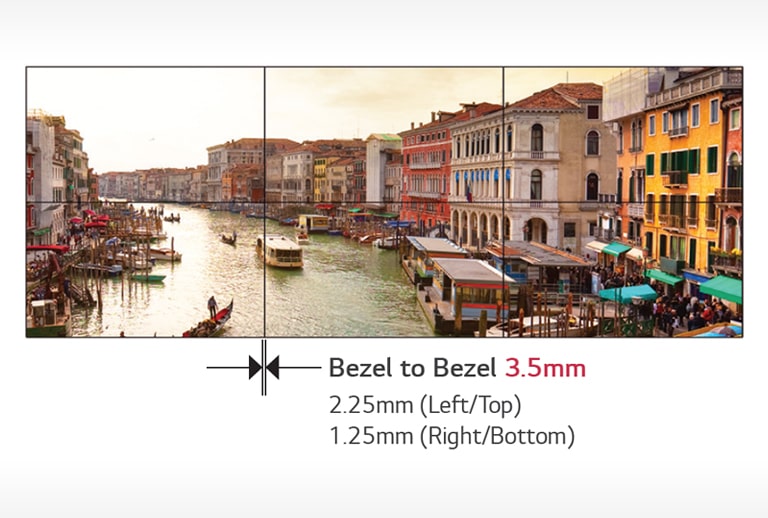

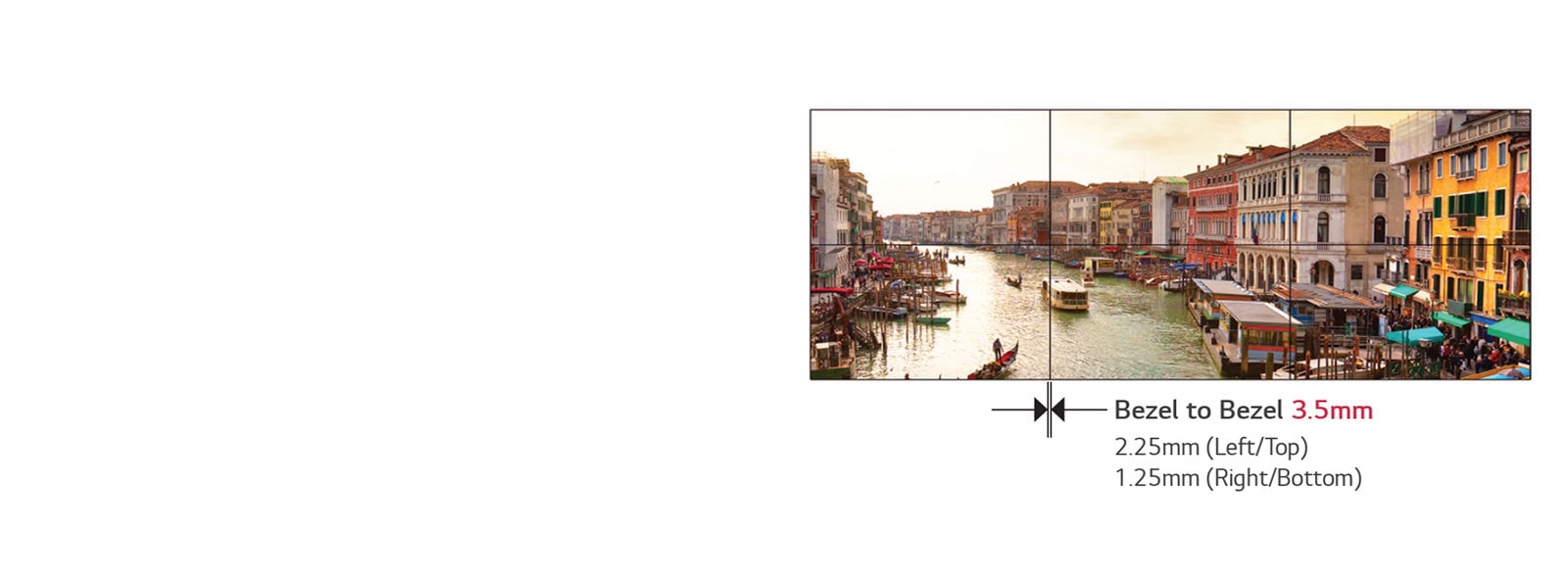

Ultra Narrow Bezel<br>1 Ultra Narrow Bezel<br>2
Superior Picture Quality

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

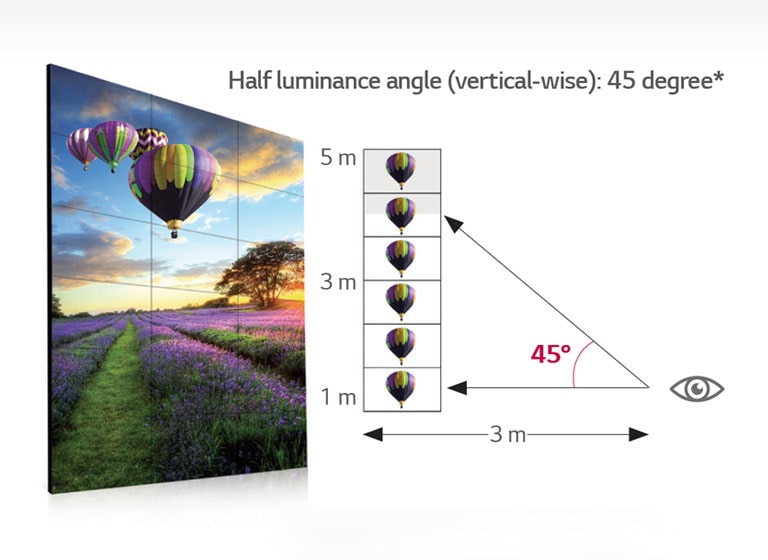

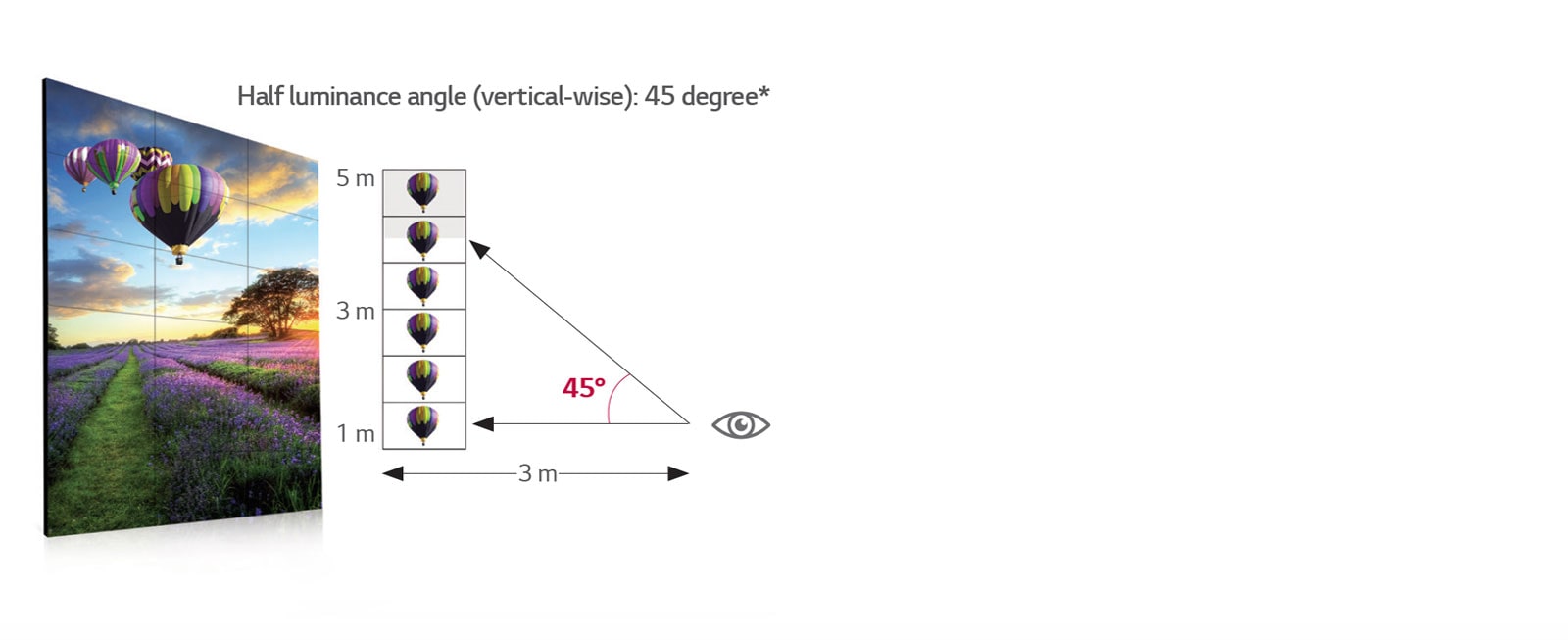

Wide Viewing Angle<br>1 Wide Viewing Angle<br>2
Superior Picture Quality

Wide Viewing Angle

Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VX1D delivers the best picture quality from any viewer position.
*The angle from the center of the screen to have 50% of the initial luminance.

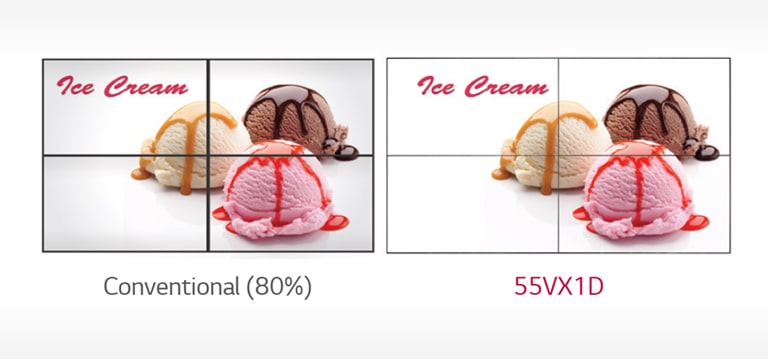

Uniform Brightness<br>1 Uniform Brightness<br>2
Superior Picture Quality

Uniform Brightness

LG's LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VX1D generates high visibility and a consistent brightness across the whole screen.
Consistent White Balance<br>1 Consistent White Balance<br>2
Superior Picture Quality

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

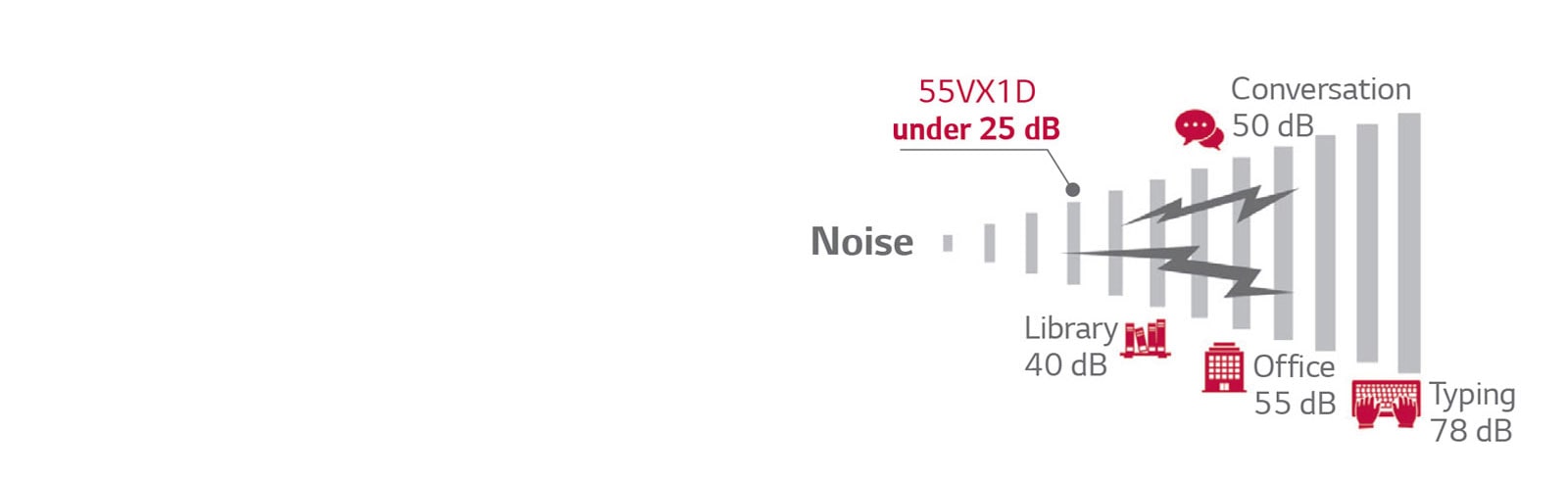

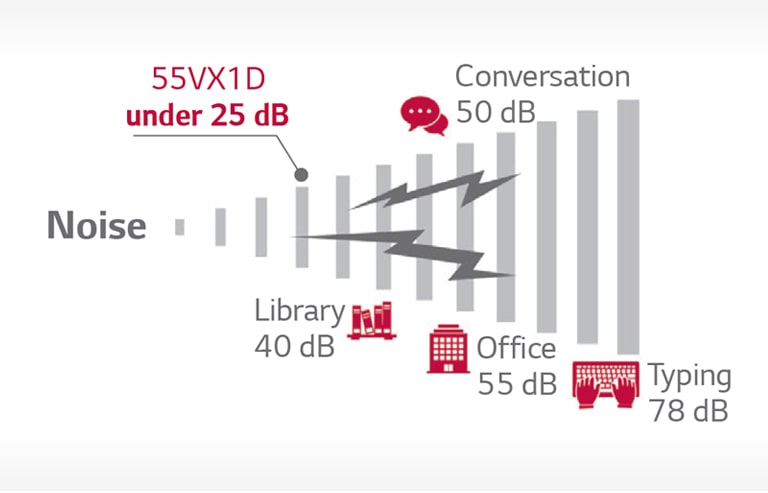

Fan-Less Noise Reduction<br>1 Fan-Less Noise Reduction<br>2
Quiet Operation

Fan-Less Noise Reduction

55VX1D is the perfect choice for an in-window environment due to the removal of the cooling fan. Its operating noise level is under 25 dB, which is quieter than a recording studio (30 dB).

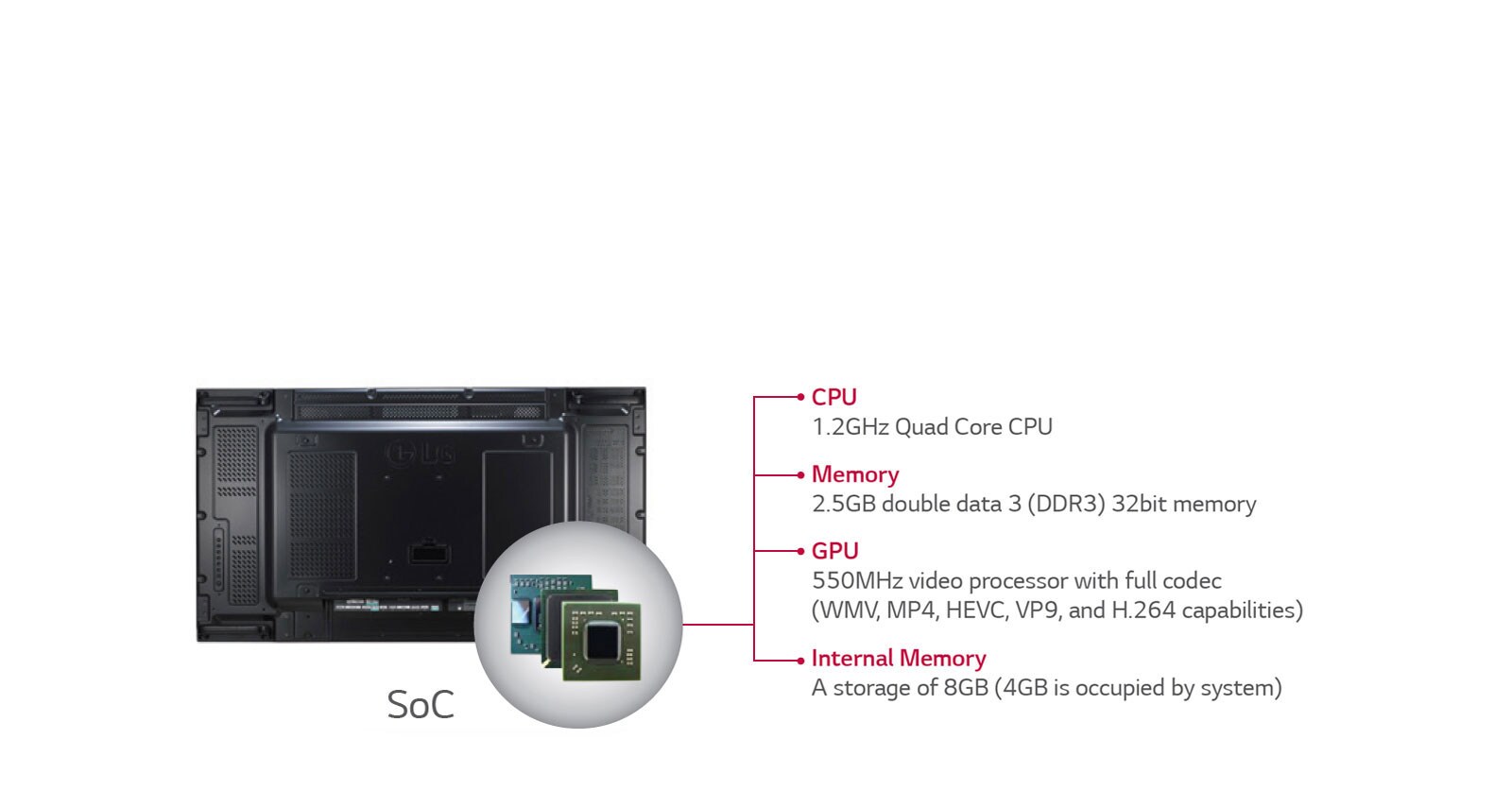

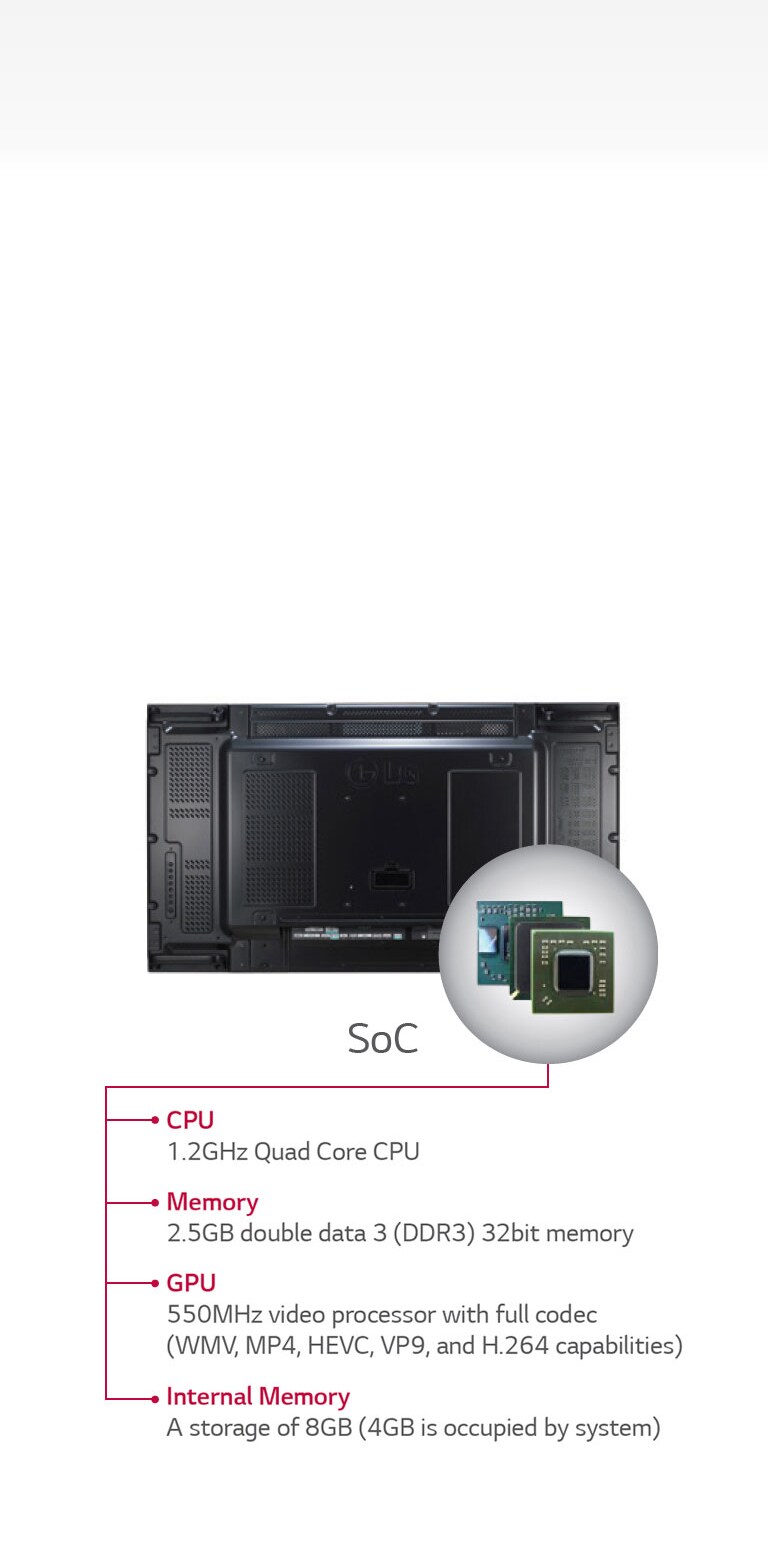

Built-in SoC and Synced Playback<br>1 Built-in SoC and Synced Playback<br>2
Smart Platform

Built-in SoC and Synced Playback

The optimized built-in quad-core SoC* in the 55VX1D can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag for synchronized content playback.
*System-on-Chip.

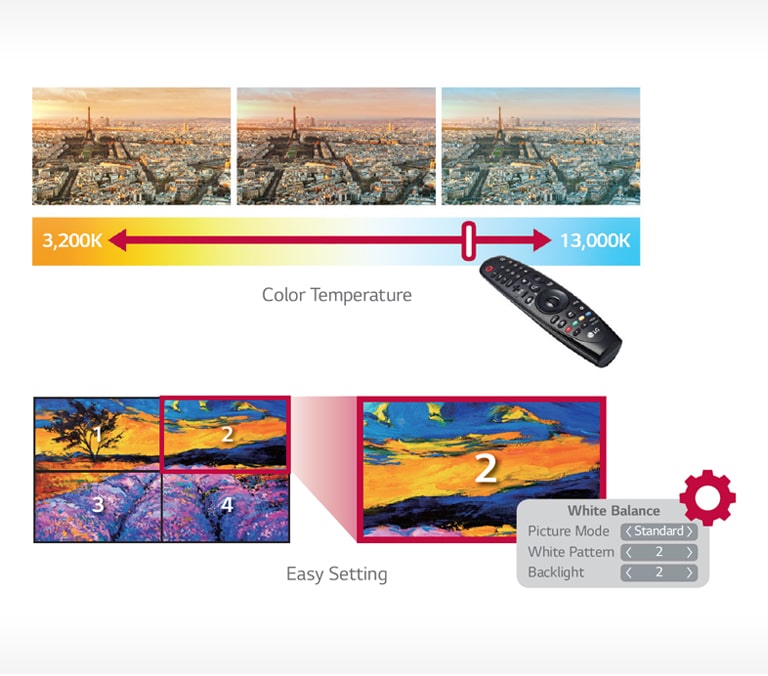

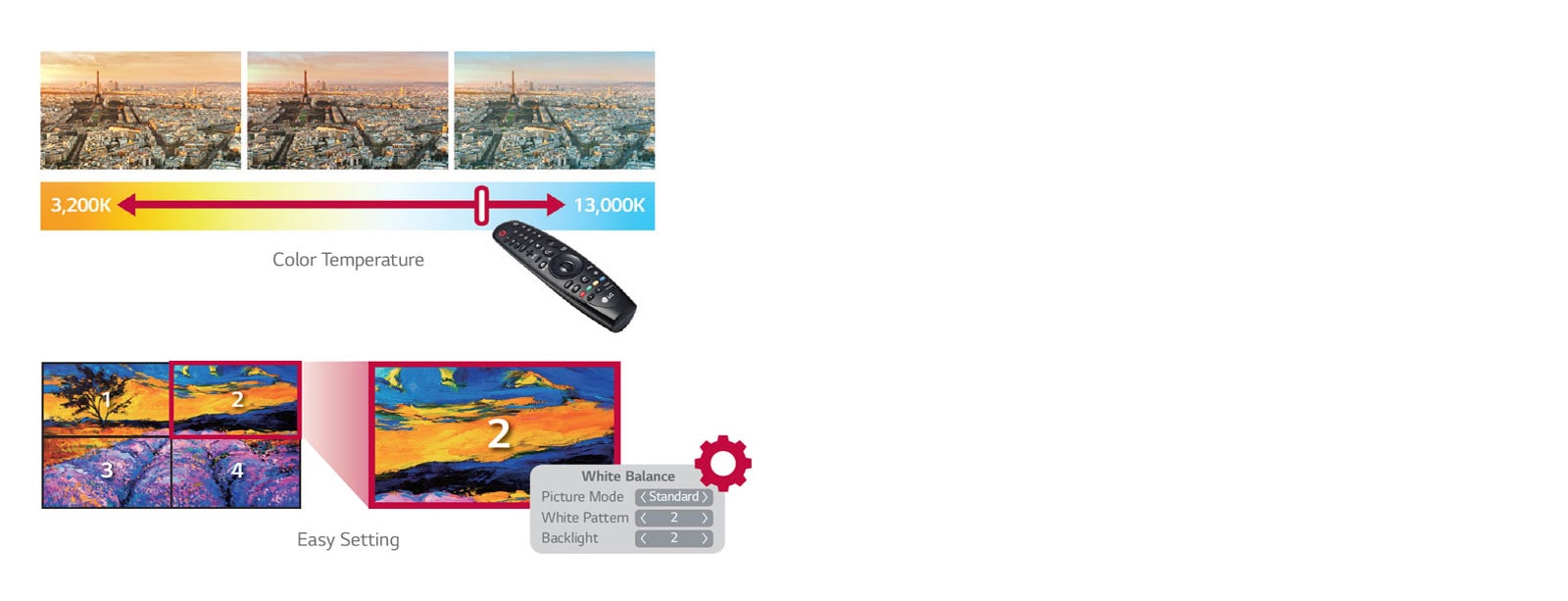

Convenient UX for Video Wall<br>1 Convenient UX for Video Wall<br>2
Enhanced Usability

Convenient UX for Video Wall

Depending on the content, the color temperature of the screen can be easily adjusted by users with a remote control. Also, the settings for tile mode and content playback become more convenient because the dedicated menu is specialized based on the visual guide.

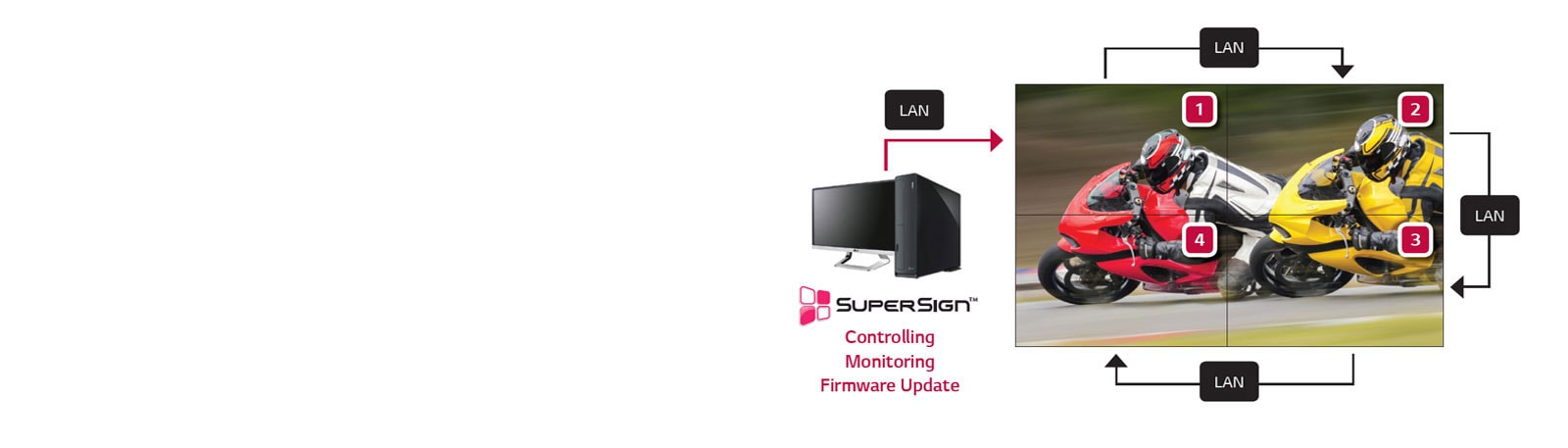

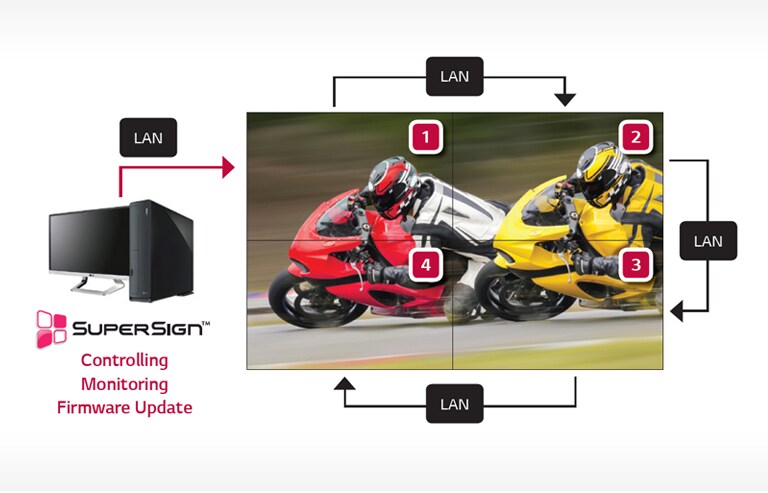

Easy Management with LAN Daisy Chain<br>1 Easy Management with LAN Daisy Chain<br>2
Enhanced Usability

Easy Management with LAN Daisy Chain

The LAN daisy chain allows users to control and monitor signage, distribute content, and even update firmware all at once.
Close
PANEL
  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    1500
    Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out
  • External Control
    RS232C In/Out, RJ45 In/Out, IR Receiver In
PHYSICAL SPECIFICATION
  • Bezel Width
    2.25mm (L/T)/1.25mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 92.8 mm
  • Weight (Head)
    23.5kg
    Carton Dimensions (W x H x D)
    1,353 x 855 x 263 mm
  • Packed Weight
    36.6kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER CONSUMPTION
  • Typ./Max
    250W/280W
    Smart Energy Saving
    213W
STANDARD(CERTIFICATION)
  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP / Energy Star
    NA/Yes (Energy Star 7.0)
MEDIA PLAYER COMPATIBILITY
  • External Media player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link
ACCESSORY
  • Basic
    Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
