Discontinued
55WS10 component-copyModelName

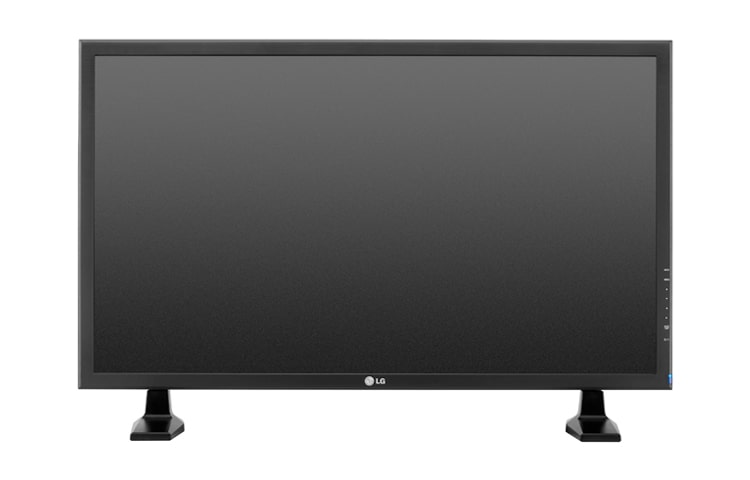

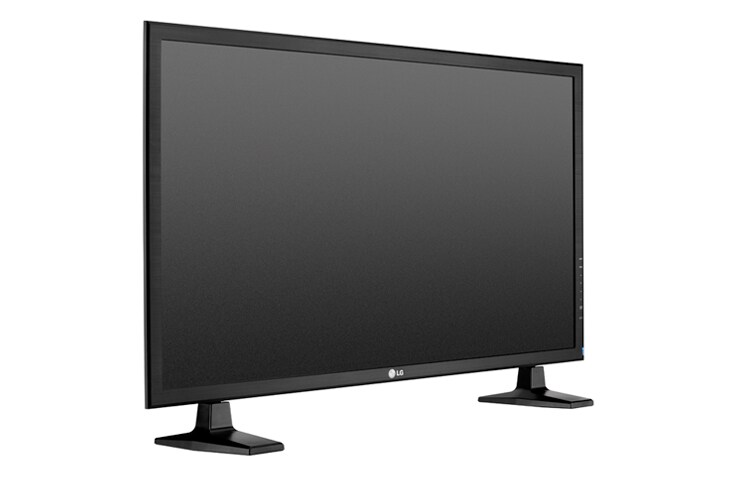

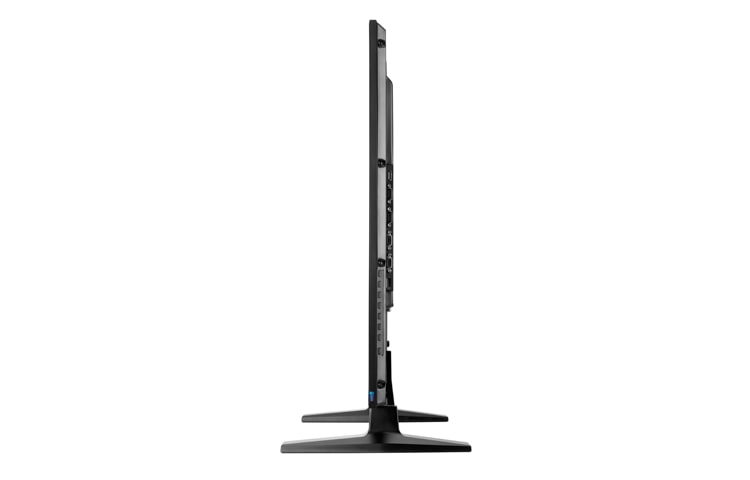

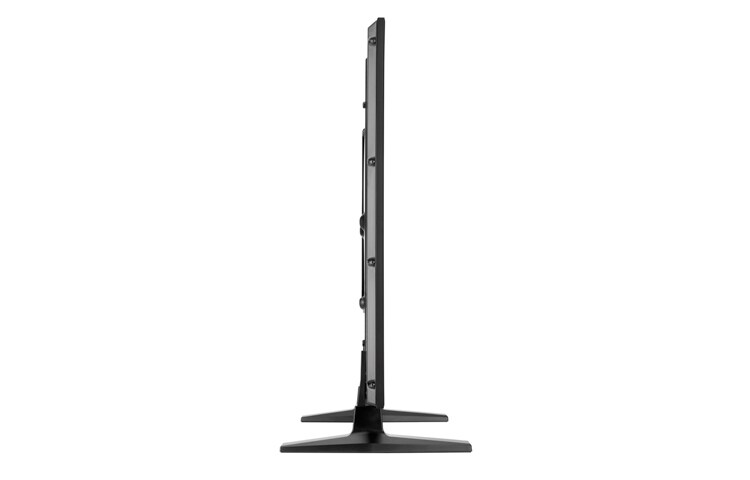

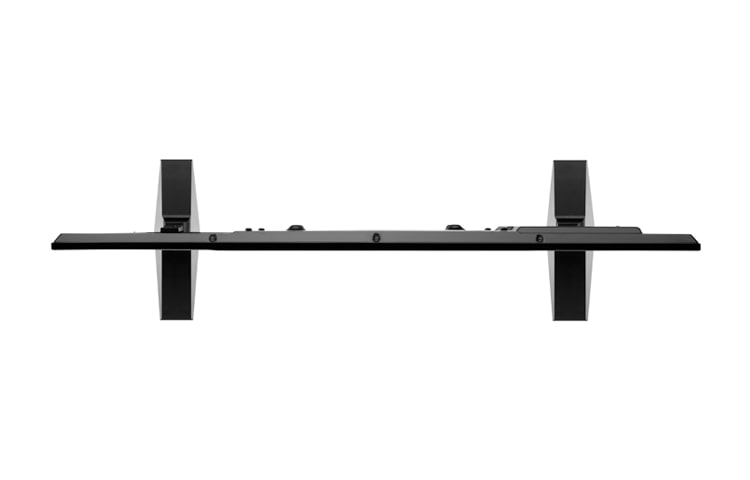

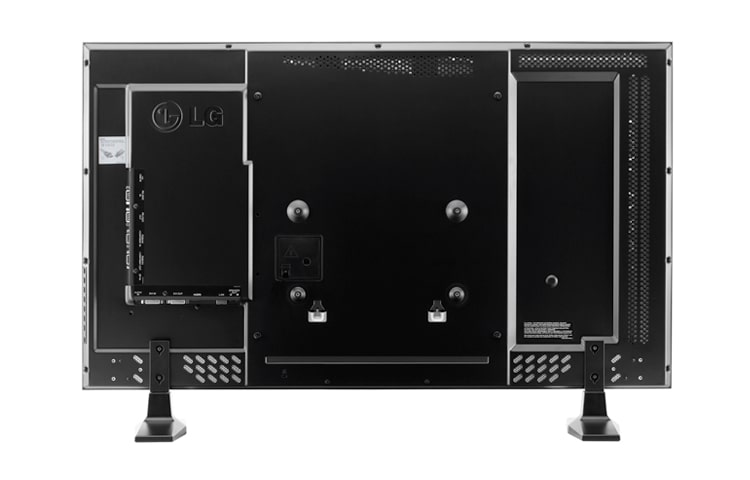

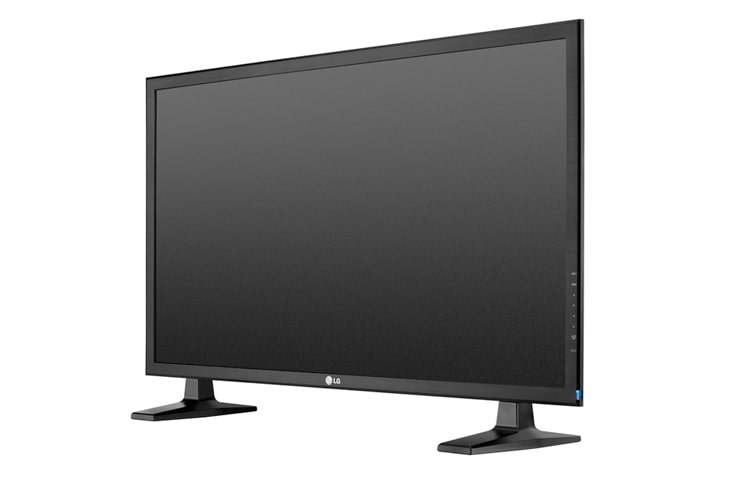

55″ WS SERIES LED WIDESCREEN FULL HD CAPABLE MONITOR

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

55″ WS SERIES LED WIDESCREEN FULL HD CAPABLE MONITOR
Close
PANEL
  • Screen Size
    55F"
    Panel Technology
    IPS (LED BLU)
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness
    450nit
    Contrast Ratio
    1,300:1

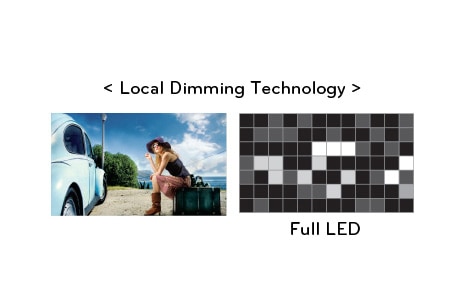

  • Dynamic CR
    500,000 : 1
    Viewing Angle(H x V)
    178 x 178
  • Response Time
    8ms (G to G, *WOT)
CONNECTIVITY
  • Input (Rear) - Digital
    HDMI(1), DVI(1), Display Port(1) with HDCP for all input
    Input (Rear) - Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Input (Rear) - Audio
    RGB/DVI-D/AV/Component(3.5Φ 1)
    Input (Rear) - External Control
    RS232C(1), RJ45(1)
  • Input (Rear) - USB
    YES(1)
    Output (Rear) - Digital
    DVI-D(1)
  • Output (Rear) - Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
    Output (Rear) - Audio
    External speaker
  • Output (Rear) - External Control
    RS232C(1)
PHYSICAL SPECIFICATION
  • Bezel Width
    33.5mm
    Monitor Dimension(W x H x D)
    128.16cm x 75.24cm x 3.78cm
  • Weight(head)
    21.8kg
    Carton Dimensions(W x H x D)
    135.4cm x 85.8cm x 15.9cm
  • Packed Weight
    26.8kg
    VESATM Standard Mount Interface
    400mm x 400mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C ~ 40°C
    Operation Humidity
    10% ~ 80%
SPECIAL FEATURES
  • Additional
    Smart Energy Saving, Multi-media playback, PIP/PBP, Temp Sensor, Auto Brightness Sensor, Tile mode (Up to 5x5), ISM Method, Key Lock
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Consumption - Typical / Smart Energy saving
    140W (Typ) / 95W (Smart Energy Saving on)
  • Power Consumption - DPMS
    1W(Set Only), 2W(With External Device)
    Power Consumption - Power Off
    0.5W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB scheme / TUV
    EMC
    FCC Class “B” / VCCI / C-tick / CE / KCC
  • ErP / Energy Star
    Yes / Yes (Energy Star 5.1)
MEDIA PLAYER COMPATIBILITY
  • External Media player Attachable
    Yes
SOFTWARE COMPATIBILITY
  • Supersign Compatibility
    Elite-w / Elite-w lite
ACCESSORY
  • Included
    Remote Controller, Power Cable, RGB Cable, Manual, ESG
    Optional
    AP-WX60 (Wall Mount), SP-2000 (Speaker), ST-200T (Stand)
