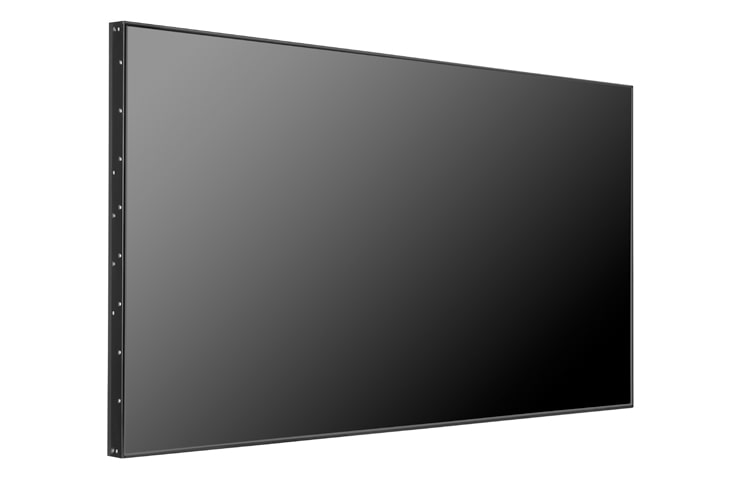

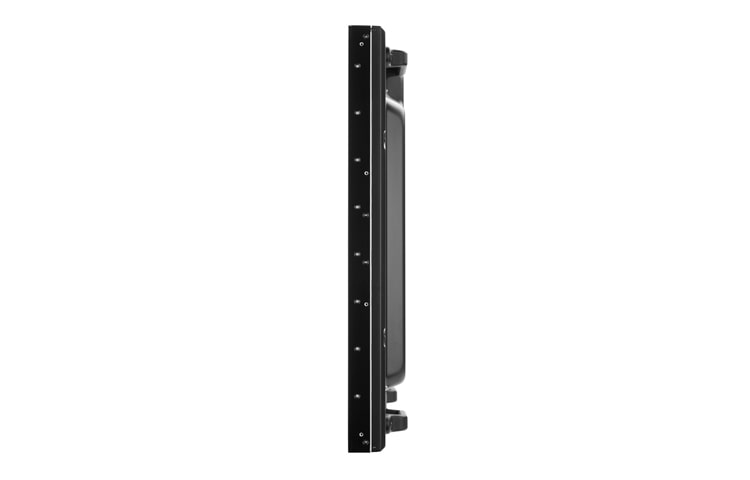

55" Direct FHD LED Super-Narrow Bezel Video Wall Display

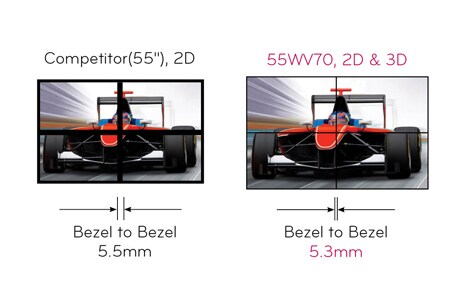

Narrowest Bezel : 5.3mm

The narrowest bezel creates powerful and impactful video walls that can be easily installed, maintained and managed.

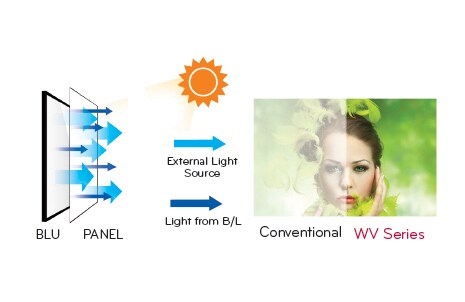

Shine-Out

Perfect fit for window display by reflecting away the sunlight for best image visibility and clearer display under direct sunlight than conventional panel.

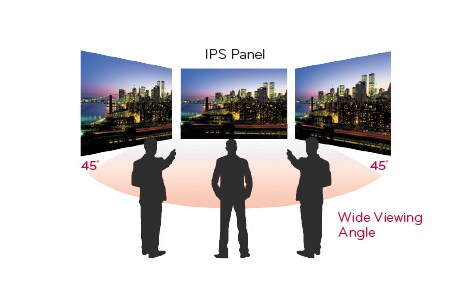

Wide Viewing Angle

Providing clear image virtually at any angle.

Low Power Consumption

By using LED panels without mercury or other harmful substances, 55WV70 is ecofriendlier than any of its competitors. Most Competitor(55") of all, 55WV70 consumes less energy.

PANEL

Screen Size

55F"

Panel Technology

IPS (LED BLU)
Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)
Brightness

800nit

Contrast Ratio

1,400 : 1
Dynamic CR

500,000 : 1

Viewing Angle(H x V)

178 x 178
Response Time

8ms (G to G, *WOT)

CONNECTIVITY

Input (Rear) - Digital

DVI-D(1), HDMI(1), Display Port(1) with HDCP for all input

Input (Rear) - Analog

RGB(1), Shared Component(1), AV(1)
Input (Rear) - Audio

PC Audio In

Input (Rear) - External Control

RS232C(1), RJ45(1), IR Receiver(1)
Input (Rear) - USB

USB

Output (Rear) - Digital

DVI-D
Output (Rear) - Analog

RGB

Output (Rear) - Audio

External speaker
Output (Rear) - External Control

RS232C

PHYSICAL SPECIFICATION

Bezel Width

3.4mm (left/top) / 1.9mm (right/bottom)

Monitor Dimension(W x H x D)

121.52cm x 68.6cm x 9.9cm
Weight(head)

33.4kg

Carton Dimensions(W x H x D)

140.0cm x 80.5cm x 33.0cm (Box outer size)
Packed Weight

42.4kg

VESATM Standard Mount

600mm x 400mm

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10 % to 80 %

SPECIAL FEATURES

Additional

Temp sensor, 15X15 Tile mode, 2 pairs of Handle, Shine out, USB playback

POWER

Power Supply

100-240V~, 50/60Hz

Power Consumption - Typical / Smart Energy saving

210W (Typ) / 120W (SES)
Power Consumption - DPMS

1.0W (RGB), 1.0W (HDMI)

Power Consumption - Power Off

0.5W
