55VM5J-H component-copyModelName
55 (139.7CM) 500 nits FHD Slim Bezel Video Wall

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VM5J-H)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55VM5J-H)
    $
    $
    LG Members Price
Total
55 (139.7CM) 500 nits FHD Slim Bezel Video Wall

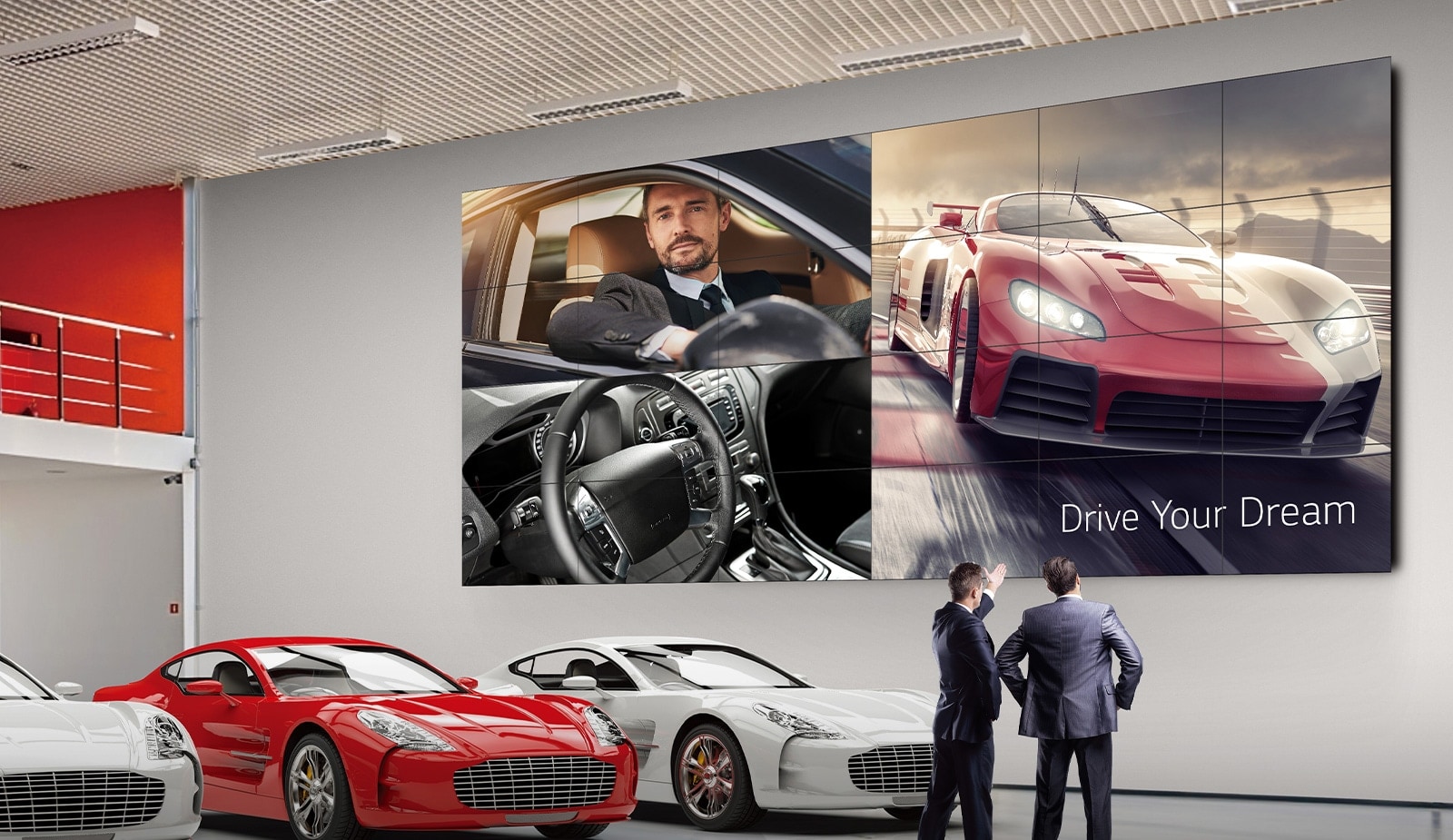

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen. A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

Artistic Immersion, Overwhelming Captivation

*All images in this web page are for illustrative purposes only.

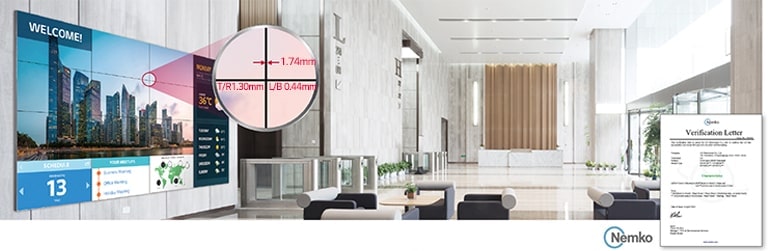

LG 55VM5J-H Seamless Large Screens LG 55VM5J-H Seamless Large Screens

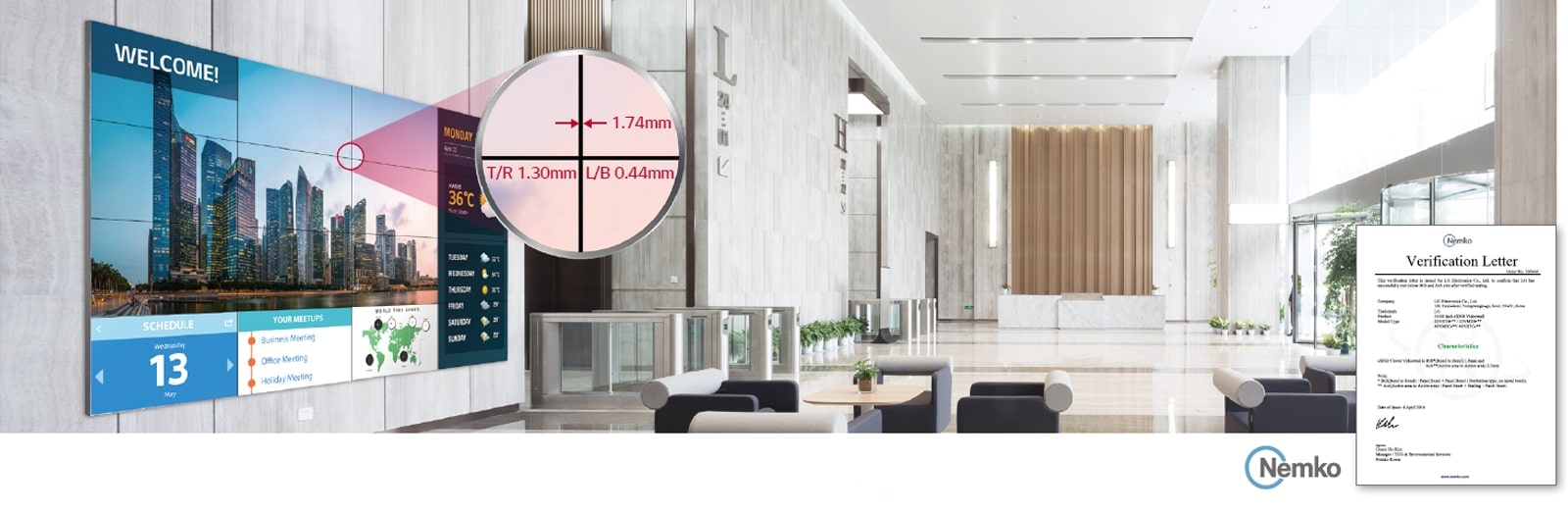

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
*The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.
LG 55VM5J-H Image Gap Reduction LG 55VM5J-H Image Gap Reduction

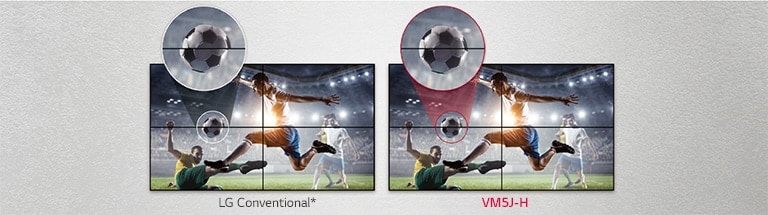

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
*The "LG Conventional" refers to displays which do not include an image improvement algorithm.
**The image shown above are for illustration purposes only.

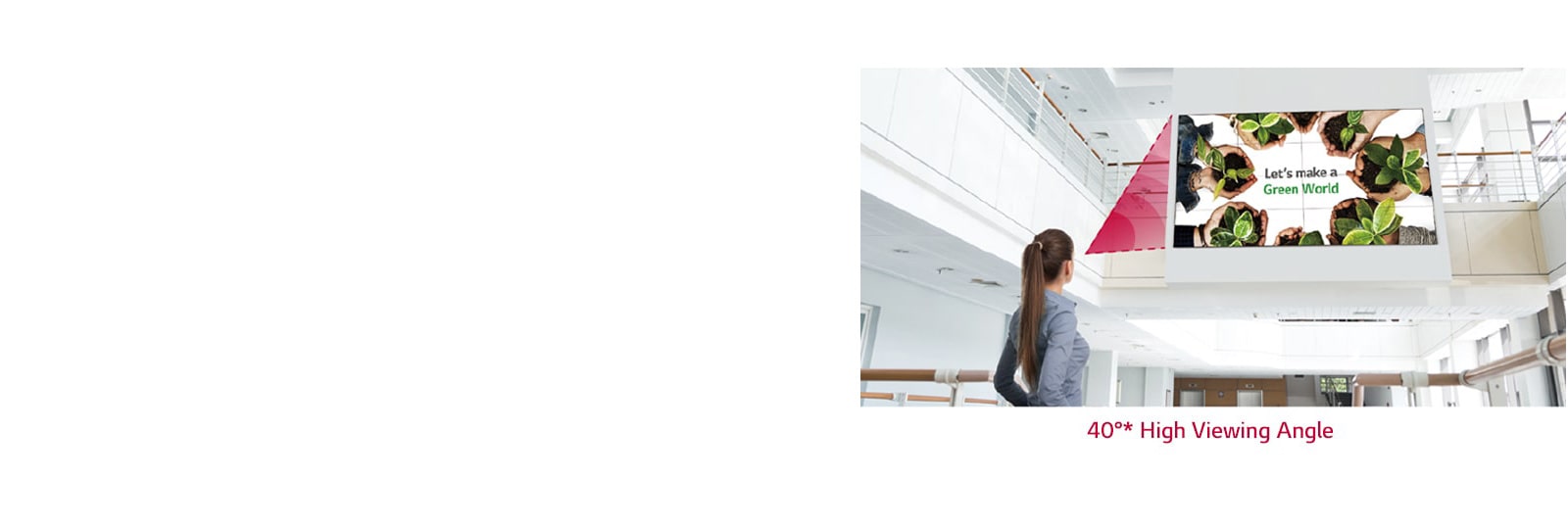

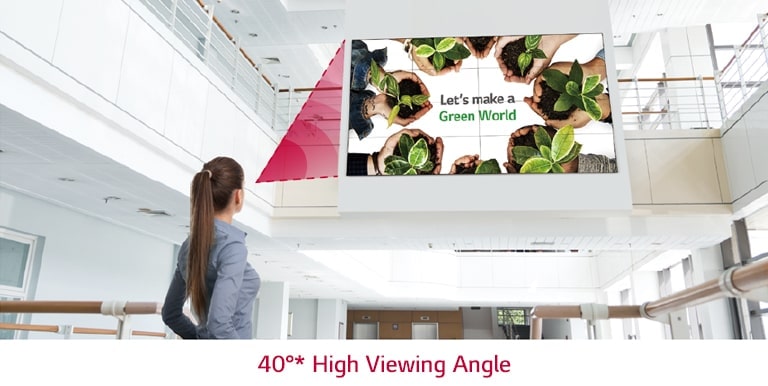

LG 55VM5J-H Higher Viewing Angle LG 55VM5J-H Higher Viewing Angle

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

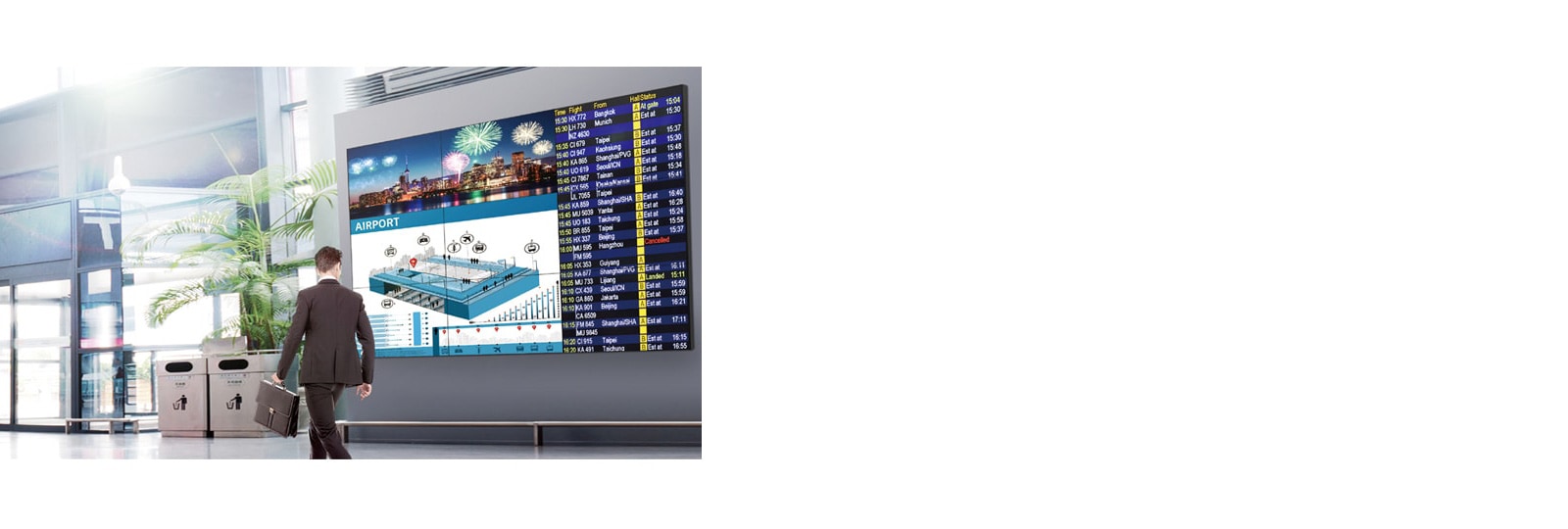

LG 55VM5J-H Wider Viewing Angle LG 55VM5J-H Wider Viewing Angle

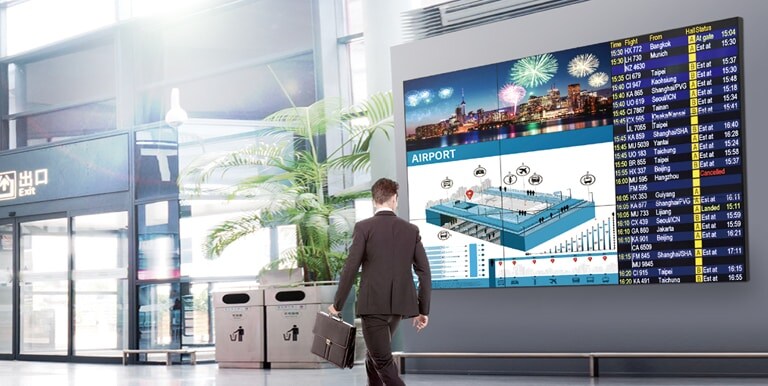

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

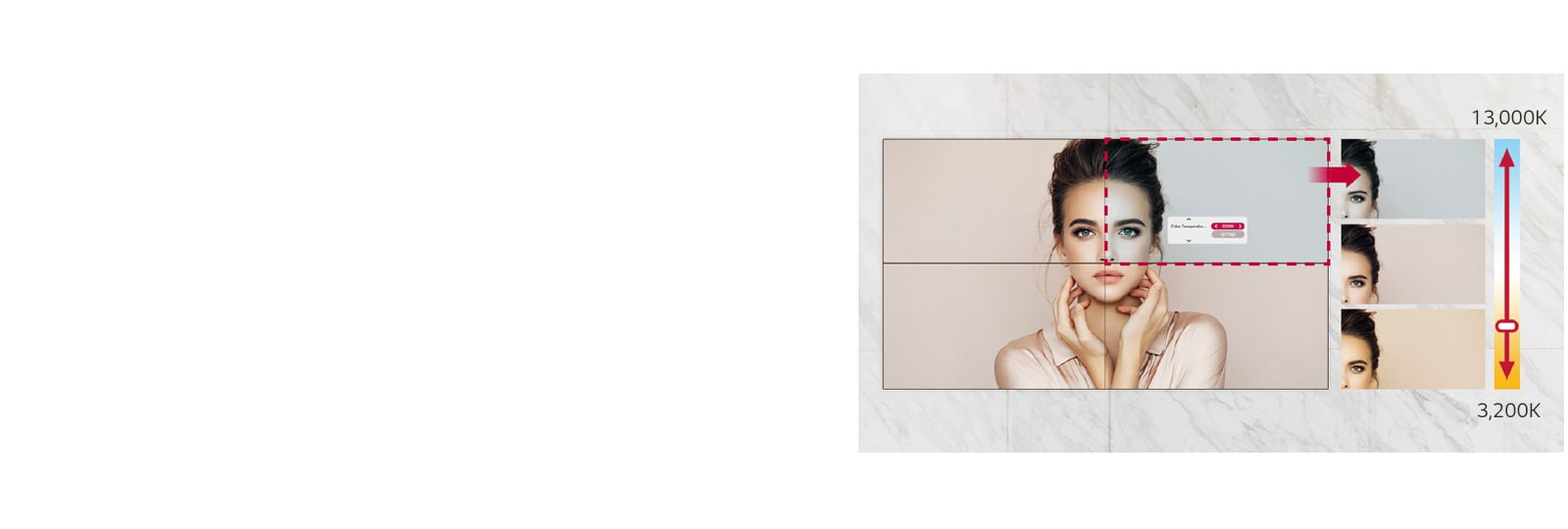

LG 55VM5J-H Easy Color Adjustment LG 55VM5J-H Easy Color Adjustment

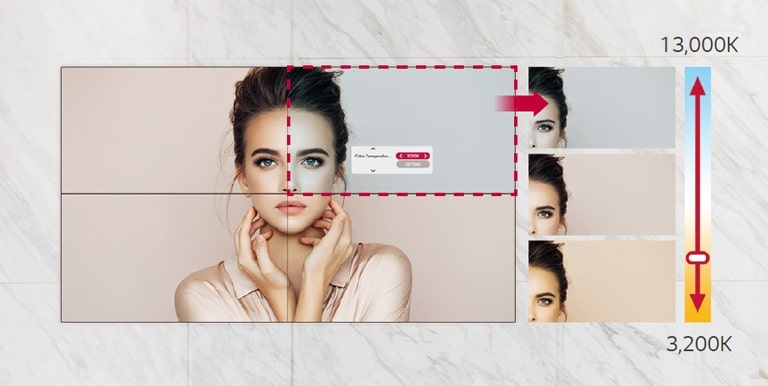

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

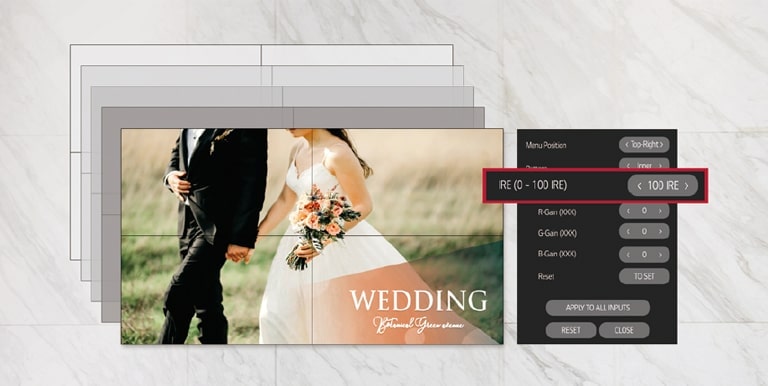

LG 55VM5J-H Simple White Balance Adjustment LG 55VM5J-H Simple White Balance Adjustment

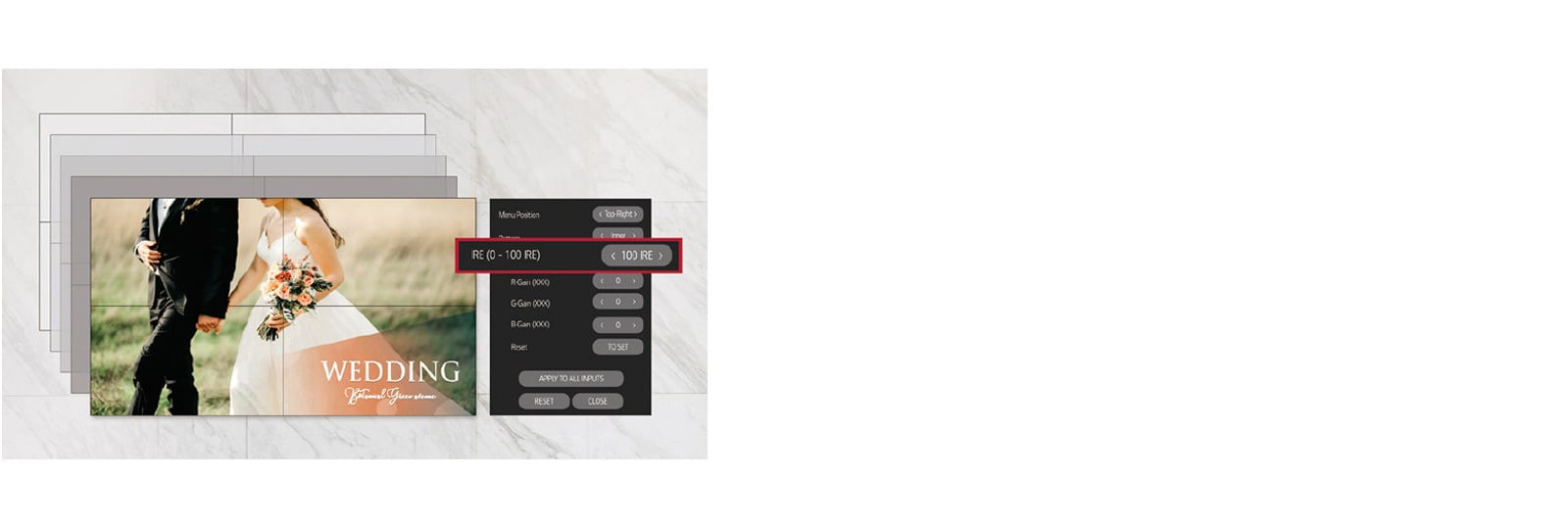

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

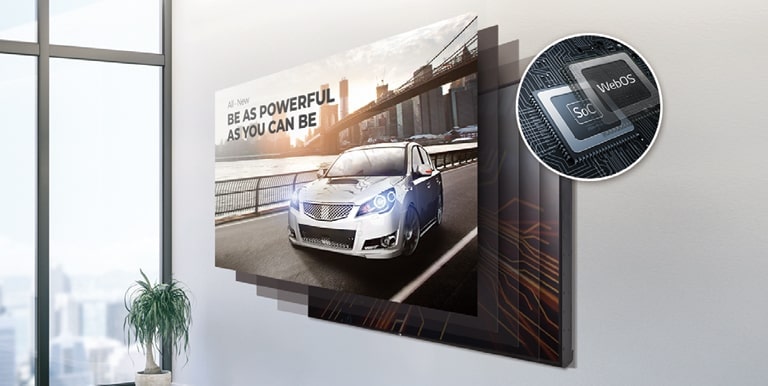

LG 55VM5J-H High Performance LG 55VM5J-H High Performance

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
*SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
LG 55VM5J-H Flexible Content Creation LG 55VM5J-H Flexible Content Creation

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
*Supported protocols : RTSP, RTP, HLS, UDP Multicast.

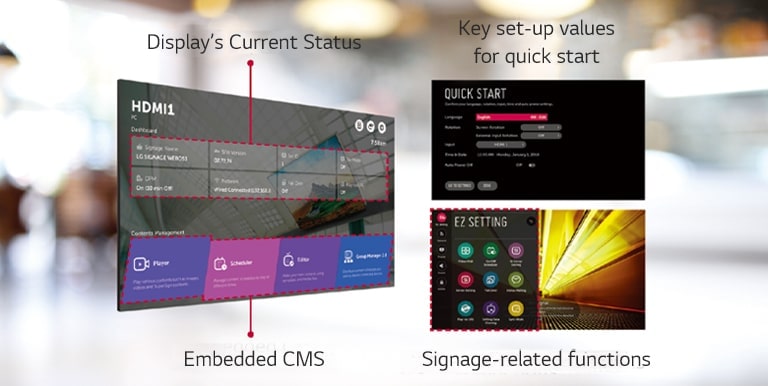

LG 55VM5J-H Intuitive Menu Structure LG 55VM5J-H Intuitive Menu Structure

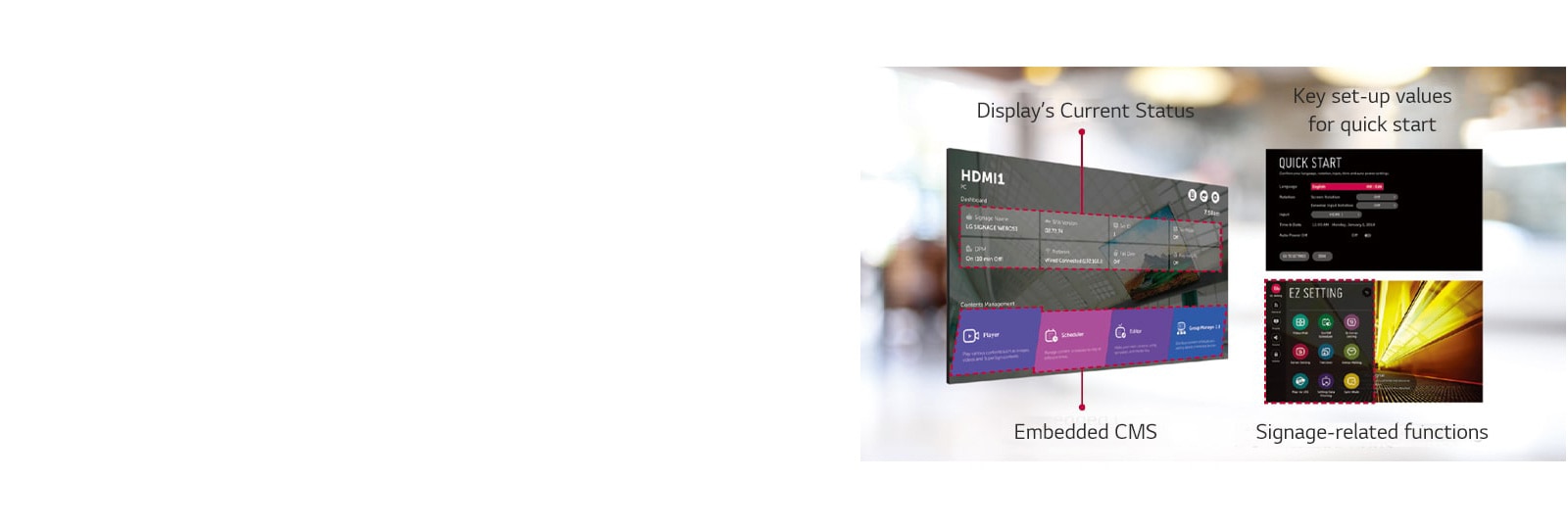

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
LG 55VM5J-H Dedicated GUI for Portrait Orientation LG 55VM5J-H Dedicated GUI for Portrait Orientation

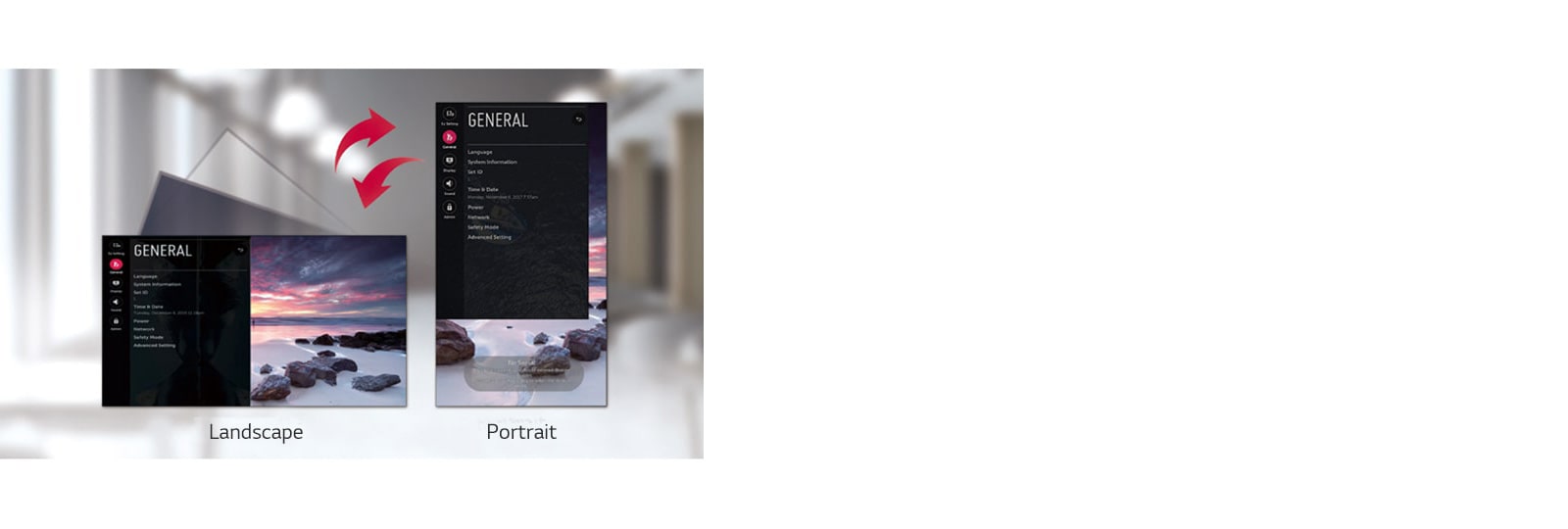

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.
LG 55VM5J-H Conformal Coating LG 55VM5J-H Conformal Coating

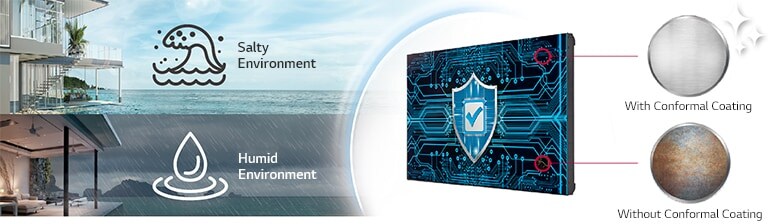

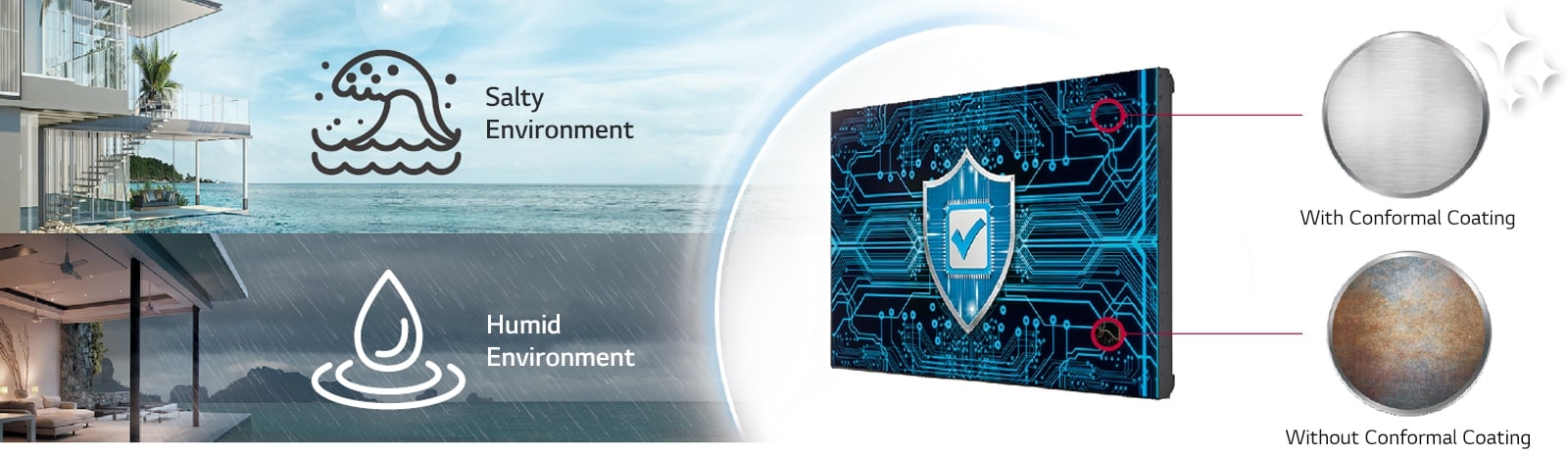

Conformal Coating

Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
*Actual images (Signage display) available may differ from the example images shown.

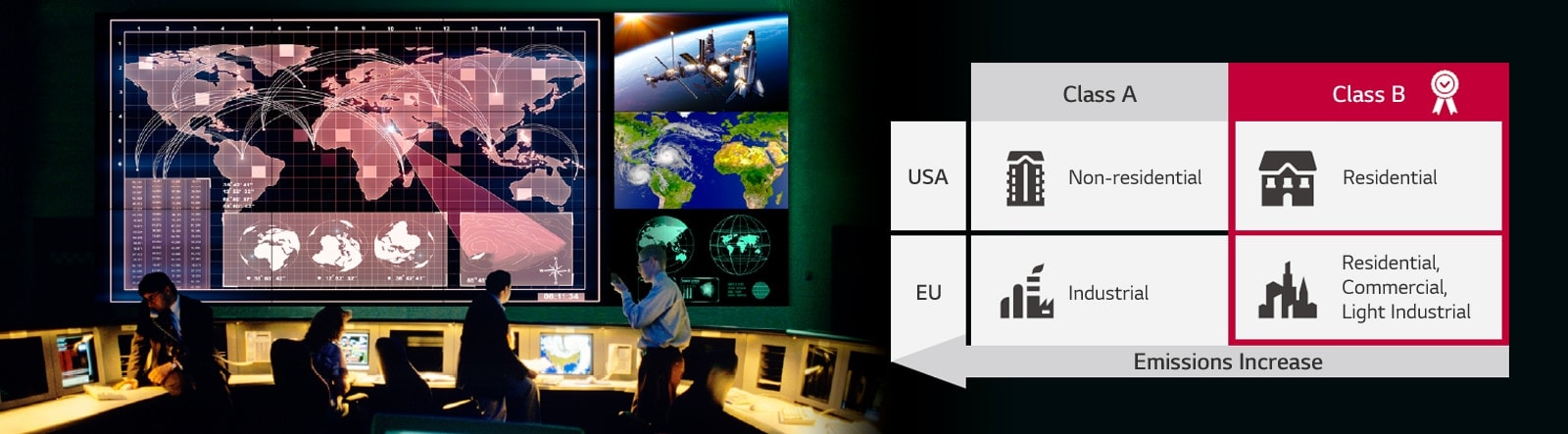

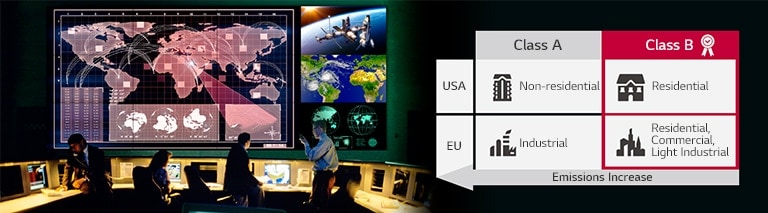

The VM5J-H, certified with EMC class B, is installed on the control room wall. The VM5J-H, certified with EMC class B, is installed on the control room wall.

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
LG 55VM5J-H ConnectedCare LG 55VM5J-H ConnectedCare

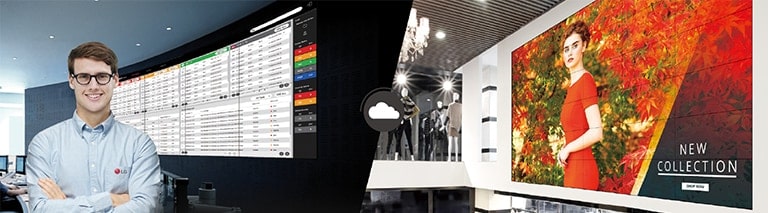

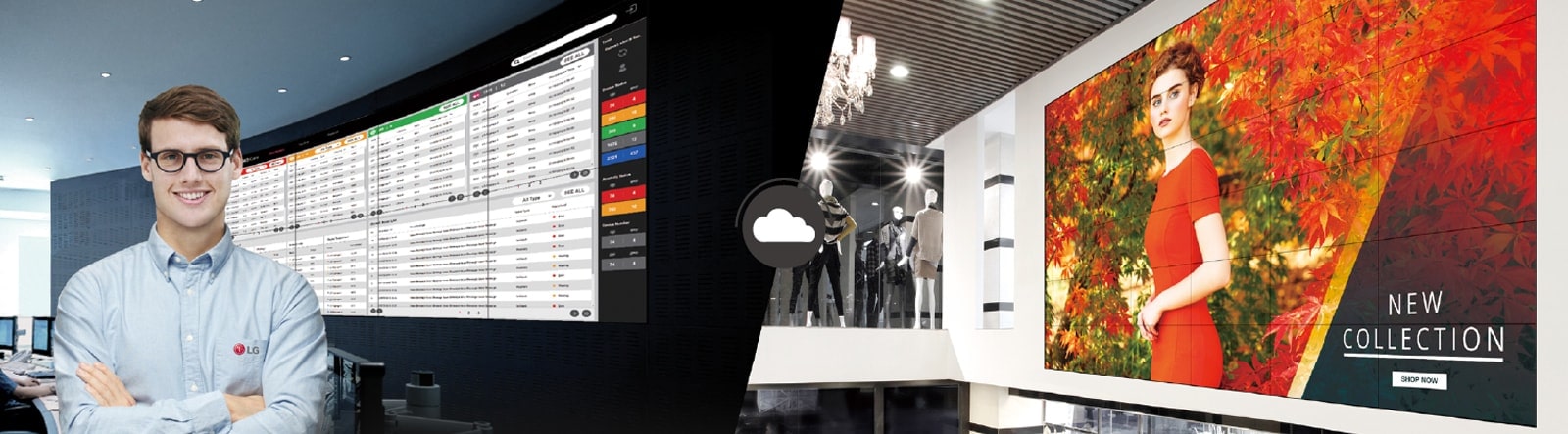

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
LG 55VM5J-H Daisy Chain Capability LG 55VM5J-H Daisy Chain Capability

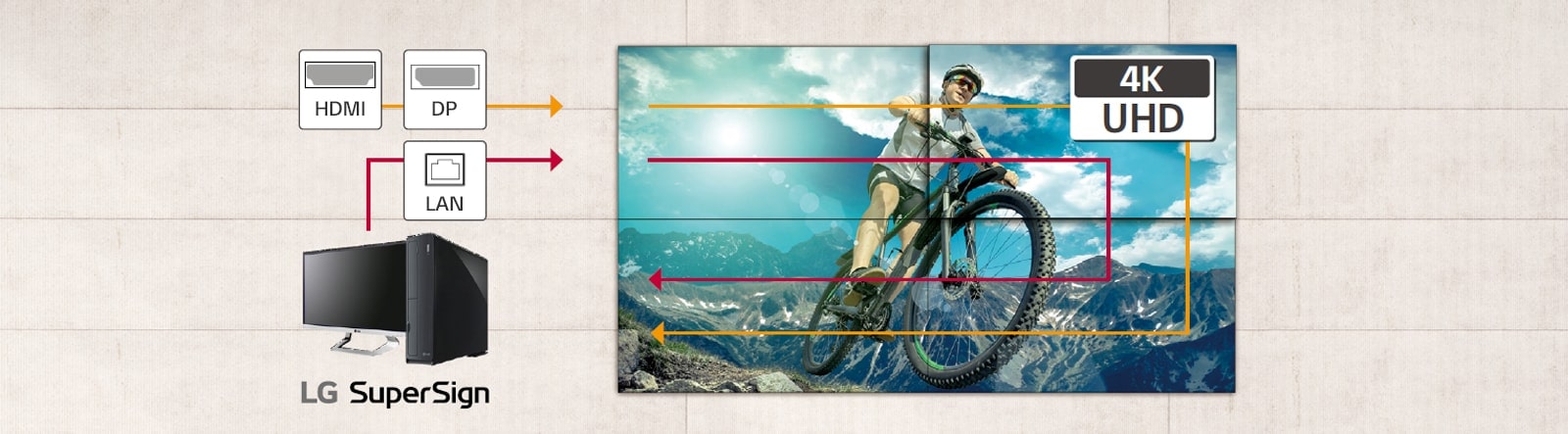

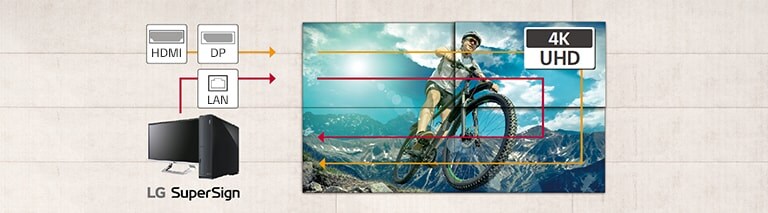

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
ENERGY STAR® Certified ENERGY STAR® Certified

ENERGY STAR® Certified

Close
PANEL
  • Screen Size
    139.7cm (55)
    Panel Technology
    IPS
  • Aspect Ratio
    16:9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60Hz
    Brightness
    500
  • Contrast Ratio
    1,000:1
    Dynamic CR
    500,000 : 1
  • Color gamut
    NTSC 72%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8 ms (G to G)
  • Surface Treatment (Haze)
    28%
    Life Time (Typ.)
    60,000 Hrs
  • Life Time (Min.)
    50,000Hrs
    Operation Hours (Hours / Days)
    24/7
  • Portrait / Landscape
    Yes / Yes
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
    A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
  • Weight (Head)
    18.8 kg
    Packed Weight
    31.0 kg (when individual pallet applied)
  • Monitor Dimensions (W × H × D)
    1,212.2 × 683.0 × 86.9 mm
    Carton Dimensions (W × H × D)
    1,353 x 855 x 263 mm (Box outer size)
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • HW
    Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
    SW
    webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
CONNECTIVITY
  • Input
    HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
    Output
    DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-in Power
POWER CONSUMPTION
  • Typ.
    160 W
    Max.
    190 W
  • BTU (British Thermal Unit)
    546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
    Smart Energy Saving
    90 W
  • DPM
    0.5 W
    Power off
    0.5 W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP
    Yes (EU Only) Energy Star 8.0
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes (Piggyback)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • LG ConnectedCare
    Yes
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    OPS Kit (KT-OPSF)
