Interactive Digital Board

True Interactivity for
Bringing People Together

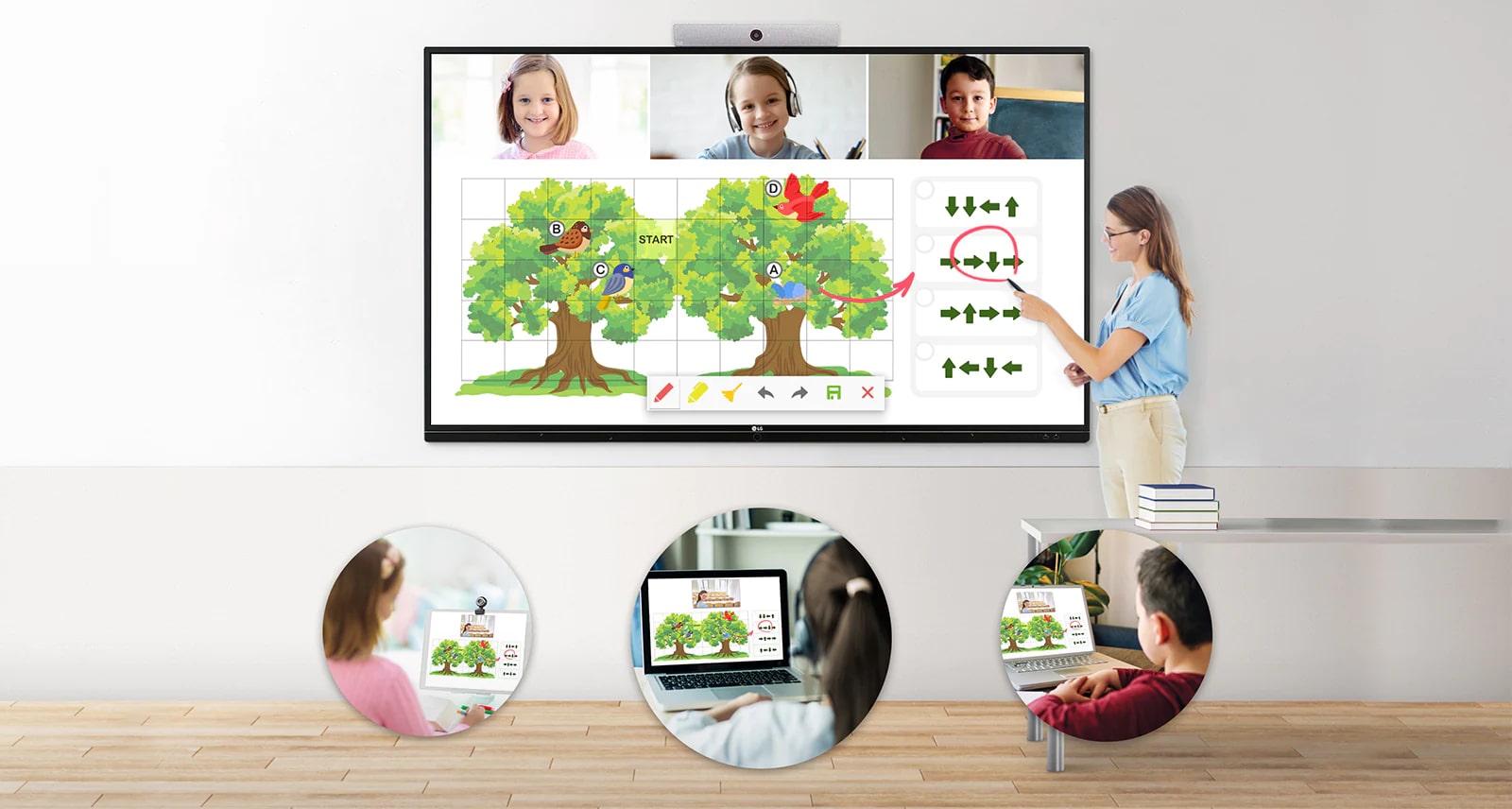

When the teacher marks it on the TR3BG, it is displayed on the students' electronic device screens at the same time. When the teacher marks it on the TR3BG, it is displayed on the students' electronic device screens at the same time.
* 65 inch
* All images are intended to help you understand, and there may be some differences in practical use.
GENUINE TOUCH & WRITING EXPERIENCE

Multi Touch & Writing

The TR3BG series can simultaneously use up to 20 points of multi touch. This function offers a lifelike board writing experience and makes collaboration much easier.

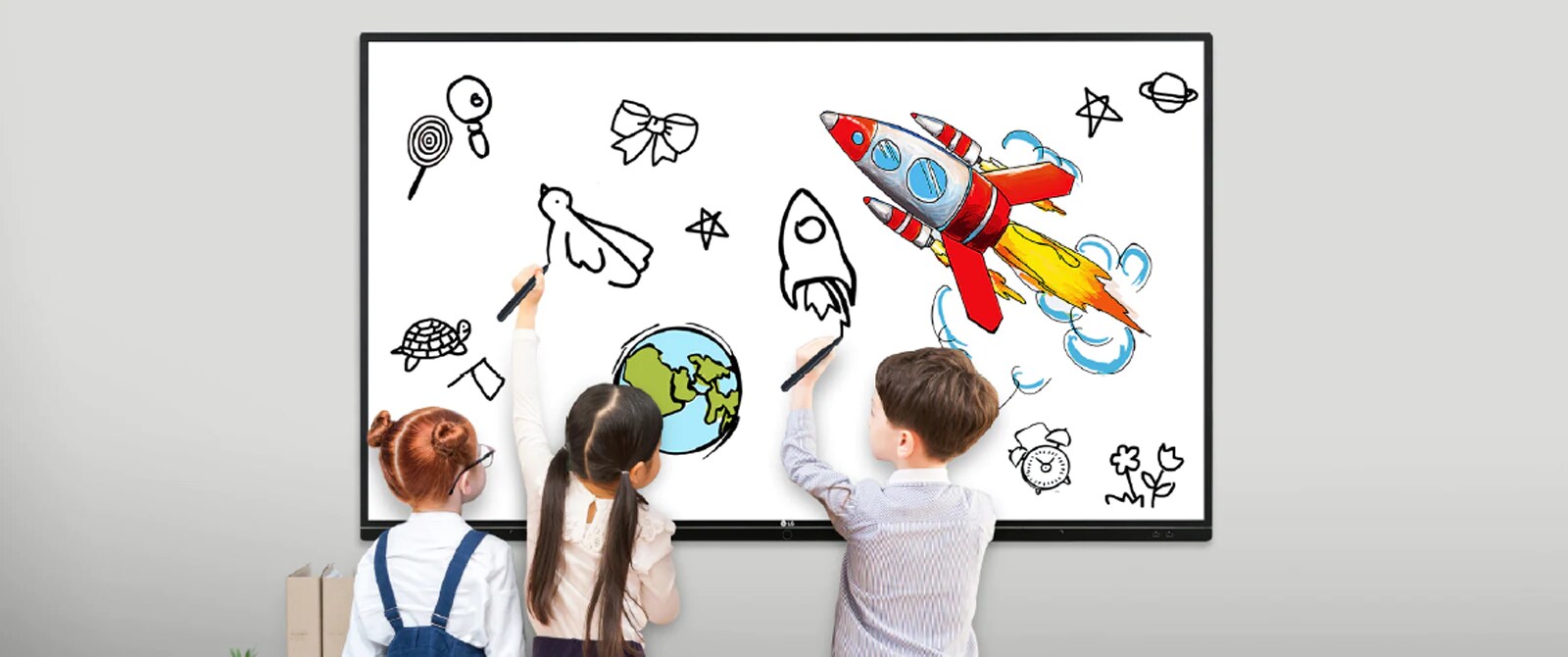

Three children are drawing on the TR3BG at the same time. Three children are drawing on the TR3BG at the same time.

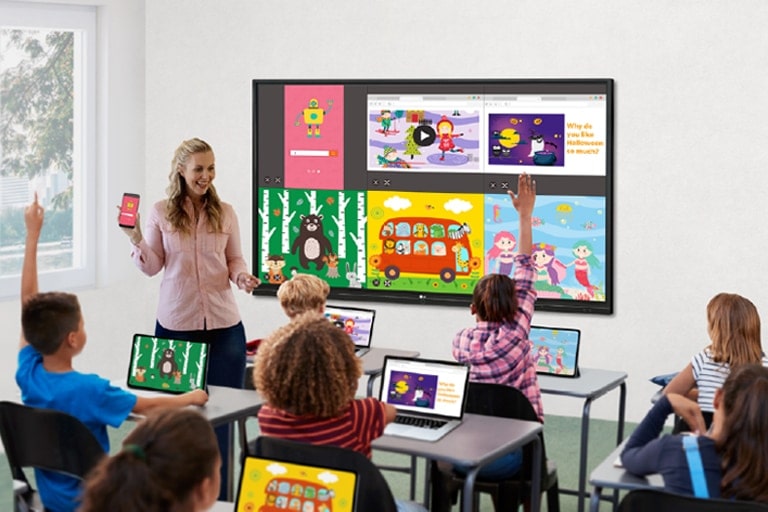

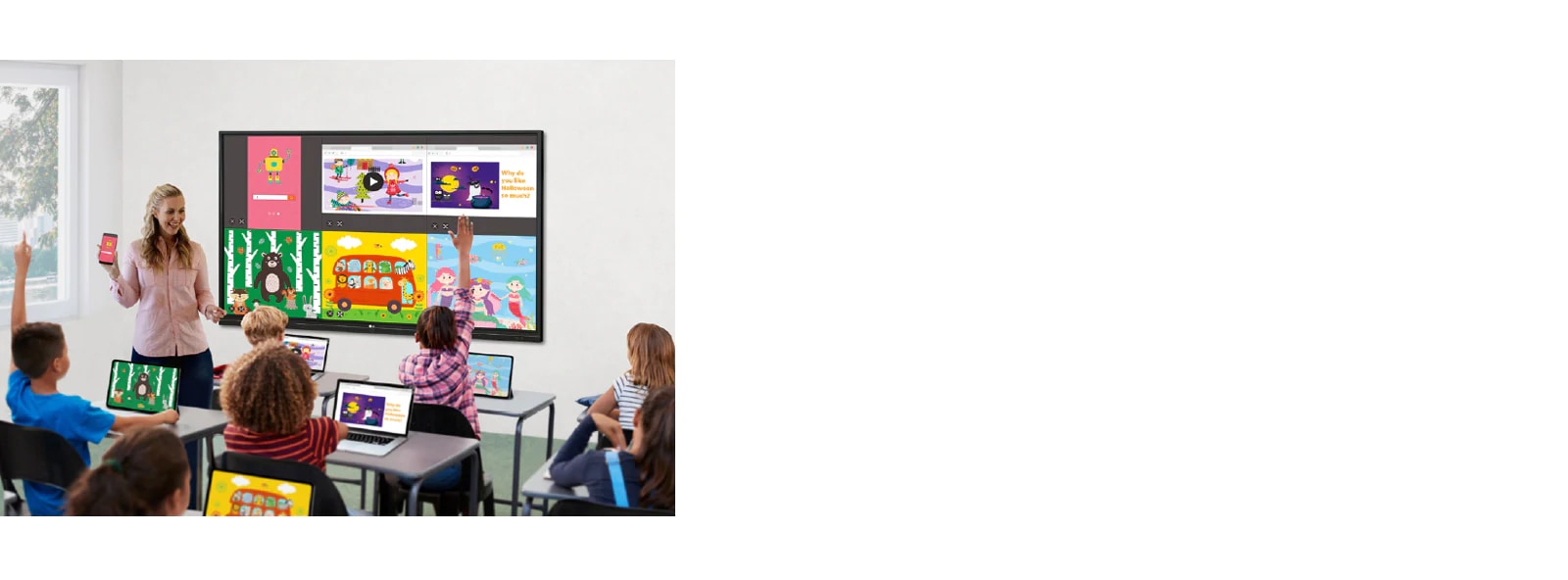

The screens of students' laptops and teacher's mobile are being shared to the display. The screens of students' laptops and teacher's mobile are being shared to the display.
EASY CONNECTION & SHARING

ScreenShare Pro Upgrade

With the newly upgraded ScreenShare Pro, which enables to show a maximum of six shared screens or a file on a screen in real-time, it has enhanced usability by allowing users to share Chromecast mirroring on the same network without any application.

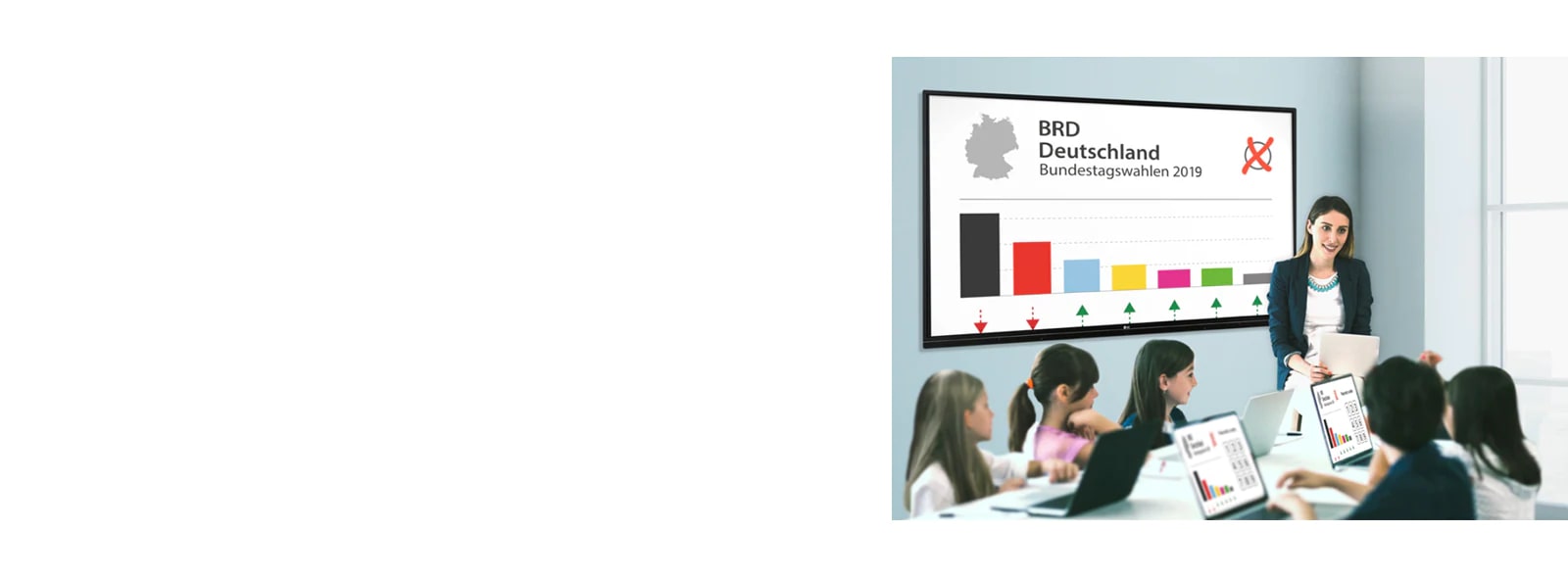

A teacher is having a class and the screen on the display is being shared to each students' laptop. A teacher is having a class and the screen on the display is being shared to each students' laptop.
EASY CONNECTION & SHARING

Air Class

Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.

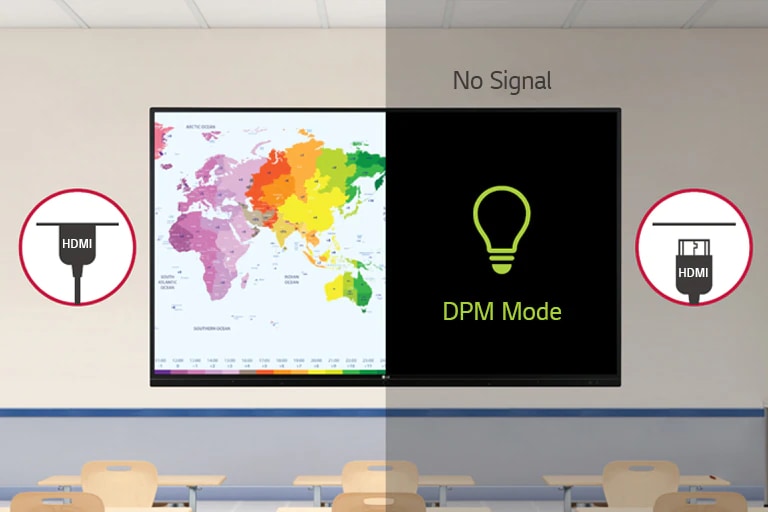

Display Power Management function to manage power more efficiently. Display Power Management function to manage power more efficiently.
USER FRIENDLY EXPERIENCE

DPM
(Display Power Management)

By activating DPM function, the display can be set to be on only when there is an input signal, which enables more efficient power management.

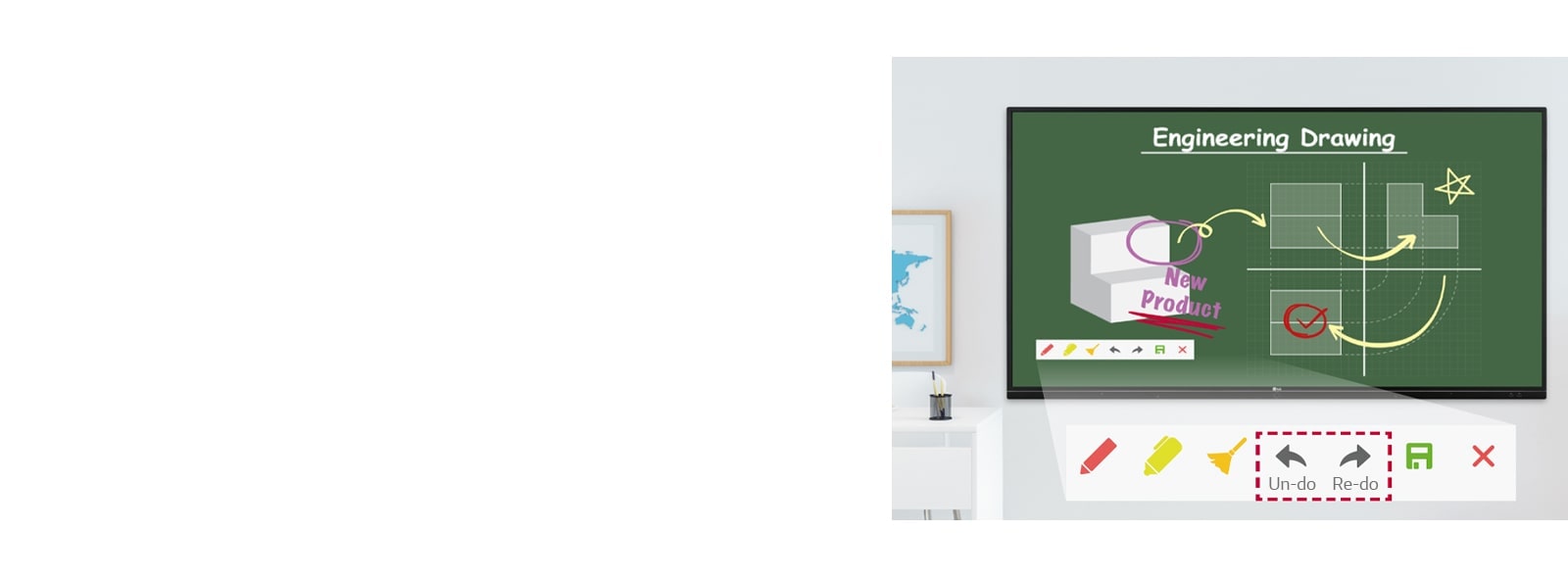

Engineering Drawing class with TR3BG's annotation tool using Un-do and Re-do functions. Engineering Drawing class with TR3BG's annotation tool using Un-do and Re-do functions.
USER FRIENDLY EXPERIENCE

Annotation Upgrade

At annotation tool mode, ‘Un-do’ and ‘Re-do’ functions provide enhanced user experience. (Annotation tool can be used on any source.)
A woman searching for information using the web browser. A woman searching for information using the web browser.
USER FRIENDLY EXPERIENCE

Web Browser

The TR3BG series supports the web browser in the Android OS, so you can search the web easily and quickly, without connecting to an external desktop.

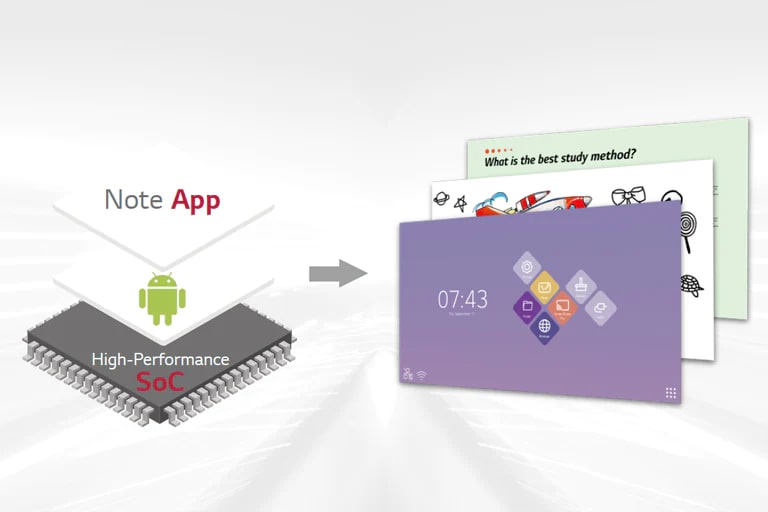

System-on-a chip integrated with Android OS and free apps. System-on-a chip integrated with Android OS and free apps.
USER FRIENDLY EXPERIENCE

All-in One

The TR3BG series integrates both Android OS and Free apps into a high performance SoC, without a PC.

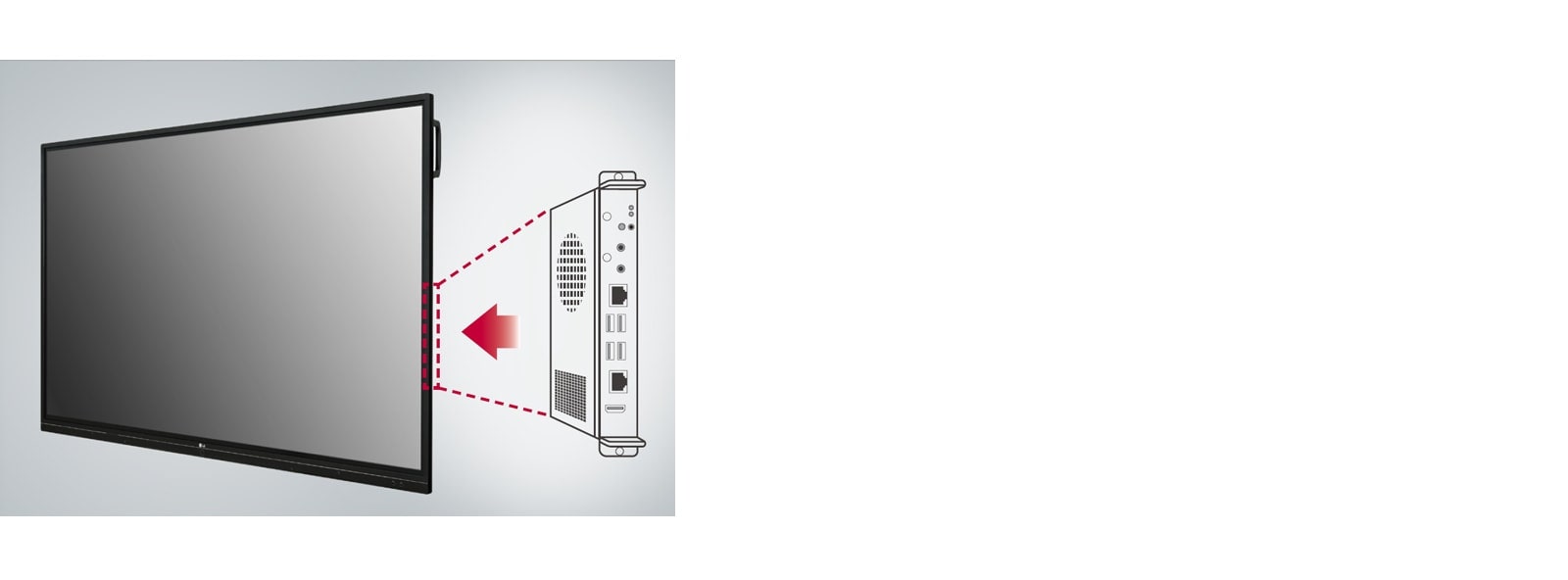

Built-in OPS Slot allows users to connect to an external desktop easily, which provides more expanded functions. Built-in OPS Slot allows users to connect to an external desktop easily, which provides more expanded functions.
SECURITY & COMPATIBILITY

Built-in OPS Slot

The TR3BG series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.

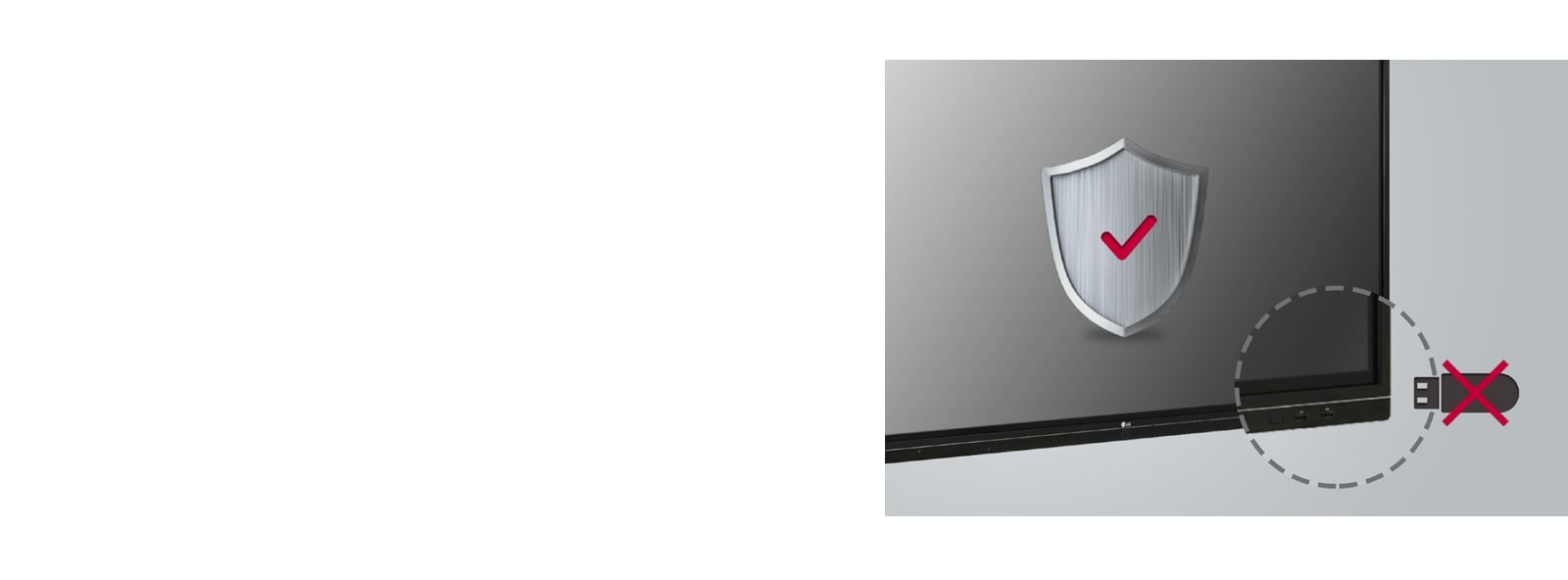

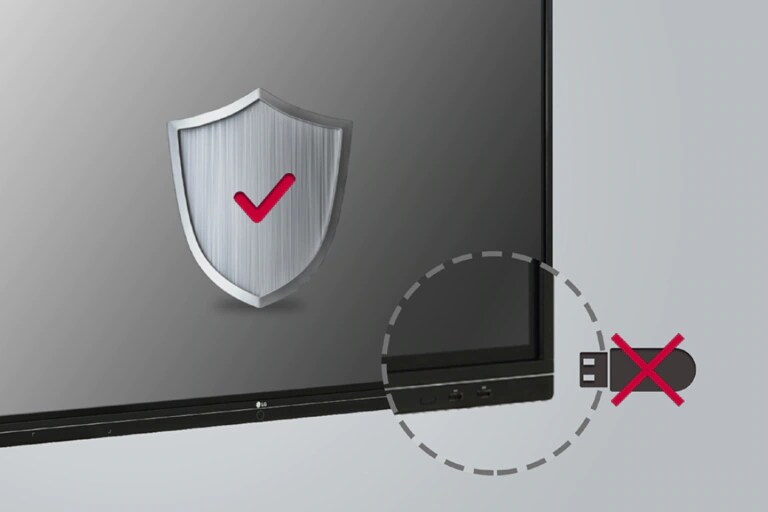

USB is not being able to be connected to a display for security. USB is not being able to be connected to a display for security.
SECURITY & COMPATIBILITY

USB Block

The USB Block Mode that helps secure and prevent data from being copied into unauthorized devices in advance, which is essential for being used in space where security is critical.
SECURITY & COMPATIBILITY

Secure Mode

Secure Mode blocks unauthorized contents to be shown via sharing screen function in various devices. The preloaded applications related to share screens will be hidden from menu. Secured mode disables screen mirroring options for SSP (Screen Share Pro). It helps prevent unauthorized access to your IDB.

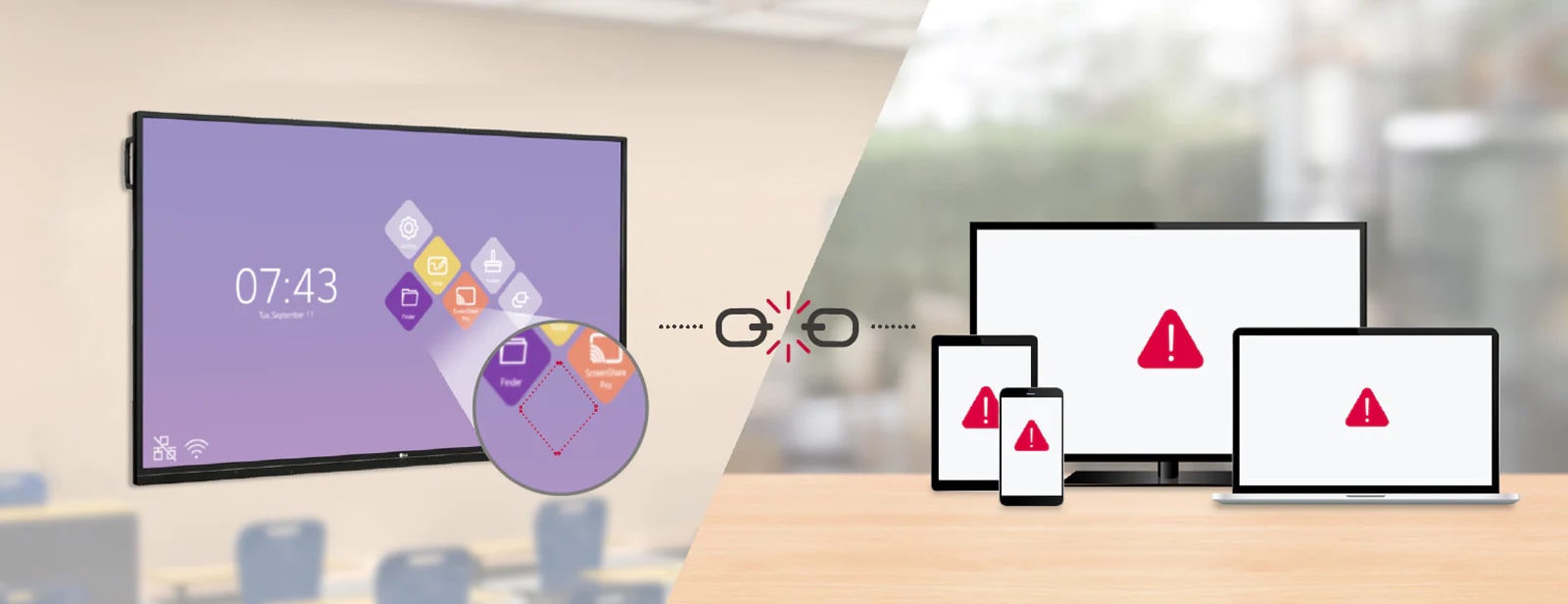

Secure Mode for blocking unauthorized contents. Secure Mode for blocking unauthorized contents.

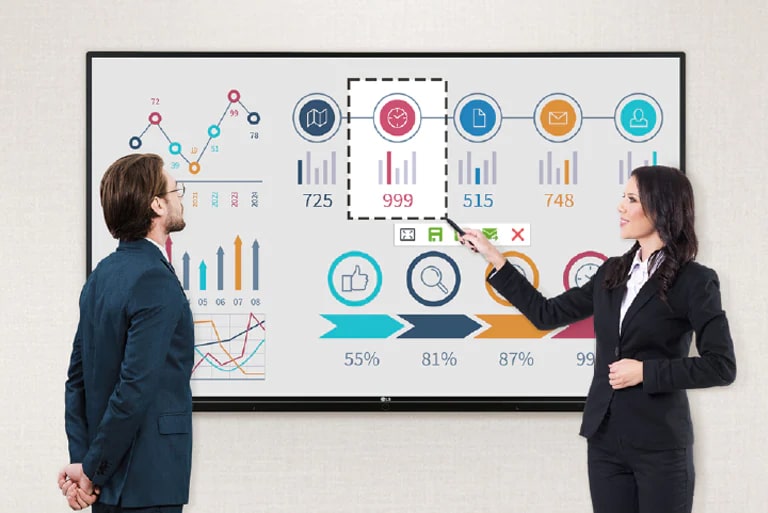

A woman captures part of the TR3BG and explains it to the man. A woman captures part of the TR3BG and explains it to the man.
USER CONVENIENCE

Partial Capture

Users can select the desired area of the screen to crop the image and store that in internal memory. Also, TR3BG allows that send cropped images directly to email or note apps.
Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen. Three people are gathered in a conference room, having a virtual meeting with other people who are appearing on the screen.
USER CONVENIENCE

Bluetooth Connectivity

TR3BG supports Bluetooth to connect wirelessly to various devices such as speaker, mouse, keyboard, etc. This is optimized for building a hybrid environment so that online and offline meeting and class can proceed without problems.

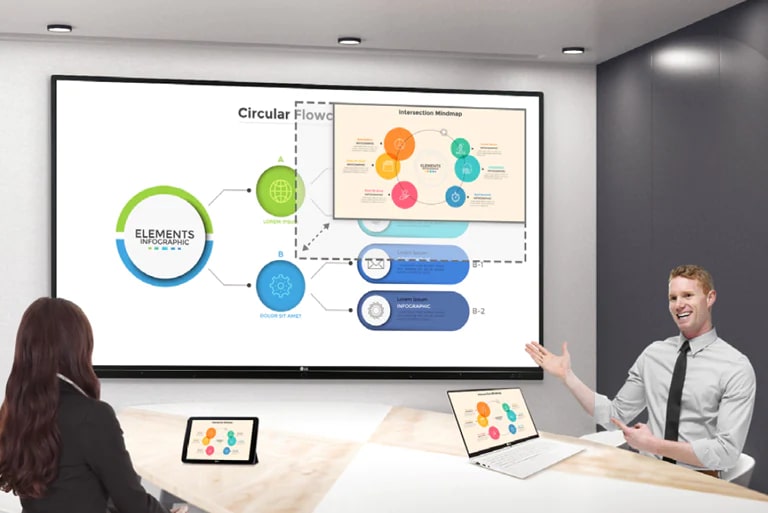

A screen showing other content was added to the screen where a man is showing a woman. A screen showing other content was added to the screen where a man is showing a woman.
USER CONVENIENCE

PIP Support

PIP function enables IDB to display multiple kinds of content while the android content remains in view. So it is possible to see and work on multiple tasks with additional input.
* PIP function is provided in app form.
* It can only be changed to the specified size.
The LG employee is remotely monitoring the TR3BG series installed in a different place. The LG employee is remotely monitoring the TR3BG series installed in a different place.
USER CONVENIENCE

Real-time ConnectedCare Service

Maintenance is easy and fast with the optional ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
* The availability of the "ConnectedCare" service differs by region, so please contact the LG sales representative in your region for more details.
Close
PANEL
  • Screen Size
    65"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    3,840 x 2,160 (UHD)
    Refresh Rate
    60 Hz
  • Brightness
    390nit (wo Glass typ), 335nit (wo Glass, min)
    350nit (w Glass, typ), 300nit (w Glass min)
    Contrast Ratio
    1,200:1
  • Color gamut
    NTSC 68%
    Viewing Angle (H x V)
    178 x 178
  • Color Depth
    10bit, 1.07Billion colors
    Response Time
    8ms (G to G)
  • Surface Treatment(Haze)
    Anti Glare, 7H(Mohs)
    Life time
    30,000 Hrs (Min.)
  • Operation Hours (Hours/Day)
    16/7
    Portrait / Landscape
    No / Yes

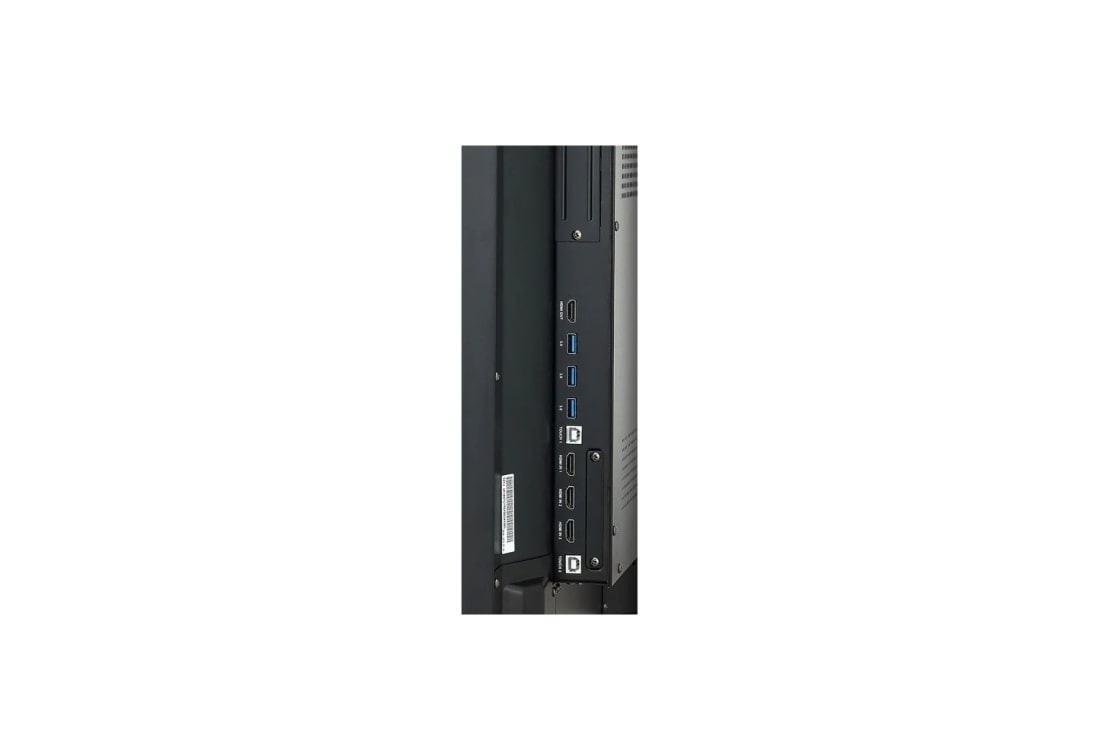

CONNECTIVITY(JACK INTERFACE)
  • Input
    HDMI (3, HDCP2.2/1.4), RGB, Audio In, RS232C IN, RJ45(LAN), USB3.0 Type A(3), USB2.0 Type A(3)
    Output
    HDMI Out, Audio Out, Optical Output,Touch USB (2)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    17.7/17.7/17.7/45.7mm
  • Weight(Head)
    40Kg
    Packed Weight
    67.6kg
  • Monitor Dimension(W x H x D)
    1488 x 897 x 86mm
    Carton Dimensions(W x H x D) (Box outer size)
    1700 x 1175 x 250mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • HW - Internal Memory
    16GB
    HW - Wi-Fi - Built-in
    Yes (Slot type)
  • HW - Power Indicator
    Yes
    HW - Local Key Operation
    Yes
  • SW - webOS ver.
    Android 8.0
    SW - Screen Share
    Yes (Screenshare pro)
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    160W
    Max.
    289W
  • BTU (British Thermal Unit)
    546 BTU/Hr(Typ.), 986 BTU/Hr(Max)
    DPM
    2W↓
  • Power off
    0.5W↓
SOUND
  • Speaker
    Yes
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE
  • ErP
    Yes
OPS COMPATIBILITY
  • OPS Type Compatible
    Yes (Slot)
    OPS Power Built In
    Yes
LANGUAGE
  • OSD
    English, Simplified Chineses, Catalan, Czech, Denmark, Arabic(Egypt), Finnish, French, German, Greek, Italian, Japanese, Korean, Netherlands（Dutch), Norwegian, Polski, Portugues(Europe),Portugues(Brazil) Romanian, Russian, Spanish, Swedish, Turkish, Ukrainian, Traditional Chinese
ACCESSORY
  • Basic

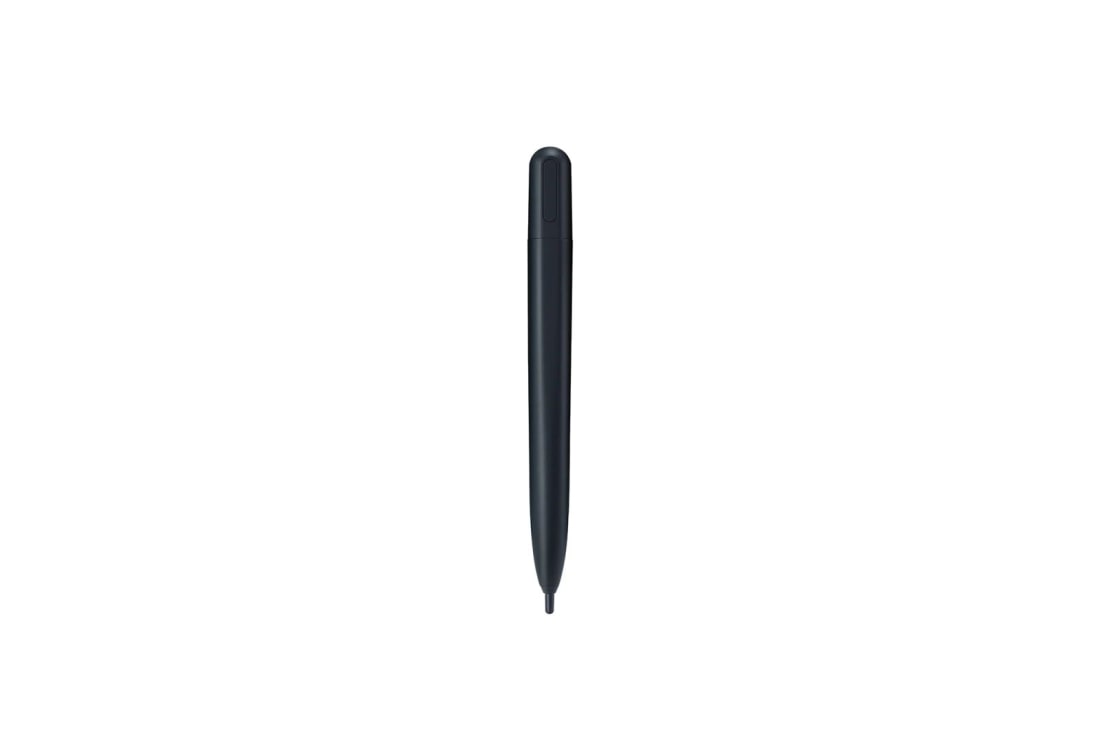

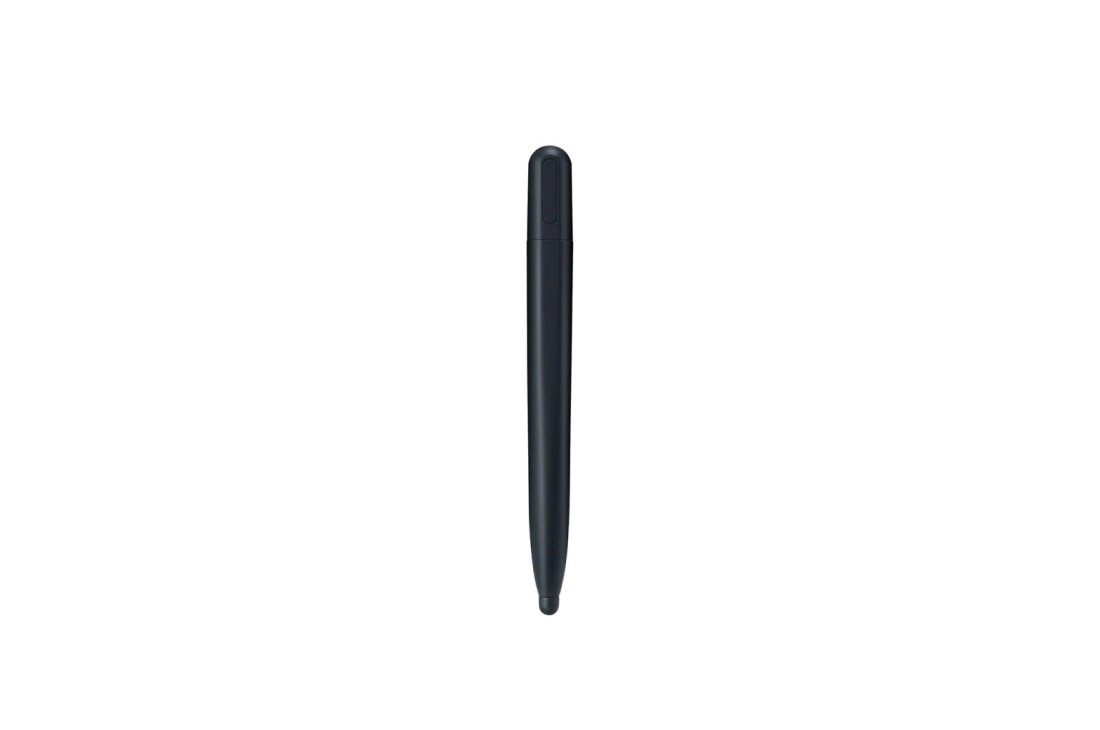

    Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Controller(include battery 2ea), Wifi module
SPECIAL FEATURE
  • Touch - Available object size for touch
    Ø3 mm ↑
    Touch - Reponse Time(PC Win10)
    60ms ↓ (Android)
    100ms ↓ (Windows)
  • Touch - Accuracy
    ±1.5mm
    Touch - Interface
    USB2.0
  • Touch - Protection Glass Thickness
    4T (Anti-Glare)
    Touch - Protection Glass Transmission
    87%
  • Touch - Operating System Support
    Windows 7/8/10/WindowsXP/Linux/Mac/Android
    (WindowsXP/Linux/Mac Support one point touch)
    Touch - Multi touch point
    Max 20 Points
