72WS70 component-copyModelName
72'' WS Series Direct LED Large Screen Full HD Display

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

72" WS Series Direct LED Large Screen Full HD Display
Close
PANEL

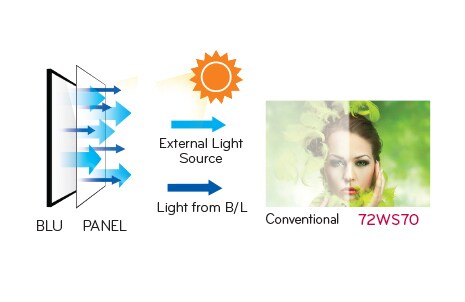

  • Surface Treatment
    Hard Coating(3H), Anti-reflection coating (Reflectance:<2%)
    Screen Size
    72" Class (72.07" measured diagonal)
  • Panel Technology
    IPS
    Aspect Ratio
    16 : 9
  • Native Resolution
    1920 x 1080 (FHD)

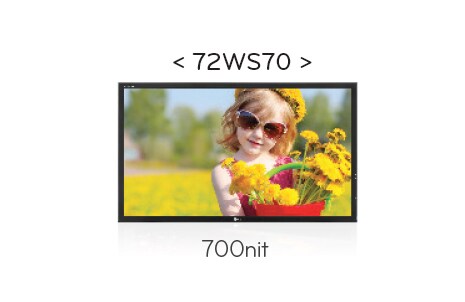

    Brightness
    700cd/m2
  • Contrast Ratio
    1,200:1
    Dynamic CR
    500,000:1
  • Viewing Angle(H x V)
    178 x 178
    Life time
    60,000 Hrs
  • Pixels(H x V x 3)
    6,220,800
    Response Time
    12 ms(G to G), 6.4ms(40.0℃)
  • Tni
    110℃
    Orientation
    Portrait & Landscape
  • Color Depth
    16.7 Million
    Color gamut
    72%
CONNECTIVITY - INPUT
  • Digital
    HDMI(1), DVI-D(1), Display Port(1) with HDCP for all input
    Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Audio
    RGB/DVI-D/AV/Component(3.5Φ 1)
    External Control
    RS232C(1), RJ45(1)
  • USB
    Yes(1)
    HDTV Formats
    Component : 720p, 1080i , 1080p / HDMI : 720p, 1080i, 1080p
CONNECTIVITY - OUTPUT
  • Digital
    DVI-D(1)
    Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Audio
    External Speaker
    External Control
    RS232C(1)
PHYSICAL SPECIFICATION
  • Handle
    Yes
    Bezel Width
    38.7mm
  • Monitor Dimension(W x H x D)
    167.74cm x 97.94cm x 10.07cm
    Weight(Head)
    57.0kg
  • Carton Dimensions(W x H x D)
    179.6cm x 109.8cm x 26.9cm (Head Only)
    Packed Weight
    66.2kg (Head Only)
  • VESA™ Standard Mount Interface
    600mm x 400mm
    Color
    Black
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
SPECIAL FEATURES
  • Auto Config/Phase
    Yes

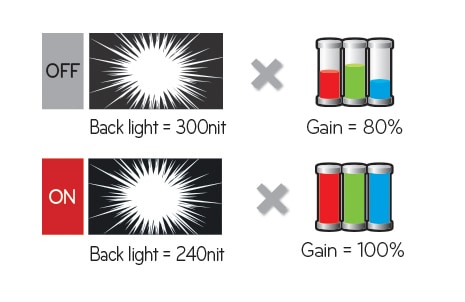

    Smart Energy Saving
    Yes
  • Energy Saving
    Yes(Auto, Minimum, Medium, Maxium)
    Tile Mode
    Yes, Up to 5 x 5
  • Natural Mode @Tile Mode
    Yes
    Power Indicatior On/Off
    Yes
  • PIP/PBP
    Yes
    Time
    Clock, On/Off Time, Sleep Timer, Power on Delay, Auto Off, Automatic Standby
  • DPM Select
    Yes
    Key Lock
    Yes
  • Language (USB Playback)
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
    Language (OSD)
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek
  • Advanced
    Dynamic Contrast, Dynamic Color, Clear White, Skin Color, Noise Reduction, Digital Noise Reduction, Gamma, Black Level
    Information
    Software Version, Serial Number, IP Address, MAC Address, Homepage
  • ISM Method
    Normal, White Wash, Orbiter, Inversion
    Language (ESG)
    English, French, Italian, German, Spanish, Portugues, Greek, Polish, Czech, Slovak
  • Temperature Sensor
    Yes
    Auto Brightness sensor
    Yes
  • File Play with USB
    Yes
    Auto Power/Source Memory
    Yes
  • Source Selection
    AV, Component, RGB, Display Port, DVI-D, HDMI
    Language (Manual)
    English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Dutch, Kazakh, Ukrainian, Polish, Arabic, Indonesian, Korean, Japanese, Turkish, Czech, Taiwanese, Slovak
  • Brightness/Contrast/Backlight
    Yes
    Position/Size
    Yes
  • Cooling FAN
    Yes
POWER
  • Power Type
    Built-In Power
    Power Supply
    100-240V~, 50/60Hz
  • Power Consumption - Typ.
    500W
    Power Consumption - Smart Enegy Saving
    200W
  • Power Consumption - Power off
    0.5W
    Power Consumption - DPM
    1W(Set Only), 2W(With External Device)
STANDARD(CERTIFICATION)
  • Safety
    UL, cUL, CB scheme, TUV
    EMC
    FCC Class "A", VCCI, C-tick, CE, KCC
  • ErP / Energy Star
    Yes / NA

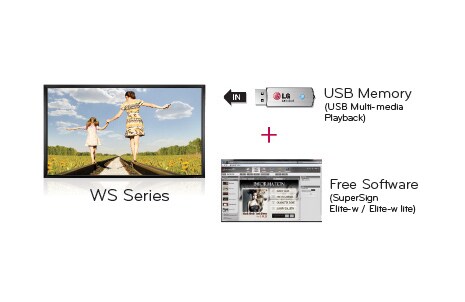

MEDIA PLAYER COMPATIBILITY
  • External Media player Attatchable
    Yes
SOFTWARE COMPATIBILITY
  • SuperSign Elite-w lite
    Yes - Editing, Scheduling, Distribution & Play, Control
ACCESSORY
  • Optional Accessory
    AP-WX60 (Wall Mount)
    Accessory
    Remote Controller, Power Cable, RGB Cable, Manual, ESG
AUDIO
  • Balance
    Yes
    Audio Power
    20W(10W x 2)
  • Speaker On/Off
    Yes
    Clear Voice II
    Yes
  • Sound Mode
    Standard, Music, Cinema, Sport, Game
VIDEO(PC)
  • Max Input Resolution
    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)
    Recommended Resolution
    1920 x 1080@60Hz(RGB, HDMI, DVI-D, Display Port)
  • H-Scanning Frequency
    30 ~ 83kHz(RGB, HDMI, DVI-D, Display Port)
    V-Scanning Frequency
    56 ~ 75Hz(RGB), 60Hz(HDMI, DVI-D, Display Port)
  • Pixel Frequency
    148.5MHz(RGB, HDMI, DVI-D, Display Port)
    Sync Compatability
    Separate, Composite, Digital
  • Video Input
    RGB, HDMI, DVI-D, Display Port
    Picture mode
    Vivid, Standard, Cinema, Sports, Game
  • Color temperature
    Warm, Medium, Cool
