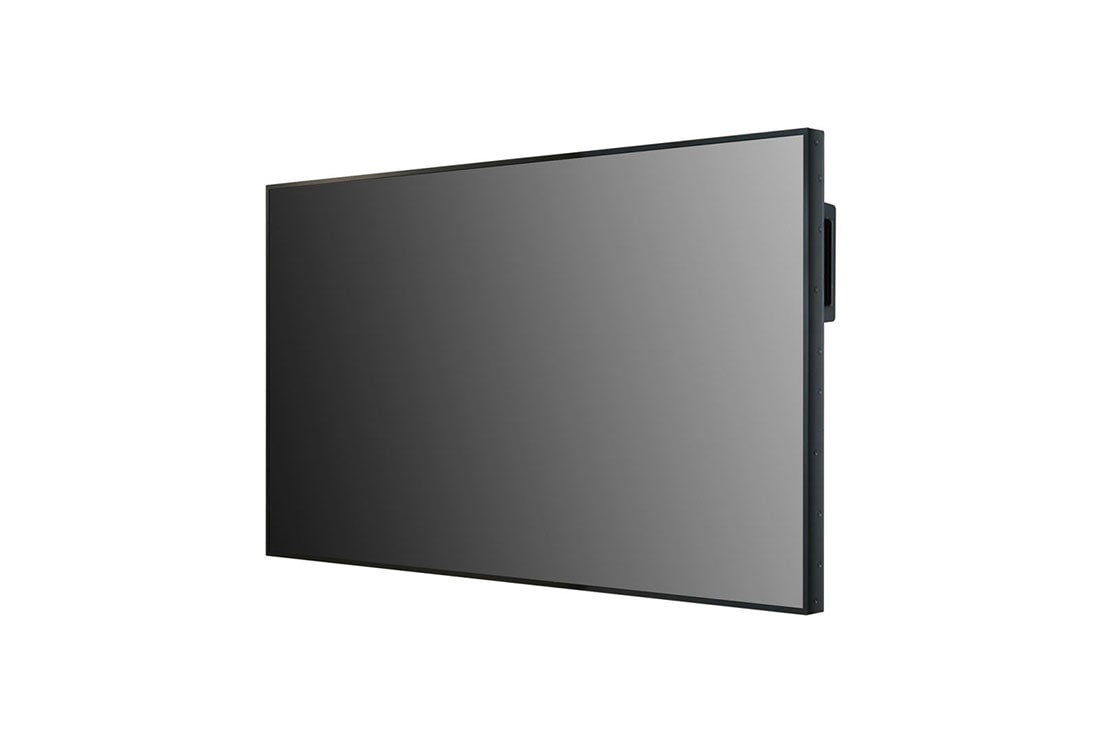

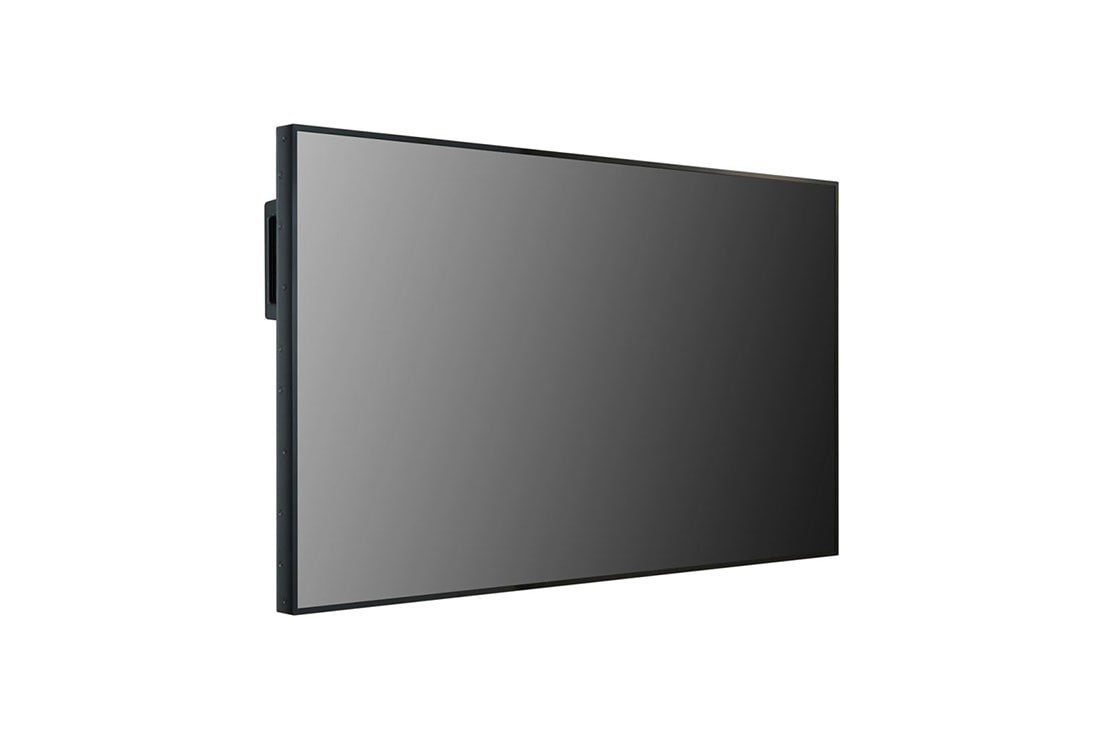

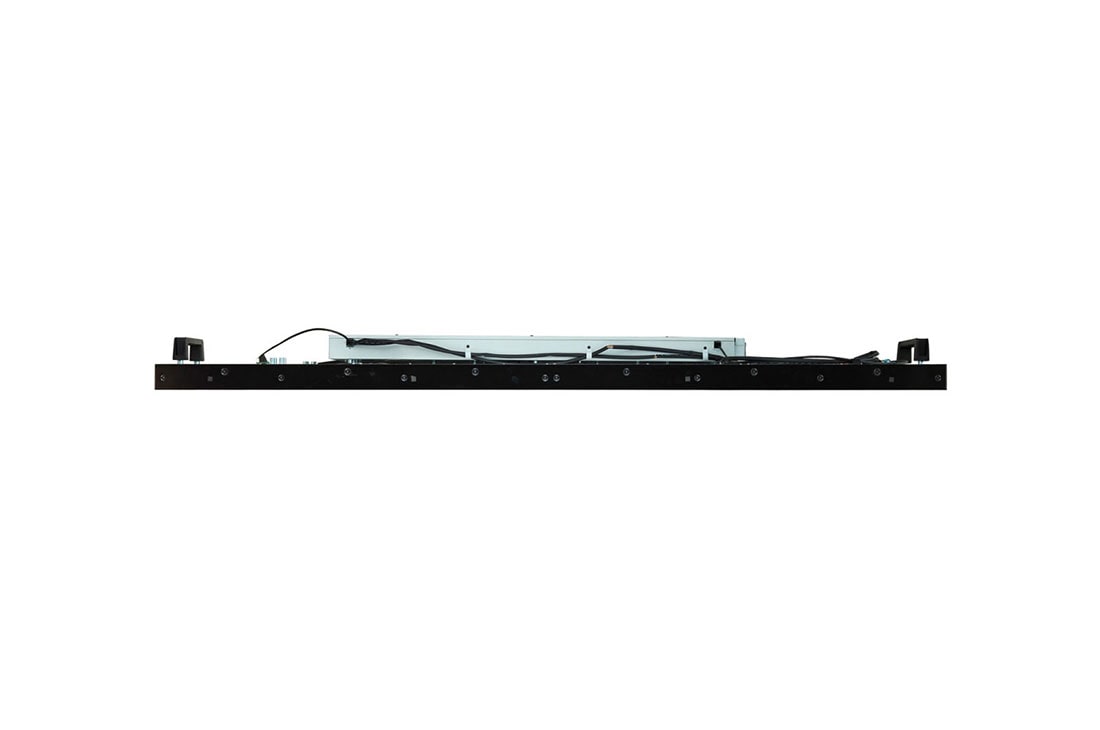

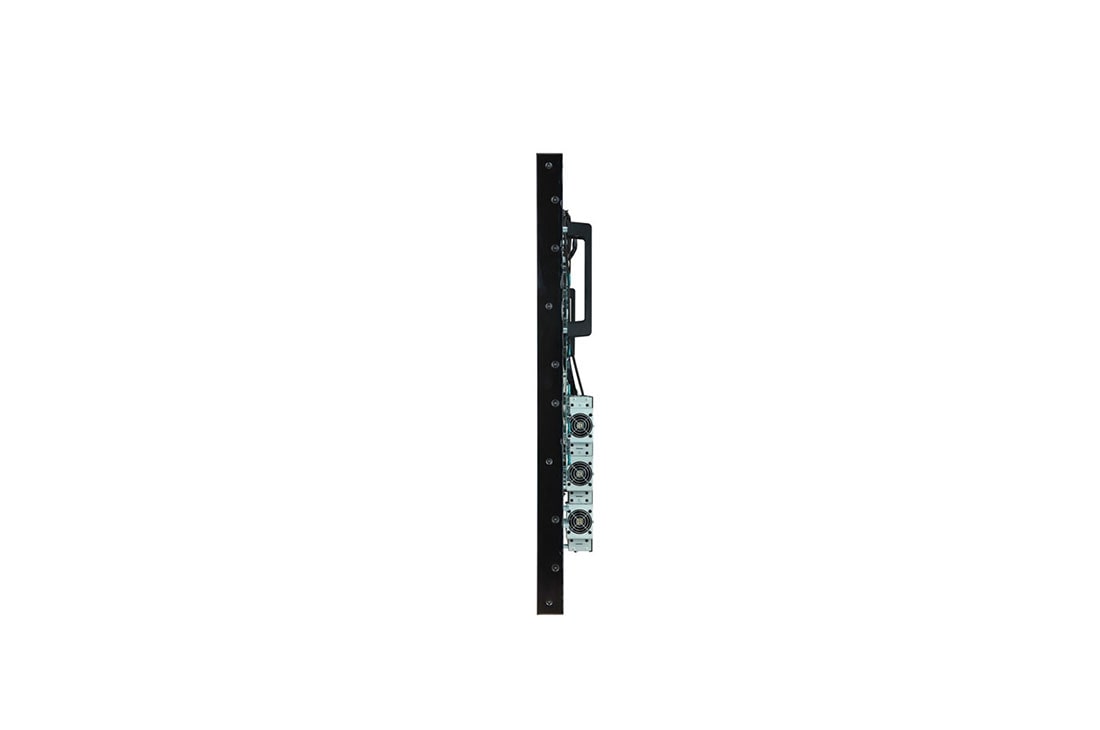

75XF3ES-B component-copyModelName
Open Frame

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XF3ES-B)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (75XF3ES-B)
    $
    $
    LG Members Price
Total
Open Frame
Outstanding Visibility with Reliable Performance1 Outstanding Visibility with Reliable Performance2

Outstanding Visibility with Reliable Performance

There is increasing demand for outdoor signage for delivering information and advertisement. With high-brightness and reliable performance, the open frame XF Series is able to achieve these goals effectively in any location.

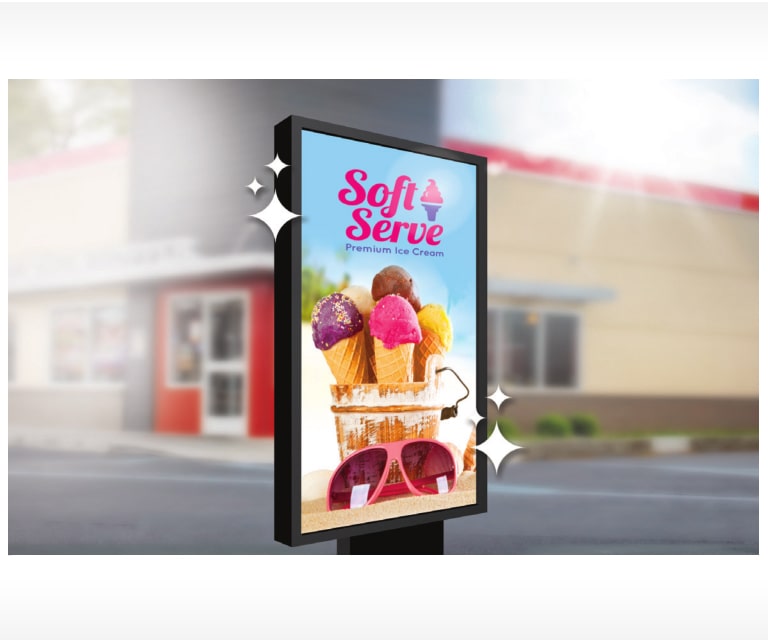

High Brightness1 High Brightness2
Outstanding Visibility

High Brightness

With a great brightness of 3,000 cd/m², XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.
Visible with Polarized Sunglasses1 Visible with Polarized Sunglasses2
Outstanding Visibility

Visible with Polarized Sunglasses

QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.

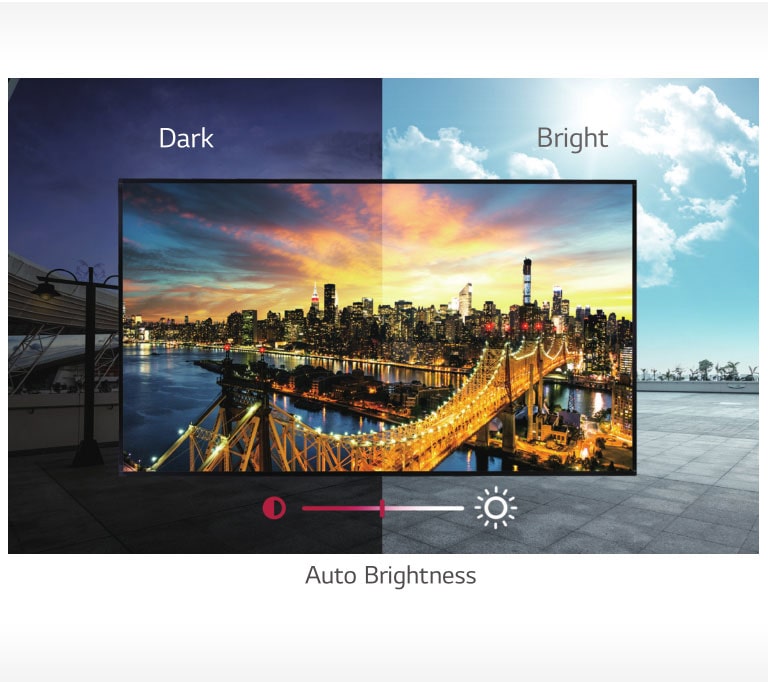

Auto Brightness Control1 Auto Brightness Control2
Outstanding Visibility

Auto Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

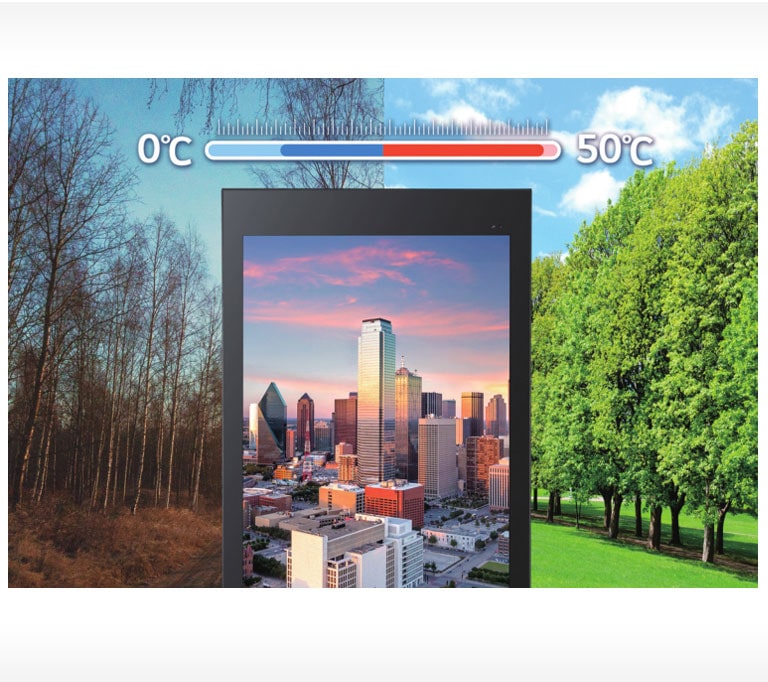

High Operating Temperature1 High Operating Temperature2
Product Reliability

High Operating Temperature

Its high reliability under high operating temperatures reduces additional costs for air conditioning system.
Conformal Coating1 Conformal Coating2
Product Reliability

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

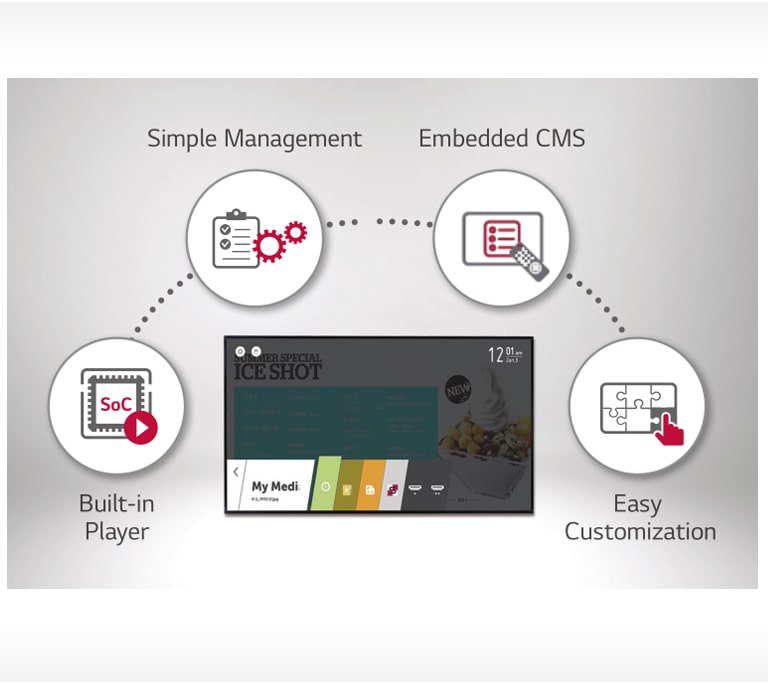

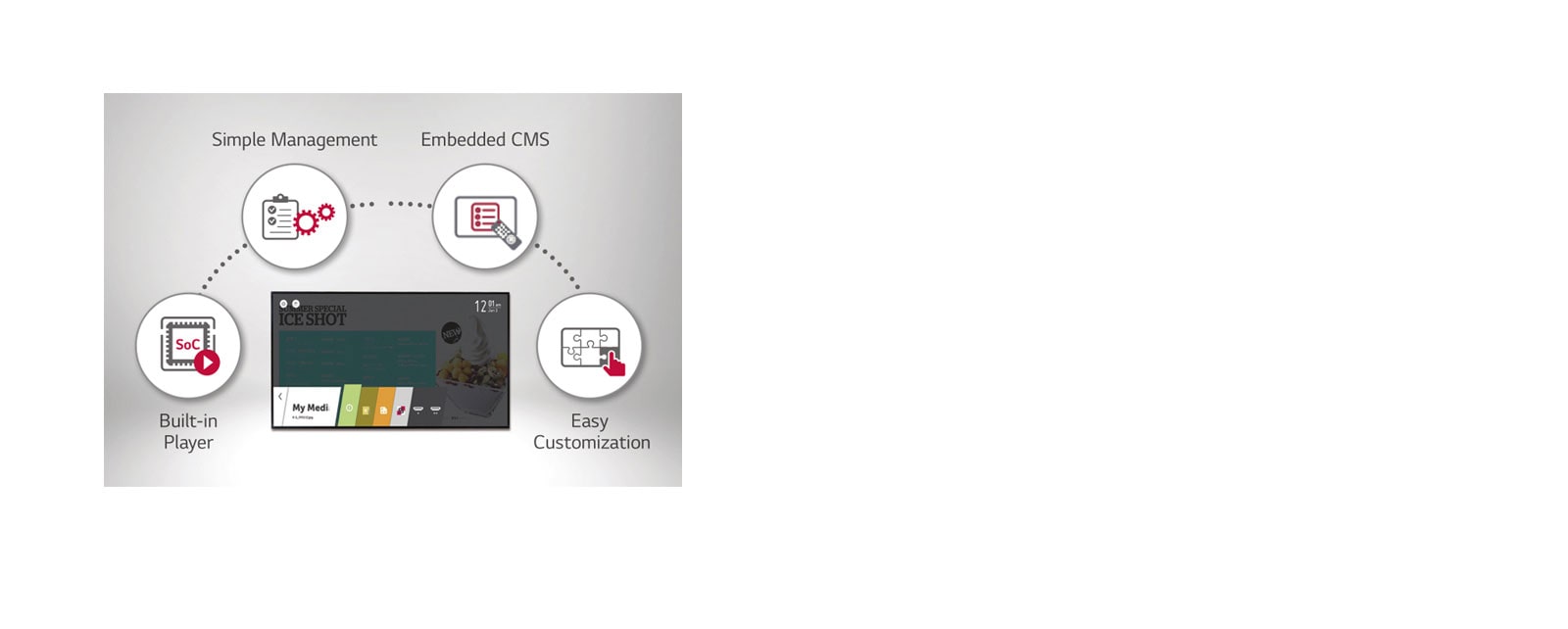

webOS Smart Platform1 webOS Smart Platform2
High Performance

webOS Smart Platform

Quad Core SoC(System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app development tools.

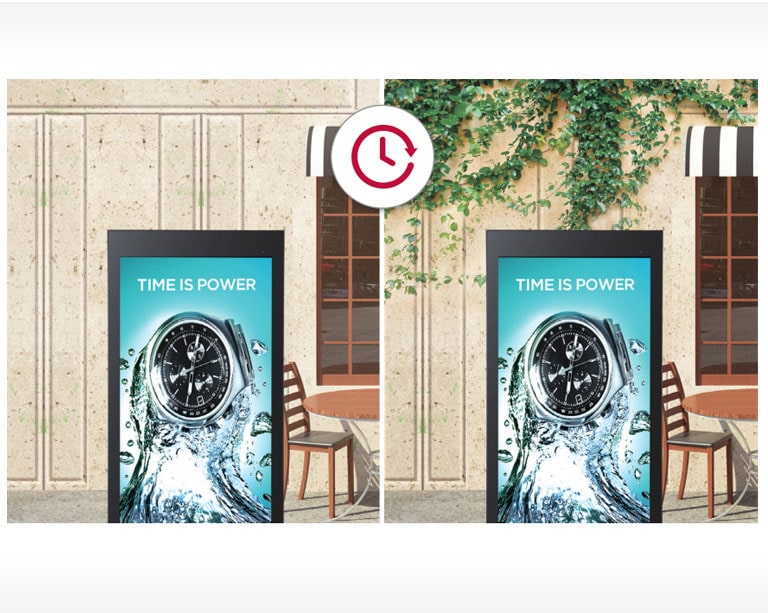

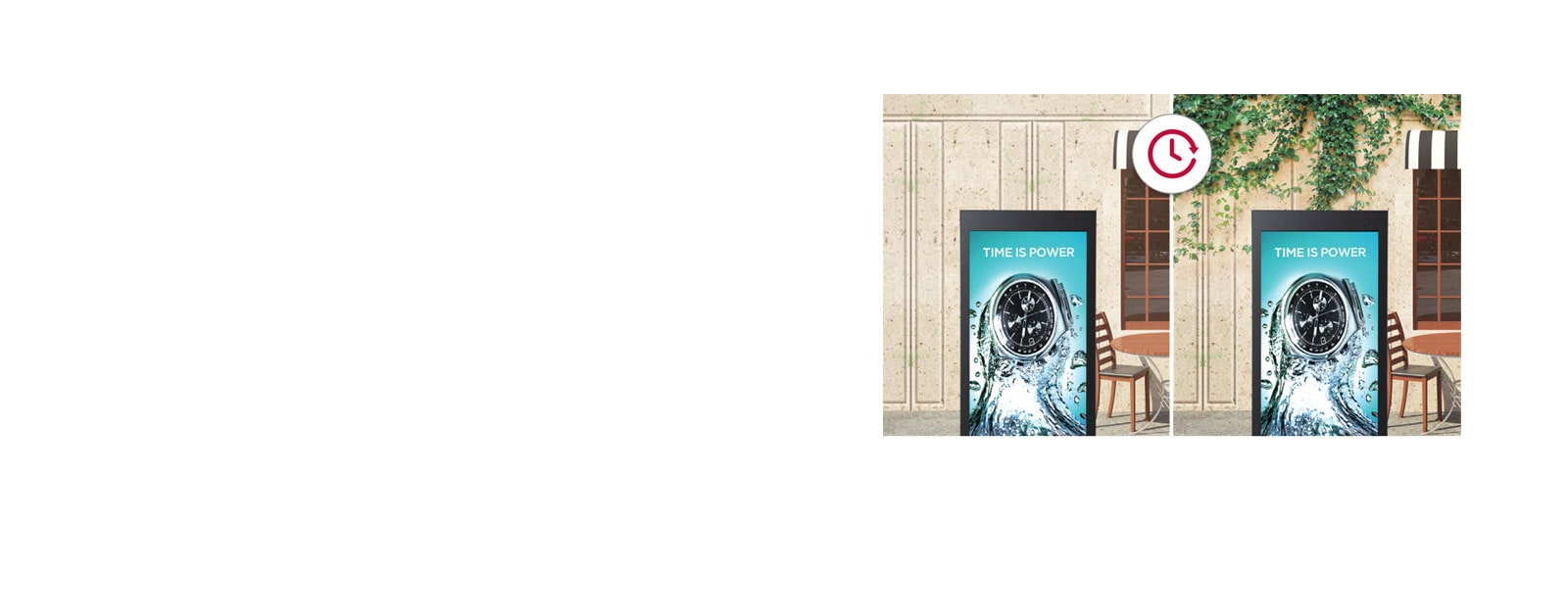

Smart Brightness Compensation1 Smart Brightness Compensation2
High Performance

Smart Brightness Compensation

The built-in BLU sensor constantly measures the brightness of the display and automatically compensates for reduced brightness during operation.

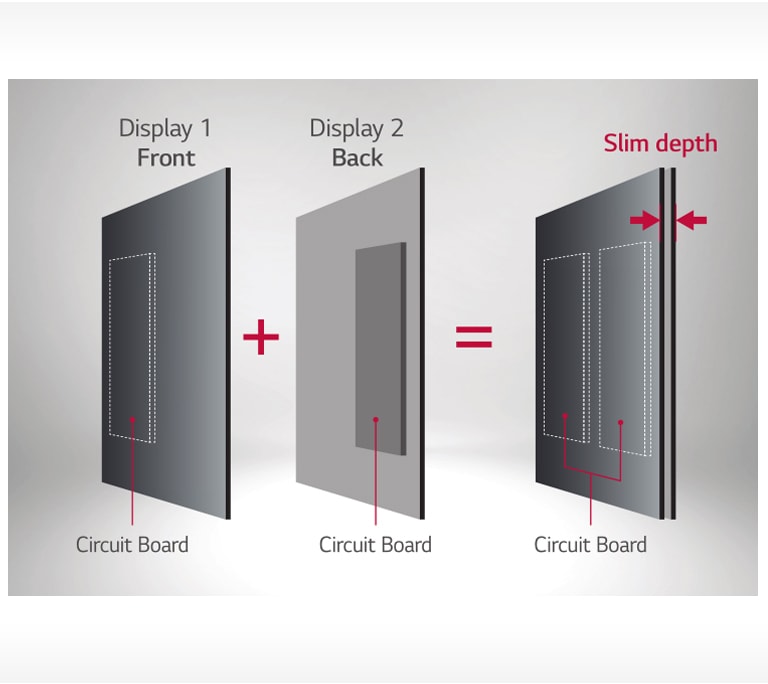

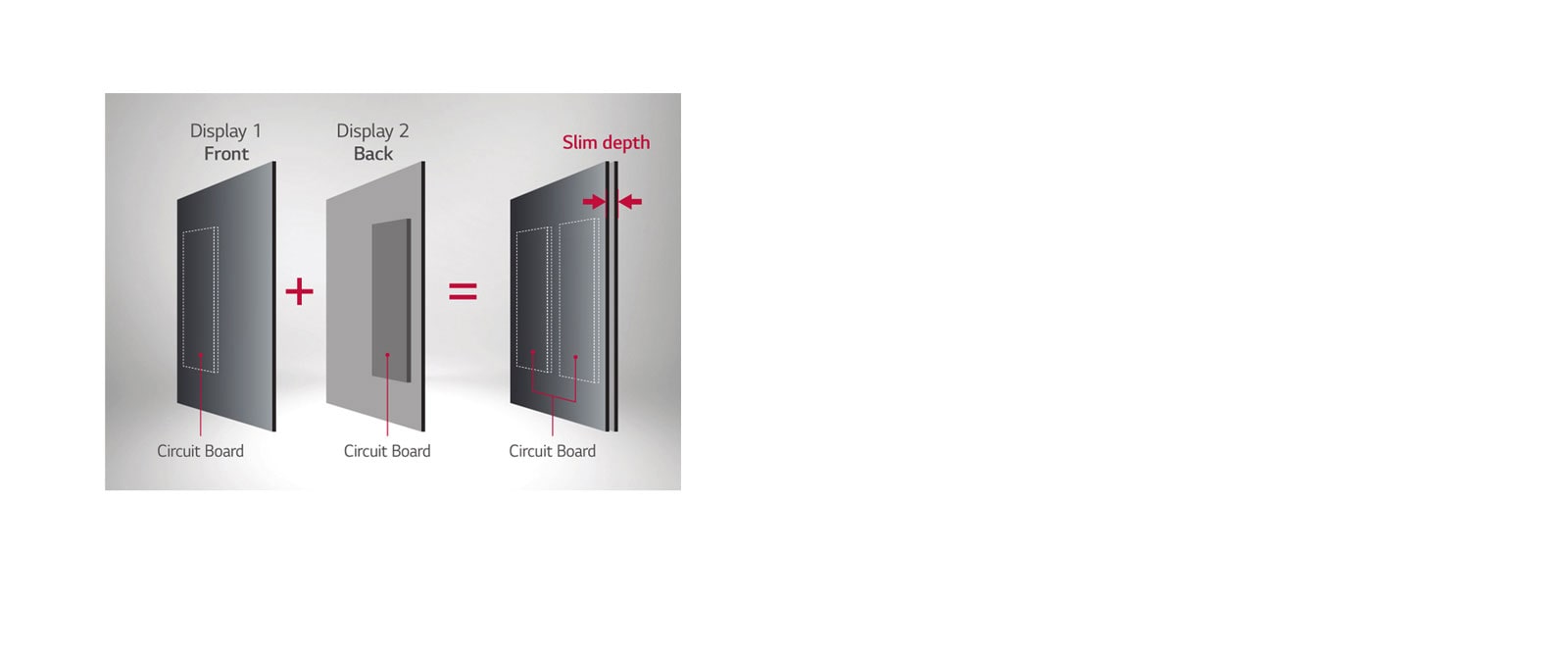

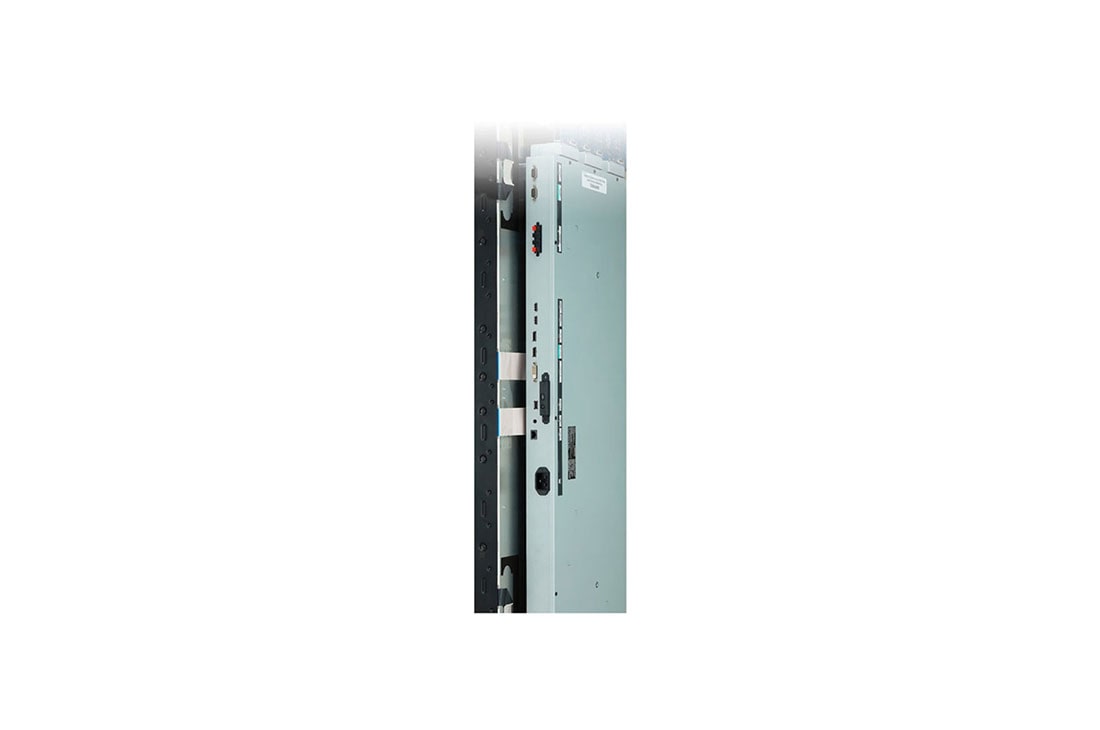

Optimized Design for Double-sided Display1 Optimized Design for Double-sided Display2
Easy Installation

Optimized Design for Double-sided Display

For double-sided displays, the circuit board box at the back of the display is conveniently positioned to conserve space with two back-to-back installations.
Close
PANEL
  • Screen Size
    75" (74.52" Measured Diagonal)
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., cd/m²)
    3000
CONNECTIVITY
  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C In/out, RJ45 In, IR
PHYSICAL SPECIFICATION
  • Bezel Width
    11.8mm (Even)
    Monitor Dimension (W x H x D)
    1,675.2 x 953.6 x 128.9 mm
  • Weight (Head)
    37.5kg
    Carton Dimensions (W x H x D)
    1,816 x 1,106 x 285 mm
  • Packed Weight
    47.0kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0℃ to 50℃
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    620W (Full White)
    353W (IEC 62087)
    Max
    700W
STANDARD(CERTIFICATION)
  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control
ACCESSORY
  • Basic
    Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
    Optional
    Wi-Fi Dongle (AN-WF500)
