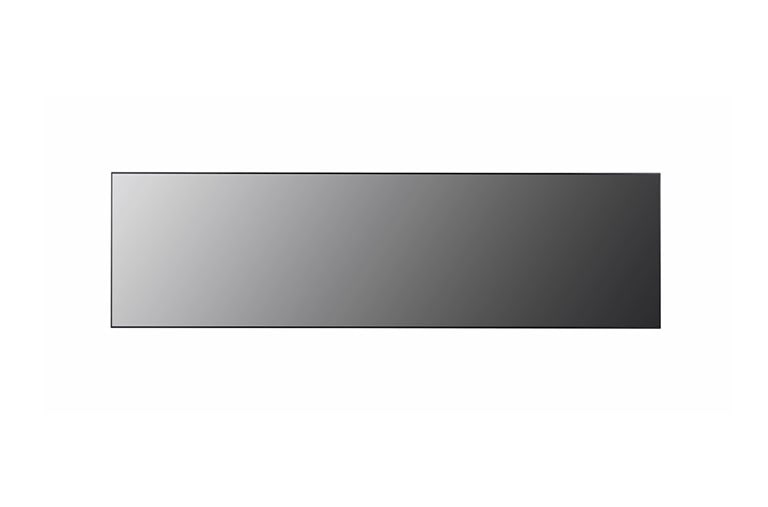

Ultra Stretch Signage

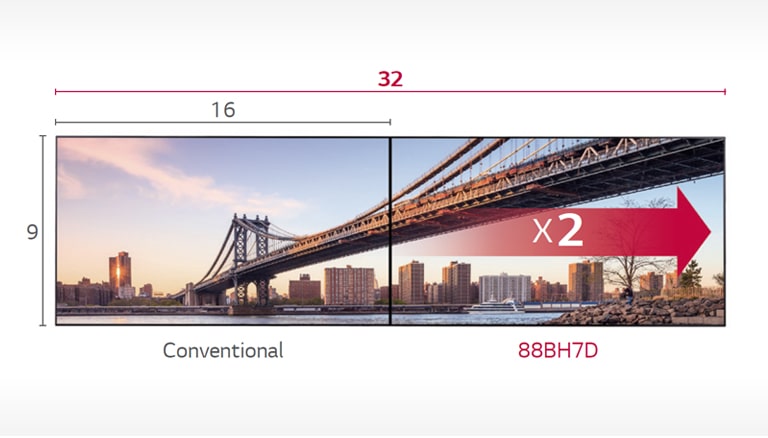

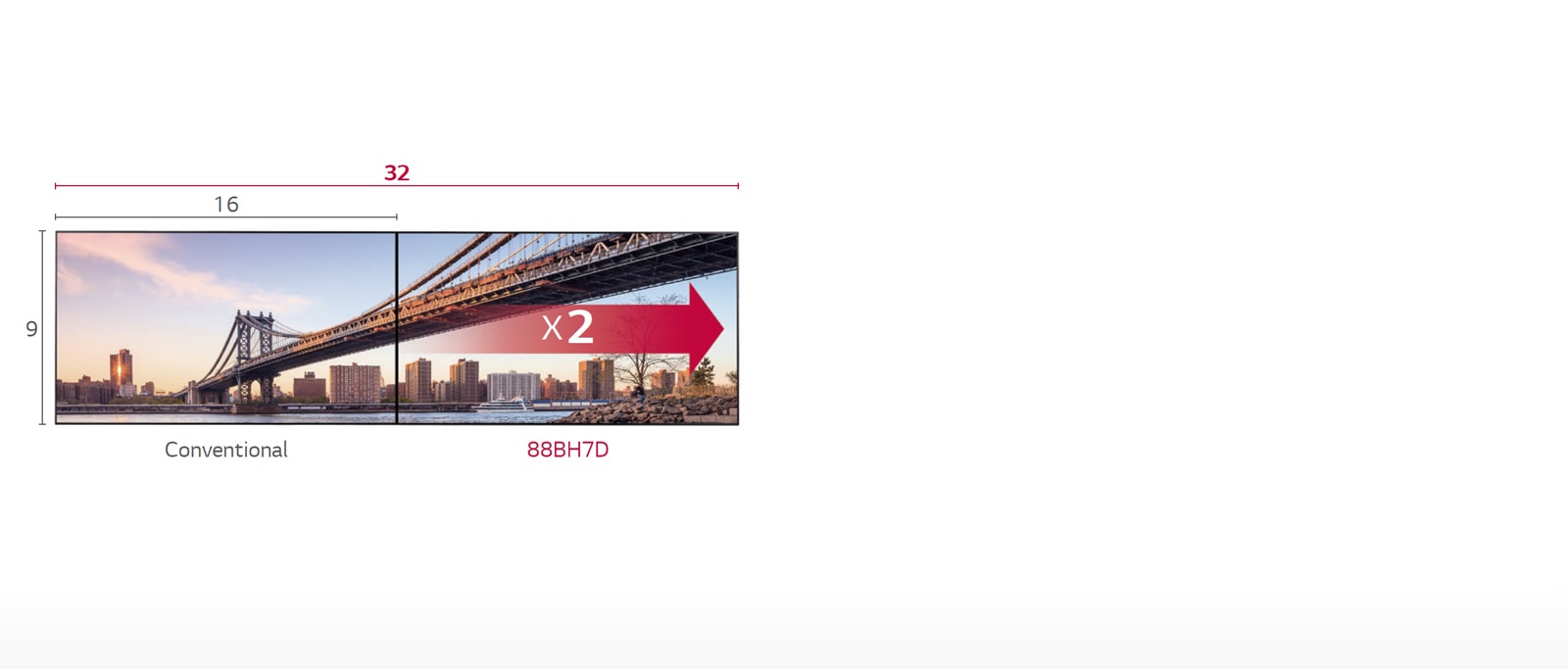

32:9 Extended Wide Format<br>1 32:9 Extended Wide Format<br>2
New Design Configuration

32:9 Extended Wide Format

It is a totally new wide screen format with 32:9 bar type, the most promising display for advertisement and information delivery.

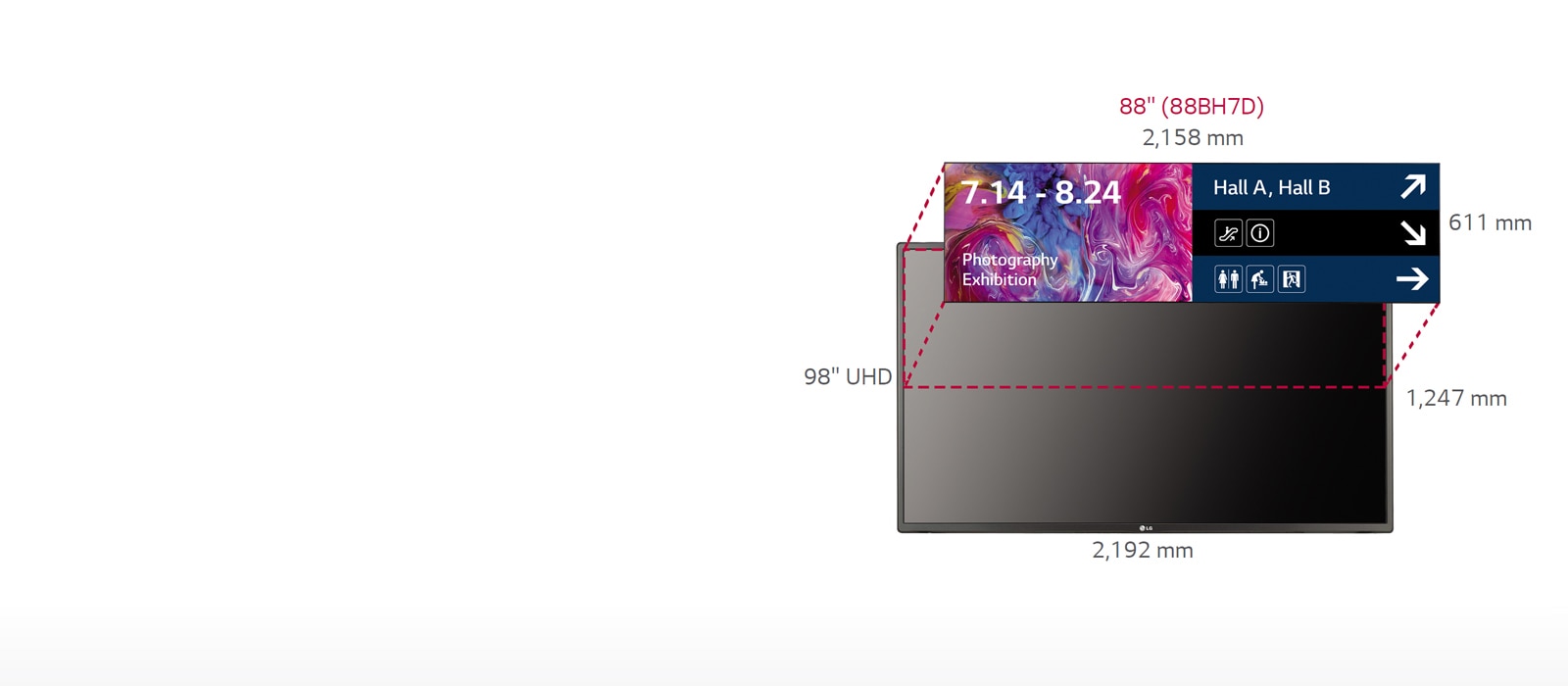

Ultra HD Resolution (3,840 x 1,080)<br>1 Ultra HD Resolution (3,840 x 1,080)<br>2
New Design Configuration

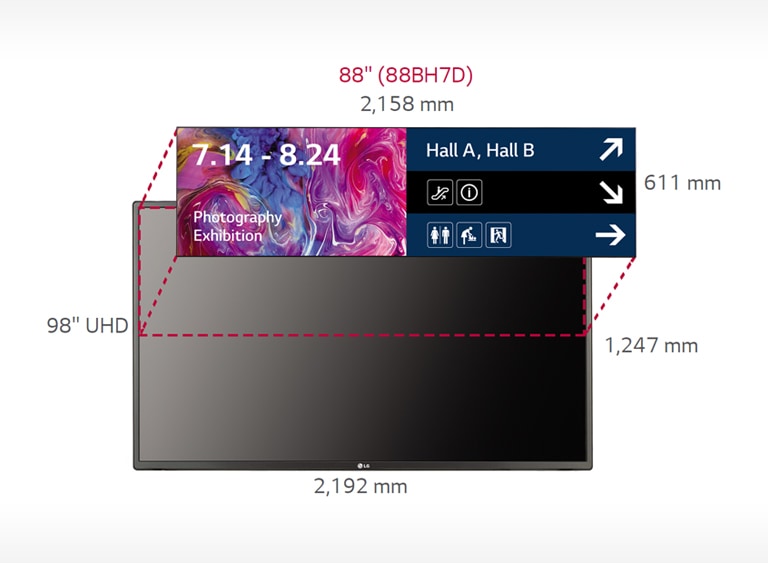

Ultra HD Resolution (3,840 x 1,080)

Ultra HD resolution delivers an immersive viewing experiences with vivid colors and clear images.
Optimized Content Delivery<br>1 Optimized Content Delivery<br>2

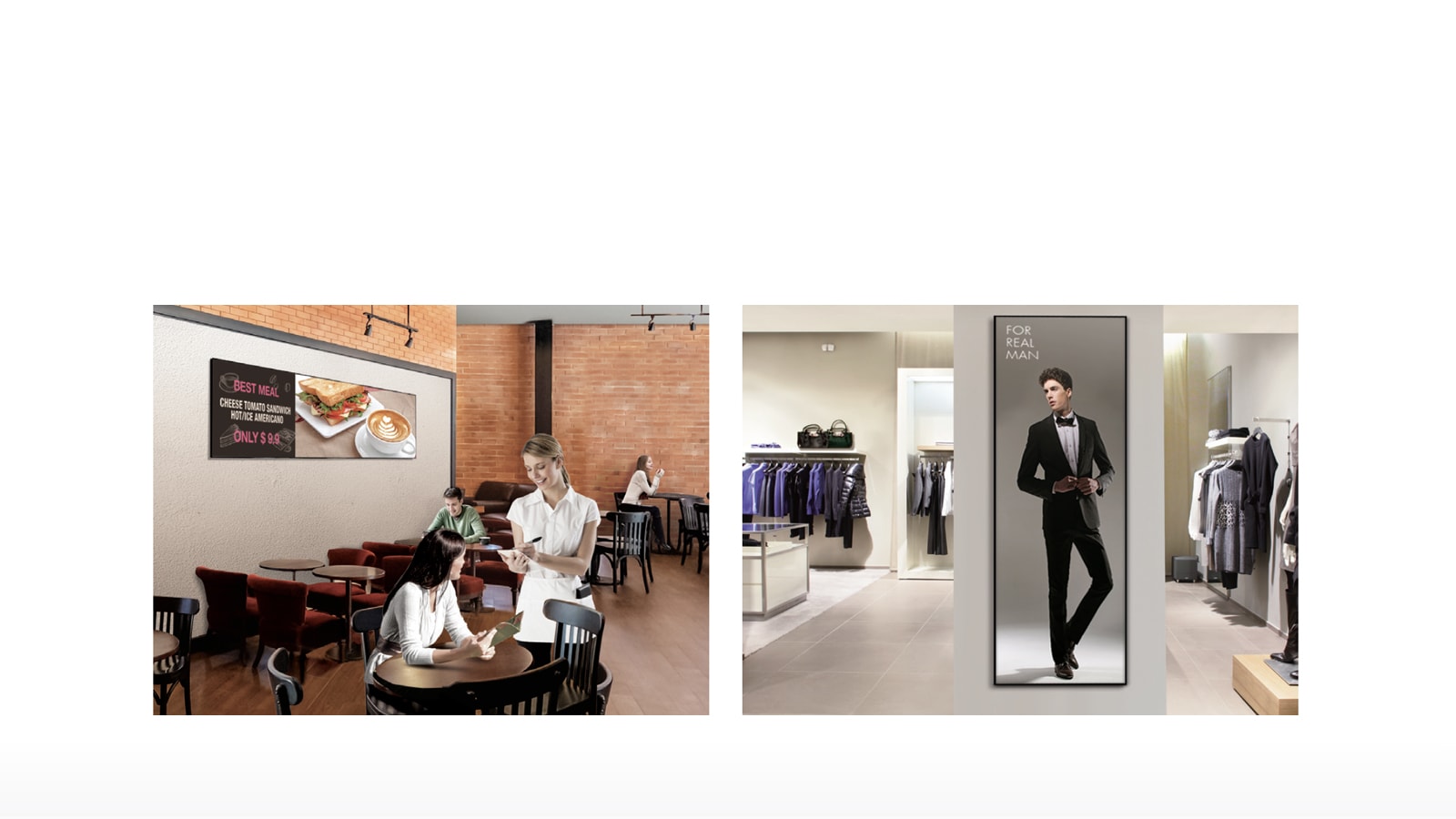

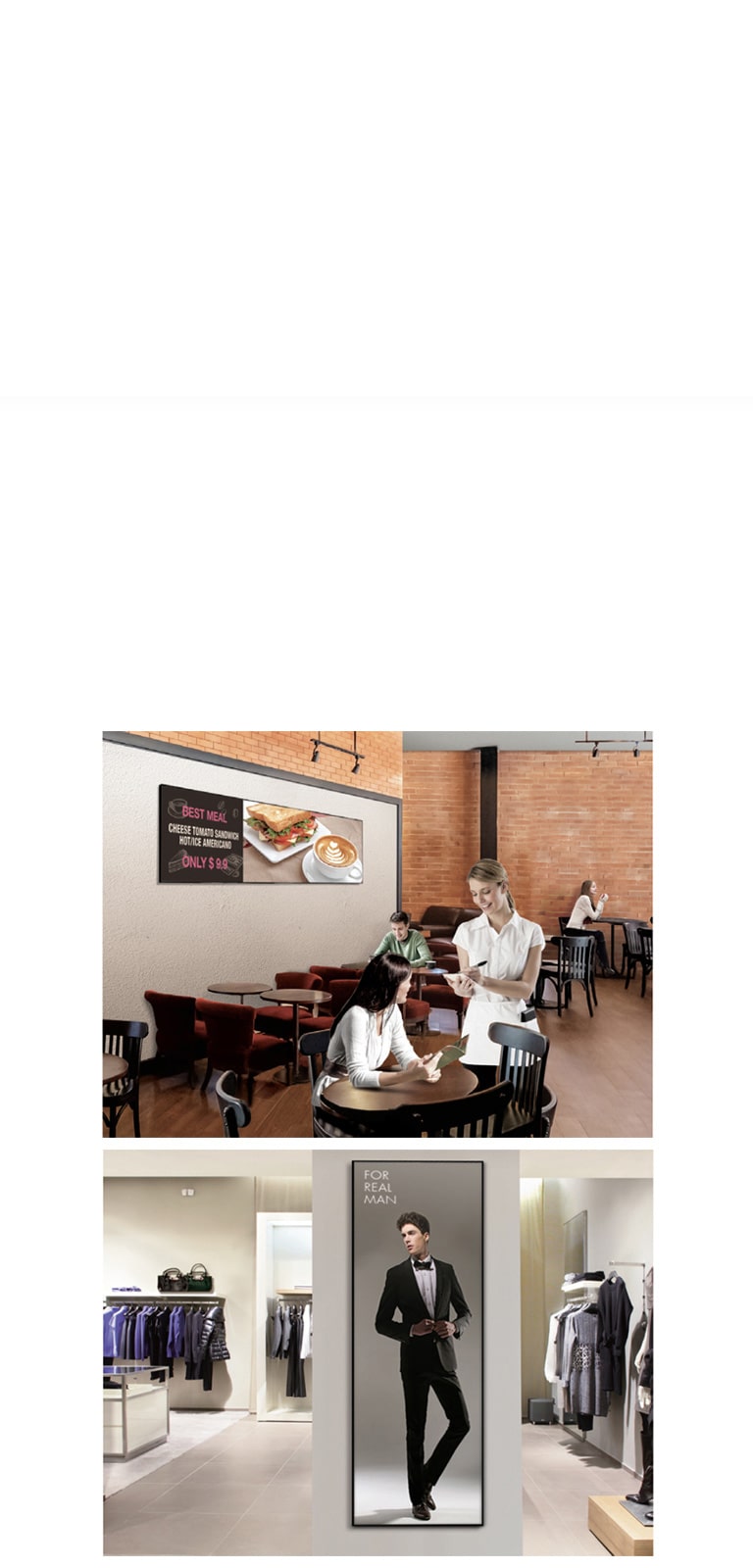

Optimized Content Delivery

88BH7D is ready to organize multi content with video and text according to user's desired ratio. Also, it is optimal to show a vertical or horizontal object without truncation, providing real-like viewing experiences to the audience. It is the best way to attract people's attention and maximize advertisement effect.

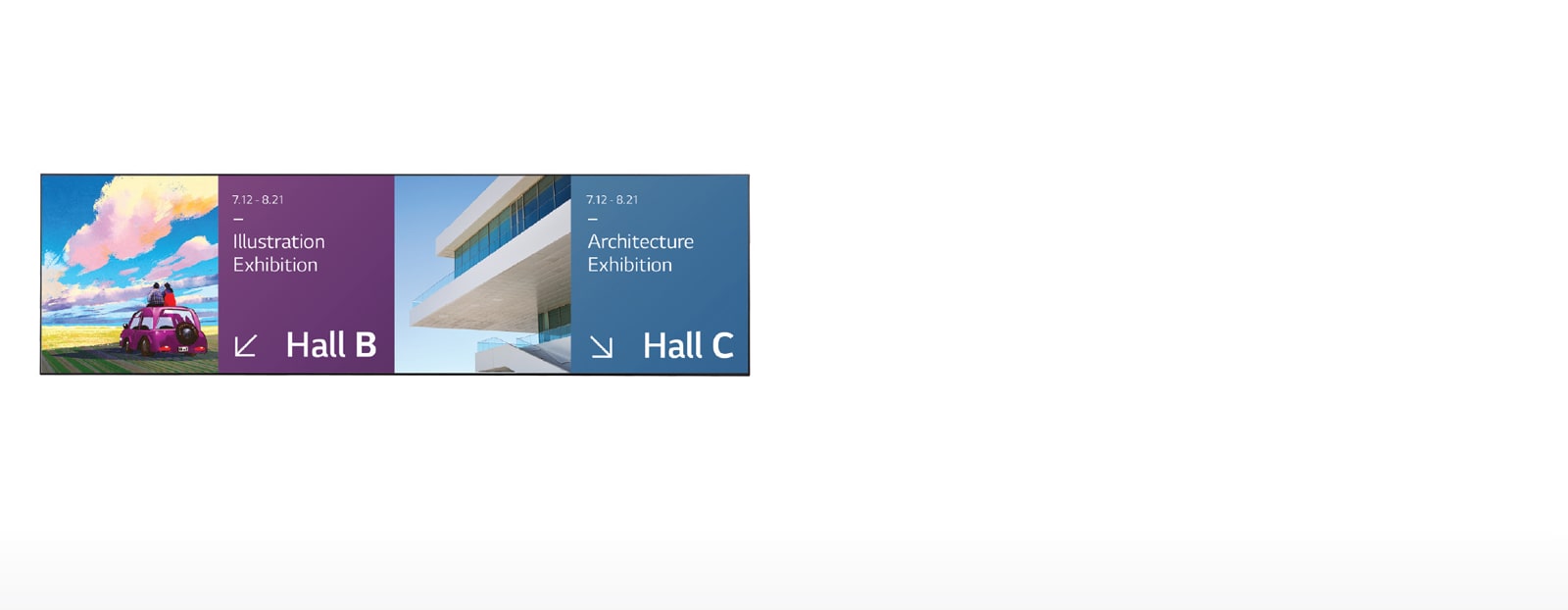

PBP with Four Divisions in Landscape or Portrait1 PBP with Four Divisions in Landscape or Portrait2
Multiple Screens

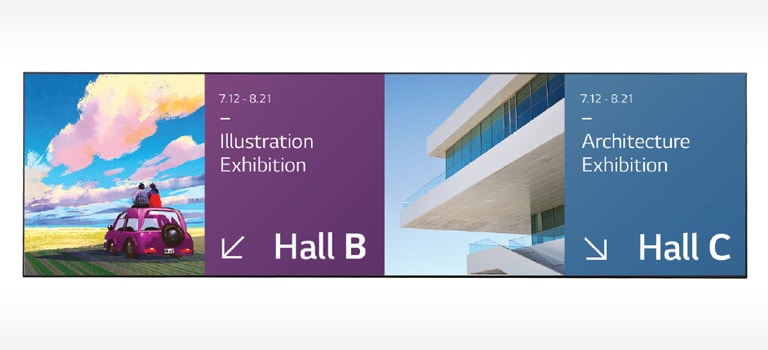

PBP with Four Divisions in Landscape or Portrait

The Picture-by-Picture (PBP) feature allows you to compose multi content in one single display with upto four parts. It is very useful and convenient to deliver many different advertisements or pieces of information at the same time without calibration.

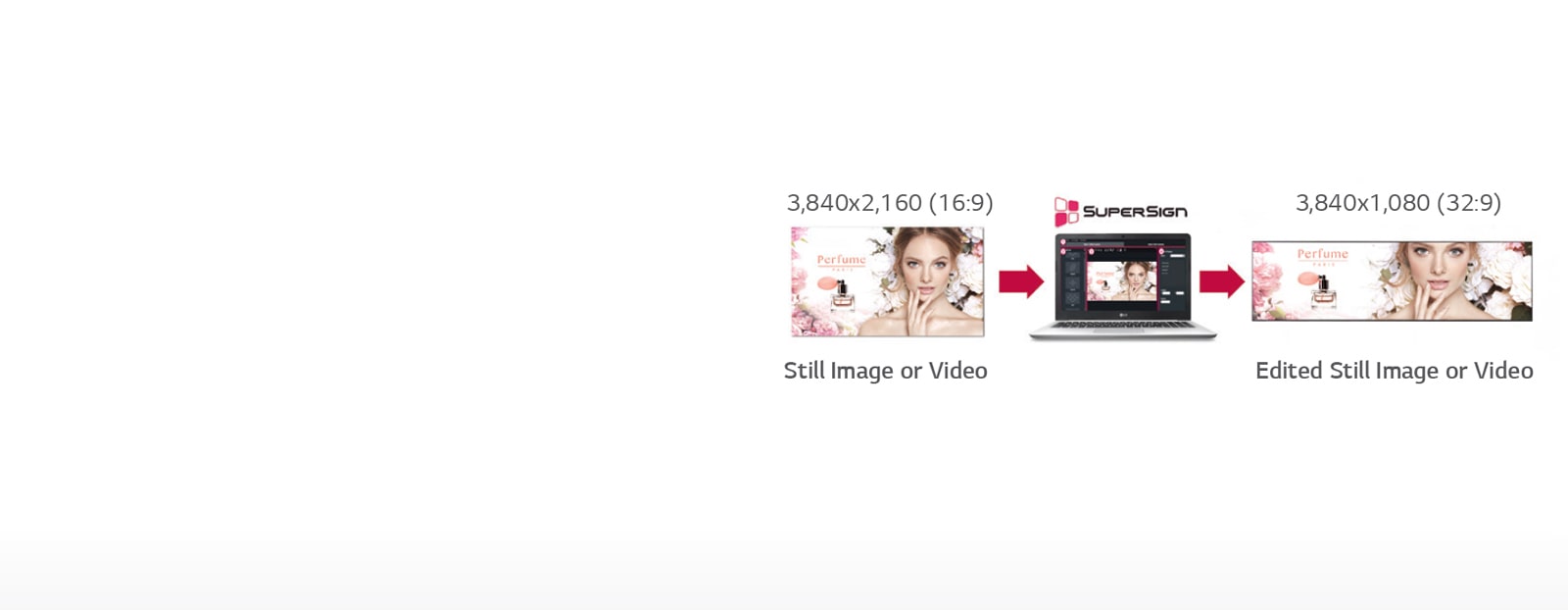

32:9 Content Editing<br>1 32:9 Content Editing<br>2
Content Management

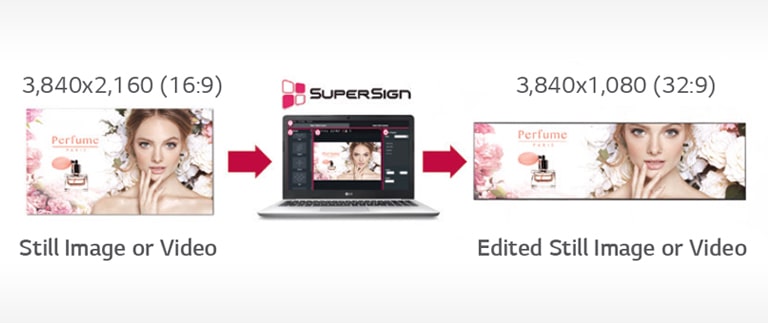

32:9 Content Editing

With the LG SuperSign Media Editor, you can easily edit images or video clips of original content to fit 32:9 ratio.

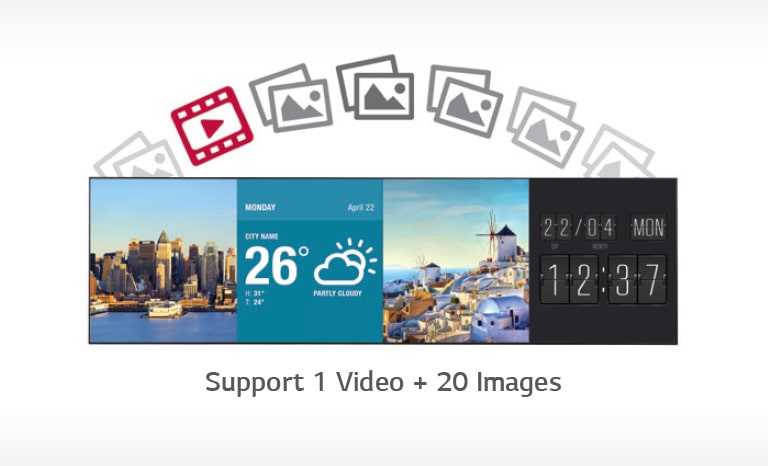

Multiple Content Creation<br>1 Multiple Content Creation<br>2
Content Management

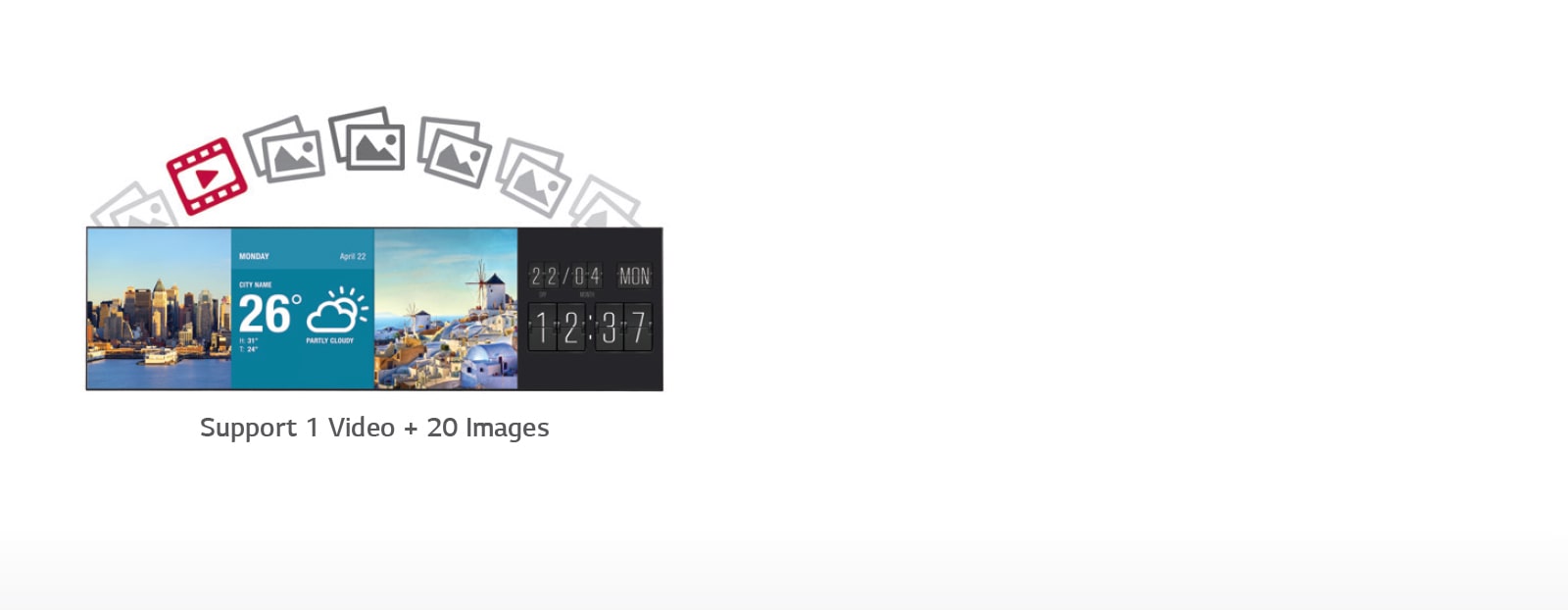

Multiple Content Creation

Users can edit content that consists of one video and several still images (up to 20) as they want.

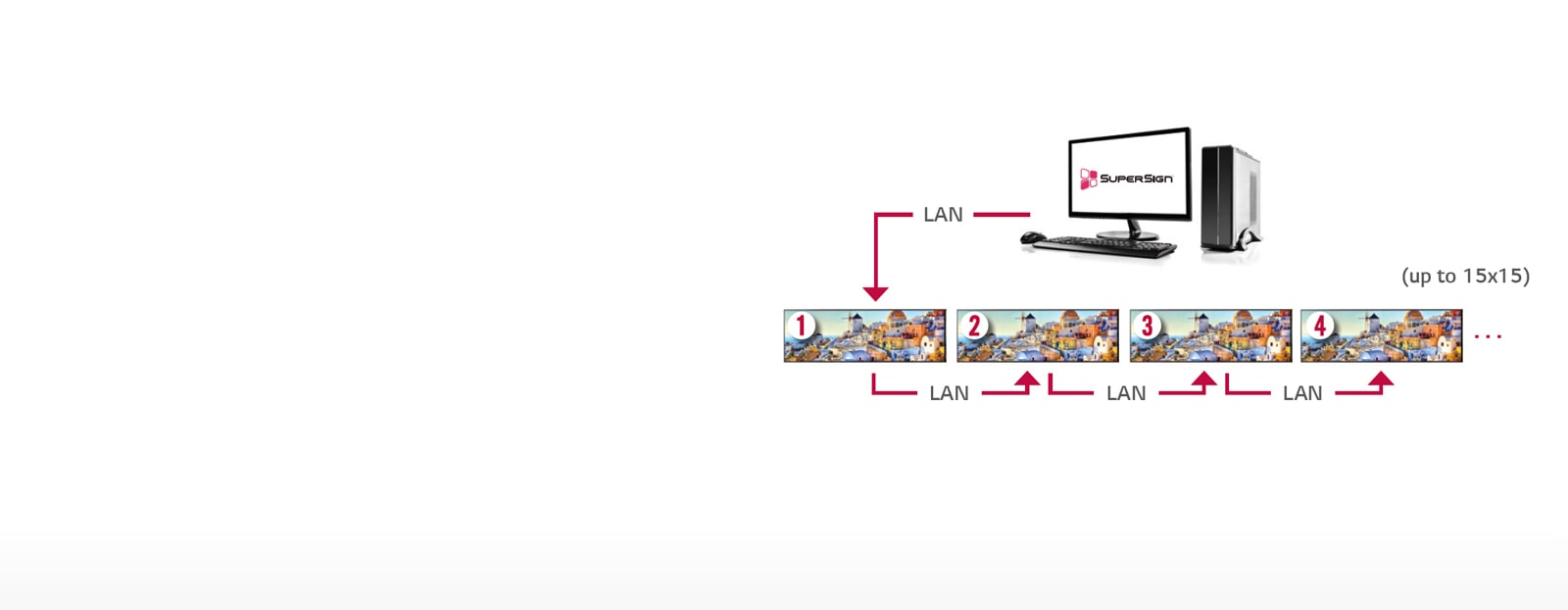

Easy Management with LAN Daisy Chain<br>1 Easy Management with LAN Daisy Chain<br>2
Convenient Connectivity

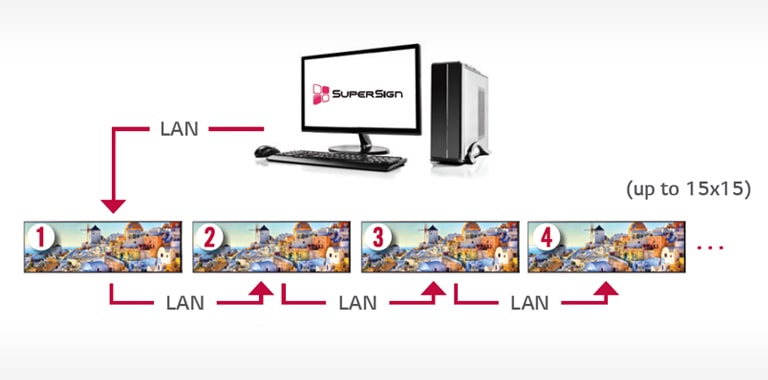

Easy Management with LAN Daisy Chain

The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

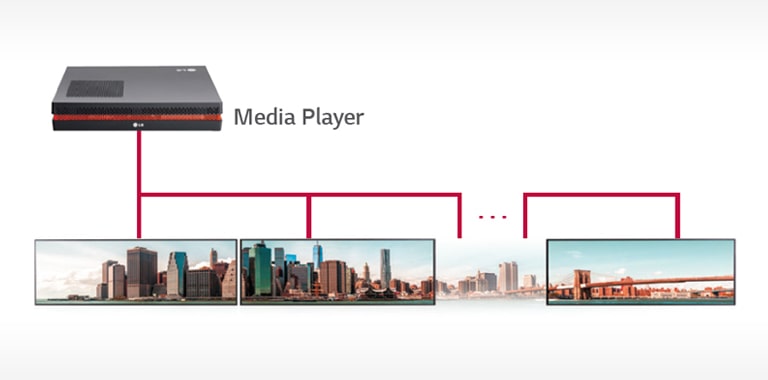

Tiling Scene with DP Daisy Chain<br>1 Tiling Scene with DP Daisy Chain<br>2
Convenient Connectivity

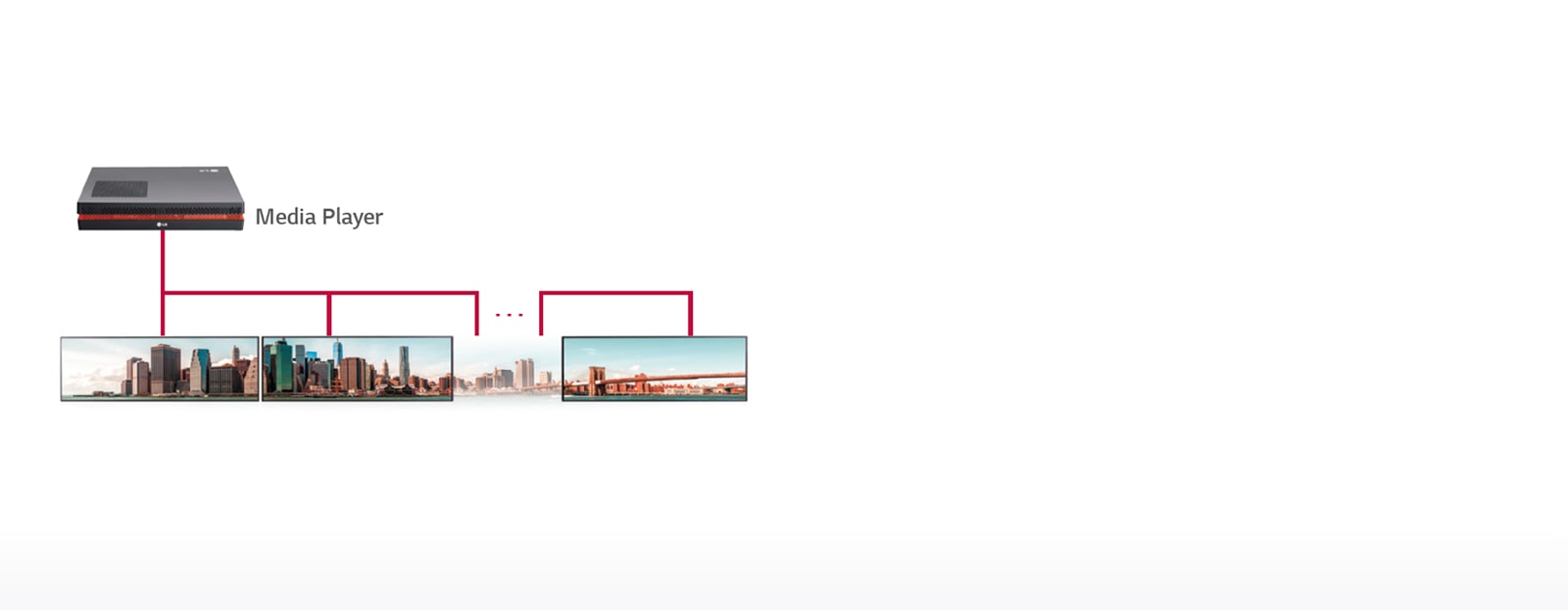

Tiling Scene with DP Daisy Chain

This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.
Close
PANEL
  • Screen Size
    88"
    Resolution
    3,840 x 1,080 (UHD)
  • Brightness (Typ., cd/m²)
    700
CONNECTIVITY
  • Input
    HDMI (3), DP, OPS, DVI-D, Analog Audio, USB 2.0, USB 3.0, SD Card
    Output
    DP, Analog Audio
  • External Control
    RS232C In/Out, RJ45 In/Out, IR+B Receiver, Pixel Sensor
PHYSICAL SPECIFICATION
  • Bezel Width
    4.4 mm (L/R), 5.9 mm (U/D)
    Monitor Dimension(W x H x D)
    2,158.3 x 611.2 x 84.8 mm (without handle)
  • Weight (Head)
    38 kg
    Carton Dimensions (W x H x D)
    2,274 x 717 x 212 mm
  • Packed Weight
    53.2 kg (Pallet included)
STANDARD (CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign C
ACCESSORY
  • Basic
    Remote Controller (including battery 2ea), Power Cord, DP (2.6M), RS-232C Cable (3M), Owner's Manual (Website upload)
    Optional
    AN-WF500 (Wi-Fi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor) ** Stand is not available
